Model IPSO IHW018ANH Washer – Common Parts & Diagrams

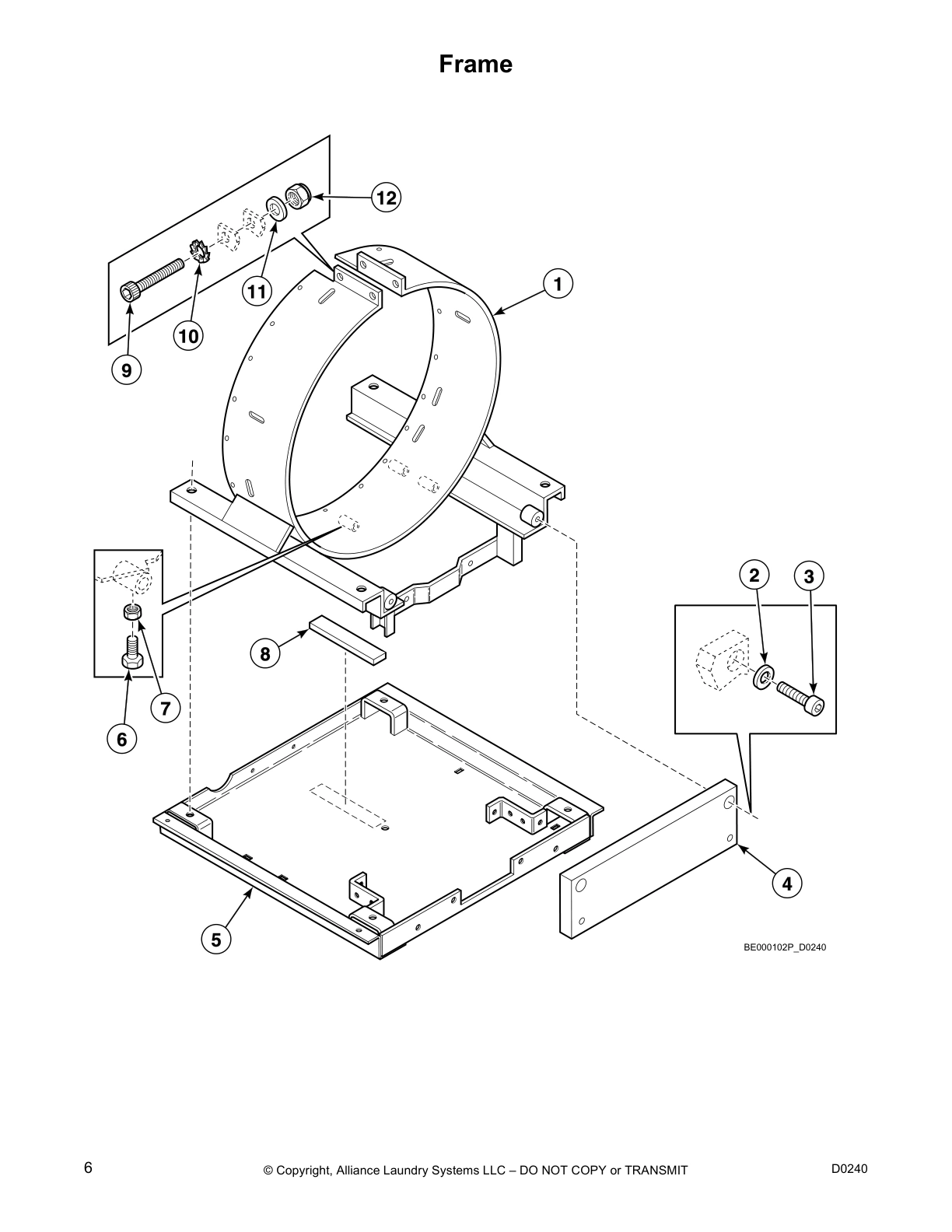

Frame

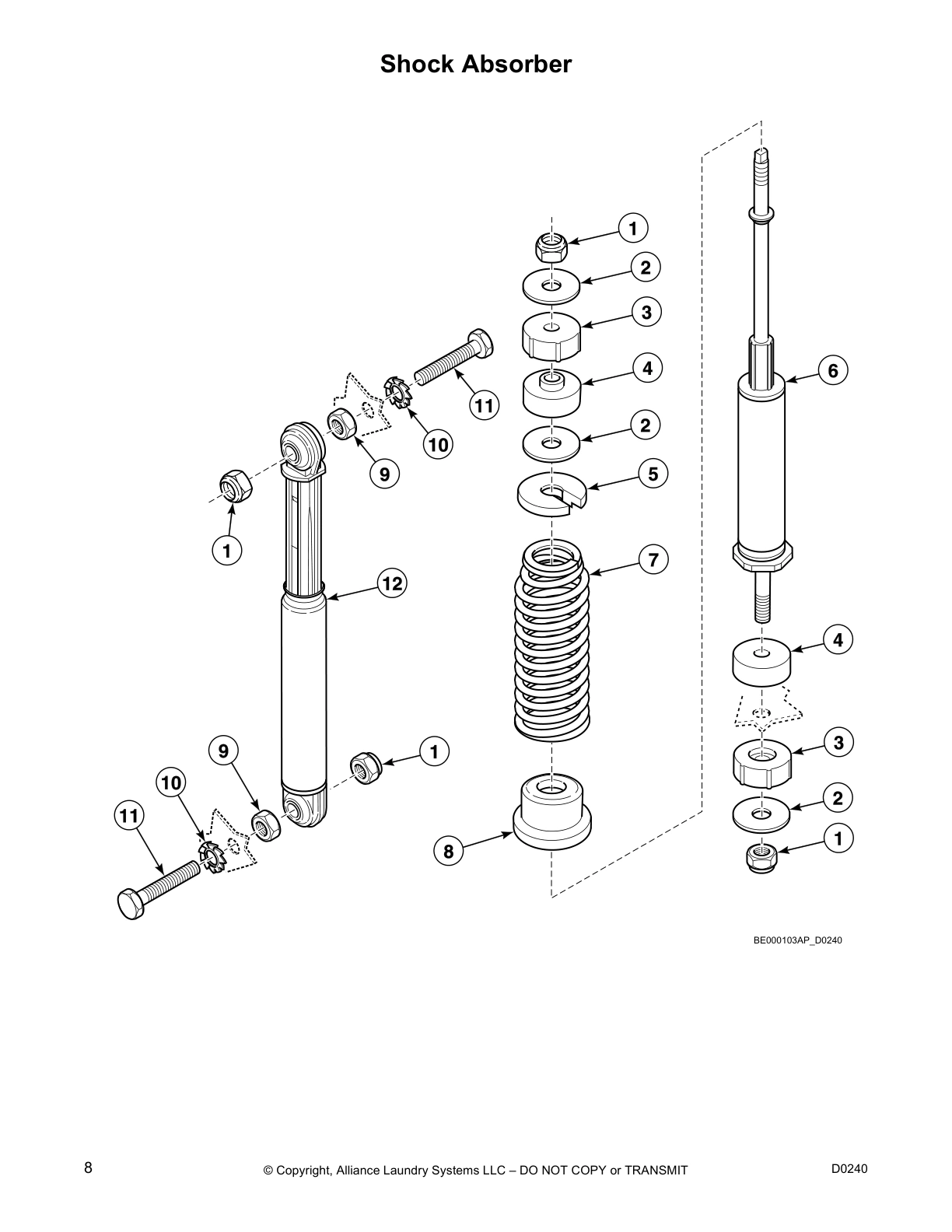

Shock Absorber
Basket and Shell
Bearing Housing
Basket, Pulley and Belt
Motor
Drain Plumbing - Single Drain
Drain Plumbing - Dual Drain
Door Lock
Door
Control Panel - Micro-20
Control Panel - Sigma
Control Panel - PS40F
Coin Meter and Coin Vault (Drawing 1 of 2)
Left Side, Lower Front and Upper Back Panels
Right Side, Front, Lower Rear and Top Panels
Inverter Drive
Upper Back Panel with Circular Ventilation
Upper Back Panel with Rectangular Ventilation
Noise Filter, Central Operating Panel Printboard
and Soap Injection Printboard
Electrical Component Mounting Plate
Balance Switch
Supply Dispenser with Round Ventilation Opening
Supply Dispenser with Rectangular Ventilation Opening
Electric and Steam Heating Options
Soap Pumps
Common parts from model IPSO IHW018ANH Washer
SPQ 206/00099/00 SPQ 206/00099/00 Contact Us For Availability
SPQ 111/10088/00 SPQ 111/10088/00 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
1
Nut SPQ 204/00111/00 Contact Us For Availability
1
Nut SPQ 204/00110/00 Contact Us For Availability
1
Tub SPQ 118/10086/00 Contact Us For Availability
1
Motor Plate SPQ 152/00040/00 Contact Us For Availability
1
Overflow Hose SPQ 223/00148/00 Contact Us For Availability
1
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
1
Bolt SPQ 206/00033/00 Contact Us For Availability
1
Fuse SPQ 209/00372/01 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Standoff SPQ 211/00120/00 Contact Us For Availability
1
Heating Element SPQ 209/00563/20 Contact Us For Availability
1
Feeding Liquid Soap Dosing Pump SPQ 209/00554/51 Contact Us For Availability
2
Fastening Rubber SPQ 201/00015/00 Contact Us For Availability
2
Nut SPQ 223/00242/00 Contact Us For Availability
2
O-Ring SPQ 201/00013/00 Contact Us For Availability
2
Cylinder Shaft Key SPQ 216/00007/00 Contact Us For Availability
2
Door Glass Seal SPQ 205/00107/00 Contact Us For Availability
2
Tilt Detector Plate SPQ 201/00010/00 Contact Us For Availability
2
Soap Dispenser Cover SPQ 111/22141/00 Contact Us For Availability
2
Plug SPQ 208/00130/00 Contact Us For Availability
2
Filter SPQ 227/00180/00 Contact Us For Availability
2
Soap Dispenser Gasket SPQ 223/00197/00 Contact Us For Availability
2
Soap Dispenser SPQ 223/00229/00 Contact Us For Availability
2
Steam Injector SPQ 209/00562/20 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
Frame SPQ 206/00055/00 Contact Us For Availability
3
Seal Cover SPQ 206/00053/00 Contact Us For Availability
3
Spring Holder Top SPQ 247/00007/00 Contact Us For Availability
3
Washer SPQ 217/00007/00 Contact Us For Availability
3
Belt SPQ 226/00111/00 Contact Us For Availability
3
Washer SPQ 113/00038/00 Contact Us For Availability
3
SPQ 205/00115/00 SPQ 205/00115/00 Contact Us For Availability
3
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
3
SPQ 211/00091/00 SPQ 211/00091/00 Contact Us For Availability
3
Washer SPQ 227/00179/00 Contact Us For Availability
3
Out-of-Balance Switch Boot SPQ 111/00108/01 Contact Us For Availability
3
Soap Dispenser Gasket SPQ 223/00222/00 Contact Us For Availability
4
Bolt SPQ 113/00035/00 Contact Us For Availability
4
Suspension Spring SPQ 247/00006/00 Contact Us For Availability
4
Shaft Seal SPQ 201/00201/00 Contact Us For Availability
4
Bolt SPQ 206/00004/00 Contact Us For Availability
4
Screw SPQ 223/00189/00 Contact Us For Availability
4
Standoff SPQ 211/00122/00 Contact Us For Availability
4
Washer SPQ 111/22144/00 Contact Us For Availability
4
Grommet SPQ 223/00174/00 Contact Us For Availability
4
SPQ 211/00087/00 SPQ 211/00087/00 Contact Us For Availability
4
Noise Suppressor SPQ 209/00356/00 Contact Us For Availability
4
Out-of-Balance Switch SPQ 223/00246/00 Contact Us For Availability
4
Soap Spray Nozzle SPQ 223/00245/00 Contact Us For Availability
5
SPQ 152/00041/50 SPQ 152/00041/50 Contact Us For Availability
5
Washer SPQ 203/00001/00 Contact Us For Availability
5
Spring Seat Bottom SPQ 247/00001/04 Contact Us For Availability
5
SPQ 201/00001/00 SPQ 201/00001/00 Contact Us For Availability
5
SPQ 217/00017/03 SPQ 217/00017/03 Contact Us For Availability
5
Front Panel SPQ 111/01702/00 Contact Us For Availability
5
SPQ 208/00025/00 SPQ 208/00025/00 Contact Us For Availability
5
Inverter Drive SPQ F8420705 Contact Us For Availability
5
Grommet SPQ 223/00198/00 Contact Us For Availability
5
Out-of-Balance Switch Bracket SPQ 207/00018/00 Contact Us For Availability
5
Soap Box Assembly Plate SPQ 223/00109/00 Contact Us For Availability
5
Steam Inlet SPQ 209/00581/10 Contact Us For Availability
5
Liquid Soap Dosing Pump O-Ring SPQ 209/00554/05 Contact Us For Availability
6
SPQ 247/00002/02 SPQ 247/00002/02 Contact Us For Availability
6
Clamp SPQ 206/00011/00 Contact Us For Availability
6
SPQ 224/00051/00 SPQ 224/00051/00 Contact Us For Availability
6
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
6
Screw SPQ 201/00003/00 Contact Us For Availability
6
SPQ 206/00127/00 SPQ 206/00127/00 Contact Us For Availability
6
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
6
Nut SPQ 202/00101/00 Contact Us For Availability
6
SPQ 203/00006/00 SPQ 203/00006/00 Contact Us For Availability
6
Switch Base SPQ 209/00099/25 Contact Us For Availability
6
SPQ 208/00017/00 SPQ 208/00017/00 Contact Us For Availability
6
Outer and Inner Box Kit SPQ B12347501 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
7
SPQ 204/00005/00 SPQ 204/00005/00 Contact Us For Availability
7
SPQ 247/00009/00 SPQ 247/00009/00 Contact Us For Availability
7
Door Boot SPQ 217/00008/00 Contact Us For Availability
7
SPQ 217/00002/00 SPQ 217/00002/00 Contact Us For Availability
7
SPQ 201/00018/00 SPQ 201/00018/00 Contact Us For Availability
7
Side Panel SPQ 223/00103/03 Contact Us For Availability
7
Inverter Drive Kit SPQ F8420704 Contact Us For Availability
7
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
7
Bolt SPQ 209/00564/20 Contact Us For Availability
8
SPQ 247/00002/03 SPQ 247/00002/03 Contact Us For Availability
8
Fastening Ring SPQ 238/00017/00 Contact Us For Availability
8
SPQ 117/00001/00 SPQ 117/00001/00 Contact Us For Availability
8
SPQ 226/00071/00 SPQ 226/00071/00 Contact Us For Availability
8
SPQ 226/00110/00 SPQ 226/00110/00 Contact Us For Availability
8
SPQ 223/00105/00 SPQ 223/00105/00 Contact Us For Availability
8
SPQ 217/00022/00 SPQ 217/00022/00 Contact Us For Availability
8
Switch Knob SPQ 209/00099/29 Contact Us For Availability
8
Bolt SPQ 208/00104/00 Contact Us For Availability
8
Nut SPQ F8420605 Contact Us For Availability
8
SPQ 123/00103/06 SPQ 123/00103/06 Contact Us For Availability
8
SPQ 223/00102/30 SPQ 223/00102/30 Contact Us For Availability
8
Nut SPQ 118/00105/01 Contact Us For Availability
9
SPQ 247/00001/03 SPQ 247/00001/03 Contact Us For Availability
9
Spring SPQ 223/00122/00 Contact Us For Availability
9
SPQ 217/00003/00 SPQ 217/00003/00 Contact Us For Availability
9
SPQ 206/00056/00 SPQ 206/00056/00 Contact Us For Availability
9
SPQ 217/00015/00 SPQ 217/00015/00 Contact Us For Availability
9
SPQ 205/00106/00 SPQ 205/00106/00 Contact Us For Availability
9
Lower Front Panel SPQ 111/10089/00 Contact Us For Availability
9
SPQ F8420604 SPQ F8420604 Contact Us For Availability
9
SPQ 204/00201/00 SPQ 204/00201/00 Contact Us For Availability
9
Central Control Board SPQ 209/00058/00 Contact Us For Availability
9
Hose Clamp SPQ 223/00011/00 Contact Us For Availability
9
SPQ 111/01171/00 SPQ 111/01171/00 Contact Us For Availability
9
SPQ 223/00222/60 SPQ 223/00222/60 Contact Us For Availability
9
SPQ 119/00082/00 SPQ 119/00082/00 Contact Us For Availability
10
Tub Front Panel SPQ 118/10085/00 Contact Us For Availability
10
Cordlock SPQ 211/00138/00 Contact Us For Availability
10
Retaining Ring SPQ 117/00042/00 Contact Us For Availability
10
Nut SPQ 204/00106/00 Contact Us For Availability
10
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
10
Reinforcement Plate SPQ 111/10089/01 Contact Us For Availability
10
Washer SPQ 201/00002/00 Contact Us For Availability
10
Pressure Switch Elbow SPQ 223/00210/00 Contact Us For Availability
10
Screw SPQ 208/00120/00 Contact Us For Availability
10
Dispenser Drain Funnel SPQ 223/00195/00 Contact Us For Availability
11
Nut SPQ 201/00005/00 Contact Us For Availability
11
Tub Front Gasket SPQ 118/10084/00 Contact Us For Availability
11
Nut SPQ 204/00115/00 Contact Us For Availability
11
Tub Drain Valve SPQ 223/00129/00 Contact Us For Availability
11
Washer SPQ 202/00108/00 Contact Us For Availability
11
Washer SPQ 203/00005/00 Contact Us For Availability
11
Washer SPQ 204/00007/00 Contact Us For Availability
11
Inverter Drive Box SPQ 111/10425/00 Contact Us For Availability
11
Network Connection Printboard SPQ 209/00540/00 Contact Us For Availability
11
Hose Barb SPQ 223/00016/00 Contact Us For Availability
11
Screw SPQ B12350903 Contact Us For Availability
11
Soap Dispenser Assembly SPQ 223/00102/50 Contact Us For Availability
12
Shock Absorber SPQ 247/00004/00 Contact Us For Availability
12
Retaining Ring SPQ 212/00030/00 Contact Us For Availability
12
Hose Clamp SPQ 223/00013/00 Contact Us For Availability
12
Drain Valve Overflow Plug SPQ 223/00086/00 Contact Us For Availability
12
Screw SPQ 207/00009/00 Contact Us For Availability
12
Door Lock Spring SPQ 224/00049/00 Contact Us For Availability
12
Nut SPQ 204/00006/00 Contact Us For Availability
12
Side Panel Gasket SPQ 246/00079/00 Contact Us For Availability
12
Bolt SPQ 206/00027/00 Contact Us For Availability
12
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
12
Prewash and Mainwash Nozzle SPQ 223/00001/04 Contact Us For Availability
12
Liquid Soap Dispenser Insert SPQ 223/00102/08 Contact Us For Availability
13
Bolt SPQ 204/00003/00 Contact Us For Availability
13
Tub Front Ring Clamp SPQ 118/00054/03 Contact Us For Availability
13
Washer SPQ 212/00028/00 Contact Us For Availability
13
Bolt SPQ 206/00054/00 Contact Us For Availability
13
Hose Clamp SPQ 223/00012/00 Contact Us For Availability
13
Washer SPQ 203/00007/00 Contact Us For Availability
13
Door Hinge Spacer SPQ 202/00104/00 Contact Us For Availability
13
Electrical Connection Plate SPQ 202/00004/00 Contact Us For Availability
13
Lower Rear Panel SPQ 111/10427/01 Contact Us For Availability
13
Parameter Unit Assembly SPQ F8410901 Contact Us For Availability
13
Noise Filter SPQ 227/00242/00 Contact Us For Availability
13
Thermostat Seal SPQ 225/10004/00 Contact Us For Availability
13
Soap Dispenser Rinse Siphon SPQ 223/00102/04 Contact Us For Availability
13
Siphon Break Dispenser Hose SPQ 223/00262/00 Contact Us For Availability
14
Vent Tube SPQ 206/00014/00 Contact Us For Availability
14
Screw SPQ 203/00002/00 Contact Us For Availability
14
Motor SPQ B12510501 Contact Us For Availability
14
Drain Valve SPQ 209/00463/00 Contact Us For Availability
14
Bolt SPQ 117/00011/00 Contact Us For Availability
14
Label SPQ 225/00397/00 Contact Us For Availability
14
Top Panel SPQ 111/23141/00 Contact Us For Availability
14
Thermostat Assembly SPQ 209/00309/02 Contact Us For Availability
14
Rinse Insert SPQ 223/00102/03 Contact Us For Availability
14
Siphon Break Hose SPQ 223/00266/00 Contact Us For Availability
15
Screw SPQ 207/00117/00 Contact Us For Availability
15
Screw SPQ 207/00125/00 Contact Us For Availability
15
Nut SPQ 204/00116/00 Contact Us For Availability
15
Operating Sticker SPQ 225/00400/00 Contact Us For Availability
15
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
15
Screw SPQ 111/00094/10 Contact Us For Availability
15
Softener Spray Nozzle SPQ 223/00102/05 Contact Us For Availability
15
Rinsing Box SPQ 223/00222/05 Contact Us For Availability
16
Triangle Support SPQ 206/00005/00 Contact Us For Availability
16
Fan Plate Assembly SPQ 152/00044/03 Contact Us For Availability
16
Interlock Lever SPQ 224/00043/00 Contact Us For Availability
16
Door Hinge SPQ 207/00126/00 Contact Us For Availability
16
Metal Disc SPQ 202/00120/00 Contact Us For Availability
16
Voltage Discharge Decal SPQ B12355001 Contact Us For Availability
16
Siphon Break Hose SPQ 223/00265/00 Contact Us For Availability
16
Siphon Break SPQ 223/00222/04 Contact Us For Availability
17
Screw SPQ 152/00055/00 Contact Us For Availability
17
Door Hinge Plate Assembly SPQ 221/00005/00 Contact Us For Availability
17
Washer SPQ 223/00123/00 Contact Us For Availability
17
Side Panel Gasket SPQ 208/00009/00 Contact Us For Availability
17
Inverter Box Cover SPQ 111/10425/01 Contact Us For Availability
17
Screw SPQ 211/00093/00 Contact Us For Availability
17
Softener Spray Nozzle SPQ 223/00222/03 Contact Us For Availability
18
Lever Spring SPQ 217/00052/04 Contact Us For Availability
18
Door Handle Stop SPQ 118/00065/00 Contact Us For Availability
18
Side Panel SPQ 207/00101/00 Contact Us For Availability
18
Hose Vent SPQ 208/00001/00 Contact Us For Availability
18
Liquid Soap Manifold SPQ 223/00250/00 Contact Us For Availability
19
Caddy Bracket SPQ 252/00027/00 Contact Us For Availability
19
Screw SPQ 206/00086/00 Contact Us For Availability
19
Liquid Soap Manifold SPQ 201/00006/00 Contact Us For Availability
19
Outlet Pipe Plate Assembly SPQ 111/22131/00 Contact Us For Availability
19
Water Hose SPQ 223/00044/00 Contact Us For Availability
20
SPQ 111/00118/00 SPQ 111/00118/00 Contact Us For Availability
20
Shrink Fit SPQ 223/00010/00 Contact Us For Availability
20
Rivet SPQ 208/00002/00 Contact Us For Availability
21
Lock Protection Plate SPQ 202/00124/00 Contact Us For Availability
21
Circuit Board Cover SPQ 229/00262/00 Contact Us For Availability
21
SPQ 111/00109/00 SPQ 111/00109/00 Contact Us For Availability
22
Ground Terminal SPQ 224/00040/00 Contact Us For Availability
22
Hose Clamp SPQ 223/00102/07 Contact Us For Availability
23
Washer SPQ 223/00190/00 Contact Us For Availability
23
Bolt SPQ 117/00052/08 Contact Us For Availability
23
SPQ 111/10426/90 SPQ 111/10426/90 Contact Us For Availability
24
SPQ 204/00009/00 SPQ 204/00009/00 Contact Us For Availability
24
Outlet Pipe Plate Assembly SPQ 223/00228/00 Contact Us For Availability
24
Door Lock Microswitch SPQ 210/10015/00 Contact Us For Availability
25
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
25
Lock Shaft SPQ 204/00008/00 Contact Us For Availability
26
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
26
SPQ 205/00103/00 SPQ 205/00103/00 Contact Us For Availability
NI
SPQ 202/00003/00 SPQ 202/00003/00 Contact Us For Availability
NI
SPQ 238/00013/00 SPQ 238/00013/00 Contact Us For Availability
NI
SPQ 238/00014/00 SPQ 238/00014/00 Contact Us For Availability
NI
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
NI
SPQ 118/00046/10 SPQ 118/00046/10 Contact Us For Availability
NI
SPQ 204/00114/00 SPQ 204/00114/00 Contact Us For Availability
NI
SPQ 111/10090/00 SPQ 111/10090/00 Contact Us For Availability
NI
Fuse SPQ 209/00438/50 Contact Us For Availability
NI
SPQ 209/00468/00 SPQ 209/00468/00 Contact Us For Availability
NI
SPQ 118/01063/00 SPQ 118/01063/00 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
