Model Ipso IHU305C Washer – Common Parts & Diagrams

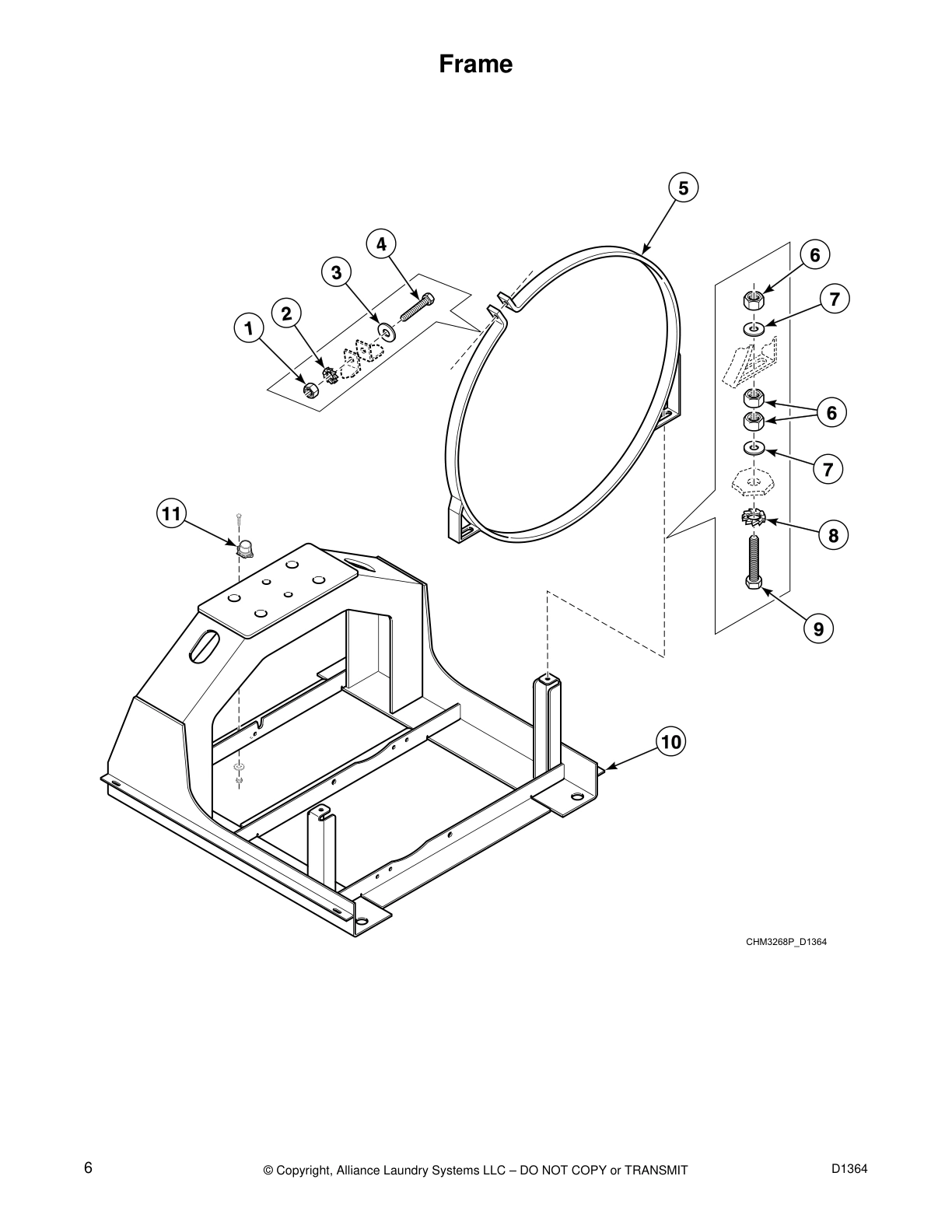

Frame

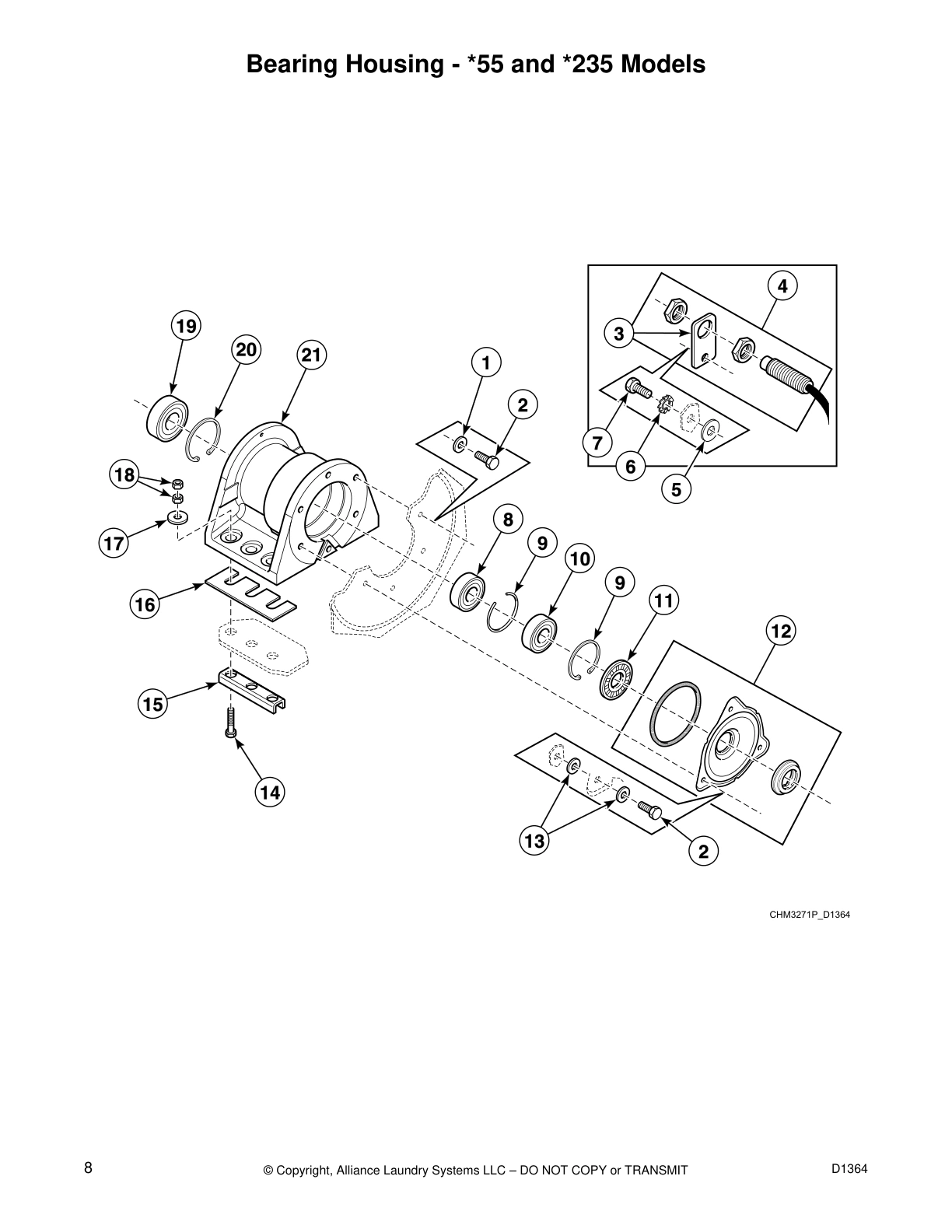

Bearing Housing - *55 and *235 Models
Bearing Housing - *75, *90, *305 and *400 Models
Basket, Pulley and Belt - *55 and *235
Basket, Pulley and Belt - *75, *90, *305 and *400 Models
Shell and Basket
Motor and Belt
Drain Plumbing
Door Lock
Door
Control Panel - Cygnus Professional
Control Panel - Cygnus Ultra Pro
Control Panel - Cygnus Premium OPL and Ultra
Control Panel - Cygnus Premium Coin
Control Panel - Cygnus Standard/Commercial OPL and Select
Control Panel - Cygnus Standard/Commercial Coin and Vended
Coin Drop - Mechanical Coin Meter
Coin Drop - Electronic Coin Meter
Left Side, Lower Front and Upper Rear Panels
Right Side, Front, Lower Rear and Top Panels
Inverter Drive
Printboard Support Panel and Soap Injection Printboards
Electrical Component Mounting Plate
Steam and Electric Heating Options
Common parts from model Ipso IHU305C Washer
SPQ F407P4 SPQ F407P4 Contact Us For Availability
SPQ B12311220 SPQ B12311220 Contact Us For Availability
SPQ B12311214 SPQ B12311214 Contact Us For Availability
SPQ B12311211 SPQ B12311211 Contact Us For Availability
SPQ B12311206 SPQ B12311206 Contact Us For Availability
SPQ B12311204 SPQ B12311204 Contact Us For Availability
SPQ B12311201 SPQ B12311201 Contact Us For Availability
SPQ B12311216 SPQ B12311216 Contact Us For Availability
SPQ B12381402 SPQ B12381402 Contact Us For Availability
Steam Heat Harness SPQ B12455905 Contact Us For Availability
Heating Harness SPQ B12349703 Contact Us For Availability
Steam Valve Harness SPQ B12348501 Contact Us For Availability
Electric Heat Harness SPQ B12381204 Contact Us For Availability
SPQ B12382302 SPQ B12382302 Contact Us For Availability
SPQ B12349603 SPQ B12349603 Contact Us For Availability
SPQ B12455904 SPQ B12455904 Contact Us For Availability
1
Bearing Cover SPQ 112/00003/00 Contact Us For Availability
1
Hose Clamp SPQ 223/00011/00 Contact Us For Availability
1
Bolt SPQ 205/00106/00 Contact Us For Availability
1
Printboard SPQ 209/02001/02 Contact Us For Availability
1
Nut SPQ 204/00014/00 Contact Us For Availability
1
Heating Element SPQ 209/00562/20 Contact Us For Availability
2
Side Panel SPQ 202/00003/00 Contact Us For Availability
2
Ball Bearing SPQ 204/00010/00 Contact Us For Availability
2
Screw SPQ 207/00102/00 Contact Us For Availability
2
Heating Element SPQ 209/00581/10 Contact Us For Availability
3
Retainer Ring SPQ 206/00010/00 Contact Us For Availability
3
Roller Bearing SPQ 212/00005/00 Contact Us For Availability
3
SPQ 117/00042/00 SPQ 117/00042/00 Contact Us For Availability
3
Bolt SPQ 217/00021/00 Contact Us For Availability
3
Rivet SPQ 204/00116/00 Contact Us For Availability
3
Pressure Switch Hose Tee SPQ 223/00123/00 Contact Us For Availability
3
Coin Drop SPQ B12323401 Contact Us For Availability
3
Coin Drop SPQ B12311401 Contact Us For Availability
3
Panel Lock SPQ B12597501 Contact Us For Availability
4
Bearing Housing Assembly SPQ 203/00003/00 Contact Us For Availability
4
Nut SPQ 202/00101/00 Contact Us For Availability
4
Protection LED SPQ 223/00330/00 Contact Us For Availability
4
Pushbutton SPQ 209/00396/00 Contact Us For Availability
4
Pushbutton SPQ B12311252 Contact Us For Availability
4
SPQ 227/00242/00 SPQ 227/00242/00 Contact Us For Availability
4
Pressure Hose SPQ B12548301 Contact Us For Availability
5
Key SPQ 44089303P Contact Us For Availability
5
Belt SPQ 207/00004/00 Contact Us For Availability
5
SPQ 206/00032/00 SPQ 206/00032/00 Contact Us For Availability
5
Nameplate SPQ B12389801 Contact Us For Availability
5
Mechanical Coin Meter Housing SPQ B12311241 Contact Us For Availability
6
Hardware Kit SPQ 212/00006/00 Contact Us For Availability
6
SPQ 226/00146/00 SPQ 226/00146/00 Contact Us For Availability
6
SPQ 223/00071/00 SPQ 223/00071/00 Contact Us For Availability
6
Plexi Frame SPQ 225/00322/00 Contact Us For Availability
6
Top Panel SPQ 111/01003/00 Contact Us For Availability
6
Top Panel SPQ B12311239 Contact Us For Availability
6
SPQ F8201001 SPQ F8201001 Contact Us For Availability
6
Side Panel SPQ 70155603 Contact Us For Availability
7
Washer SPQ 206/00004/00 Contact Us For Availability
7
SPQ 204/00111/00 SPQ 204/00111/00 Contact Us For Availability
7
Door Hinge Spacer SPQ B12565001 Contact Us For Availability
7
Operating Sticker SPQ B12382801 Contact Us For Availability
7
Operating Sticker SPQ B12382901 Contact Us For Availability
7
Fastening Piece SPQ B12311234 Contact Us For Availability
7
Fastening Piece SPQ 217/00060/00 Contact Us For Availability
7
SPQ B12509101 SPQ B12509101 Contact Us For Availability
8
SPQ 206/00079/00 SPQ 206/00079/00 Contact Us For Availability
8
Bearing Replacement Tool Kit SPQ 212/00103/00 Contact Us For Availability
8
SPQ B12541601 SPQ B12541601 Contact Us For Availability
8
SPQ 206/00066/00 SPQ 206/00066/00 Contact Us For Availability
8
SPQ 223/00012/00 SPQ 223/00012/00 Contact Us For Availability
8
SPQ 253/00022/00 SPQ 253/00022/00 Contact Us For Availability
8
SPQ 111/60038/50 SPQ 111/60038/50 Contact Us For Availability
9
SPQ B12349904 SPQ B12349904 Contact Us For Availability
9
Bearing Replacement Kit SPQ 212/00103/01 Contact Us For Availability
9
SPQ 201/00011/00 SPQ 201/00011/00 Contact Us For Availability
9
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
9
SPQ 118/00124/00 SPQ 118/00124/00 Contact Us For Availability
9
Wire Harness Assembly SPQ B12310001 Contact Us For Availability
9
Wire Harness Assembly SPQ B12311224 Contact Us For Availability
9
SPQ 111/60038/00 SPQ 111/60038/00 Contact Us For Availability
9
SPQ 209/02014/00 SPQ 209/02014/00 Contact Us For Availability
9
Control Supply Harness SPQ B12392701 Contact Us For Availability
10
Screw SPQ 206/00056/00 Contact Us For Availability
10
Tub Front Panel Clip SPQ 217/00008/00 Contact Us For Availability
10
Bolt SPQ 206/00005/00 Contact Us For Availability
10
Pressure Switch Cap SPQ 223/00035/02 Contact Us For Availability
10
Screw SPQ 207/00126/00 Contact Us For Availability
10
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
10
Nut SPQ 204/00107/00 Contact Us For Availability
10
Washer SPQ 205/00105/00 Contact Us For Availability
11
Vibration Switch SPQ F8204001 Contact Us For Availability
11
Outlet Pipe Plate Assembly SPQ 203/00004/00 Contact Us For Availability
11
Lip Seal SPQ B12332301 Contact Us For Availability
11
Washer SPQ 202/00104/00 Contact Us For Availability
11
Memory Card PC-Board SPQ B12305201 Contact Us For Availability
11
Relay PC-Board SPQ 209/02016/00 Contact Us For Availability
12
Grease Ring SPQ 212/00007/00 Contact Us For Availability
12
Strain Relief Connector SPQ 211/00181/00 Contact Us For Availability
12
Nut SPQ 204/00110/00 Contact Us For Availability
12
Washer SPQ 202/00002/00 Contact Us For Availability
12
Data Card Ribbon Assembly SPQ B12538301 Contact Us For Availability
12
Nut SPQ 101/00007/00 Contact Us For Availability
13
Key SPQ 212/00026/00 Contact Us For Availability
13
Drum SPQ B12327301 Contact Us For Availability
13
Retaining Ring SPQ 204/00009/00 Contact Us For Availability
13
Washer SPQ 201/00015/00 Contact Us For Availability
13
Printboard Separator SPQ 211/00128/00 Contact Us For Availability
13
Bolt SPQ 206/00016/00 Contact Us For Availability
14
Bearing Housing Plate SPQ 113/00018/02 Contact Us For Availability
14
Bolt SPQ 206/00029/00 Contact Us For Availability
14
Motor Mounting Rod SPQ B12363001 Contact Us For Availability
14
Drain Valve to Drain Tube Hose SPQ 223/00328/00 Contact Us For Availability
14
Switch Knob SPQ 209/00099/29 Contact Us For Availability
14
Door Lock PC-Board SPQ B12388201 Contact Us For Availability
15
Washer SPQ 203/00001/00 Contact Us For Availability
15
U-Piece Assembly SPQ 113/00018/01 Contact Us For Availability
15
Washer SPQ 201/00007/00 Contact Us For Availability
15
Mounting Plate SPQ 223/00374/00 Contact Us For Availability
15
Rivet SPQ 208/00017/00 Contact Us For Availability
15
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
15
Ground Lug Connector SPQ M411283 Contact Us For Availability
16
Nut SPQ 204/00002/00 Contact Us For Availability
16
Bolt SPQ 113/00068/00 Contact Us For Availability
16
Supply Dispenser Cover Frame SPQ 204/00106/00 Contact Us For Availability
16
Inverter SPQ F8645401P Contact Us For Availability
16
Circuit Breaker SPQ B12487101 Contact Us For Availability
17
Washer SPQ 206/00093/00 Contact Us For Availability
17
SPQ 201/00009/00 SPQ 201/00009/00 Contact Us For Availability
17
Motor Plate SPQ 206/00119/00 Contact Us For Availability
17
Nut SPQ 206/00101/00 Contact Us For Availability
17
Overflow Hose SPQ 206/00033/00 Contact Us For Availability
17
Washer SPQ 204/00114/00 Contact Us For Availability
18
Nut SPQ 201/00001/00 Contact Us For Availability
18
SPQ 204/00003/00 SPQ 204/00003/00 Contact Us For Availability
18
Door Glass Seal SPQ B12389701 Contact Us For Availability
18
Fuse SPQ 203/00006/00 Contact Us For Availability
19
SPQ 203/00002/00 SPQ 203/00002/00 Contact Us For Availability
19
Retaining Ring SPQ B12362901 Contact Us For Availability
19
Prewash and Mainwash Nozzle SPQ 223/00013/00 Contact Us For Availability
19
Washer SPQ 202/00004/00 Contact Us For Availability
20
SPQ 201/00005/00 SPQ 201/00005/00 Contact Us For Availability
20
Strain Relief Connector SPQ 111/00243/00 Contact Us For Availability
20
Drain Valve Motor SPQ 223/00131/00 Contact Us For Availability
20
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
21
SPQ 206/00052/00 SPQ 206/00052/00 Contact Us For Availability
21
Pressure Hose SPQ 223/00001/04 Contact Us For Availability
21
Rivet SPQ 211/00170/00 Contact Us For Availability
22
Pressure Switch Cap SPQ 201/00002/00 Contact Us For Availability
22
Air Duct SPQ 204/00011/00 Contact Us For Availability
23
SPQ 204/00201/00 SPQ 204/00201/00 Contact Us For Availability
24
Fuse Holder Body SPQ 70329401P Contact Us For Availability
25
SPQ 223/00044/00 SPQ 223/00044/00 Contact Us For Availability
25
E-Stop Drive Fan Harness SPQ 209/00468/00 Contact Us For Availability
26
SPQ 209/00051/11 SPQ 209/00051/11 Contact Us For Availability
26
Fuse SPQ 802492 Contact Us For Availability
27
Fuse Holder Cap SPQ 70329501 Contact Us For Availability
28
ID Chip SPQ F8401301 Contact Us For Availability
29
Pressure Switch SPQ 209/02020/00 Contact Us For Availability
NI
SPQ B12349903 SPQ B12349903 Contact Us For Availability
NI
SPQ 201/00202/00 SPQ 201/00202/00 Contact Us For Availability
NI
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
NI
SPQ 382P3-1 SPQ 382P3-1 Contact Us For Availability
NI
SPQ 892P3 SPQ 892P3 Contact Us For Availability
NI
Door Lock Harness SPQ B12495001 Contact Us For Availability
NI
SPQ B12348901 SPQ B12348901 Contact Us For Availability
NI
E-Stop Bypass Harness SPQ B12349001 Contact Us For Availability
NI
E-Stop Harness SPQ B12382701 Contact Us For Availability
NI
SPQ B12311222 SPQ B12311222 Contact Us For Availability
NI
SPQ B12311221 SPQ B12311221 Contact Us For Availability
NI
SPQ B12311219 SPQ B12311219 Contact Us For Availability
NI
SPQ B12311212 SPQ B12311212 Contact Us For Availability
NI
SPQ B12311210 SPQ B12311210 Contact Us For Availability
NI
SPQ B12311205 SPQ B12311205 Contact Us For Availability
NI
SPQ B12311202 SPQ B12311202 Contact Us For Availability
NI
SPQ B12311247 SPQ B12311247 Contact Us For Availability
NI
SPQ B12311301 SPQ B12311301 Contact Us For Availability
NI
SPQ 152/00112/00 SPQ 152/00112/00 Contact Us For Availability
NI
SPQ B12309901 SPQ B12309901 Contact Us For Availability
NI
SPQ B12551301 SPQ B12551301 Contact Us For Availability
NI
SPQ B12501501 SPQ B12501501 Contact Us For Availability
NI
SPQ B12529201 SPQ B12529201 Contact Us For Availability
NI
SPQ B12388301 SPQ B12388301 Contact Us For Availability
NI
SPQ B12348801 SPQ B12348801 Contact Us For Availability
NI
SPQ B12348301 SPQ B12348301 Contact Us For Availability
NI
SPQ B12348101 SPQ B12348101 Contact Us For Availability
NI
Heating Element Plug SPQ 209/00564/20 Contact Us For Availability
NI
Heat Harness SPQ F360202 Contact Us For Availability
NI
Branch Harness SPQ B12455805 Contact Us For Availability
NI
Power Jumper Harness SPQ B12348507 Contact Us For Availability
NI
Dual Heat Harness SPQ B12381301 Contact Us For Availability
NI
Relay SPQ B12348506 Contact Us For Availability
NI
SPQ B12349803 SPQ B12349803 Contact Us For Availability
NI
SPQ B12308001 SPQ B12308001 Contact Us For Availability
NI
SPQ B12455804 SPQ B12455804 Contact Us For Availability
× ![]()
