Model IPSO IHF575ANH Washer – Common Parts & Diagrams

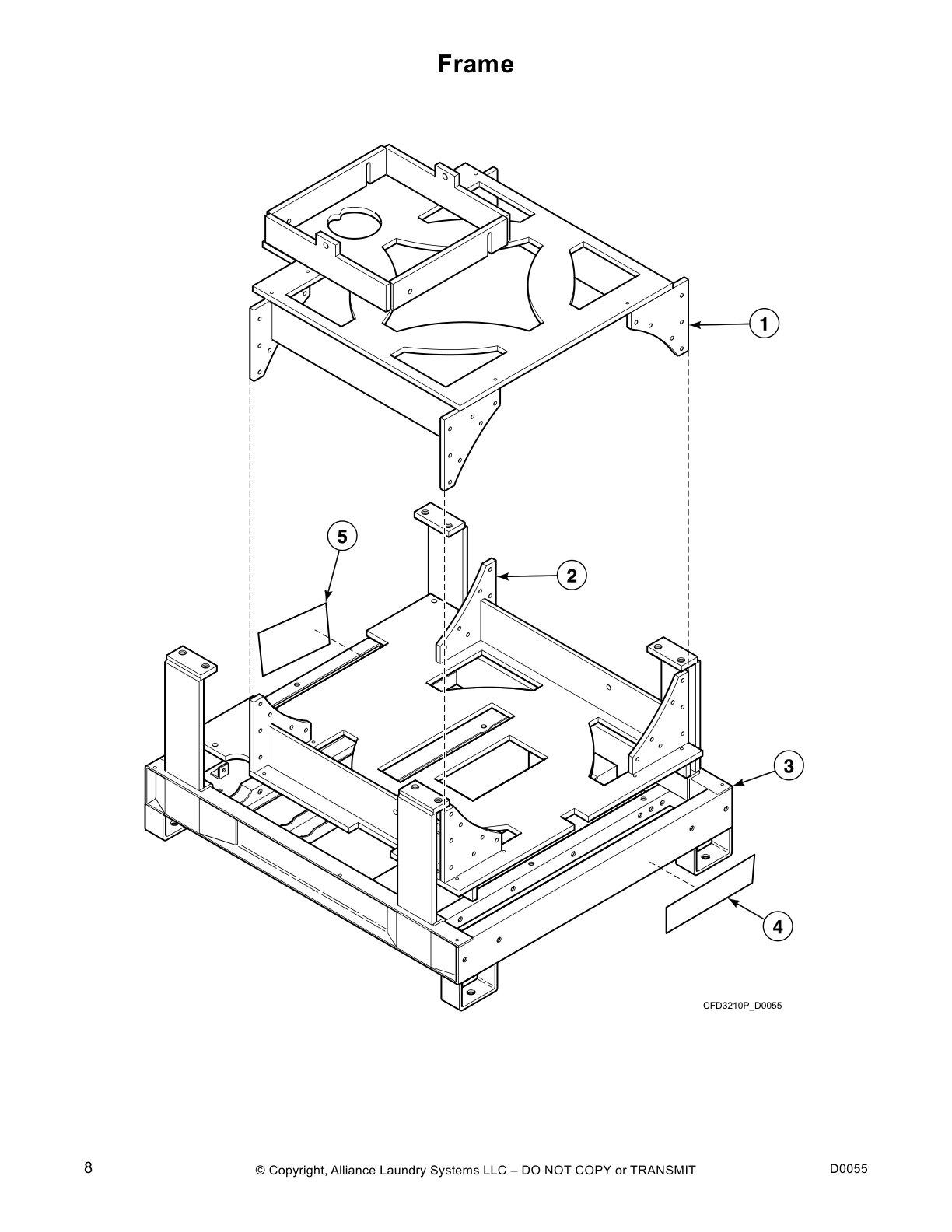

Frame

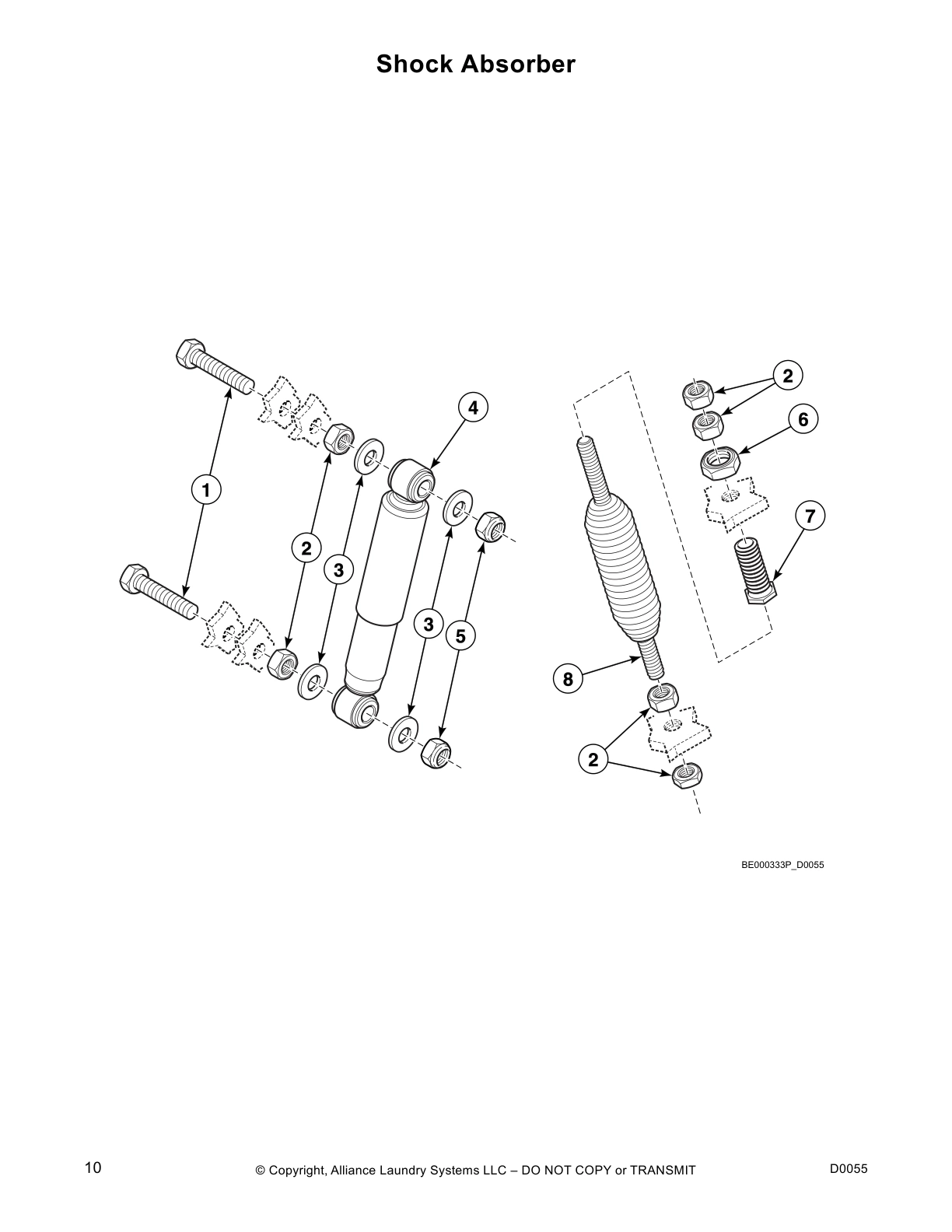

Shock Absorber

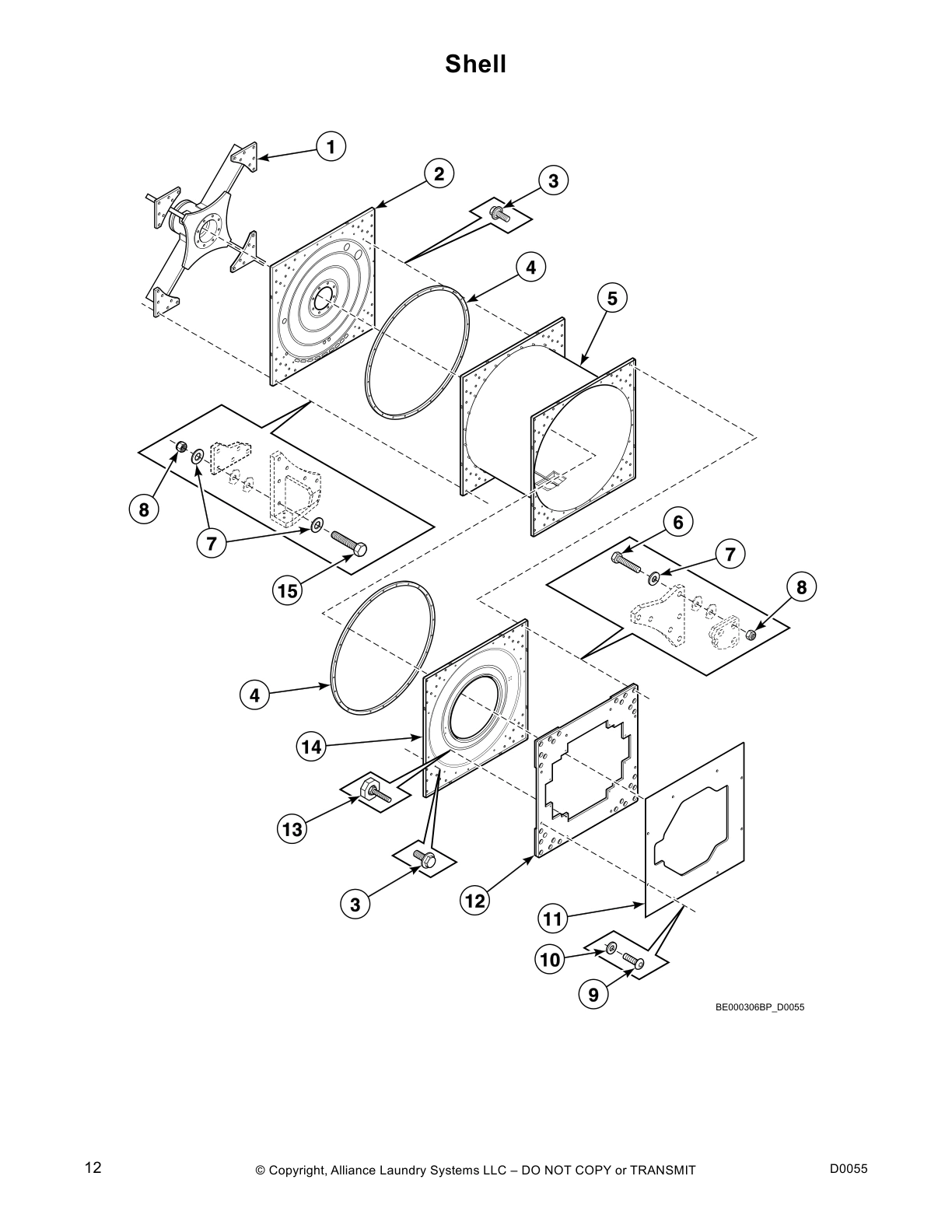

Shell

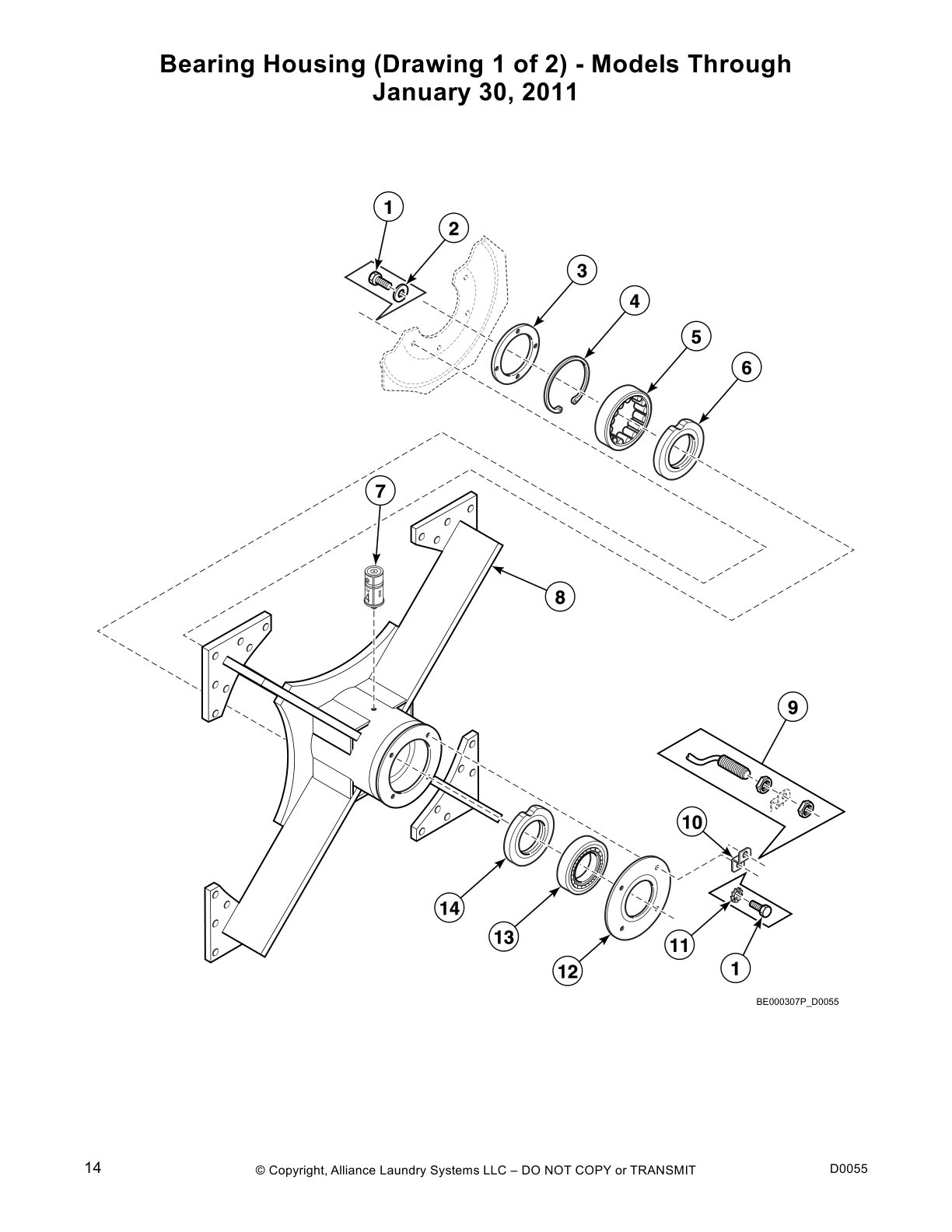

Bearing Housing (Drawing 1 of 2) - Models Through
January 30, 2011

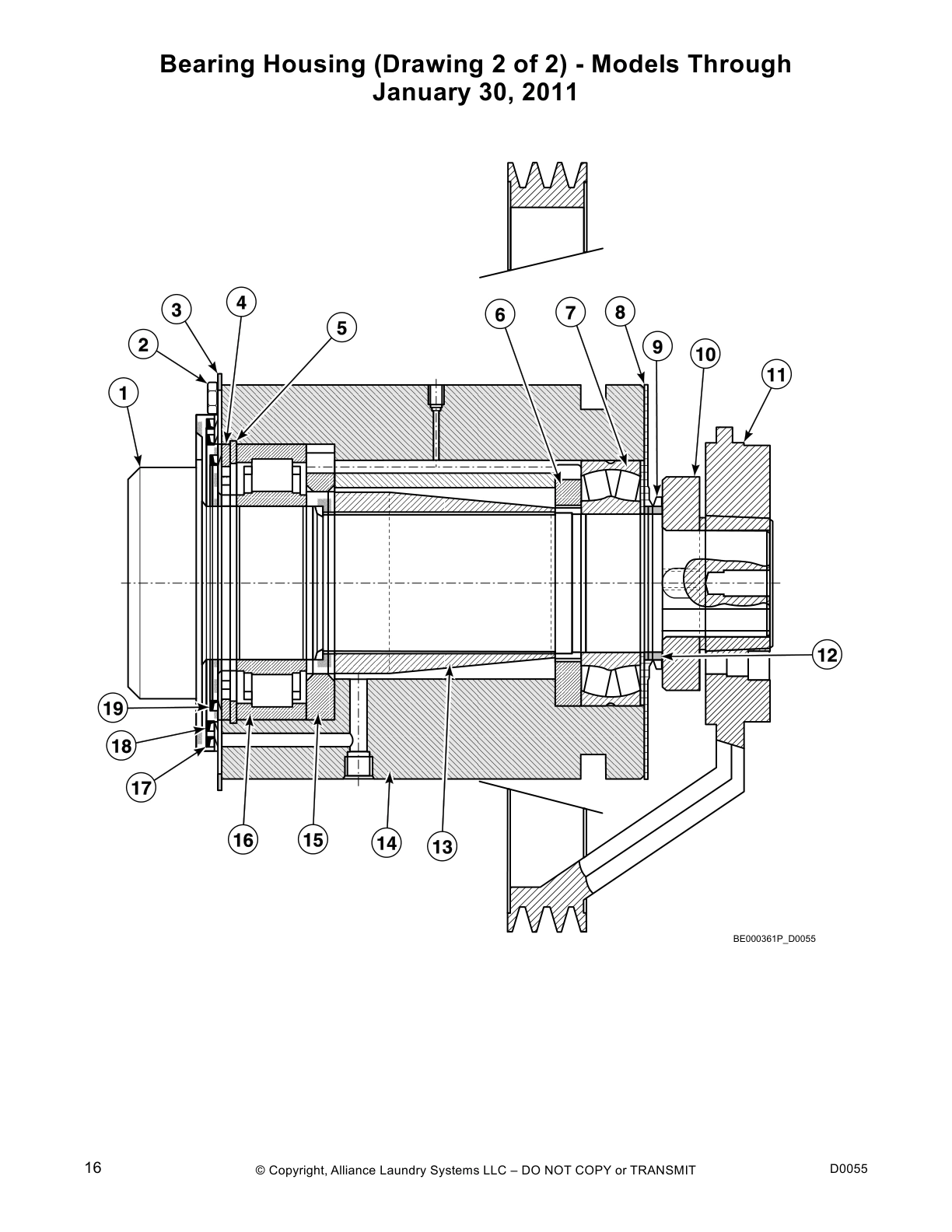

Bearing Housing (Drawing 2 of 2) - Models Through
January 30, 2011

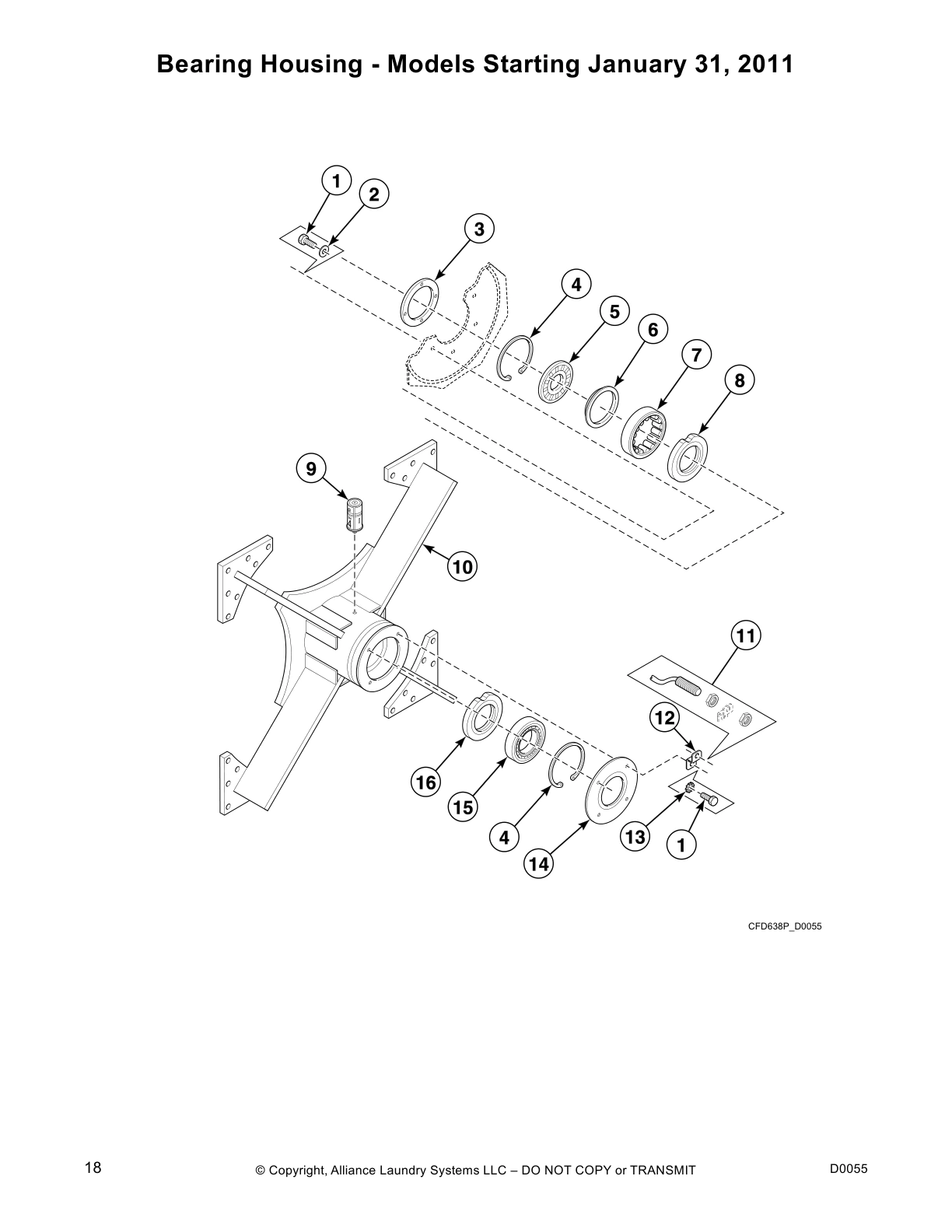

Bearing Housing - Models Starting January 31, 2011

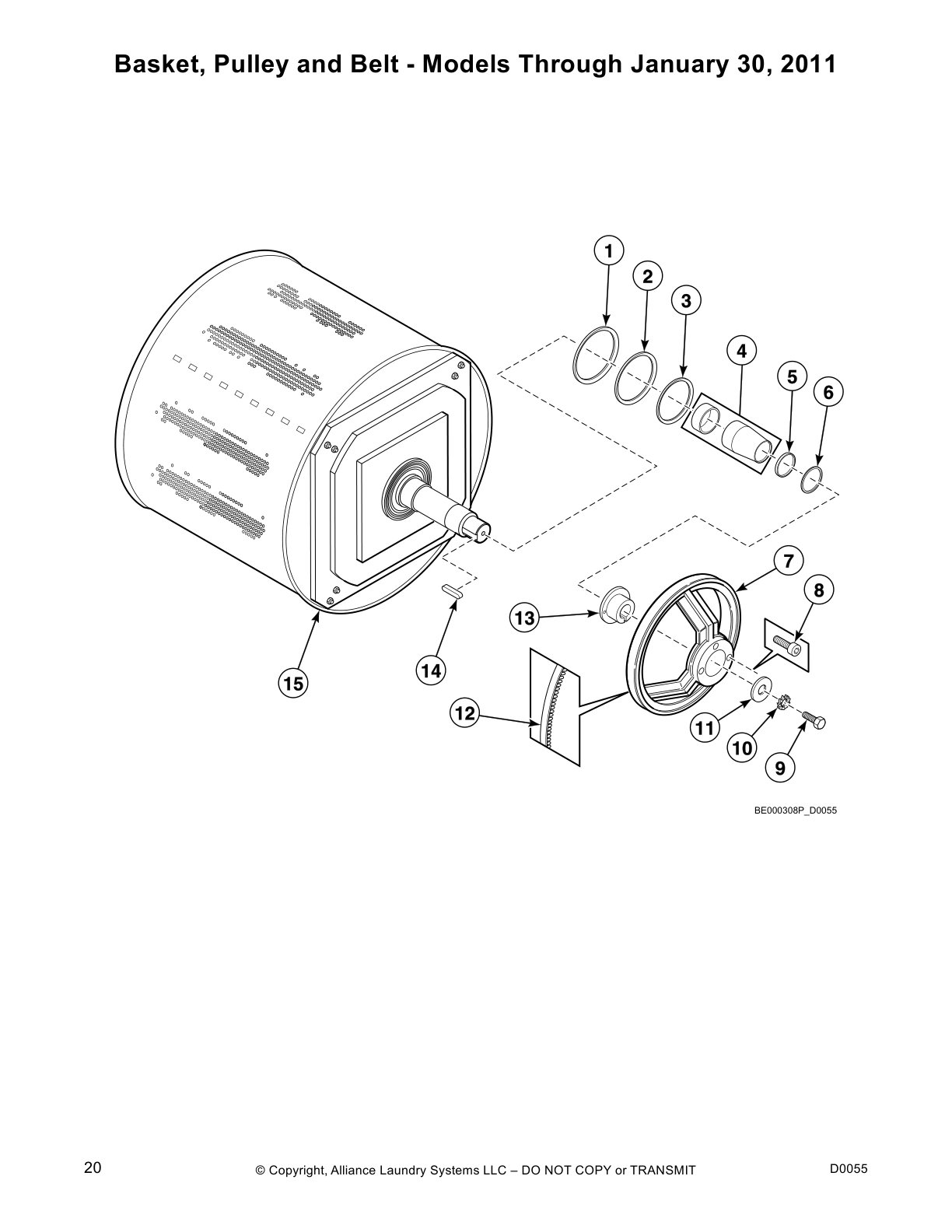

Basket, Pulley and Belt - Models Through January 30, 2011

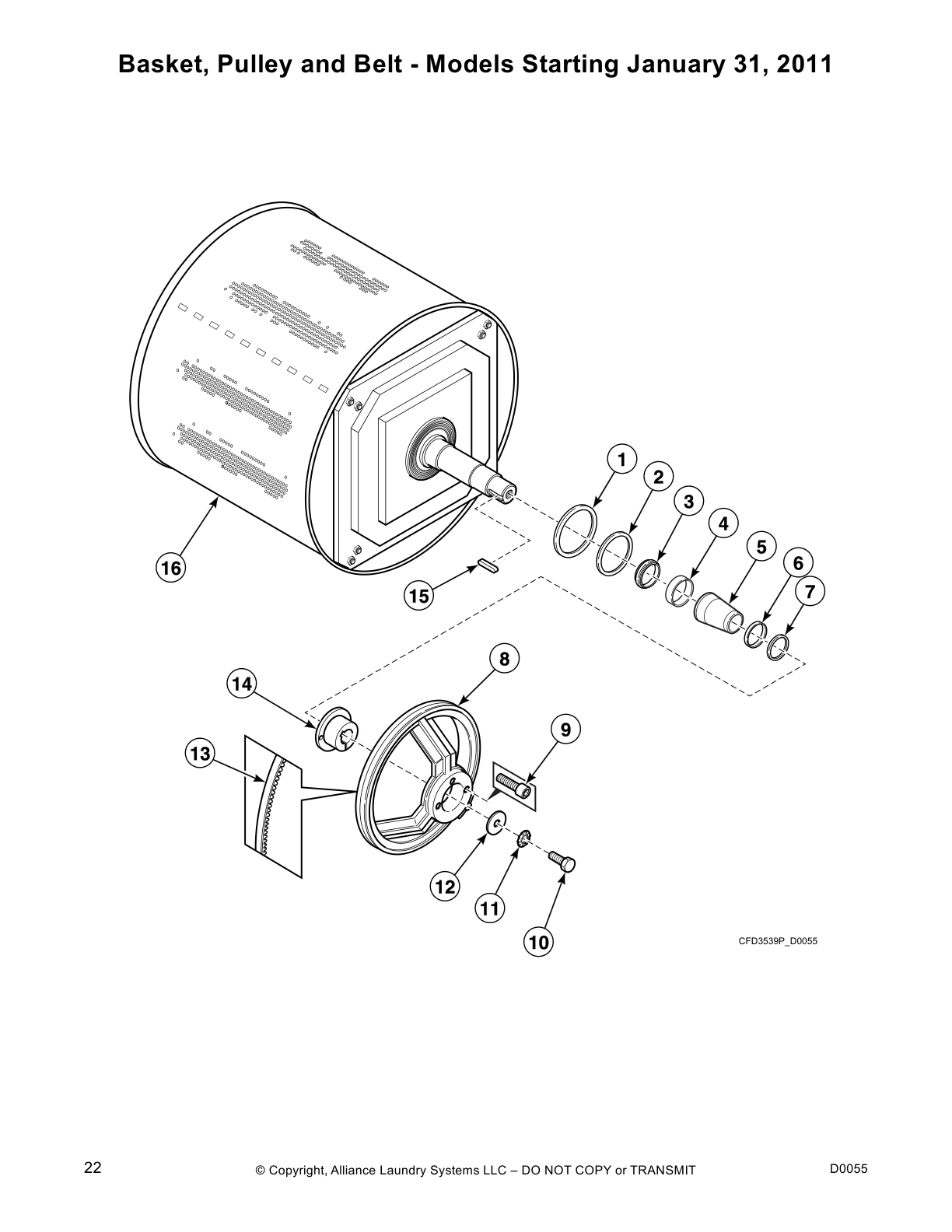

Basket, Pulley and Belt - Models Starting January 31, 2011

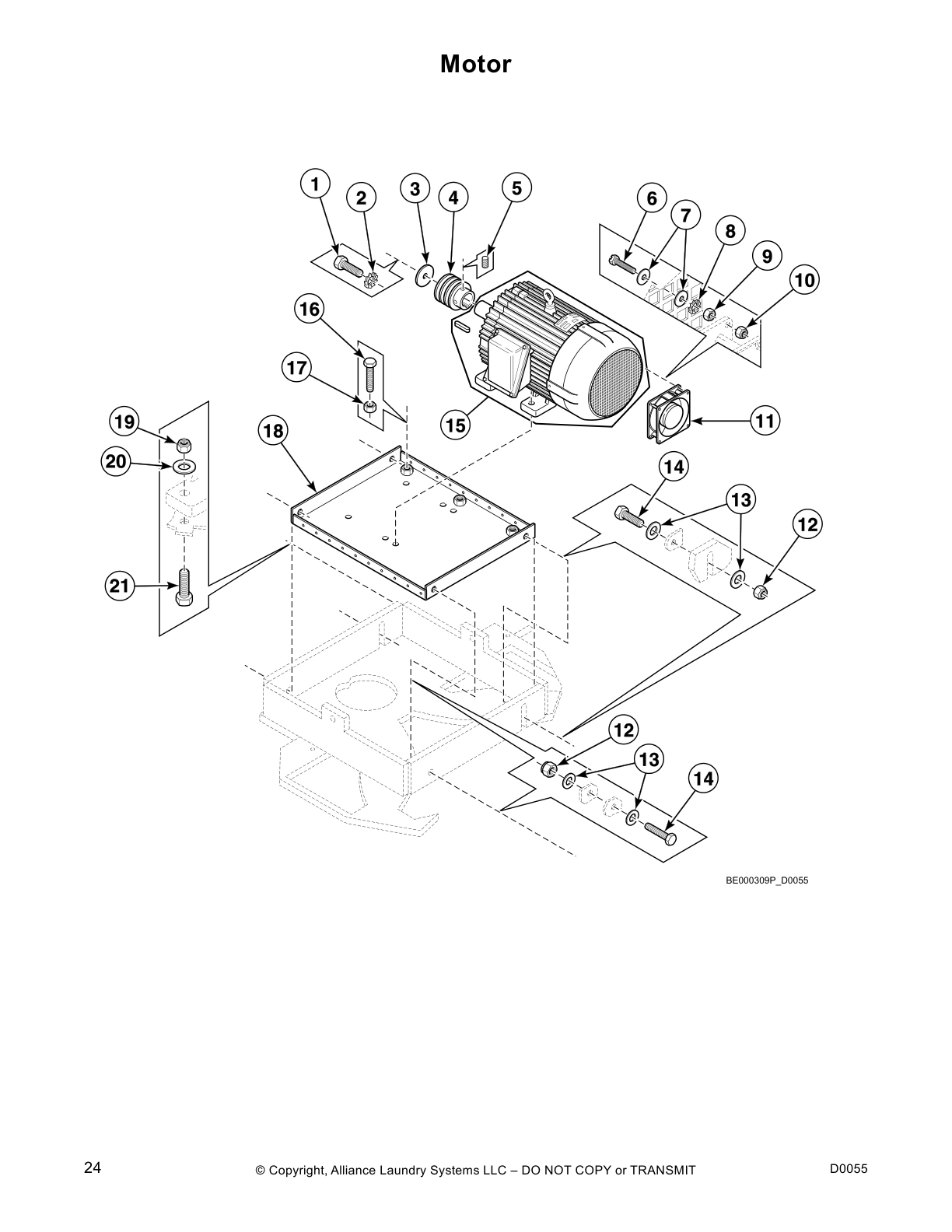

Motor

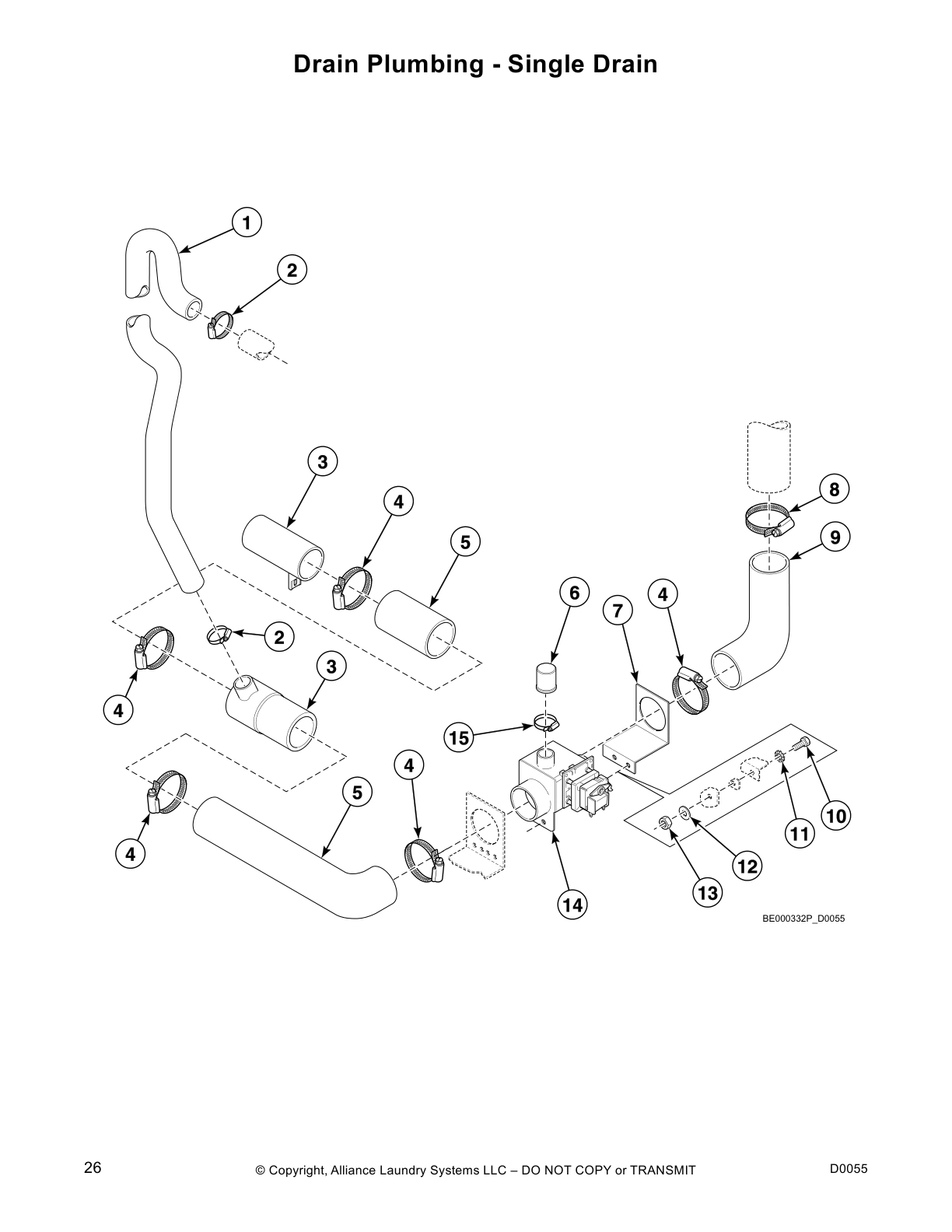

Drain Plumbing - Single Drain

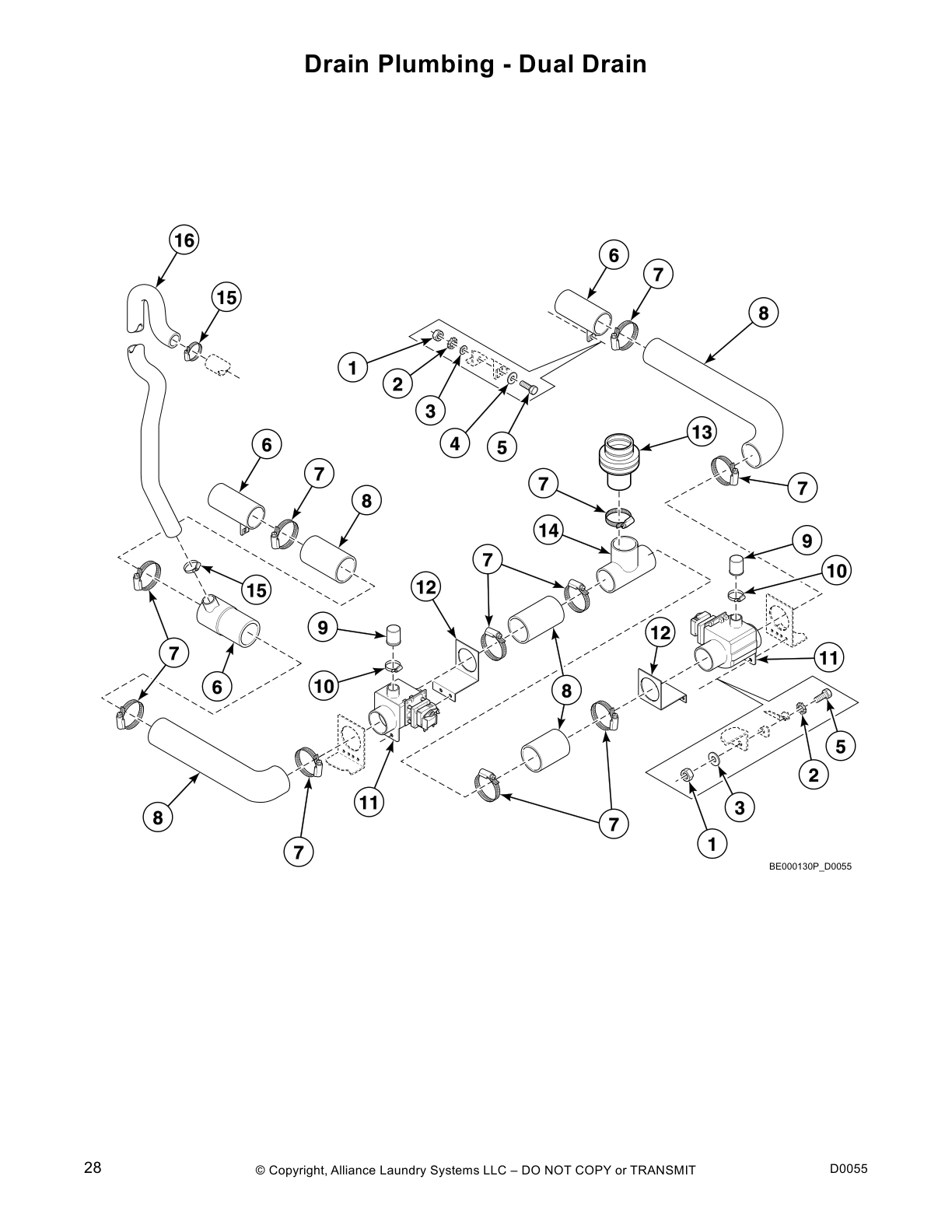

Drain Plumbing - Dual Drain

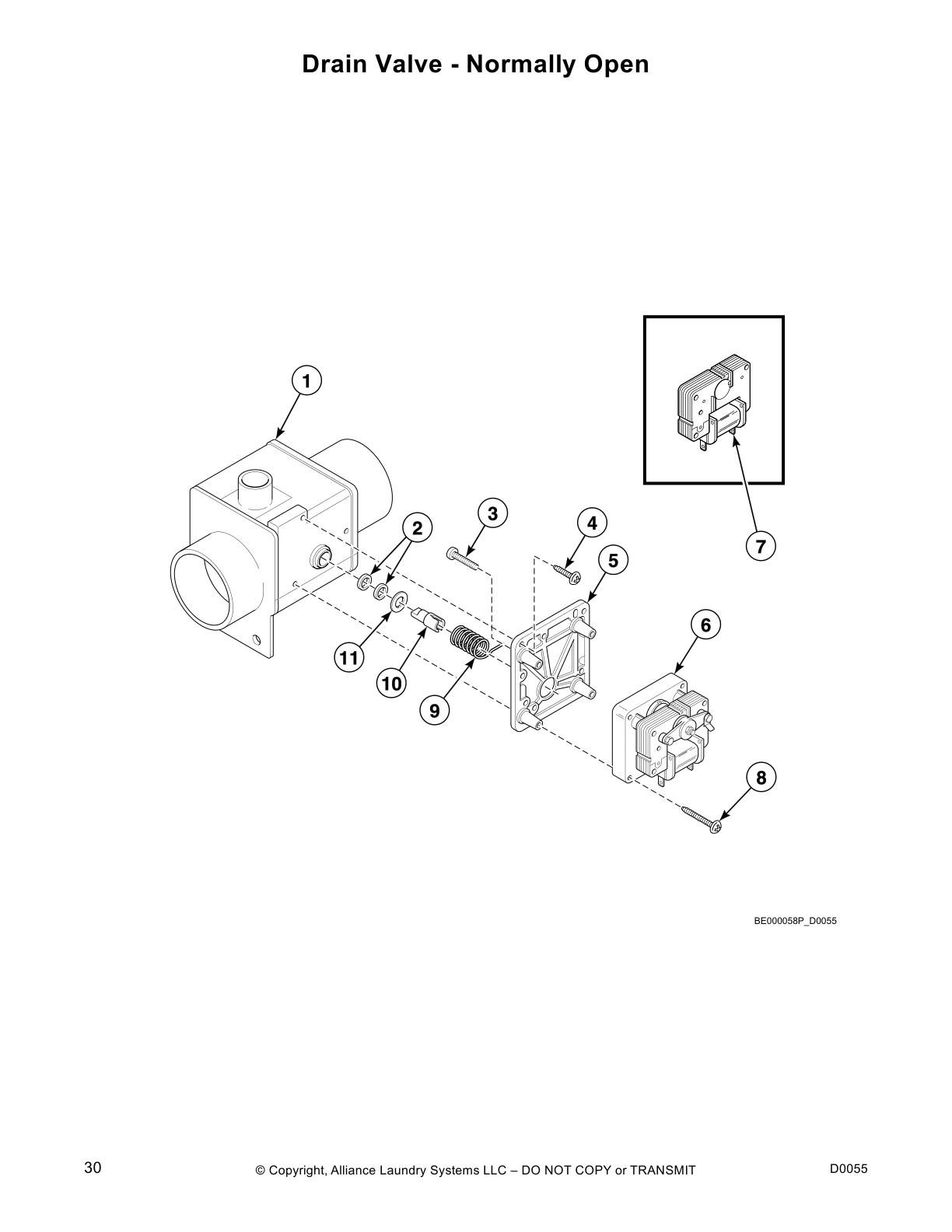

Drain Valve - Normally Open

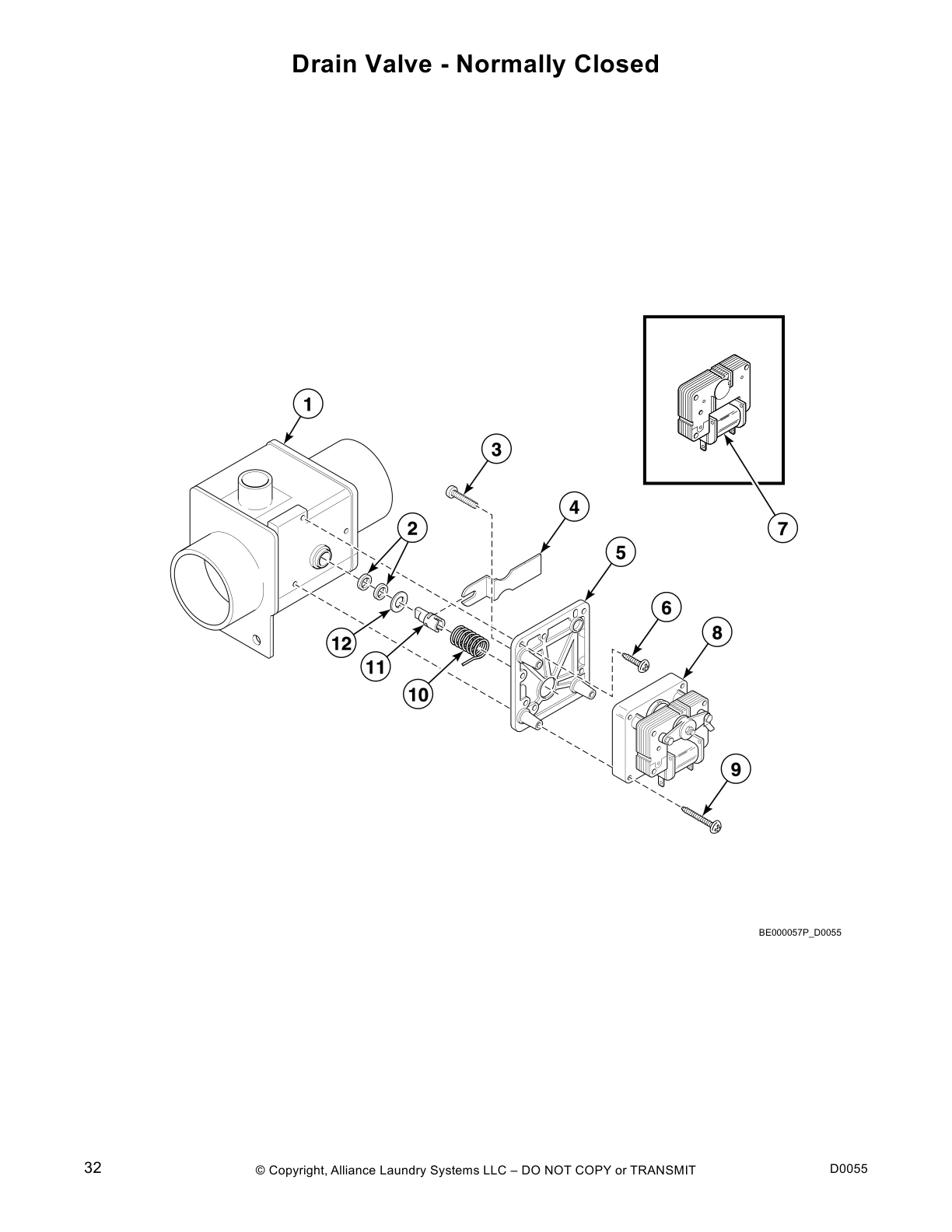

Drain Valve - Normally Closed

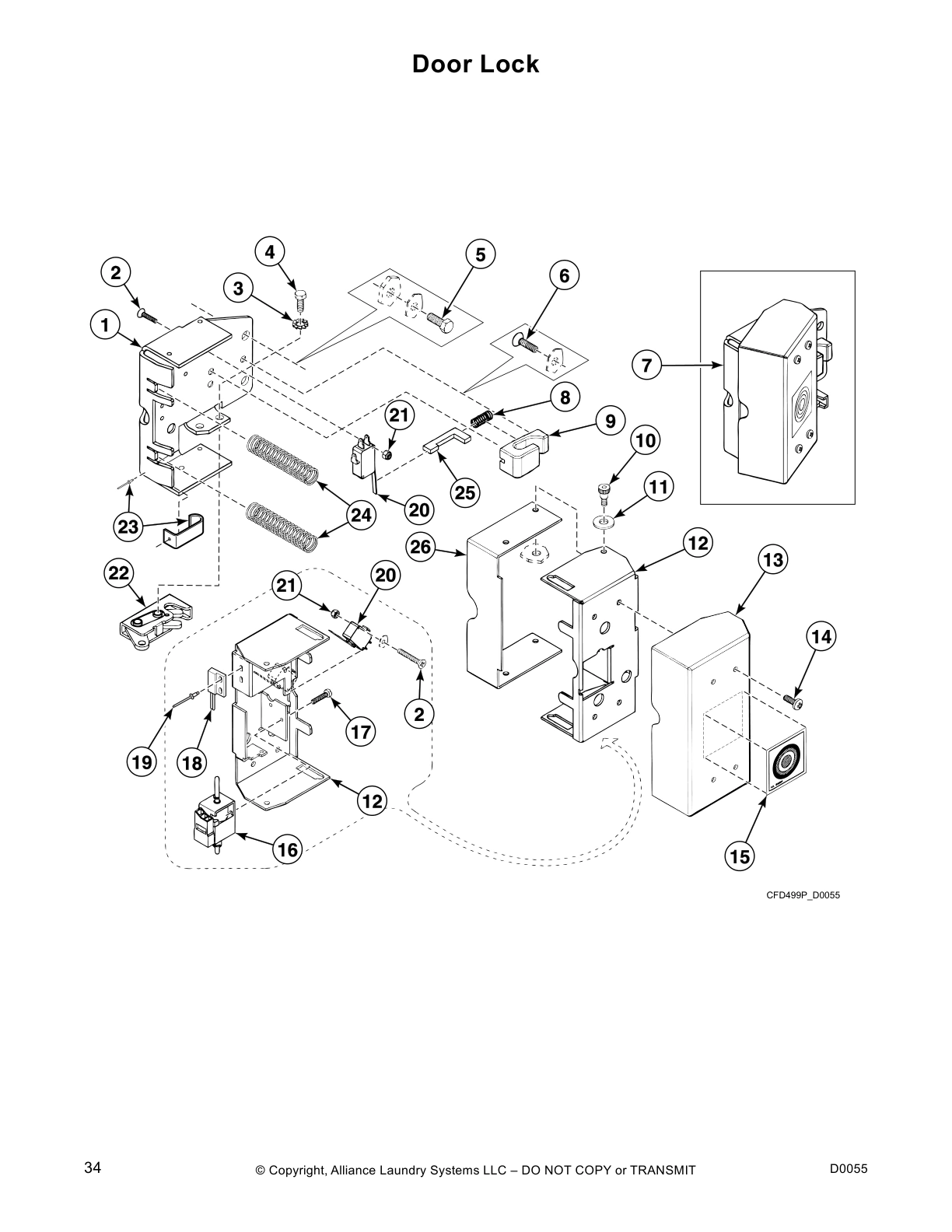

Door Lock

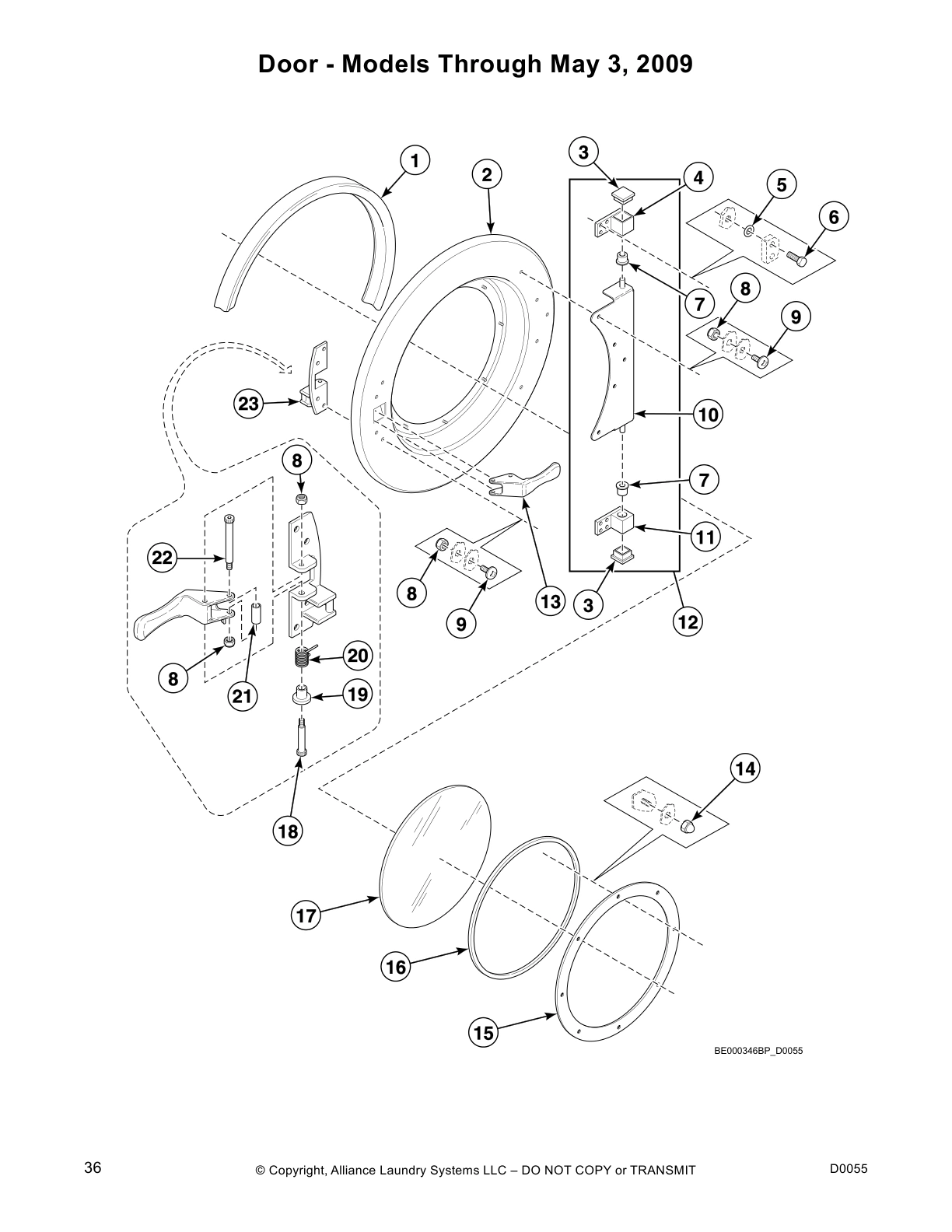

Door - Models Through May 3, 2009

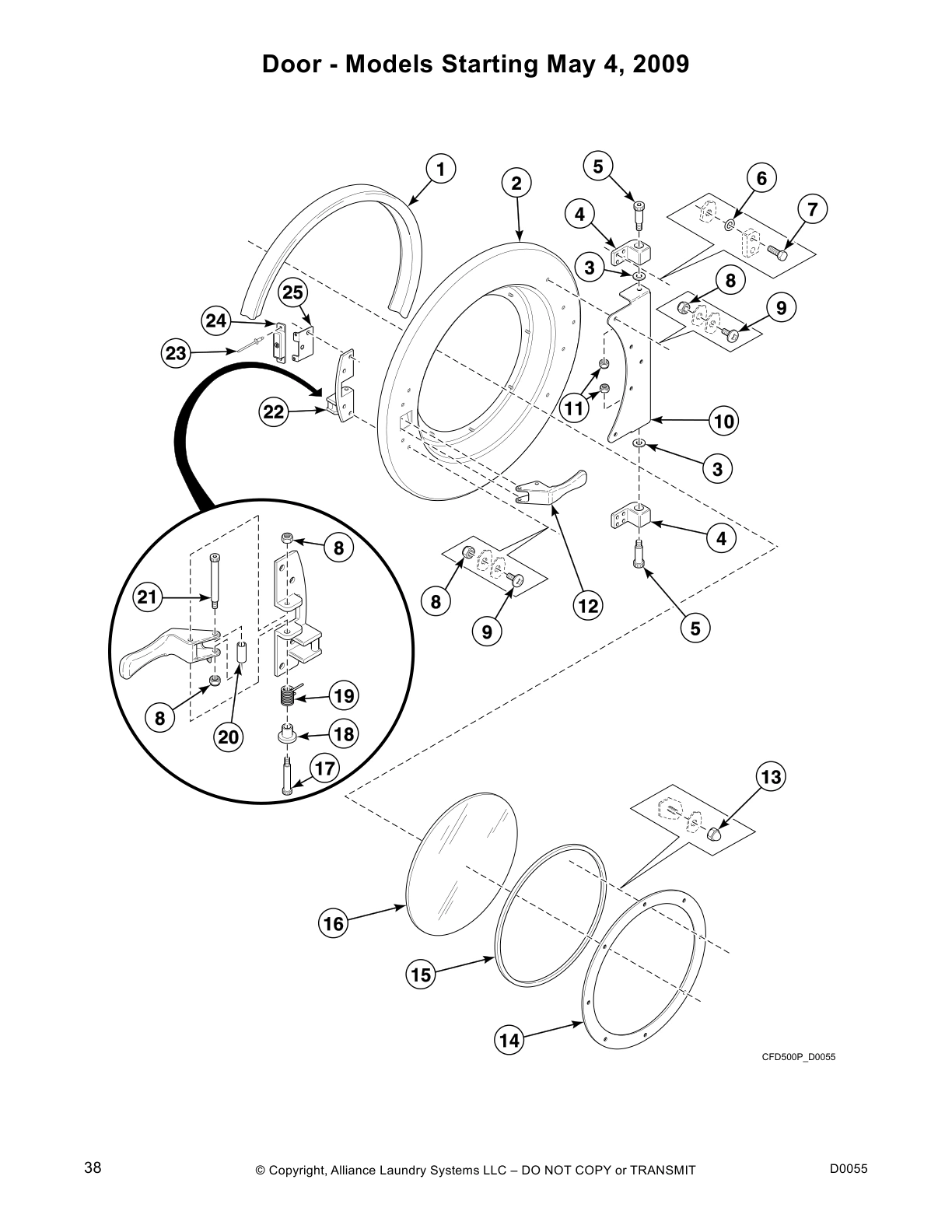

Door - Models Starting May 4, 2009

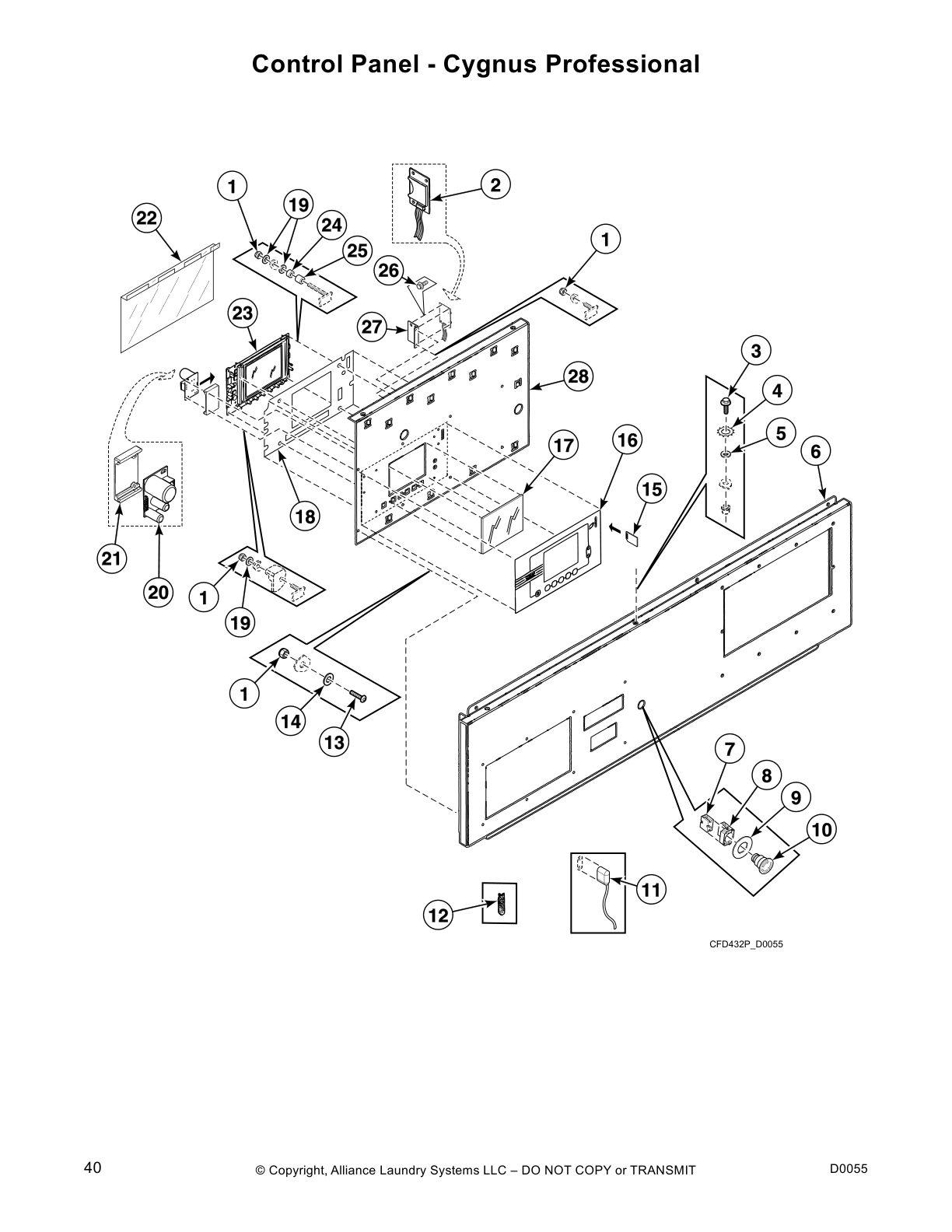

Control Panel - Cygnus Professional

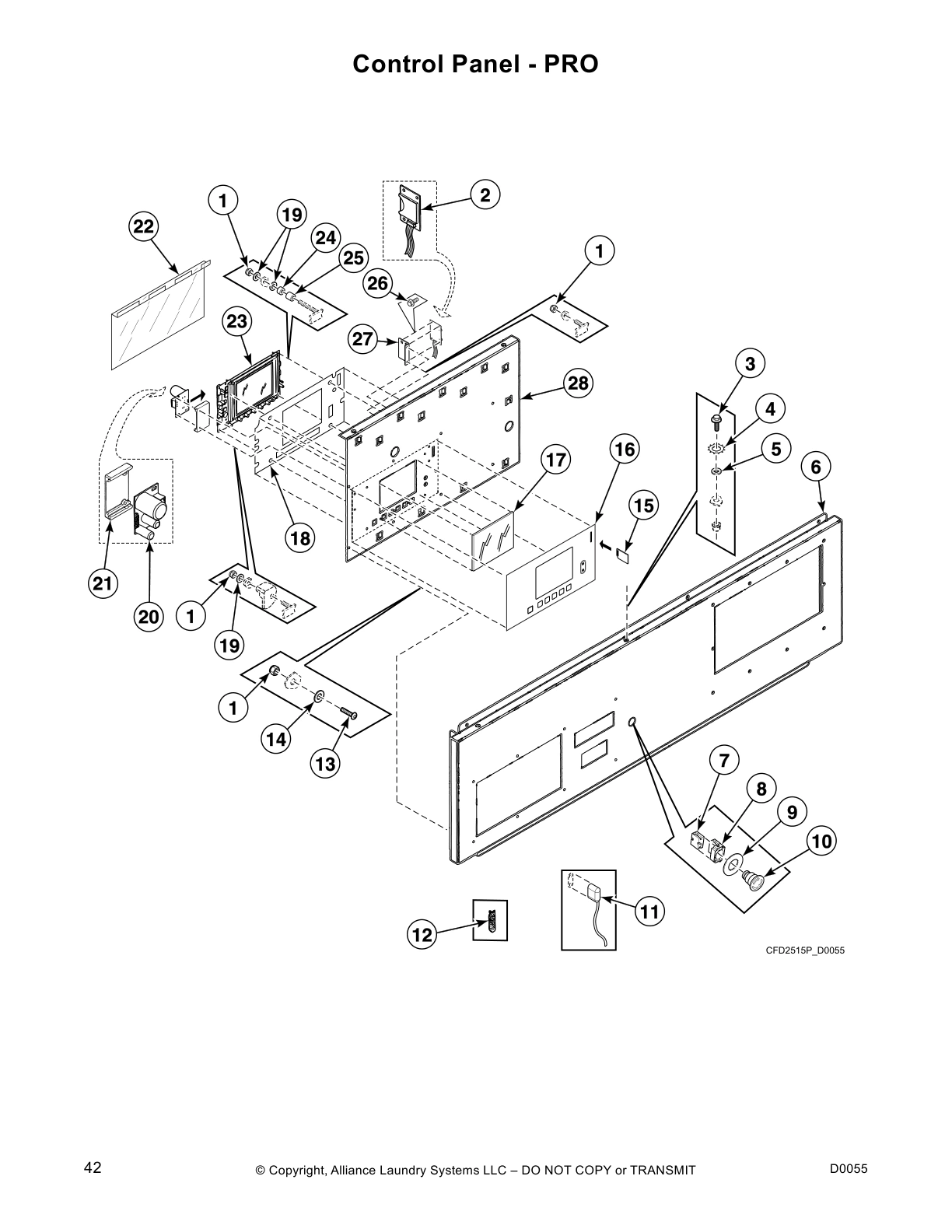

Control Panel - PRO

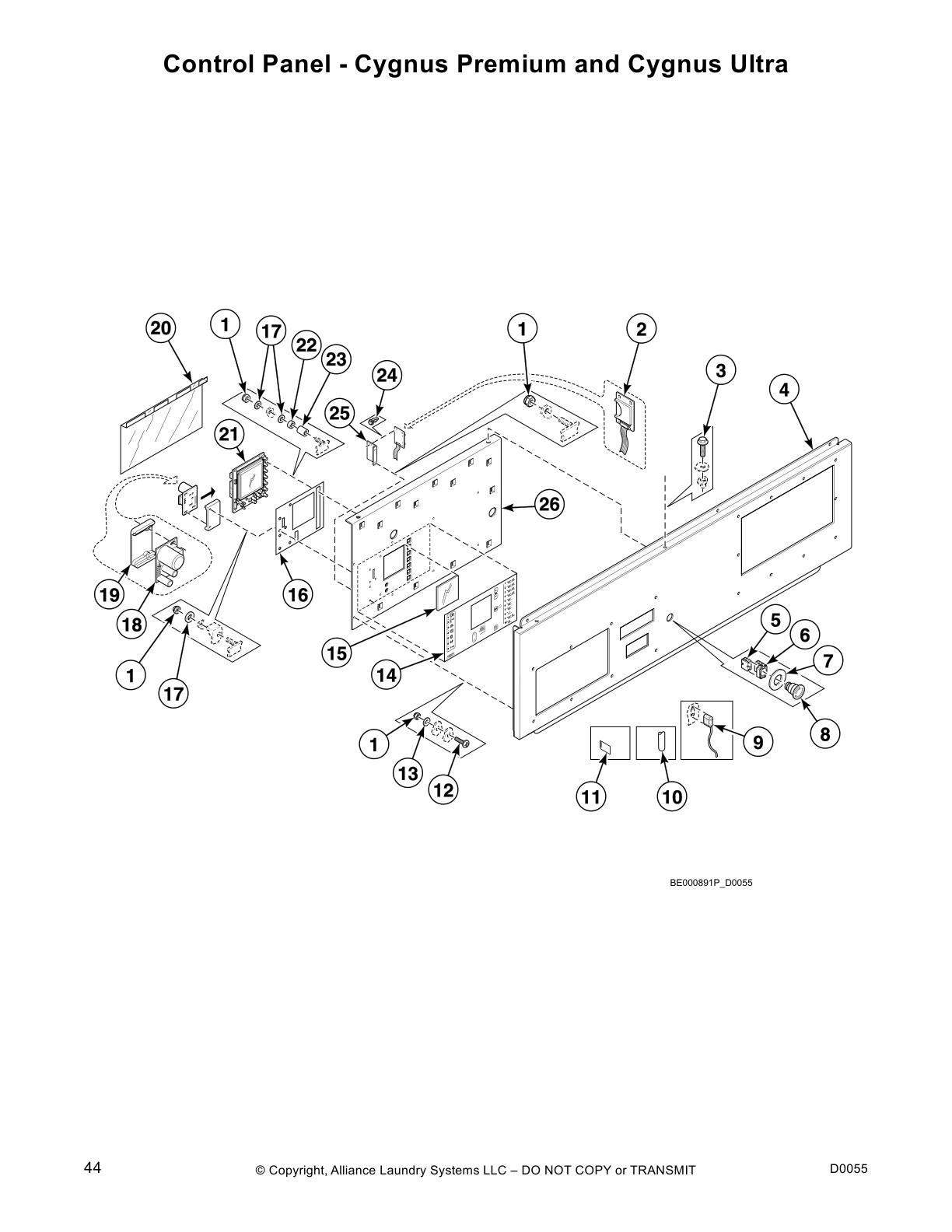

Control Panel - Cygnus Premium and Cygnus Ultra

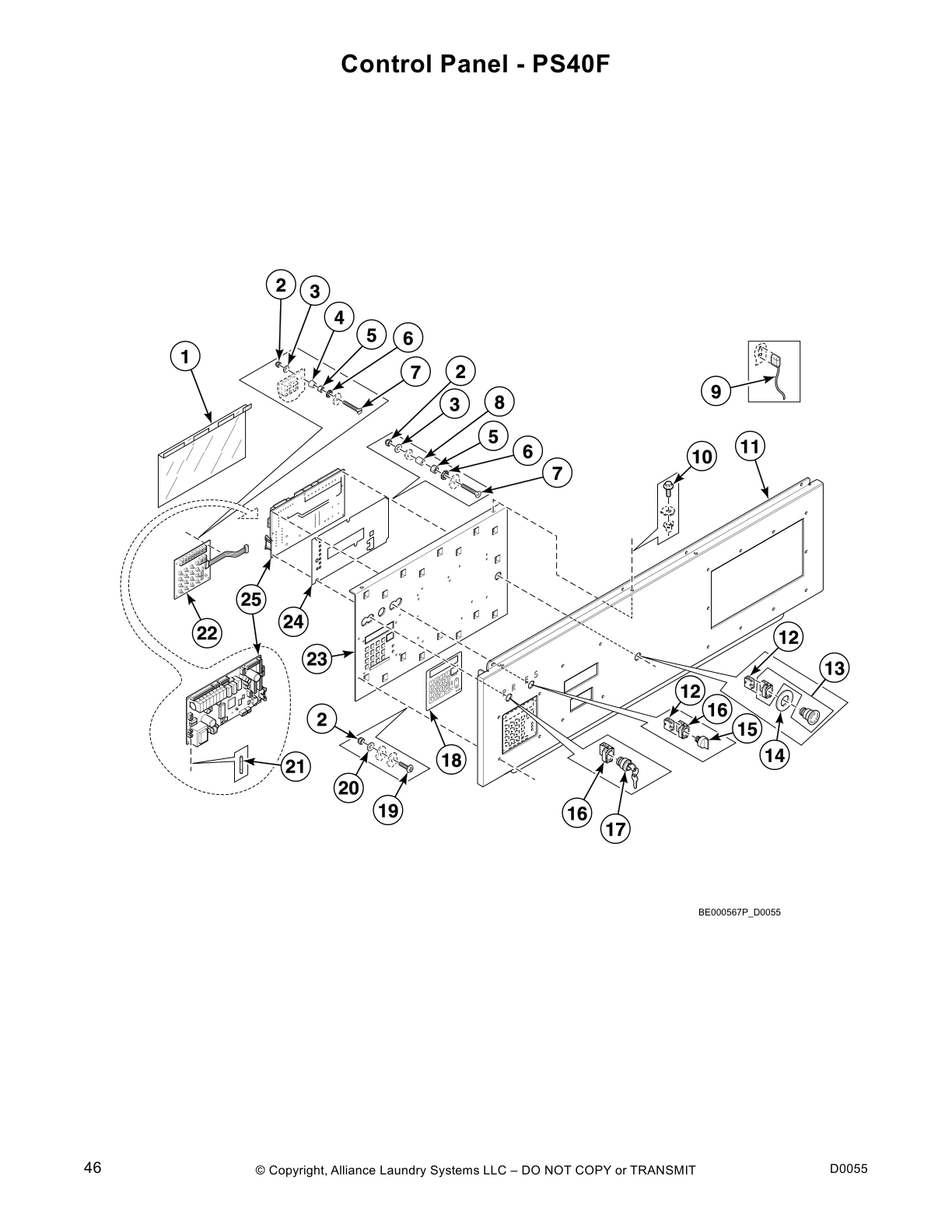

Control Panel - PS40F

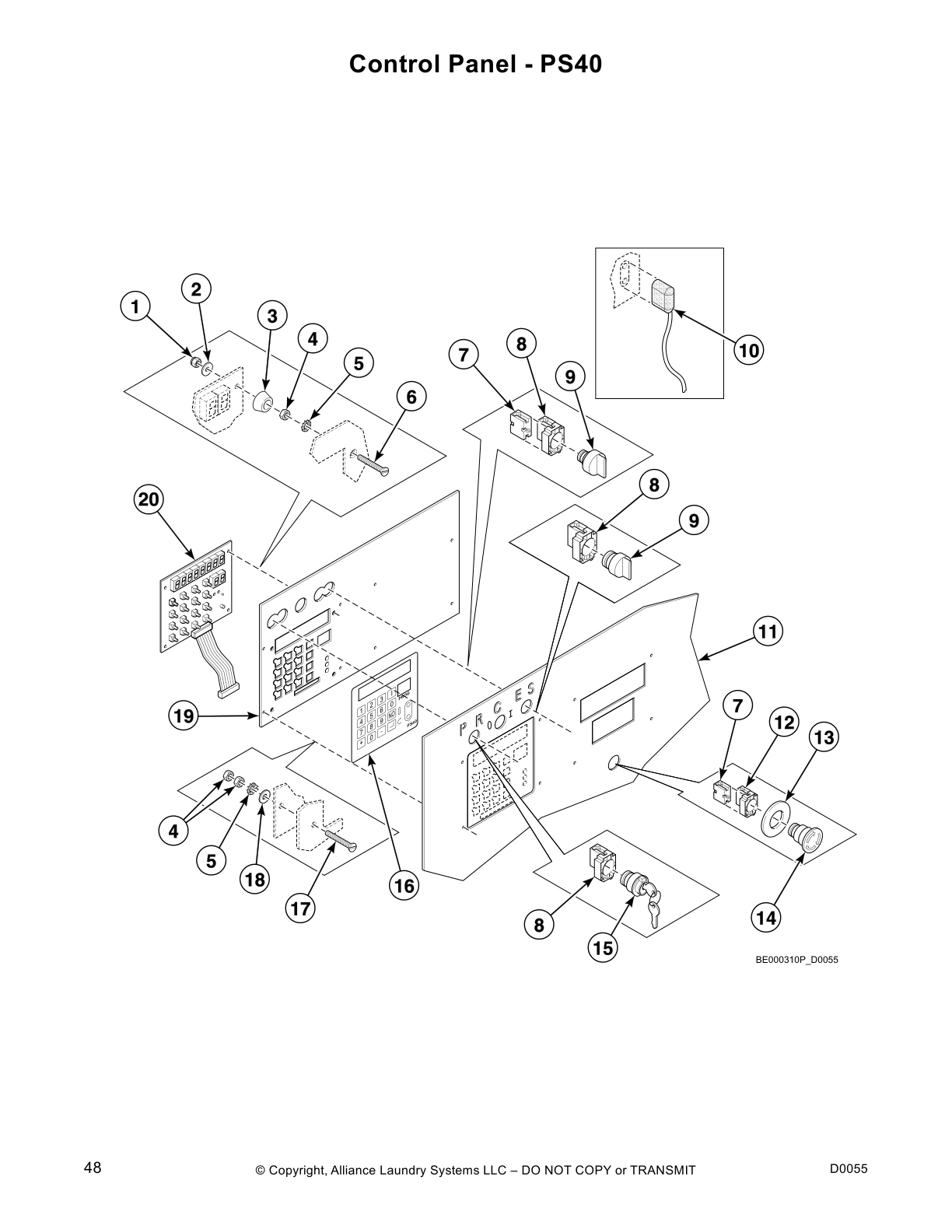

Control Panel - PS40

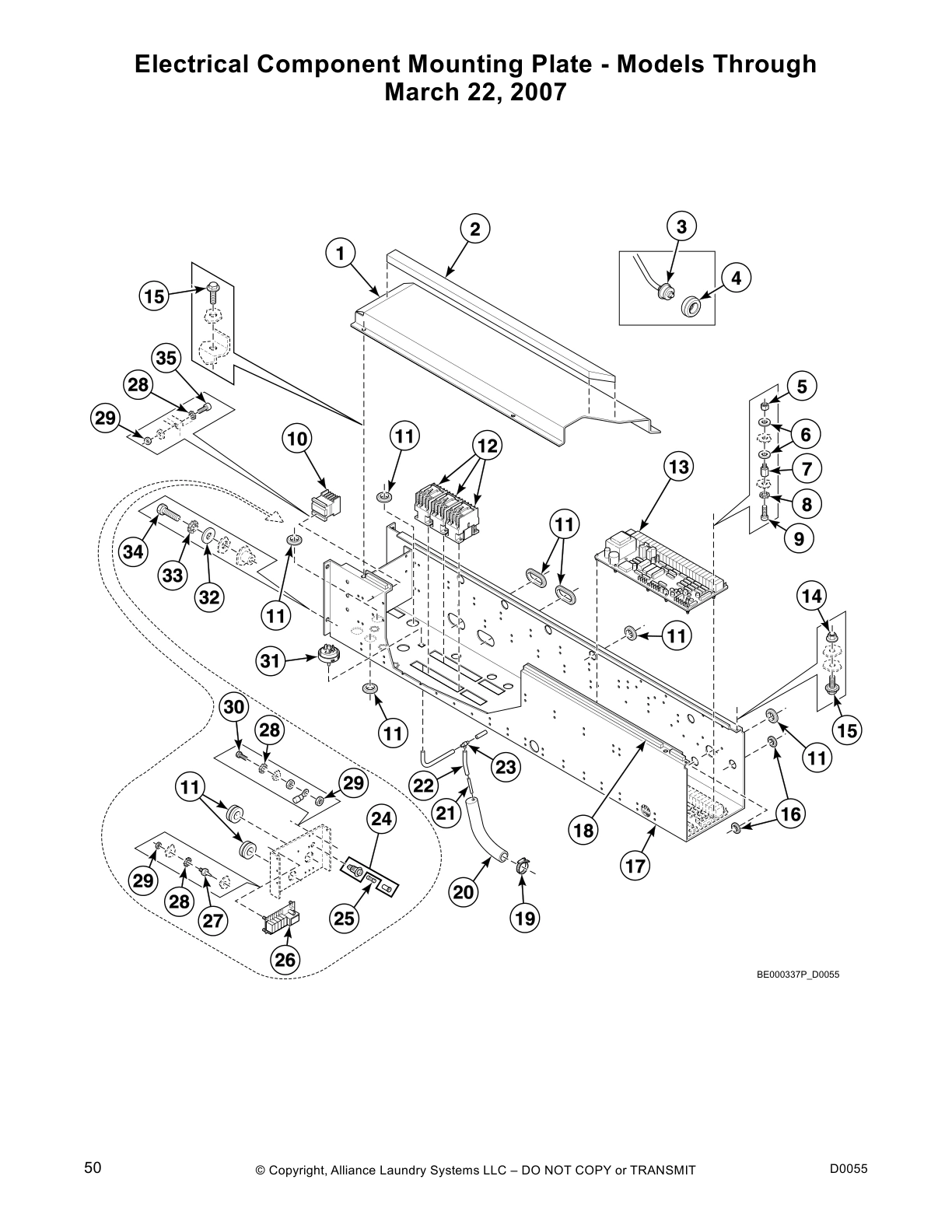

Electrical Component Mounting Plate - Models Through
March 22, 2007

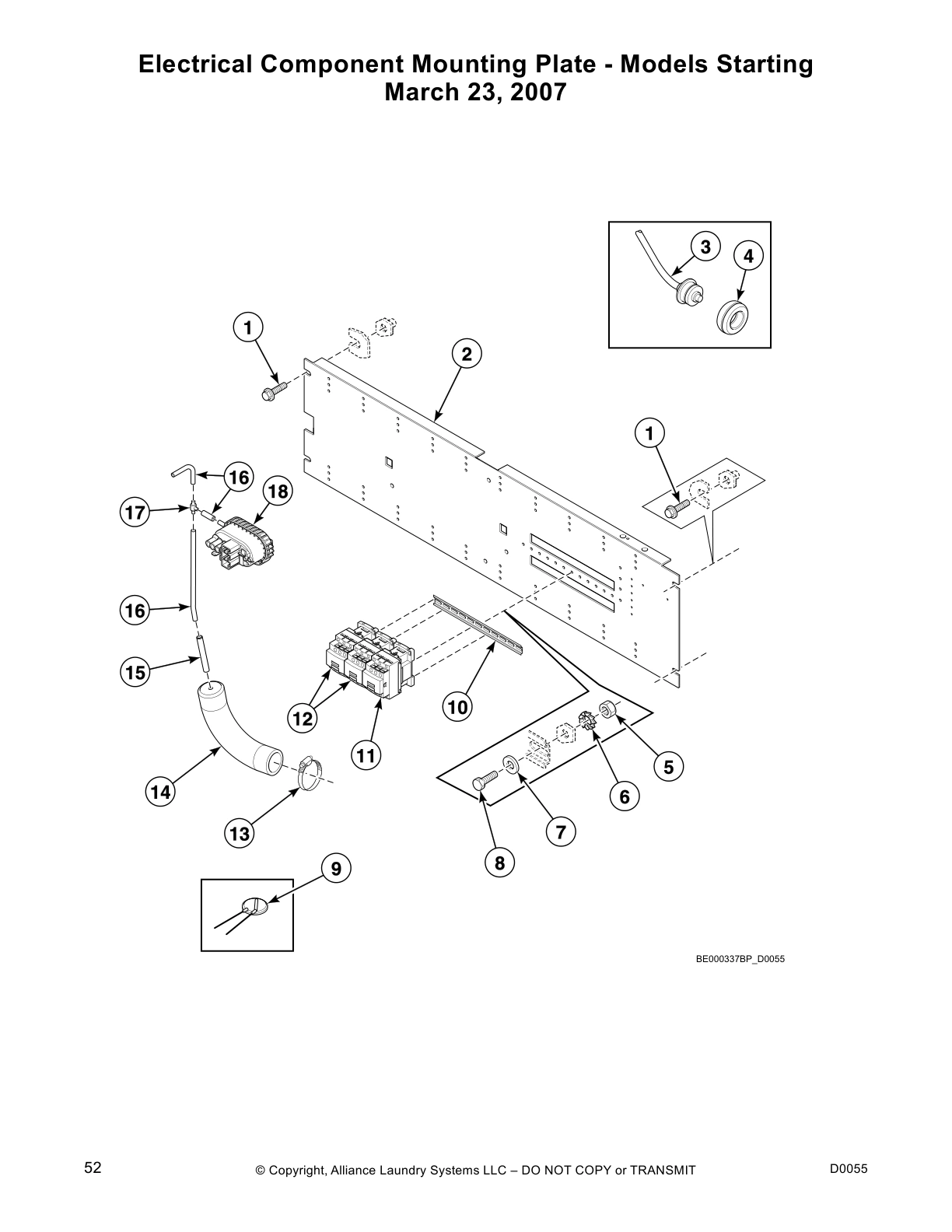

Electrical Component Mounting Plate - Models Starting
March 23, 2007

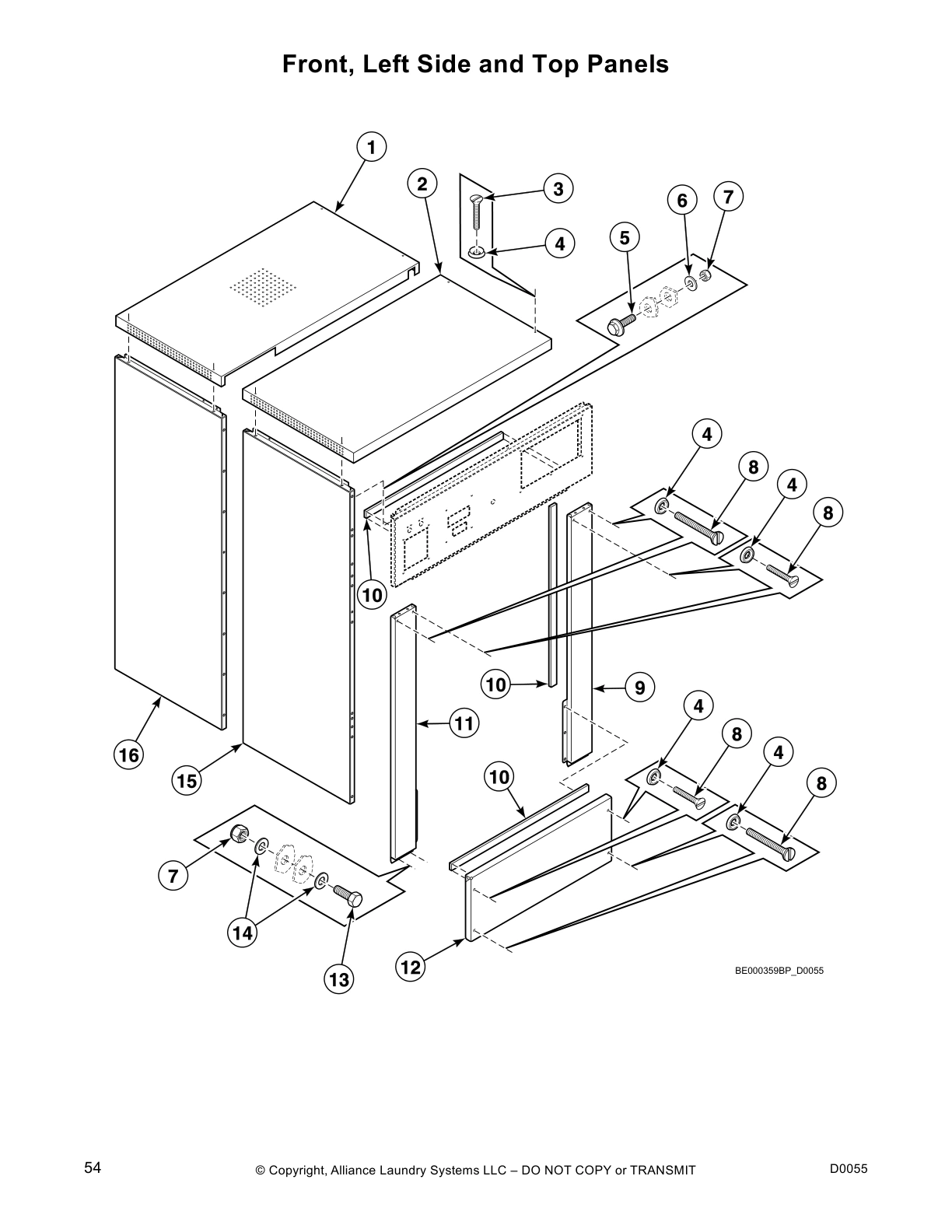

Front, Left Side and Top Panels

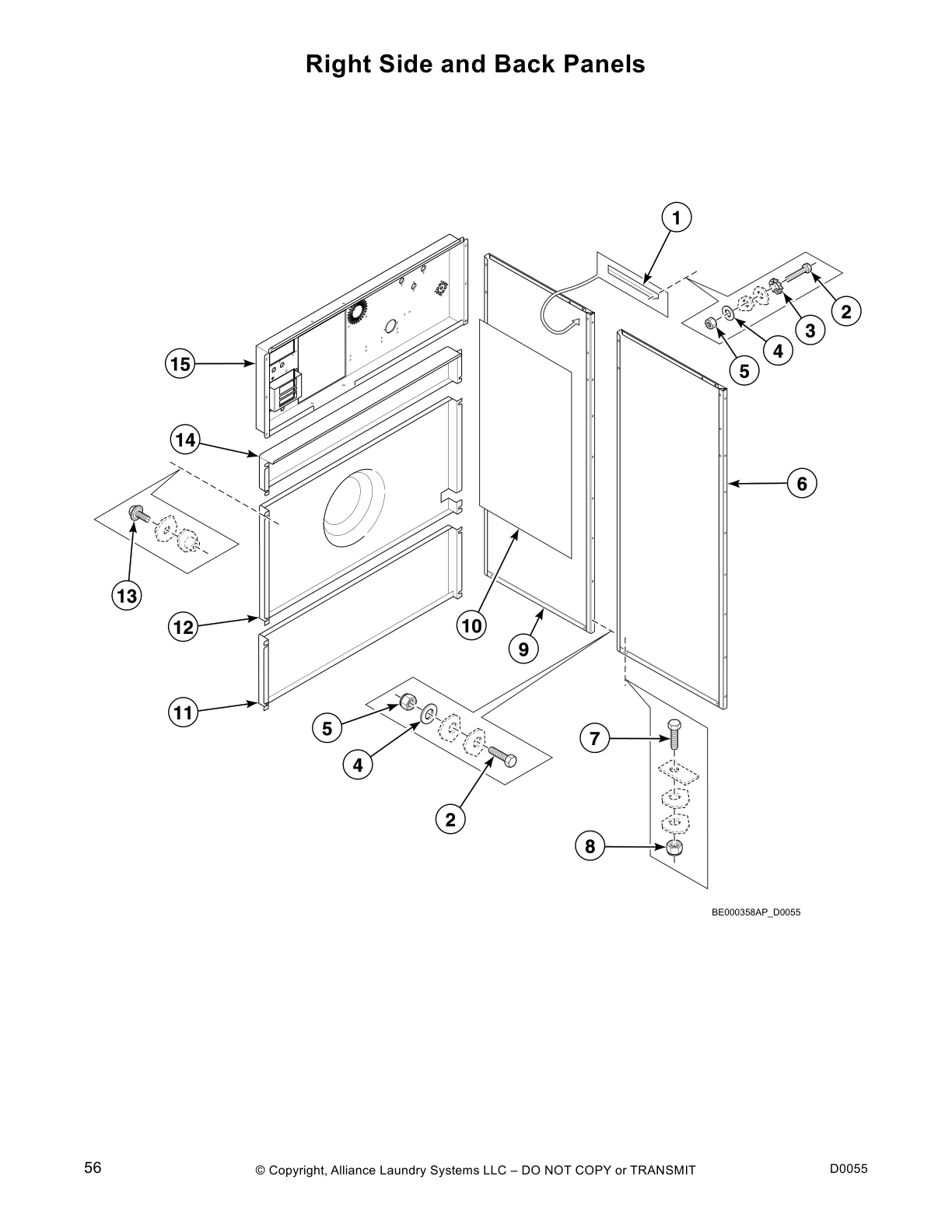

Right Side and Back Panels

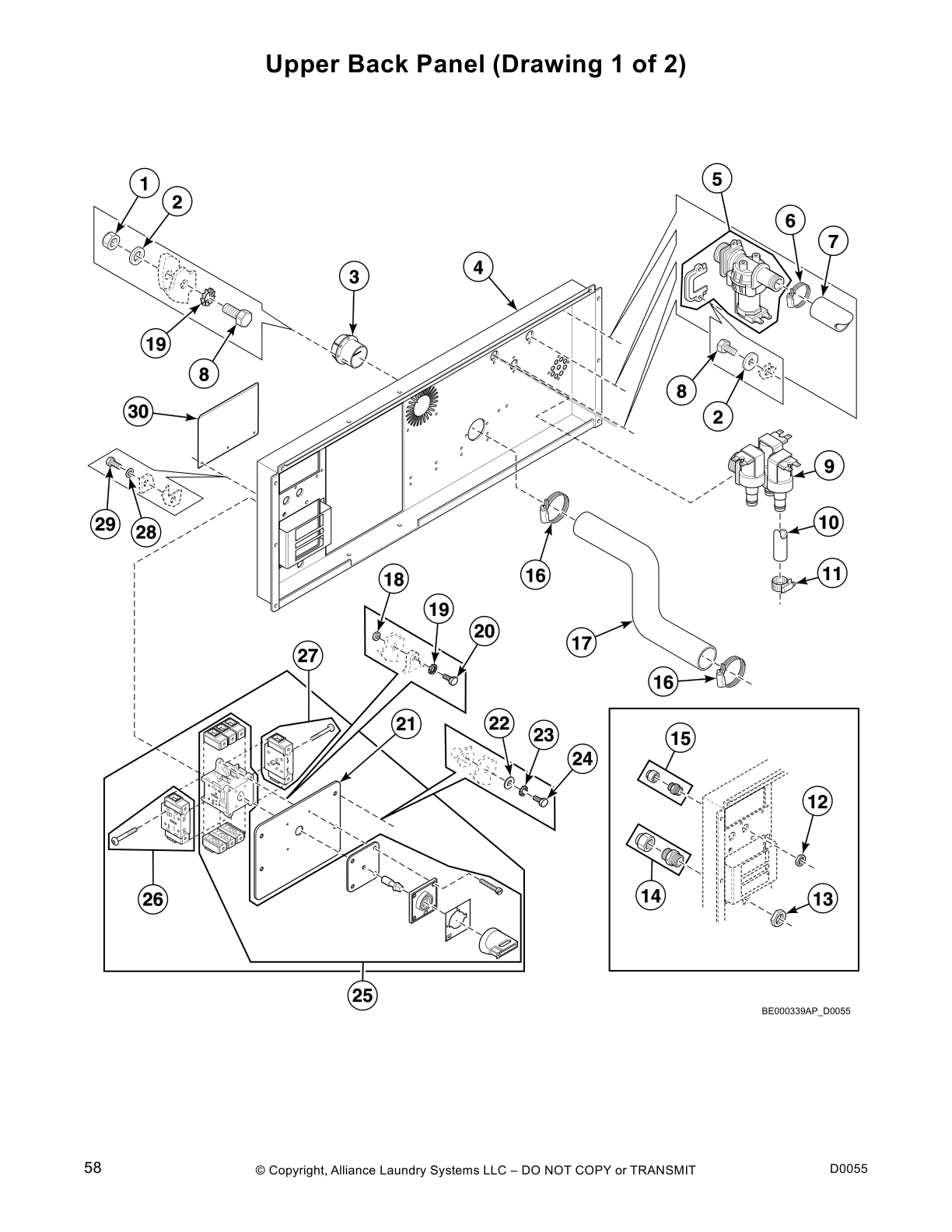

Upper Back Panel (Drawing 1 of 2)

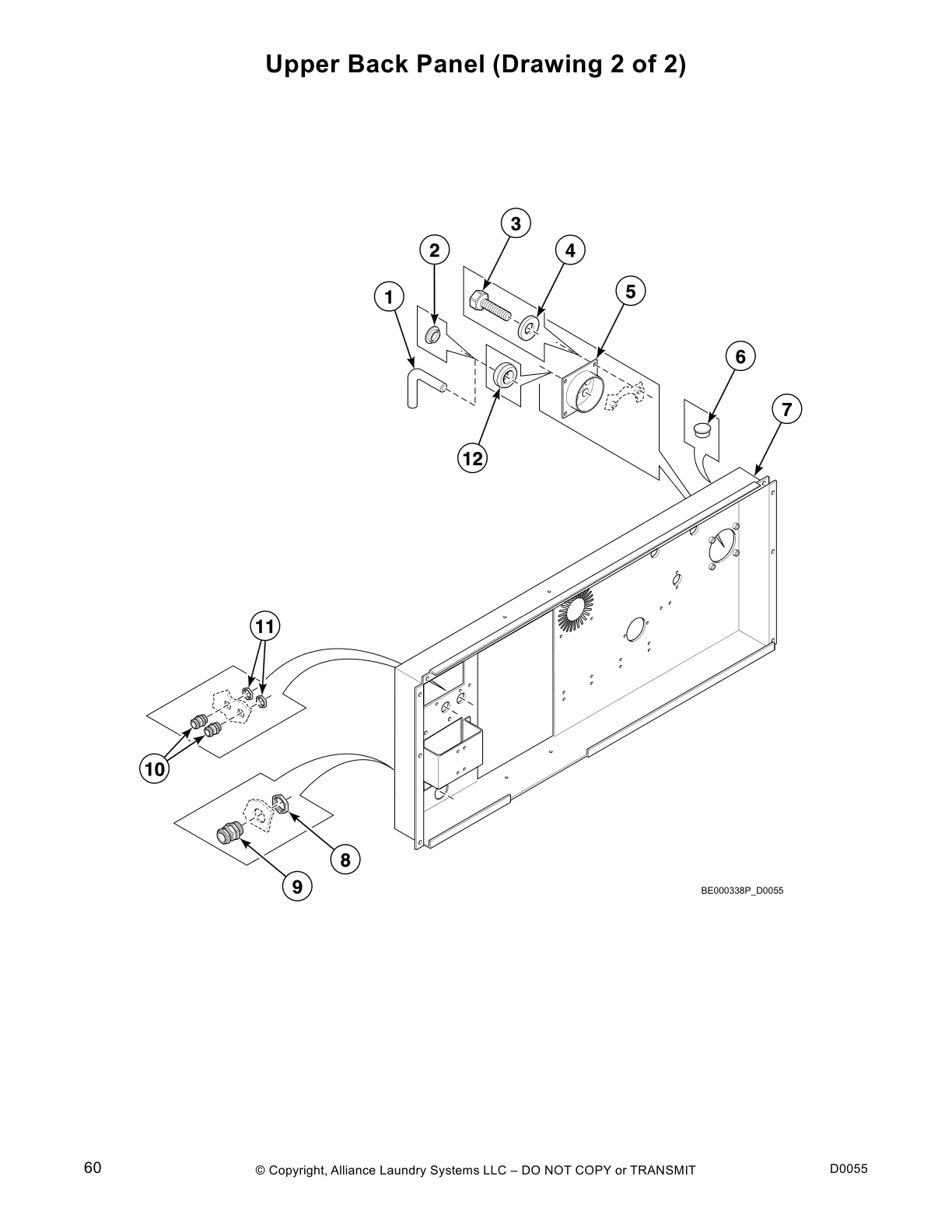

Upper Back Panel (Drawing 2 of 2)

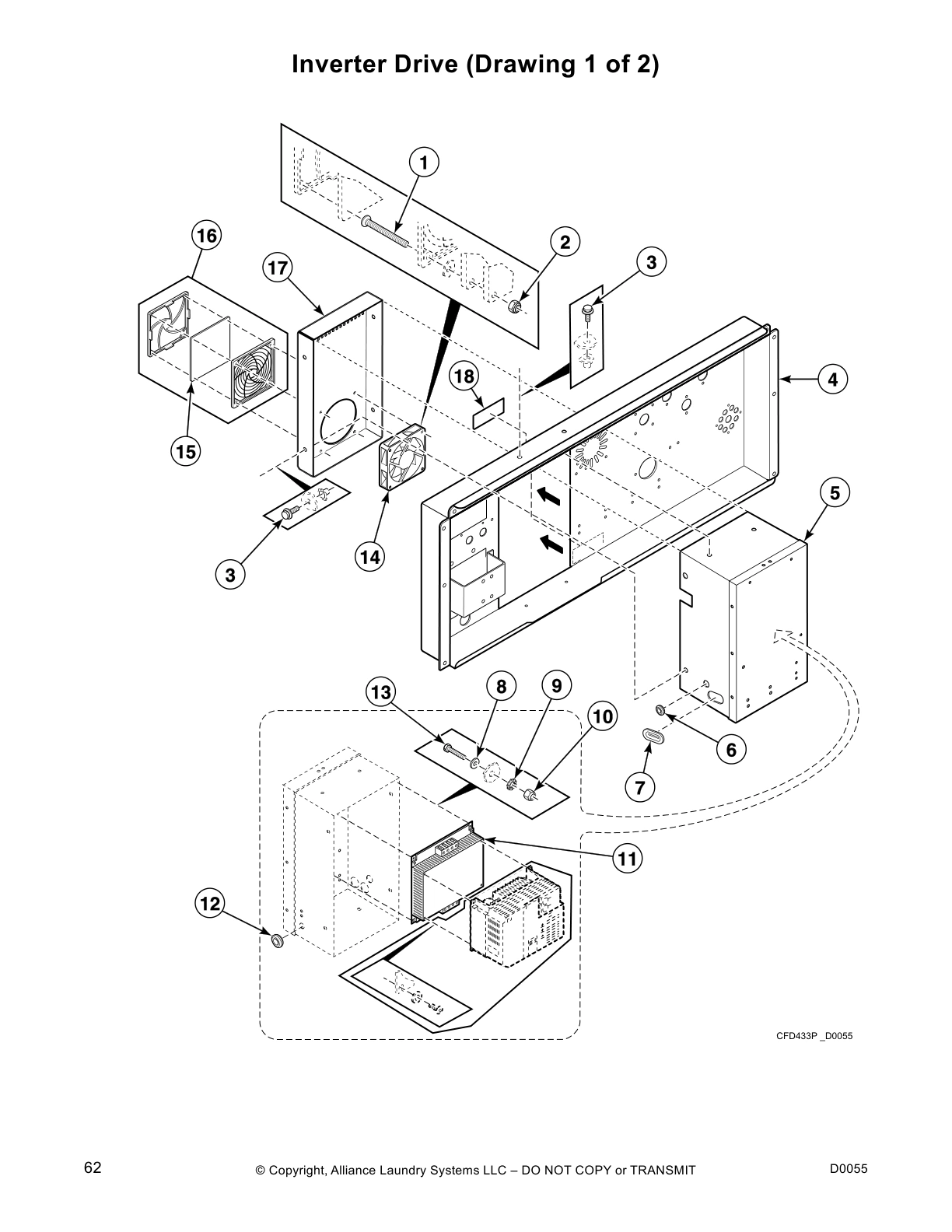

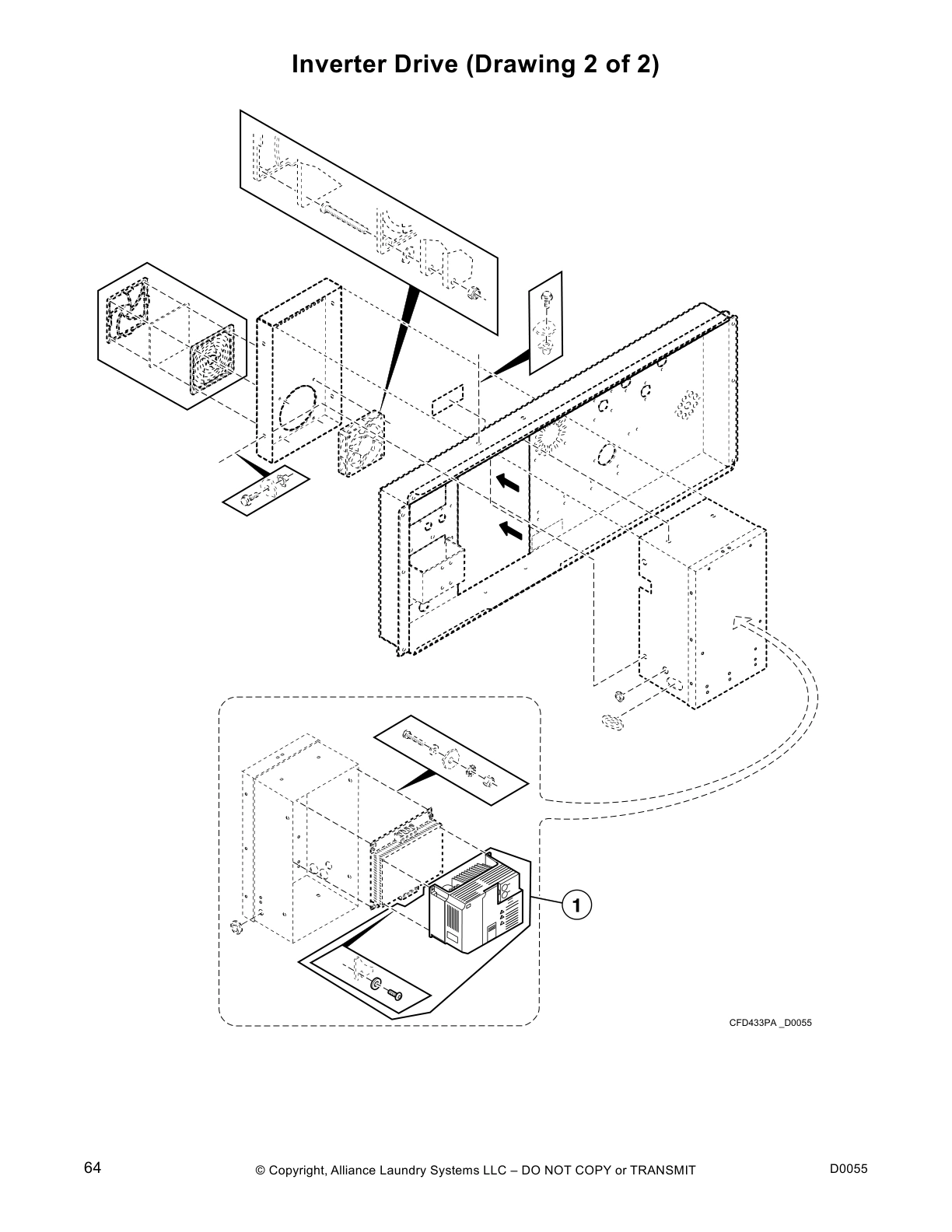

Inverter Drive (Drawing 1 of 2)
Inverter Drive (Drawing 2 of 2)

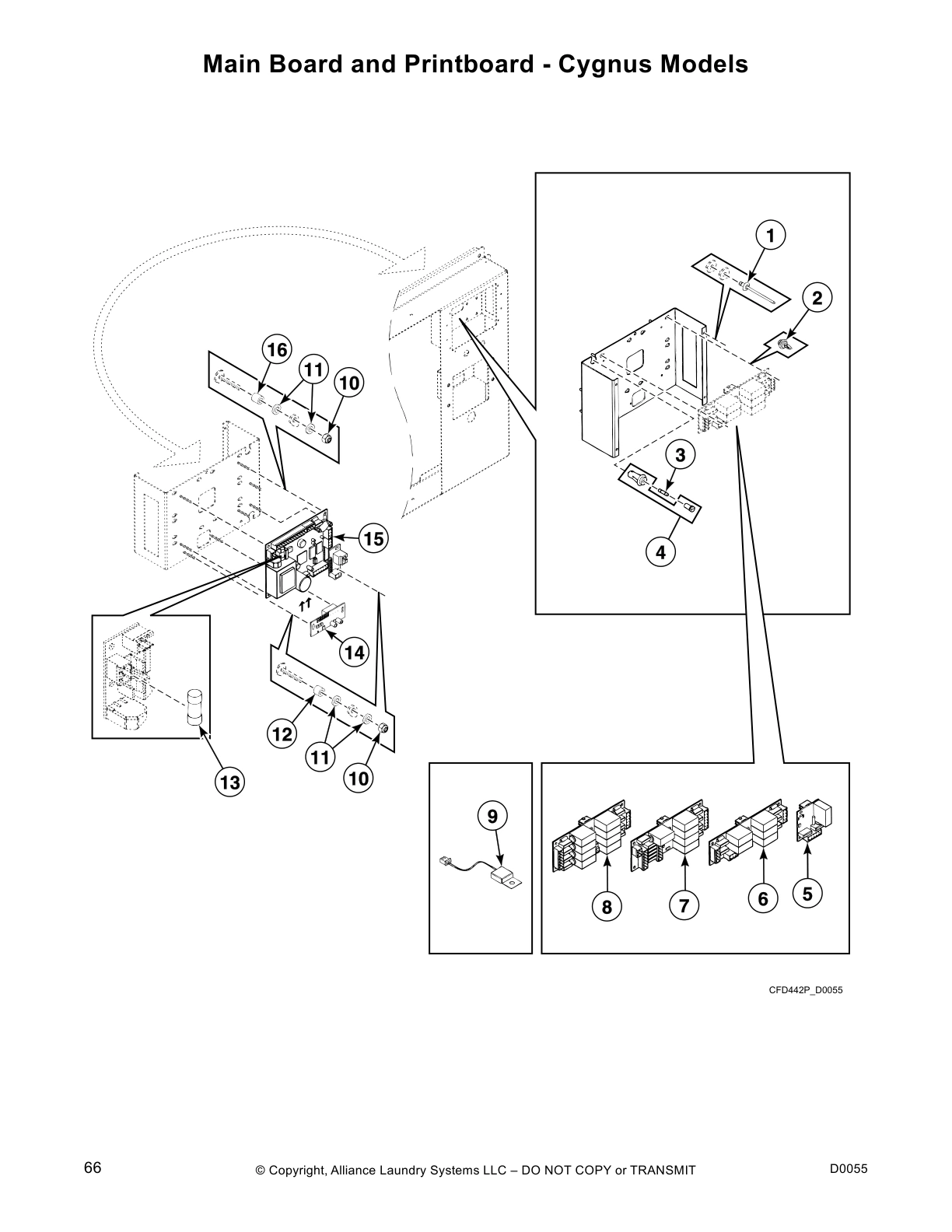

Main Board and Printboard - Cygnus Models

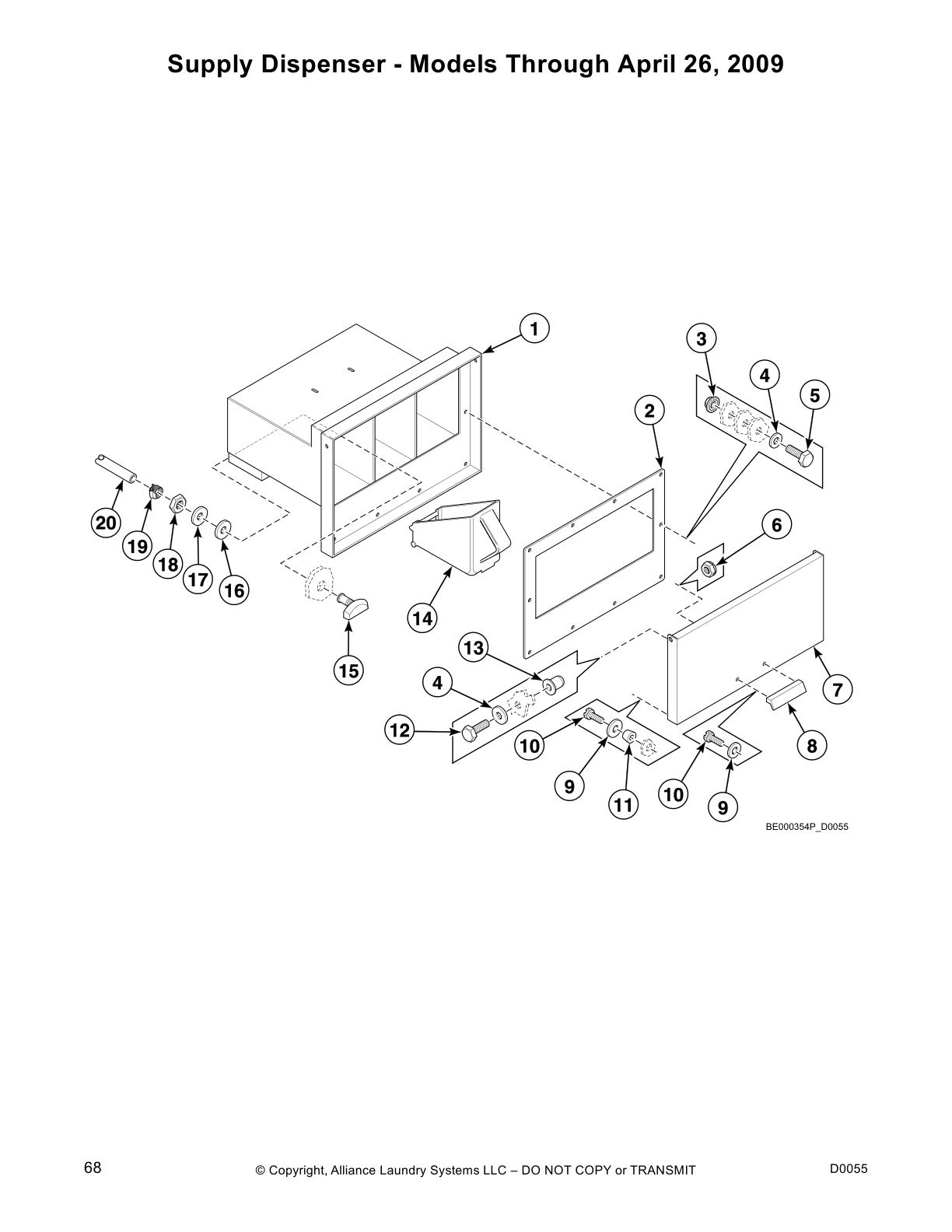

Supply Dispenser - Models Through April 26, 2009

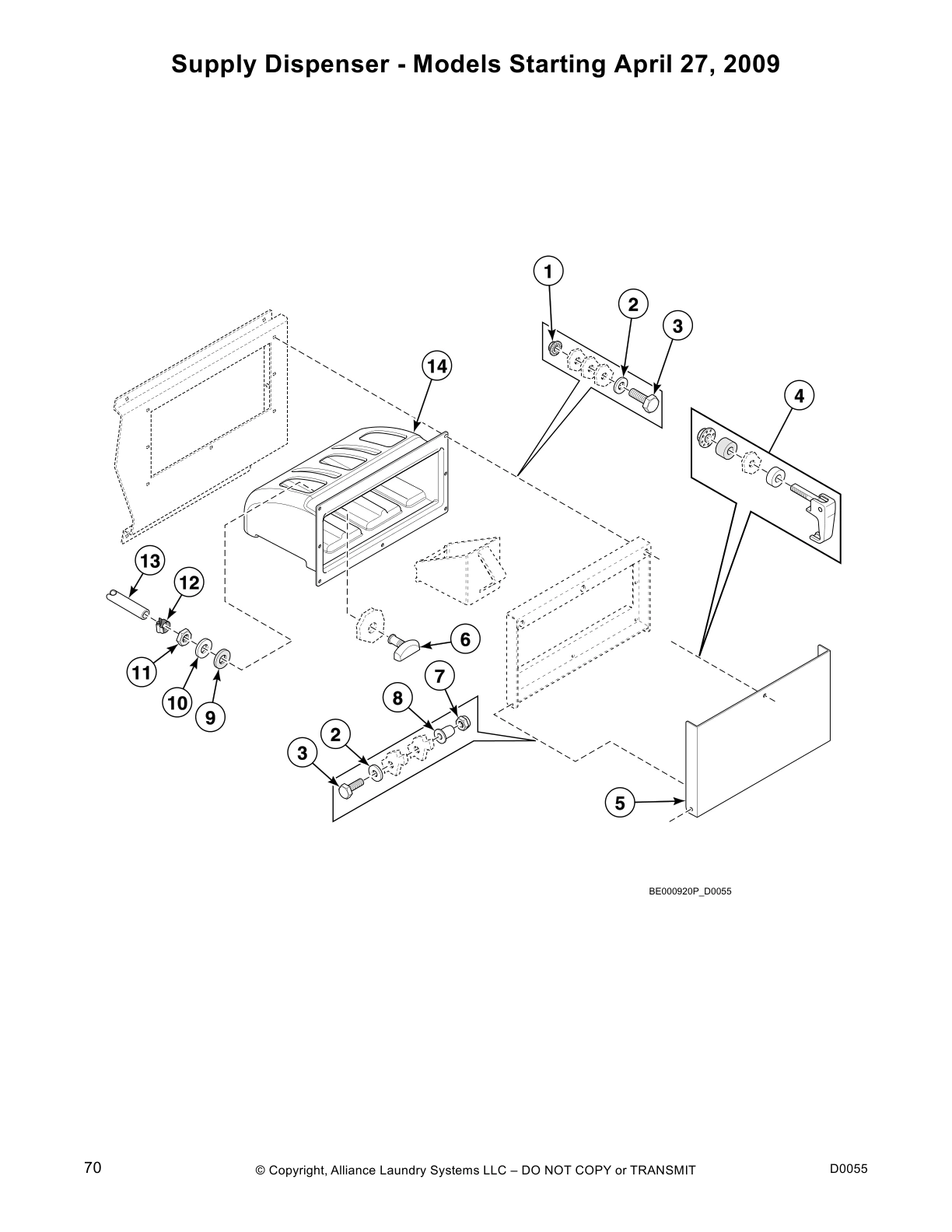

Supply Dispenser - Models Starting April 27, 2009

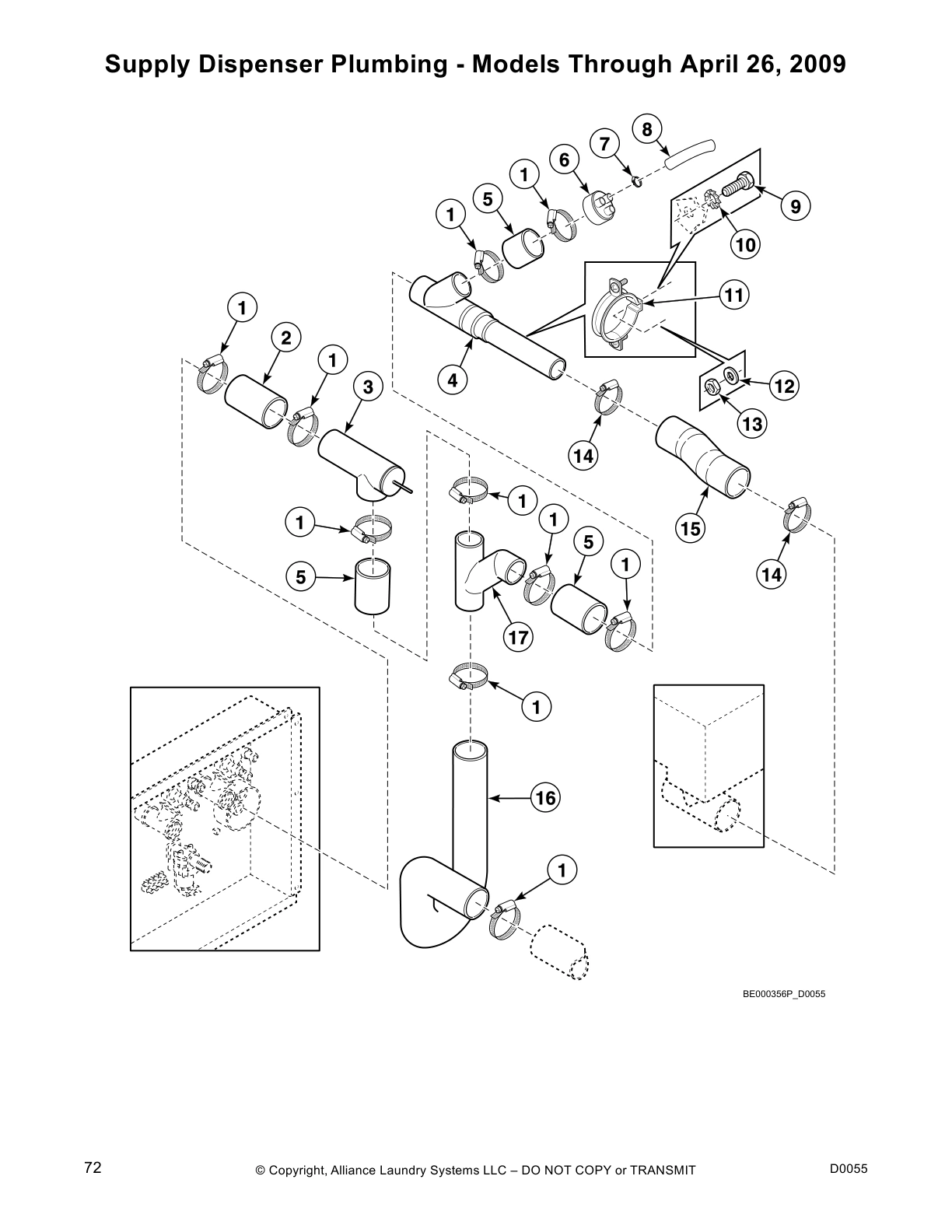

Supply Dispenser Plumbing - Models Through April 26, 2009
Supply Dispenser Plumbing - Models Starting April 27, 2009

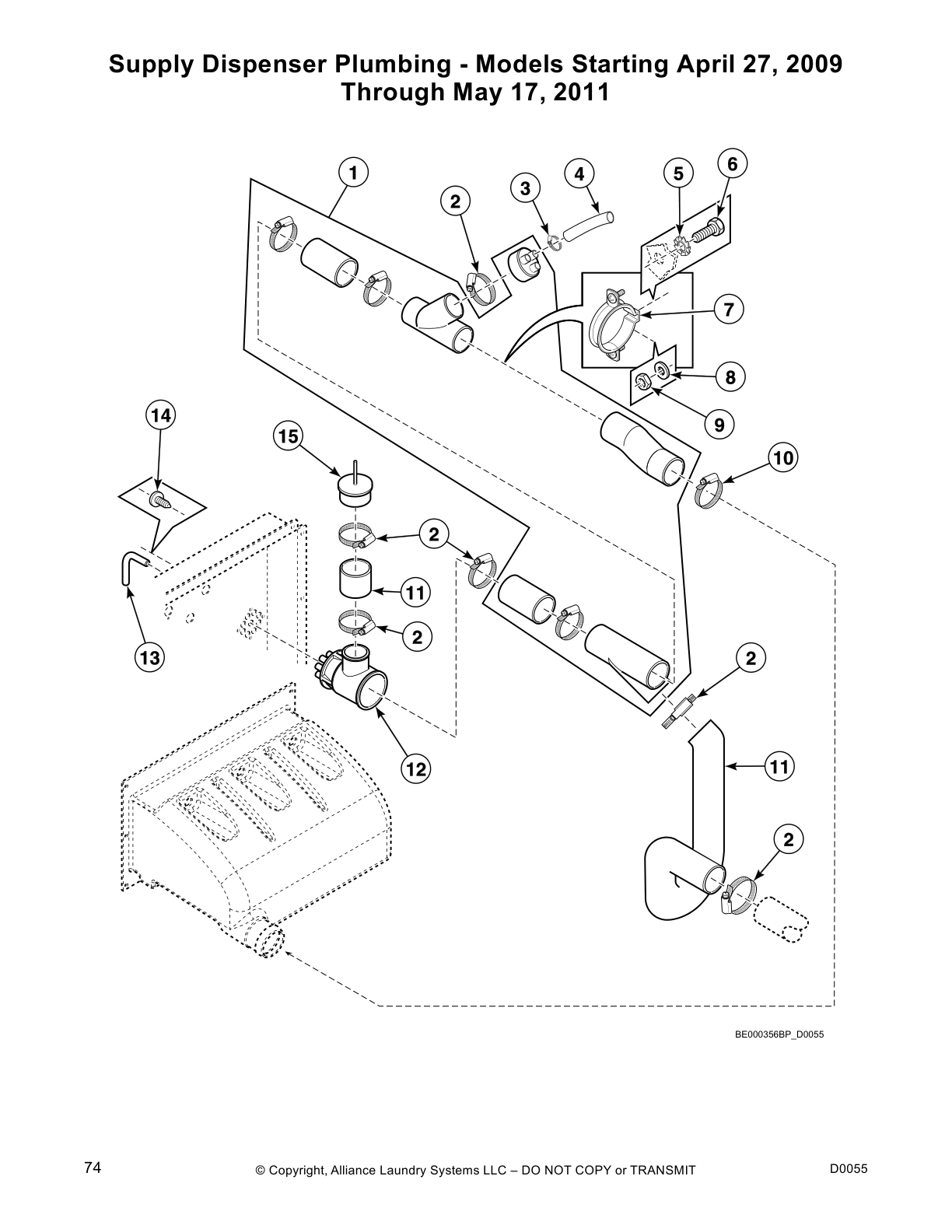

Through May 17, 2011

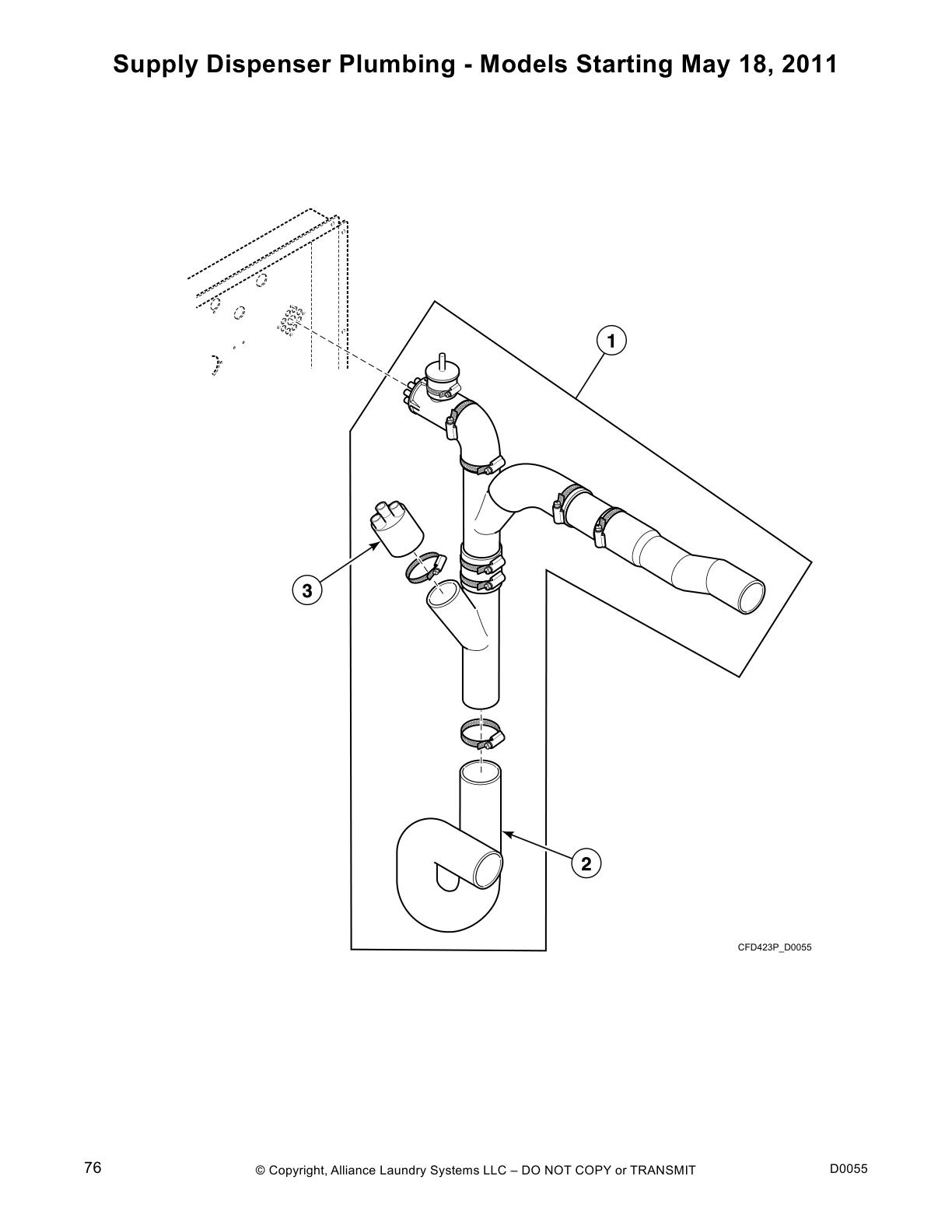

Supply Dispenser Plumbing - Models Starting May 18, 2011

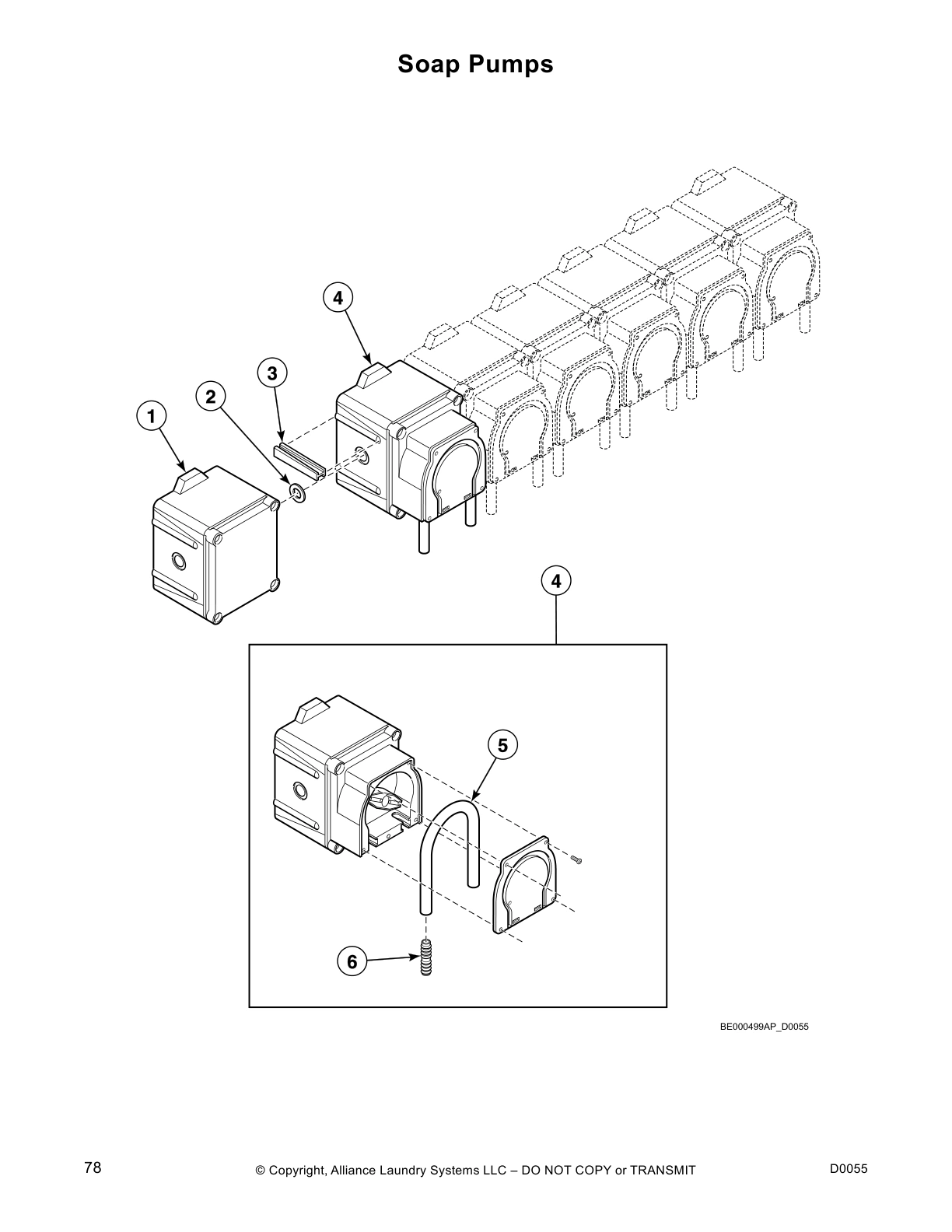

Soap Pumps

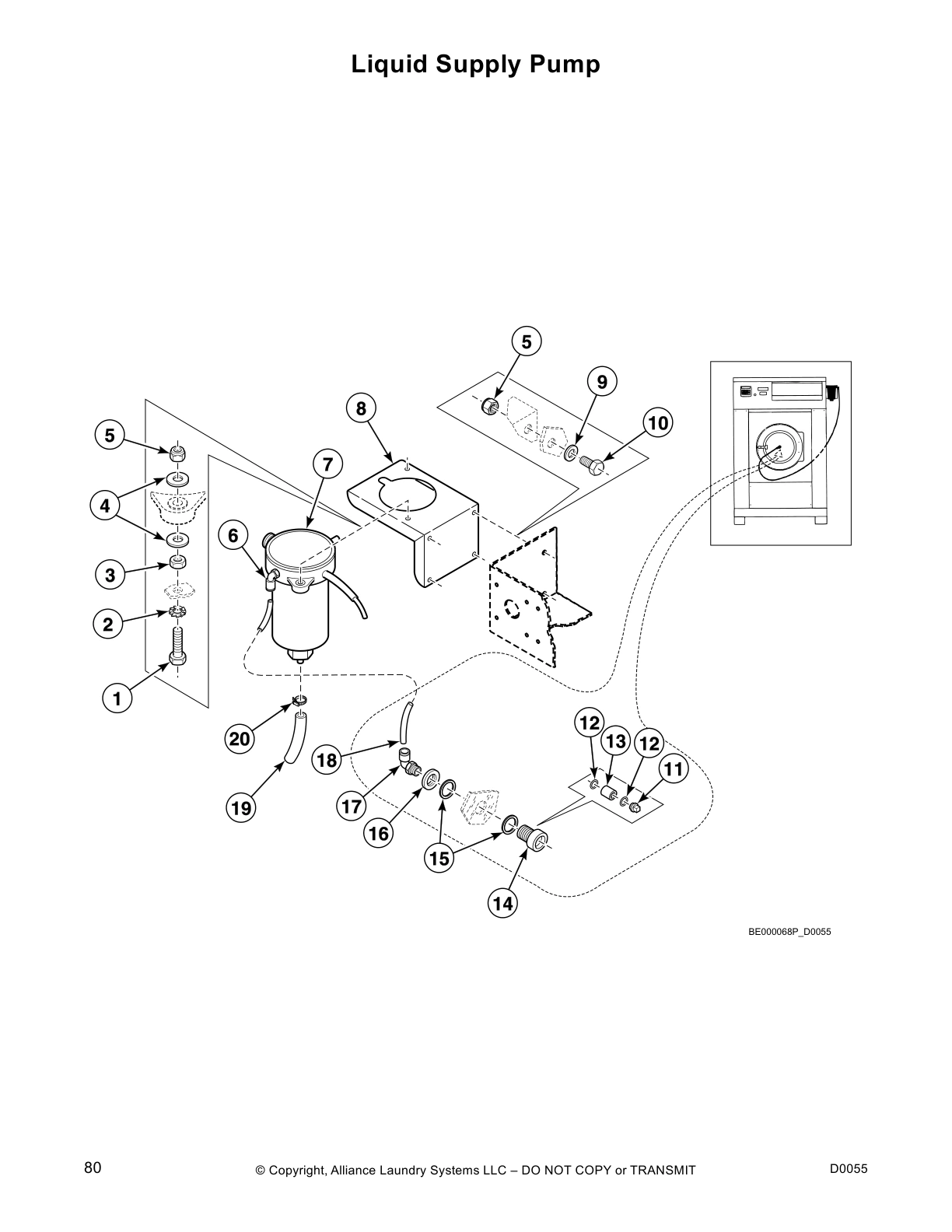

Liquid Supply Pump

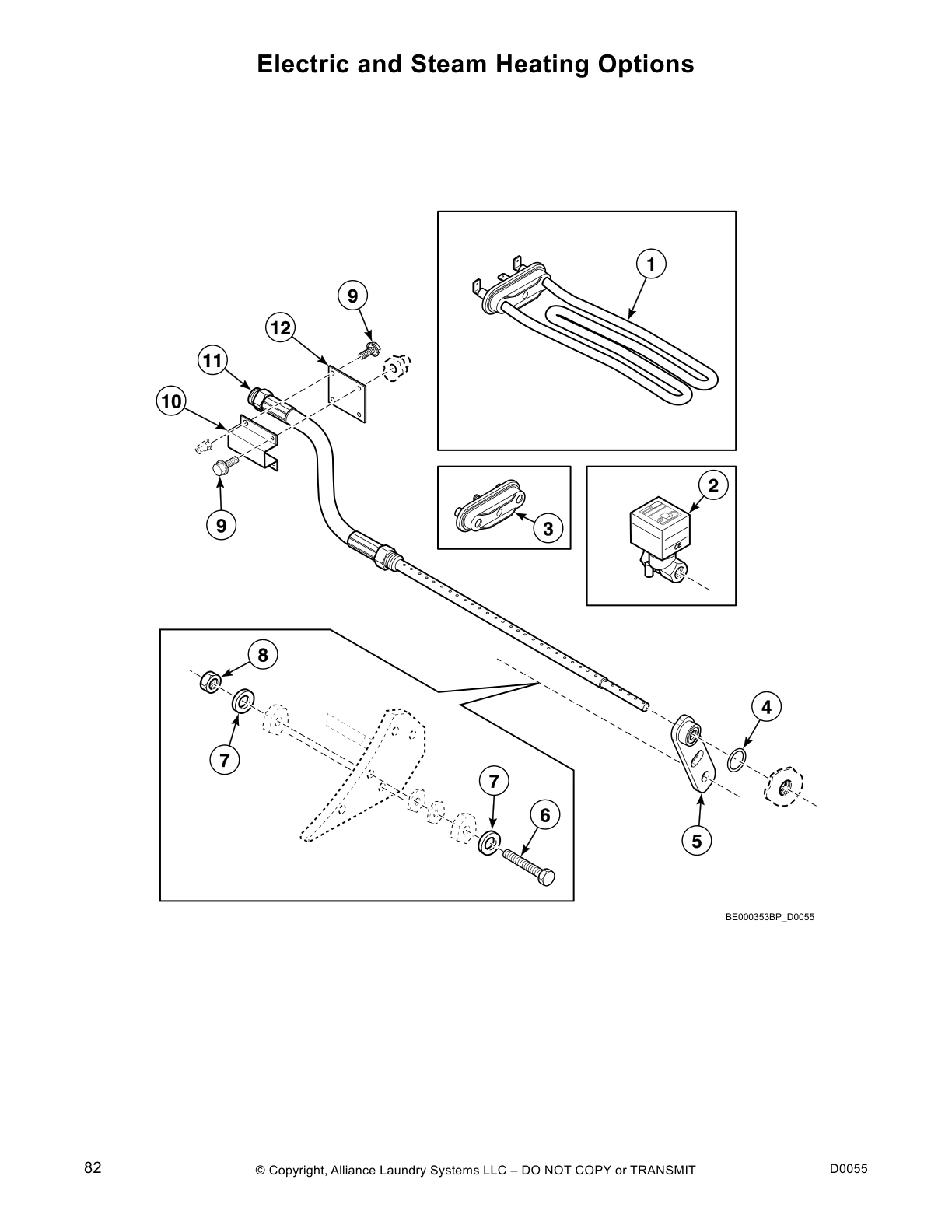

Electric and Steam Heating Options

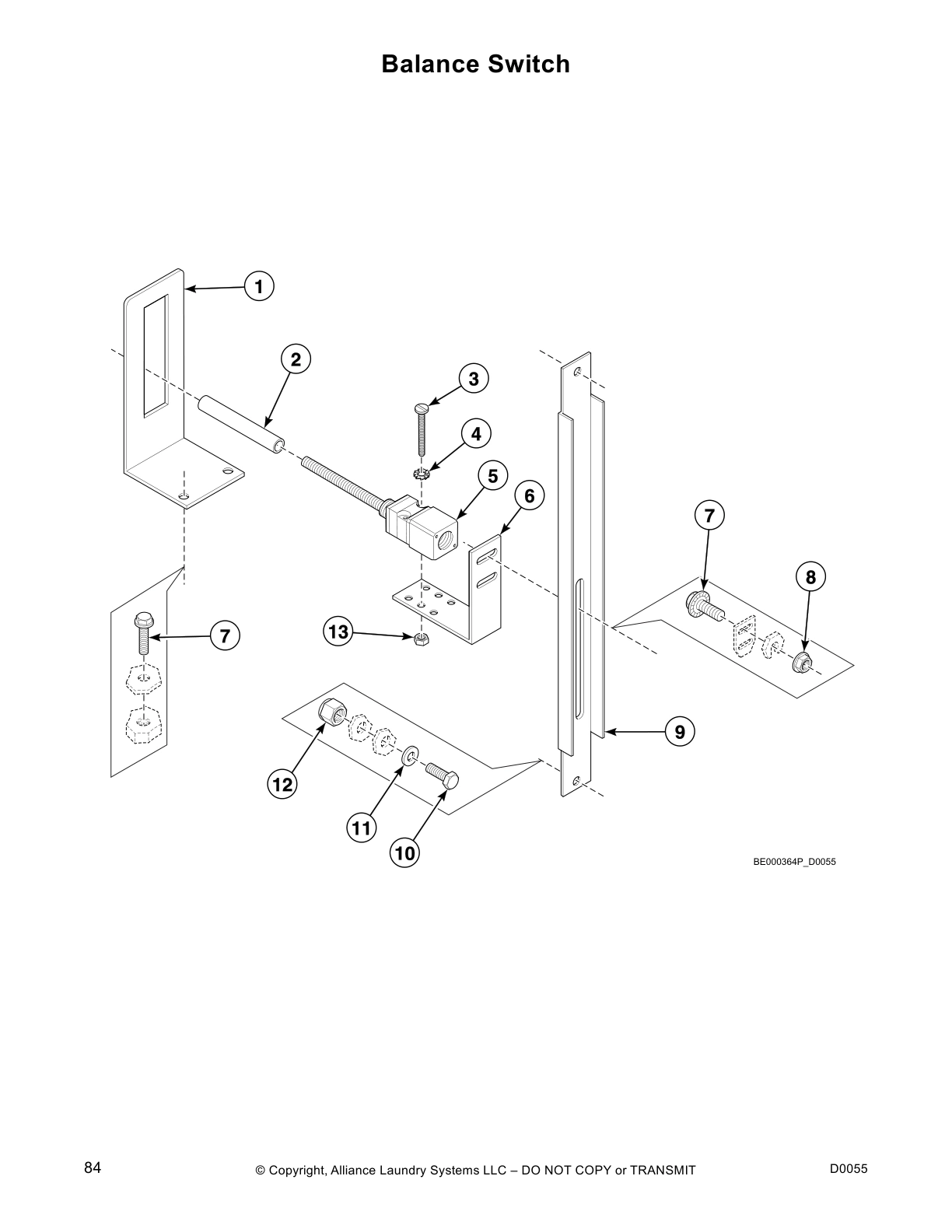

Balance Switch
Common parts from model IPSO IHF575ANH Washer
SPQ F8421117 SPQ F8421117 Contact Us For Availability
SPQ F8421017 SPQ F8421017 Contact Us For Availability
SPQ F8421020 SPQ F8421020 Contact Us For Availability
1
Bolt SPQ 206/00071/00 Contact Us For Availability
1
Seal SPQ B12378901 Contact Us For Availability
1
Bolt SPQ 206/00004/00 Contact Us For Availability
1
Nut SPQ 204/00004/00 Contact Us For Availability
1
Door Gasket SPQ 253/00162/01 Contact Us For Availability
1
Top Cover Plate SPQ 153/00112/01 Contact Us For Availability
1
Rear Cabinet Top SPQ 153/00034/02 Contact Us For Availability
1
Side Panel Support Assembly SPQ 153/00103/01 Contact Us For Availability
1
Inverter Drive SPQ F8421119 Contact Us For Availability
1
Feeding Liquid Soap Dosing Pump SPQ 209/00554/51 Contact Us For Availability
1
Bolt SPQ 205/00103/00 Contact Us For Availability
1
Heating Element SPQ 209/00562/20 Contact Us For Availability
1
Out-of-Balance Detector Plate SPQ 153/00046/00 Contact Us For Availability
2
Tub Back Plate SPQ 153/00075/10 Contact Us For Availability
2
Seal Wear Plate SPQ 201/00202/00 Contact Us For Availability
2
Spacer SPQ B12378801 Contact Us For Availability
2
SPQ 203/00001/00 SPQ 203/00001/00 Contact Us For Availability
2
Backbridge SPQ 204/00114/00 Contact Us For Availability
2
Water Hose SPQ 223/00071/00 Contact Us For Availability
2
Bolt SPQ 203/00003/00 Contact Us For Availability
2
Terminal Block SPQ 202/00004/00 Contact Us For Availability
2
Soap Injector Elbow Coupling SPQ 203/00004/00 Contact Us For Availability
2
Plate Assembly SPQ 173/00013/10 Contact Us For Availability
2
Screw SPQ 153/00034/01 Contact Us For Availability
2
Bolt SPQ 153/00071/00 Contact Us For Availability
2
Drain Valve to Drain Pipe Hose SPQ 223/00219/00 Contact Us For Availability
2
Soap Dispenser to Tub Hose SPQ 223/00187/00 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00555/02 Contact Us For Availability
2
Steam Valve SPQ 153/00051/11 Contact Us For Availability
2
Screw SPQ 223/00246/00 Contact Us For Availability
3
Bolt SPQ 153/00076/10 Contact Us For Availability
3
Retaining Ring SPQ 153/00121/00 Contact Us For Availability
3
SPQ 201/00011/00 SPQ 201/00011/00 Contact Us For Availability
3
Screw SPQ 209/00025/08 Contact Us For Availability
3
O-Ring SPQ 223/00396/00 Contact Us For Availability
3
Washer SPQ 223/00011/00 Contact Us For Availability
3
Fuse SPQ 209/00468/00 Contact Us For Availability
3
Nut SPQ 207/00123/00 Contact Us For Availability
3
SPQ 204/00106/00 SPQ 204/00106/00 Contact Us For Availability
3
Supply Dispenser Cover SPQ 205/00104/00 Contact Us For Availability
3
SPQ 209/00533/00 SPQ 209/00533/00 Contact Us For Availability
3
Water Inlet Grid SPQ 253/00029/00 Contact Us For Availability
3
Water Inlet Grid SPQ 223/00289/00 Contact Us For Availability
3
Out-of-Balance Switch SPQ 207/00018/00 Contact Us For Availability
4
SPQ 253/10127/00 SPQ 253/10127/00 Contact Us For Availability
4
Bushing SPQ 253/00155/00 Contact Us For Availability
4
SPQ 253/00147/00 SPQ 253/00147/00 Contact Us For Availability
4
Tilt Switch Bracket SPQ 203/00006/00 Contact Us For Availability
4
Drain Valve to Drain Pipe Hose SPQ 201/00010/00 Contact Us For Availability
4
Door Lock Catch SPQ 253/00158/567 Contact Us For Availability
4
SPQ 253/00178/00 SPQ 253/00178/00 Contact Us For Availability
4
Switch Base SPQ 204/00008/00 Contact Us For Availability
4
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
4
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
4
Washer SPQ 153/10027/90 Contact Us For Availability
4
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
4
Bolt SPQ 223/00059/00 Contact Us For Availability
4
Prewash and Mainwash Nozzle SPQ 223/00392/00 Contact Us For Availability
4
O-Ring SPQ 209/00476/00 Contact Us For Availability
5
V-Ring Seal SPQ 253/00125/00 Contact Us For Availability
5
Grease Ring Holder SPQ 253/00182/00 Contact Us For Availability
5
SPQ 253/00079/00 SPQ 253/00079/00 Contact Us For Availability
5
Water Hose SPQ 223/00141/00 Contact Us For Availability
5
Drain Valve Overflow Plug SPQ 206/00009/00 Contact Us For Availability
5
Drain Valve Motor SPQ 209/00025/07 Contact Us For Availability
5
Drain Valve Motor Mounting Plate SPQ 209/00115/04 Contact Us For Availability
5
Door Lock Harness SPQ 205/00123/00 Contact Us For Availability
5
O-Ring SPQ F8549301 Contact Us For Availability
5
Plug SPQ 153/00043/00 Contact Us For Availability
5
Parameter Unit Assembly SPQ 111/01147/00 Contact Us For Availability
5
Bushing SPQ 153/00089/00 Contact Us For Availability
5
Liquid Soap Dosing Pump O-Ring SPQ 209/00554/52 Contact Us For Availability
5
Connecting Piece SPQ 223/00349/00 Contact Us For Availability
6
SPQ 204/00016/00 SPQ 204/00016/00 Contact Us For Availability
6
Nut SPQ 223/00168/00 Contact Us For Availability
6
Screw SPQ 253/00124/00 Contact Us For Availability
6
Lubricator SPQ 253/00131/00 Contact Us For Availability
6
SPQ 206/00031/00 SPQ 206/00031/00 Contact Us For Availability
6
SPQ 223/00106/00 SPQ 223/00106/00 Contact Us For Availability
6
Coil SPQ 209/00170/05 Contact Us For Availability
6
Coil SPQ 209/00203/11 Contact Us For Availability
6
SPQ 223/00244/00 SPQ 223/00244/00 Contact Us For Availability
6
SPQ 205/00105/00 SPQ 205/00105/00 Contact Us For Availability
6
SPQ 207/00025/00 SPQ 207/00025/00 Contact Us For Availability
6
SPQ 153/00105/00 SPQ 153/00105/00 Contact Us For Availability
6
SPQ 140/00010/01 SPQ 140/00010/01 Contact Us For Availability
6
SPQ 211/00087/00 SPQ 211/00087/00 Contact Us For Availability
6
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
6
Dosing Pump Hose SPQ 209/00555/98 Contact Us For Availability
6
SPQ 223/00181/00 SPQ 223/00181/00 Contact Us For Availability
6
Bolt SPQ B12365603 Contact Us For Availability
6
SPQ 111/00107/00 SPQ 111/00107/00 Contact Us For Availability
7
SPQ 224/00046/00 SPQ 224/00046/00 Contact Us For Availability
7
SPQ 206/00099/00 SPQ 206/00099/00 Contact Us For Availability
7
SPQ 206/00122/00 SPQ 206/00122/00 Contact Us For Availability
7
SPQ 253/00154/00 SPQ 253/00154/00 Contact Us For Availability
7
Noise Suppressor SPQ 201/00008/00 Contact Us For Availability
7
SPQ 209/00051/11 SPQ 209/00051/11 Contact Us For Availability
7
Drain Valve Motor SPQ 209/00203/21 Contact Us For Availability
7
SPQ 205/00122/00 SPQ 205/00122/00 Contact Us For Availability
7
SPQ 253/10528/00 SPQ 253/10528/00 Contact Us For Availability
7
SPQ 209/00099/06 SPQ 209/00099/06 Contact Us For Availability
7
SPQ 153/00070/00 SPQ 153/00070/00 Contact Us For Availability
7
Washer SPQ 206/00047/00 Contact Us For Availability
8
Nut SPQ 201/00001/00 Contact Us For Availability
8
SPQ B12456301 SPQ B12456301 Contact Us For Availability
8
SPQ B12522101 SPQ B12522101 Contact Us For Availability
8
SPQ 253/00026/01 SPQ 253/00026/01 Contact Us For Availability
8
SPQ 209/00203/12 SPQ 209/00203/12 Contact Us For Availability
8
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
8
SPQ 209/00099/25 SPQ 209/00099/25 Contact Us For Availability
8
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
8
SPQ 207/00102/00 SPQ 207/00102/00 Contact Us For Availability
8
SPQ 202/00110/00 SPQ 202/00110/00 Contact Us For Availability
8
SPQ 211/00097/00 SPQ 211/00097/00 Contact Us For Availability
8
SPQ 202/00003/00 SPQ 202/00003/00 Contact Us For Availability
8
SPQ 223/00008/05 SPQ 223/00008/05 Contact Us For Availability
8
SPQ 204/00301/00 SPQ 204/00301/00 Contact Us For Availability
9
Steam Kit SPQ 204/00113/00 Contact Us For Availability
9
Bearing Replacement Tool Kit SPQ 212/00002/00 Contact Us For Availability
9
SPQ 253/00078/00 SPQ 253/00078/00 Contact Us For Availability
9
SPQ 223/00086/00 SPQ 223/00086/00 Contact Us For Availability
9
SPQ 223/00133/00 SPQ 223/00133/00 Contact Us For Availability
9
Door Lock Kit SPQ C000185 Contact Us For Availability
9
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
9
SPQ 208/00132/00 SPQ 208/00132/00 Contact Us For Availability
9
SPQ C000561 SPQ C000561 Contact Us For Availability
9
SPQ 209/00099/29 SPQ 209/00099/29 Contact Us For Availability
9
SPQ 209/00356/00 SPQ 209/00356/00 Contact Us For Availability
9
SPQ 153/00106/00 SPQ 153/00106/00 Contact Us For Availability
9
SPQ 211/00097/01 SPQ 211/00097/01 Contact Us For Availability
9
SPQ 203/00005/00 SPQ 203/00005/00 Contact Us For Availability
9
SPQ 223/00001/07 SPQ 223/00001/07 Contact Us For Availability
10
Washer SPQ 202/00105/00 Contact Us For Availability
10
Bolt SPQ 206/00147/00 Contact Us For Availability
10
Hose Clamp SPQ 223/00012/00 Contact Us For Availability
10
Drain Valve Spring SPQ 209/00170/02 Contact Us For Availability
10
Bolt SPQ C000430 Contact Us For Availability
10
Hinge Plate SPQ 253/00177/00 Contact Us For Availability
10
Hinge Plate SPQ 253/00176/50 Contact Us For Availability
10
Nut SPQ 204/00116/00 Contact Us For Availability
10
Side Panel Gasket SPQ 246/00079/00 Contact Us For Availability
10
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
10
Screw SPQ 207/00110/00 Contact Us For Availability
10
Cordlock SPQ 211/00117/00 Contact Us For Availability
10
Nut SPQ 204/00006/00 Contact Us For Availability
10
Washer SPQ 201/00002/00 Contact Us For Availability
10
Bolt SPQ 205/00107/00 Contact Us For Availability
10
Bracket SPQ 209/00581/10 Contact Us For Availability
11
Door Front Panel SPQ 153/10113/00 Contact Us For Availability
11
Washer SPQ 203/00016/00 Contact Us For Availability
11
Drain Valve Shaft SPQ 209/00170/10 Contact Us For Availability
11
Hinge Block SPQ 253/00178/10 Contact Us For Availability
11
Washer SPQ 223/00123/00 Contact Us For Availability
11
Handle Grommet SPQ 223/00008/01 Contact Us For Availability
11
Back Panel Support Assembly SPQ 153/00114/C0 Contact Us For Availability
11
Washer SPQ 202/00101/00 Contact Us For Availability
11
Grommet SPQ 211/00118/00 Contact Us For Availability
11
Noise Filter SPQ 227/00163/00 Contact Us For Availability
11
Hose Clamp SPQ 204/00201/00 Contact Us For Availability
11
Clamp SPQ 253/00019/00 Contact Us For Availability
11
Steam Injector SPQ 153/00051/10 Contact Us For Availability
12
Counterweight SPQ 253/10013/00 Contact Us For Availability
12
Speed Sensor Bracket SPQ 153/00041/02 Contact Us For Availability
12
Belt SPQ 201/00025/00 Contact Us For Availability
12
Drain Valve Plate Assembly SPQ 114/00010/00 Contact Us For Availability
12
Washer SPQ 209/00025/12 Contact Us For Availability
12
Grommet SPQ 223/00198/00 Contact Us For Availability
12
Kickplate SPQ 153/10117/00 Contact Us For Availability
12
Nut SPQ 204/00009/00 Contact Us For Availability
12
Back Panel SPQ 153/00114/HD Contact Us For Availability
12
Water Hose SPQ 223/00010/00 Contact Us For Availability
12
Strain Relief Connector SPQ 211/00170/00 Contact Us For Availability
12
Bushing SPQ 207/00126/00 Contact Us For Availability
12
Soap Injector Orifice Nipple SPQ 223/00177/00 Contact Us For Availability
12
Steam Injector Plate SPQ 153/00051/50 Contact Us For Availability
13
Leveling Leg SPQ 252/00006/00 Contact Us For Availability
13
Washer SPQ 203/00002/00 Contact Us For Availability
13
Pulley SPQ 226/00155/00 Contact Us For Availability
13
Out-of-Balance Switch Boot SPQ 204/00007/00 Contact Us For Availability
13
Hose Clamp SPQ 223/00223/00 Contact Us For Availability
13
Exhaust Valve Hose SPQ 223/00170/00 Contact Us For Availability
13
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
13
Printboard SPQ 209/00505/02 Contact Us For Availability
13
Bolt SPQ 206/00042/00 Contact Us For Availability
13
Supply Dispenser Box SPQ 223/00044/00 Contact Us For Availability
13
Bolt SPQ 205/00108/00 Contact Us For Availability
13
Soap Injector Coupling SPQ 211/00126/00 Contact Us For Availability
14
Bearing Cover Plate SPQ 153/00069/00 Contact Us For Availability
14
Key SPQ 253/00026/00 Contact Us For Availability
14
Screw SPQ 248/00114/00 Contact Us For Availability
14
Washer SPQ 202/00002/00 Contact Us For Availability
14
T-Piece SPQ 253/00006/00 Contact Us For Availability
14
Door Glass Retainer SPQ 253/00158/607 Contact Us For Availability
14
Elbow SPQ 223/00210/00 Contact Us For Availability
14
Backbridge SPQ 153/00114/A1 Contact Us For Availability
14
Prewash and Mainwash Nozzle SPQ 253/00012/02 Contact Us For Availability
14
Bolt SPQ 223/00345/01 Contact Us For Availability
14
Screw SPQ B12347501 Contact Us For Availability
15
V-Ring Seal SPQ 253/10120/00 Contact Us For Availability
15
Roller Bearing SPQ 253/00156/00 Contact Us For Availability
15
Roller Bearing SPQ 253/00033/00 Contact Us For Availability
15
Spacer SPQ B12543401 Contact Us For Availability
15
Overflow Hose SPQ 223/00013/00 Contact Us For Availability
15
Door Glass SPQ 253/10128/00 Contact Us For Availability
15
Programming Key Contact Switch SPQ 209/00326/20 Contact Us For Availability
15
Hose Barb SPQ 223/00016/00 Contact Us For Availability
15
Washer SPQ 211/00181/00 Contact Us For Availability
15
Filter SPQ 209/00287/21 Contact Us For Availability
15
Y Pipe SPQ 223/00107/03 Contact Us For Availability
15
Soap Injector Hose SPQ 223/00176/00 Contact Us For Availability
16
Bearing Spacer SPQ B12360807 Contact Us For Availability
16
Pulley SPQ 206/00125/00 Contact Us For Availability
16
Washer SPQ 223/00184/00 Contact Us For Availability
16
Door Solenoid Assembly SPQ B12495102 Contact Us For Availability
16
Electrical Plate Assembly SPQ 223/00174/00 Contact Us For Availability
17
Bolt SPQ 217/00102/00 Contact Us For Availability
17
Screw SPQ 207/00108/00 Contact Us For Availability
17
Gasket SPQ 153/00112/10 Contact Us For Availability
17
Elbow SPQ 253/00030/00 Contact Us For Availability
17
Pressure Hose SPQ 223/00182/00 Contact Us For Availability
18
SPQ B12369701 SPQ B12369701 Contact Us For Availability
18
Reed Switch Assembly SPQ C003000 Contact Us For Availability
18
Hose Clamp SPQ 246/00092/00 Contact Us For Availability
18
Water Level Switch SPQ B12548601 Contact Us For Availability
18
Bolt SPQ 204/00105/00 Contact Us For Availability
18
Voltage Discharge Decal SPQ B12355001 Contact Us For Availability
18
Washer SPQ 223/00180/00 Contact Us For Availability
19
SPQ 204/00111/00 SPQ 204/00111/00 Contact Us For Availability
19
Blind Rivet SPQ F8245101 Contact Us For Availability
19
Mounting Plate SPQ 173/00012/00 Contact Us For Availability
19
Nut SPQ 223/00179/10 Contact Us For Availability
20
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
21
SPQ 206/00142/00 SPQ 206/00142/00 Contact Us For Availability
21
Screw SPQ 153/00027/22 Contact Us For Availability
22
Door Latch SPQ C001244 Contact Us For Availability
23
Lock Spring Leaf SPQ 211/00072/00 Contact Us For Availability
23
Pop Rivet SPQ F431223 Contact Us For Availability
23
Fuse SPQ 223/00035/01 Contact Us For Availability
24
Magnet SPQ F8390801 Contact Us For Availability
24
Spring SPQ C000431 Contact Us For Availability
25
Door Magnet Mounting Bracket SPQ C002994 Contact Us For Availability
25
SPQ 209/00532/00 SPQ 209/00532/00 Contact Us For Availability
26
SPQ 209/00526/00 SPQ 209/00526/00 Contact Us For Availability
27
Washer SPQ 211/00120/00 Contact Us For Availability
27
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
29
SPQ 209/00528/00 SPQ 209/00528/00 Contact Us For Availability
35
SPQ 207/00003/00 SPQ 207/00003/00 Contact Us For Availability
NI
SPQ 894P3 SPQ 894P3 Contact Us For Availability
NI
SPQ 245/00054/00 SPQ 245/00054/00 Contact Us For Availability
NI
SPQ 3885P SPQ 3885P Contact Us For Availability
NI
SPQ 206/00053/00 SPQ 206/00053/00 Contact Us For Availability
NI
SPQ 209/00052/11 SPQ 209/00052/11 Contact Us For Availability
NI
SPQ 209/00052/12 SPQ 209/00052/12 Contact Us For Availability
NI
SPQ C003286 SPQ C003286 Contact Us For Availability
NI
SPQ 206/00027/00 SPQ 206/00027/00 Contact Us For Availability
NI
SPQ F8410901 SPQ F8410901 Contact Us For Availability
NI
Inverter Drive Retrofit Kit SPQ F8421118 Contact Us For Availability
NI
SPQ F8421018 SPQ F8421018 Contact Us For Availability
NI
SPQ F8421120 SPQ F8421120 Contact Us For Availability
NI
SPQ F8421019 SPQ F8421019 Contact Us For Availability
NI
Dosing Pump Hose Connector SPQ 209/00555/99 Contact Us For Availability
NI
SPQ 809P3 SPQ 809P3 Contact Us For Availability
× ![]()
