Model IPSO IHC035MNH Washer – Common Parts & Diagrams

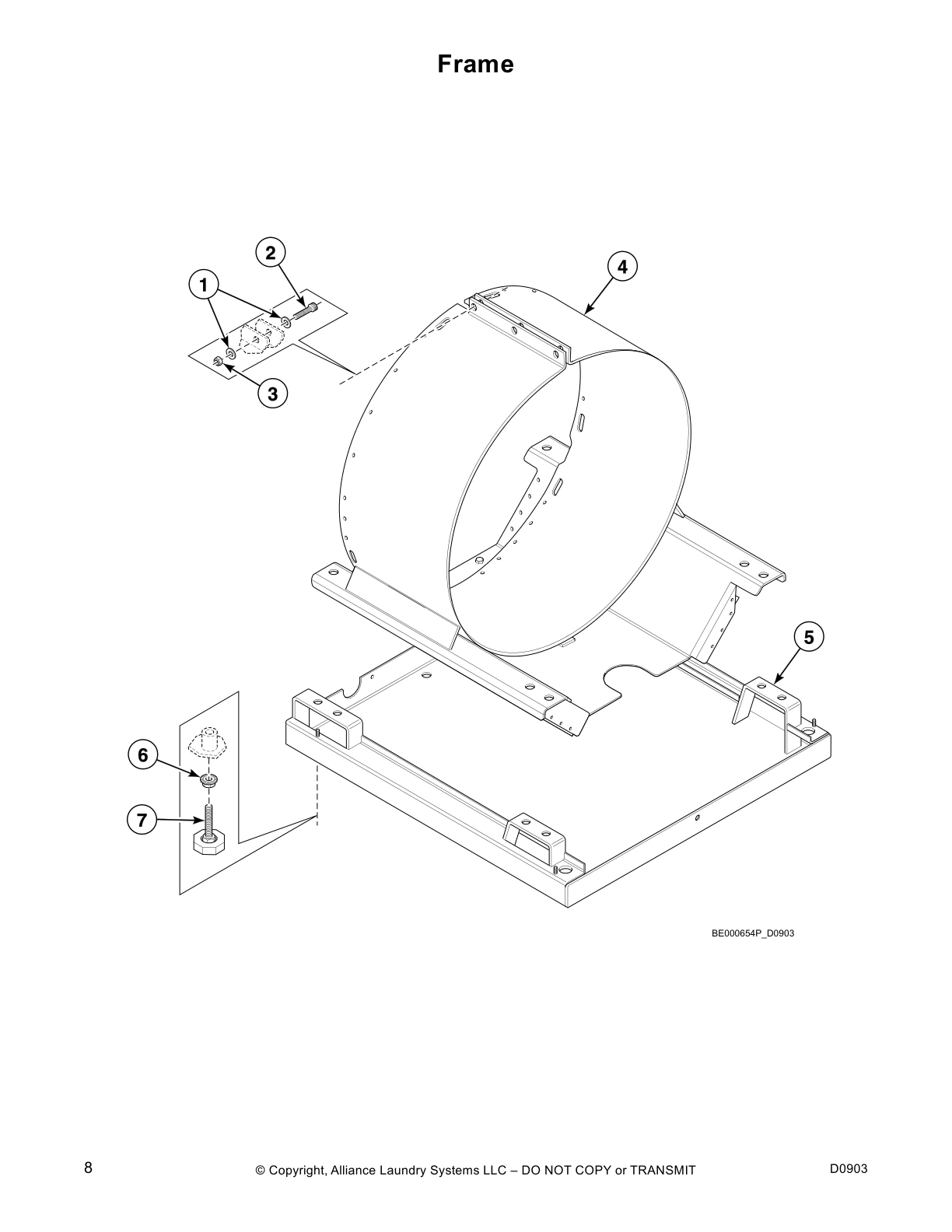

Frame

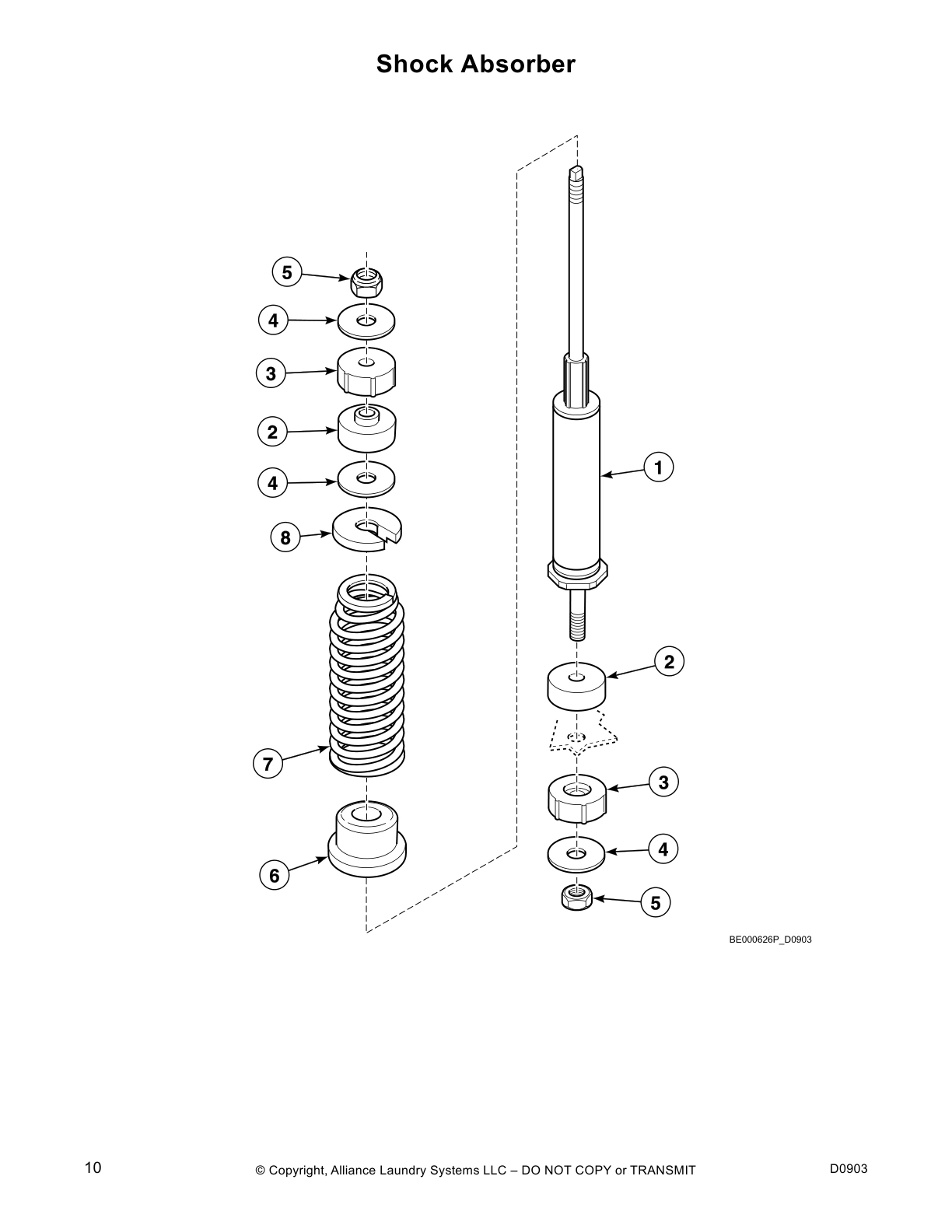

Shock Absorber
Shell and Basket - Models Through 3/31/07
Shell and Basket - Models Starting 4/1/07
Bearing Housing - Models Through 1/30/11
Bearing Housing - Models Starting 1/31/11
Basket, Pulley and Belt - Models Through 3/31/07
Basket, Pulley and Belt - Models Starting 4/1/07
Motor and Belt
Drain Plumbing - Single Outlet Drain Piece with Water Level
Detection on Drain Valve-Models Through 8/11/10
Drain Plumbing - Single Outlet Drain Piece with Water Level
Detection on Drain Hose-Models Starting 8/12/10
Drain Plumbing - Dual Outlet Drain Piece with
Water Level Detection on Drain Hose
Drain Plumbing - Models with Pump Drain
Drain Plumbing - Models with Pump Drain and Frontal Access
Door Lock
Door
Control Panel - Cygnus Professional
Control Panel - Cygnus Premium OPL
Control Panel - Cygnus Premium OPL
with Frontal Supply Dispenser
Control Panel - Cygnus Premium Coin
Control Panel - Cygnus Premium Coin
with Frontal Supply Dispenser
Control Panel - Cygnus Standard/Commercial OPL
Control Panel - Cygnus Standard/Commercial OPL
with Frontal Supply Dispenser
Control Panel - Micro-20 OPL
Control Panel - Sigma OPL
Control Panel - Micro-20 and Sigma Coin
Control Panel - PS40F
Coin Drop - Mechanical Coin Meter
Coin Drop - Electronic Coin Meter
Middle Front, Top, Lower Rear and Right Side Panels
Left Side, Upper Rear and Lower Front Panels
Upper Back Panel with Circular Ventilation -
Models Through 12/31/05
Upper Back Panel with Rectangular Ventilation -
Models Through 12/31/05
Upper Back Panel - Models Starting 1/1/06
Inverter Drive - Models Through 9/30/08
Inverter Drive - Models Starting 10/1/08
Main Switch and Noise Filter
Soap Injection Printboard, Network Connection Printboard
and Noise Filter - Sigma, PS40F and Micro-20
Central Operating Panel, Network Connection
and Soap Injection Printboards - Cygnus Models
Relay, Network Connection and Main Printboards - Cygnus Models
Electrical Component Mounting Plate - Models Through 2/22/09
Electrical Component Mounting Plate - Models Starting 2/23/09
Balance Switch
Supply Dispenser - Models with Frontal Supply Dispenser
Supply Dispenser with Round Ventilation Opening
Supply Dispenser with Rectangular Ventilation Opening
Electric Heating Option
Steam Heating Option - *HC35 and *HC165 Models
Soap Pumps
Common parts from model IPSO IHC035MNH Washer
SPQ 111/01174/00 SPQ 111/01174/00 Contact Us For Availability
SPQ 209/00529/00 SPQ 209/00529/00 Contact Us For Availability
SPQ 209/00530/00 SPQ 209/00530/00 Contact Us For Availability
SPQ B12389501 SPQ B12389501 Contact Us For Availability
SPQ 209/00564/20 SPQ 209/00564/20 Contact Us For Availability
Steam Heat Kit SPQ 924P3 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
1
Shock Absorber SPQ 247/00002/02 Contact Us For Availability
1
Nut SPQ 204/00111/00 Contact Us For Availability
1
Nut SPQ 204/00110/00 Contact Us For Availability
1
Basket and Shaft Assembly SPQ B12380501 Contact Us For Availability
1
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
1
Nut SPQ 206/00101/00 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00262/00 Contact Us For Availability
1
Bolt SPQ 207/00125/00 Contact Us For Availability
1
Backbridge SPQ 111/01833/00 Contact Us For Availability
1
Electrical Connection Plate SPQ 111/00094/10 Contact Us For Availability
1
Rivet SPQ 208/00017/00 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Fan Grill SPQ 209/00287/01 Contact Us For Availability
1
Standoff SPQ 211/00120/00 Contact Us For Availability
1
Electrical Component Mounting Plate SPQ 111/10003/40 Contact Us For Availability
1
Hose SPQ 223/00286/00 Contact Us For Availability
1
Heating Element SPQ 209/00563/20 Contact Us For Availability
1
Feeding Liquid Soap Dosing Pump SPQ 209/00554/51 Contact Us For Availability
2
Screw SPQ 206/00053/00 Contact Us For Availability
2
Fastening Rubber SPQ 247/00006/00 Contact Us For Availability
2
Screw SPQ 201/00010/00 Contact Us For Availability
2
Nut SPQ 219/00007/00 Contact Us For Availability
2
Bolt SPQ 201/00007/00 Contact Us For Availability
2
Screw SPQ 201/00012/00 Contact Us For Availability
2
Bearing Spacer SPQ 217/00101/00 Contact Us For Availability
2
Lock Protection Plate SPQ 205/00115/00 Contact Us For Availability
2
Soap Dispenser Frame SPQ 223/00103/03 Contact Us For Availability
2
Lower Front Panel SPQ 205/00106/00 Contact Us For Availability
2
Washer SPQ 206/00014/00 Contact Us For Availability
2
SPQ F200164 SPQ F200164 Contact Us For Availability
2
Fuse SPQ 227/00163/00 Contact Us For Availability
2
Softener Spray Nozzle SPQ 223/00229/00 Contact Us For Availability
2
Heating Element Plug SPQ 209/00562/20 Contact Us For Availability
2
Steam Bracket SPQ 111/00155/00 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
Washer SPQ 247/00007/00 Contact Us For Availability
3
Out-of-Balance Switch SPQ 111/01854/00 Contact Us For Availability
3
SPQ 202/00003/00 SPQ 202/00003/00 Contact Us For Availability
3
Tolerance Ring SPQ B12380601 Contact Us For Availability
3
Caddy Bracket SPQ 206/00057/00 Contact Us For Availability
3
Pressure Switch Elbow SPQ 223/00316/00 Contact Us For Availability
3
Tub to Drain Valve Hose SPQ 223/00011/00 Contact Us For Availability
3
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
3
Nut SPQ 208/00104/00 Contact Us For Availability
3
Noise Filter SPQ F8420912 Contact Us For Availability
3
Fuse SPQ B12352301 Contact Us For Availability
3
Fuse Holder SPQ 209/00202/01 Contact Us For Availability
3
Soap Dispenser Gasket SPQ 223/00107/02 Contact Us For Availability
3
Shrink Fit SPQ 223/00222/00 Contact Us For Availability
3
Steam Hose SPQ 217/00063/00 Contact Us For Availability
4
Seal Plate Assembly SPQ 201/00201/00 Contact Us For Availability
4
Motor Pulley SPQ 206/00056/00 Contact Us For Availability
4
SPQ 117/00042/00 SPQ 117/00042/00 Contact Us For Availability
4
SPQ 217/00017/03 SPQ 217/00017/03 Contact Us For Availability
4
Nut SPQ 204/00008/00 Contact Us For Availability
4
Contact Block SPQ 44018901 Contact Us For Availability
4
Standoff SPQ 209/00440/80 Contact Us For Availability
4
Parameter Unit Program Cable SPQ F8420812 Contact Us For Availability
4
SPQ 209/00468/00 SPQ 209/00468/00 Contact Us For Availability
4
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
4
Bolt SPQ 223/00246/00 Contact Us For Availability
4
Front Soapbox Siphon SPQ 223/00280/00 Contact Us For Availability
4
Screw SPQ 223/00107/03 Contact Us For Availability
4
Soap Spray Nozzle SPQ 123/00103/06 Contact Us For Availability
4
Bracket Support SPQ 111/00155/10 Contact Us For Availability
5
Frame SPQ 152/00111/50 Contact Us For Availability
5
Tub SPQ B12329301 Contact Us For Availability
5
Bolt SPQ 215/00004/00 Contact Us For Availability
5
Bolt SPQ 206/00099/00 Contact Us For Availability
5
Retaining Ring SPQ 226/00123/00 Contact Us For Availability
5
SPQ 223/00016/00 SPQ 223/00016/00 Contact Us For Availability
5
SPQ 207/00009/00 SPQ 207/00009/00 Contact Us For Availability
5
Upper Front Panel SPQ 111/01816/00 Contact Us For Availability
5
SPQ 203/00005/00 SPQ 203/00005/00 Contact Us For Availability
5
Support Connector SPQ 111/10003/10 Contact Us For Availability
5
SPQ 207/00018/00 SPQ 207/00018/00 Contact Us For Availability
5
Inner Soapbox SPQ 223/00280/03 Contact Us For Availability
5
Soap Box Assembly Plate SPQ 223/00107/00 Contact Us For Availability
5
Soap Dispenser Gasket SPQ 223/00245/00 Contact Us For Availability
5
Liquid Soap Dosing Pump O-Ring SPQ 209/00554/05 Contact Us For Availability
6
Leveling Leg SPQ 206/00106/00 Contact Us For Availability
6
Suspension Spring SPQ 247/00001/03 Contact Us For Availability
6
Bolt SPQ B12329201 Contact Us For Availability
6
SPQ 224/00052/00 SPQ 224/00052/00 Contact Us For Availability
6
Washer SPQ 206/00005/00 Contact Us For Availability
6
SPQ 223/00210/00 SPQ 223/00210/00 Contact Us For Availability
6
SPQ 255/00010/00 SPQ 255/00010/00 Contact Us For Availability
6
SPQ 201/00018/00 SPQ 201/00018/00 Contact Us For Availability
6
Plexi Frame SPQ 225/00316/00 Contact Us For Availability
6
SPQ 204/00006/00 SPQ 204/00006/00 Contact Us For Availability
6
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
6
Washer SPQ B12339301 Contact Us For Availability
6
Central Control Board SPQ 209/00438/50 Contact Us For Availability
6
Soapbox Handle SPQ 223/00280/20 Contact Us For Availability
6
SPQ B12347501 SPQ B12347501 Contact Us For Availability
6
Safety Level Switch SPQ 900/00108/00 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
7
SPQ 252/00006/00 SPQ 252/00006/00 Contact Us For Availability
7
Shock Absorber SPQ 247/00002/01 Contact Us For Availability
7
SPQ 224/00051/00 SPQ 224/00051/00 Contact Us For Availability
7
Pulley SPQ 203/00002/00 Contact Us For Availability
7
SPQ 204/00115/00 SPQ 204/00115/00 Contact Us For Availability
7
SPQ 209/00463/00 SPQ 209/00463/00 Contact Us For Availability
7
SPQ 223/00012/00 SPQ 223/00012/00 Contact Us For Availability
7
SPQ 217/00022/00 SPQ 217/00022/00 Contact Us For Availability
7
Pushbutton SPQ 44018801 Contact Us For Availability
7
SPQ 208/00014/00 SPQ 208/00014/00 Contact Us For Availability
7
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
7
Nut SPQ B12331701 Contact Us For Availability
7
Main Switch SPQ 111/01837/01 Contact Us For Availability
7
SPQ 223/00280/07 SPQ 223/00280/07 Contact Us For Availability
7
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
7
Dispenser Drain Funnel SPQ 223/00102/30 Contact Us For Availability
7
Contactor and Wiring Assembly SPQ 901/00217/00 Contact Us For Availability
8
SPQ 201/00015/00 SPQ 201/00015/00 Contact Us For Availability
8
Spring Holder Top SPQ 247/00001/01 Contact Us For Availability
8
SPQ 206/00011/00 SPQ 206/00011/00 Contact Us For Availability
8
SPQ 209/00643/01 SPQ 209/00643/01 Contact Us For Availability
8
SPQ 223/00303/00 SPQ 223/00303/00 Contact Us For Availability
8
SPQ 155/00155/00 SPQ 155/00155/00 Contact Us For Availability
8
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
8
SPQ 217/00015/00 SPQ 217/00015/00 Contact Us For Availability
8
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
8
SPQ 155/00144/00 SPQ 155/00144/00 Contact Us For Availability
8
SPQ 207/00101/00 SPQ 207/00101/00 Contact Us For Availability
8
SPQ 111/01822/00 SPQ 111/01822/00 Contact Us For Availability
8
Grommet SPQ 227/00171/10 Contact Us For Availability
8
Terminal Block SPQ 111/10003/30 Contact Us For Availability
8
Pressure Switch SPQ 209/00027/10 Contact Us For Availability
8
SPQ 223/00109/00 SPQ 223/00109/00 Contact Us For Availability
9
SPQ 206/00032/00 SPQ 206/00032/00 Contact Us For Availability
9
SPQ B12333701 SPQ B12333701 Contact Us For Availability
9
SPQ 206/00054/00 SPQ 206/00054/00 Contact Us For Availability
9
Pressure Switch Cap SPQ 223/00035/02 Contact Us For Availability
9
SPQ 223/00297/00 SPQ 223/00297/00 Contact Us For Availability
9
SPQ 206/00105/00 SPQ 206/00105/00 Contact Us For Availability
9
SPQ 118/00046/10 SPQ 118/00046/10 Contact Us For Availability
9
Pushbutton SPQ 225/00407/00 Contact Us For Availability
9
SPQ 208/00002/00 SPQ 208/00002/00 Contact Us For Availability
9
SPQ 111/01803/00 SPQ 111/01803/00 Contact Us For Availability
9
Terminal Block SPQ 227/00162/00 Contact Us For Availability
9
Fuse SPQ 209/00006/01 Contact Us For Availability
9
Pressure Switch Cap SPQ 209/01625/00 Contact Us For Availability
9
SPQ 223/00298/00 SPQ 223/00298/00 Contact Us For Availability
10
Spring SPQ 238/00014/00 Contact Us For Availability
10
Bearing SPQ F100134 Contact Us For Availability
10
Washer SPQ 201/00006/00 Contact Us For Availability
10
Drain Valve SPQ 209/00643/00 Contact Us For Availability
10
Water Hose SPQ 223/00044/00 Contact Us For Availability
10
Stopper SPQ 255/00019/00 Contact Us For Availability
10
Door Solenoid Assembly SPQ B12495102 Contact Us For Availability
10
Nut SPQ 204/00106/00 Contact Us For Availability
10
Reinforcement Plate SPQ 111/10089/01 Contact Us For Availability
10
Side Panel Gasket SPQ 246/00079/00 Contact Us For Availability
10
Nut SPQ 208/00025/00 Contact Us For Availability
10
Voltage Discharge Decal SPQ B12355001 Contact Us For Availability
10
Tube SPQ 118/00118/03 Contact Us For Availability
10
Soap Dispenser Assembly SPQ 223/00102/50 Contact Us For Availability
11
Fastening Ring SPQ 238/00013/00 Contact Us For Availability
11
Washer SPQ 203/00004/00 Contact Us For Availability
11
Fan Plate Assembly SPQ 152/00044/03 Contact Us For Availability
11
Hose Clamp SPQ 223/00010/00 Contact Us For Availability
11
Connecting Piece SPQ 255/00017/00 Contact Us For Availability
11
Drain Hose SPQ 223/00307/00 Contact Us For Availability
11
Door Lock Spring SPQ 224/00049/00 Contact Us For Availability
11
Washer SPQ 202/00108/00 Contact Us For Availability
11
Fuse SPQ 209/00372/01 Contact Us For Availability
11
Side Panel SPQ 111/60036/00 Contact Us For Availability
11
Bolt SPQ 206/00027/00 Contact Us For Availability
11
Tilt Switch Support SPQ 111/01855/00 Contact Us For Availability
12
Boot SPQ 255/00123/00 Contact Us For Availability
12
Bolt SPQ 205/00104/00 Contact Us For Availability
12
Screw SPQ 207/00117/00 Contact Us For Availability
12
Outlet Pipe Plate Assembly SPQ 101/00007/00 Contact Us For Availability
12
Pump Support SPQ 155/00159/00 Contact Us For Availability
12
Pump Support SPQ 111/00288/10 Contact Us For Availability
12
Washer SPQ 203/00006/00 Contact Us For Availability
12
Fan Filter SPQ 209/00465/11 Contact Us For Availability
12
Tilt Detector Plate SPQ 204/00005/00 Contact Us For Availability
12
Dispenser Drain Funnel SPQ 223/00195/00 Contact Us For Availability
13
Nut SPQ 204/00009/00 Contact Us For Availability
13
Tub Front Panel SPQ 119/00049/00 Contact Us For Availability
13
Speed Detector Bracket SPQ 152/00055/00 Contact Us For Availability
13
Motor SPQ B12510601 Contact Us For Availability
13
Pump SPQ 209/00646/00 Contact Us For Availability
13
Door Hinge Spacer SPQ 202/00104/00 Contact Us For Availability
13
Fuse SPQ 209/00439/00 Contact Us For Availability
13
Nut SPQ 202/00004/00 Contact Us For Availability
13
Backbridge SPQ 111/01833/10 Contact Us For Availability
13
Filter SPQ 209/00465/21 Contact Us For Availability
13
Screw SPQ B12350903 Contact Us For Availability
14
Nut SPQ 204/00109/00 Contact Us For Availability
14
Siphon Break Hose SPQ 223/00013/00 Contact Us For Availability
14
Drain Pipe Cap SPQ 223/00294/00 Contact Us For Availability
14
Clamp SPQ 209/00647/00 Contact Us For Availability
14
Screw SPQ 117/00010/00 Contact Us For Availability
14
Pump Support SPQ 204/00007/00 Contact Us For Availability
14
Filter SPQ 227/00242/00 Contact Us For Availability
15
Bearing Housing Assembly SPQ 152/10118/01 Contact Us For Availability
15
Overflow Hose SPQ 223/00150/00 Contact Us For Availability
15
Washer SPQ 204/00201/00 Contact Us For Availability
15
Pipe SPQ 223/00009/00 Contact Us For Availability
15
Interlock Lever SPQ 224/00043/00 Contact Us For Availability
15
Door Hinge SPQ 207/00126/00 Contact Us For Availability
15
Inverter Box Cover SPQ 111/01174/01 Contact Us For Availability
15
Water Hose SPQ 155/00161/00 Contact Us For Availability
15
Soap Dispenser Hose SPQ 223/00266/00 Contact Us For Availability
15
Liquid Soap Dispenser Insert SPQ 223/00102/04 Contact Us For Availability
16
Bolt SPQ 201/00002/00 Contact Us For Availability
16
Nut SPQ 223/00159/00 Contact Us For Availability
16
Door Hinge Plate Assembly SPQ 221/00005/00 Contact Us For Availability
16
Plug SPQ 211/00091/00 Contact Us For Availability
16
Nut SPQ 204/00114/00 Contact Us For Availability
16
Siphon Break Dispenser Hose SPQ 223/00261/00 Contact Us For Availability
16
Rinse Insert SPQ 223/00102/08 Contact Us For Availability
17
Outlet Pipe Plate Assembly SPQ 223/00162/00 Contact Us For Availability
17
Bolt SPQ 217/00052/04 Contact Us For Availability
17
Bolt SPQ 118/00065/00 Contact Us For Availability
17
Standoff SPQ 211/00122/00 Contact Us For Availability
17
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
17
Liquid Soap Manifold SPQ 223/00262/00 Contact Us For Availability
17
Softener Spray Nozzle SPQ 223/00102/03 Contact Us For Availability
18
Hose Vent SPQ 223/00001/04 Contact Us For Availability
18
Door Handle Stop SPQ 202/00101/00 Contact Us For Availability
18
Rinsing Box SPQ 223/00250/00 Contact Us For Availability
18
Liquid Soap Manifold SPQ 223/00102/05 Contact Us For Availability
19
Lever Spring SPQ 202/00124/00 Contact Us For Availability
19
Door Glass SPQ 205/00107/00 Contact Us For Availability
19
Retaining Ring SPQ 206/00113/00 Contact Us For Availability
19
Screw SPQ F200166 Contact Us For Availability
19
Screw SPQ 208/00130/00 Contact Us For Availability
19
Siphon Break SPQ 223/00222/05 Contact Us For Availability
20
Ground Terminal SPQ 224/00040/00 Contact Us For Availability
20
Soap Dispenser Air Breather Hose SPQ 223/00107/01 Contact Us For Availability
20
Outer and Inner Box Kit SPQ 223/00222/04 Contact Us For Availability
21
Pressure Hose SPQ 206/00033/00 Contact Us For Availability
21
Door Lock Microswitch SPQ 117/00052/08 Contact Us For Availability
21
SPQ 111/00969/00 SPQ 111/00969/00 Contact Us For Availability
21
Water Hose SPQ 223/00197/00 Contact Us For Availability
21
Soap Dispenser SPQ 223/00222/03 Contact Us For Availability
22
Pressure Switch Cap SPQ 223/00146/00 Contact Us For Availability
22
Lock Shaft SPQ 210/10015/00 Contact Us For Availability
22
Inverter Drive Kit SPQ F8420911 Contact Us For Availability
22
Soap Box Assembly Plate SPQ 223/00222/60 Contact Us For Availability
23
Hose Barb SPQ 209/00643/11 Contact Us For Availability
23
Fuse SPQ F8420811 Contact Us For Availability
24
Microswitch SPQ 205/00103/00 Contact Us For Availability
NI
SPQ 247/00002/00 SPQ 247/00002/00 Contact Us For Availability
NI
SPQ 247/00001/04 SPQ 247/00001/04 Contact Us For Availability
NI
SPQ 217/00008/00 SPQ 217/00008/00 Contact Us For Availability
NI
SPQ 238/00012/00 SPQ 238/00012/00 Contact Us For Availability
NI
SPQ 212/00006/00 SPQ 212/00006/00 Contact Us For Availability
NI
SPQ 217/00002/00 SPQ 217/00002/00 Contact Us For Availability
NI
SPQ 255/00117/00 SPQ 255/00117/00 Contact Us For Availability
NI
SPQ 271/35945/00 SPQ 271/35945/00 Contact Us For Availability
NI
SPQ 223/00174/00 SPQ 223/00174/00 Contact Us For Availability
NI
SPQ F8410901 SPQ F8410901 Contact Us For Availability
NI
Fuse SPQ 111/01834/00 Contact Us For Availability
NI
SPQ 209/00526/00 SPQ 209/00526/00 Contact Us For Availability
NI
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
NI
SPQ 209/00058/00 SPQ 209/00058/00 Contact Us For Availability
NI
SPQ 209/00581/10 SPQ 209/00581/10 Contact Us For Availability
NI
SPQ F360202 SPQ F360202 Contact Us For Availability
NI
DIN Connector SPQ F140609P Contact Us For Availability
NI
Strain Relief Connector SPQ F140329 Contact Us For Availability
NI
Connector SPQ 209/00737/00 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
