Model IPSO IHC030MNH Washer – Common Parts & Diagrams
Frame
Shock Absorber
Shell and Basket - Models Through 3/31/07
Shell and Basket - Models Starting 4/1/07
Bearing Housing - Models Through 1/30/11
Bearing Housing - Models Starting 1/31/11
Basket, Pulley and Belt - Models Through 3/31/07
Basket, Pulley and Belt - Models Starting 4/1/07
Motor and Belt
Drain Plumbing - Single Outlet Drain Piece with Water Level
Detection on Drain Valve-Models Through 8/11/10
Drain Plumbing - Single Outlet Drain Piece with Water Level
Detection on Drain Hose-Models Starting 8/12/10
Drain Plumbing - Dual Outlet Drain Piece with
Water Level Detection on Drain Hose
Drain Plumbing - Models with Pump Drain
Drain Plumbing - Models with Pump Drain and Frontal Access
Door Lock
Door
Control Panel - Cygnus Professional
Control Panel - Cygnus Premium OPL
Control Panel - Cygnus Premium OPL
with Frontal Supply Dispenser
Control Panel - Cygnus Premium Coin
Control Panel - Cygnus Premium Coin
with Frontal Supply Dispenser
Control Panel - Cygnus Standard/Commercial OPL
Control Panel - Cygnus Standard/Commercial OPL
with Frontal Supply Dispenser
Control Panel - Micro-20 OPL
Control Panel - Sigma OPL
Control Panel - Micro-20 and Sigma Coin
Control Panel - PS40F
Coin Drop - Mechanical Coin Meter
Coin Drop - Electronic Coin Meter
Middle Front, Top, Lower Rear and Right Side Panels
Left Side, Upper Rear and Lower Front Panels
Upper Back Panel with Circular Ventilation -
Models Through 12/31/05
Upper Back Panel with Rectangular Ventilation -
Models Through 12/31/05
Upper Back Panel - Models Starting 1/1/06
Inverter Drive - Models Through 9/30/08
Inverter Drive - Models Starting 10/1/08
Main Switch and Noise Filter
Soap Injection Printboard, Network Connection Printboard
and Noise Filter - Sigma, PS40F and Micro-20
Central Operating Panel, Network Connection
and Soap Injection Printboards - Cygnus Models
Relay, Network Connection and Main Printboards - Cygnus Models
Electrical Component Mounting Plate - Models Through 2/22/09
Electrical Component Mounting Plate - Models Starting 2/23/09
Balance Switch
Supply Dispenser - Models with Frontal Supply Dispenser
Supply Dispenser with Round Ventilation Opening
Supply Dispenser with Rectangular Ventilation Opening
Electric Heating Option
Steam Heating Option - *HC35 and *HC165 Models
Soap Pumps
Common parts from model IPSO IHC030MNH Washer
SPQ 206/00032/00 SPQ 206/00032/00 Contact Us For Availability
SPQ 111/01174/00 SPQ 111/01174/00 Contact Us For Availability
SPQ 209/00529/00 SPQ 209/00529/00 Contact Us For Availability
SPQ 209/00530/00 SPQ 209/00530/00 Contact Us For Availability
SPQ B12389501 SPQ B12389501 Contact Us For Availability
SPQ 209/00564/20 SPQ 209/00564/20 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
1

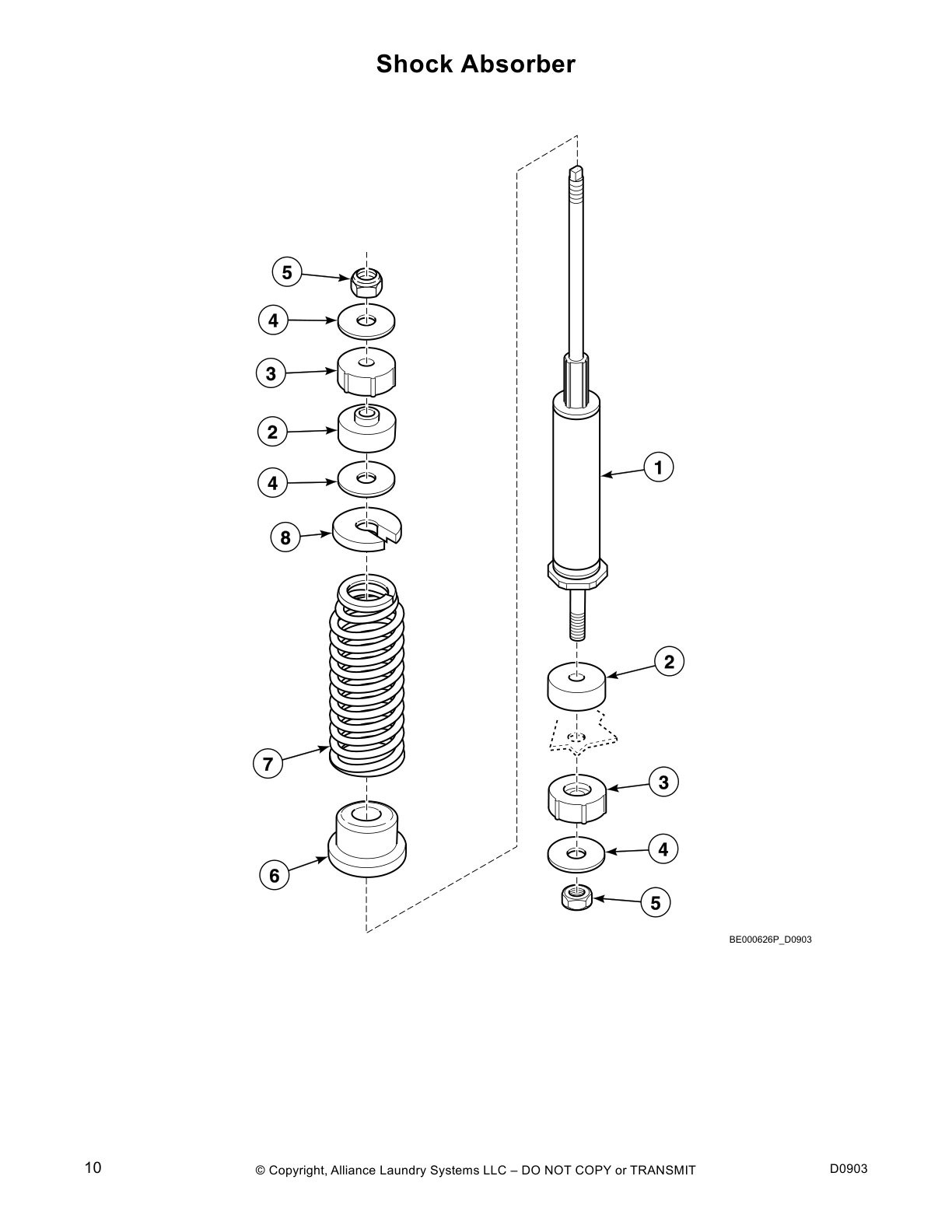

Shock Absorber SPQ 247/00002/02 Contact Us For Availability
1
Nut SPQ 204/00111/00 Contact Us For Availability
1
Nut SPQ 204/00110/00 Contact Us For Availability
1
Basket and Shaft Assembly SPQ B12380101 Contact Us For Availability
1
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
1
Nut SPQ 206/00101/00 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00262/00 Contact Us For Availability
1
Bolt SPQ 207/00125/00 Contact Us For Availability
1
Backbridge SPQ 111/01833/00 Contact Us For Availability
1
Electrical Connection Plate SPQ 111/00094/10 Contact Us For Availability
1
Rivet SPQ 208/00017/00 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Fan Grill SPQ 209/00287/01 Contact Us For Availability
1
Standoff SPQ 211/00120/00 Contact Us For Availability
1
Electrical Component Mounting Plate SPQ 111/10003/40 Contact Us For Availability
1
Hose SPQ 223/00286/00 Contact Us For Availability
1
Heating Element SPQ 209/00563/20 Contact Us For Availability
1
Feeding Liquid Soap Dosing Pump SPQ 209/00554/51 Contact Us For Availability
2
Screw SPQ 206/00053/00 Contact Us For Availability
2
Fastening Rubber SPQ 247/00006/00 Contact Us For Availability
2
Screw SPQ 201/00010/00 Contact Us For Availability
2
Bolt SPQ 201/00007/00 Contact Us For Availability
2
Screw SPQ 201/00012/00 Contact Us For Availability
2
Bearing Spacer SPQ 217/00101/00 Contact Us For Availability
2
Lock Protection Plate SPQ 205/00115/00 Contact Us For Availability
2
Soap Dispenser Frame SPQ 223/00103/03 Contact Us For Availability
2
Lower Front Panel SPQ 205/00106/00 Contact Us For Availability
2
Washer SPQ 206/00014/00 Contact Us For Availability
2
SPQ F200164 SPQ F200164 Contact Us For Availability
2
Fuse SPQ 227/00163/00 Contact Us For Availability
2
Softener Spray Nozzle SPQ 223/00229/00 Contact Us For Availability
2
Heating Element Plug SPQ 209/00562/20 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
Washer SPQ 247/00007/00 Contact Us For Availability
3
Out-of-Balance Switch SPQ 111/01854/00 Contact Us For Availability
3
SPQ 202/00003/00 SPQ 202/00003/00 Contact Us For Availability
3
Drum and Axle SPQ B12326301 Contact Us For Availability
3
Caddy Bracket SPQ 206/00057/00 Contact Us For Availability
3
Pressure Switch Elbow SPQ 223/00316/00 Contact Us For Availability
3
Tub to Drain Valve Hose SPQ 223/00011/00 Contact Us For Availability
3
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
3
Nut SPQ 208/00104/00 Contact Us For Availability
3
Noise Filter SPQ F8420810 Contact Us For Availability
3
Fuse SPQ B12352301 Contact Us For Availability
3
Fuse Holder SPQ 209/00202/01 Contact Us For Availability
3
Soap Dispenser Gasket SPQ 223/00107/02 Contact Us For Availability
3
Shrink Fit SPQ 223/00222/00 Contact Us For Availability
4
Tub Support SPQ 152/00107/00 Contact Us For Availability
4
Nut SPQ 219/00007/00 Contact Us For Availability
4
Seal Plate Assembly SPQ 201/00201/00 Contact Us For Availability
4
Motor Pulley SPQ 206/00056/00 Contact Us For Availability
4
SPQ 117/00042/00 SPQ 117/00042/00 Contact Us For Availability
4
SPQ 217/00017/03 SPQ 217/00017/03 Contact Us For Availability
4
Nut SPQ 204/00008/00 Contact Us For Availability
4
Contact Block SPQ 44018901 Contact Us For Availability
4
Standoff SPQ 209/00440/80 Contact Us For Availability
4
Parameter Unit Program Cable SPQ F8420809 Contact Us For Availability
4
SPQ 209/00468/00 SPQ 209/00468/00 Contact Us For Availability
4
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
4
Bolt SPQ 223/00246/00 Contact Us For Availability
4
Front Soapbox Siphon SPQ 223/00280/00 Contact Us For Availability
4
Screw SPQ 223/00107/03 Contact Us For Availability
4
Soap Spray Nozzle SPQ 123/00103/06 Contact Us For Availability
5
Basket Kit SPQ B12542901 Contact Us For Availability
5
Bolt SPQ 206/00099/00 Contact Us For Availability
5
Retaining Ring SPQ 226/00123/00 Contact Us For Availability
5
SPQ 223/00016/00 SPQ 223/00016/00 Contact Us For Availability
5
SPQ 207/00009/00 SPQ 207/00009/00 Contact Us For Availability
5
Upper Front Panel SPQ 111/01816/00 Contact Us For Availability
5
SPQ 203/00005/00 SPQ 203/00005/00 Contact Us For Availability
5
Support Connector SPQ 111/10003/10 Contact Us For Availability
5
SPQ 207/00018/00 SPQ 207/00018/00 Contact Us For Availability
5
Inner Soapbox SPQ 223/00280/03 Contact Us For Availability
5
Soap Box Assembly Plate SPQ 223/00107/00 Contact Us For Availability
5
Soap Dispenser Gasket SPQ 223/00245/00 Contact Us For Availability
5
Liquid Soap Dosing Pump O-Ring SPQ 209/00554/05 Contact Us For Availability
6
Leveling Leg SPQ 206/00106/00 Contact Us For Availability
6
Suspension Spring SPQ 247/00001/03 Contact Us For Availability
6
Tolerance Ring SPQ B12380201 Contact Us For Availability
6
SPQ 224/00052/00 SPQ 224/00052/00 Contact Us For Availability
6
SPQ 223/00210/00 SPQ 223/00210/00 Contact Us For Availability
6
SPQ 255/00010/00 SPQ 255/00010/00 Contact Us For Availability
6
SPQ 201/00018/00 SPQ 201/00018/00 Contact Us For Availability
6
Plexi Frame SPQ 225/00316/00 Contact Us For Availability
6
SPQ 204/00006/00 SPQ 204/00006/00 Contact Us For Availability
6
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
6
Washer SPQ B12339301 Contact Us For Availability
6
Central Control Board SPQ 209/00438/50 Contact Us For Availability
6
Soapbox Handle SPQ 223/00280/20 Contact Us For Availability
6
SPQ B12347501 SPQ B12347501 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
7
SPQ 252/00006/00 SPQ 252/00006/00 Contact Us For Availability
7
Shock Absorber SPQ 247/00002/01 Contact Us For Availability
7
Boot Clamp SPQ 206/00011/00 Contact Us For Availability
7
Bolt SPQ B12329001 Contact Us For Availability
7
SPQ 224/00051/00 SPQ 224/00051/00 Contact Us For Availability
7
Bolt SPQ 215/00004/00 Contact Us For Availability
7
SPQ 204/00115/00 SPQ 204/00115/00 Contact Us For Availability
7
SPQ 209/00463/00 SPQ 209/00463/00 Contact Us For Availability
7
SPQ 223/00012/00 SPQ 223/00012/00 Contact Us For Availability
7
SPQ 217/00022/00 SPQ 217/00022/00 Contact Us For Availability
7
Pushbutton SPQ 44018801 Contact Us For Availability
7
SPQ 208/00014/00 SPQ 208/00014/00 Contact Us For Availability
7
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
7
Nut SPQ B12331701 Contact Us For Availability
7
Main Switch SPQ 111/01837/01 Contact Us For Availability
7
SPQ 223/00280/07 SPQ 223/00280/07 Contact Us For Availability
7
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
7
Dispenser Drain Funnel SPQ 223/00102/30 Contact Us For Availability
8
Spring Holder Top SPQ 247/00001/01 Contact Us For Availability
8
Tub Front Panel Clip SPQ B12328901 Contact Us For Availability
8
Washer SPQ 206/00005/00 Contact Us For Availability
8
SPQ 209/00643/01 SPQ 209/00643/01 Contact Us For Availability
8
SPQ 223/00303/00 SPQ 223/00303/00 Contact Us For Availability
8
SPQ 155/00155/00 SPQ 155/00155/00 Contact Us For Availability
8
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
8
SPQ 217/00015/00 SPQ 217/00015/00 Contact Us For Availability
8
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
8
SPQ 155/00144/00 SPQ 155/00144/00 Contact Us For Availability
8
SPQ 207/00101/00 SPQ 207/00101/00 Contact Us For Availability
8
SPQ 111/01822/00 SPQ 111/01822/00 Contact Us For Availability
8
Grommet SPQ 227/00171/10 Contact Us For Availability
8
Terminal Block SPQ 111/10003/30 Contact Us For Availability
8
Pressure Switch SPQ 209/00027/10 Contact Us For Availability
8
SPQ 223/00109/00 SPQ 223/00109/00 Contact Us For Availability
9
SPQ B12333701 SPQ B12333701 Contact Us For Availability
9
SPQ 206/00054/00 SPQ 206/00054/00 Contact Us For Availability
9
Pressure Switch Cap SPQ 223/00035/02 Contact Us For Availability
9
SPQ 223/00297/00 SPQ 223/00297/00 Contact Us For Availability
9
SPQ 206/00105/00 SPQ 206/00105/00 Contact Us For Availability
9
SPQ 118/00046/10 SPQ 118/00046/10 Contact Us For Availability
9
Pushbutton SPQ 225/00407/00 Contact Us For Availability
9
SPQ 208/00002/00 SPQ 208/00002/00 Contact Us For Availability
9
SPQ 111/01803/00 SPQ 111/01803/00 Contact Us For Availability
9
Terminal Block SPQ 227/00162/00 Contact Us For Availability
9
Fuse SPQ 209/00006/01 Contact Us For Availability
9
Pressure Switch Cap SPQ 209/01625/00 Contact Us For Availability
9
SPQ 223/00298/00 SPQ 223/00298/00 Contact Us For Availability
10
Spring SPQ 238/00014/00 Contact Us For Availability
10
Bearing SPQ F100134 Contact Us For Availability
10
Washer SPQ 201/00006/00 Contact Us For Availability
10
Drain Valve SPQ 209/00643/00 Contact Us For Availability
10
Water Hose SPQ 223/00044/00 Contact Us For Availability
10
Stopper SPQ 255/00019/00 Contact Us For Availability
10
Door Solenoid Assembly SPQ B12495102 Contact Us For Availability
10
Nut SPQ 204/00106/00 Contact Us For Availability
10
Reinforcement Plate SPQ 111/10089/01 Contact Us For Availability
10
Side Panel Gasket SPQ 246/00079/00 Contact Us For Availability
10
Nut SPQ 208/00025/00 Contact Us For Availability
10
Voltage Discharge Decal SPQ B12355001 Contact Us For Availability
10
Tube SPQ 118/00118/03 Contact Us For Availability
10
Soap Dispenser Assembly SPQ 223/00102/50 Contact Us For Availability
11
Fastening Ring SPQ 238/00013/00 Contact Us For Availability
11
Washer SPQ 203/00004/00 Contact Us For Availability
11
Fan Plate Assembly SPQ 152/00044/03 Contact Us For Availability
11
Hose Clamp SPQ 223/00010/00 Contact Us For Availability
11
Connecting Piece SPQ 255/00017/00 Contact Us For Availability
11
Drain Hose SPQ 223/00307/00 Contact Us For Availability
11
Door Lock Spring SPQ 224/00049/00 Contact Us For Availability
11
Washer SPQ 202/00108/00 Contact Us For Availability
11
Fuse SPQ 209/00372/01 Contact Us For Availability
11
Side Panel SPQ 111/60035/00 Contact Us For Availability
11
Bolt SPQ 206/00027/00 Contact Us For Availability
11
Tilt Switch Support SPQ 111/01855/00 Contact Us For Availability
12
Boot SPQ 255/00123/00 Contact Us For Availability
12
Bolt SPQ 205/00104/00 Contact Us For Availability
12
Screw SPQ 207/00117/00 Contact Us For Availability
12
Outlet Pipe Plate Assembly SPQ 101/00007/00 Contact Us For Availability
12
Pump Support SPQ 155/00159/00 Contact Us For Availability
12
Pump Support SPQ 111/00288/10 Contact Us For Availability
12
Washer SPQ 203/00006/00 Contact Us For Availability
12
Fan Filter SPQ 209/00465/11 Contact Us For Availability
12
Tilt Detector Plate SPQ 204/00005/00 Contact Us For Availability
12
Dispenser Drain Funnel SPQ 223/00195/00 Contact Us For Availability
13
Nut SPQ 204/00009/00 Contact Us For Availability
13
Tub Front Panel SPQ 119/00049/00 Contact Us For Availability
13
Speed Detector Bracket SPQ 152/00055/00 Contact Us For Availability
13
Motor SPQ B12510601 Contact Us For Availability
13
Pump SPQ 209/00646/00 Contact Us For Availability
13
Door Hinge Spacer SPQ 202/00104/00 Contact Us For Availability
13
Fuse SPQ 209/00439/00 Contact Us For Availability
13
Top Panel SPQ 111/22741/00 Contact Us For Availability
13
Nut SPQ 202/00004/00 Contact Us For Availability
13
Backbridge SPQ 111/01833/10 Contact Us For Availability
13
Filter SPQ 209/00465/21 Contact Us For Availability
13
Screw SPQ B12350903 Contact Us For Availability
14
Nut SPQ 204/00109/00 Contact Us For Availability
14
Siphon Break Hose SPQ 223/00013/00 Contact Us For Availability
14
Drain Pipe Cap SPQ 223/00294/00 Contact Us For Availability
14
Clamp SPQ 209/00647/00 Contact Us For Availability
14
Screw SPQ 117/00010/00 Contact Us For Availability
14
Pump Support SPQ 204/00007/00 Contact Us For Availability
14
Filter SPQ 227/00242/00 Contact Us For Availability
15
Bearing Housing Assembly SPQ 152/10118/01 Contact Us For Availability
15
Overflow Hose SPQ 223/00150/00 Contact Us For Availability
15
Washer SPQ 204/00201/00 Contact Us For Availability
15
Pipe SPQ 223/00009/00 Contact Us For Availability
15
Interlock Lever SPQ 224/00043/00 Contact Us For Availability
15
Door Hinge SPQ 207/00126/00 Contact Us For Availability
15
Inverter Box Cover SPQ 111/01174/01 Contact Us For Availability
15
Water Hose SPQ 155/00161/00 Contact Us For Availability
15
Soap Dispenser Hose SPQ 223/00266/00 Contact Us For Availability
15
Liquid Soap Dispenser Insert SPQ 223/00102/04 Contact Us For Availability
16
Bolt SPQ 201/00002/00 Contact Us For Availability
16
Nut SPQ 223/00159/00 Contact Us For Availability
16
Door Hinge Plate Assembly SPQ 221/00005/00 Contact Us For Availability
16
Plug SPQ 211/00091/00 Contact Us For Availability
16
Nut SPQ 204/00114/00 Contact Us For Availability
16
Siphon Break Dispenser Hose SPQ 223/00261/00 Contact Us For Availability
16
Rinse Insert SPQ 223/00102/08 Contact Us For Availability
17
Outlet Pipe Plate Assembly SPQ 223/00162/00 Contact Us For Availability
17
Bolt SPQ 217/00052/04 Contact Us For Availability
17
Bolt SPQ 118/00065/00 Contact Us For Availability
17
Standoff SPQ 211/00122/00 Contact Us For Availability
17
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
17
Liquid Soap Manifold SPQ 223/00262/00 Contact Us For Availability
17
Softener Spray Nozzle SPQ 223/00102/03 Contact Us For Availability
18
Hose Vent SPQ 223/00001/04 Contact Us For Availability
18
Door Handle Stop SPQ 202/00101/00 Contact Us For Availability
18
Rinsing Box SPQ 223/00250/00 Contact Us For Availability
18
Liquid Soap Manifold SPQ 223/00102/05 Contact Us For Availability
19
Lever Spring SPQ 202/00124/00 Contact Us For Availability
19
Door Glass SPQ 205/00107/00 Contact Us For Availability
19
Retaining Ring SPQ 206/00113/00 Contact Us For Availability
19
Screw SPQ F200166 Contact Us For Availability
19
Screw SPQ 208/00130/00 Contact Us For Availability
19
Siphon Break SPQ 223/00222/05 Contact Us For Availability
20
Ground Terminal SPQ 224/00040/00 Contact Us For Availability
20
Soap Dispenser Air Breather Hose SPQ 223/00107/01 Contact Us For Availability
20
Outer and Inner Box Kit SPQ 223/00222/04 Contact Us For Availability
21
Pressure Hose SPQ 206/00033/00 Contact Us For Availability
21
Door Lock Microswitch SPQ 117/00052/08 Contact Us For Availability
21
SPQ 111/00969/00 SPQ 111/00969/00 Contact Us For Availability
21
Water Hose SPQ 223/00197/00 Contact Us For Availability
21
Soap Dispenser SPQ 223/00222/03 Contact Us For Availability
22
Pressure Switch Cap SPQ 223/00146/00 Contact Us For Availability
22
Lock Shaft SPQ 210/10015/00 Contact Us For Availability
22
Inverter Drive Kit SPQ F8420909 Contact Us For Availability
22
Soap Box Assembly Plate SPQ 223/00222/60 Contact Us For Availability
23
Hose Barb SPQ 209/00643/11 Contact Us For Availability
23
Fuse SPQ F8420910 Contact Us For Availability
24
Microswitch SPQ 205/00103/00 Contact Us For Availability
NI
SPQ 247/00002/00 SPQ 247/00002/00 Contact Us For Availability
NI
SPQ 247/00001/04 SPQ 247/00001/04 Contact Us For Availability
NI
SPQ 217/00008/00 SPQ 217/00008/00 Contact Us For Availability
NI
SPQ 238/00012/00 SPQ 238/00012/00 Contact Us For Availability
NI
SPQ 212/00006/00 SPQ 212/00006/00 Contact Us For Availability
NI
SPQ 217/00002/00 SPQ 217/00002/00 Contact Us For Availability
NI
Pulley SPQ 203/00002/00 Contact Us For Availability
NI
SPQ 255/00117/00 SPQ 255/00117/00 Contact Us For Availability
NI
SPQ 271/35945/00 SPQ 271/35945/00 Contact Us For Availability
NI
SPQ 223/00174/00 SPQ 223/00174/00 Contact Us For Availability
NI
SPQ F8410901 SPQ F8410901 Contact Us For Availability
NI
Fuse SPQ 111/01834/00 Contact Us For Availability
NI
SPQ 209/00526/00 SPQ 209/00526/00 Contact Us For Availability
NI
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
NI
SPQ 209/00058/00 SPQ 209/00058/00 Contact Us For Availability
NI
SPQ 209/00581/10 SPQ 209/00581/10 Contact Us For Availability
NI
SPQ F360202 SPQ F360202 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
