Model IPSO IHC018MNH Washer – Common Parts & Diagrams

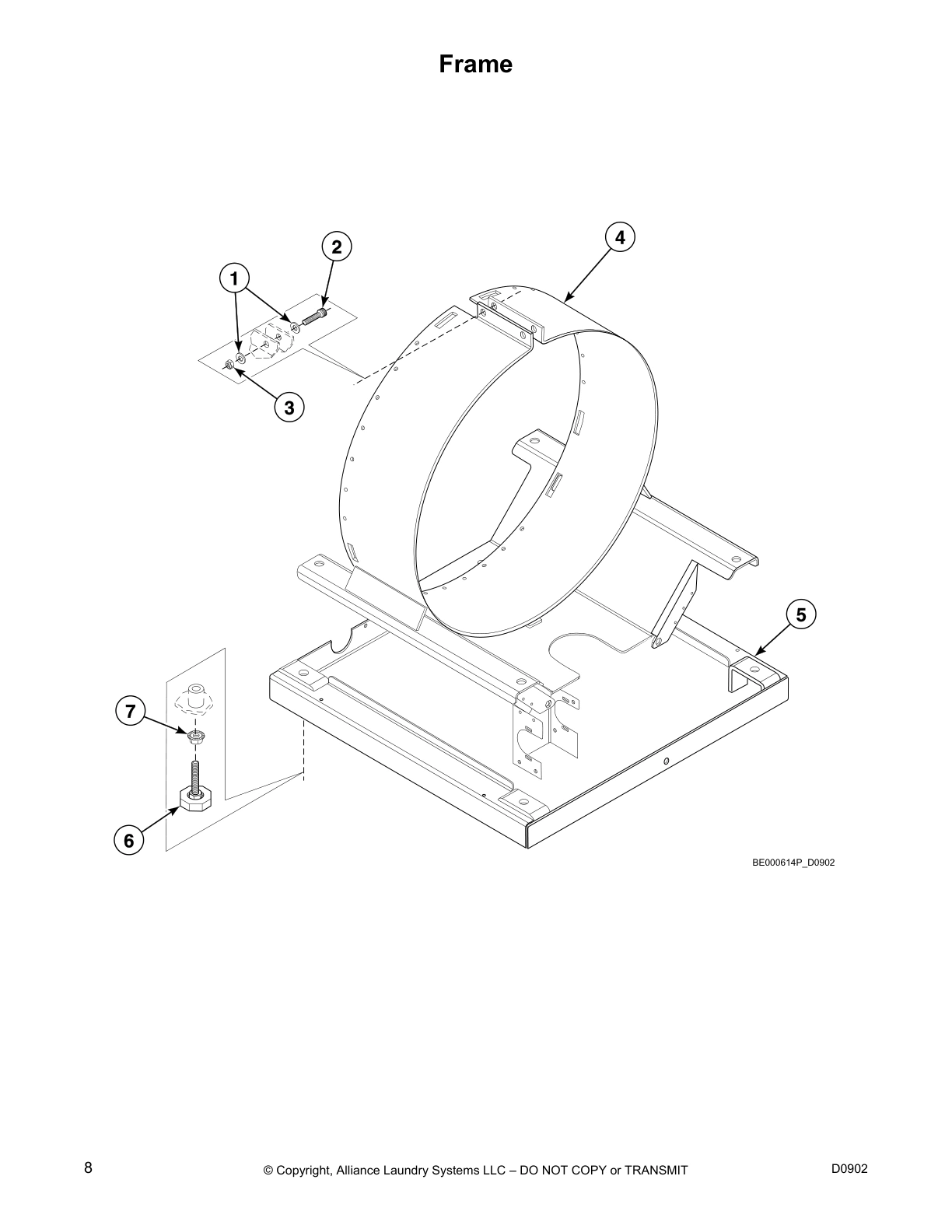

Frame

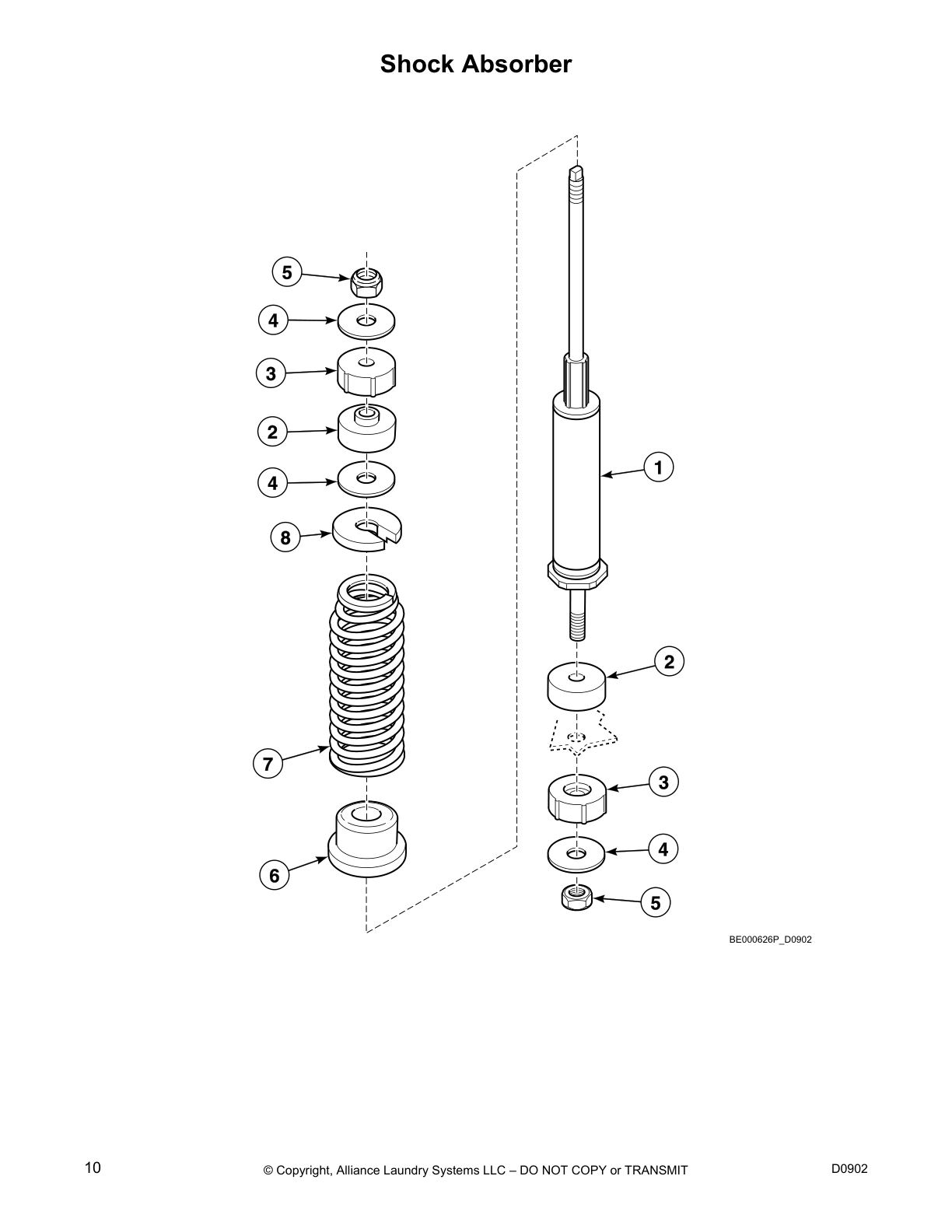

Shock Absorber
Shell and Basket (Drawing 1 of 4)
Shell and Basket (Drawing 2 of 4)
Shell and Basket (Drawing 3 of 4)
Shell and Basket (Drawing 4 of 4)
Bearing Housing - Models Through 1/30/11
Bearing Housing - Models Starting 1/31/11
Basket, Pulley and Belt (Drawing 1 of 2)
Basket, Pulley and Belt (Drawing 2 of 2)
Motor and Belt
Drain Plumbing - Single Outlet Drain Piece with Water Level
Detection on Drain Valve-Models Through 8/11/10
Drain Plumbing - Single Outlet Drain Piece with Water Level
Detection on Drain Hose-Models Starting 8/12/10
Drain Plumbing - Dual Outlet Drain Piece with
Water Level Detection on Drain Hose
Drain Plumbing - Models with Pump Drain Through 1/26/05
Drain Plumbing - Models with Pump Drain Starting 1/27/05
Door Lock
Door
Control Panel - Cygnus Professional
Control Panel - Cygnus Premium OPL
Control Panel - Cygnus Premium OPL
with Frontal Supply Dispenser
Control Panel - Cygnus Premium Coin
Control Panel - Cygnus Premium Coin
with Frontal Supply Dispenser
Control Panel - Cygnus Standard/Commercial OPL
Control Panel - Cygnus Standard/Commercial OPL
with Frontal Supply Dispenser
Control Panel - Cygnus Standard/Commercial Coin
Control Panel - Cygnus Standard/Commercial Coin
with Frontal Supply Dispenser
Control Panel - Micro-20 OPL
Control Panel - Micro-20 OPL with Frontal Supply Dispenser
Control Panel - Sigma OPL
Control Panel - Micro-20 and Sigma Coin
Control Panel - PS40F
Coin Drop - Mechanical Coin Meter
Coin Drop - Electronic Coin Meter
Right Side, Front, Lower Rear and Top Panels -
Models with Pump Drain
Right Side, Front, Lower Rear and Top Panels -
Models without Pump Drain
Left Side, Lower Front and Upper Back Panels
Inverter Drive - Models Through 2/22/09 (Drawing 1 of 2)
Inverter Drive - Models Through 2/22/09 (Drawing 2 of 2)
Inverter Drive - Models Starting 2/23/09 (Drawing 1 of 2)
Inverter Drive - Models Starting 2/23/09 (Drawing 2 of 2)
Upper Back Panel with Circular Ventilation -
Models Through 12/31/05
Upper Back Panel with Rectangular Ventilation -
Models Through 12/31/05
Upper Back Panel - Models Starting 1/1/06
Main Switch and Noise Filter
Soap Injection Printboard, Network Connection Printboard
and Noise Filter - Sigma, PS40F and Micro-20
Central Operating Panel, Network Connection
and Soap Injection Printboards - Cygnus Models
Relay, Network Connection and Main Printboards - Cygnus Models
Electrical Component Mounting Plate - Models Through 2/22/09
Electrical Component Mounting Plate - Models Starting 2/23/09
Balance Switch
Supply Dispenser - Models with Frontal Supply Dispenser
Supply Dispenser with Round Ventilation Opening
Supply Dispenser with Rectangular Ventilation Opening
Electric and Steam Heating Options
Soap Pumps
Common parts from model IPSO IHC018MNH Washer
SPQ 247/00002/03 SPQ 247/00002/03 Contact Us For Availability
SPQ 206/00099/00 SPQ 206/00099/00 Contact Us For Availability
SPQ 111/10425/01 SPQ 111/10425/01 Contact Us For Availability
Inverter Drive Kit SPQ F8420905 Contact Us For Availability
SPQ B12355001 SPQ B12355001 Contact Us For Availability
SPQ 209/00529/00 SPQ 209/00529/00 Contact Us For Availability
SPQ 209/00530/00 SPQ 209/00530/00 Contact Us For Availability
SPQ 209/00058/00 SPQ 209/00058/00 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
1
Nut SPQ 204/00111/00 Contact Us For Availability
1
Shock Absorber SPQ SPPRI611001025 Contact Us For Availability
1
Nut SPQ 204/00110/00 Contact Us For Availability
1
Cylinder and Shaft Assembl SPQ 111/01807/00 Contact Us For Availability
1
Basket Kit SPQ B12542701 Contact Us For Availability
1
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
1
Bolt SPQ 207/00125/00 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00289/00 Contact Us For Availability
1
Inverter Drive SPQ 227/00167/00 Contact Us For Availability
1
Fan Filter SPQ 209/00465/11 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Standoff SPQ 211/00120/00 Contact Us For Availability
1
Electrical Component Mounting Plate SPQ 111/10003/40 Contact Us For Availability
1
Hose SPQ 223/00286/00 Contact Us For Availability
1
Heating Element SPQ 209/00563/20 Contact Us For Availability
1
Feeding Liquid Soap Dosing Pump SPQ 209/00554/51 Contact Us For Availability
2
Fastening Rubber SPQ 247/00006/00 Contact Us For Availability
2
Out-of-Balance Switch Boot SPQ 201/00010/00 Contact Us For Availability
2
Tub Front Ring Clamp SPQ 217/00007/00 Contact Us For Availability
2
Bolt SPQ 201/00007/00 Contact Us For Availability
2
Caddy Bracket SPQ 201/00012/00 Contact Us For Availability
2
Bearing Spacer SPQ 217/00100/00 Contact Us For Availability
2
Lever Spring SPQ 217/00052/11 Contact Us For Availability
2
Door Glass Seal SPQ 205/00107/00 Contact Us For Availability
2
Printboard SPQ 209/00440/80 Contact Us For Availability
2
Soap Dispenser Frame SPQ 223/00103/03 Contact Us For Availability
2
Lower Front Panel SPQ 206/00166/00 Contact Us For Availability
2
Fuse SPQ 227/00163/00 Contact Us For Availability
2
Backbridge SPQ F200164 Contact Us For Availability
2
Soap Dispenser Air Breather Hose SPQ 223/00107/01 Contact Us For Availability
2
Soap Dispenser SPQ 223/00229/00 Contact Us For Availability
2
Steam Injector SPQ 209/00562/20 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
Washer SPQ 247/00007/00 Contact Us For Availability
3
Screw SPQ 111/01854/00 Contact Us For Availability
3
Basket and Shaft Assembly SPQ B12379801 Contact Us For Availability
3
Seal Plate Assembly SPQ 206/00053/00 Contact Us For Availability
3
Pressure Switch Elbow SPQ 223/00316/00 Contact Us For Availability
3
Tub to Drain Valve Hose SPQ 899P3 Contact Us For Availability
3
SPQ 205/00115/00 SPQ 205/00115/00 Contact Us For Availability
3
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
3
Nut SPQ 208/00104/00 Contact Us For Availability
3
SPQ 155/00162/00 SPQ 155/00162/00 Contact Us For Availability
3
Washer SPQ B12352301 Contact Us For Availability
3
SPQ 211/00091/00 SPQ 211/00091/00 Contact Us For Availability
3
Fuse Holder SPQ 209/00202/01 Contact Us For Availability
3
Soap Dispenser Gasket SPQ 223/00107/03 Contact Us For Availability
3
Soap Dispenser Gasket SPQ 223/00222/00 Contact Us For Availability
3
Heating Element Plug SPQ 209/00581/10 Contact Us For Availability
4
SPQ 202/00003/00 SPQ 202/00003/00 Contact Us For Availability
4
Retaining Ring SPQ 201/00201/00 Contact Us For Availability
4
Motor Pulley SPQ 206/00058/00 Contact Us For Availability
4
Screw SPQ 204/00008/00 Contact Us For Availability
4
Contact Block SPQ 44018901 Contact Us For Availability
4
Voltage Discharge Decal SPQ F8410901 Contact Us For Availability
4
SPQ 209/00468/00 SPQ 209/00468/00 Contact Us For Availability
4
SPQ 271/35945/00 SPQ 271/35945/00 Contact Us For Availability
4
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
4
Out-of-Balance Switch SPQ 223/00246/00 Contact Us For Availability
4
Front Soapbox Siphon SPQ 223/00280/00 Contact Us For Availability
4
Screw SPQ 223/00107/00 Contact Us For Availability
4
Screw SPQ 223/00245/00 Contact Us For Availability
5
Frame SPQ 152/00101/50 Contact Us For Availability
5
Outer Tub SPQ B12328301 Contact Us For Availability
5
Tolerance Ring SPQ 215/00004/00 Contact Us For Availability
5
Cordlock SPQ 255/00012/00 Contact Us For Availability
5
SPQ 117/00042/00 SPQ 117/00042/00 Contact Us For Availability
5
SPQ 223/00016/00 SPQ 223/00016/00 Contact Us For Availability
5
SPQ 217/00017/03 SPQ 217/00017/03 Contact Us For Availability
5
Upper Front Panel SPQ 111/01814/00 Contact Us For Availability
5
Bolt SPQ 227/00171/10 Contact Us For Availability
5
SPQ 207/00018/00 SPQ 207/00018/00 Contact Us For Availability
5
Inner Soapbox SPQ 223/00280/03 Contact Us For Availability
5
Soap Box Assembly Plate SPQ 223/00102/30 Contact Us For Availability
5
Soap Spray Nozzle SPQ 223/00109/00 Contact Us For Availability
5
Steam Inlet SPQ 209/00564/20 Contact Us For Availability
5
Liquid Soap Dosing Pump O-Ring SPQ 209/00554/05 Contact Us For Availability
6
Leveling Leg SPQ 252/00006/00 Contact Us For Availability
6
Suspension Spring SPQ 247/00001/03 Contact Us For Availability
6
SPQ 224/00052/00 SPQ 224/00052/00 Contact Us For Availability
6
Bolt SPQ 206/00005/00 Contact Us For Availability
6
Retaining Ring SPQ 211/00167/00 Contact Us For Availability
6
SPQ 223/00210/00 SPQ 223/00210/00 Contact Us For Availability
6
SPQ 255/00010/00 SPQ 255/00010/00 Contact Us For Availability
6
SPQ 207/00009/00 SPQ 207/00009/00 Contact Us For Availability
6
Plexi Frame SPQ 225/00316/00 Contact Us For Availability
6
SPQ 203/00005/00 SPQ 203/00005/00 Contact Us For Availability
6
Screw SPQ 111/10425/50 Contact Us For Availability
6
Nut SPQ B12339301 Contact Us For Availability
6
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
6
Central Control Board SPQ 209/00438/50 Contact Us For Availability
6
Soapbox Handle SPQ 223/00280/20 Contact Us For Availability
6
Soap Box Assembly Plate SPQ B12347501 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
7
SPQ 206/00106/00 SPQ 206/00106/00 Contact Us For Availability
7
Shock Absorber SPQ 247/00009/00 Contact Us For Availability
7
Boot Clamp SPQ 206/00011/00 Contact Us For Availability
7
SPQ 224/00051/00 SPQ 224/00051/00 Contact Us For Availability
7
Washer SPQ 203/00002/00 Contact Us For Availability
7
SPQ 204/00115/00 SPQ 204/00115/00 Contact Us For Availability
7
SPQ 209/00463/00 SPQ 209/00463/00 Contact Us For Availability
7
SPQ 223/00012/00 SPQ 223/00012/00 Contact Us For Availability
7
SPQ 201/00018/00 SPQ 201/00018/00 Contact Us For Availability
7
Pushbutton SPQ 44018801 Contact Us For Availability
7
SPQ 208/00014/00 SPQ 208/00014/00 Contact Us For Availability
7
SPQ 111/00284/00 SPQ 111/00284/00 Contact Us For Availability
7
SPQ 204/00006/00 SPQ 204/00006/00 Contact Us For Availability
7
Backbridge SPQ 111/10425/00 Contact Us For Availability
7
Terminal Block SPQ B12331701 Contact Us For Availability
7
Main Switch SPQ 111/01837/01 Contact Us For Availability
7
Support Connector SPQ 111/10003/30 Contact Us For Availability
7
SPQ 223/00280/07 SPQ 223/00280/07 Contact Us For Availability
7
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
7
Bolt SPQ 118/00105/01 Contact Us For Availability
8
Pulley SPQ 201/00015/00 Contact Us For Availability
8
Spring Holder Top SPQ 247/00002/01 Contact Us For Availability
8
Boot Clamp SPQ 206/00032/00 Contact Us For Availability
8
SPQ 217/00002/00 SPQ 217/00002/00 Contact Us For Availability
8
SPQ 209/00643/01 SPQ 209/00643/01 Contact Us For Availability
8
SPQ 223/00190/00 SPQ 223/00190/00 Contact Us For Availability
8
SPQ 155/00155/00 SPQ 155/00155/00 Contact Us For Availability
8
SPQ 217/00022/00 SPQ 217/00022/00 Contact Us For Availability
8
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
8
Keypad Sticker SPQ 225/00407/00 Contact Us For Availability
8
Operating Sticker SPQ 225/00409/00 Contact Us For Availability
8
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
8
Grommet SPQ 211/00171/00 Contact Us For Availability
8
Pressure Switch SPQ 209/00027/10 Contact Us For Availability
8
SPQ 123/00103/06 SPQ 123/00103/06 Contact Us For Availability
8
Nut SPQ F360202 Contact Us For Availability
9
SPQ 217/00008/00 SPQ 217/00008/00 Contact Us For Availability
9
SPQ 117/00001/00 SPQ 117/00001/00 Contact Us For Availability
9
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
9
SPQ 206/00054/00 SPQ 206/00054/00 Contact Us For Availability
9
Pressure Switch Cap SPQ 223/00035/02 Contact Us For Availability
9
SPQ 223/00297/00 SPQ 223/00297/00 Contact Us For Availability
9
SPQ 206/00105/00 SPQ 206/00105/00 Contact Us For Availability
9
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
9
SPQ 217/00015/00 SPQ 217/00015/00 Contact Us For Availability
9
Operating Sticker SPQ 225/00408/00 Contact Us For Availability
9
SPQ 208/00002/00 SPQ 208/00002/00 Contact Us For Availability
9
SPQ 111/00289/00 SPQ 111/00289/00 Contact Us For Availability
9
SPQ 207/00101/00 SPQ 207/00101/00 Contact Us For Availability
9
Central Control Board SPQ 227/00162/00 Contact Us For Availability
9
Fuse SPQ 209/00006/01 Contact Us For Availability
9
SPQ 223/00298/00 SPQ 223/00298/00 Contact Us For Availability
9
SPQ 119/00082/00 SPQ 119/00082/00 Contact Us For Availability
10
Spring SPQ 238/00014/00 Contact Us For Availability
10
Bearing SPQ F100137P Contact Us For Availability
10
Drain Valve SPQ 209/00643/00 Contact Us For Availability
10
Stopper SPQ 255/00019/00 Contact Us For Availability
10
Nut SPQ 204/00106/00 Contact Us For Availability
10
Reinforcement Plate SPQ 111/10089/01 Contact Us For Availability
10
Side Panel Gasket SPQ 246/00079/00 Contact Us For Availability
10
Filter SPQ 209/00465/21 Contact Us For Availability
10
Connection Clamp SPQ 209/00622/01 Contact Us For Availability
10
Tilt Switch Support SPQ 111/01855/00 Contact Us For Availability
10
Tube SPQ 118/00118/03 Contact Us For Availability
10
Outer and Inner Box Kit SPQ 223/00222/60 Contact Us For Availability
11
Fastening Ring SPQ 238/00013/00 Contact Us For Availability
11
Fan Plate Assembly SPQ 152/00044/03 Contact Us For Availability
11
Connecting Piece SPQ 255/00017/00 Contact Us For Availability
11
Drain Hose SPQ 223/00307/00 Contact Us For Availability
11
Door Solenoid Assembly SPQ B12495102 Contact Us For Availability
11
Washer SPQ 202/00108/00 Contact Us For Availability
11
Fuse SPQ 209/00372/01 Contact Us For Availability
11
Side Panel SPQ 111/10089/00 Contact Us For Availability
11
Bolt SPQ 206/00027/00 Contact Us For Availability
11
Terminal Block SPQ 209/00619/01 Contact Us For Availability
11
Washer SPQ 204/00005/00 Contact Us For Availability
11
Dispenser Drain Funnel SPQ 223/00195/00 Contact Us For Availability
12
Boot SPQ 255/00123/00 Contact Us For Availability
12
Washer SPQ 203/00004/00 Contact Us For Availability
12
Screw SPQ 207/00117/00 Contact Us For Availability
12
Hose Clamp SPQ 223/00013/00 Contact Us For Availability
12
Pump Support SPQ 155/00159/00 Contact Us For Availability
12
Pump Support SPQ 111/00288/10 Contact Us For Availability
12
Door Lock Spring SPQ 224/00049/00 Contact Us For Availability
12
Washer SPQ 203/00006/00 Contact Us For Availability
12
Outlet Pipe Plate Assembly SPQ 111/60031/00 Contact Us For Availability
12
Lower Rear Panel SPQ 111/10427/01 Contact Us For Availability
13
Tub Front Panel SPQ 118/00054/03 Contact Us For Availability
13
Bolt SPQ 205/00104/00 Contact Us For Availability
13
Motor SPQ B12510501 Contact Us For Availability
13
Nut SPQ 101/00007/00 Contact Us For Availability
13
Pump SPQ 209/00646/00 Contact Us For Availability
13
Door Hinge Spacer SPQ 202/00104/00 Contact Us For Availability
13
Top Panel SPQ 111/22141/00 Contact Us For Availability
13
Nut SPQ 202/00004/00 Contact Us For Availability
13
Pressure Switch Cap SPQ 209/01625/00 Contact Us For Availability
13
Siphon Break Dispenser Hose SPQ 223/00260/00 Contact Us For Availability
13
Liquid Soap Dispenser Insert SPQ 223/00102/04 Contact Us For Availability
14
Washer SPQ 204/00009/00 Contact Us For Availability
14
Tub Front Gasket SPQ B12351601 Contact Us For Availability
14
Speed Detector Bracket SPQ 152/00055/00 Contact Us For Availability
14
Nut SPQ 204/00109/00 Contact Us For Availability
14
Drain Pipe Cap SPQ 223/00294/00 Contact Us For Availability
14
Clamp SPQ 209/00647/00 Contact Us For Availability
14
Bolt SPQ 117/00010/00 Contact Us For Availability
14
Nut SPQ 204/00116/00 Contact Us For Availability
14
Pump Support SPQ 204/00007/00 Contact Us For Availability
14
Filter SPQ 227/00242/00 Contact Us For Availability
14
Vent Tube SPQ 206/00014/00 Contact Us For Availability
14
Upper Backpanel SPQ 111/01832/10 Contact Us For Availability
14
Siphon Break Hose SPQ B12310307 Contact Us For Availability
14
Rinse Insert SPQ 223/00102/08 Contact Us For Availability
15
Bearing Housing Assembly SPQ 152/10117/01 Contact Us For Availability
15
Motor Key SPQ 227/00126/01 Contact Us For Availability
15
Overflow Hose SPQ 223/00150/00 Contact Us For Availability
15
Washer SPQ 204/00201/00 Contact Us For Availability
15
Pipe SPQ 223/00009/00 Contact Us For Availability
15
Screw SPQ 111/00094/10 Contact Us For Availability
15
Water Hose SPQ 155/00161/00 Contact Us For Availability
15
Softener Spray Nozzle SPQ 223/00102/03 Contact Us For Availability
15
Rinsing Box SPQ 223/00222/05 Contact Us For Availability
16
Screw SPQ F100136P Contact Us For Availability
16
Bolt SPQ 201/00002/00 Contact Us For Availability
16
Nut SPQ 223/00159/00 Contact Us For Availability
16
Interlock Lever SPQ 224/00043/00 Contact Us For Availability
16
Door Hinge SPQ 207/00126/00 Contact Us For Availability
16
Liquid Soap Manifold SPQ 223/00102/05 Contact Us For Availability
16
Softener Spray Nozzle SPQ 223/00222/03 Contact Us For Availability
17
Outlet Pipe Plate Assembly SPQ 223/00162/00 Contact Us For Availability
17
Door Hinge Plate Assembly SPQ 221/00005/00 Contact Us For Availability
17
Standoff SPQ 211/00122/00 Contact Us For Availability
17
Siphon Break SPQ 223/00222/04 Contact Us For Availability
18
Hose Vent SPQ 223/00001/04 Contact Us For Availability
18
Door Lock Bracket SPQ 217/00052/04 Contact Us For Availability
18
Door Handle Stop SPQ 118/00065/00 Contact Us For Availability
18
Crossbar SPQ 208/00025/00 Contact Us For Availability
18
Liquid Soap Manifold SPQ 223/00250/00 Contact Us For Availability
19
Water Hose SPQ 223/00044/00 Contact Us For Availability
19
Door Glass SPQ 202/00101/00 Contact Us For Availability
19
Screw SPQ F200166 Contact Us For Availability
19
Nut SPQ 211/00093/00 Contact Us For Availability
20
Shrink Fit SPQ F200205 Contact Us For Availability
20
Lock Protection Plate SPQ 202/00124/00 Contact Us For Availability
20
SPQ 205/00106/00 SPQ 205/00106/00 Contact Us For Availability
20
Soap Dispenser Assembly SPQ 223/00197/00 Contact Us For Availability
21
Drain Pipe Kit SPQ 206/00033/00 Contact Us For Availability
21
Ground Terminal SPQ 224/00040/00 Contact Us For Availability
21
Hose Clamp SPQ 111/10426/90 Contact Us For Availability
22
Pressure Hose SPQ 223/00146/00 Contact Us For Availability
22
Bolt SPQ 117/00052/08 Contact Us For Availability
22
Water Hose SPQ B12350903 Contact Us For Availability
23
Pressure Switch Cap SPQ 223/00011/00 Contact Us For Availability
23
Hose Barb SPQ 209/00643/11 Contact Us For Availability
23
Door Lock Microswitch SPQ 210/10015/00 Contact Us For Availability
25
Microswitch SPQ 205/00103/00 Contact Us For Availability
NI
SPQ 247/00001/01 SPQ 247/00001/01 Contact Us For Availability
NI
SPQ 247/00002/00 SPQ 247/00002/00 Contact Us For Availability
NI
SPQ 247/00001/04 SPQ 247/00001/04 Contact Us For Availability
NI
SPQ 238/00012/00 SPQ 238/00012/00 Contact Us For Availability
NI
SPQ 217/00003/00 SPQ 217/00003/00 Contact Us For Availability
NI
SPQ 255/00117/00 SPQ 255/00117/00 Contact Us For Availability
NI
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
NI
SPQ 118/00046/10 SPQ 118/00046/10 Contact Us For Availability
NI
SPQ 204/00114/00 SPQ 204/00114/00 Contact Us For Availability
NI
SPQ 223/00198/00 SPQ 223/00198/00 Contact Us For Availability
NI
SPQ 155/00144/00 SPQ 155/00144/00 Contact Us For Availability
NI
SPQ 111/01832/00 SPQ 111/01832/00 Contact Us For Availability
NI
SPQ 111/00285/00 SPQ 111/00285/00 Contact Us For Availability
NI
SPQ 223/00174/00 SPQ 223/00174/00 Contact Us For Availability
NI
SPQ 111/10425/11 SPQ 111/10425/11 Contact Us For Availability
NI
SPQ 223/00179/10 SPQ 223/00179/10 Contact Us For Availability
NI
SPQ 208/00130/00 SPQ 208/00130/00 Contact Us For Availability
NI
SPQ 209/00465/01 SPQ 209/00465/01 Contact Us For Availability
NI
Inverter Drive SPQ F8420906 Contact Us For Availability
NI
SPQ F8420806 SPQ F8420806 Contact Us For Availability
NI
SPQ F8420805 SPQ F8420805 Contact Us For Availability
NI
SPQ 208/00017/00 SPQ 208/00017/00 Contact Us For Availability
NI
SPQ 111/01834/00 SPQ 111/01834/00 Contact Us For Availability
NI
SPQ 209/00526/00 SPQ 209/00526/00 Contact Us For Availability
NI
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
NI
SPQ B12389501 SPQ B12389501 Contact Us For Availability
NI
SPQ 111/10003/10 SPQ 111/10003/10 Contact Us For Availability
NI
SPQ 223/00102/50 SPQ 223/00102/50 Contact Us For Availability
NI
SPQ 118/01063/00 SPQ 118/01063/00 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
