Model Whirlpool IH7302RS1 30`` CANOPY HOOD – Common Parts & Diagrams

Common parts from model Whirlpool IH7302RS1 30`` CANOPY HOOD

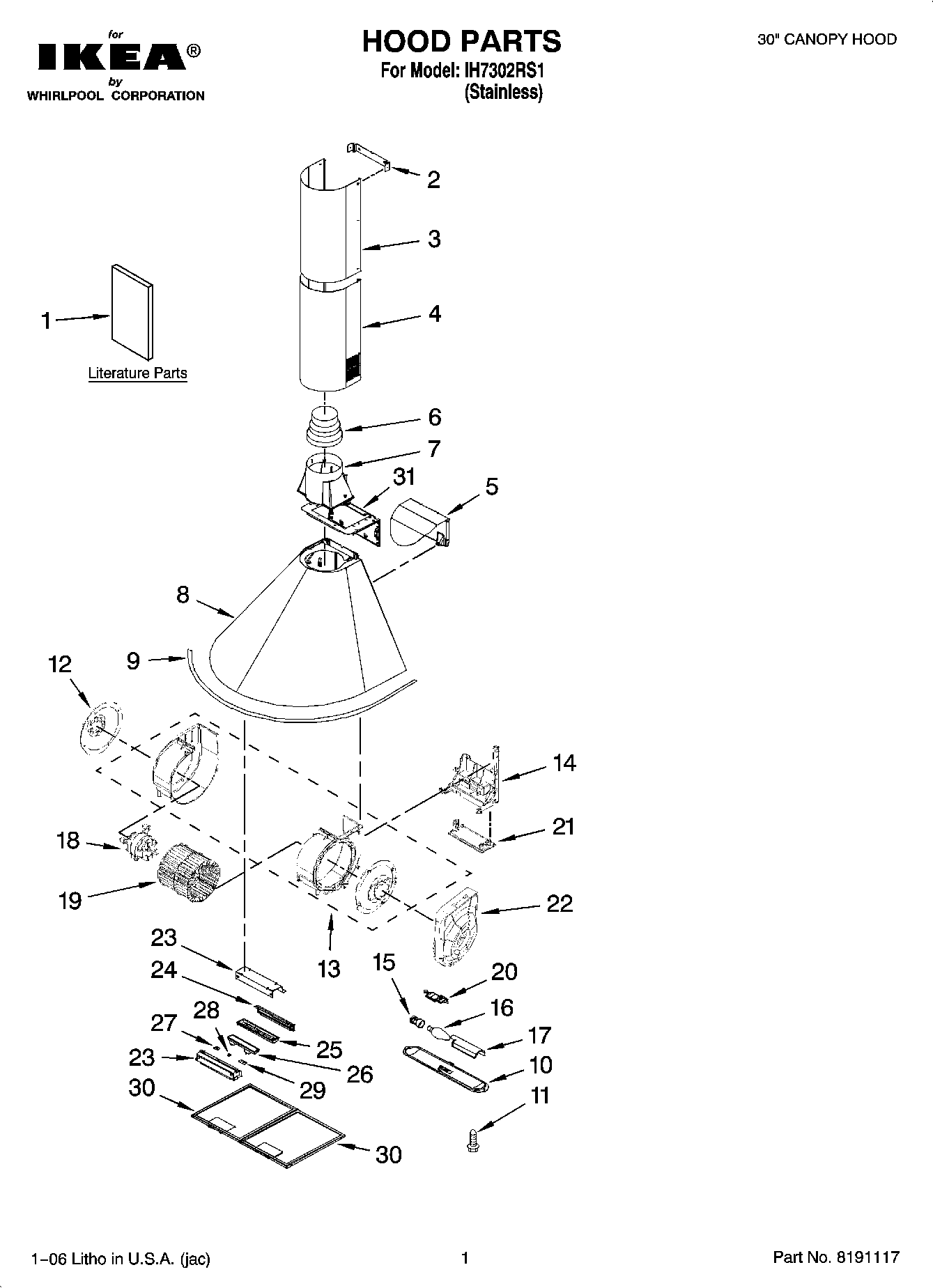

01 - HOOD PARTS

Print

• This Diagram
• All Diagrams

6

Duct, Air Flange WPL 8191128 Contact Us For Availability

View on Model

7

Duct, Air WPL 8191126 Contact Us For Availability

View on Model

8

Canopy Not Serviced WPL ARI75892A6 Contact Us For Availability

View on Model

9

Trim, Decorative WPL 8190819 Contact Us For Availability

View on Model

10

Cover, Light WPL 8190815 Contact Us For Availability

View on Model

11

Clip WPL 8191127 Contact Us For Availability

View on Model

12

Grill, Vent WPL 8190816 Contact Us For Availability

View on Model

13

Housing, Fan Motor WPL 8190813 Contact Us For Availability

View on Model

14

Box, Capacitor WPL 8190818 Contact Us For Availability

View on Model

15

8190797 Whirlpool Socket Backorder WPL 8190797 View Details $26.21

View on Model

16

WP8190806 Whirlpool Appliance Light Bulb In Stock WPL WP8190806 View Details $26.21

View on Model

17

Reflector, Light WPL 8190814 Contact Us For Availability

View on Model

18

Motor, Fan WPL 8190803 Contact Us For Availability

View on Model

19

Wheel, Blower WPL 8190800 Contact Us For Availability

View on Model

20

Cover, Term Block WPL 8190809 Contact Us For Availability

View on Model

21

Cover, Base WPL 8190821 Contact Us For Availability

View on Model

22

4396848 Whirlpool Filter Backorder WPL 4396848 View Details $31.62

View on Model

23

Box, Control WPL 8190812 Contact Us For Availability

View on Model

24

Cover, Switches WPL 8190795 Contact Us For Availability

View on Model

25

Panel, Control WPL 8190810 Contact Us For Availability

View on Model

26

Control, Elec WPL 8190817 Contact Us For Availability

View on Model

27

Switch, Light WPL 8190808 Contact Us For Availability

View on Model

28

COVER WPL 8190820 Contact Us For Availability

View on Model

29

Switch, Motor WPL 8190807 Contact Us For Availability

View on Model

30

WPW10383579 Whirlpool Filter Backorder WPL WPW10383579 View Details $70.75

View on Model

31

8186687 Whirlpool Capacitor Backorder WPL 8186687 View Details $48.73

View on Model

31

Hook, Mounting WPL 8190805 Contact Us For Availability

View on Model

31

Bracket, Mounting (Pipe Support) WPL 8190846 Contact Us For Availability

View on Model

31

Hardware, Mounting WPL 8191053 Contact Us For Availability

View on Model

31

Not Serviced WPL ARI75893A9 Contact Us For Availability

View on Model

31

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI75894A1 Contact Us For Availability

View on Model

×
