Model Whirlpool IH4302WS0 30`` CANOPY HOOD – Common Parts & Diagrams

Common parts from model Whirlpool IH4302WS0 30`` CANOPY HOOD

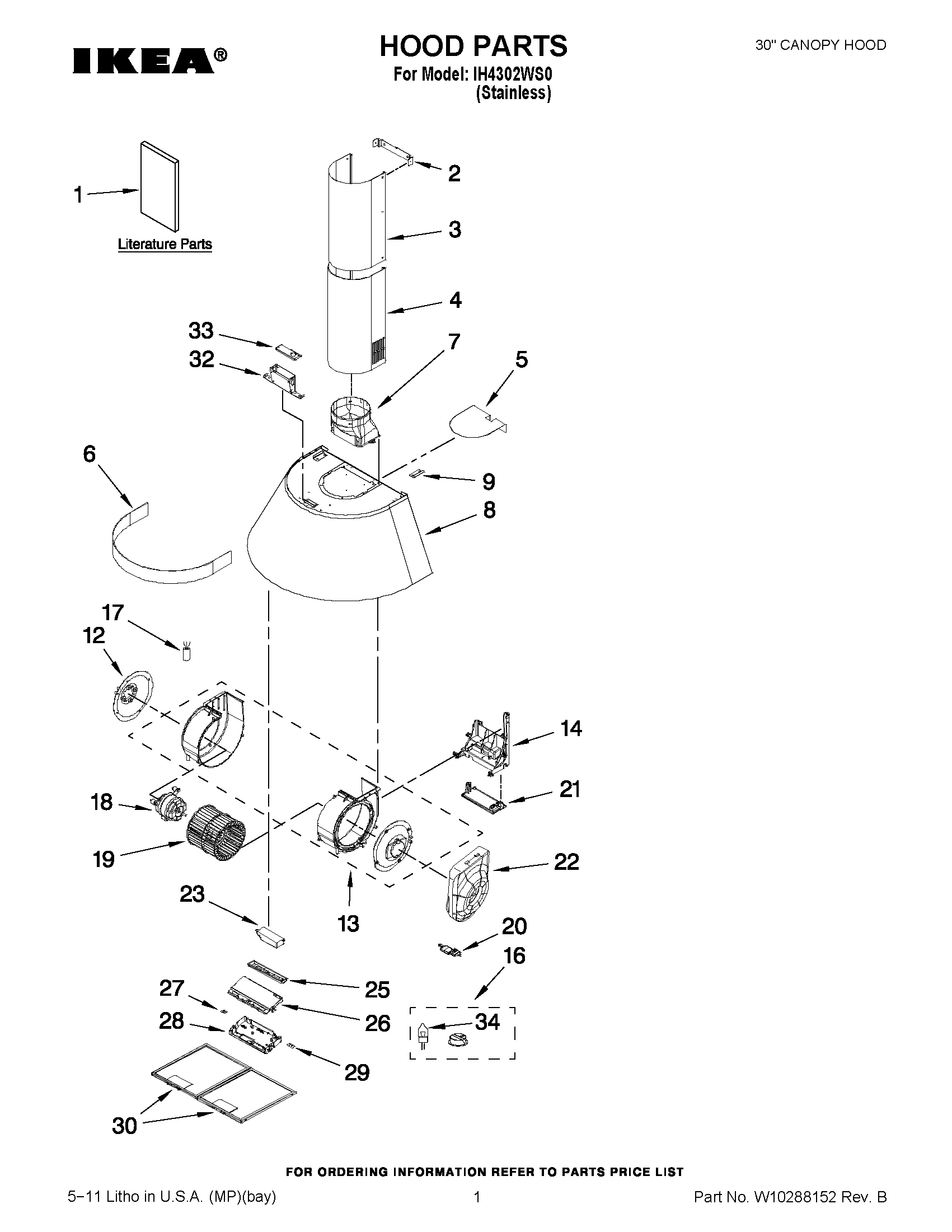

01 - HOOD PARTS

Print

• This Diagram
• All Diagrams

7

Duct, Air WPL 8190856 Contact Us For Availability

View on Model

8

CANOPY (NOT SERVICED) WPL NP Contact Us For Availability

View on Model

9

Bracket, Canopy WPL 8186702 Contact Us For Availability

View on Model

12

Grill, Vent WPL 8190816 Contact Us For Availability

View on Model

13

Housing, Fan Motor WPL 8190813 Contact Us For Availability

View on Model

14

Box, Capacitor WPL 8186706 Contact Us For Availability

View on Model

16

WPW10298151 Whirlpool Light Bulb In Stock WPL WPW10298151 View Details $12.85

View on Model

17

8186687 Whirlpool Capacitor Backorder WPL 8186687 View Details $48.73

View on Model

18

Motor, Fan WPL 8186685 Contact Us For Availability

View on Model

19

Wheel, Blower WPL 8190800 Contact Us For Availability

View on Model

20

Cover, Term Block WPL 8190809 Contact Us For Availability

View on Model

21

Cover, Base WPL 8190821 Contact Us For Availability

View on Model

22

Filter, Charcoal WPL 8186692 Contact Us For Availability

View on Model

23

W11186486 Whirlpool Transformer In Stock WPL W11186486 View Details $108.78

View on Model

25

Panel, Control WPL 8186703 Contact Us For Availability

View on Model

26

Cover WPL 8186693 Contact Us For Availability

View on Model

27

Switch, Light WPL 8190855 Contact Us For Availability

View on Model

28

Box, Control WPL 8186694 Contact Us For Availability

View on Model

29

Switch, Motor WPL 8190854 Contact Us For Availability

View on Model

30

WPW10383579 Whirlpool Filter Backorder WPL WPW10383579 View Details $70.75

View on Model

32

Box, Control WPL 8186707 Contact Us For Availability

View on Model

33

Cover, Box WPL 8186708 Contact Us For Availability

View on Model

NI

Hardware, Mounting WPL 8186711 Contact Us For Availability

View on Model

×
