Model Whirlpool ICS404WB0 30`` GAS COOKTOP – Common Parts & Diagrams

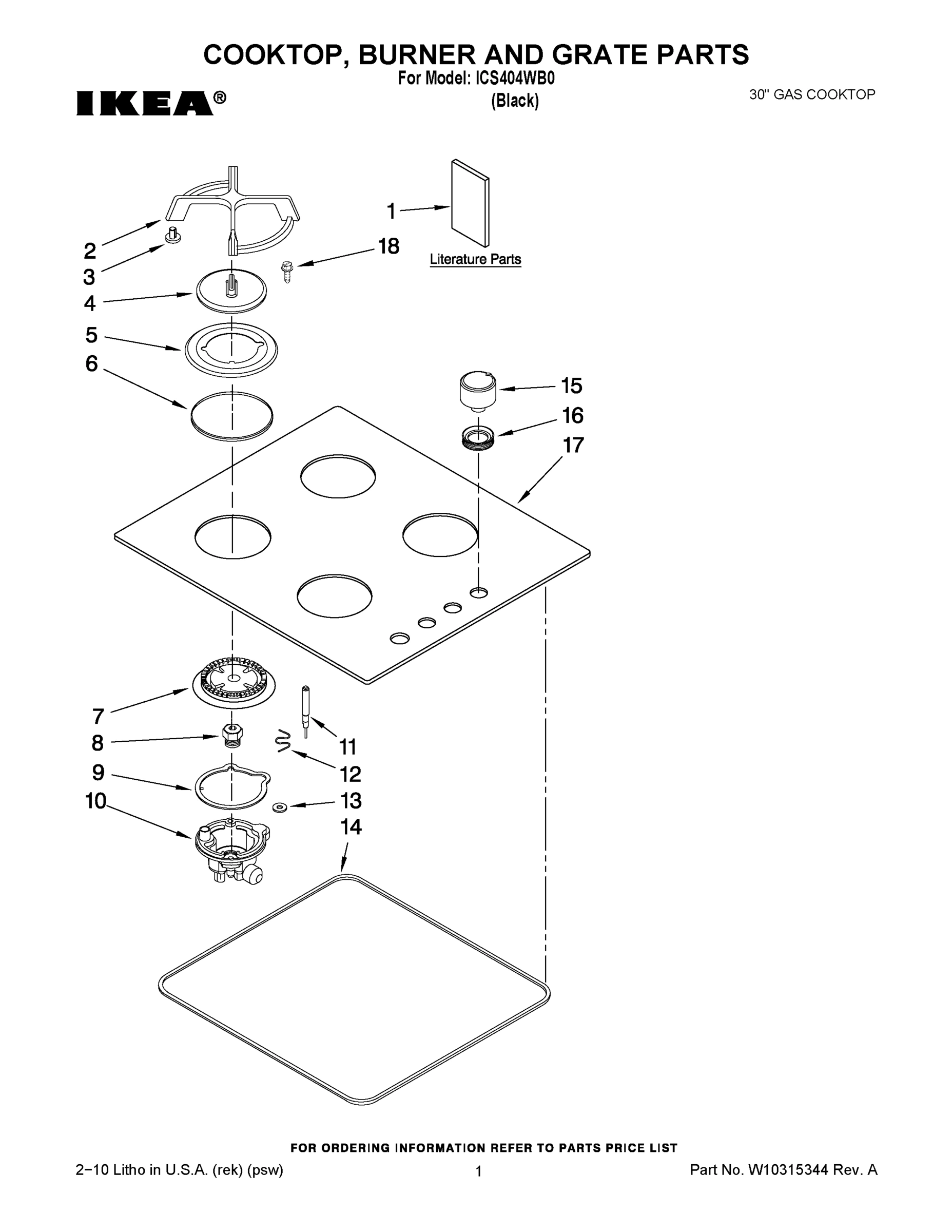

01 - COOKTOP, BURNER AND GRATE PARTS

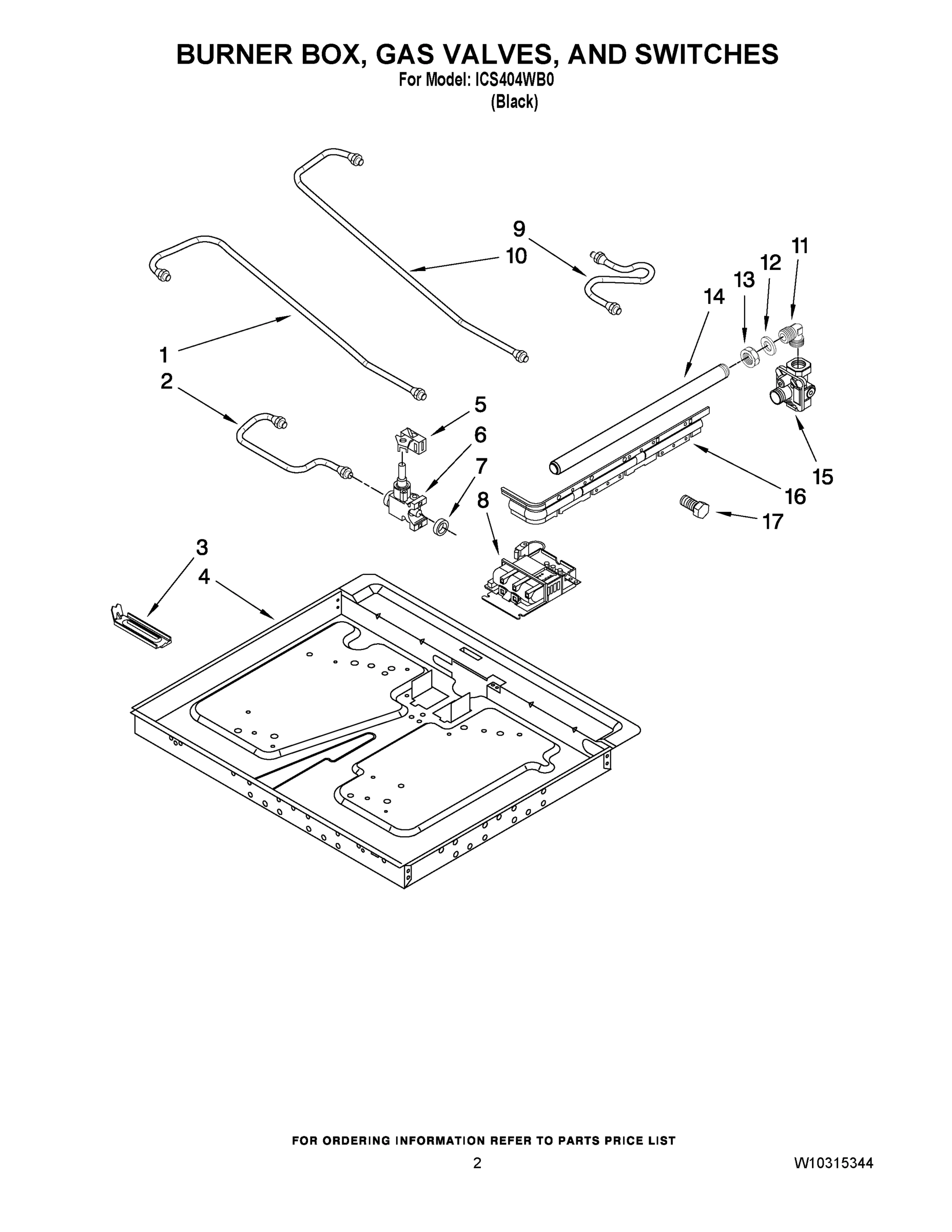

02 - BURNER BOX, GAS VALVES, AND SWITCHES
Common parts from model Whirlpool ICS404WB0 30`` GAS COOKTOP
1
LP CONV.INSTR. WPL W10321462 Contact Us For Availability
1
Tubing, LF WPL 8186900 Contact Us For Availability
2
Grate WPL 8186885 Contact Us For Availability
2
Tubing, RF WPL 8186898 Contact Us For Availability
3
Bumper, Grate WPL 8186886 Contact Us For Availability
3
Bracket, Mtg WPL 8186830 Contact Us For Availability
4
Cap, Burner (RF) WPL 8186894 Contact Us For Availability
4
CAP, BURNER (LR,RR) WPL 8186895 Contact Us For Availability
4
Cap, Burner (LF) WPL 8186896 Contact Us For Availability
5
IGNITION,ELEC. WPL 8186821 Contact Us For Availability
5
Ring (RF) WPL 8186887 Contact Us For Availability
5
RING (LR,RR) WPL 8186888 Contact Us For Availability
5
Ring (LF) WPL 8186889 Contact Us For Availability
6
GASKET WPL 8186902 Contact Us For Availability
6
VALVE, GAS (LR,RR) WPL 8186817 Contact Us For Availability
6
Valve, Gas (RF) WPL 8186818 Contact Us For Availability
7
Head, Burner (RF) WPL 8186808 Contact Us For Availability
7
HEAD, BURNER (LR,RR) WPL 8186809 Contact Us For Availability
7
Head, Burner (LF) WPL 8186810 Contact Us For Availability
7
Ring, Gasket WPL 8186828 Contact Us For Availability
8
Orifice (Natural) WPL 8186814 Contact Us For Availability
8
Orifice (LP) WPL 8186815 Contact Us For Availability
8
Block, Terminal WPL 8186822 Contact Us For Availability
9
GASKET (RF) WPL W10321453 Contact Us For Availability
9
GASKET (LR,RR) WPL W10321457 Contact Us For Availability
9
GASKET (LF) WPL W10321458 Contact Us For Availability
9
Tubing, RR WPL 8186897 Contact Us For Availability
10
Holder, Orifice (RF) WPL 8186805 Contact Us For Availability
10
HOLDER, ORIFICE (LR,RR) WPL 8186806 Contact Us For Availability
10
Holder, Orifice (LF) WPL 8186807 Contact Us For Availability
10
Tubing, LR WPL 8186899 Contact Us For Availability
11
Plug, Spark WPL 8186819 Contact Us For Availability
11
Elbow Pipe, Manfld WPL 8186827 Contact Us For Availability
12
SPRING WPL 8186820 Contact Us For Availability
12
Ring, Gasket WPL 8186829 Contact Us For Availability
13
Gasket, Orif & Trim WPL 8186903 Contact Us For Availability
15
KNOB WPL W10321452 Contact Us For Availability
16
Gasket, Knob WPL 8186833 Contact Us For Availability
16
BRACKET, MANIFOLD (NOT SERVICED) WPL NP Contact Us For Availability
17
COOKTOP, GLASS WPL W10321450 Contact Us For Availability
17
BOLT, GAS VALVE WPL 8186832 Contact Us For Availability
18
SCREW WPL W10237003 Contact Us For Availability
× ![]()
