  • Whirlpool ICS304SM00 Parts List

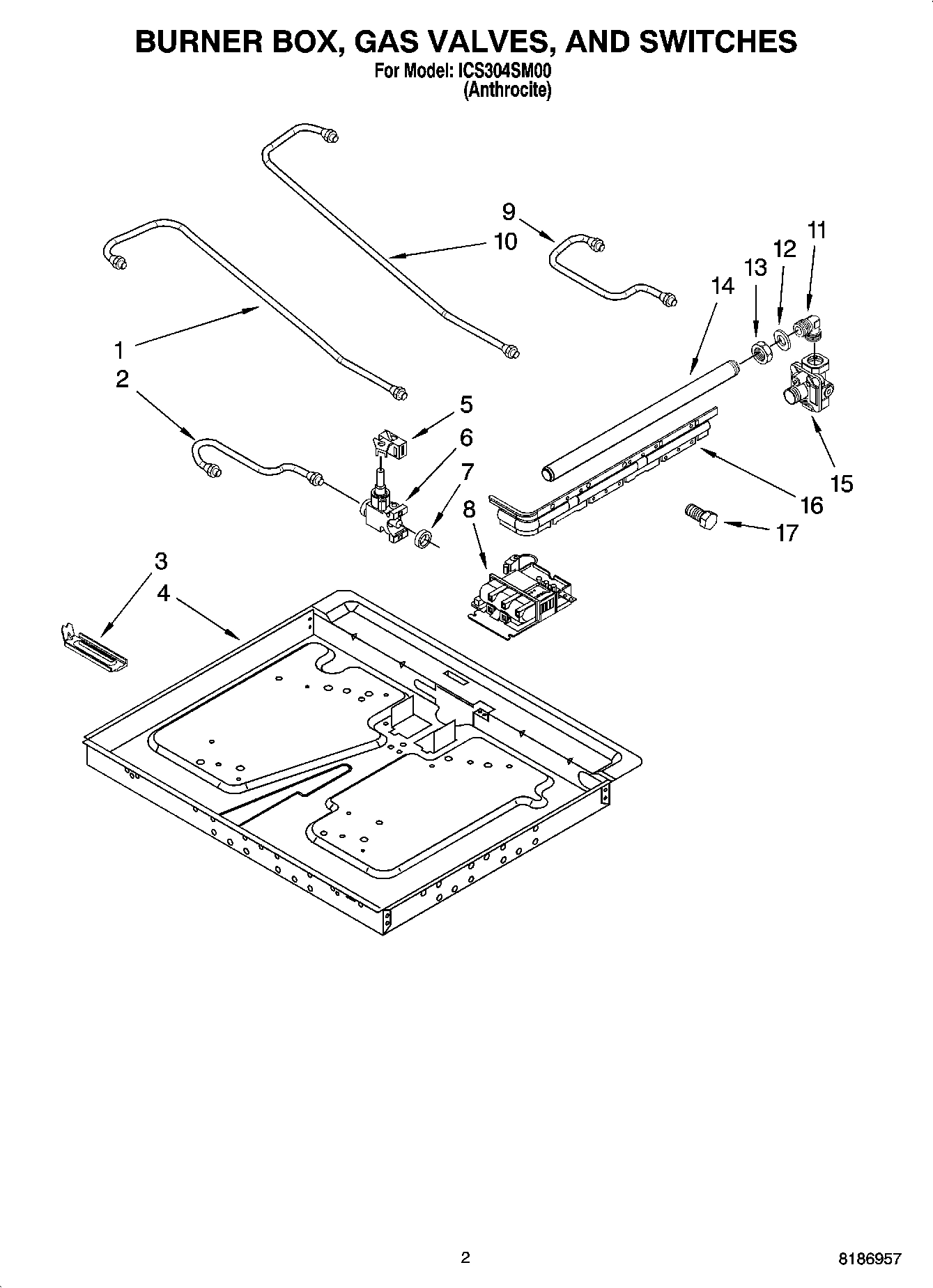

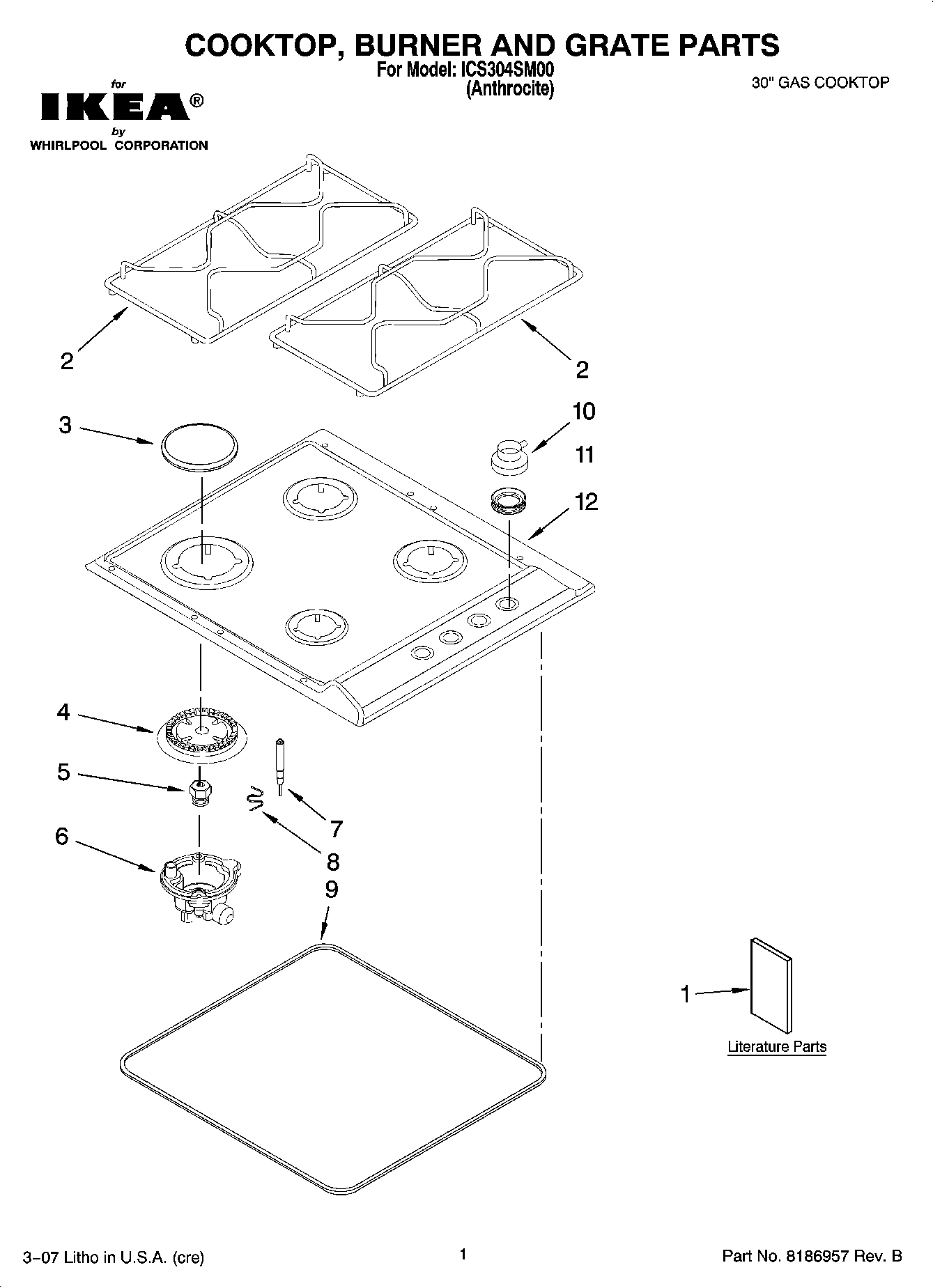

Model Whirlpool ICS304SM00 30`` GAS COOKTOP – Common Parts & Diagrams

1
Use & Care Guide
Use & Care Guide WPL 8186960 Contact Us For Availability
View on Model
1
Installation Instructions
Installation Instructions WPL 8186961 Contact Us For Availability
View on Model
1
Tubing, LF
Tubing, LF WPL 8186826 Contact Us For Availability
View on Model
2
Grate
Grate WPL 8186803 Contact Us For Availability
View on Model
2
Tubing, RF
Tubing, RF WPL 8186824 Contact Us For Availability
View on Model
3
Cap, Burner (RF)
Cap, Burner (RF) WPL 8186811 Contact Us For Availability
View on Model
3
Cap, Burner (LR, RR)
Cap, Burner (LR, RR) WPL 8186812 Contact Us For Availability
View on Model
3
Cap, Burner (LF)
Cap, Burner (LF) WPL 8186813 Contact Us For Availability
View on Model
3
Bracket, Mtg
Bracket, Mtg WPL 8186830 Contact Us For Availability
View on Model
4
Head, Burner (RF)
Head, Burner (RF) WPL 8186808 Contact Us For Availability
View on Model
4
HEAD, BURNER (LR,RR)
HEAD, BURNER (LR,RR) WPL 8186809 Contact Us For Availability
View on Model
4
Head, Burner (LF)
Head, Burner (LF) WPL 8186810 Contact Us For Availability
View on Model
4
Box, Burner (Not Serviced)
Box, Burner (Not Serviced) WPL ARI75380A9 Contact Us For Availability
View on Model
5
IGNITION,ELEC.
IGNITION,ELEC. WPL 8186821 Contact Us For Availability
View on Model
5
Orifice (Natural)
Orifice (Natural) WPL 8186814 Contact Us For Availability
View on Model
5
Orifice (LP)
Orifice (LP) WPL 8186815 Contact Us For Availability
View on Model
6
Holder, Orifice (RF)
Holder, Orifice (RF) WPL 8186805 Contact Us For Availability
View on Model
6
HOLDER, ORIFICE (LR,RR)
HOLDER, ORIFICE (LR,RR) WPL 8186806 Contact Us For Availability
View on Model
6
Holder, Orifice (LF)
Holder, Orifice (LF) WPL 8186807 Contact Us For Availability
View on Model
6
VALVE, GAS (LR,RR)
VALVE, GAS (LR,RR) WPL 8186817 Contact Us For Availability
View on Model
6
Valve, Gas (RF)
Valve, Gas (RF) WPL 8186818 Contact Us For Availability
View on Model
7
Plug, Spark
Plug, Spark WPL 8186819 Contact Us For Availability
View on Model
7
Ring, Gasket
Ring, Gasket WPL 8186828 Contact Us For Availability
View on Model
8
SPRING
SPRING WPL 8186820 Contact Us For Availability
View on Model
8
Block, Terminal
Block, Terminal WPL 8186822 Contact Us For Availability
View on Model
9
Seal, Foam
Seal, Foam WPL 8186834 Contact Us For Availability
View on Model
9
Tubing, RR
Tubing, RR WPL 8186823 Contact Us For Availability
View on Model
10
KNOB
KNOB WPL 8186804 Contact Us For Availability
View on Model
10
Tubing, LR
Tubing, LR WPL 8186825 Contact Us For Availability
View on Model
11
Gasket, Knob
Gasket, Knob WPL 8186833 Contact Us For Availability
View on Model
11
Elbow Pipe, Manfld
Elbow Pipe, Manfld WPL 8186827 Contact Us For Availability
View on Model
12
Cooktop, Glass
Cooktop, Glass WPL 8186802 Contact Us For Availability
View on Model
12
Ring, Gasket
Ring, Gasket WPL 8186829 Contact Us For Availability
View on Model
13
Nut (Not Serviced)
Nut (Not Serviced) WPL ARI75381A1 Contact Us For Availability
View on Model
14
Pipe, Manifold (Not Serviced)
Pipe, Manifold (Not Serviced) WPL ARI75382A2 Contact Us For Availability
View on Model
16
Bracket, Manifold (Not Serviced)
Bracket, Manifold (Not Serviced) WPL ARI75383A8 Contact Us For Availability
View on Model
17
Bolt, Gas Valve (Not Serviced)
Bolt, Gas Valve (Not Serviced) WPL ARI75384A5 Contact Us For Availability
View on Model
