Model Whirlpool ICR500XW00 30`` ELECTRIC CERAN BUILT-IN COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool ICR500XW00 30`` ELECTRIC CERAN BUILT-IN COOKTOP

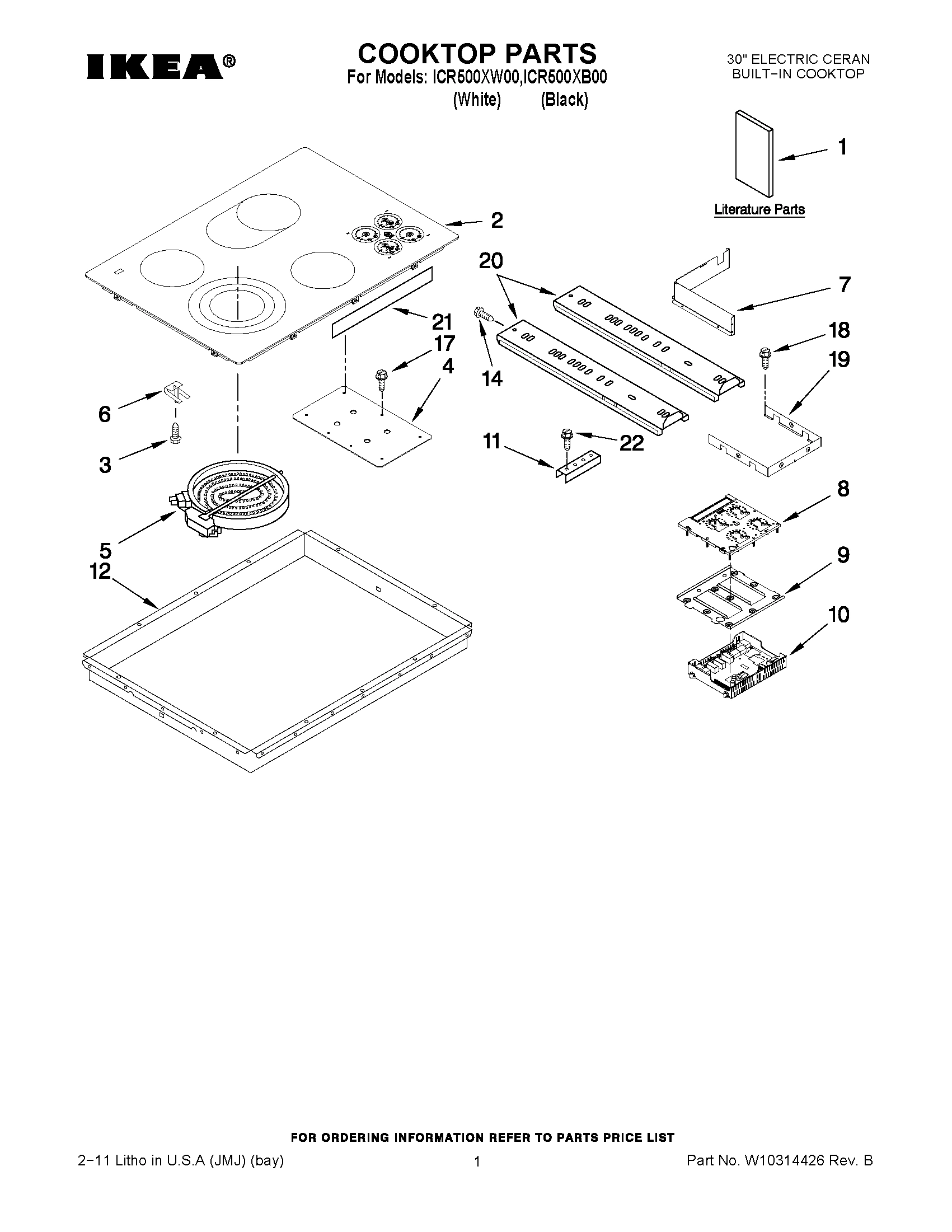

02 - OPTIONAL PARTS (NOT INCLUDED)

Print

• This Diagram
• All Diagrams

1

INSTALLATION INSTRUCTIONS WPL 8286066 Contact Us For Availability

View on Model

1

WIRING DIAGRAM WPL 8286478 Contact Us For Availability

View on Model

1

INSTALLATION, UNDERCOUNTER WPL 8304571 Contact Us For Availability

View on Model

1

SAFER COOKING TIPS (ENGLISH WPL 9762761 Contact Us For Availability

View on Model

1

Safer Cooking Tips (French) WPL W10065852 Contact Us For Availability

View on Model

1

OWNERS MANUAL WPL W10297312 Contact Us For Availability

View on Model

2

W10739032 Whirlpool Cooktop Backorder WPL W10739032 View Details $341.93

View on Model

2

COOKTOP & BRACKET ASSEMBLY (WHITE) WPL W10298138 Contact Us For Availability

View on Model

3

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 View Details $2.51

View on Model

4

BRACKET, SWITCH MOUNTING BRACKET WPL 8286535 Contact Us For Availability

View on Model

5

W10203295 Whirlpool Surface Element Backorder WPL W10203295 View Details $146.05

View on Model

5

WP8285230 Whirlpool Surface Element Backorder WPL WP8285230 View Details $127.55

View on Model

5

Element, Surface (2500/1800/900W LF) WPL 8285847 Contact Us For Availability

View on Model

6

9759094 Whirlpool Spring Backorder WPL 9759094 View Details $4.85

View on Model

7

INSIDE WALL WPL 8286577 Contact Us For Availability

View on Model

8

WP8286138 Whirlpool Refrigerator Electronic C Backorder WPL WP8286138 View Details $519.76

View on Model

9

Support, Module WPL 9757815 Contact Us For Availability

View on Model

10

9758786 Whirlpool Oven Knob Backorder WPL 9758786 View Details $39.58

View on Model

10

APPLIANCE MGR. WPL 8286644 Contact Us For Availability

View on Model

11

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $28.80

View on Model

12

Box, Burner WPL 8286554 Contact Us For Availability

View on Model

14

WP3196557 Whirlpool Screw In Stock WPL WP3196557 View Details $2.51

View on Model

18

W10491985 Whirlpool Screw In Stock WPL W10491985 View Details $2.51

View on Model

19

SHIELD, HEAT WPL 8286575 Contact Us For Availability

View on Model

20

SEAL, HEAT GLASS (2) WPL 8285240 Contact Us For Availability

View on Model

20

Rail, Element WPL 9763517 Contact Us For Availability

View on Model

21

WP8286642 Whirlpool Tape Backorder WPL WP8286642 View Details $54.34

View on Model

22

WP3400093 Whirlpool Screw Backorder WPL WP3400093 View Details $2.51

View on Model

NI

HARNESS, CONDUIT POWER WPL 8286379 Contact Us For Availability

View on Model

NI

HARNESS, COOKTOP WPL W10113077 Contact Us For Availability
