Model Whirlpool ICR410RP01 30`` ELECTRIC CERAN BUILT-IN COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool ICR410RP01 30`` ELECTRIC CERAN BUILT-IN COOKTOP

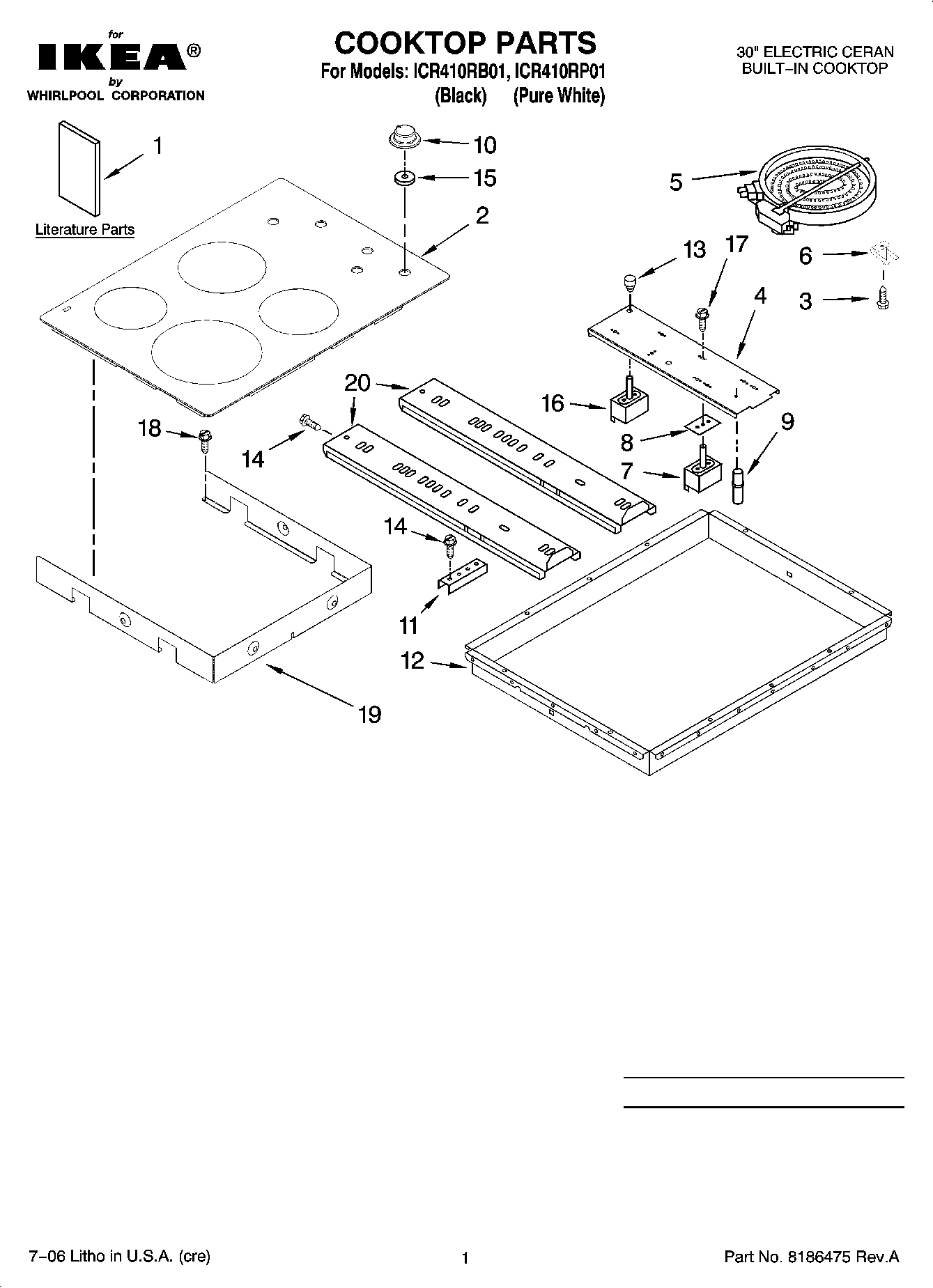

01 - COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Print

• This Diagram
• All Diagrams

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

View on Model

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

View on Model

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

View on Model

WPL 4456028 WPL 4456028 Contact Us For Availability

View on Model

WPL 9761960 WPL 9761960 Contact Us For Availability

View on Model

WPL 9762223 WPL 9762223 Contact Us For Availability

View on Model

WPL ARI75323A3 WPL ARI75323A3 Contact Us For Availability

View on Model

WPL ARI75324A7 WPL ARI75324A7 Contact Us For Availability

View on Model

WPL ARI75325A6 WPL ARI75325A6 Contact Us For Availability

View on Model

1

Safer Cooking Tips (English) WPL 3191638 Contact Us For Availability

View on Model

1

Owners Manual WPL 8286619 Contact Us For Availability

View on Model

1

Installation Instructions WPL 9759087 Contact Us For Availability

View on Model

1

Safer Cooking Tips (French) WPL 9759133 Contact Us For Availability

View on Model

1

Wiring Diagram WPL 9759860 Contact Us For Availability

View on Model

2

W10647131 Whirlpool Cooktop Assembly Backorder WPL W10647131 View Details $264.58

View on Model

2

W10647135 Whirlpool Cooktop Backorder WPL W10647135 View Details $274.40

View on Model

3

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 View Details $2.51

View on Model

4

Insulation, Bracket WPL 9760290 Contact Us For Availability

View on Model

4

Bracket, Switch Mounting WPL 9760682 Contact Us For Availability

View on Model

5

W10823696 Whirlpool Radiant Surface Element In Stock WPL W10823696 View Details $106.95

View on Model

5

W10823698 Whirlpool Surface Element Right Rea In Stock WPL W10823698 View Details $92.39

View on Model

5

W10823699 Whirlpool Right Front Surface Eleme In Stock WPL W10823699 View Details $89.76

View on Model

5

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 View Details $100.91

View on Model

6

9759094 Whirlpool Spring Backorder WPL 9759094 View Details $4.85

View on Model

7

WP3191049 Whirlpool Infinite Switch Left Rear In Stock WPL WP3191049 View Details $68.94

View on Model

7

WP3191050 Whirlpool Infinite Switch In Stock WPL WP3191050 View Details $72.31

View on Model

7

WP4454541 Whirlpool Infinite Switch In Stock WPL WP4454541 View Details $64.76

View on Model

8

3183956 Whirlpool Oven Seal Switch In Stock WPL 3183956 View Details $28.64

View on Model

9

Light, Indicator WPL 3191945 Contact Us For Availability

View on Model

10

9758785 Whirlpool Knob Backorder WPL 9758785 View Details $41.60

View on Model

10

9758786 Whirlpool Oven Knob Backorder WPL 9758786 View Details $41.56

View on Model

11

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $30.25

View on Model

12

Box, Burner WPL 9760683 Contact Us For Availability

View on Model

13

Bumper, Silicone WPL 3191953 Contact Us For Availability

View on Model

14

WP3196557 Whirlpool Screw In Stock WPL WP3196557 View Details $2.51

View on Model

15

8285469 Whirlpool Oven Seal Switch In Stock WPL 8285469 View Details $29.74

View on Model

16

WP9762441 Whirlpool Selector Switch In Stock WPL WP9762441 View Details $59.31

View on Model

17

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 View Details $3.11

View on Model

18

W10491985 Whirlpool Screw Backorder WPL W10491985 View Details $2.51

View on Model

19

Shield, Heat WPL 9761992 Contact Us For Availability

View on Model

20

4455364 Whirlpool Oven Support Bracket Backorder WPL 4455364 View Details $31.73

View on Model

20

Mtg. Hardware Kit WPL 3172515 Contact Us For Availability

View on Model

20

Seal, Heat WPL 3192737 Contact Us For Availability

View on Model

20

Rail, Element WPL 8285962 Contact Us For Availability

View on Model

20

Following Parts Not Illustrated WPL ARI75322A5 Contact Us For Availability
