Model Whirlpool ICNS28D9F REFRIGERATOR – Common Parts & Diagrams

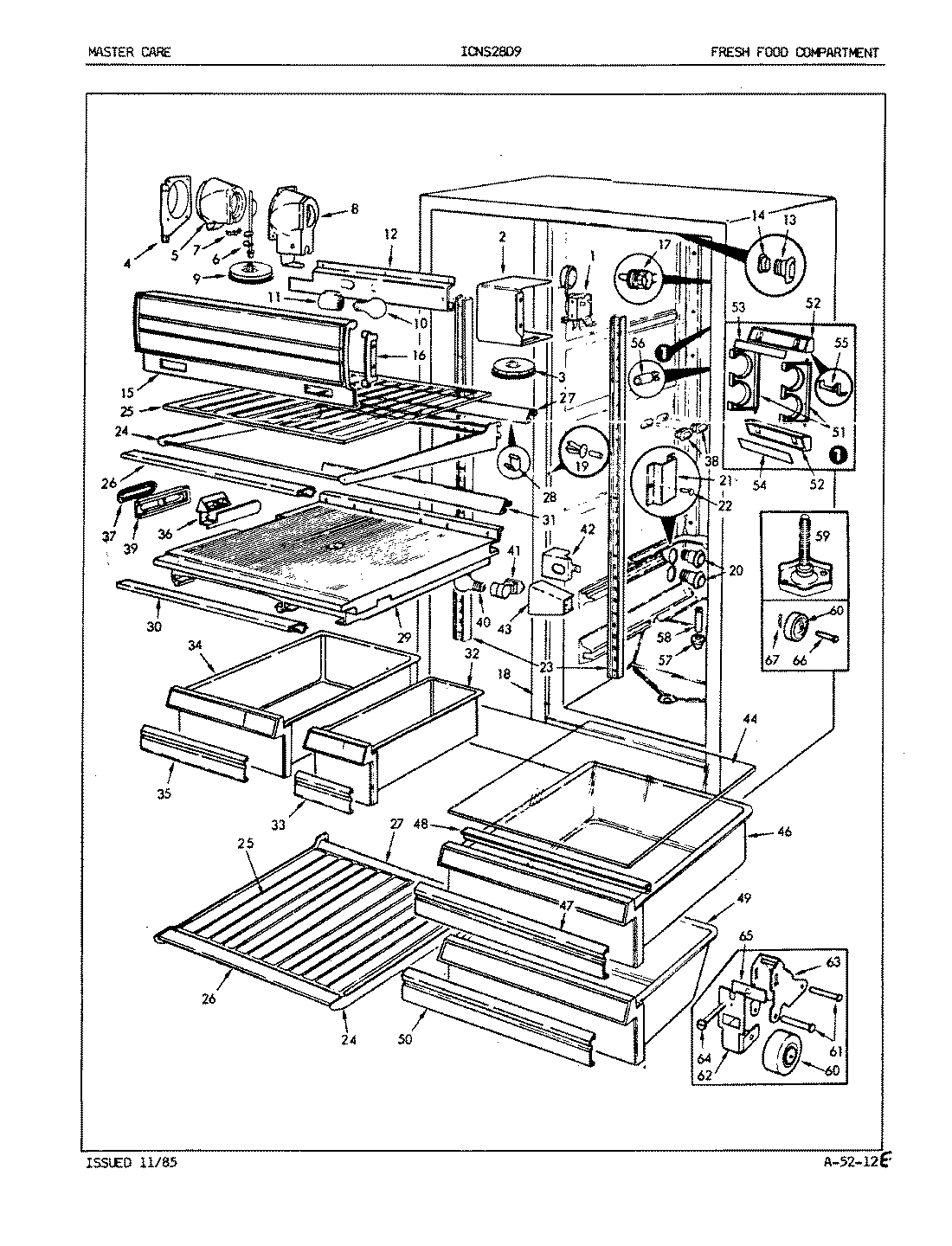

01 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool ICNS28D9F REFRIGERATOR
1
CONTROL, TEMPERATURE WPL 652681 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
3
KNOB WPL 298935 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
6
DAMPER WPL 525872 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
9
KNOB WPL 298936 Contact Us For Availability
12
HOUSING WPL 597403 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
15
SHIELD WPL 5933313 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
17
SWITCH WPL 564322 Contact Us For Availability
17
SPACER WPL 655121 Contact Us For Availability
19
CLIP WPL 530604 Contact Us For Availability
20
AIR TUNNEL WPL 537261 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
23
SCREW WPL 4000371 Contact Us For Availability
23
SUPPORT WPL 583811 Contact Us For Availability
24
SHELF FRAME WPL 652783 Contact Us For Availability
25
SHELF, GLASS WPL 6243828 Contact Us For Availability
26
TRIM WPL 6500515 Contact Us For Availability
27
TRIM WPL 6527617 Contact Us For Availability
28
CLIP WPL 653581 Contact Us For Availability
29
COVER, MEAT KEEPER WPL 638372 Contact Us For Availability
30
TRIM WPL 6273334 Contact Us For Availability
31
TRIM WPL 5201488 Contact Us For Availability
32
EGG PAN WPL 593315 Contact Us For Availability
33
HANDLE WPL 6529720 Contact Us For Availability
34
PAN, MEAT WPL 5932919 Contact Us For Availability
35
HANDLE WPL 6529716 Contact Us For Availability
36
CONTROL, SLIDE WPL 638301 Contact Us For Availability
37
GASKET WPL 638742 Contact Us For Availability
38
TUNNEL WPL 574101 Contact Us For Availability
39
GASKET WPL 638731 Contact Us For Availability
41
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
42
HOUSING WPL 535641 Contact Us For Availability
43
GUARD WPL 521971 Contact Us For Availability
44
SHELF, CRISPER WPL 655593 Contact Us For Availability
46
PAN, CRISPER WPL 5939517 Contact Us For Availability
47
HANDLE WPL 6529717 Contact Us For Availability
48
TRIM WPL 655933 Contact Us For Availability
49
PAN, FRUIT WPL 5959225 Contact Us For Availability
50
HANDLE WPL 6529718 Contact Us For Availability
51
RACK, WINE WPL 565194 Contact Us For Availability
52
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
53
INSERT WPL 657531 Contact Us For Availability
54
INSERT WPL 657532 Contact Us For Availability
55
SPRING, WINE RACK WPL 580571 Contact Us For Availability
56
NYLON NUT WPL 195302 Contact Us For Availability
57
GROMMET WPL 555121 Contact Us For Availability
58
TUBE WPL 555131 Contact Us For Availability
59
LEG, LEVELING WPL 60128 Contact Us For Availability
60
WHEEL WPL 298342 Contact Us For Availability
61
PIN, WHEEL WPL 649651 Contact Us For Availability
62
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
63
BRACKET, WHEEL WPL 627941 Contact Us For Availability
64
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
65
SCREW WPL 4000171 Contact Us For Availability
65
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
66
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
67
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
67
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
67
WIRE CHANNEL WPL 585321 Contact Us For Availability
67
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
× ![]()
