Model Whirlpool IBS324PWS0 24`` BUILT-IN ELECTRIC OVEN CONVECTION – Common Parts & Diagrams

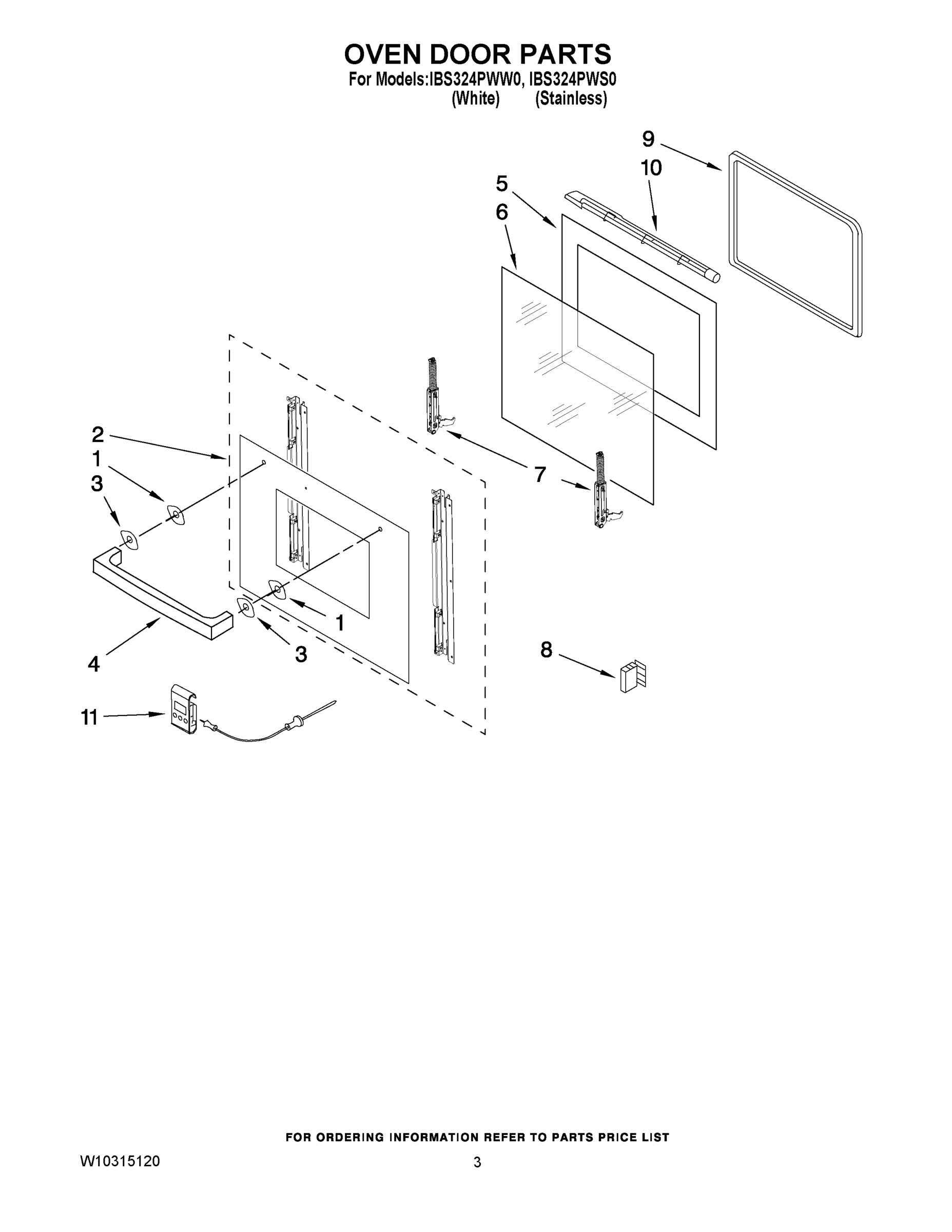

02 - OVEN DOOR PARTS

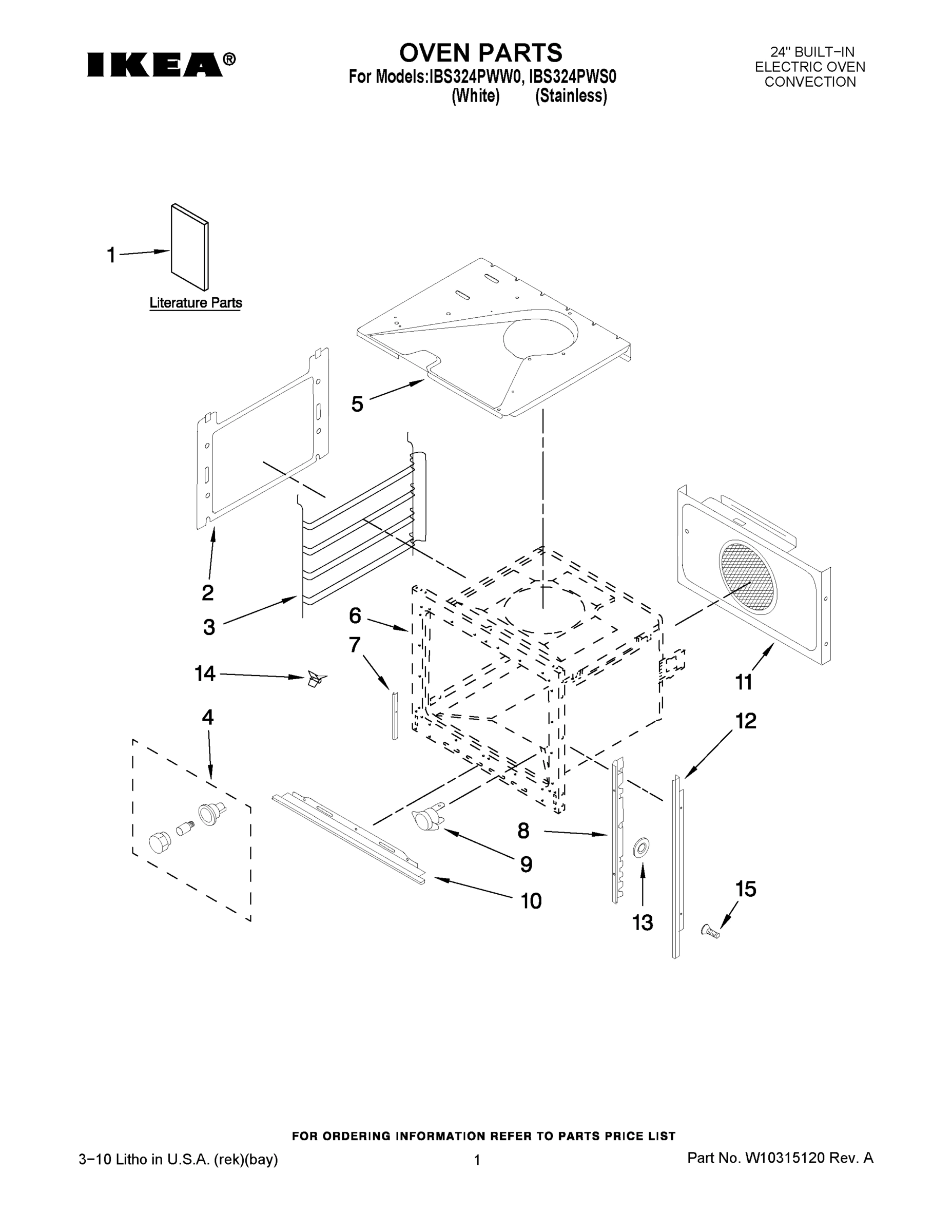

01 - OVEN PARTS

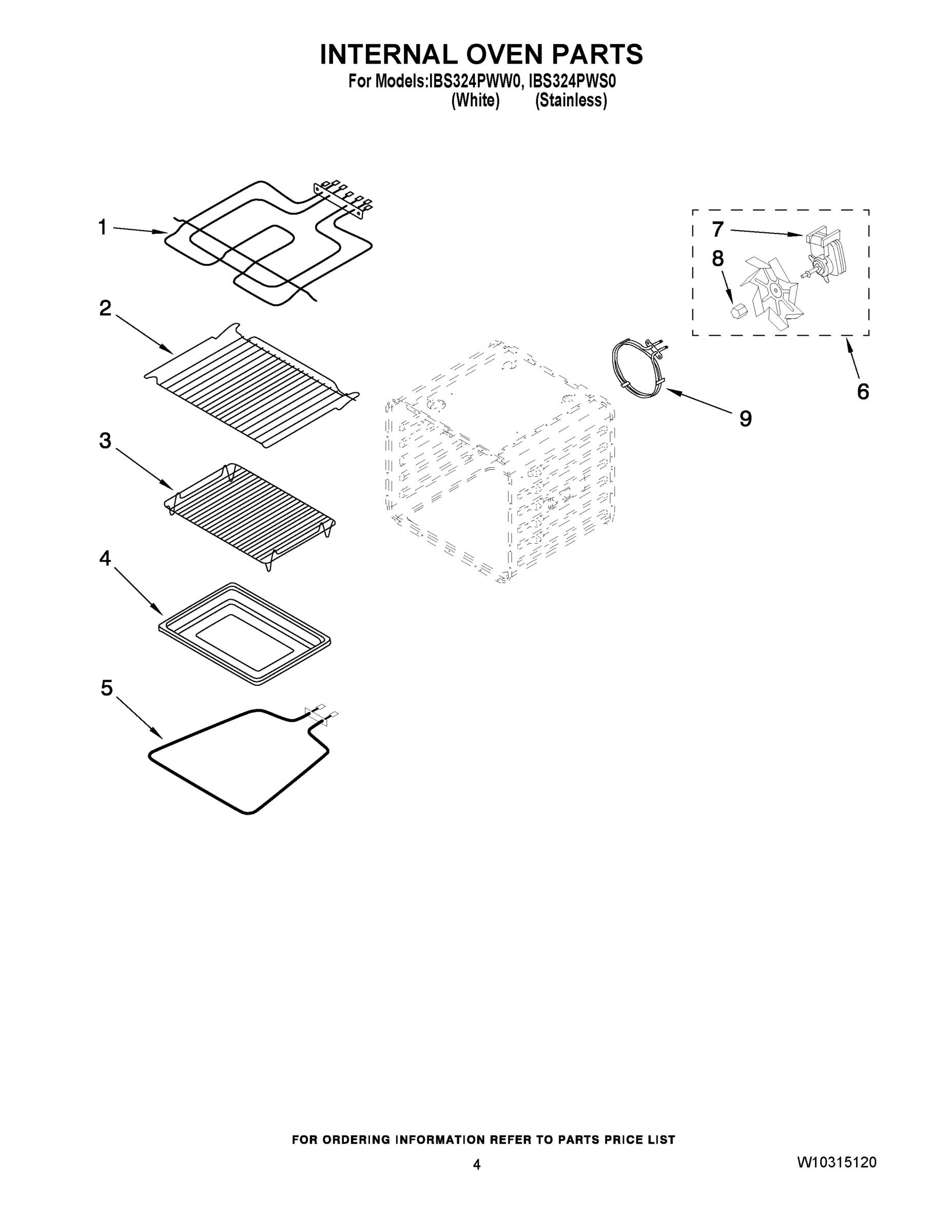

03 - INTERNAL OVEN PARTS

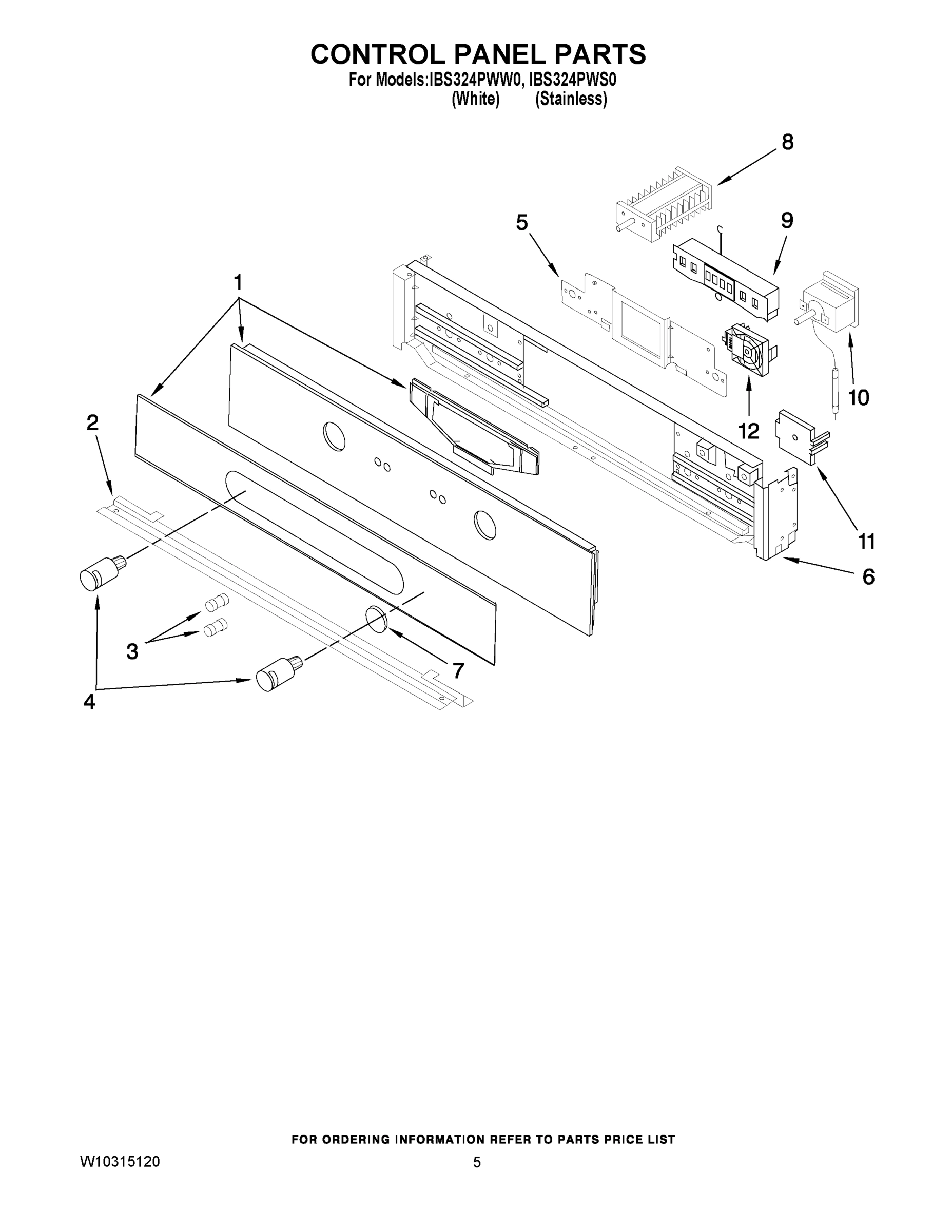

04 - CONTROL PANEL PARTS

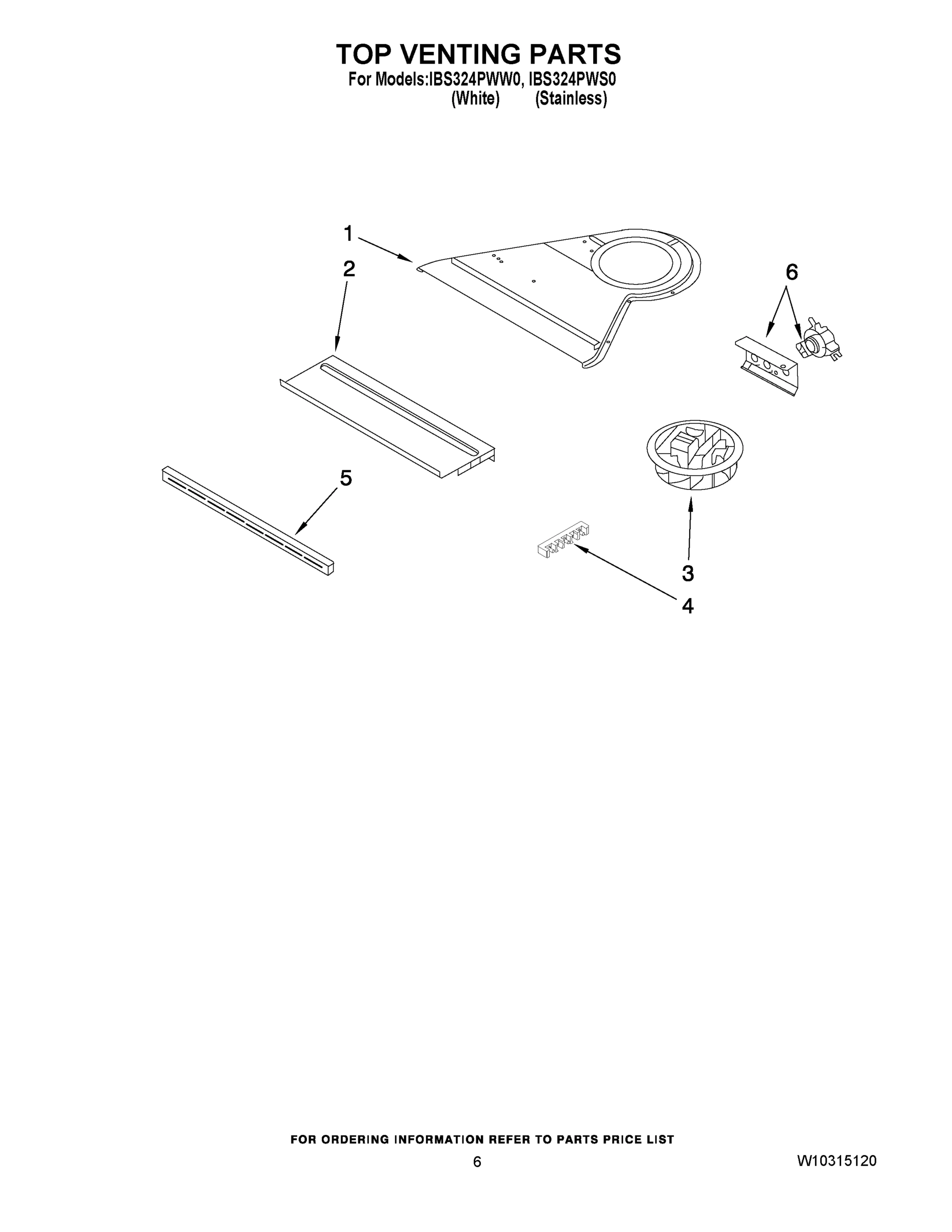

05 - TOP VENTING PARTS
Common parts from model Whirlpool IBS324PWS0 24`` BUILT-IN ELECTRIC OVEN CONVECTION
1
Sheet, Tech WPL W10259725 Contact Us For Availability
1
Installation Instructions WPL W10259726 Contact Us For Availability
1
USE & CARE GUIDE WPL W10322407 Contact Us For Availability
1
Element, Broil WPL 8186868 Contact Us For Availability
1
Panel, Control (Stainless) WPL W10240568 Contact Us For Availability
1
Panel, Control (White) WPL W10258992 Contact Us For Availability
2
Panel, Side WPL 8186851 Contact Us For Availability
2
COVER TOP, FRONT (NOT SERVICED) WPL NP Contact Us For Availability
2
Rack, Oven WPL 8186852 Contact Us For Availability
2
Trim, Lower WPL W10240555 Contact Us For Availability
3
Blower, Fan WPL W10260713 Contact Us For Availability
3
Support (RH) WPL 8186855 Contact Us For Availability
3
Support (LH) WPL W10260699 Contact Us For Availability
3
Pan, Grid WPL 8186853 Contact Us For Availability
3
BUTTON, PUSH (2) (STAINLESS) WPL W10240567 Contact Us For Availability
3
BUTTON, PUSH (2) (WHITE) WPL W10322382 Contact Us For Availability
4
Assy, Oven Light WPL 8186880 Contact Us For Availability
4
Pan, Grease WPL 8186854 Contact Us For Availability
4
Knob (RH) WPL W10240559 Contact Us For Availability
4
Block, Terminal WPL 8186870 Contact Us For Availability
5
Element, Bake WPL W10260702 Contact Us For Availability
5
Vent WPL W10260711 Contact Us For Availability
6
Temper, Limiter WPL 8186876 Contact Us For Availability
6
Glass, Inner WPL 8186848 Contact Us For Availability
6
Motor, Fan WPL 8186863 Contact Us For Availability
7
CLAMP WPL 8186858 Contact Us For Availability
7
Hinge, Door WPL W10260701 Contact Us For Availability
7
Cover, Hinge WPL 8186841 Contact Us For Availability
8
Switch, Oven WPL 8186879 Contact Us For Availability
8
Glass, Support WPL W10240561 Contact Us For Availability
8
Rail, Side (LH) WPL 8186836 Contact Us For Availability
8
Rail, Side (RH) WPL 8186837 Contact Us For Availability
9
Gasket, Door WPL 8186849 Contact Us For Availability
9
LIMITER WPL 8186875 Contact Us For Availability
9
LIMITER WPL 8186877 Contact Us For Availability
9
Element, Heat WPL 8186867 Contact Us For Availability
9
Control, Oven WPL W10240569 Contact Us For Availability
10
Thermostat (Oven) WPL W10240572 Contact Us For Availability
10
Vent, Exhaust WPL 8186844 Contact Us For Availability
10
Deflector, Vent WPL W10240575 Contact Us For Availability
10
Thermostat (Broil) WPL 8186874 Contact Us For Availability
11
SENSOR WPL W10240570 Contact Us For Availability
11
Panel, Rear WPL 8186850 Contact Us For Availability
11
Regulator WPL W10240574 Contact Us For Availability
12
Trim WPL W10260712 Contact Us For Availability
12
Encoder WPL W10240573 Contact Us For Availability
13
Spacer WPL W10240560 Contact Us For Availability
14
Clamp, Therm. WPL W10240554 Contact Us For Availability
15
Screw, Set WPL W10240556 Contact Us For Availability
× ![]()
