Model Whirlpool IBS324PVS0 24`` BUILT-IN ELECTRIC OVEN CONVECTION – Common Parts & Diagrams

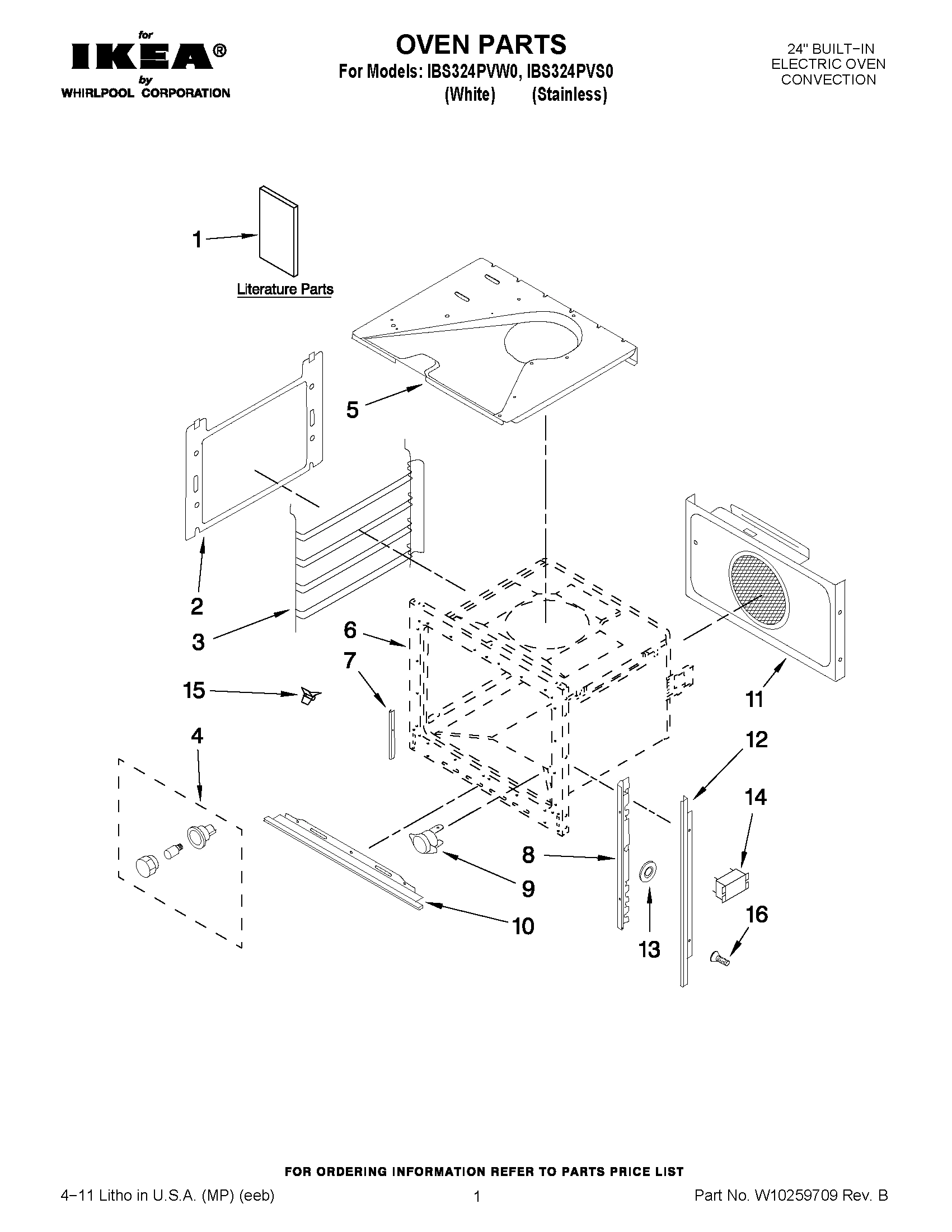

01 - OVEN PARTS

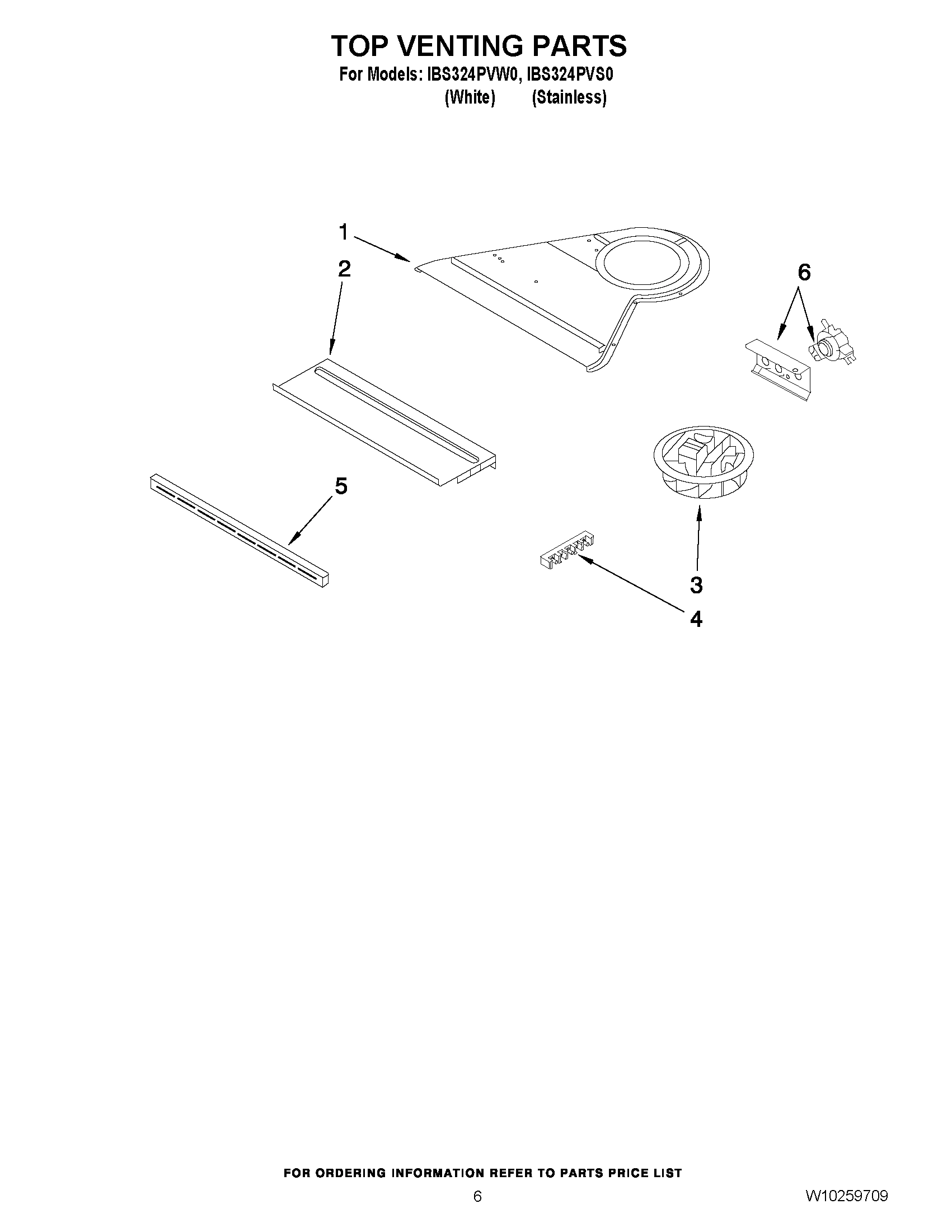

05 - TOP VENTING PARTS

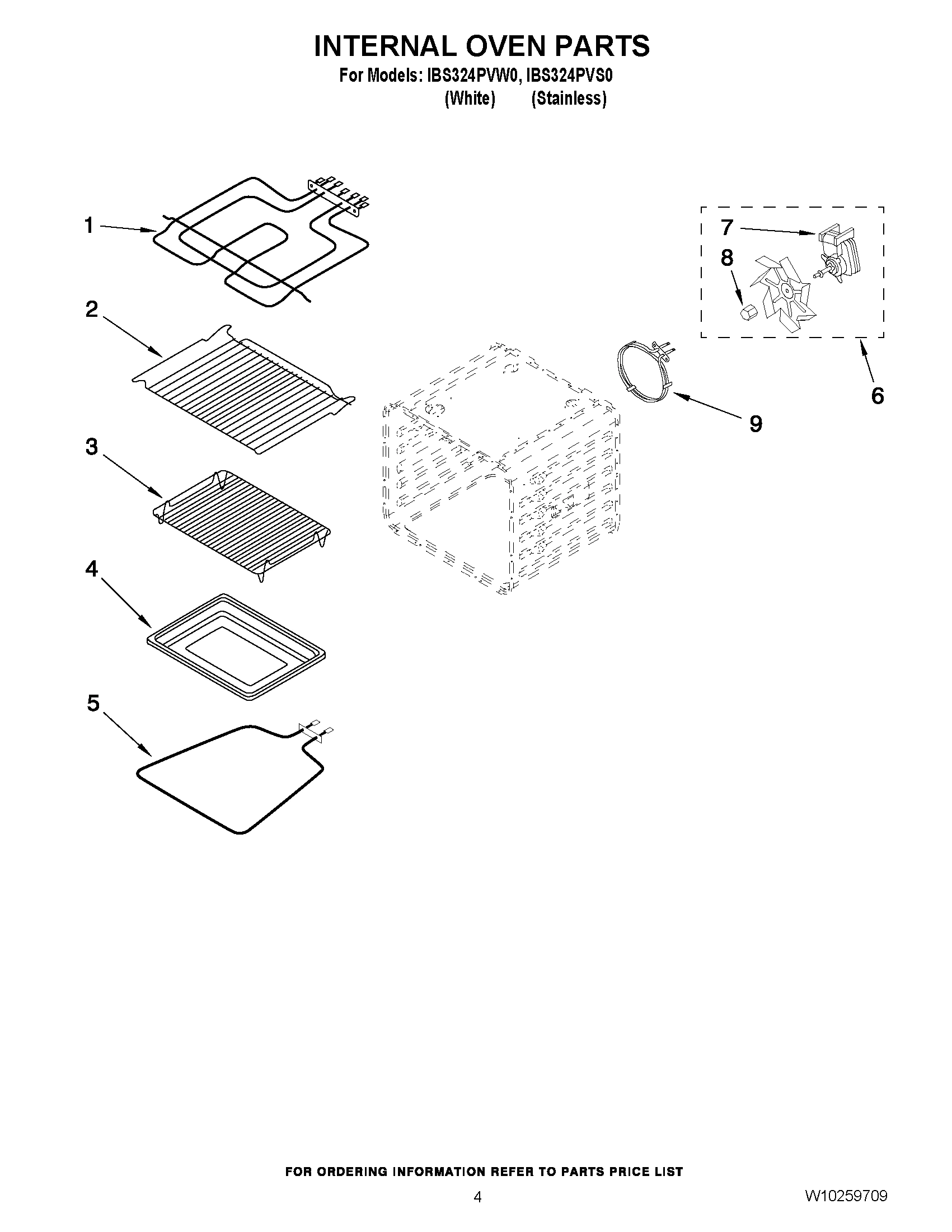

03 - INTERNAL OVEN PARTS

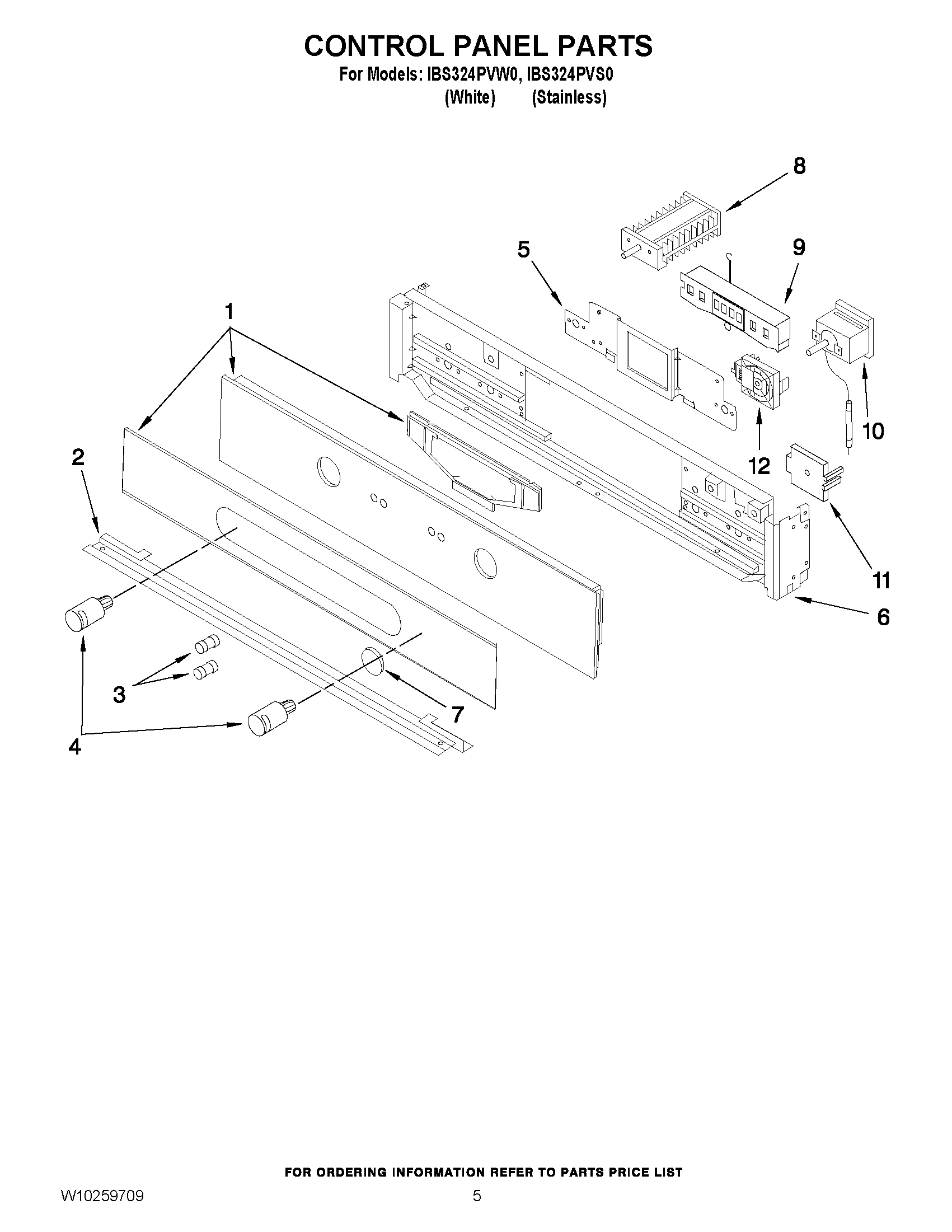

04 - CONTROL PANEL PARTS

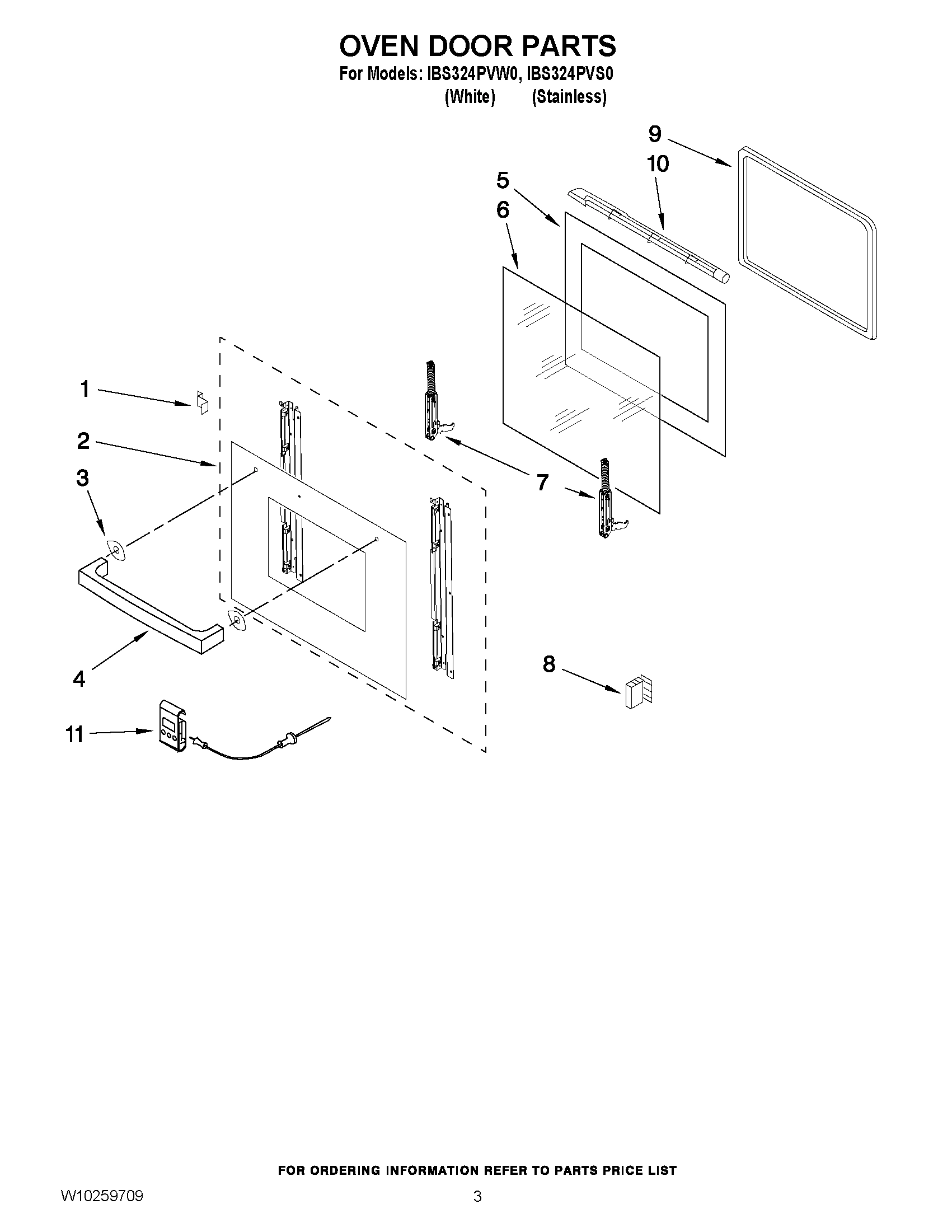

02 - OVEN DOOR PARTS
Common parts from model Whirlpool IBS324PVS0 24`` BUILT-IN ELECTRIC OVEN CONVECTION
1
Element, Broil WPL 8186868 Contact Us For Availability
1
Panel, Control (Stainless) WPL W10240568 Contact Us For Availability
1
Panel, Control (White) WPL W10258992 Contact Us For Availability
1
Mtg, Stopper WPL 8186923 Contact Us For Availability
2
Rack, Oven WPL 8186852 Contact Us For Availability
2
Trim, Lower WPL W10240555 Contact Us For Availability
2
Assy, Door Glass (Stainless) WPL W10240566 Contact Us For Availability
2
Assy, Door Glass (White) WPL W10258991 Contact Us For Availability
3
Blower, Fan WPL 8186864 Contact Us For Availability
3
Pan, Grid WPL 8186853 Contact Us For Availability
3
BUTTON, PUSH WPL W10240567 Contact Us For Availability
4
Block, Terminal WPL 8186870 Contact Us For Availability
4
Pan, Grease WPL 8186854 Contact Us For Availability
4
Knob (RH) WPL W10240559 Contact Us For Availability
4
Handle, Door WPL W10240563 Contact Us For Availability
5
Element, Bake WPL 8186869 Contact Us For Availability
5
VENT (WHITE) WPL W10121442 Contact Us For Availability
5
Vent (Stainless) WPL W10260711 Contact Us For Availability
5
Glass, Inner WPL W10240565 Contact Us For Availability
6
Temper, Limiter WPL 8186876 Contact Us For Availability
6
BRACKET (NOT SERVICED) WPL NP Contact Us For Availability
6
Motor, Fan WPL 8186863 Contact Us For Availability
6
Glass, Inner WPL 8186848 Contact Us For Availability
7
CLAMP WPL 8186858 Contact Us For Availability
7
Cover, Hinge WPL 8186841 Contact Us For Availability
7
Hinge, Door WPL W10240562 Contact Us For Availability
8
Switch, Oven WPL 8186879 Contact Us For Availability
8
Rail, Side (LH) WPL 8186836 Contact Us For Availability
8
Rail, Side (RH) WPL 8186837 Contact Us For Availability
8
NUT WPL 8186882 Contact Us For Availability
8
Glass, Support WPL W10240561 Contact Us For Availability
9
Limiter (Limiter) WPL 8186875 Contact Us For Availability
9
Limiter (Limiter) WPL 8186877 Contact Us For Availability
9
Limiter (Limiter) WPL W10240571 Contact Us For Availability
9
Element, Heat WPL 8186867 Contact Us For Availability
9
Control, Oven WPL W10240569 Contact Us For Availability
9
Gasket, Door WPL 8186849 Contact Us For Availability
10
Thermostat (Oven) WPL W10240572 Contact Us For Availability
10
Deflector, Vent WPL W10240575 Contact Us For Availability
10
Thermostat (Broil) WPL 8186874 Contact Us For Availability
10
Vent, Exhaust WPL 8186844 Contact Us For Availability
11
Panel, Rear WPL 8186850 Contact Us For Availability
11
Regulator WPL W10240574 Contact Us For Availability
11
SENSOR WPL W10240570 Contact Us For Availability
12
Trim WPL W10121443 Contact Us For Availability
12
Encoder WPL W10240573 Contact Us For Availability
13
Spacer WPL W10240560 Contact Us For Availability
14
RELAY WPL 8186878 Contact Us For Availability
15
Clamp, Therm. WPL W10240554 Contact Us For Availability
16
Screw, Set WPL W10240556 Contact Us For Availability
× ![]()
