Model Whirlpool IBS224PSM1 24`` BUILT-IN ELECTRIC OVEN CONVECTION – Common Parts & Diagrams

1
Mtg, Stopper
Mtg, Stopper WPL 8186923 Contact Us For Availability
View on Model
1

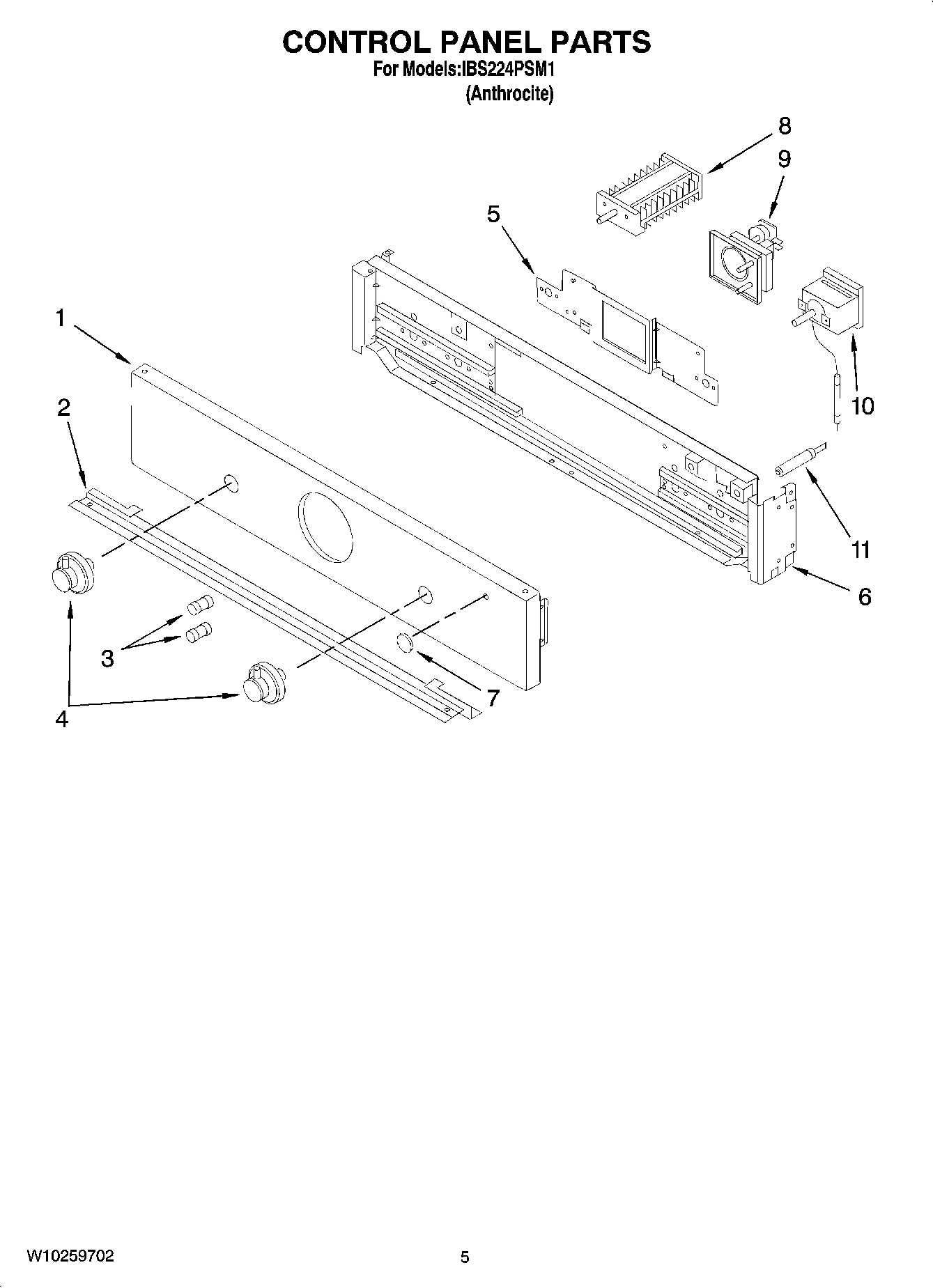

Panel, Control
Panel, Control WPL 8186913 Contact Us For Availability
View on Model
1

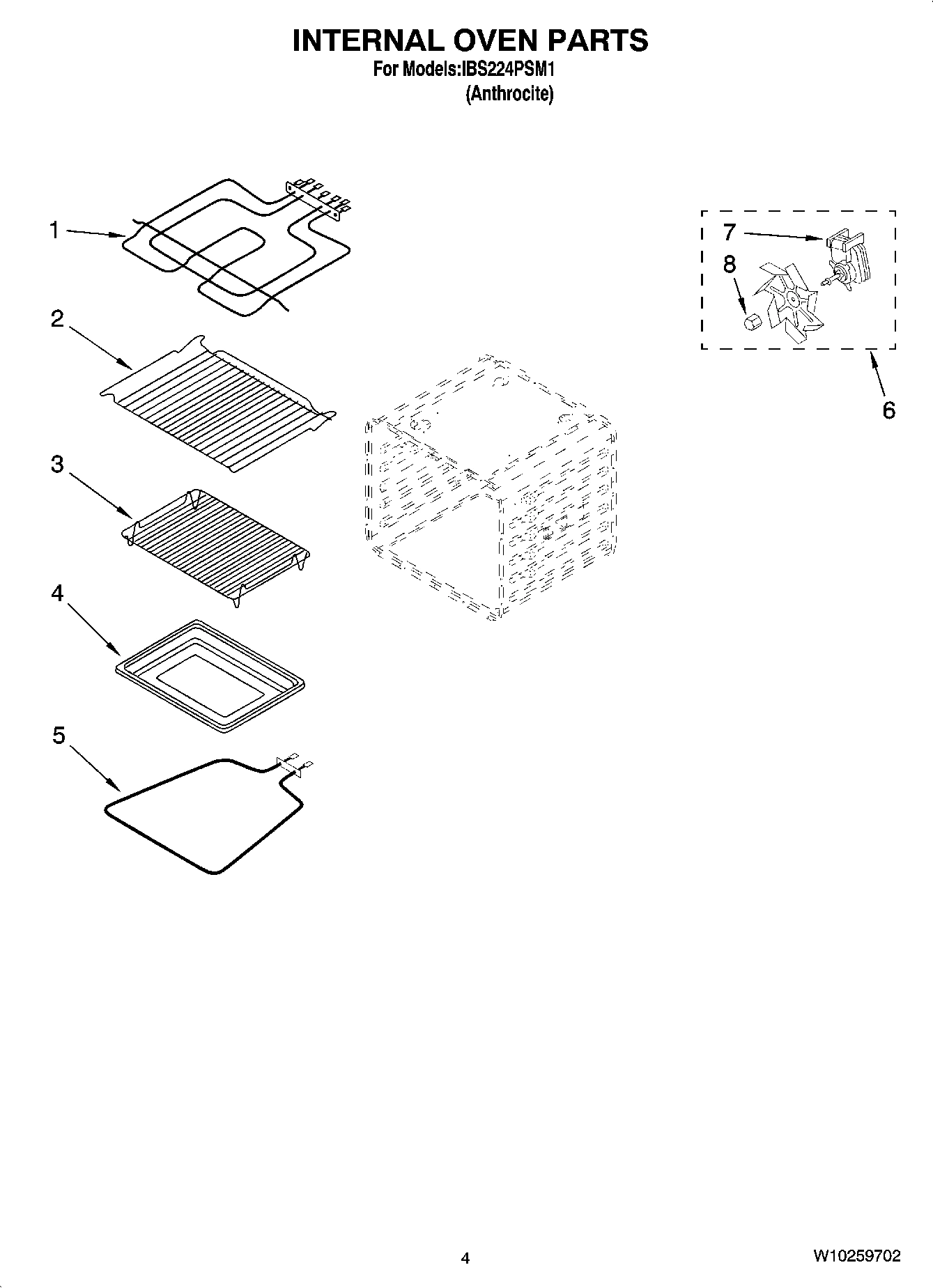

Element, Broil
Element, Broil WPL 8186918 Contact Us For Availability
View on Model
1
Cover, Top Rear (Not Serviced)
Cover, Top Rear (Not Serviced) WPL ARI75207A6 Contact Us For Availability
View on Model
2

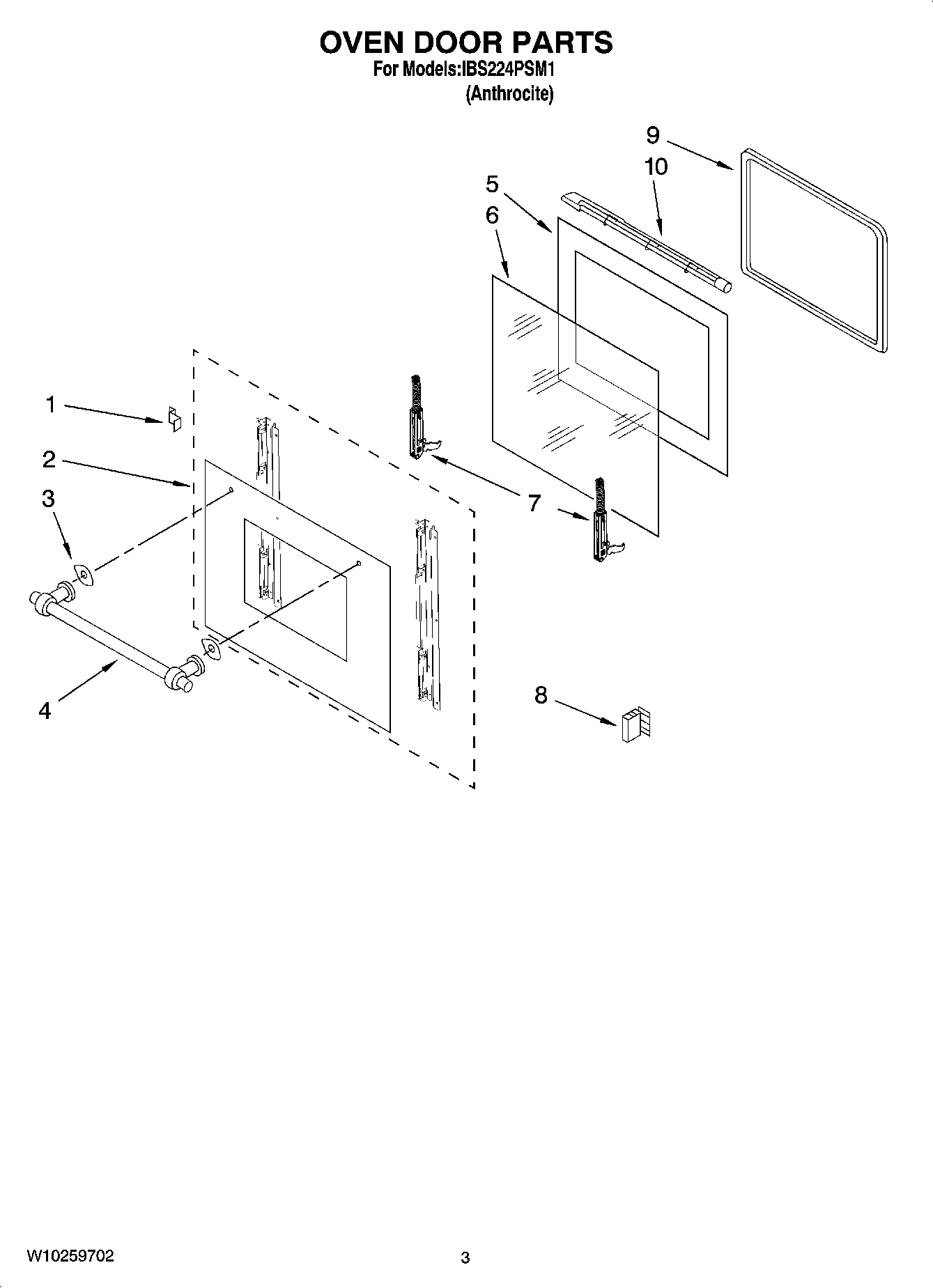

Assy, Door Glass
Assy, Door Glass WPL W10260720 Contact Us For Availability
View on Model
2
Trim, Lower
Trim, Lower WPL W10240555 Contact Us For Availability
View on Model
2
Rack, Oven
Rack, Oven WPL 8186852 Contact Us For Availability
View on Model
2
Cover Top, Front (Not Serviced)
Cover Top, Front (Not Serviced) WPL ARI75208A7 Contact Us For Availability
View on Model
3
Blower, Fan
Blower, Fan WPL W10260713 Contact Us For Availability
View on Model
3
Spacer, Handle
Spacer, Handle WPL W10260705 Contact Us For Availability
View on Model
3
Button, Push (2)
Button, Push (2) WPL 8186914 Contact Us For Availability
View on Model
3
Pan, Grid
Pan, Grid WPL 8186853 Contact Us For Availability
View on Model
4
Assy, Oven Light
Assy, Oven Light WPL 8186880 Contact Us For Availability
View on Model
4
Handle, Door
Handle, Door WPL W10260718 Contact Us For Availability
View on Model
4
Knob
Knob WPL 8186915 Contact Us For Availability
View on Model
4
Pan, Grease
Pan, Grease WPL 8186854 Contact Us For Availability
View on Model
4
Block, Terminal
Block, Terminal WPL 8186870 Contact Us For Availability
View on Model
5
Element, Bake
Element, Bake WPL W10260702 Contact Us For Availability
View on Model
5

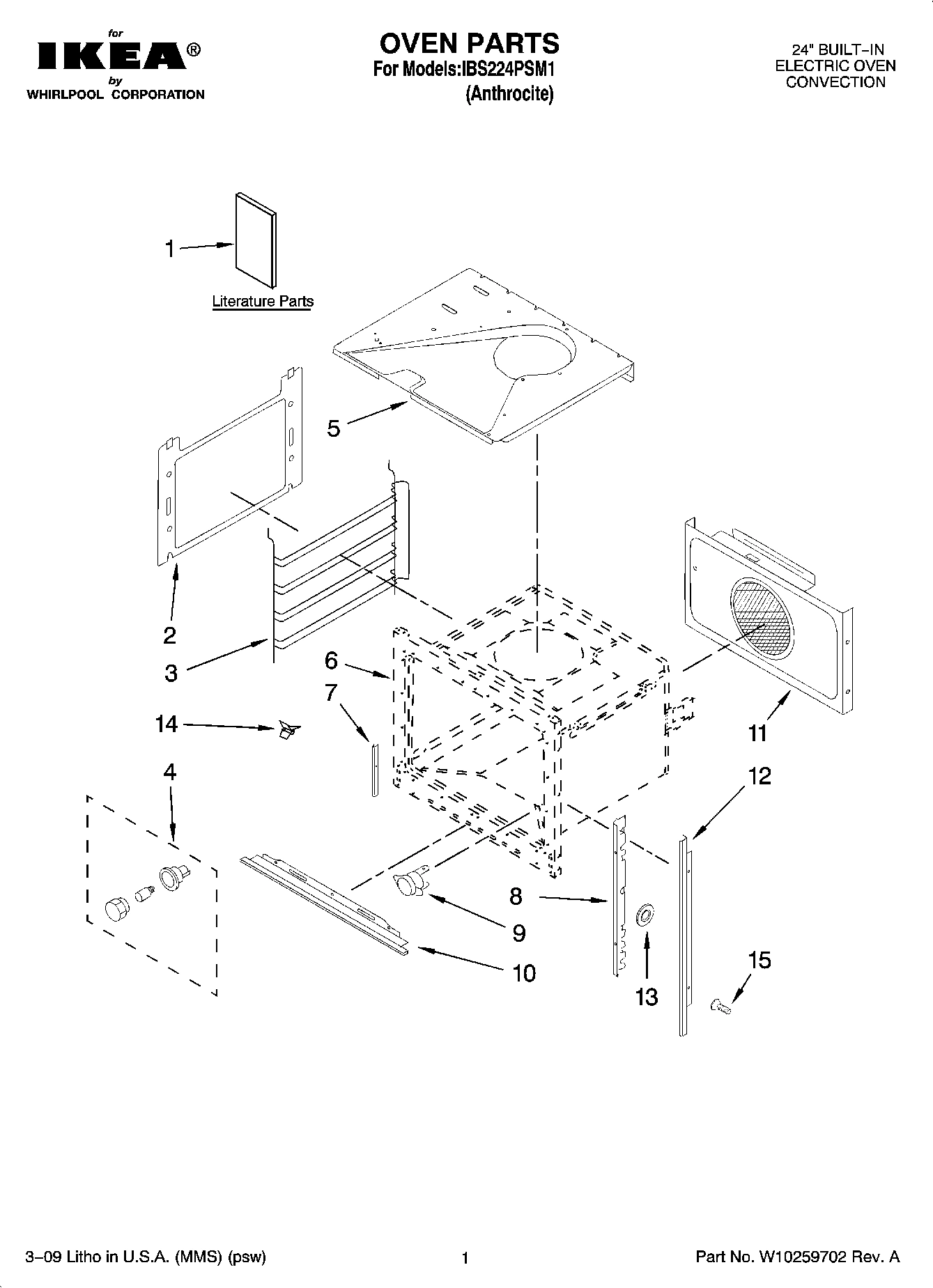

Top, Chassis (Not Serviced)
Top, Chassis (Not Serviced) WPL ARI75202A5 Contact Us For Availability
View on Model
5
Glass, Inner
Glass, Inner WPL W10260717 Contact Us For Availability
View on Model
5
Bracket, Display (Not Serviced)
Bracket, Display (Not Serviced) WPL ARI75205A3 Contact Us For Availability
View on Model
5
Vent
Vent WPL W10260721 Contact Us For Availability
View on Model
6
Liner, Oven (Not Serviced)
Liner, Oven (Not Serviced) WPL ARI75203A6 Contact Us For Availability
View on Model
6
Glass, Inner
Glass, Inner WPL 8186848 Contact Us For Availability
View on Model
6
Bracket (Not Serviced)
Bracket (Not Serviced) WPL ARI75206A4 Contact Us For Availability
View on Model
6
Motor, Fan
Motor, Fan WPL 8186863 Contact Us For Availability
View on Model
7
Cover, Hinge
Cover, Hinge WPL 8186841 Contact Us For Availability
View on Model
7
Hinge, Door
Hinge, Door WPL W10260701 Contact Us For Availability
View on Model
7
Lens
Lens WPL W10260723 Contact Us For Availability
View on Model
8
Switch, Oven
Switch, Oven WPL 8186922 Contact Us For Availability
View on Model
8
Rail, Side (RH)
Rail, Side (RH) WPL W10260697 Contact Us For Availability
View on Model
8
Rail, Side (LH)
Rail, Side (LH) WPL W10260698 Contact Us For Availability
View on Model
8
Glass, Support
Glass, Support WPL W10240561 Contact Us For Availability
View on Model
8
NUT
NUT WPL 8186882 Contact Us For Availability
View on Model
9
LIMITER
LIMITER WPL 8186876 Contact Us For Availability
View on Model
9
Clock
Clock WPL 8186920 Contact Us For Availability
View on Model
9
LIMITER
LIMITER WPL 8186875 Contact Us For Availability
View on Model
9
LIMITER
LIMITER WPL 8186877 Contact Us For Availability
View on Model
9
Limiter
Limiter WPL ARI75204A2 Contact Us For Availability
View on Model
9
Gasket, Door
Gasket, Door WPL 8186849 Contact Us For Availability
View on Model
10
Thermostat (Oven)
Thermostat (Oven) WPL 8186921 Contact Us For Availability
View on Model
10
Deflector, Vent
Deflector, Vent WPL W10240575 Contact Us For Availability
View on Model
10
Vent, Exhaust
Vent, Exhaust WPL 8186844 Contact Us For Availability
View on Model
10
Thermostat (Broil)
Thermostat (Broil) WPL 8186874 Contact Us For Availability
View on Model
11
Panel, Rear
Panel, Rear WPL 8186850 Contact Us For Availability
View on Model
11
Lamp, Pilot
Lamp, Pilot WPL 8186916 Contact Us For Availability
View on Model
12
Trim
Trim WPL W10260722 Contact Us For Availability
View on Model
13
Spacer
Spacer WPL W10240560 Contact Us For Availability
View on Model
14
Clamp, Therm.
Clamp, Therm. WPL W10240554 Contact Us For Availability
View on Model
15
Screw, Set
Screw, Set WPL W10240556 Contact Us For Availability
View on Model
