Model Whirlpool IACS501 ICE CUBE MAKER – Common Parts & Diagrams

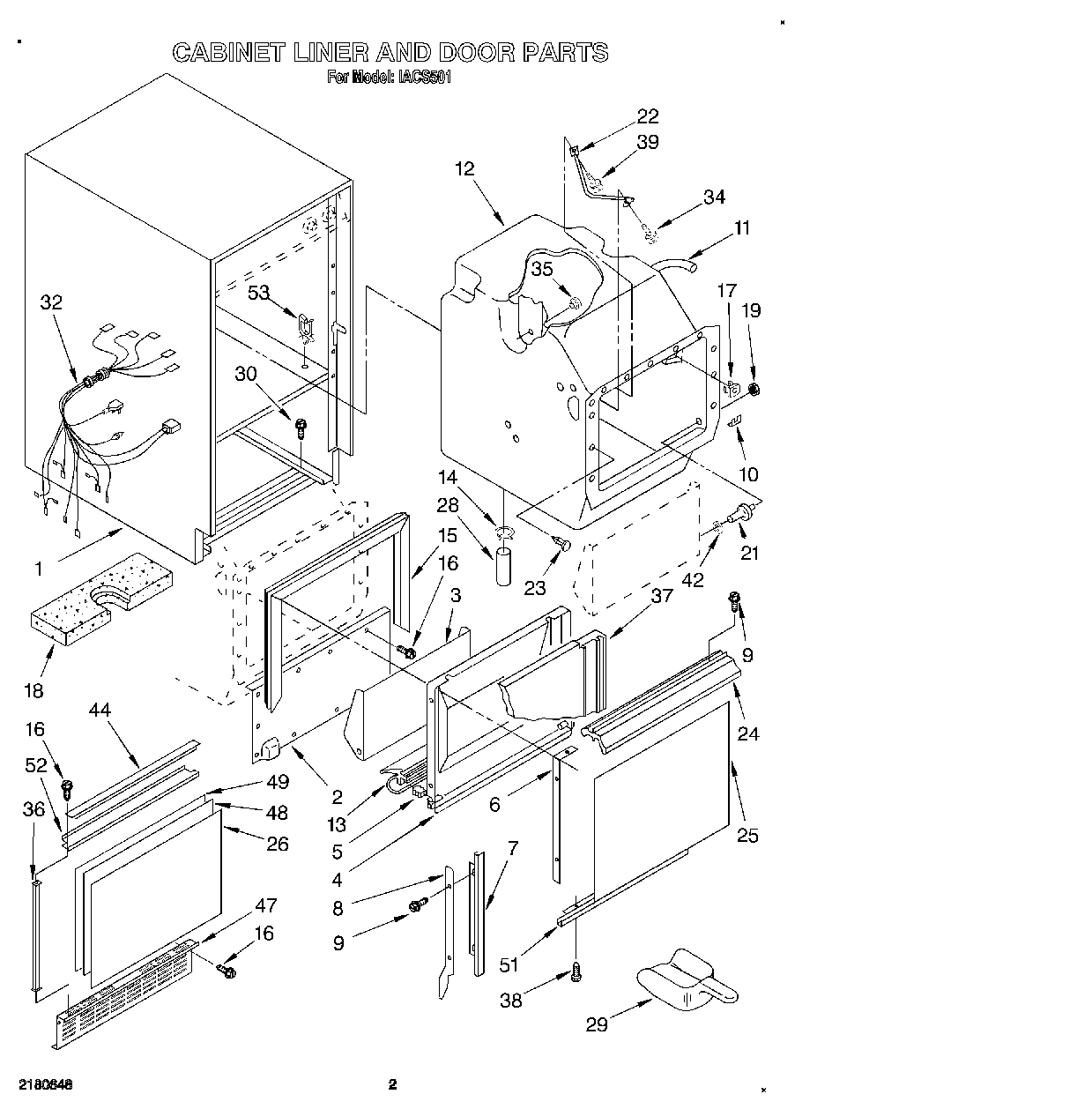

02 - CABINET LINER AND DOOR, LITERATURE

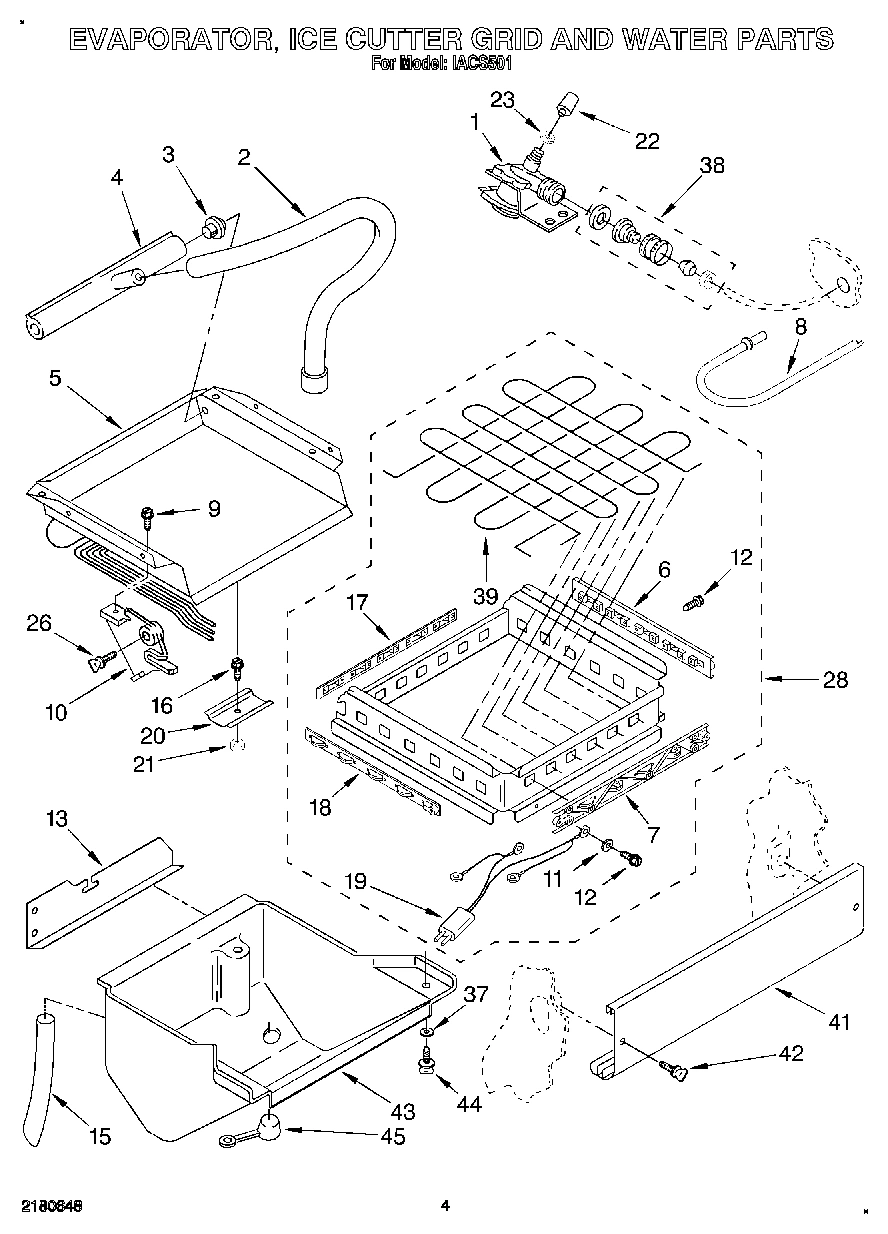

03 - EVAPORATOR, ICE CUTTER GRID AND WATER

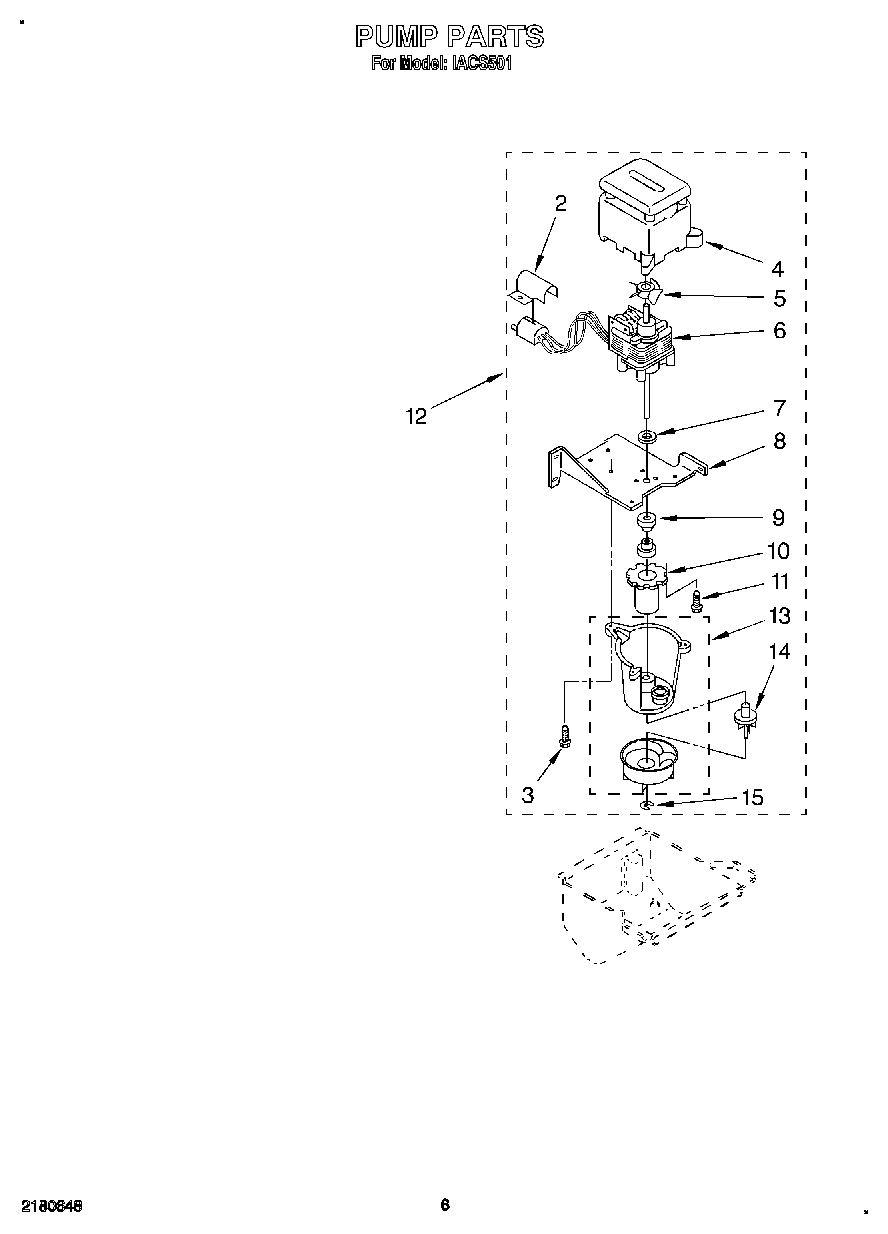

04 - PUMP

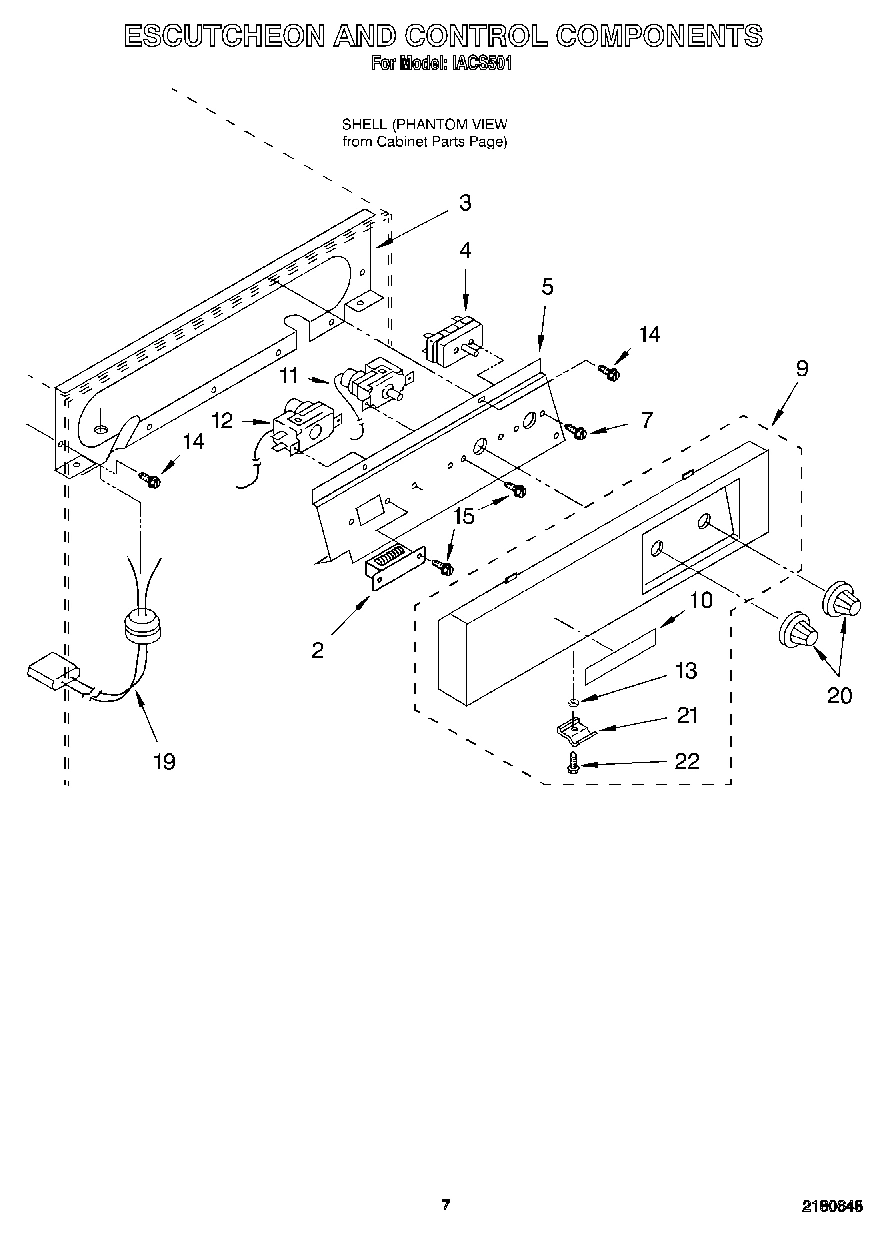

05 - ESCUTCHEON AND CONTROL COMPONENTS

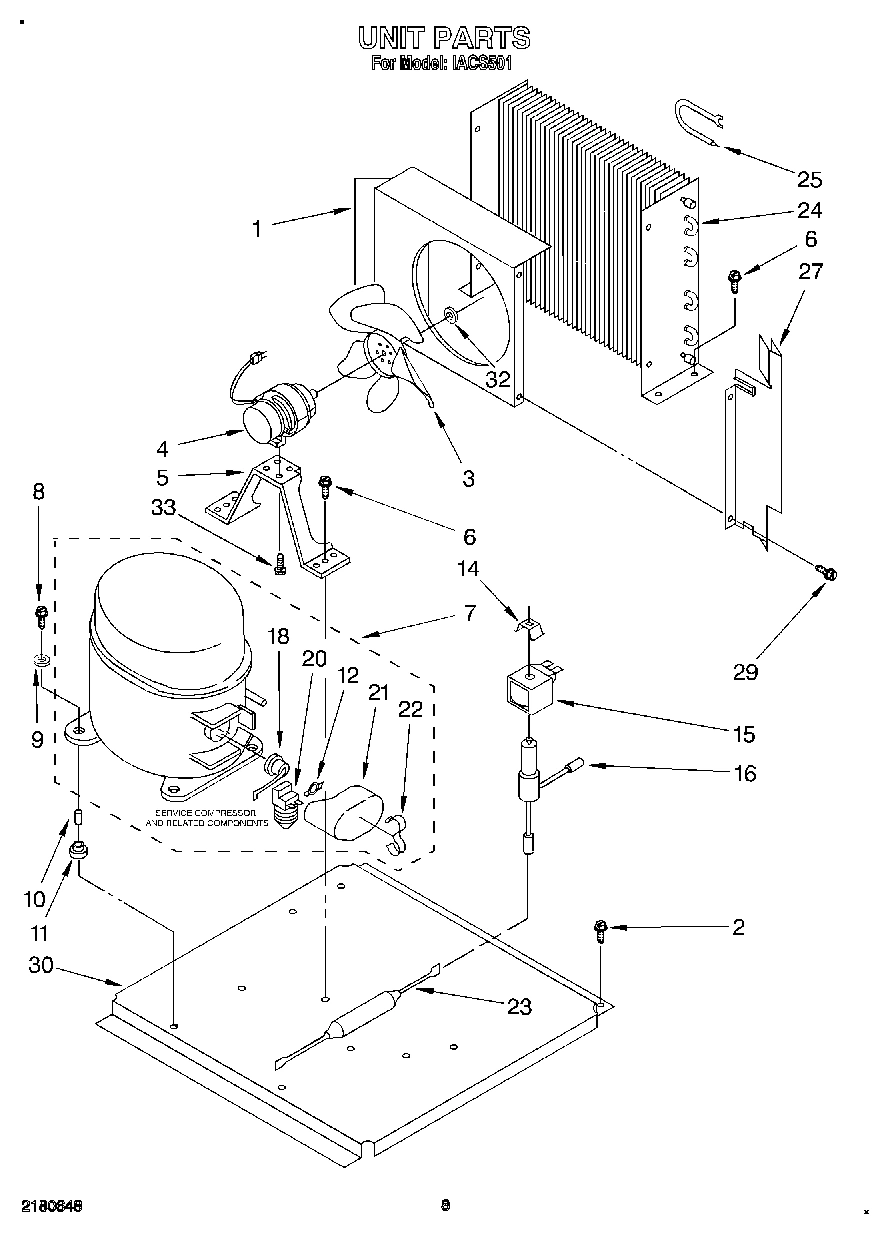

06 - UNIT
Common parts from model Whirlpool IACS501 ICE CUBE MAKER
1
WPL 759296 WPL 759296 Contact Us For Availability
1
WPL 757955 WPL 757955 Contact Us For Availability
2
Screw, WPL 680811 Contact Us For Availability
2
WPL 585856 WPL 585856 Contact Us For Availability
2
WPL 756124 WPL 756124 Contact Us For Availability
2
WPL 2165483 WPL 2165483 Contact Us For Availability
3
WPL 758597 WPL 758597 Contact Us For Availability
3
WPL 681391 WPL 681391 Contact Us For Availability
3
Escutcheon, Panel WPL 2165530 Contact Us For Availability
4
WPL 1129798 WPL 1129798 Contact Us For Availability
4
WPL 583155 WPL 583155 Contact Us For Availability
4
Switch, Service WPL 2172893 Contact Us For Availability
4
WPL 1108089 WPL 1108089 Contact Us For Availability
5
WPL 758028 WPL 758028 Contact Us For Availability
5
WPL 587096 WPL 587096 Contact Us For Availability
5
WPL 2172846 WPL 2172846 Contact Us For Availability
5
WPL 560817 WPL 560817 Contact Us For Availability
6
WPL 1127834 WPL 1127834 Contact Us For Availability
6
Screw, 1/4-20 x 1/2 (6) WPL 681305 Contact Us For Availability
7
WPL 755675 WPL 755675 Contact Us For Availability
7
WPL 755676 WPL 755676 Contact Us For Availability
7
WPL 583424 WPL 583424 Contact Us For Availability
7
WPL 758593 WPL 758593 Contact Us For Availability
8
Rail, Door (Right Side) WPL 593184 Contact Us For Availability
8
Rail, Door (Left Side) WPL 593185 Contact Us For Availability
8
WPL 759213 WPL 759213 Contact Us For Availability
8
WPL 756122 WPL 756122 Contact Us For Availability
8
WPL 680233 WPL 680233 Contact Us For Availability
9
Screw, 8-32 x 5/8 (6) WPL 681459 Contact Us For Availability
9
WPL 596016 WPL 596016 Contact Us For Availability
9
WPL 2165581 WPL 2165581 Contact Us For Availability
9
WPL 595230 WPL 595230 Contact Us For Availability
10
Washer (2) WPL 758492 Contact Us For Availability
10
WPL 756564 WPL 756564 Contact Us For Availability
10
WPL 593229 WPL 593229 Contact Us For Availability
10
WPL 2165582 WPL 2165582 Contact Us For Availability
10
WPL 585564 WPL 585564 Contact Us For Availability
11
WPL 2157321 WPL 2157321 Contact Us For Availability
11
WPL 596355 WPL 596355 Contact Us For Availability
12
WPL 756350 WPL 756350 Contact Us For Availability
12
Thermostat, Bin Control WPL 2165478 Contact Us For Availability
12
Spring, Overload (Service) WPL 549086 Contact Us For Availability
13
WPL 2172898 WPL 2172898 Contact Us For Availability
13
WPL 585853 WPL 585853 Contact Us For Availability
13
WPL 681245 WPL 681245 Contact Us For Availability
13
Pump WPL 583518 Contact Us For Availability
14
WPL 596023 WPL 596023 Contact Us For Availability
14
Impeller (Includes Retaining Ring 15) WPL 583426 Contact Us For Availability
14
WPL 564234 WPL 564234 Contact Us For Availability
15
Gasket WPL 758921 Contact Us For Availability
15
WPL 759109 WPL 759109 Contact Us For Availability
15
WPL 681301 WPL 681301 Contact Us For Availability
15
Screw, WPL 681036 Contact Us For Availability
15
WPL 587970 WPL 587970 Contact Us For Availability
16
WPL 596037 WPL 596037 Contact Us For Availability
16
WPL 598086 WPL 598086 Contact Us For Availability
17
WPL 596807 WPL 596807 Contact Us For Availability
18
WPL 756891 WPL 756891 Contact Us For Availability
18
OVERLOAD (Service) WPL 589231 Contact Us For Availability
18
OVERLOAD (Production) WPL 758638 Contact Us For Availability
19
Nut WPL 681542 Contact Us For Availability
19
WPL 757464 WPL 757464 Contact Us For Availability
20
WPL 587662 WPL 587662 Contact Us For Availability
20
WPL 756881 WPL 756881 Contact Us For Availability
20
Relay, Start (Service) WPL 549337 Contact Us For Availability
20
Relay, Start (Production) WPL 758637 Contact Us For Availability
21
WPL 758220 WPL 758220 Contact Us For Availability
21
Nut, Wing WPL 681676 Contact Us For Availability
21
WPL 759007 WPL 759007 Contact Us For Availability
21
Cover, Terminal (Production) WPL 1108115 Contact Us For Availability
21
Cover, Terminal (Service) WPL 549336 Contact Us For Availability
22
WPL 593183 WPL 593183 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 680964 Contact Us For Availability
22
Retainer, Cover (Service) WPL 549342 Contact Us For Availability
22
Retainer, Cover (Production) WPL 938384 Contact Us For Availability
23
WPL 596812 WPL 596812 Contact Us For Availability
24
WPL 2165584 WPL 2165584 Contact Us For Availability
24
WPL 756299 WPL 756299 Contact Us For Availability
25
Panel, Exterior WPL 755340 Contact Us For Availability
25
WPL 756298 WPL 756298 Contact Us For Availability
26
WPL 2165586 WPL 2165586 Contact Us For Availability
26
WPL 681611 WPL 681611 Contact Us For Availability
27
WPL 758811 WPL 758811 Contact Us For Availability
28
WPL 593577 WPL 593577 Contact Us For Availability
28
WPL 2174752 WPL 2174752 Contact Us For Availability
30
WPL 758810 WPL 758810 Contact Us For Availability
32
WPL 2174781 WPL 2174781 Contact Us For Availability
32
Conical Washer 1/4-20 Hex WPL 681650 Contact Us For Availability
33
Screw WPL 489199 Contact Us For Availability
34
Thumbscrew, 10-1/2 WPL 680930 Contact Us For Availability
35
WPL 596715 WPL 596715 Contact Us For Availability
36
WPL 758713 WPL 758713 Contact Us For Availability
37
WPL 758754 WPL 758754 Contact Us For Availability
38
WPL 681196 WPL 681196 Contact Us For Availability
38
Adapter WPL 2165477 Contact Us For Availability
39
Wire, Grid Cutter WPL N/A Contact Us For Availability
41
WPL 593171 WPL 593171 Contact Us For Availability
42
Washer WPL 681613 Contact Us For Availability
42
Thumbscrew, 10-32 x 5/8 WPL 681534 Contact Us For Availability
43
WPL 756659 WPL 756659 Contact Us For Availability
44
Thumbscrew, 10 x 1/2 WPL 681419 Contact Us For Availability
44
WPL 758716 WPL 758716 Contact Us For Availability
45
Stopper, Water Pan WPL 759043 Contact Us For Availability
47
Grill, Front WPL 758769 Contact Us For Availability
48
Panel, Filler WPL 758770 Contact Us For Availability
49
WPL 758771 WPL 758771 Contact Us For Availability
51
WPL 755677 WPL 755677 Contact Us For Availability
52
WPL 2175604 WPL 2175604 Contact Us For Availability
53
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
53
WPL 758844 WPL 758844 Contact Us For Availability
53
WPL 799351 WPL 799351 Contact Us For Availability
53
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
