Model Huebsch HYC180F Washer – Common Parts & Diagrams

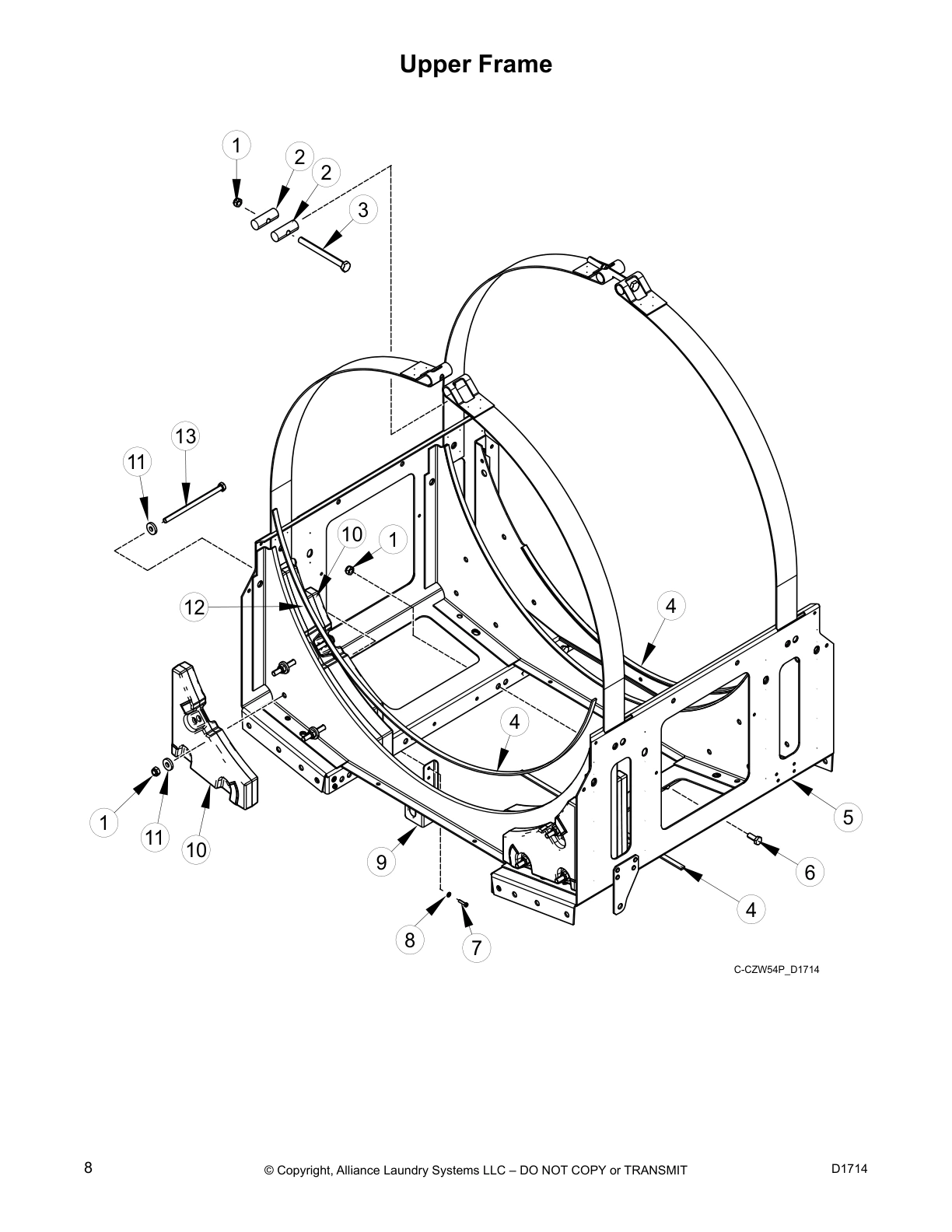

Upper Frame

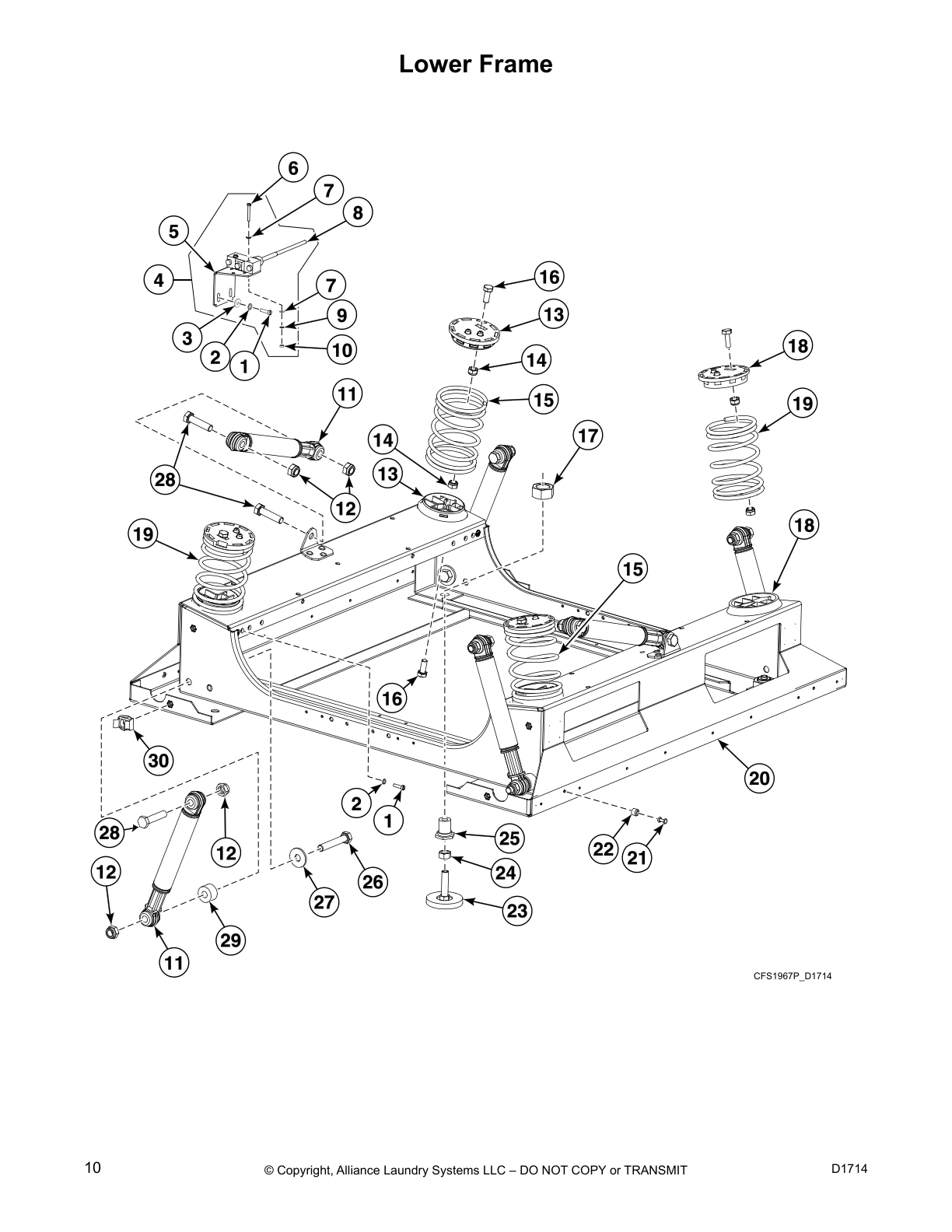

Lower Frame

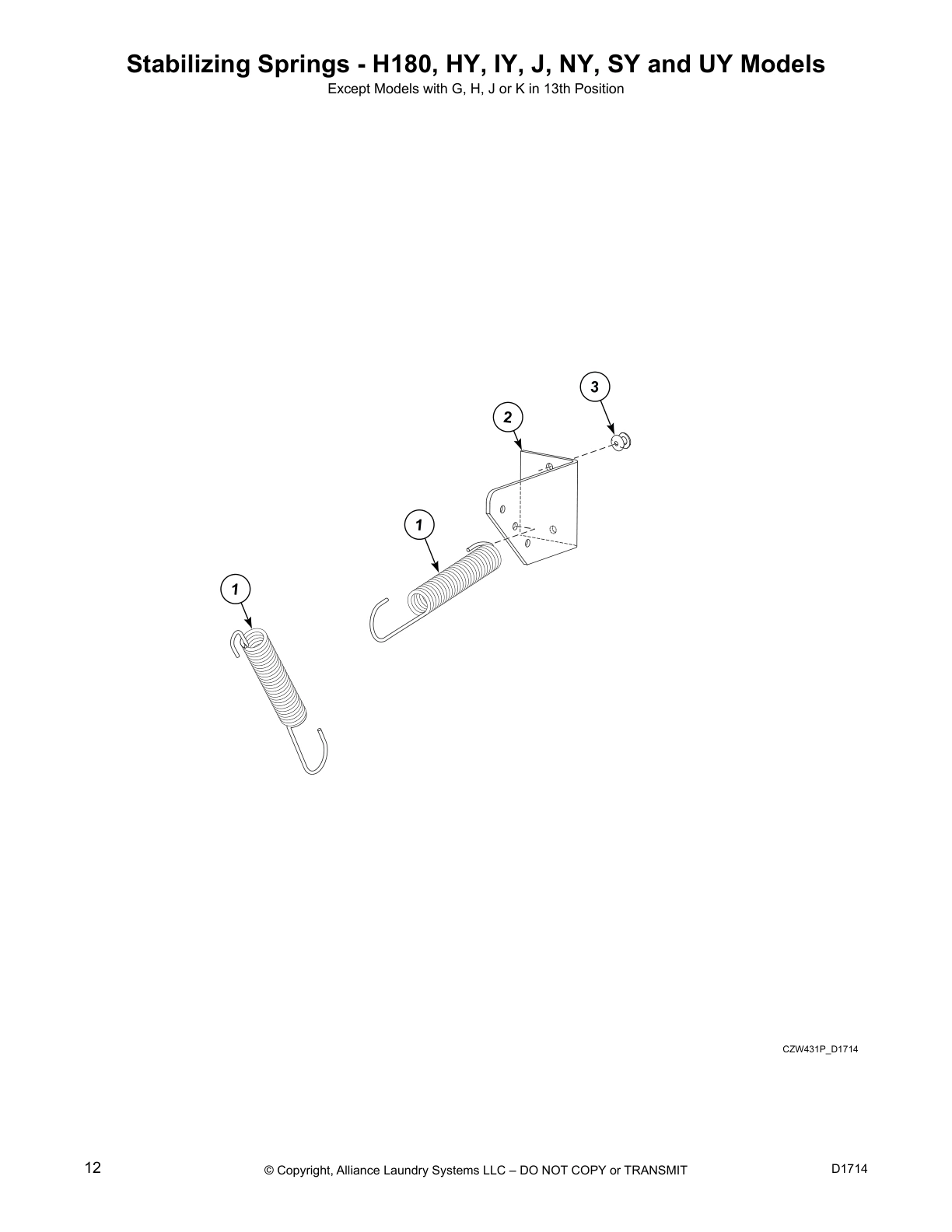

Stabilizing Springs - H180, HY, IY, J, NY, SY and UY Models

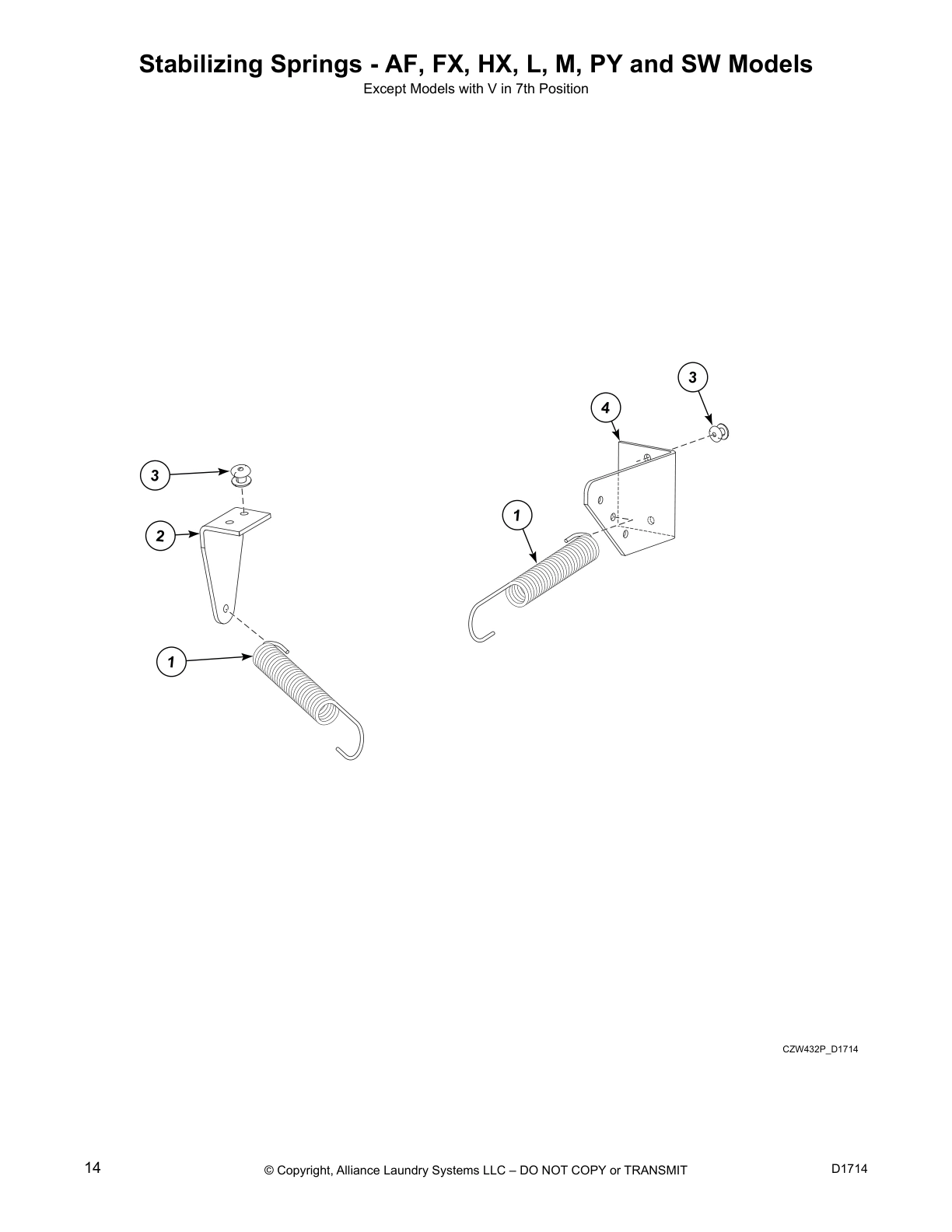

Stabilizing Springs - AF, FX, HX, L, M, PY and SW Models

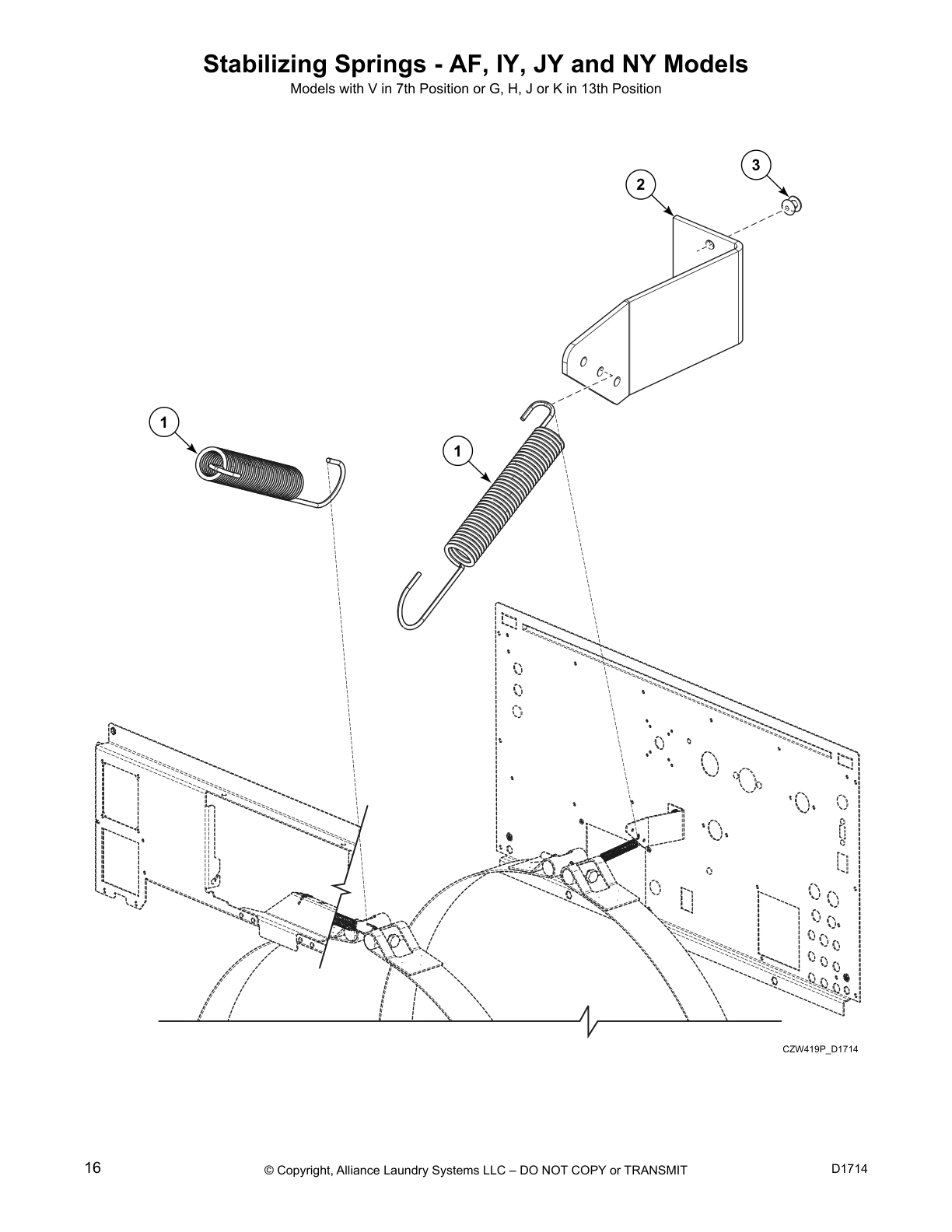

Stabilizing Springs - AF, IY, JY and NY Models

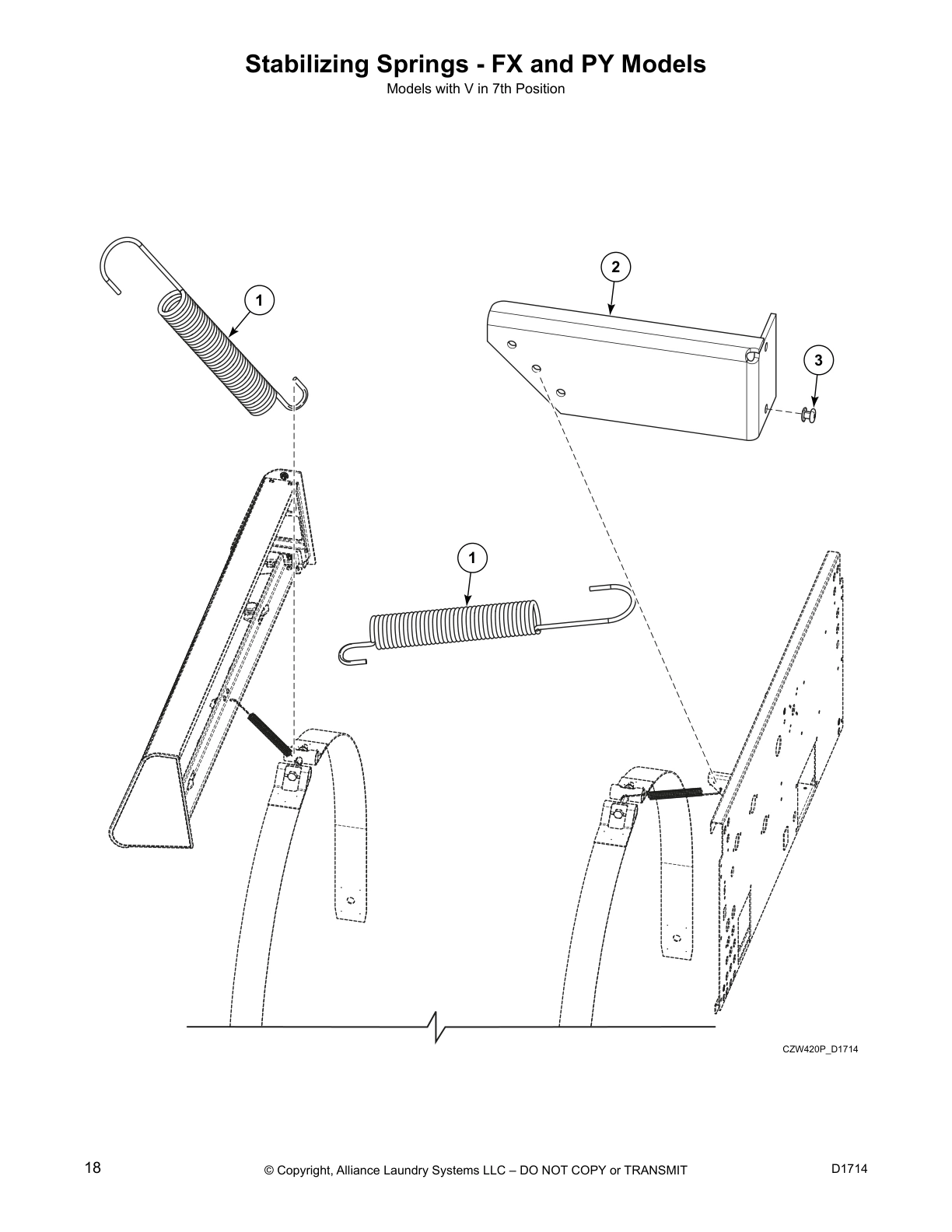

Stabilizing Springs - FX and PY Models

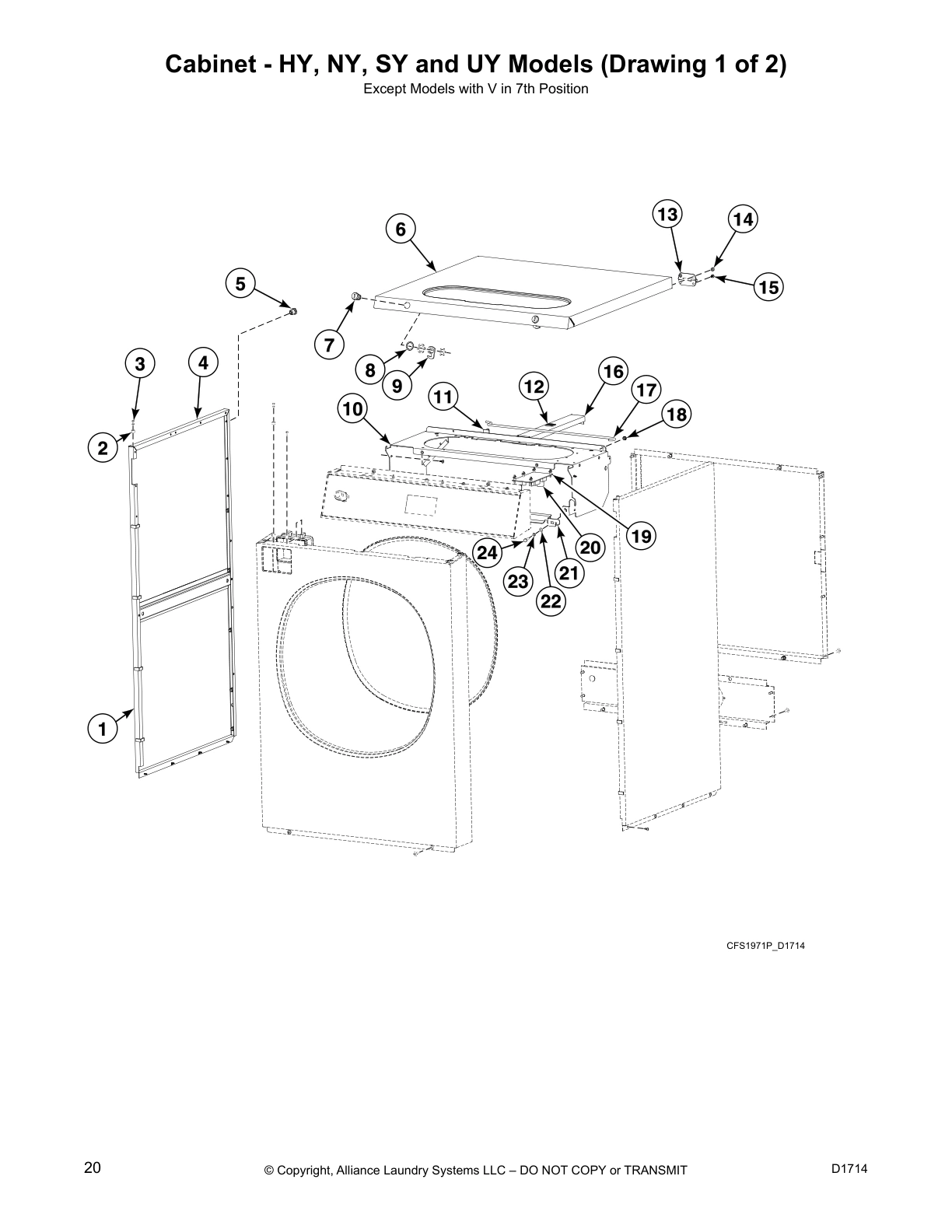

Cabinet - HY, NY, SY and UY Models (Drawing 1 of 2)

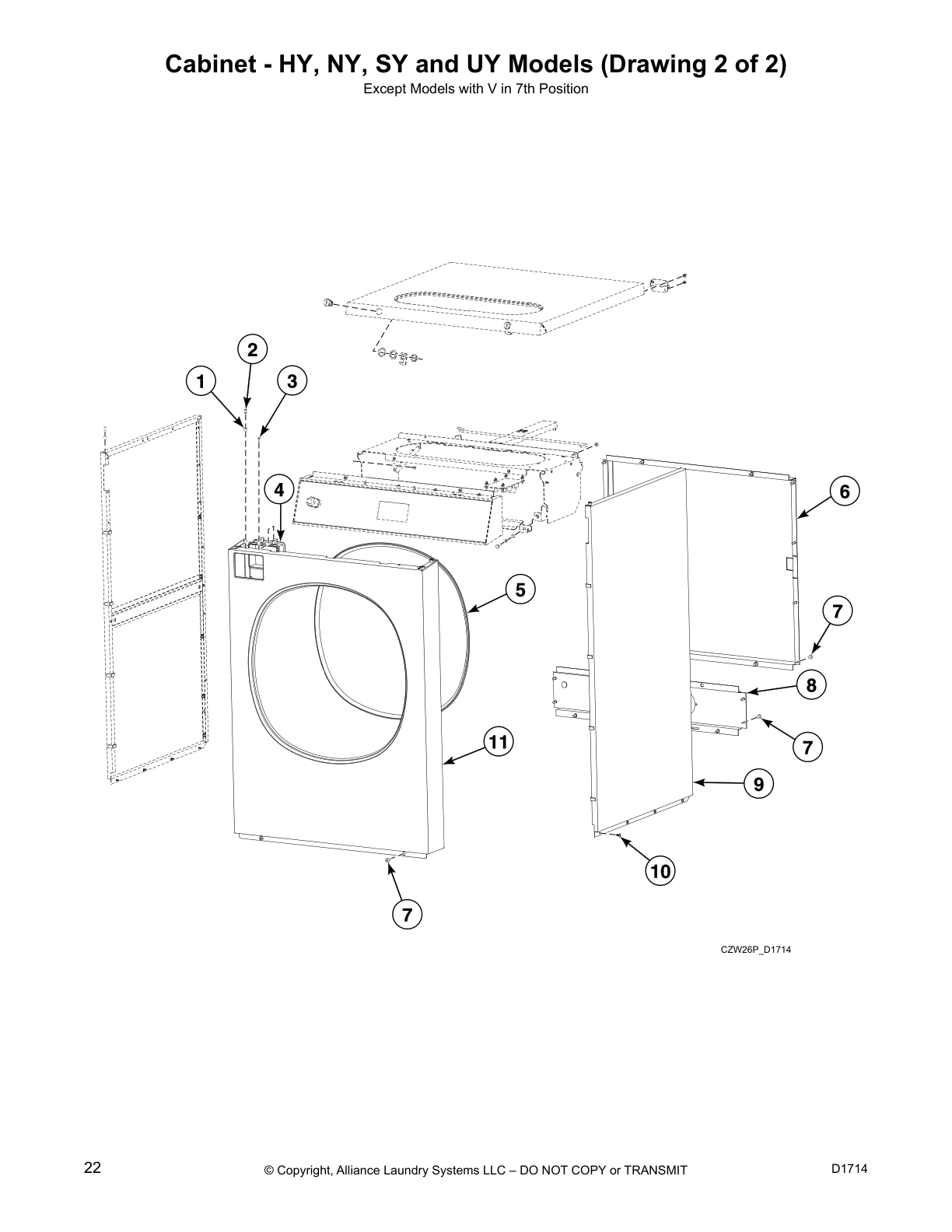

Cabinet - HY, NY, SY and UY Models (Drawing 2 of 2)

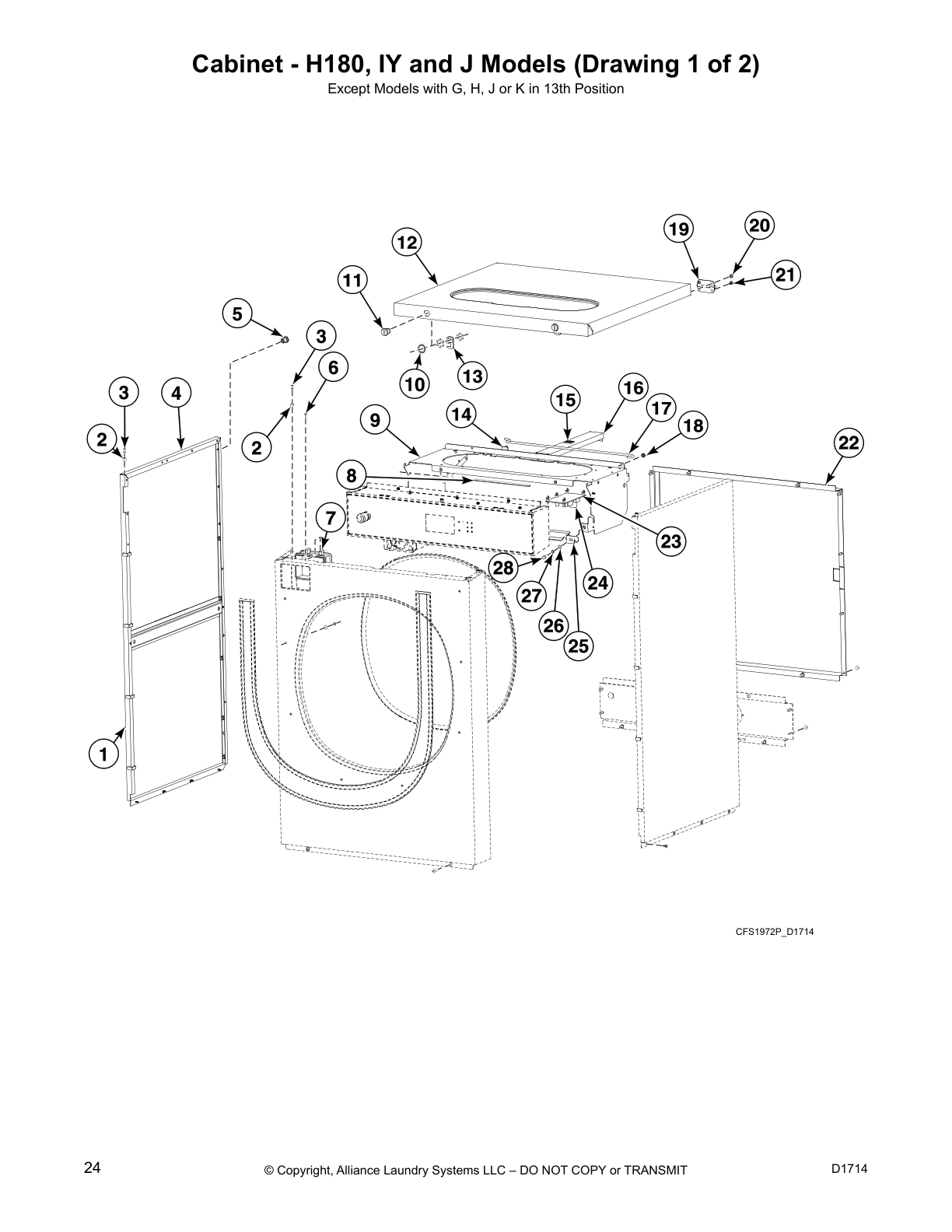

Cabinet - H180, IY and J Models (Drawing 1 of 2)

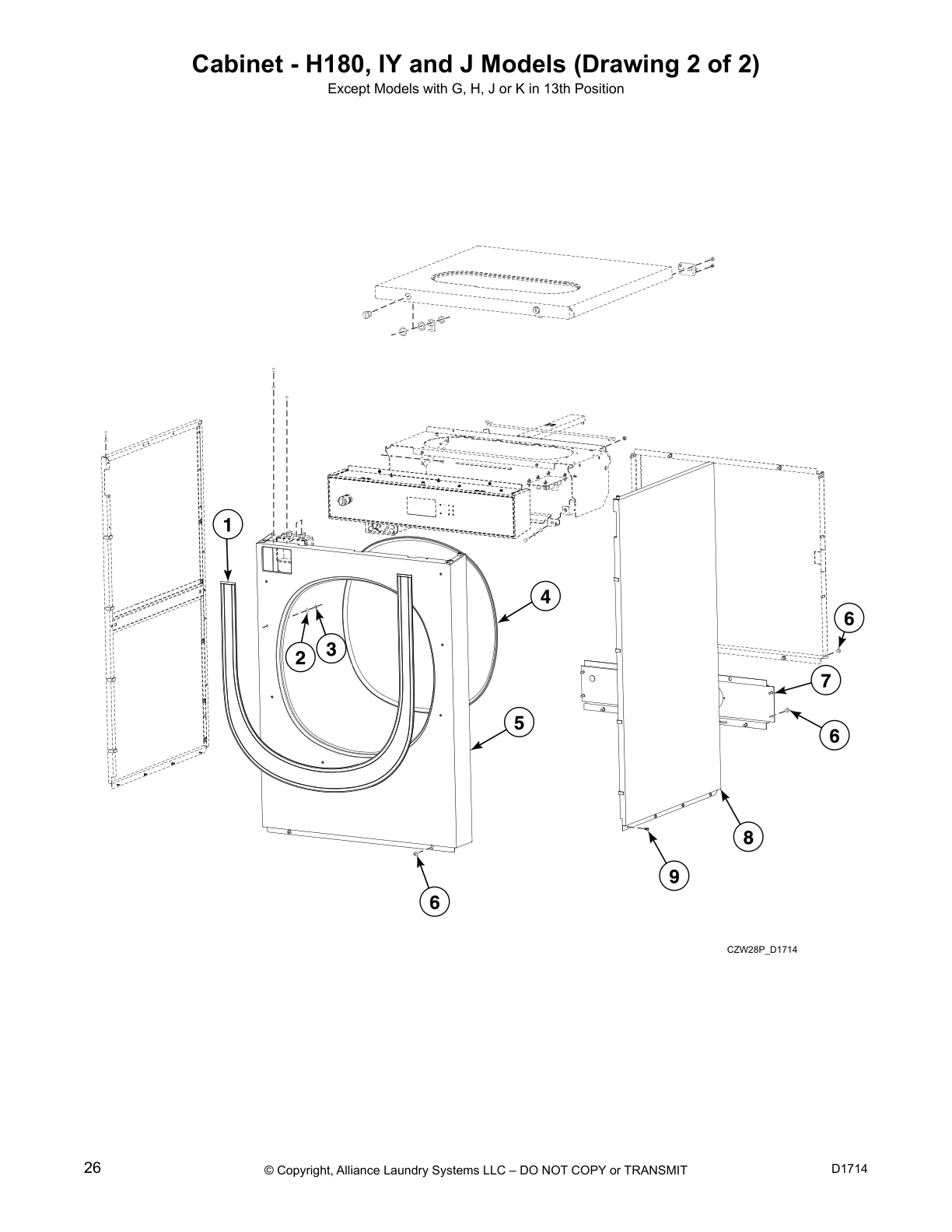

Cabinet - H180, IY and J Models (Drawing 2 of 2)

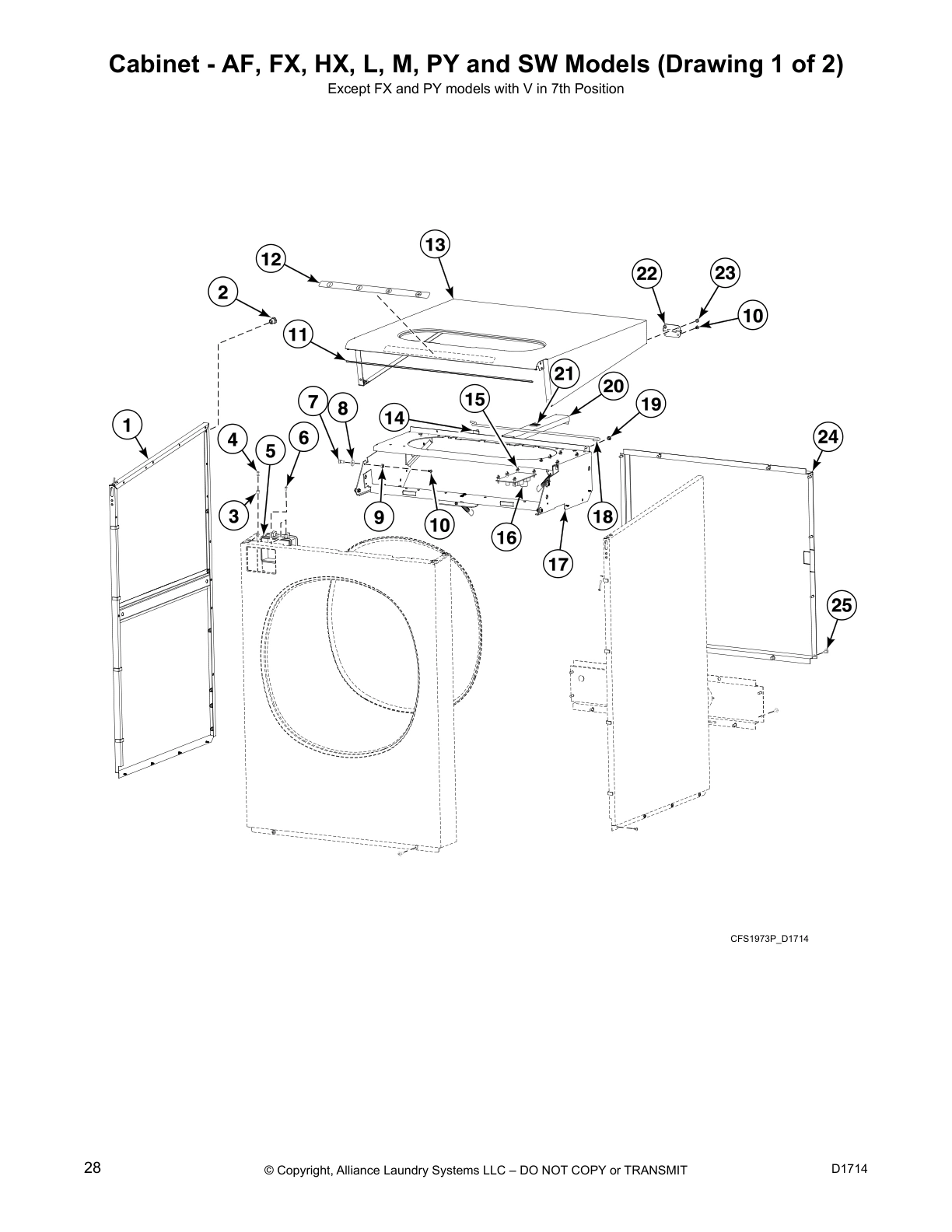

Cabinet - AF, FX, HX, L, M, PY and SW Models (Drawing 1 of 2)

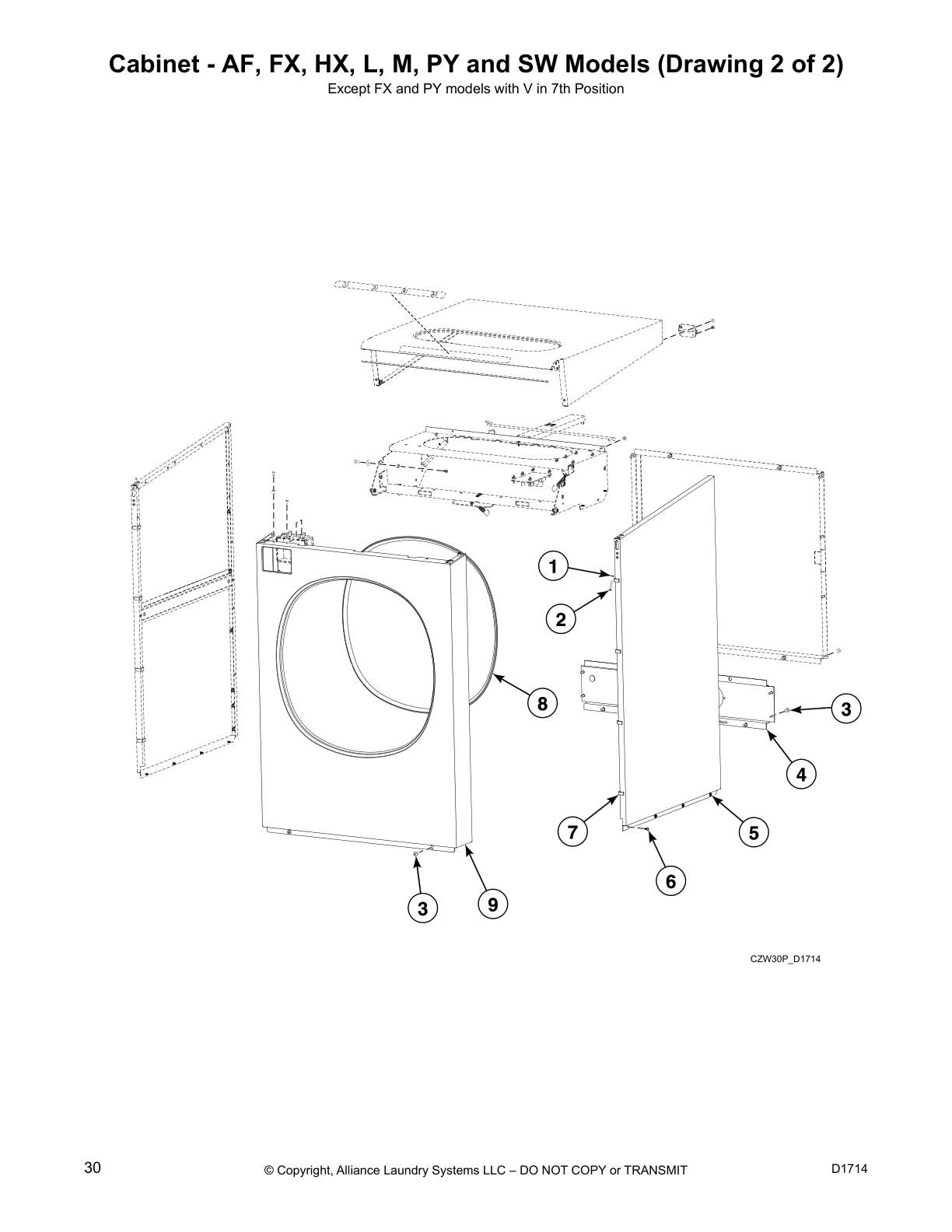

Cabinet - AF, FX, HX, L, M, PY and SW Models (Drawing 2 of 2)

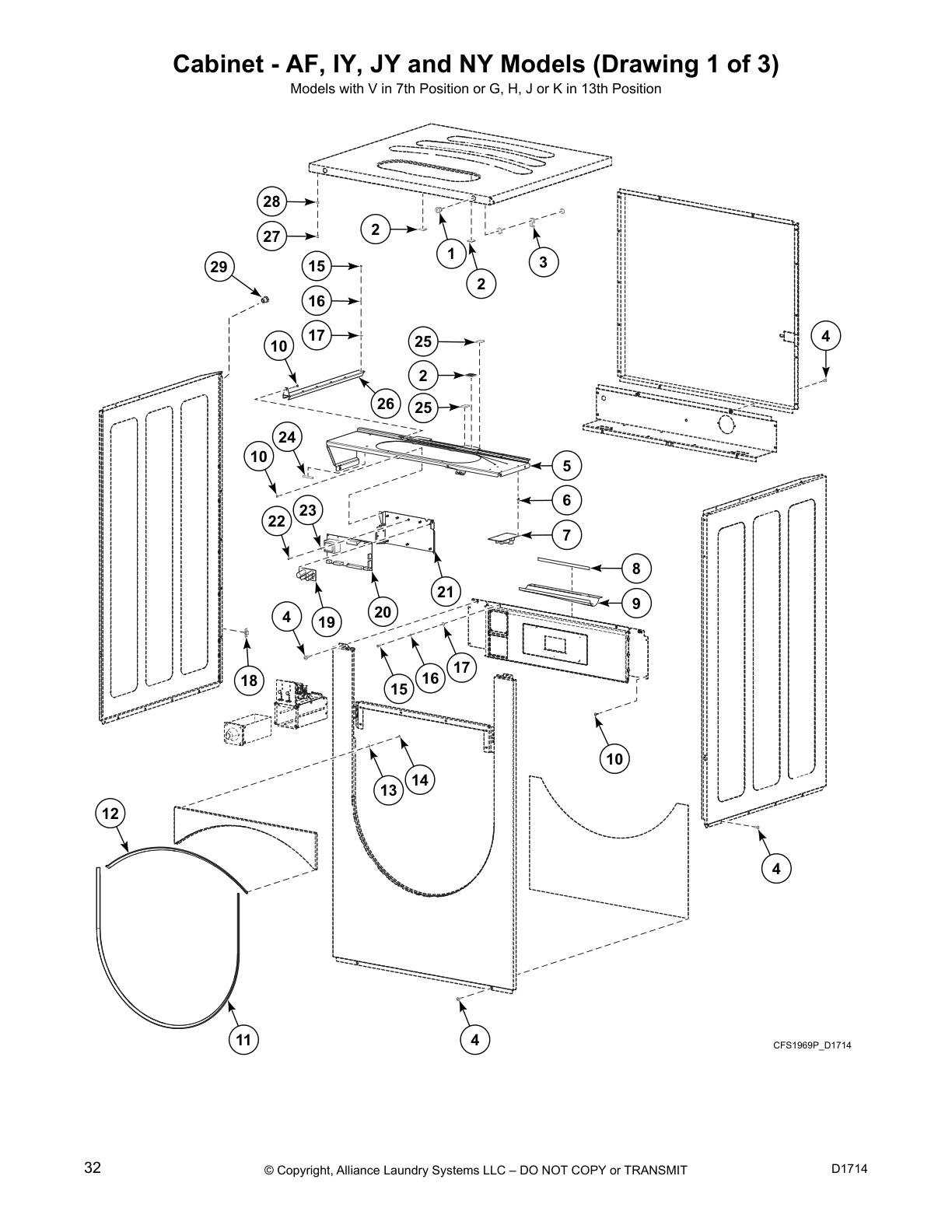

Cabinet - AF, IY, JY and NY Models (Drawing 1 of 3)

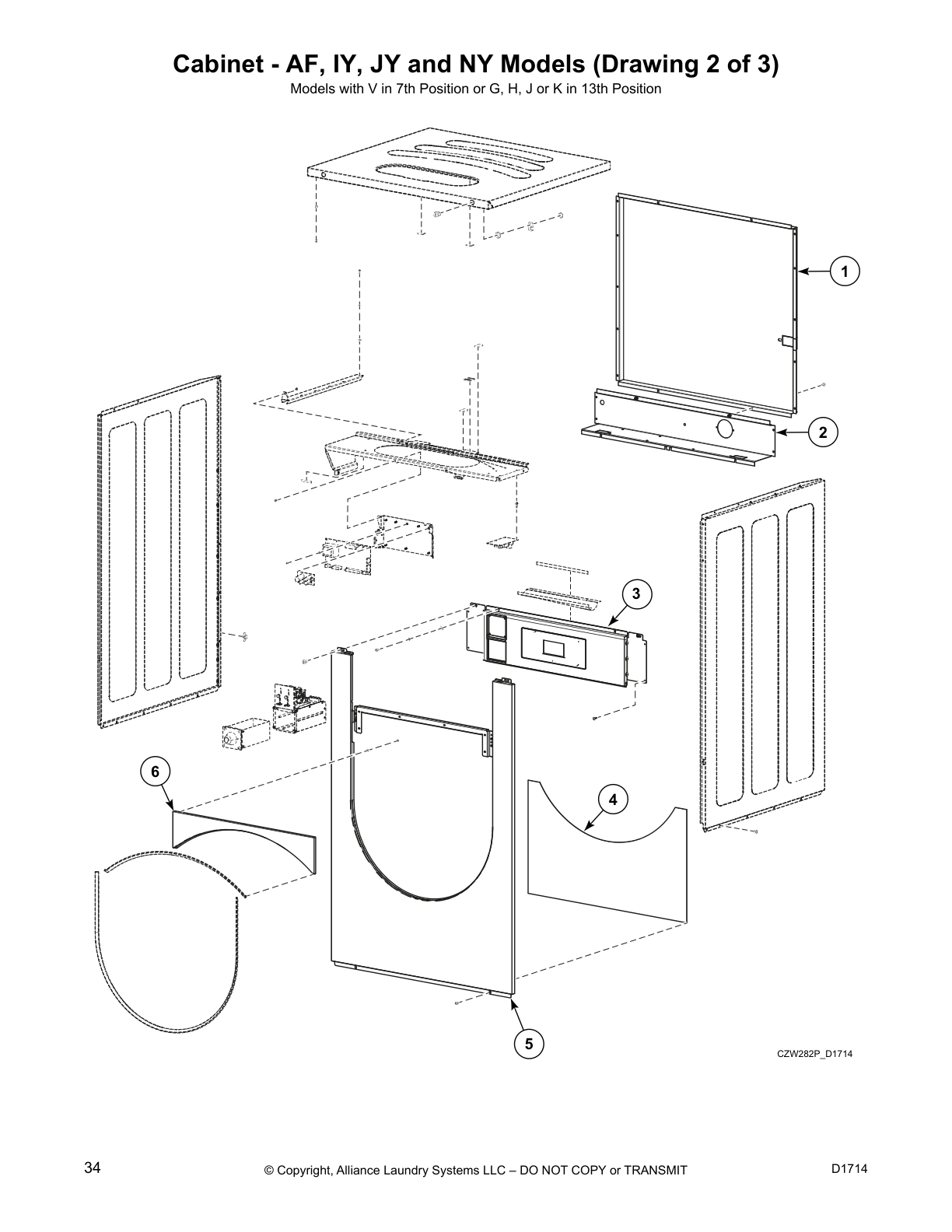

Cabinet - AF, IY, JY and NY Models (Drawing 2 of 3)

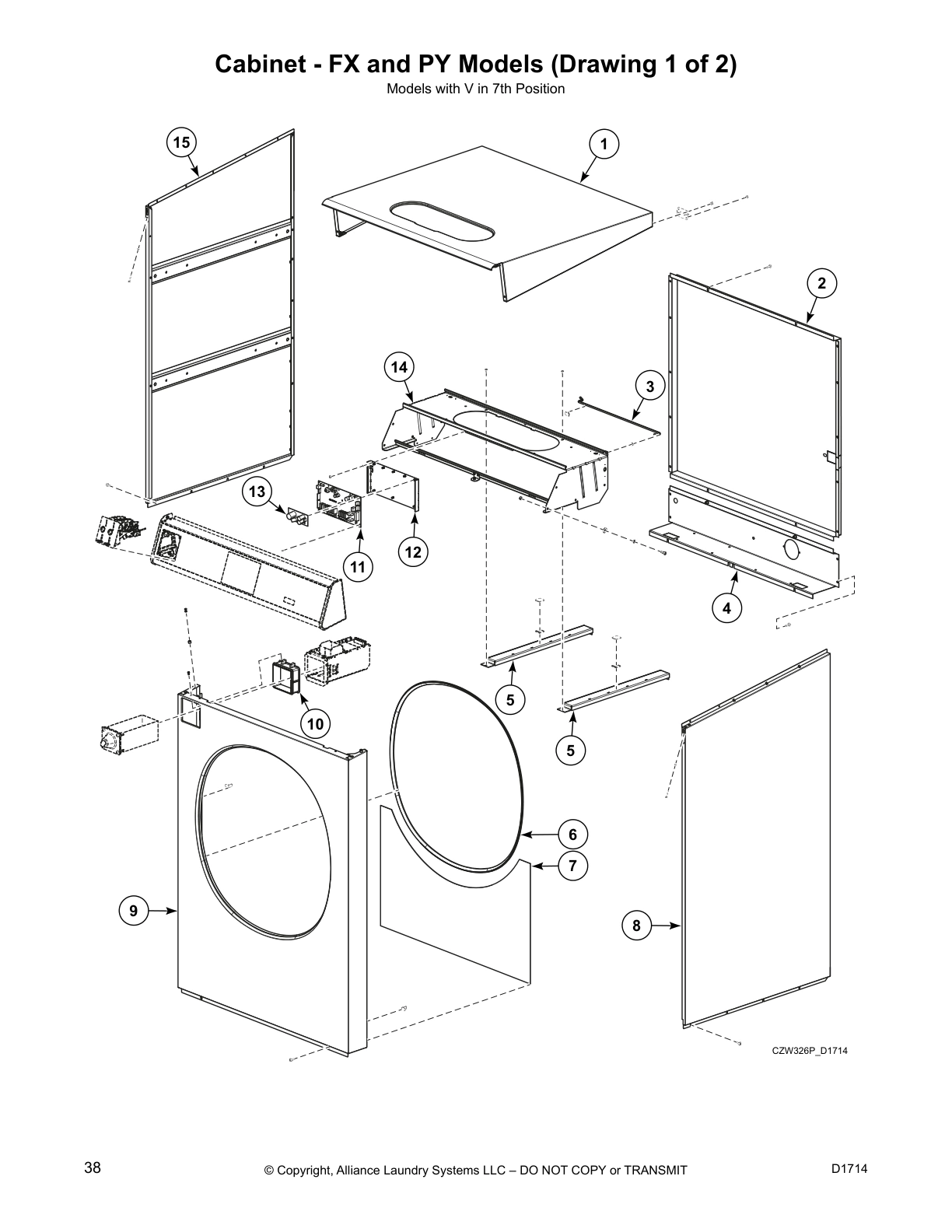

Cabinet - FX and PY Models (Drawing 1 of 2)

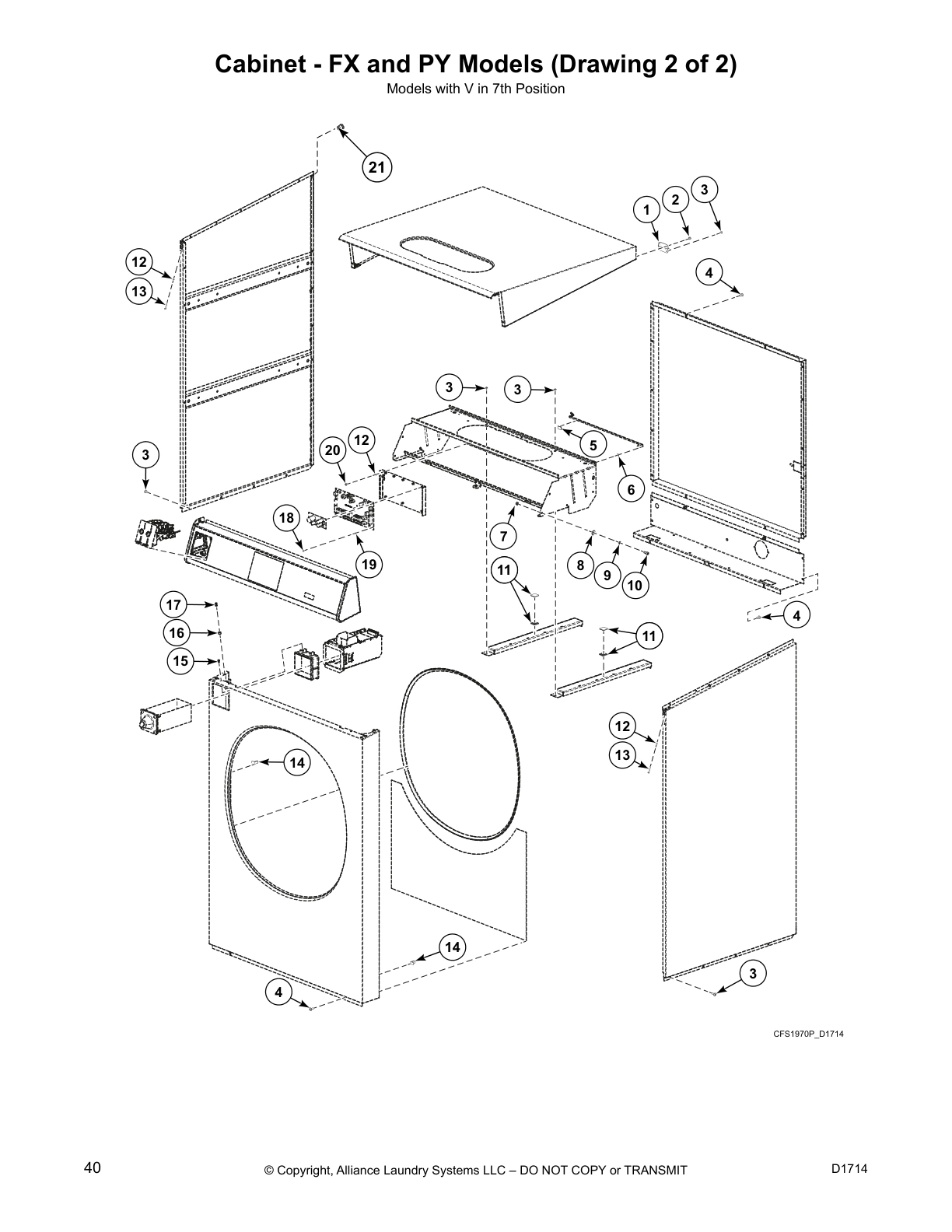

Cabinet - FX and PY Models (Drawing 2 of 2)

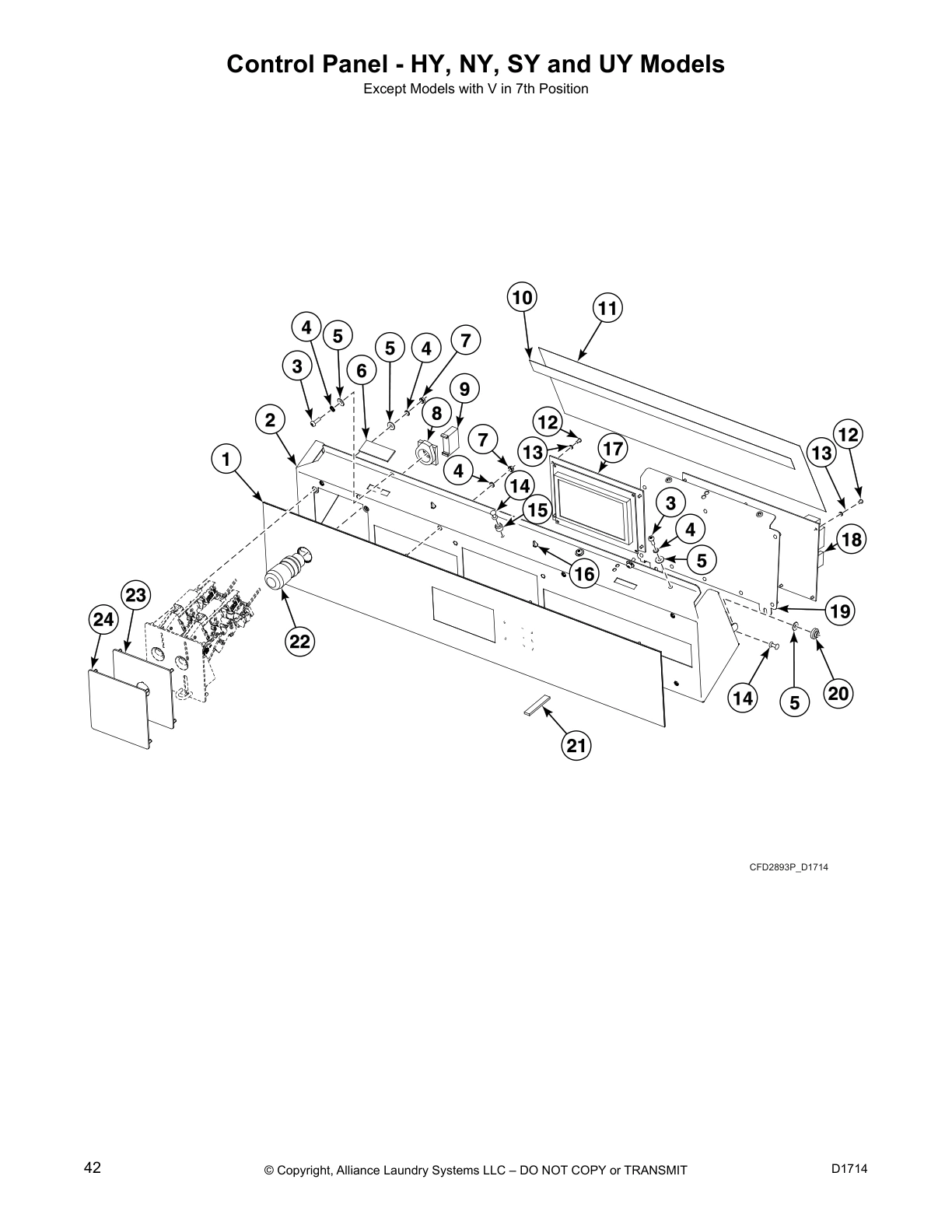

Control Panel - HY, NY, SY and UY Models

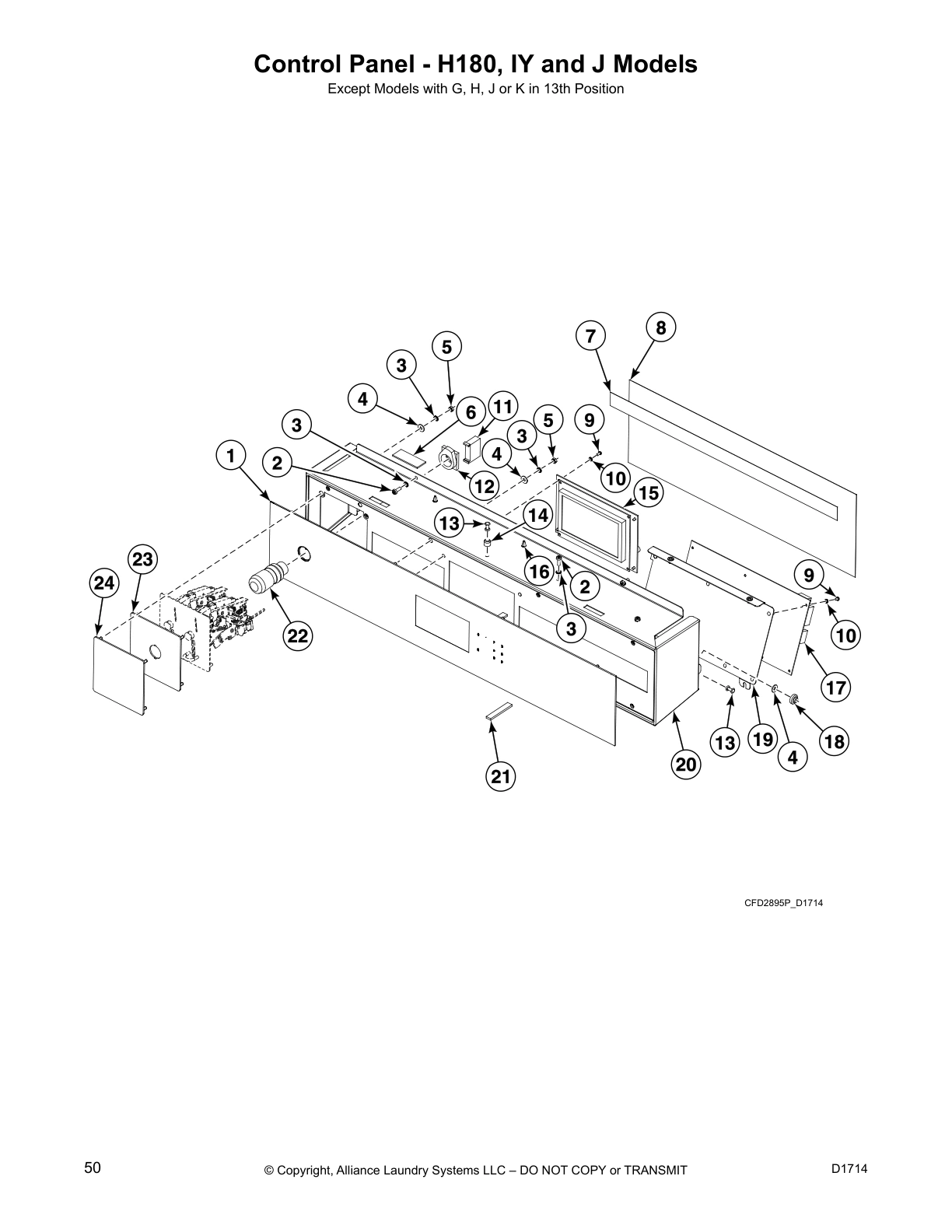

Control Panel - H180, IY and J Models

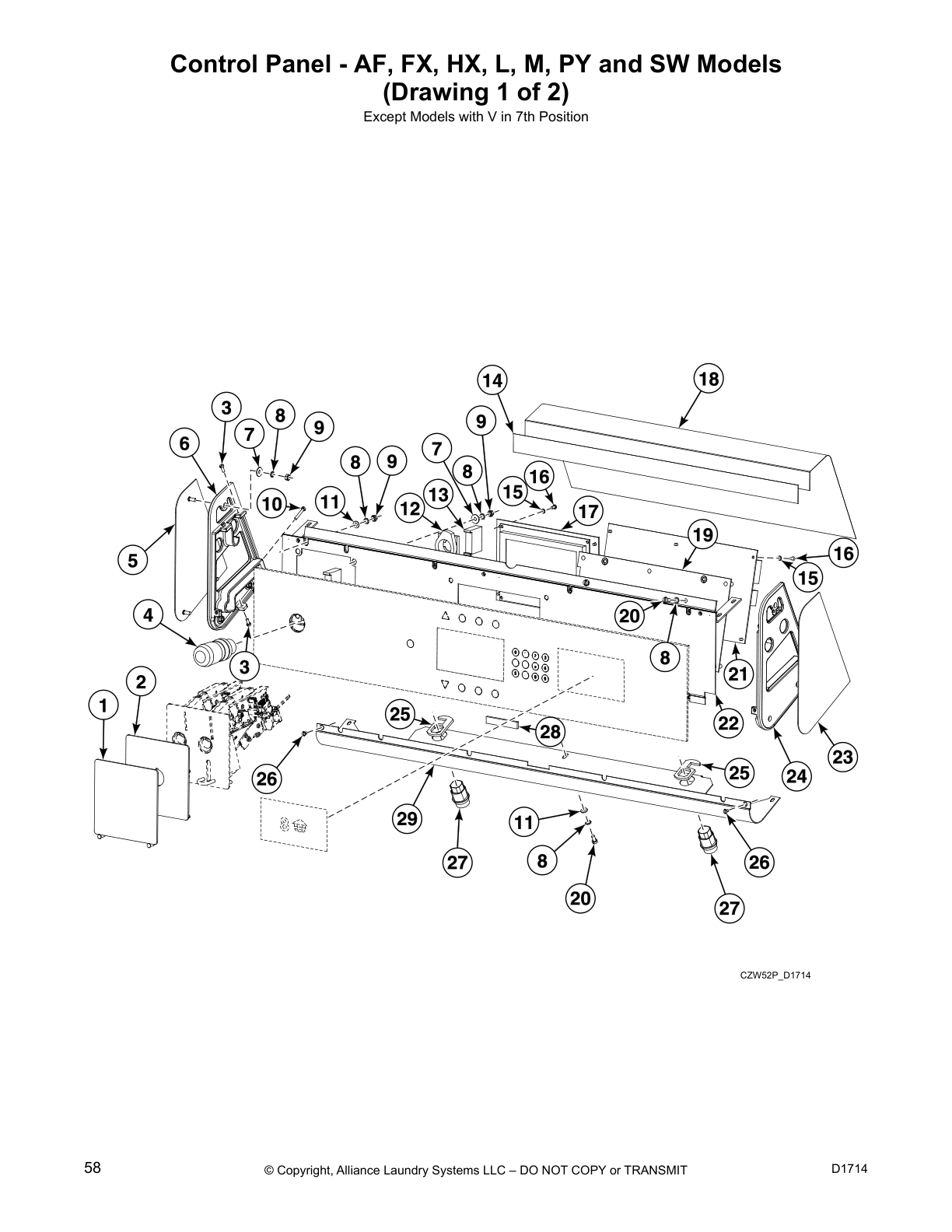

Control Panel - AF, FX, HX, L, M, PY and SW Models (Drawing 1 of 2)

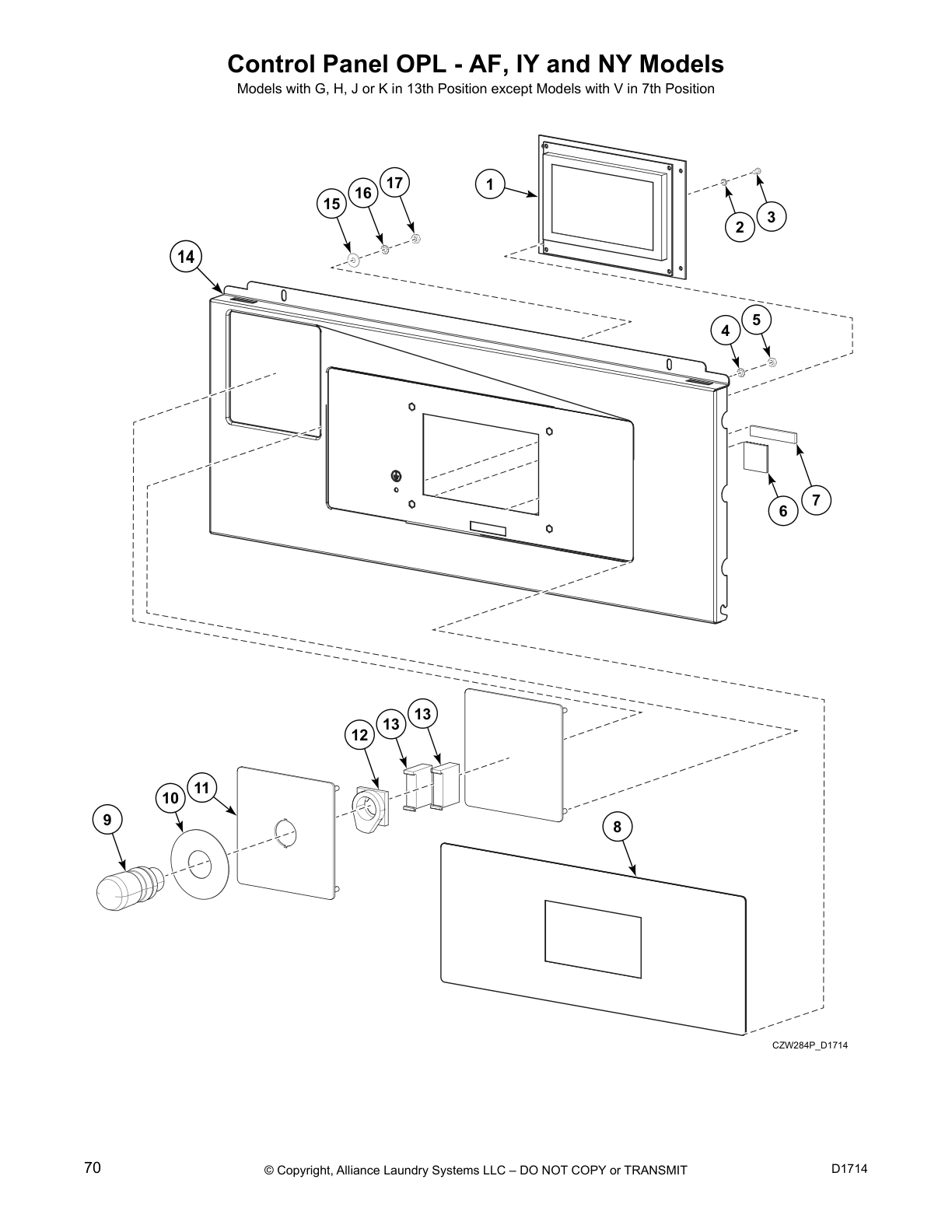

Control Panel OPL - AF, IY and NY Models

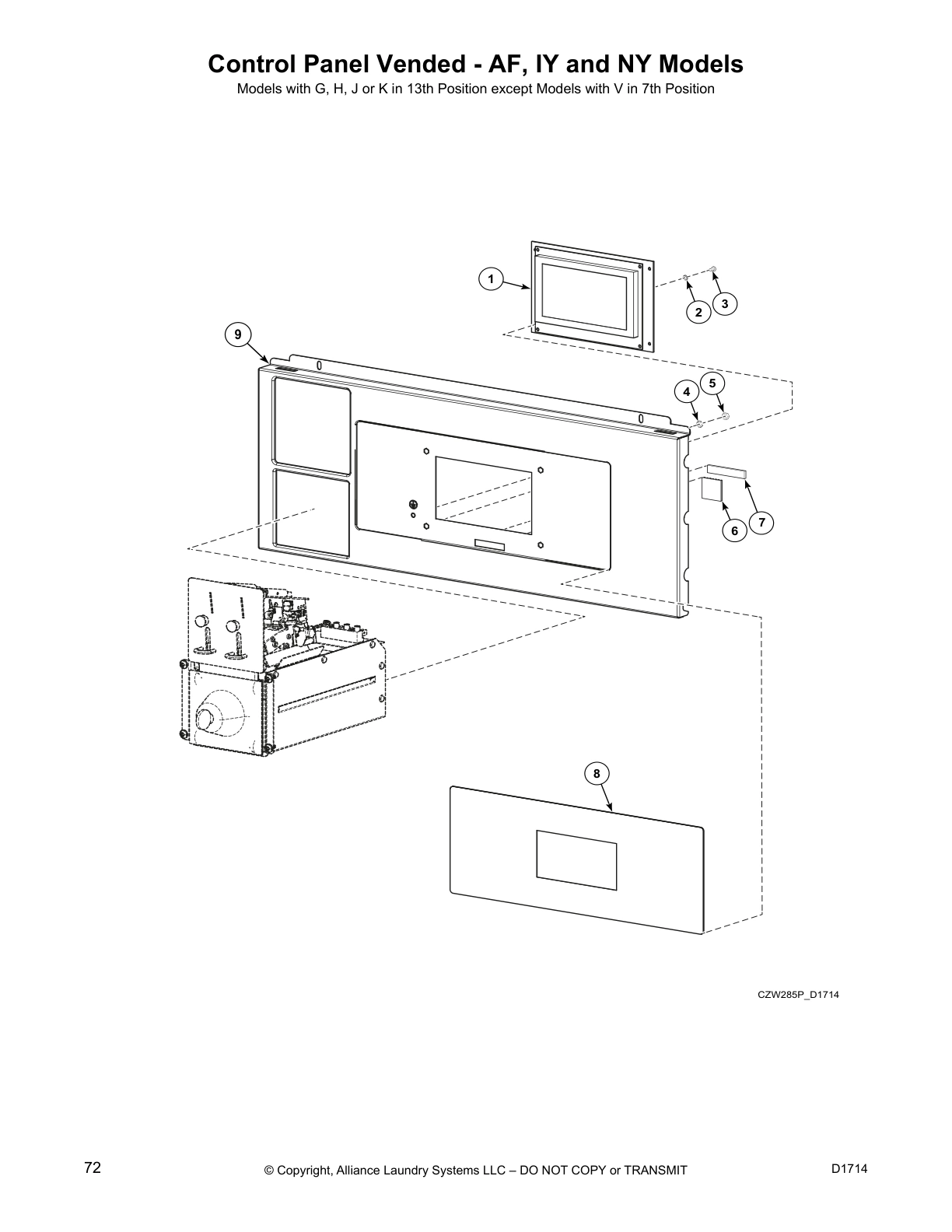

Control Panel Vended - AF, IY and NY Models

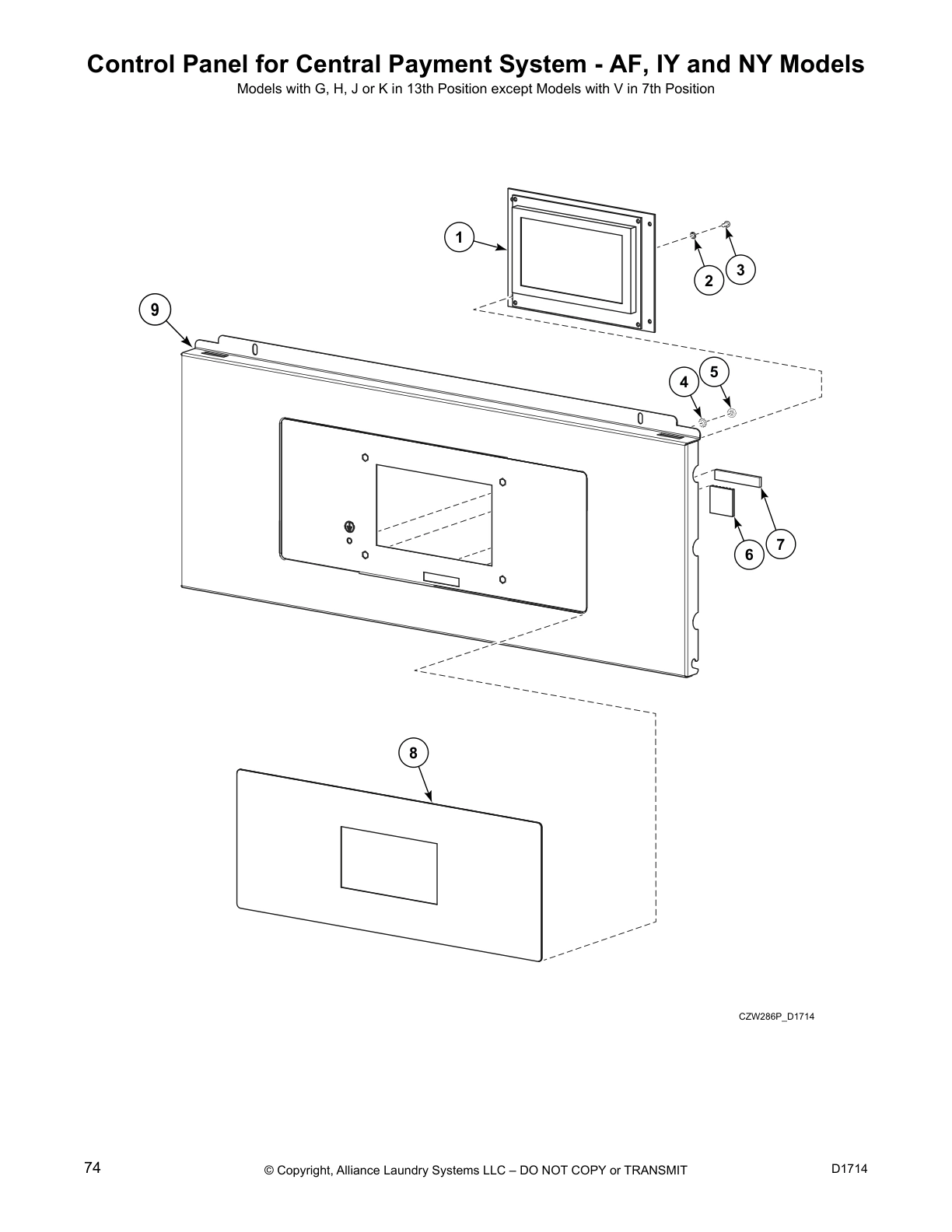

Control Panel for Central Payment System - AF, IY and NY Models

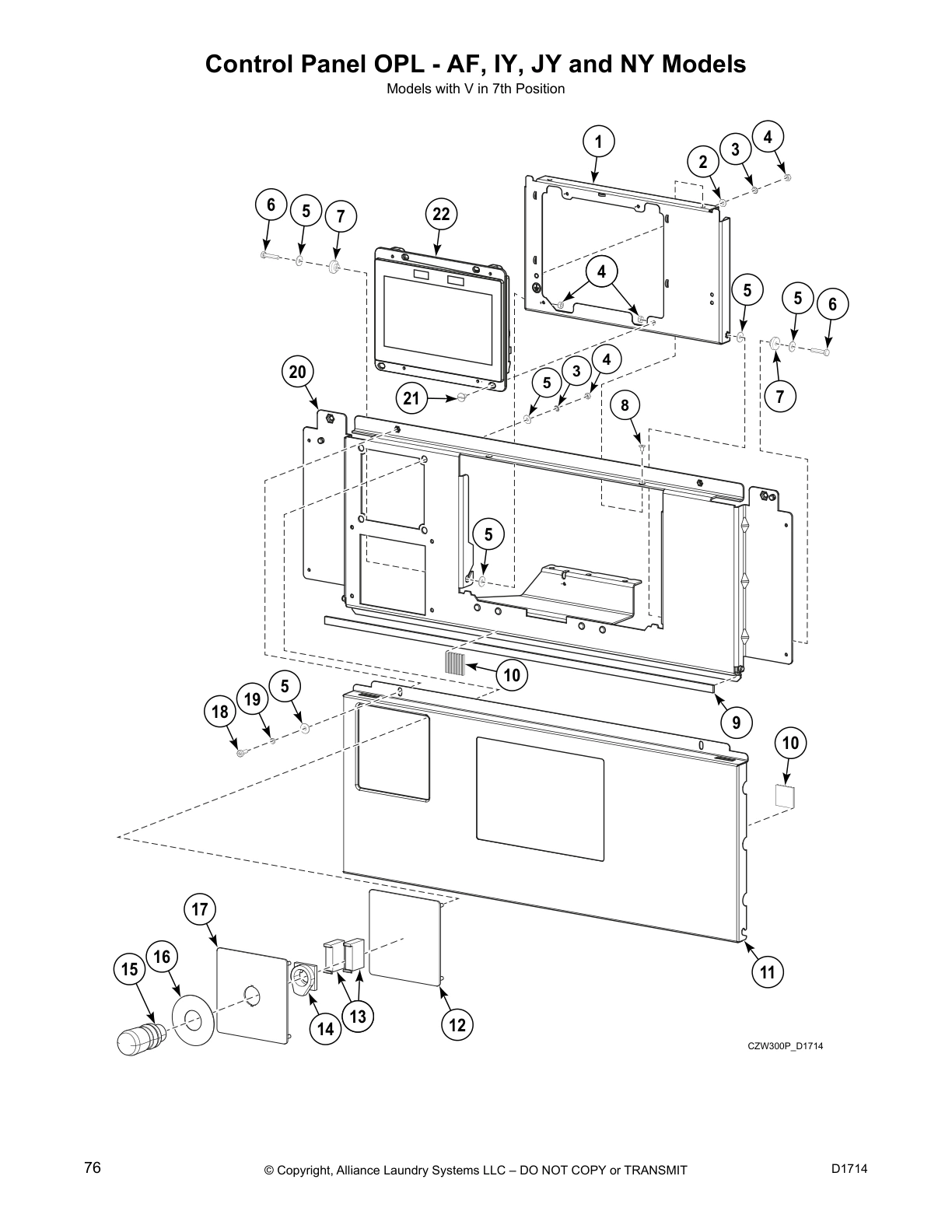

Control Panel OPL - AF, IY, JY and NY Models

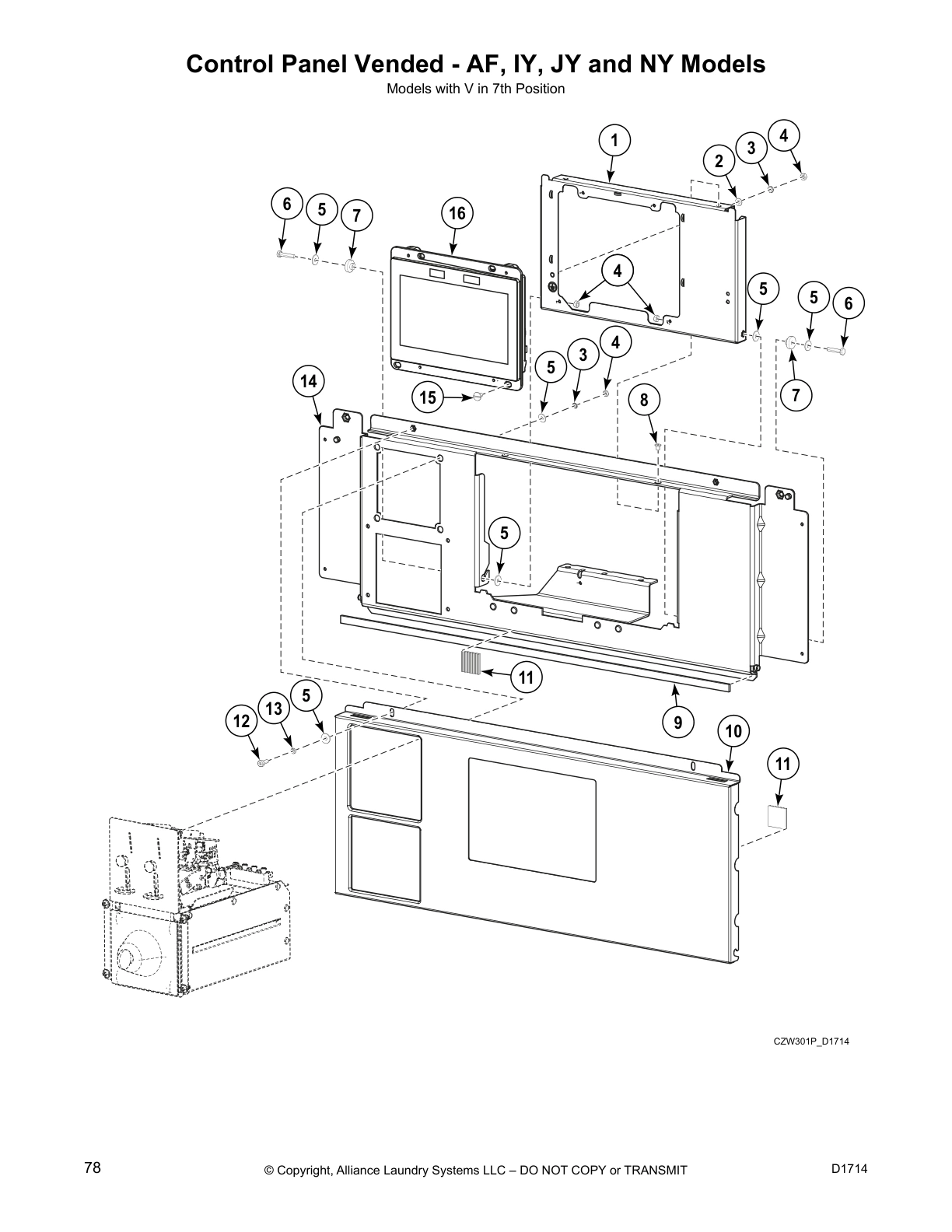

Control Panel Vended - AF, IY, JY and NY Models

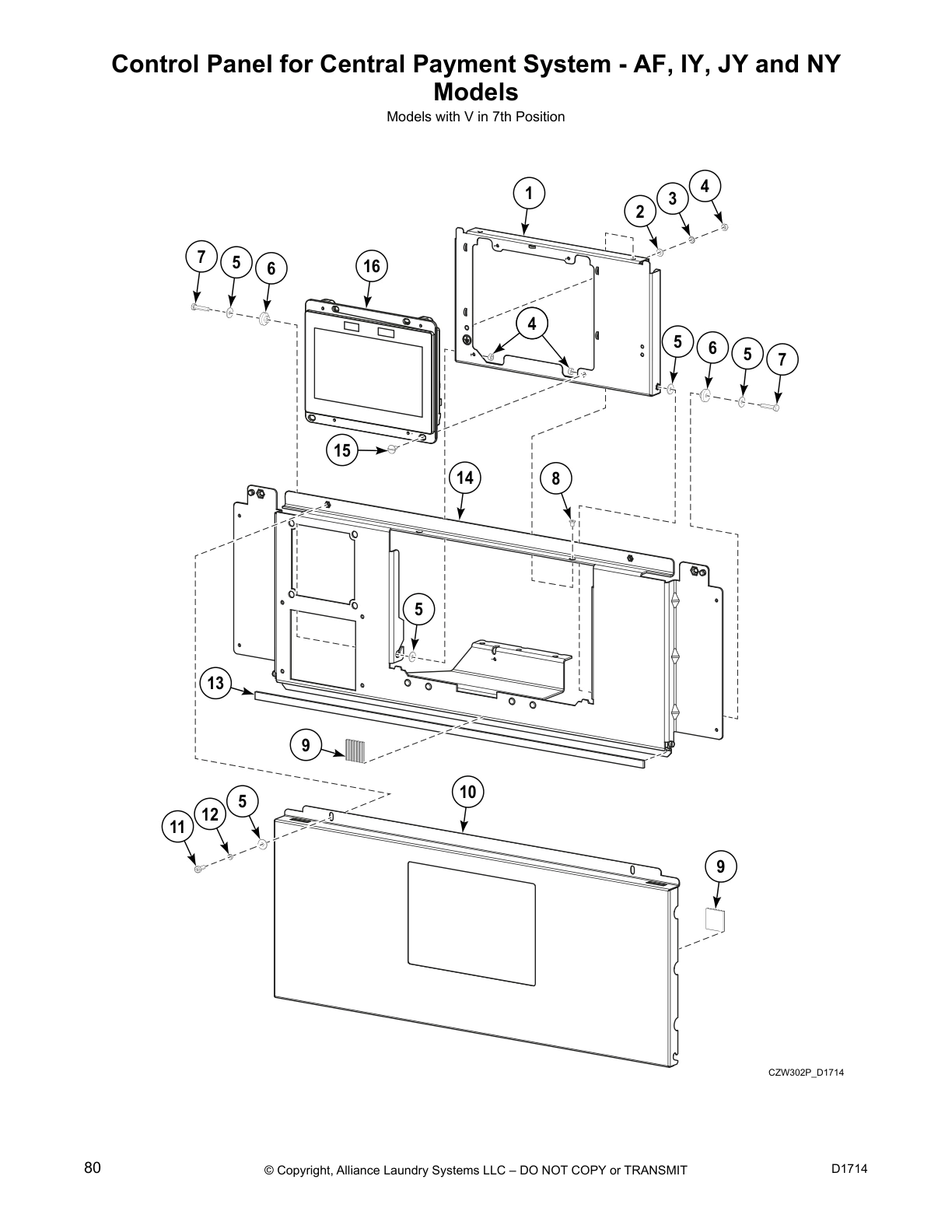

Control Panel for Central Payment System - AF, IY, JY and NY Models

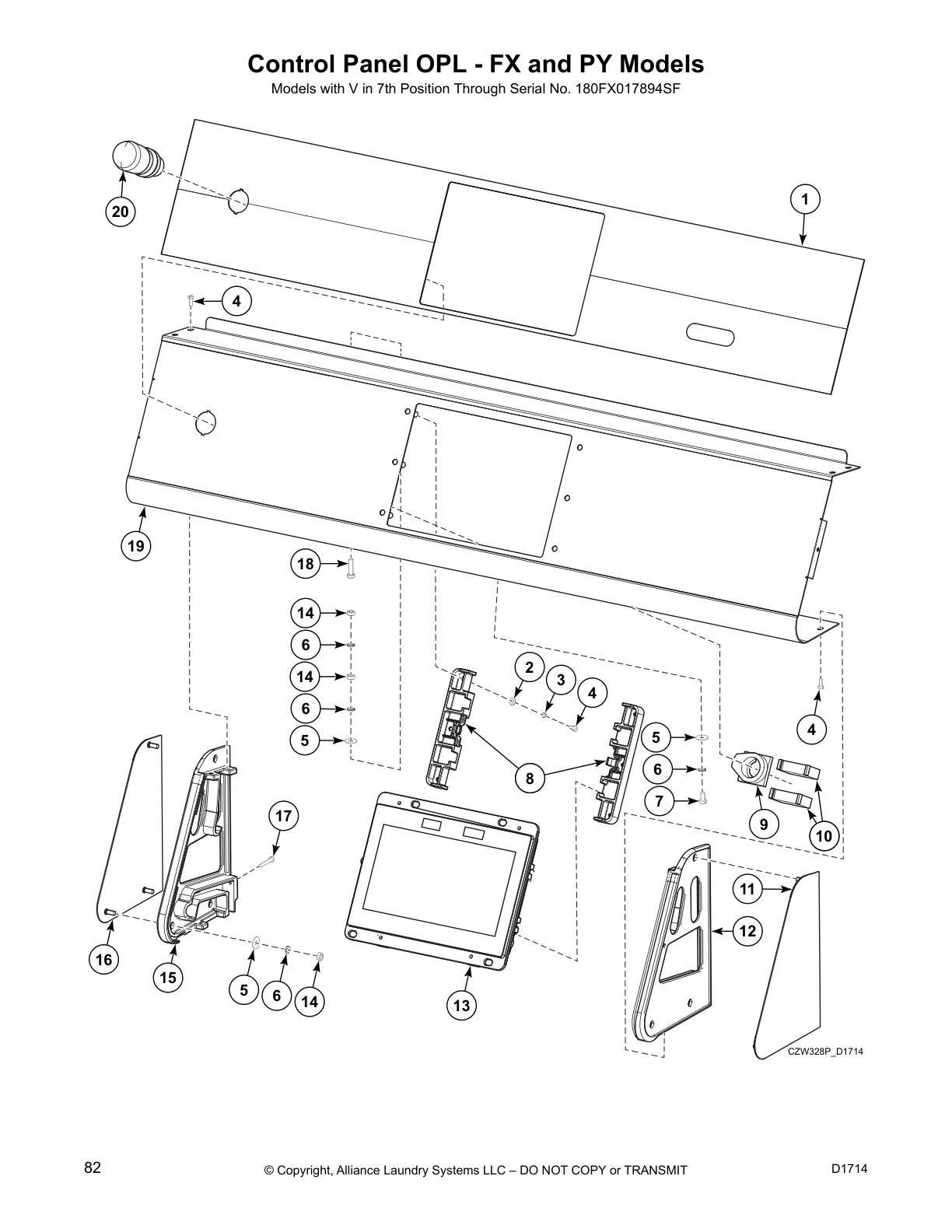

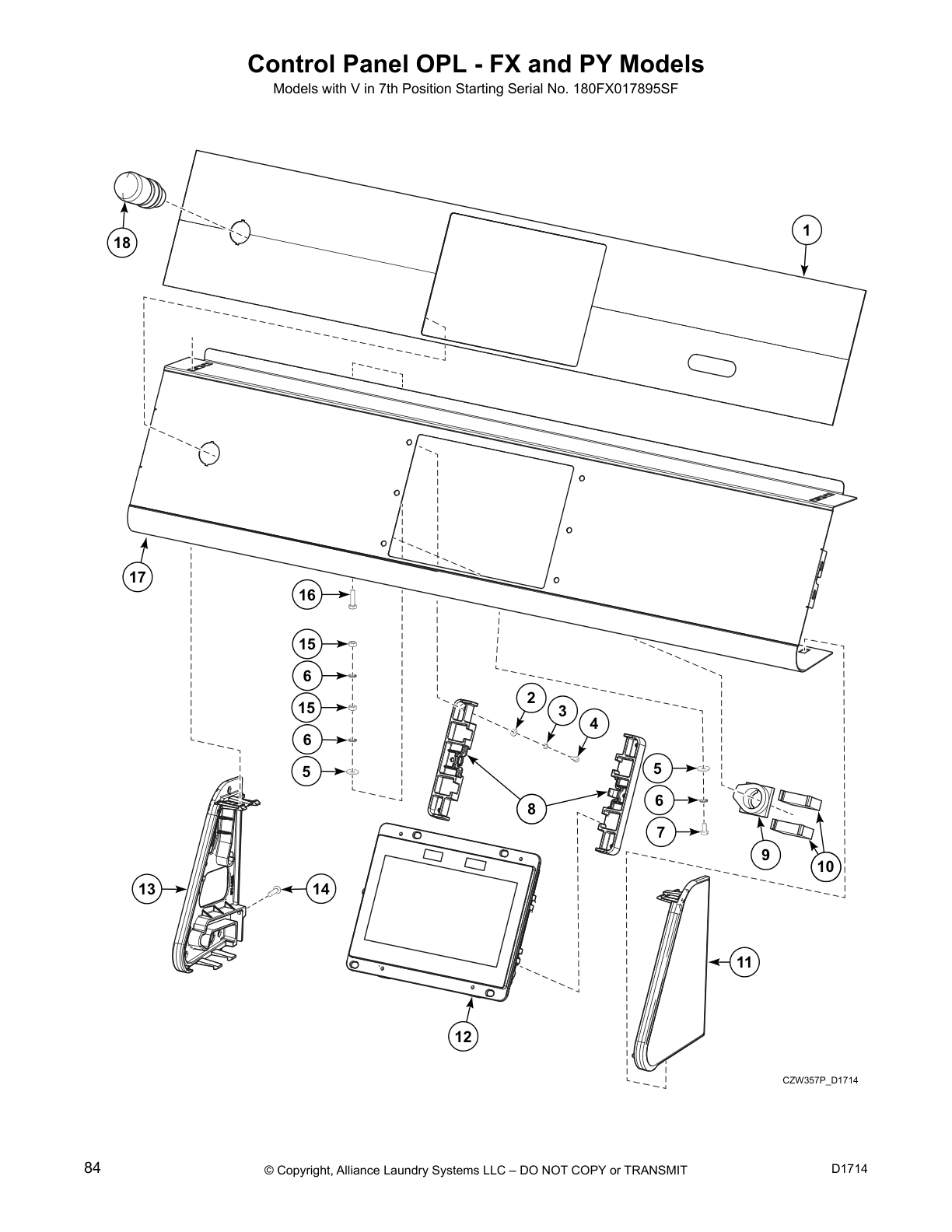

Control Panel OPL - FX and PY Models

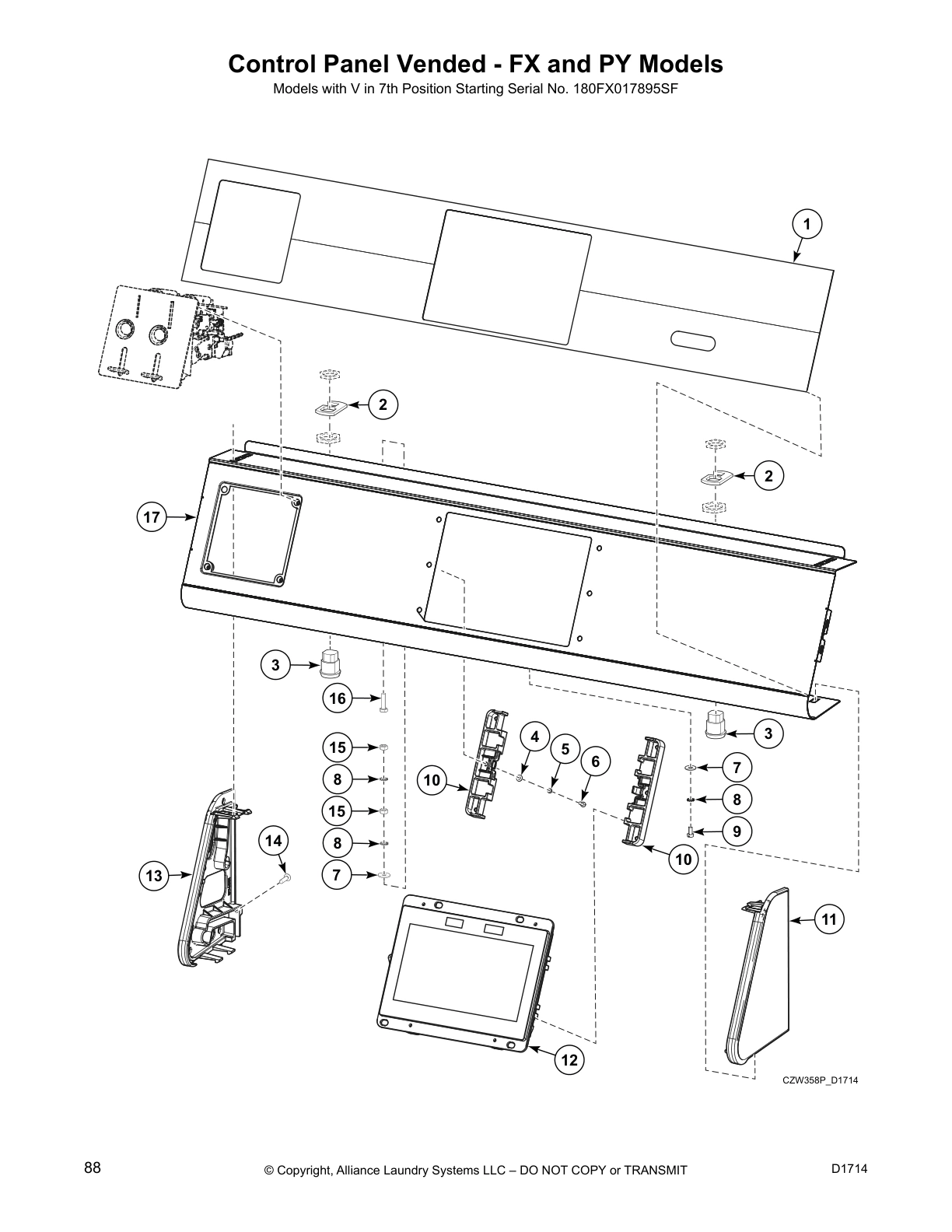

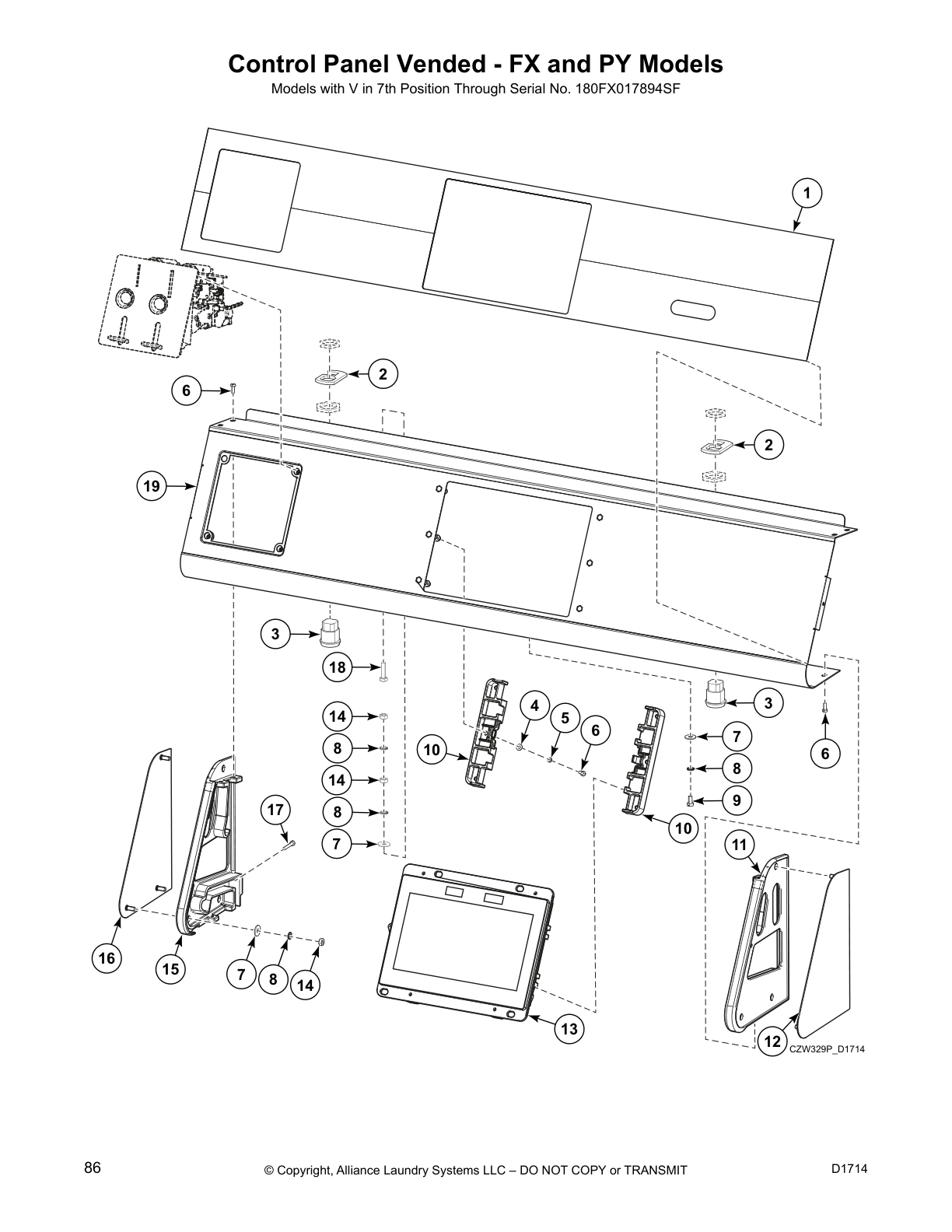

Control Panel Vended - FX and PY Models

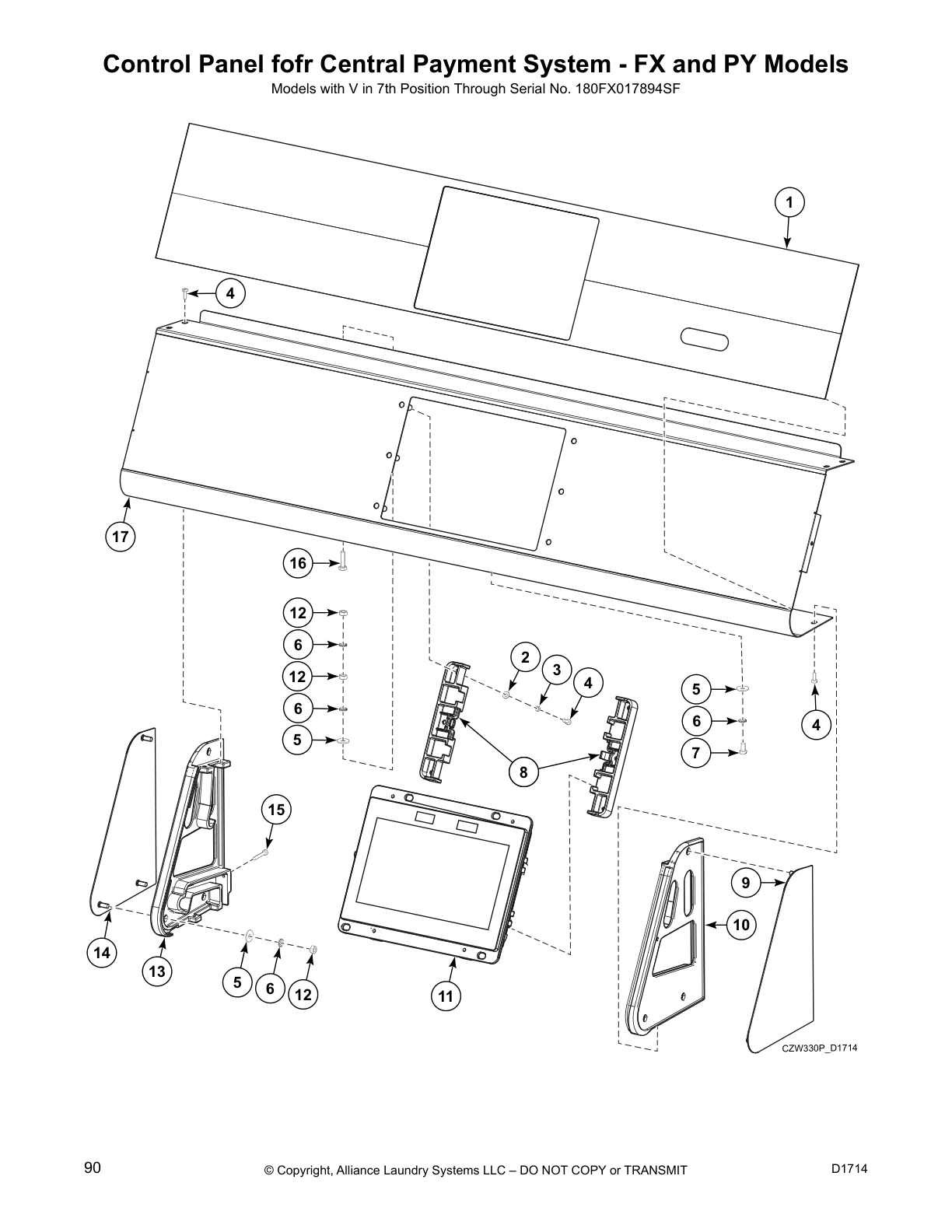

Control Panel fofr Central Payment System - FX and PY Models

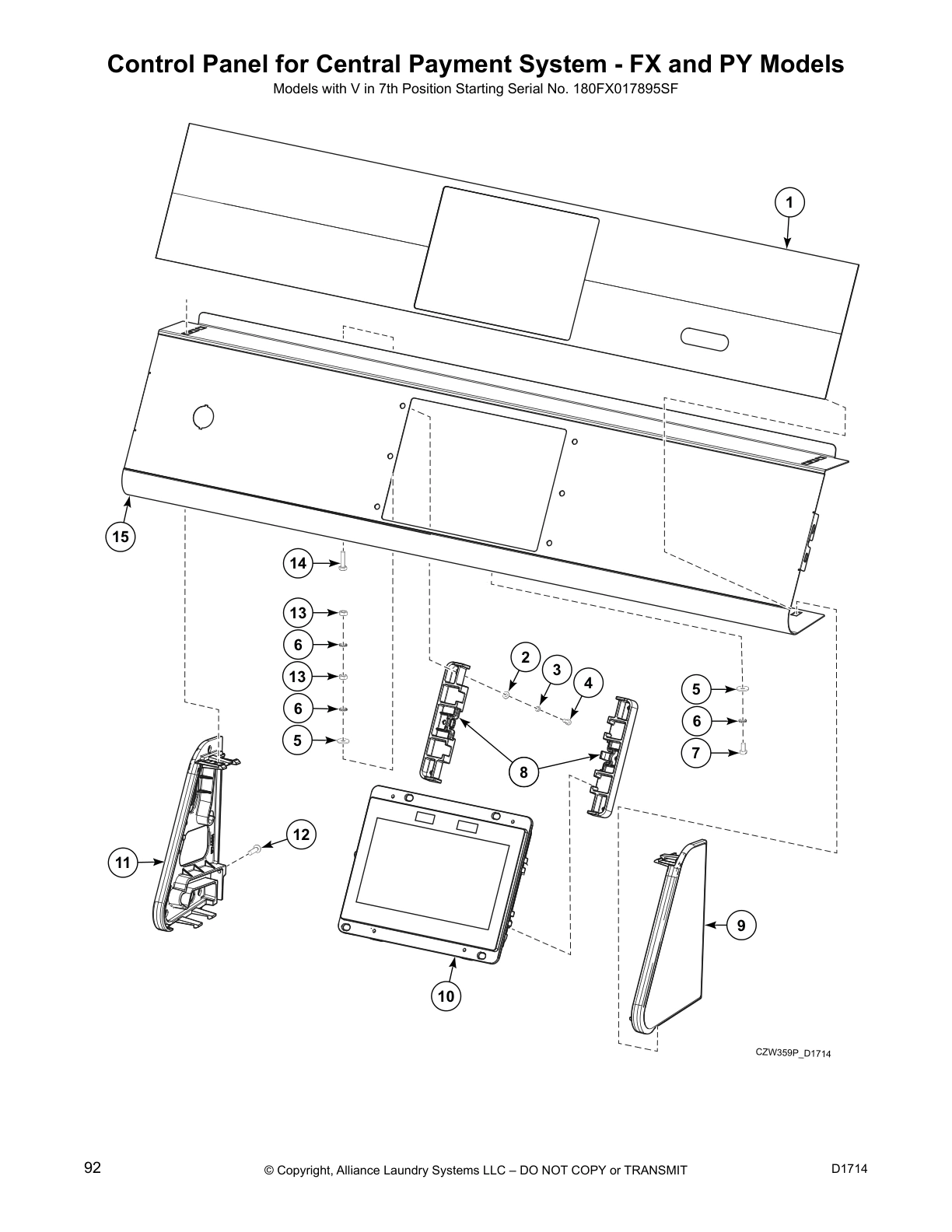

Control Panel for Central Payment System - FX and PY Models

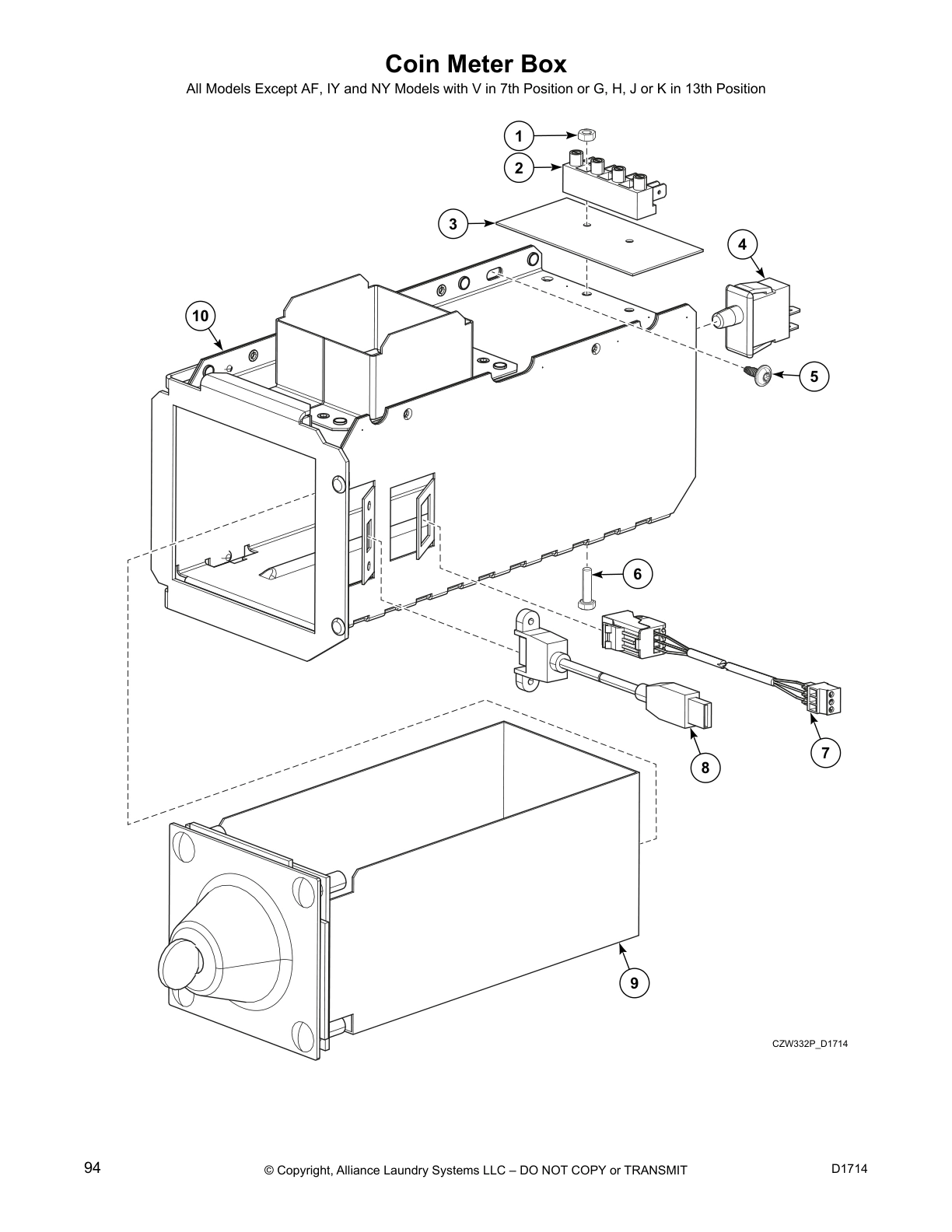

Coin Meter Box

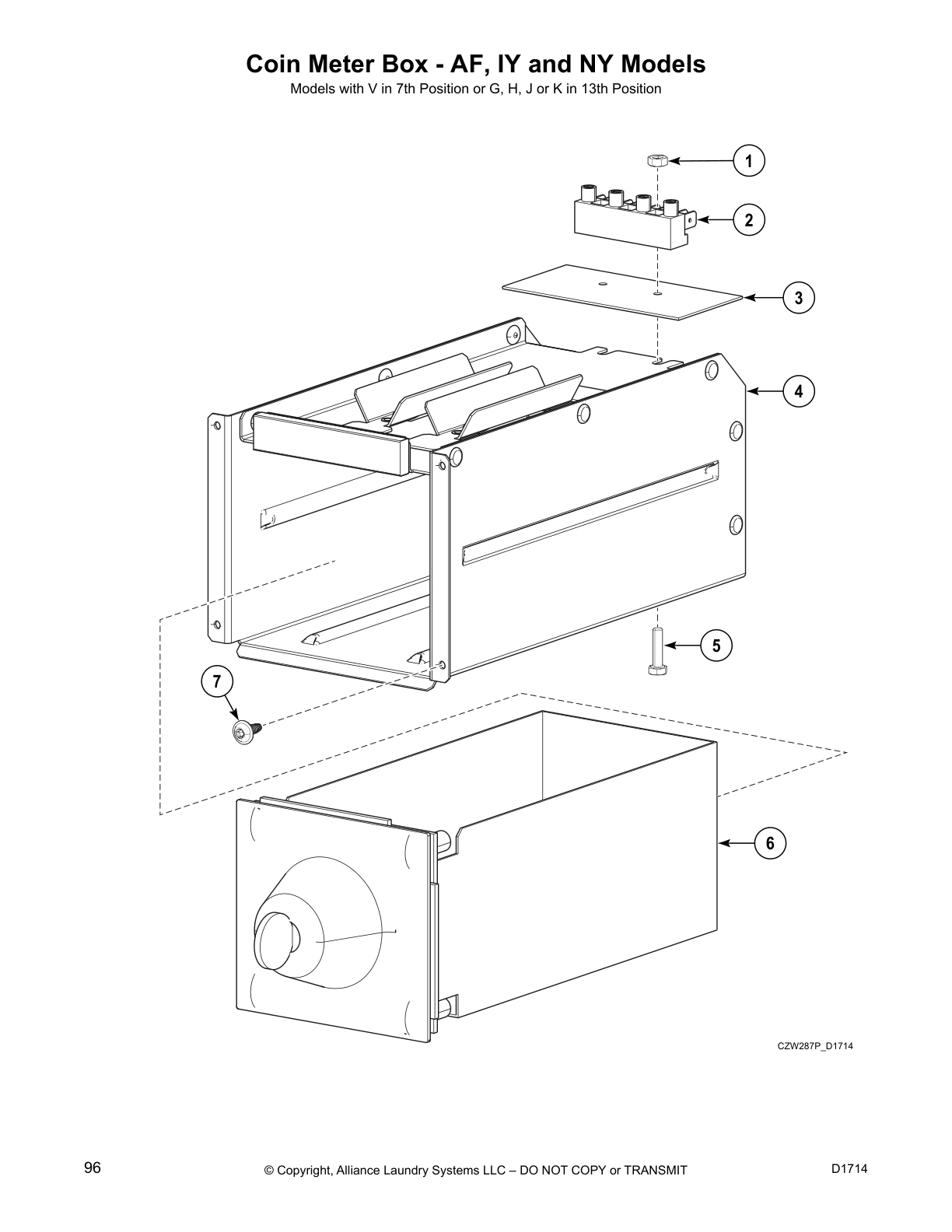

Coin Meter Box - AF, IY and NY Models

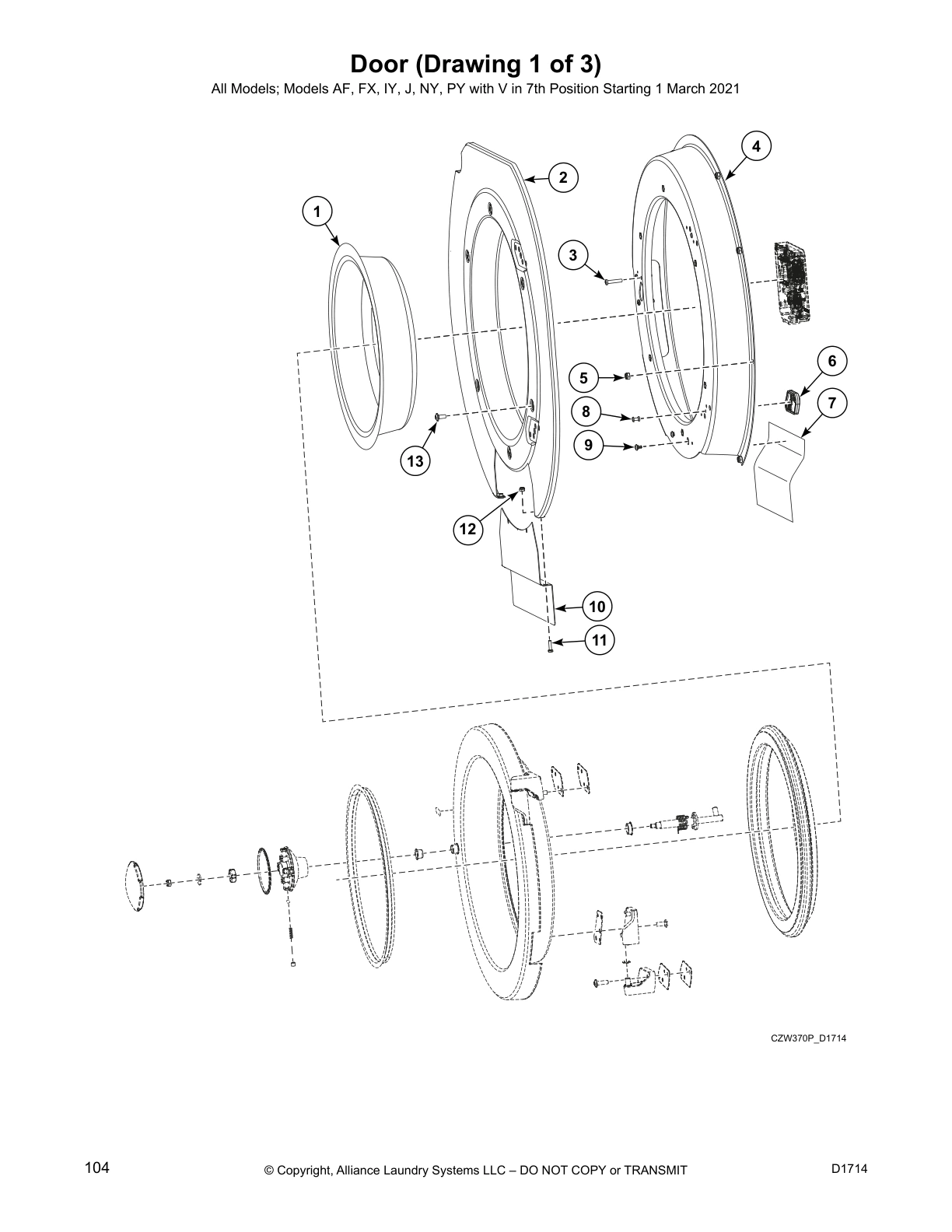

Door (Drawing 1 of 3)

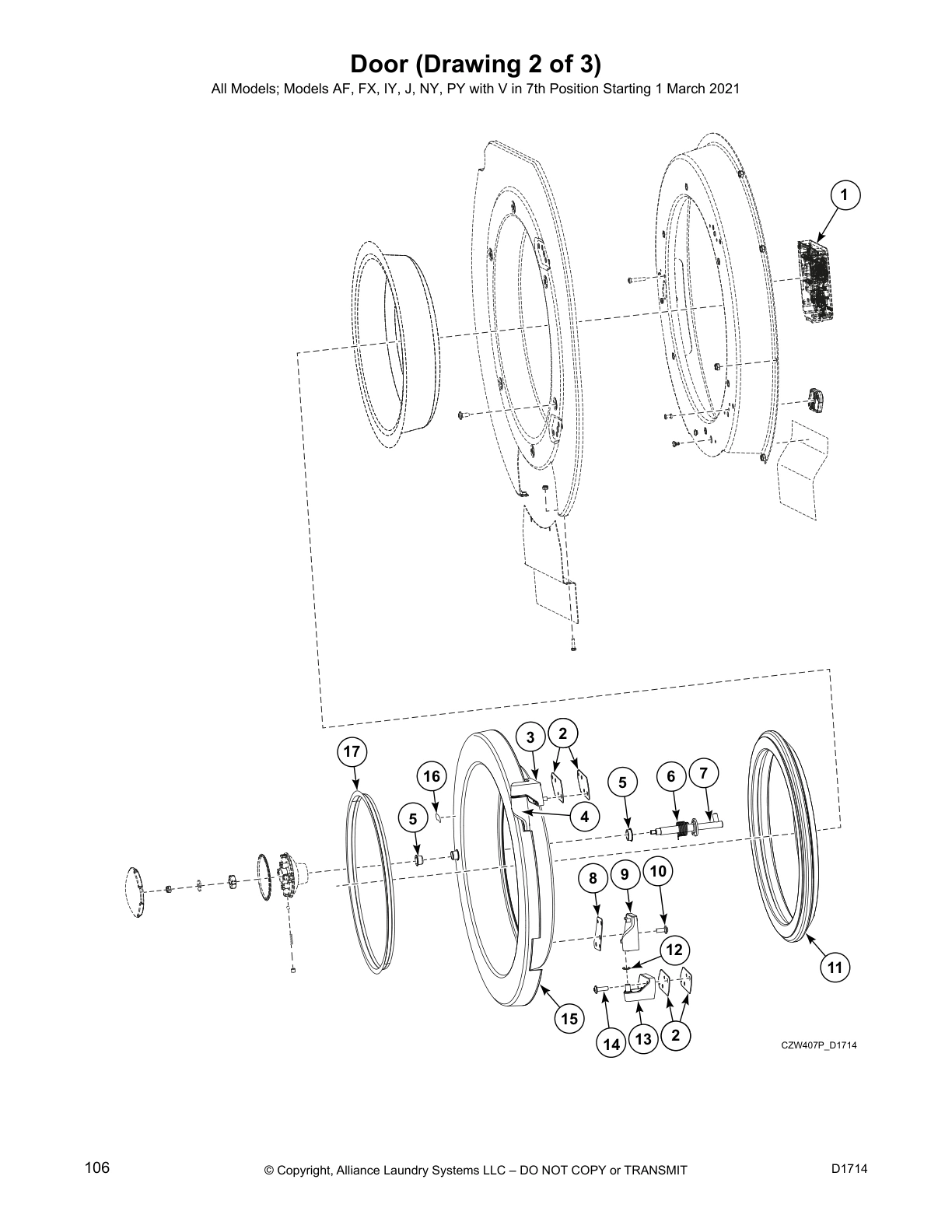

Door (Drawing 2 of 3)

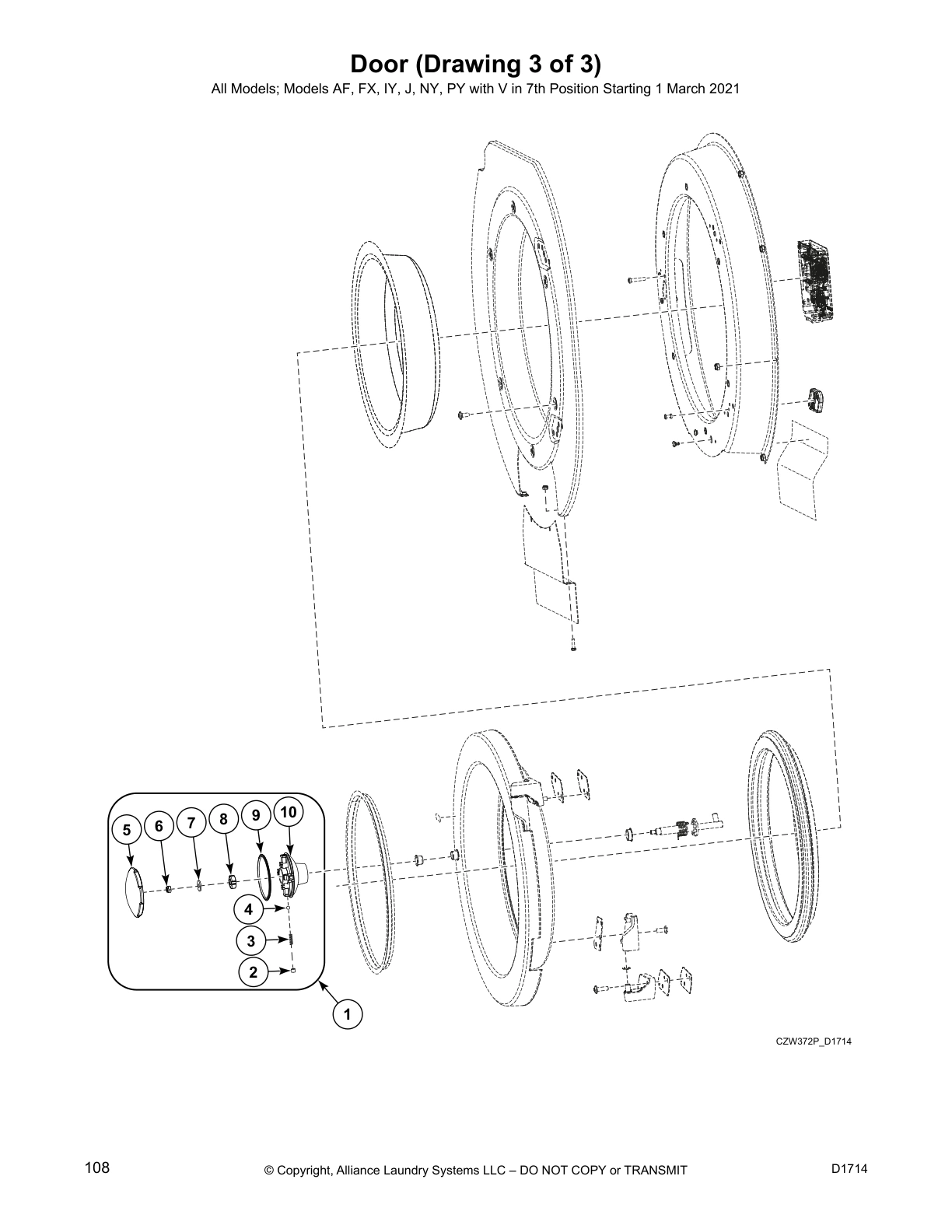

Door (Drawing 3 of 3)

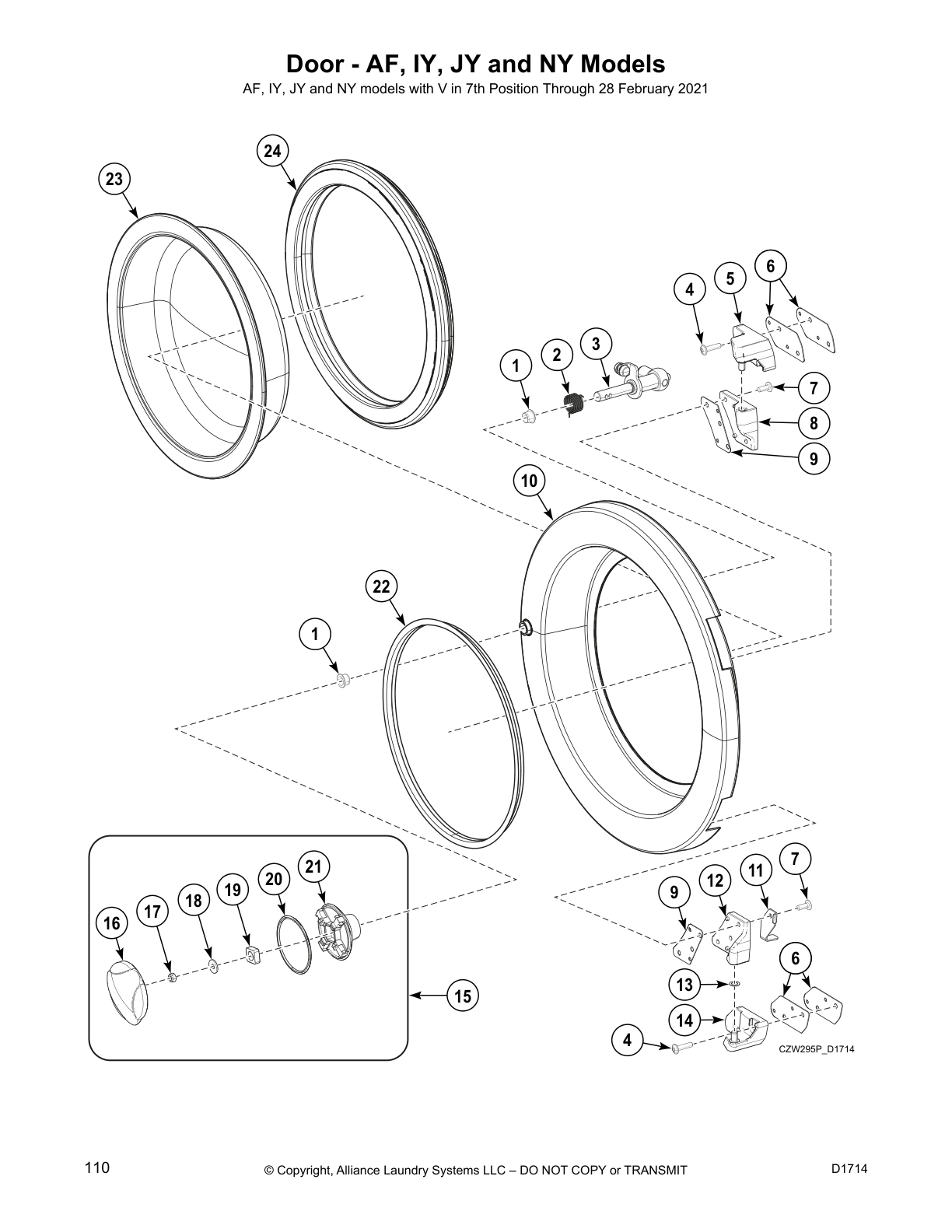

Door - AF, IY, JY and NY Models

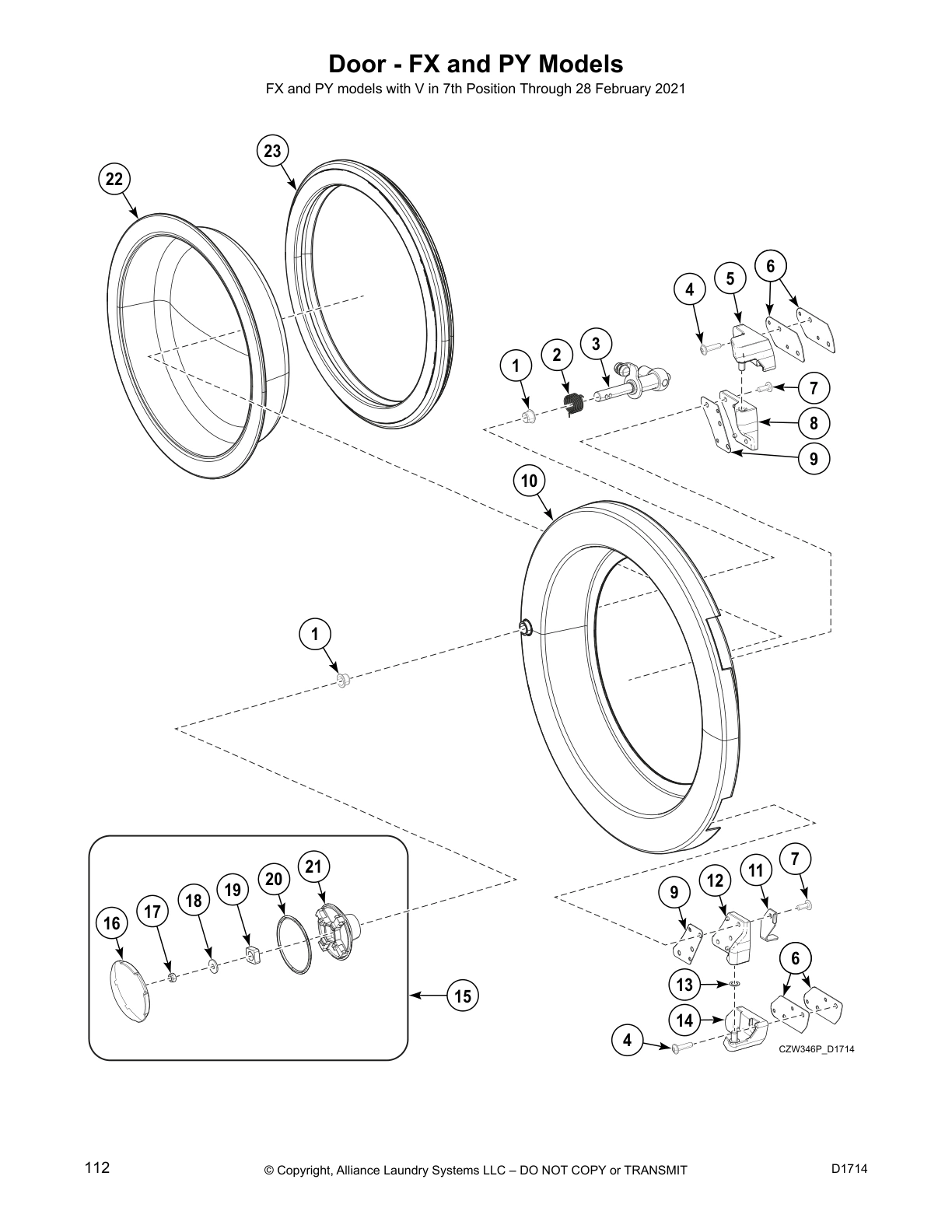

Door - FX and PY Models

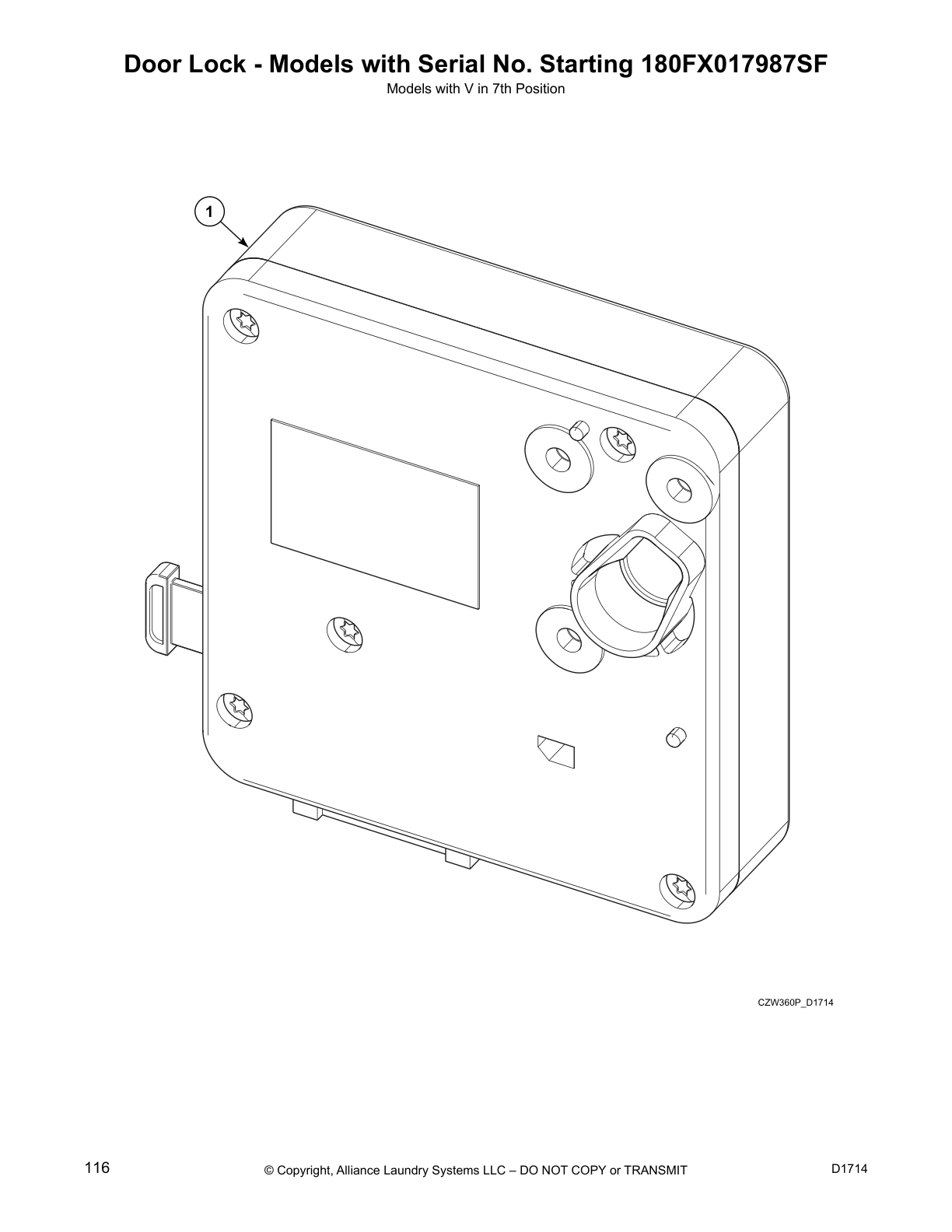

Door Lock - Models with Serial No. Starting 180FX017987SF

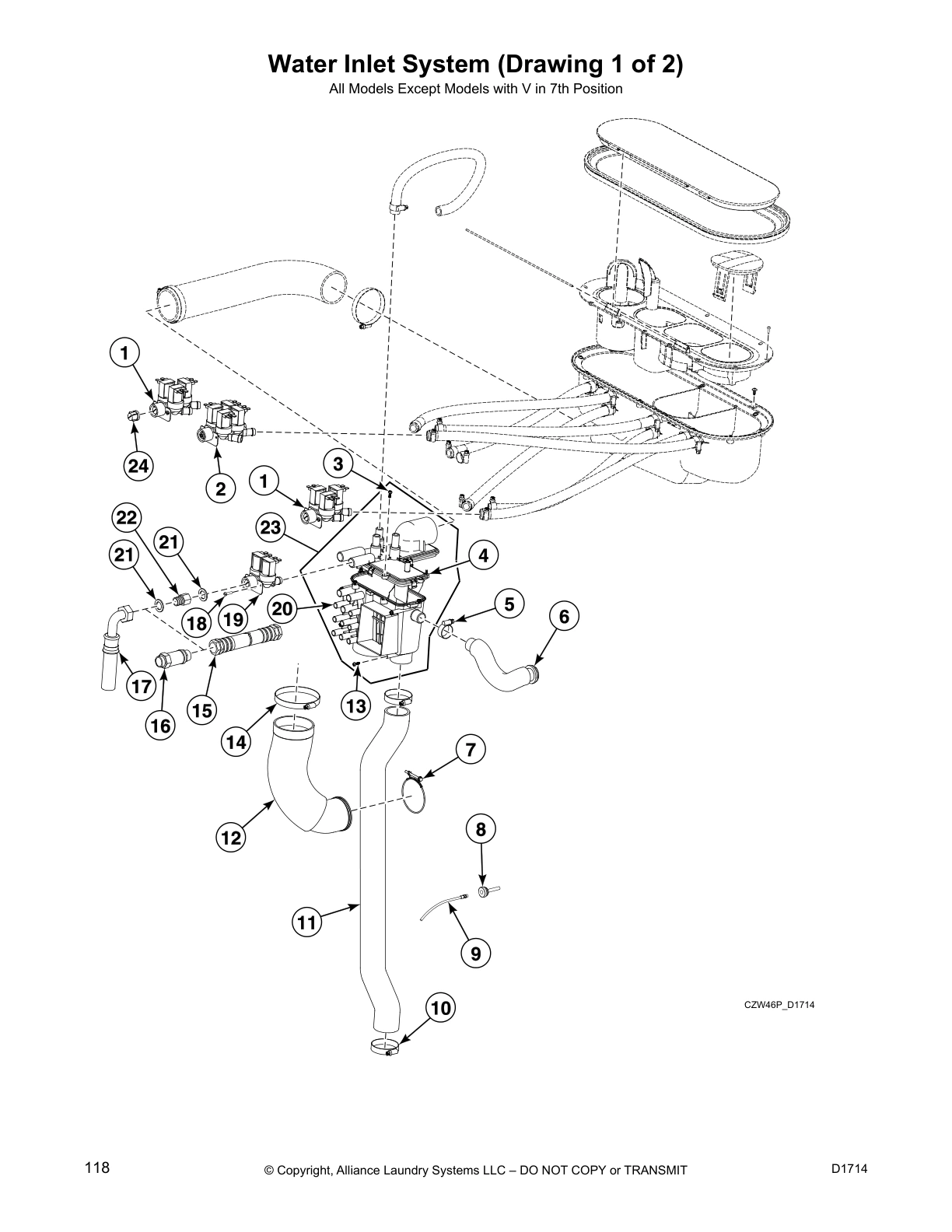

Water Inlet System (Drawing 1 of 2)

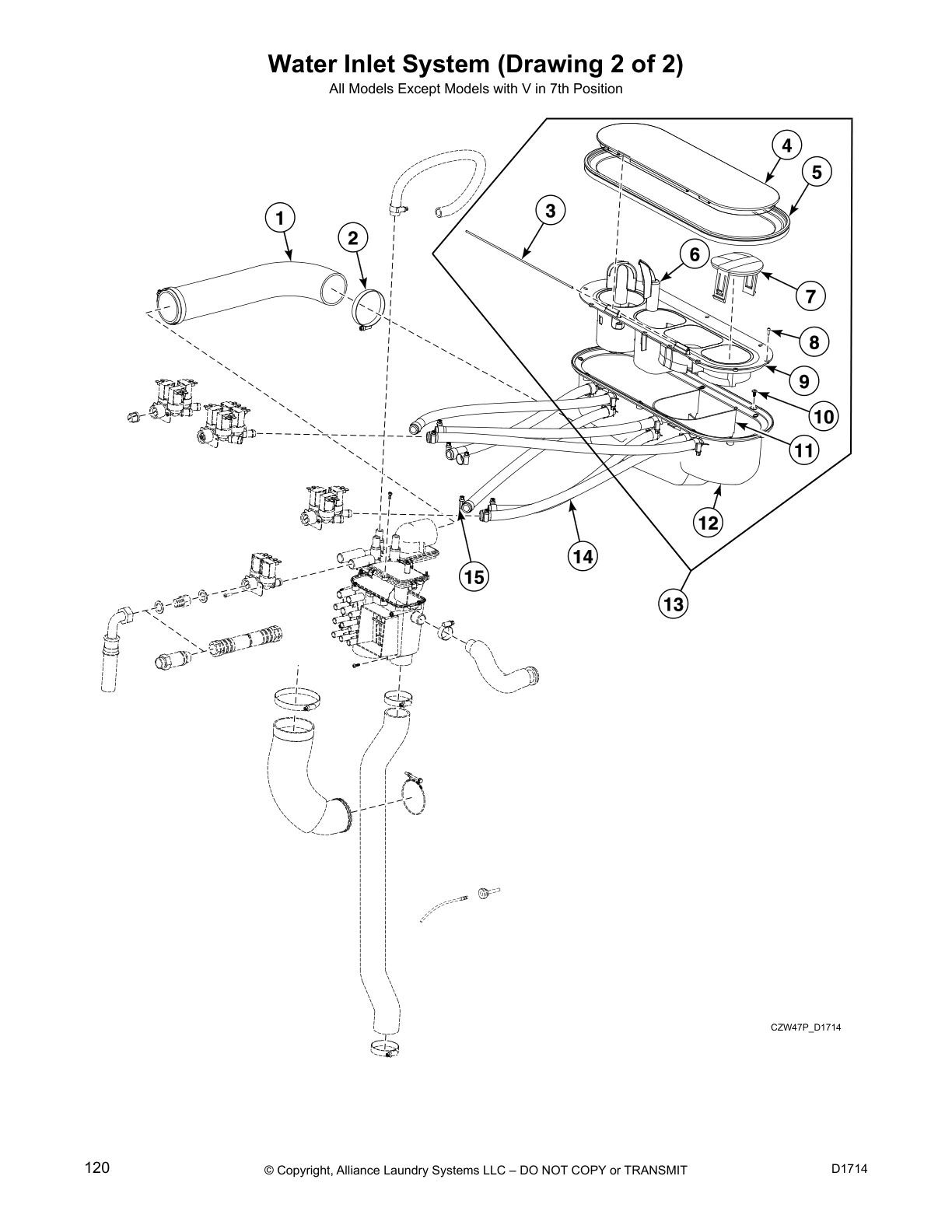

Water Inlet System (Drawing 2 of 2)

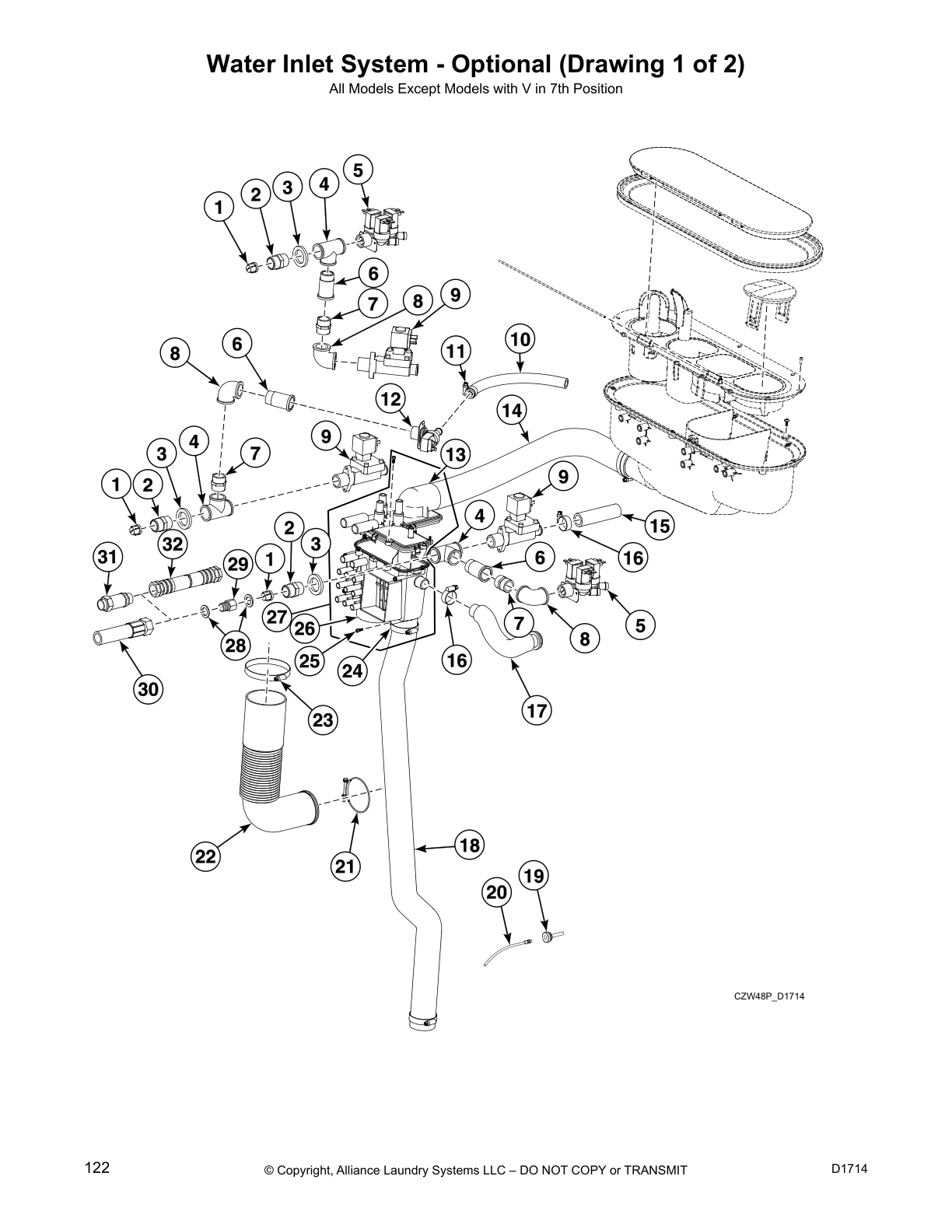

Water Inlet System - Optional (Drawing 1 of 2)

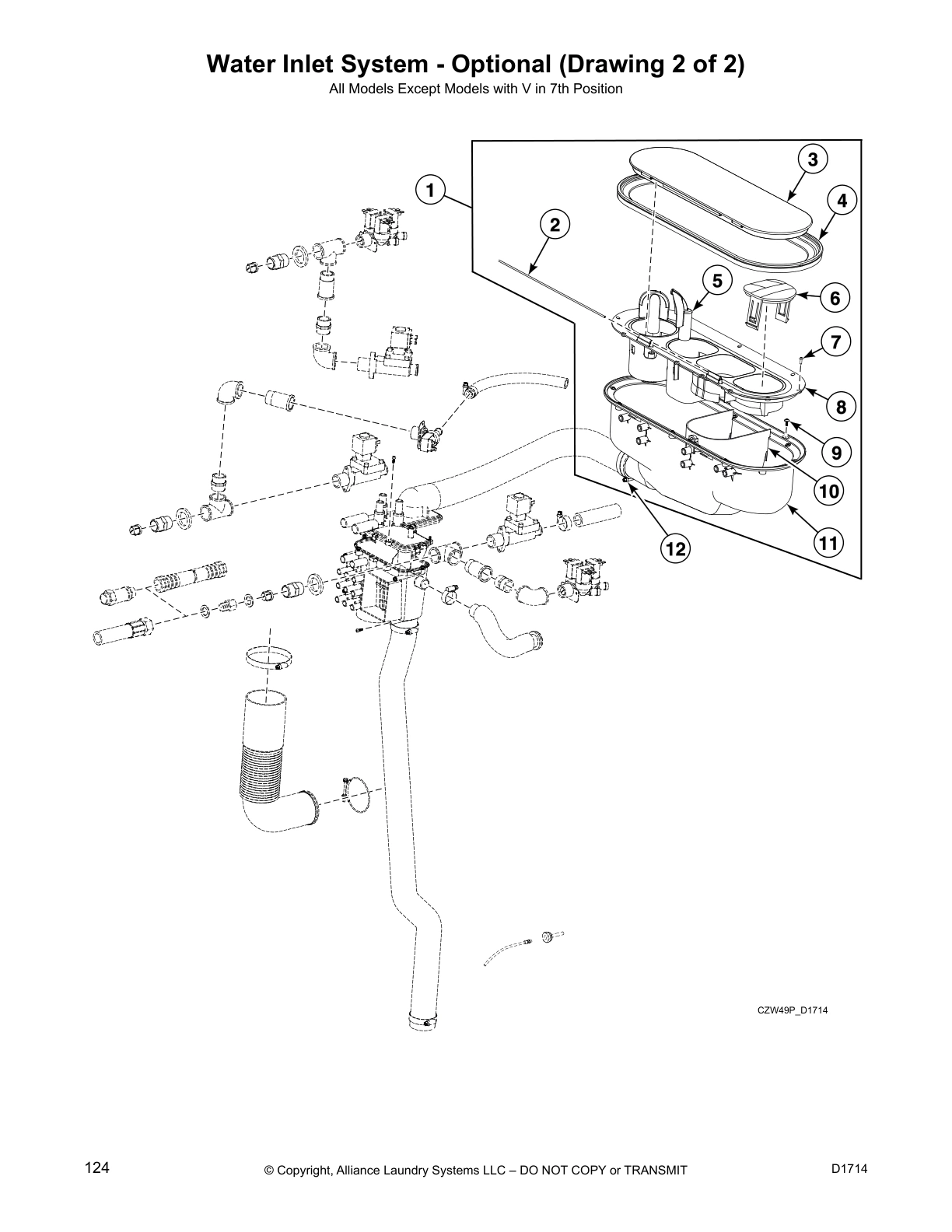

Water Inlet System - Optional (Drawing 2 of 2)

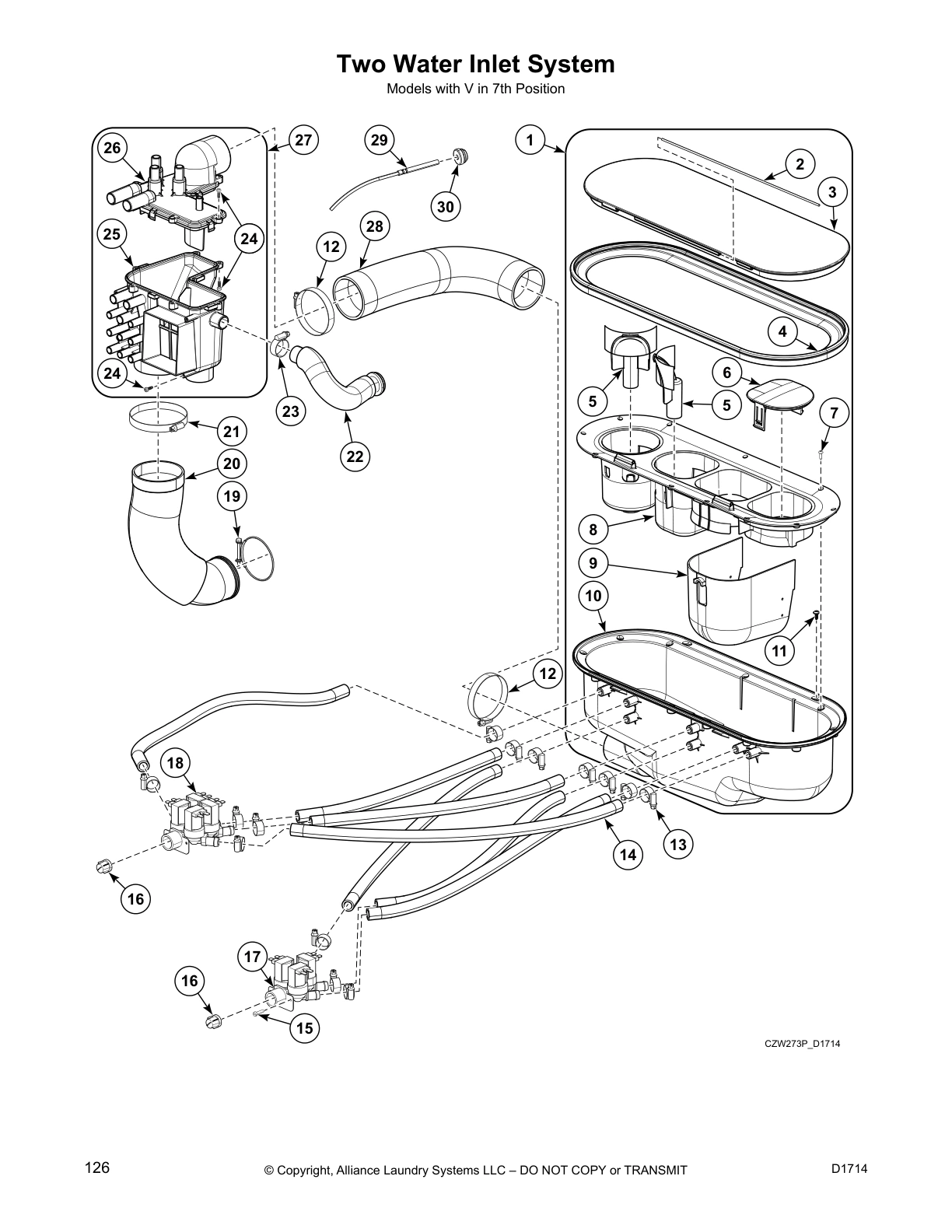

Two Water Inlet System

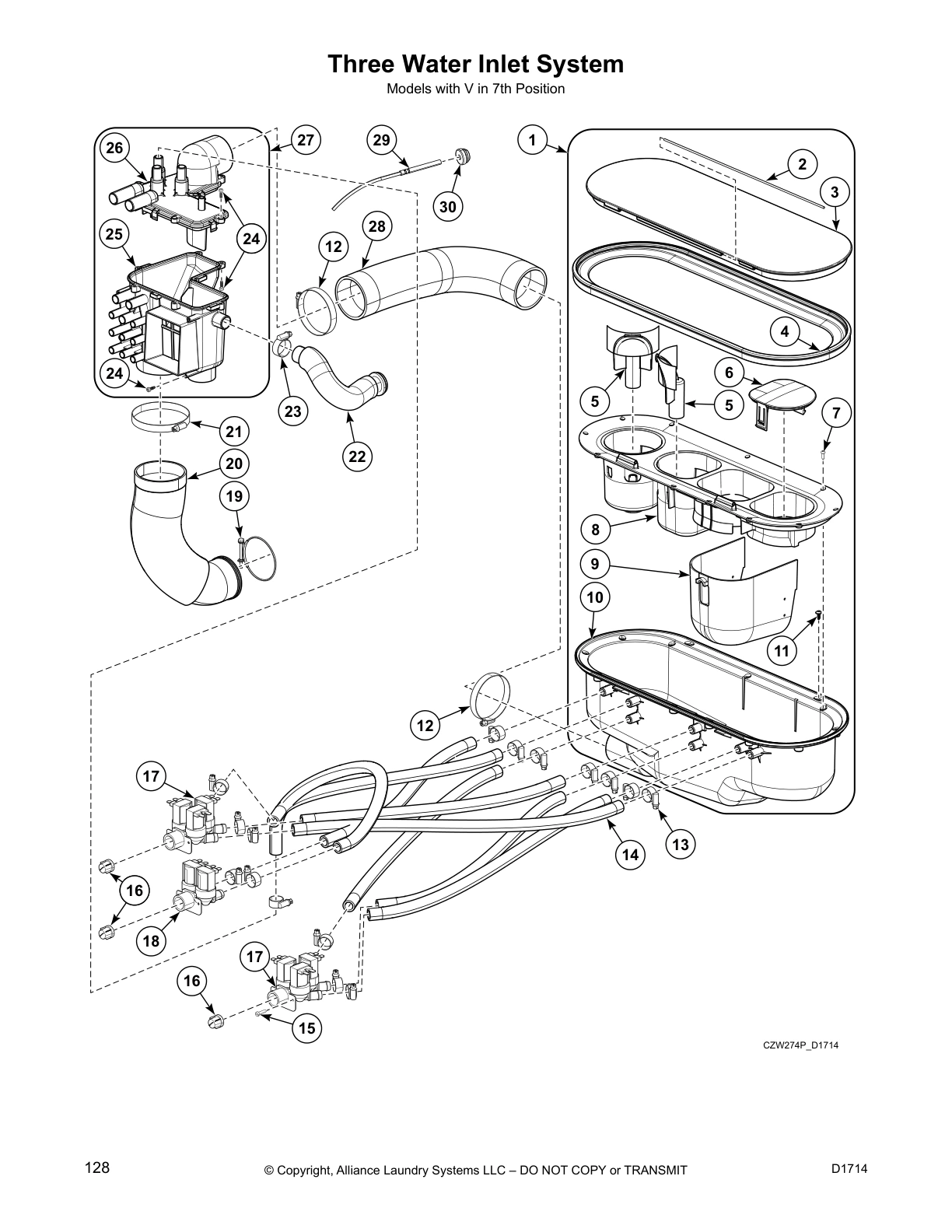

Three Water Inlet System

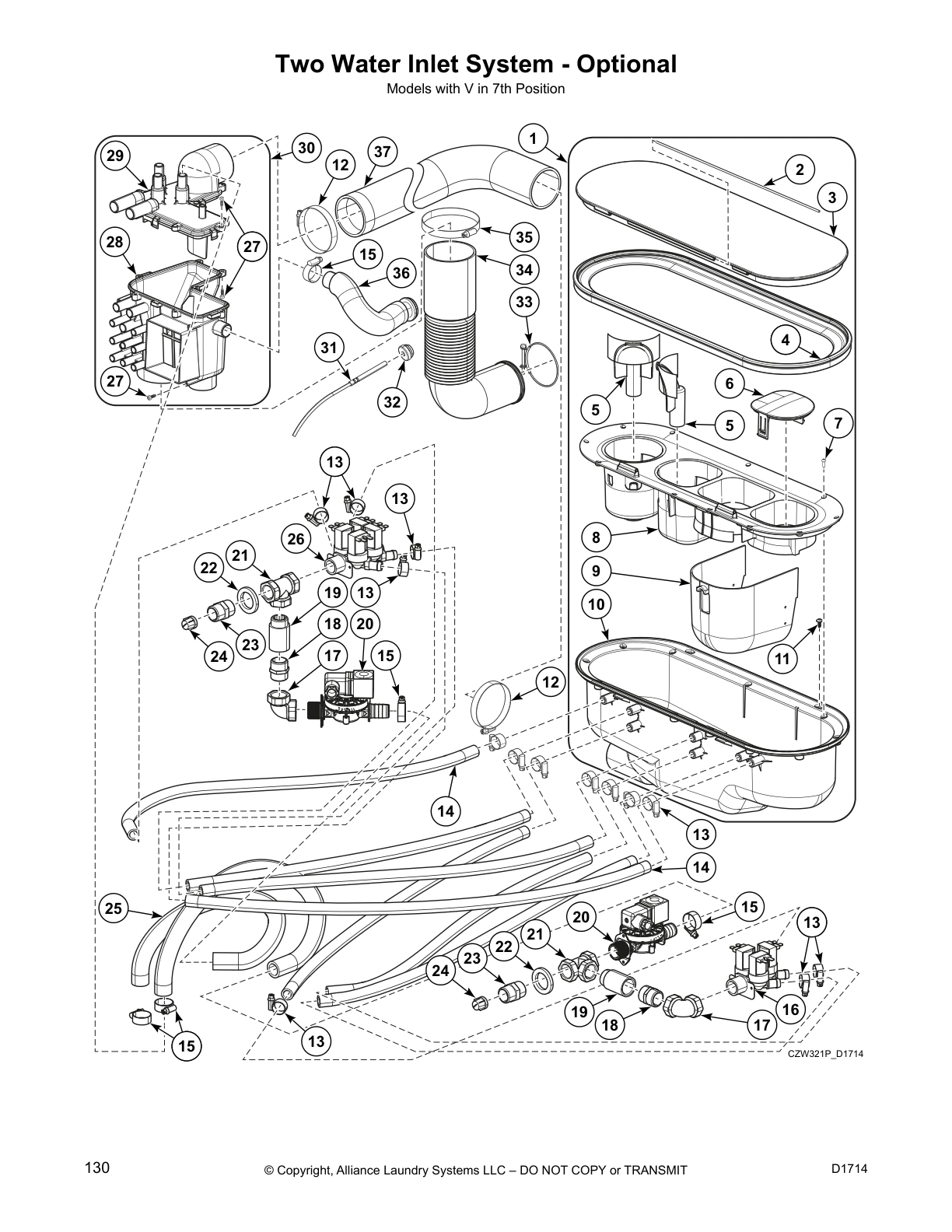

Two Water Inlet System - Optional

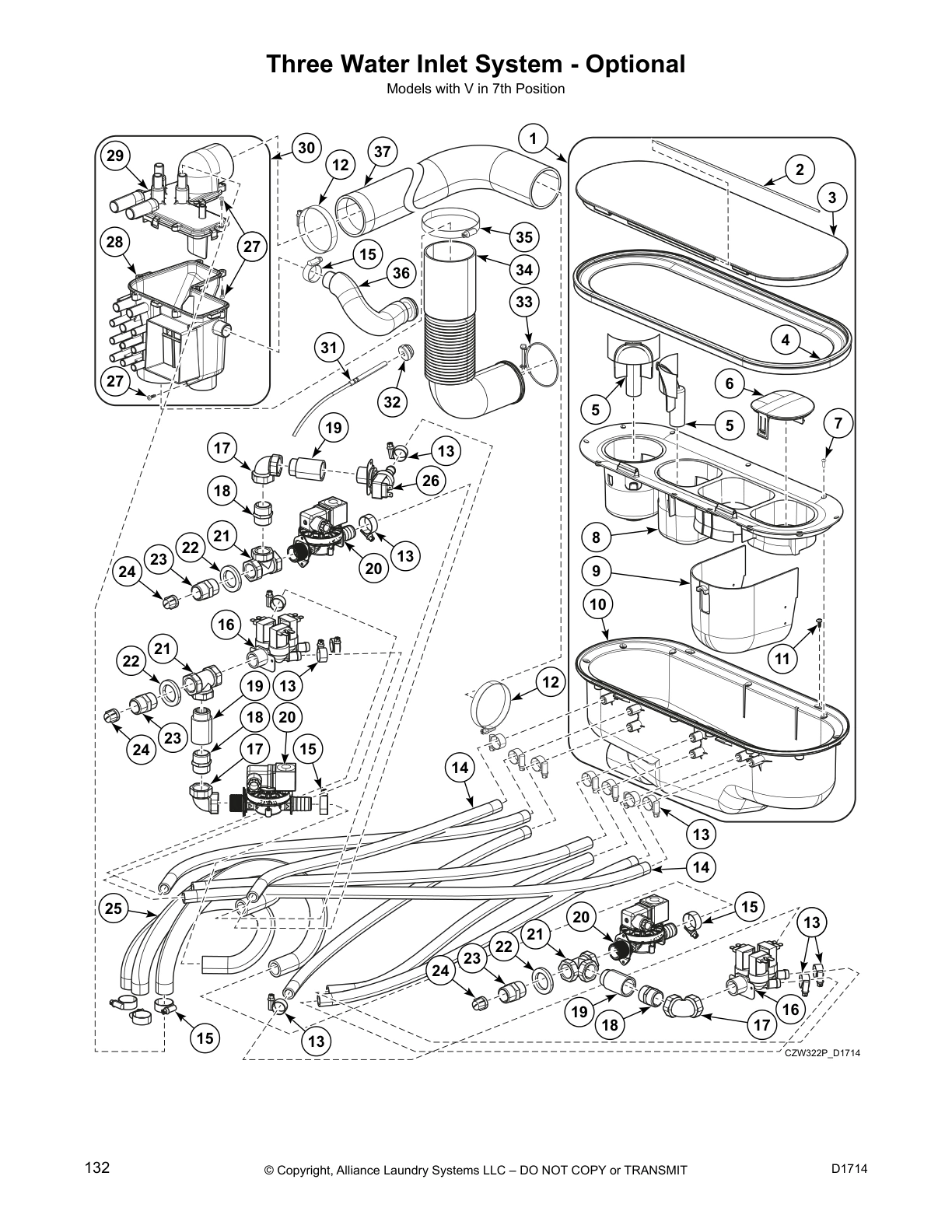

Three Water Inlet System - Optional

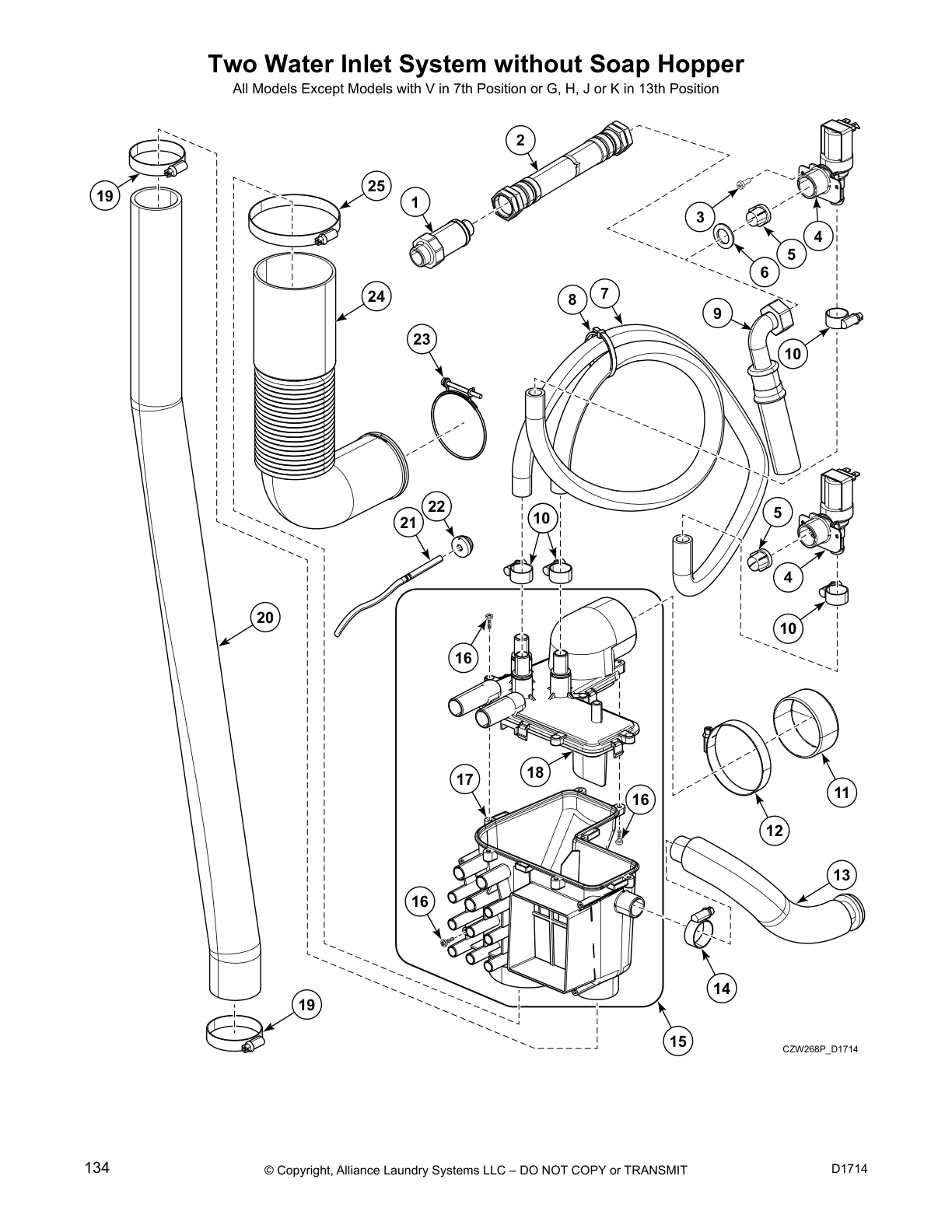

Two Water Inlet System without Soap Hopper

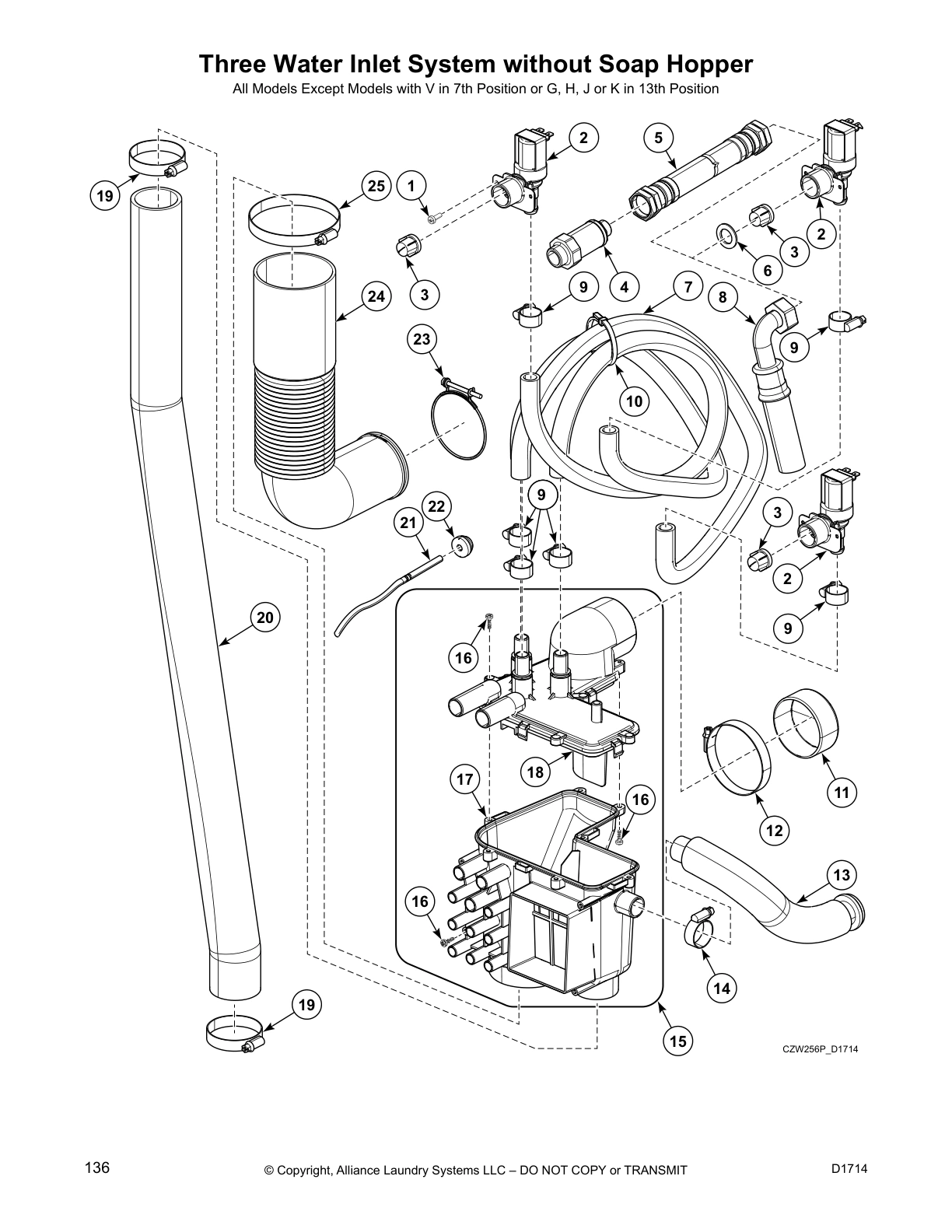

Three Water Inlet System without Soap Hopper

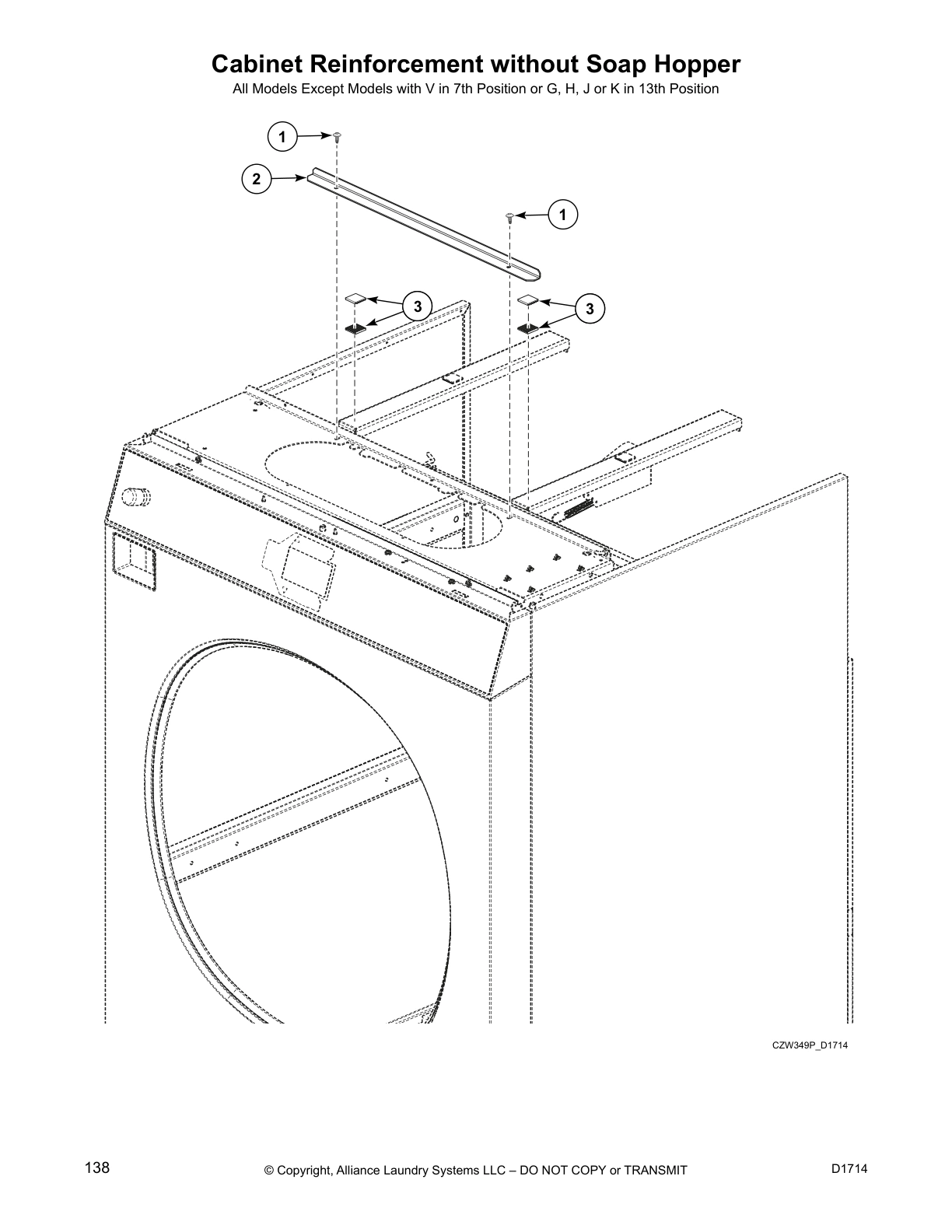

Cabinet Reinforcement without Soap Hopper

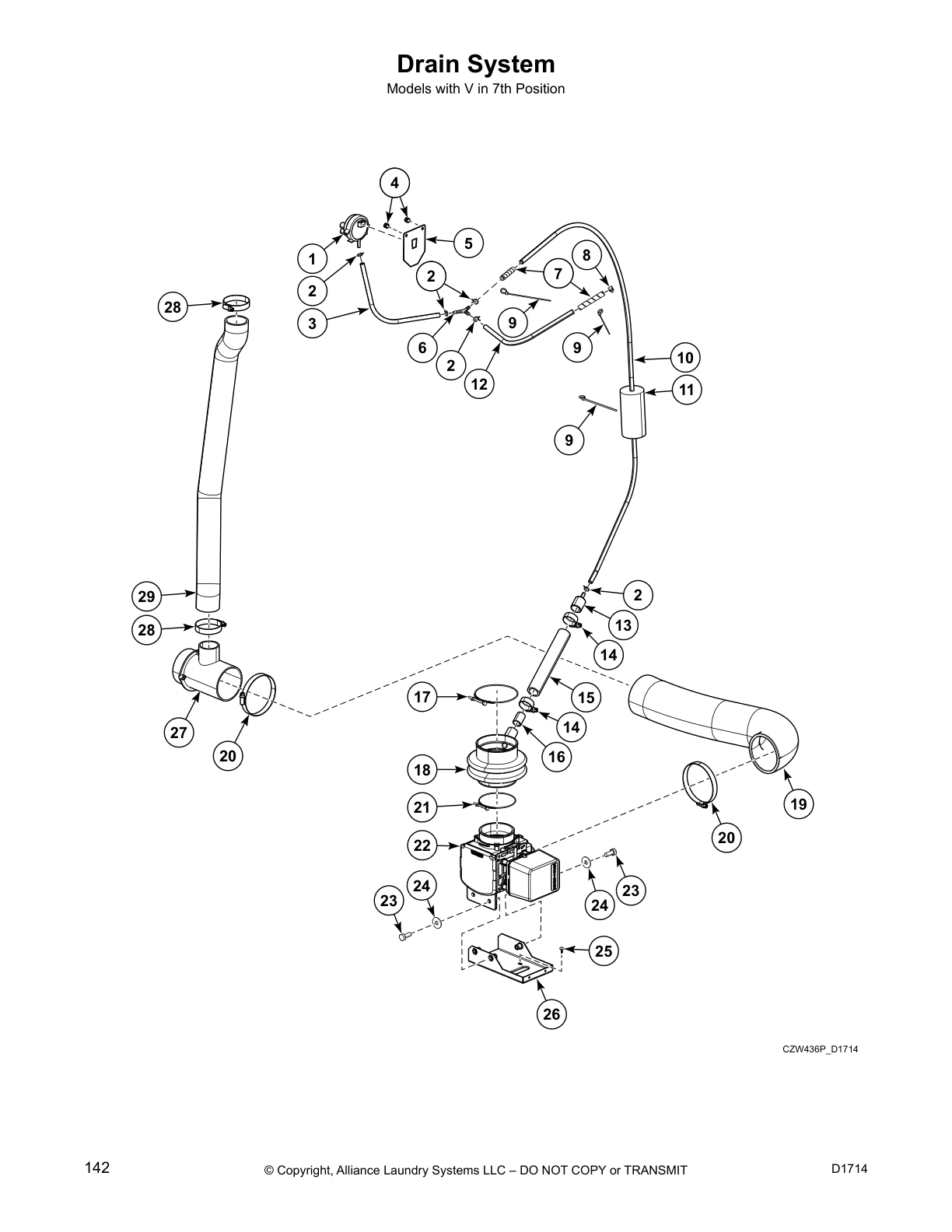

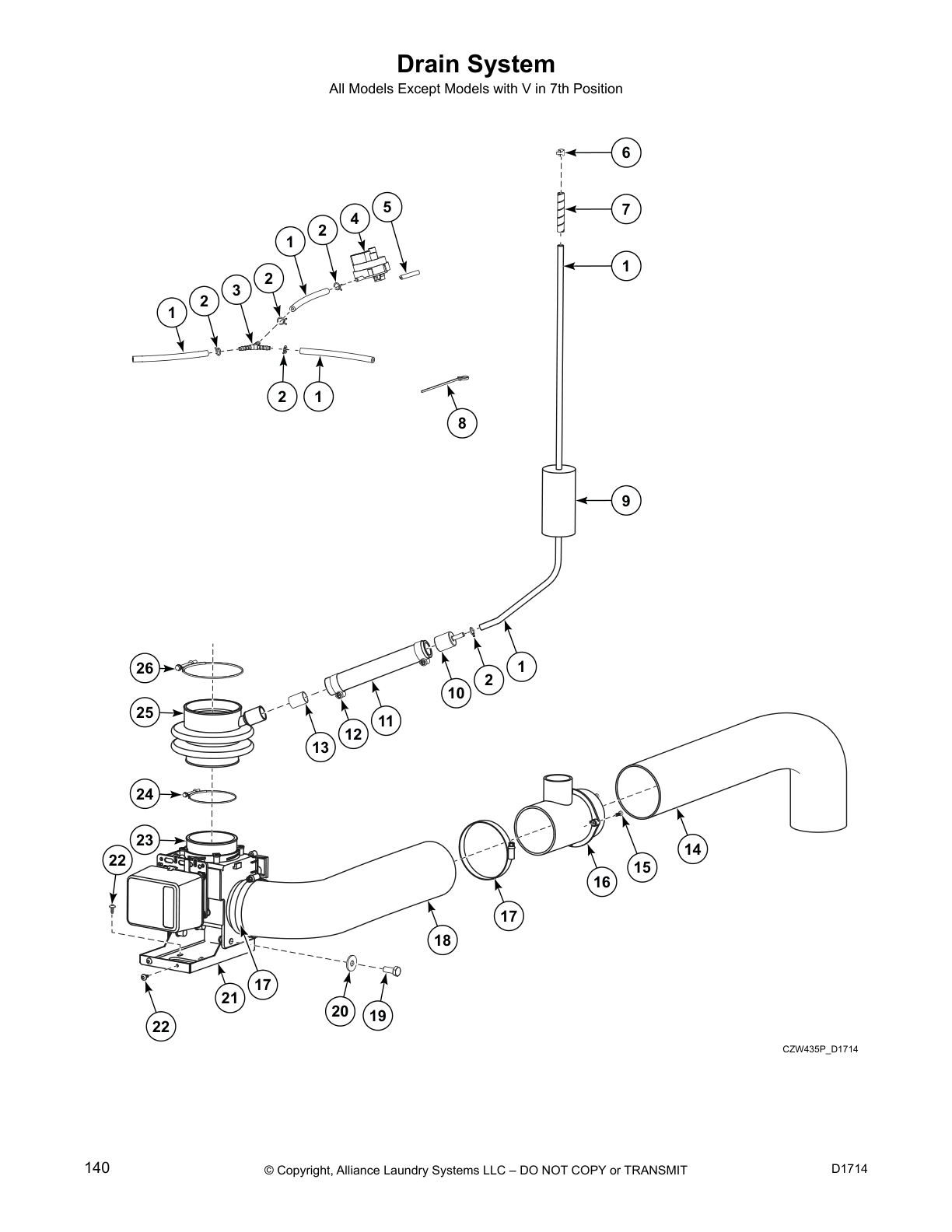

Drain System

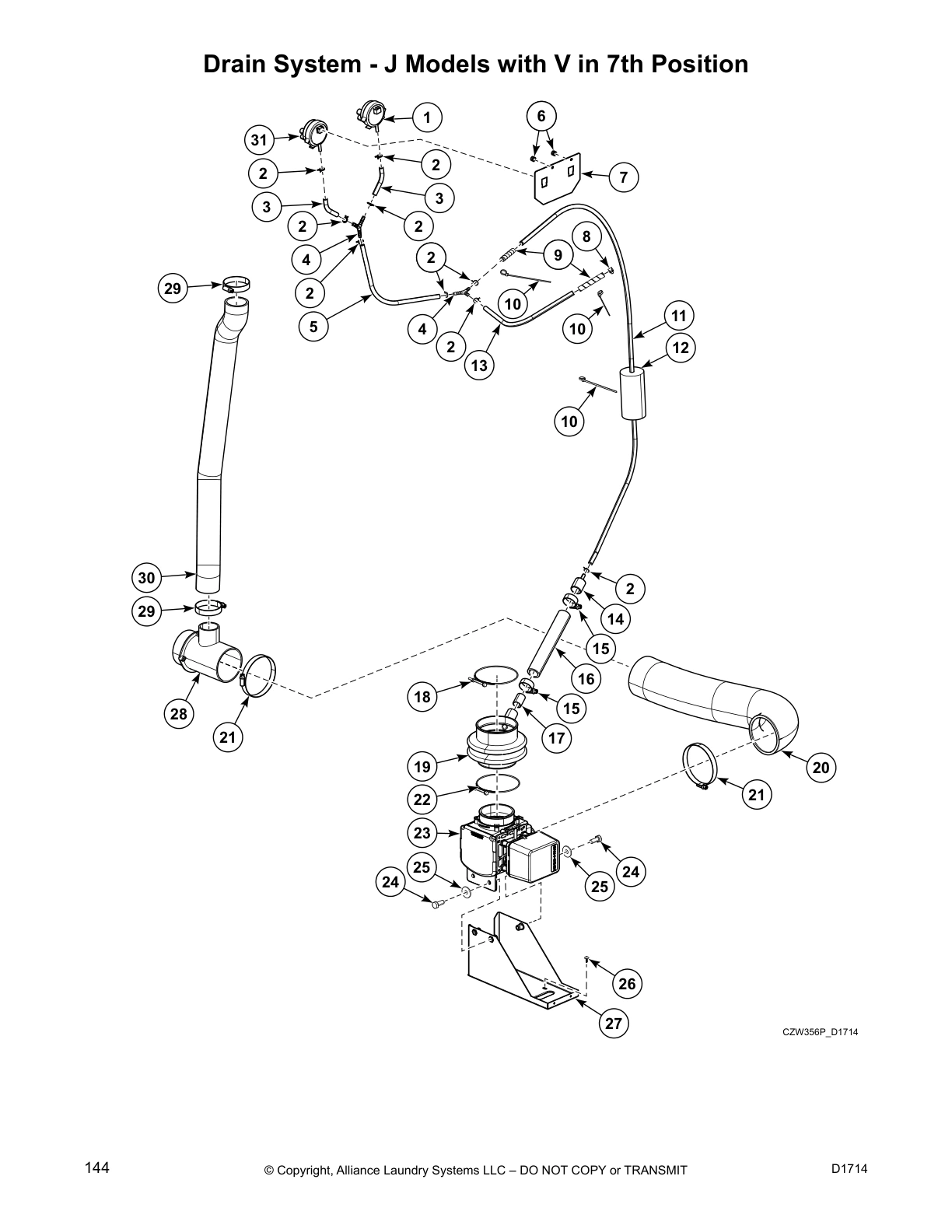

Drain System - J Models with V in 7th Position

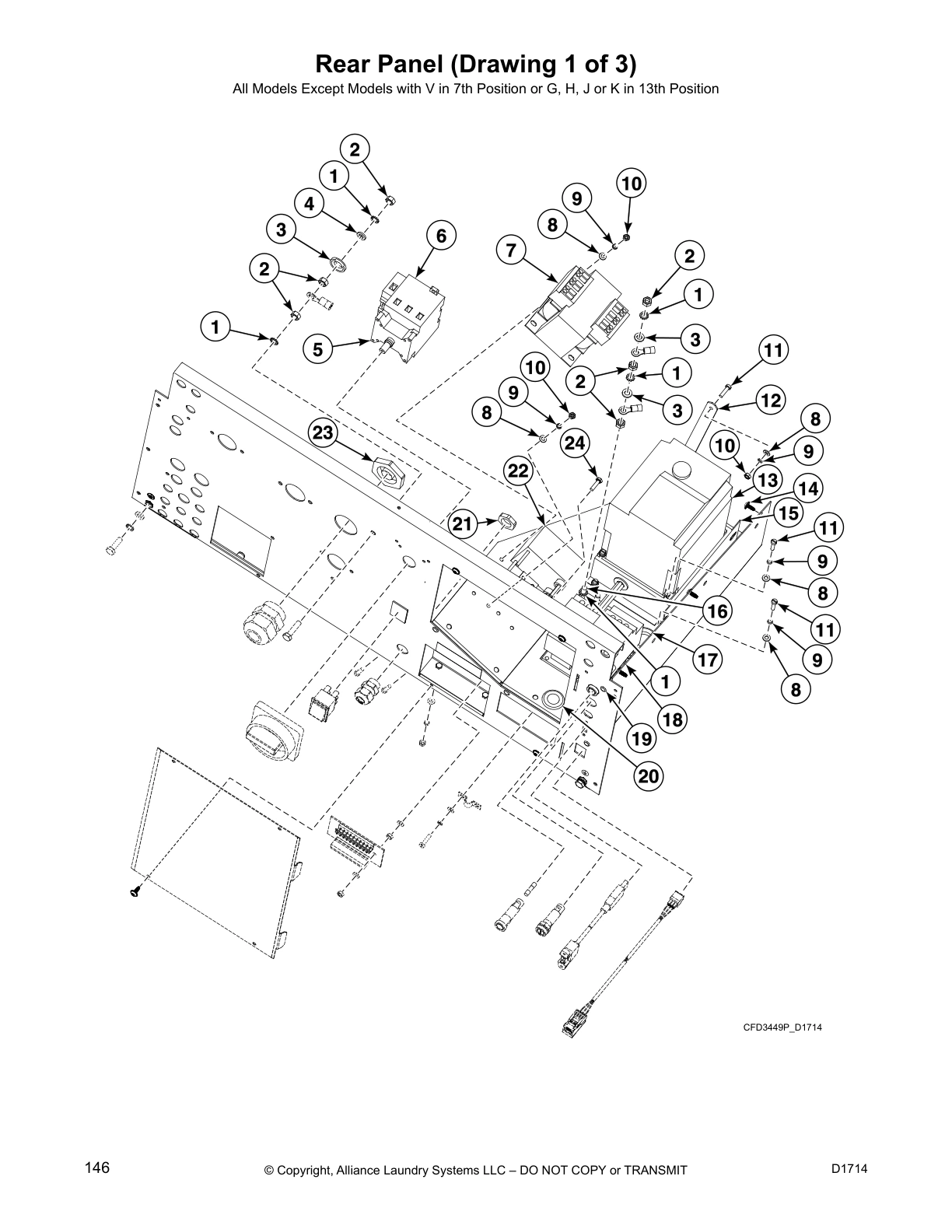

Rear Panel (Drawing 1 of 3)

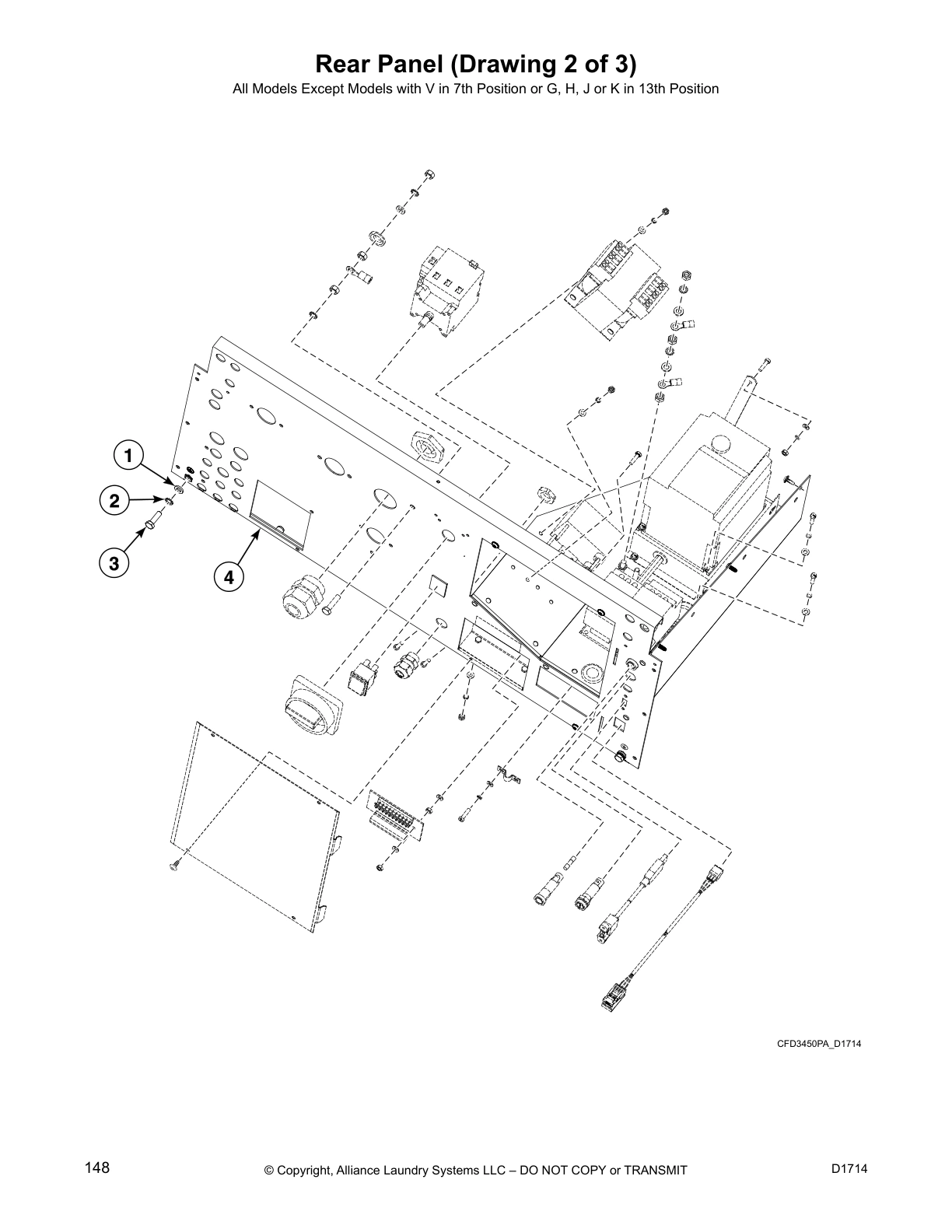

Rear Panel (Drawing 2 of 3)

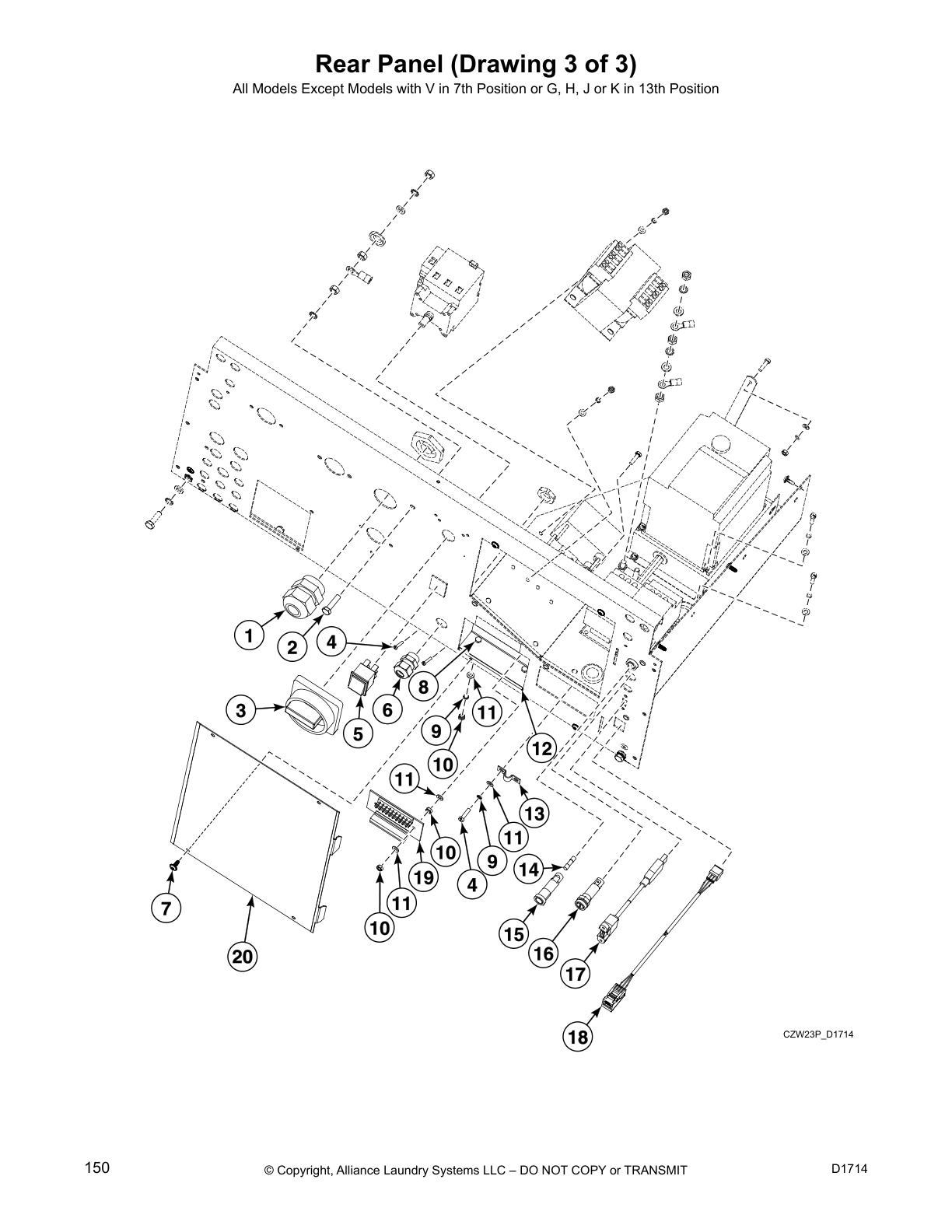

Rear Panel (Drawing 3 of 3)

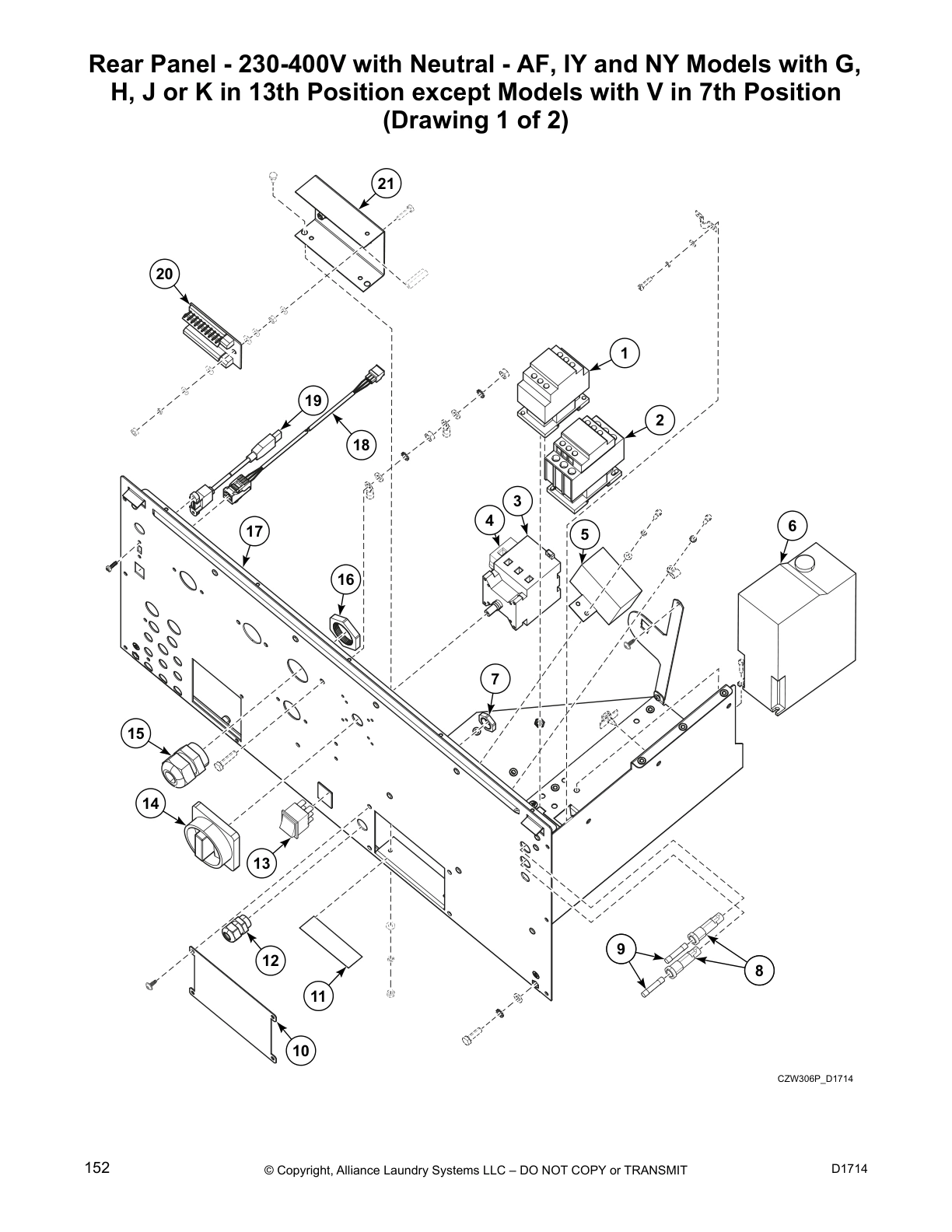

Rear Panel - 230-400V with Neutral - AF, IY and NY Models with G, H, J or K in 13th Position except Models with V in 7th Position (Drawing 1 of 2)

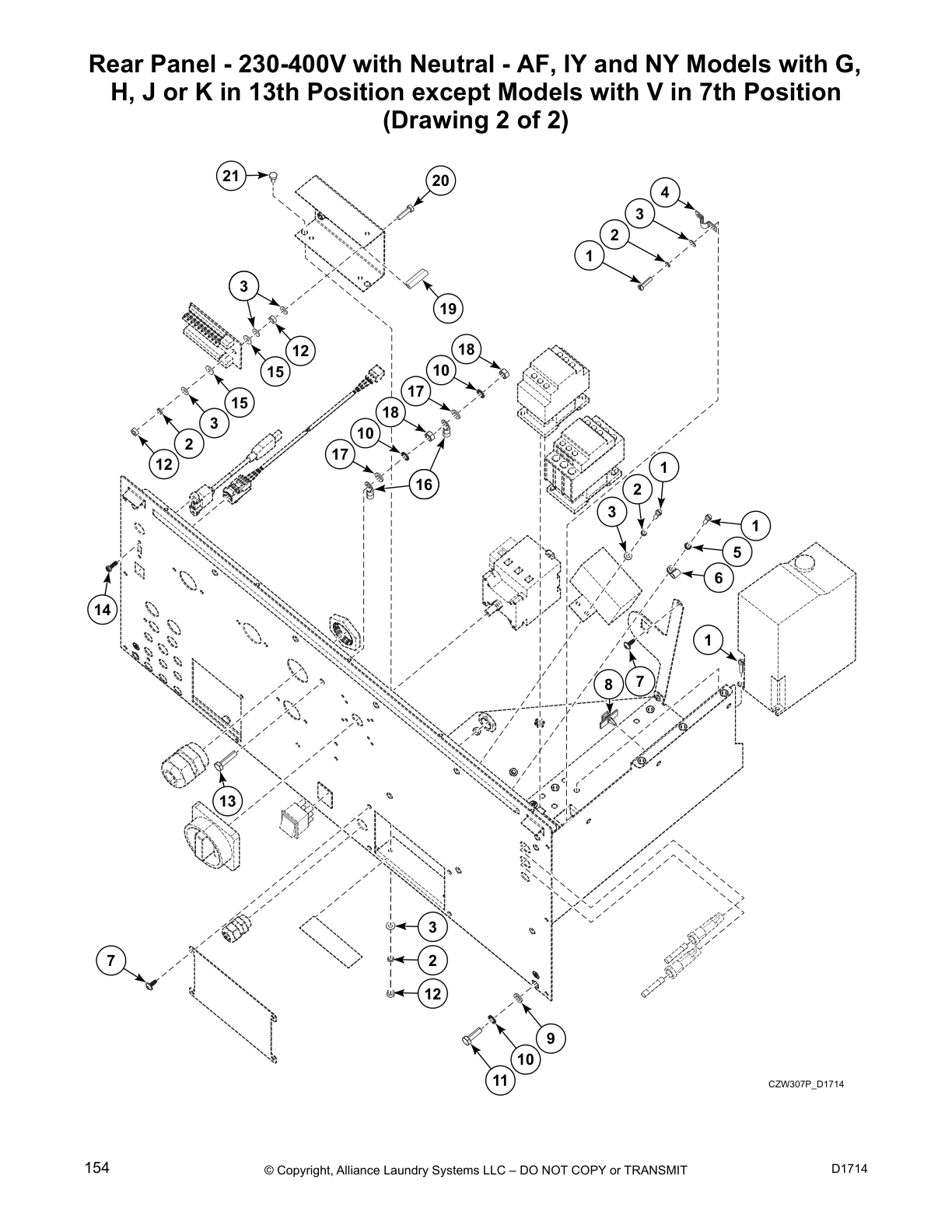

Rear Panel - 230-400V with Neutral - AF, IY and NY Models with G, H, J or K in 13th Position except Models with V in 7th Position (Drawing 2 of 2)

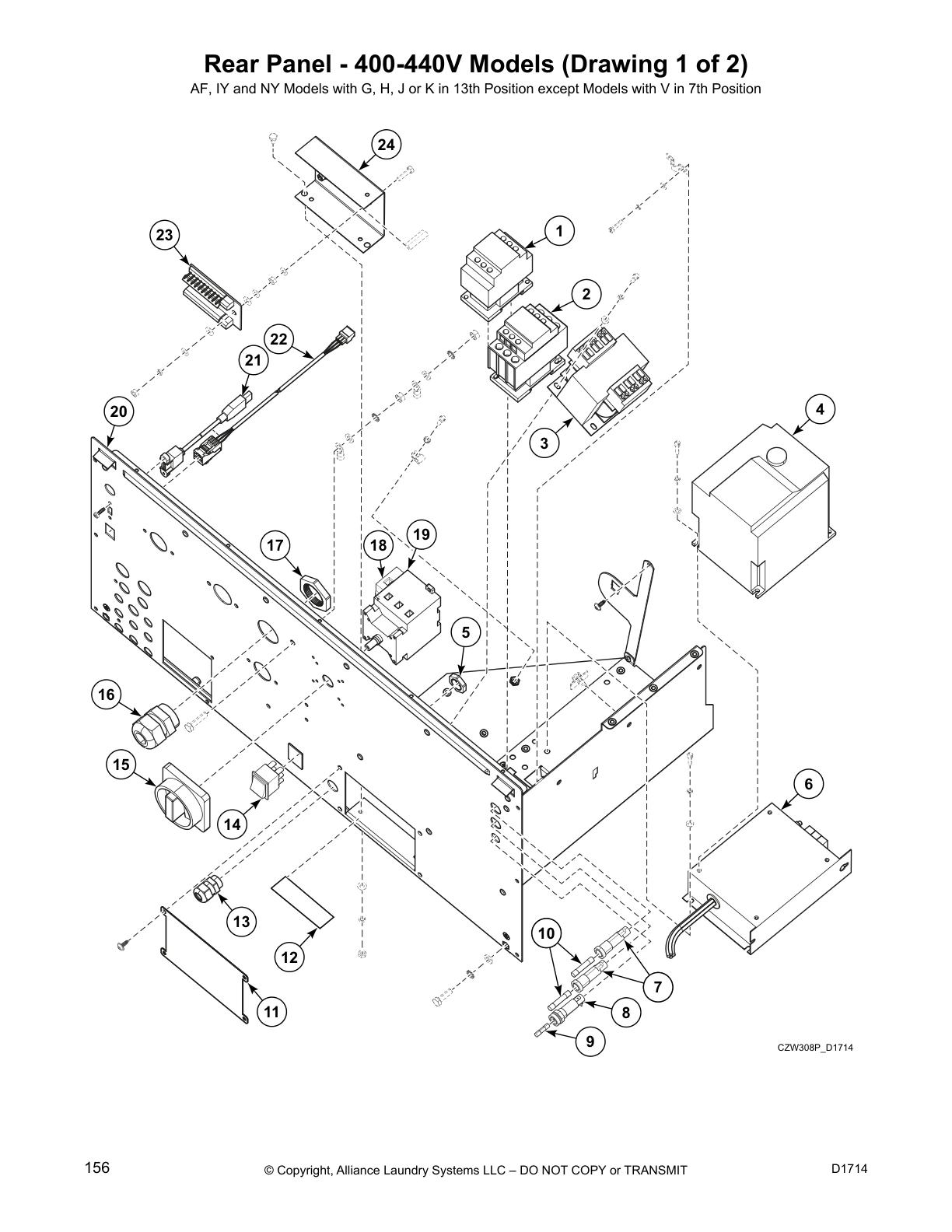

Rear Panel - 400-440V Models (Drawing 1 of 2)

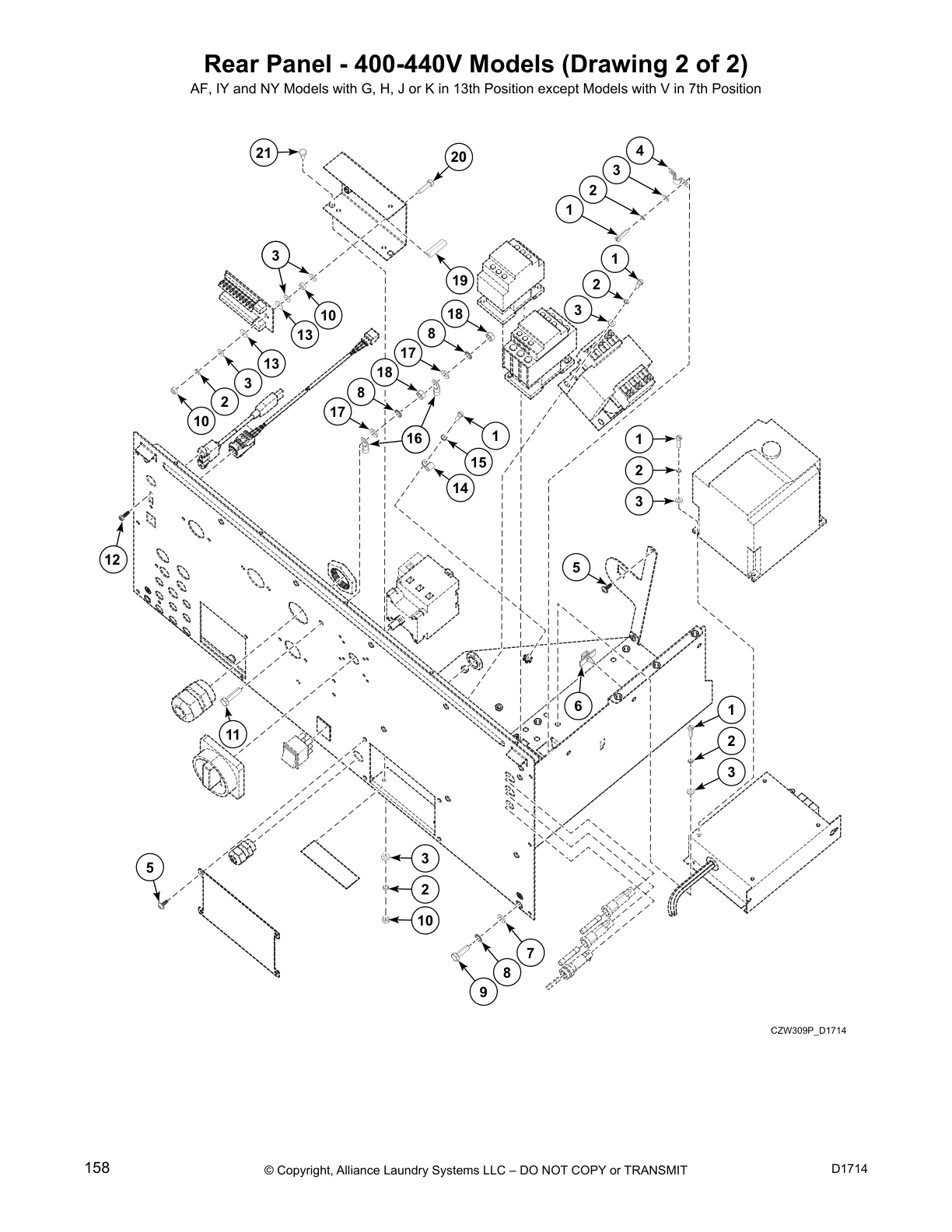

Rear Panel - 400-440V Models (Drawing 2 of 2)

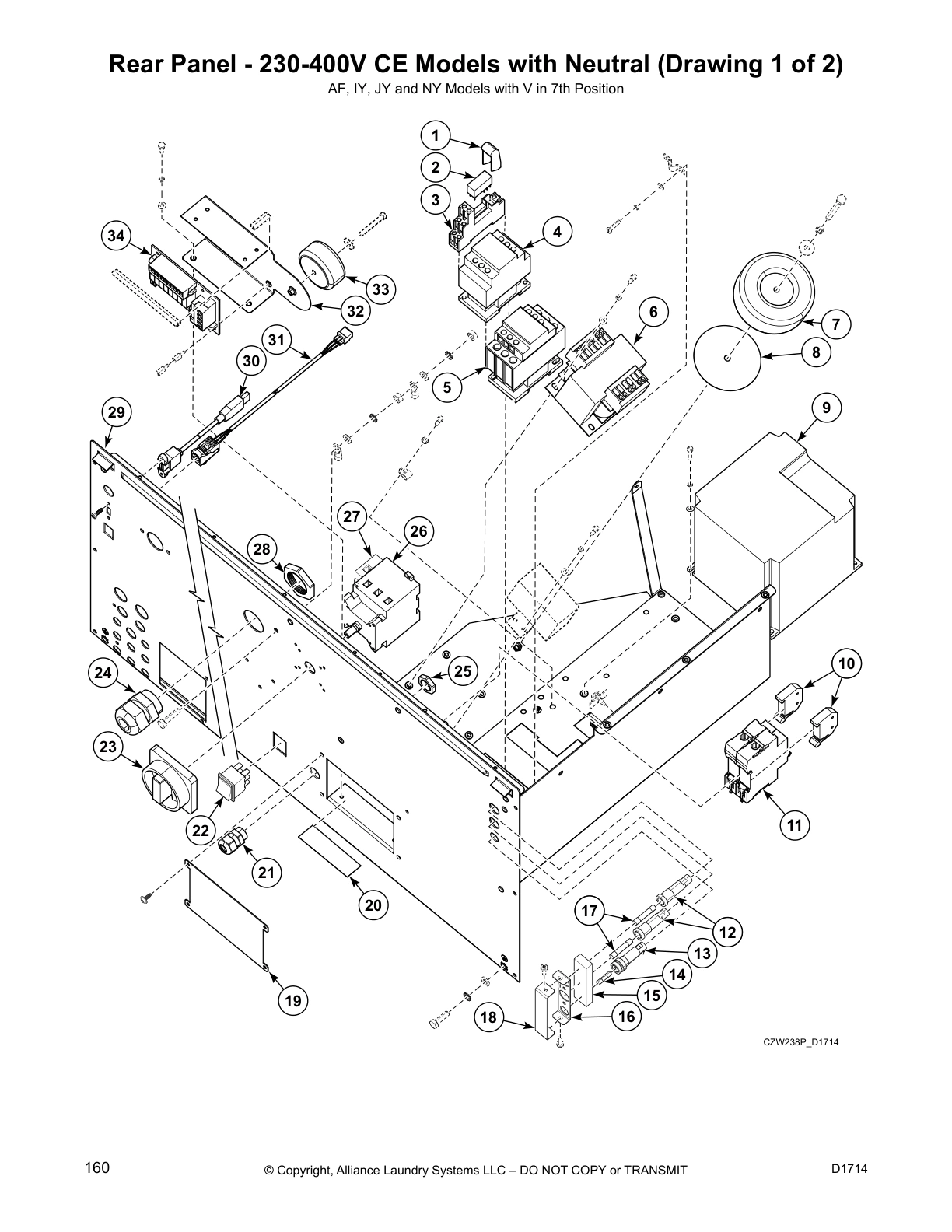

Rear Panel - 230-400V CE Models with Neutral (Drawing 1 of 2)

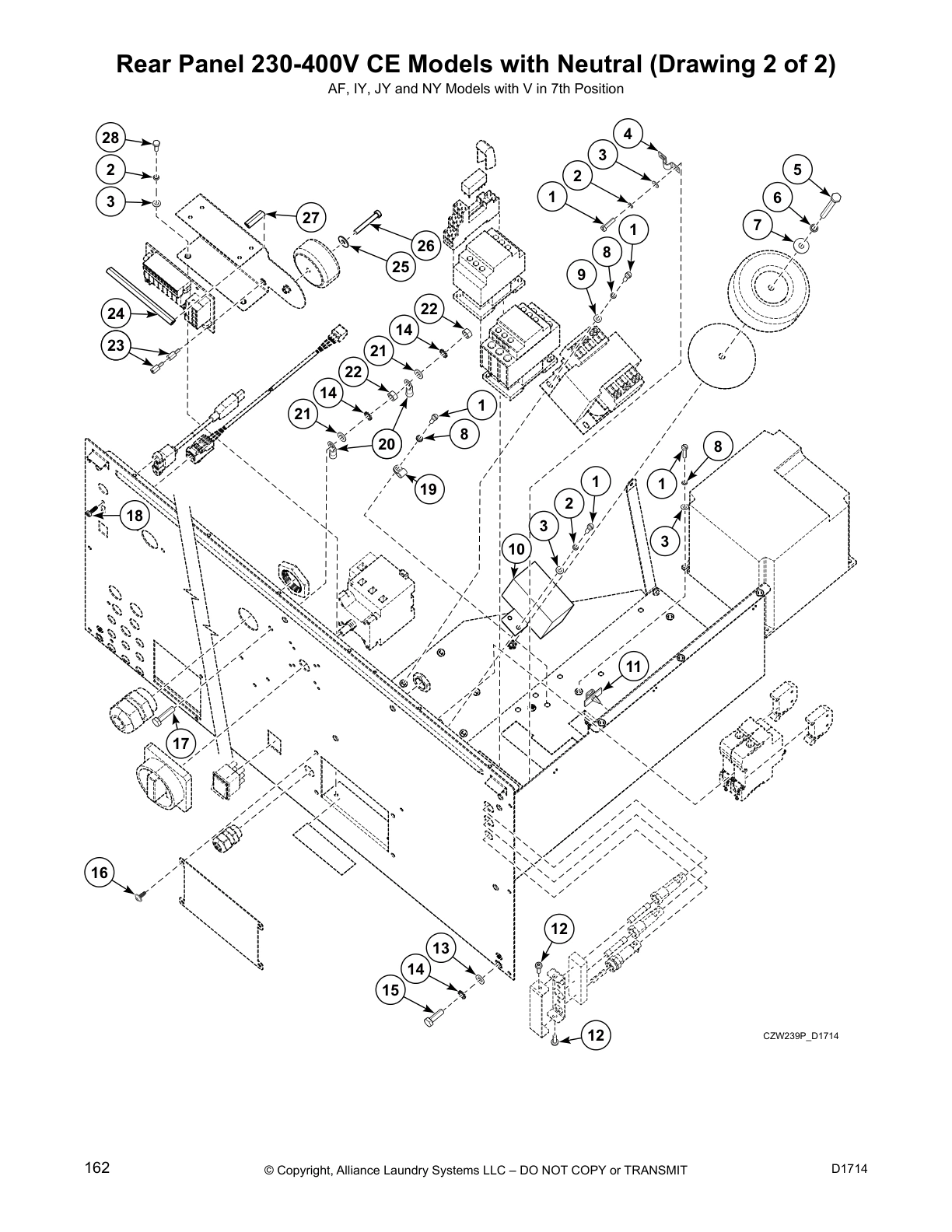

Rear Panel 230-400V CE Models with Neutral (Drawing 2 of 2)

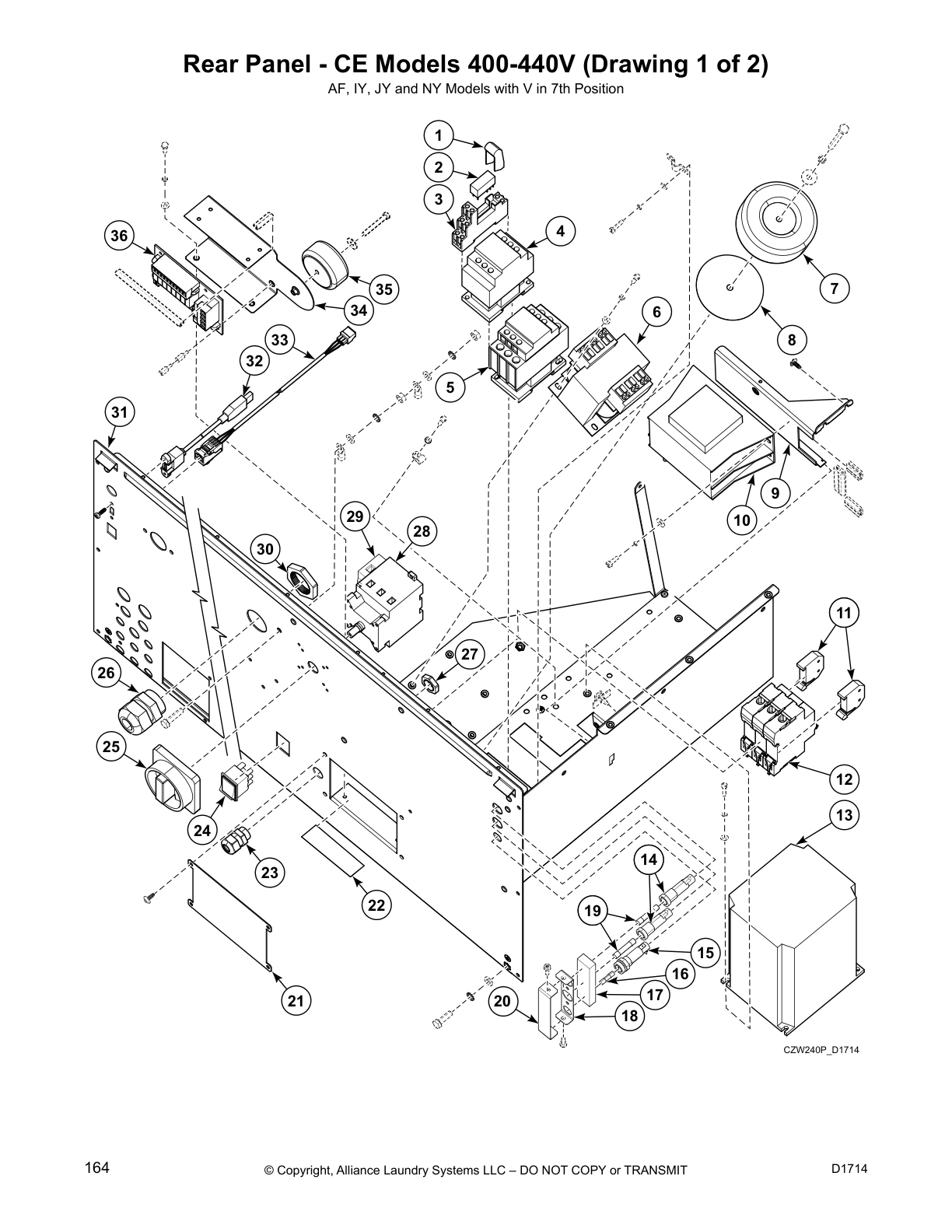

Rear Panel - CE Models 400-440V (Drawing 1 of 2)

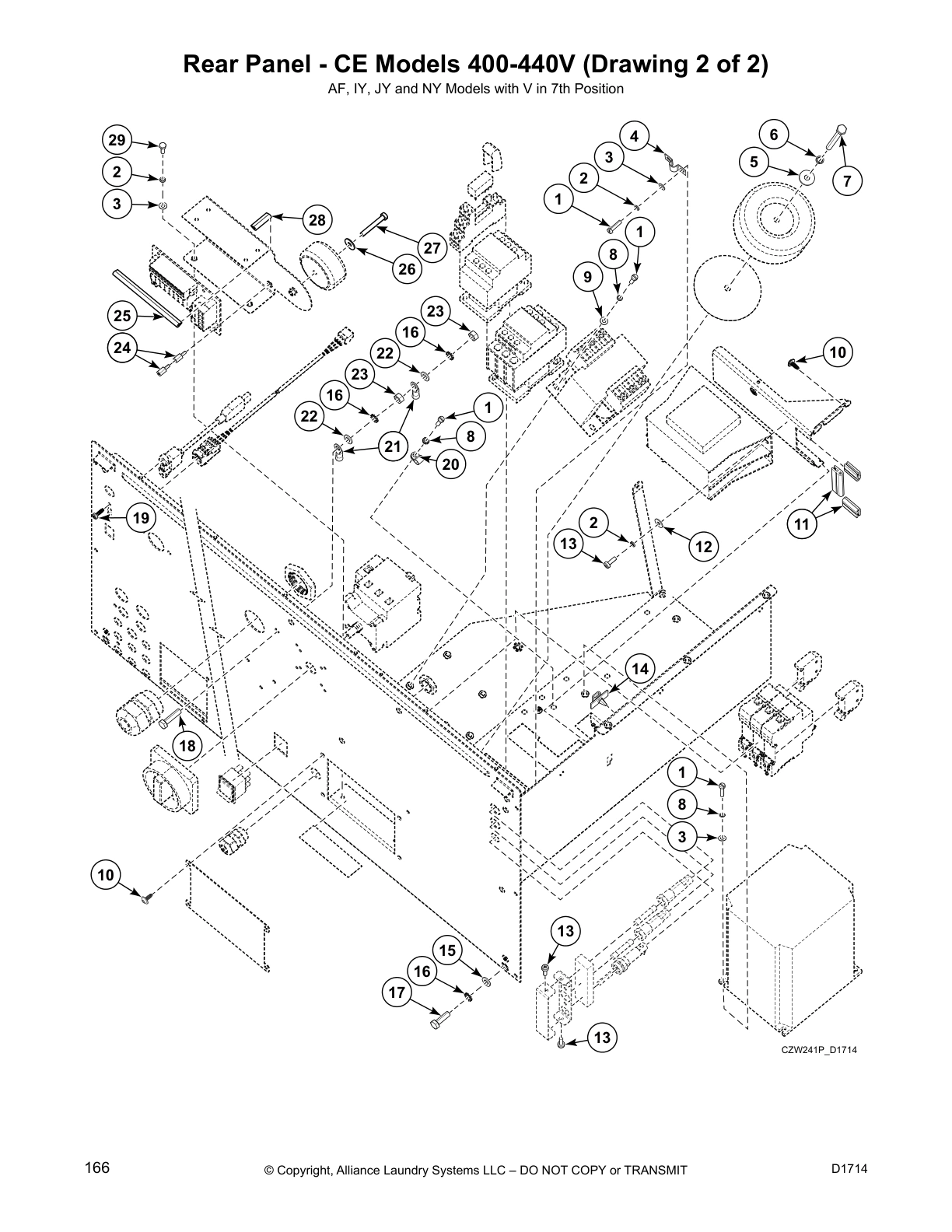

Rear Panel - CE Models 400-440V (Drawing 2 of 2)

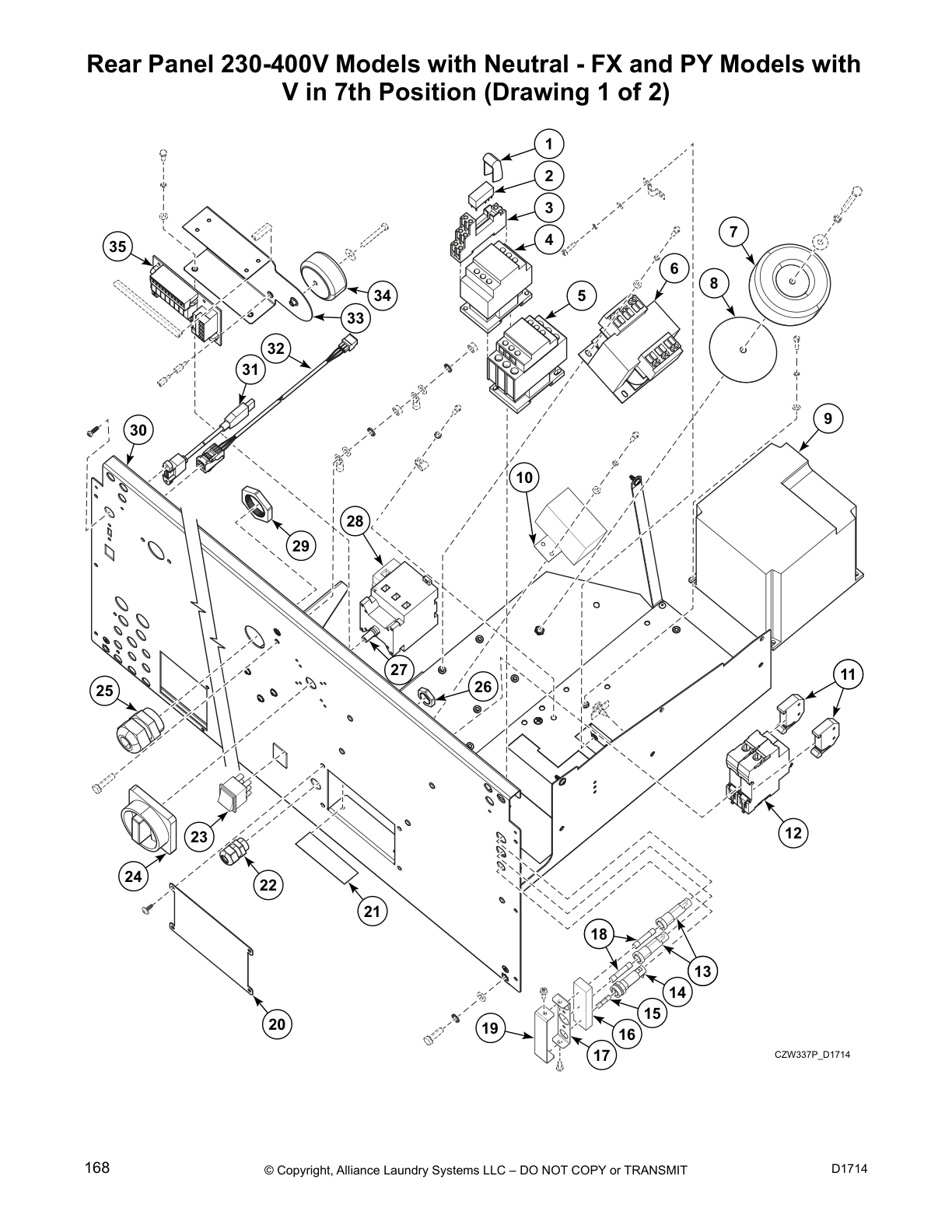

Rear Panel 230-400V Models with Neutral - FX and PY Models with V in 7th Position (Drawing 1 of 2)

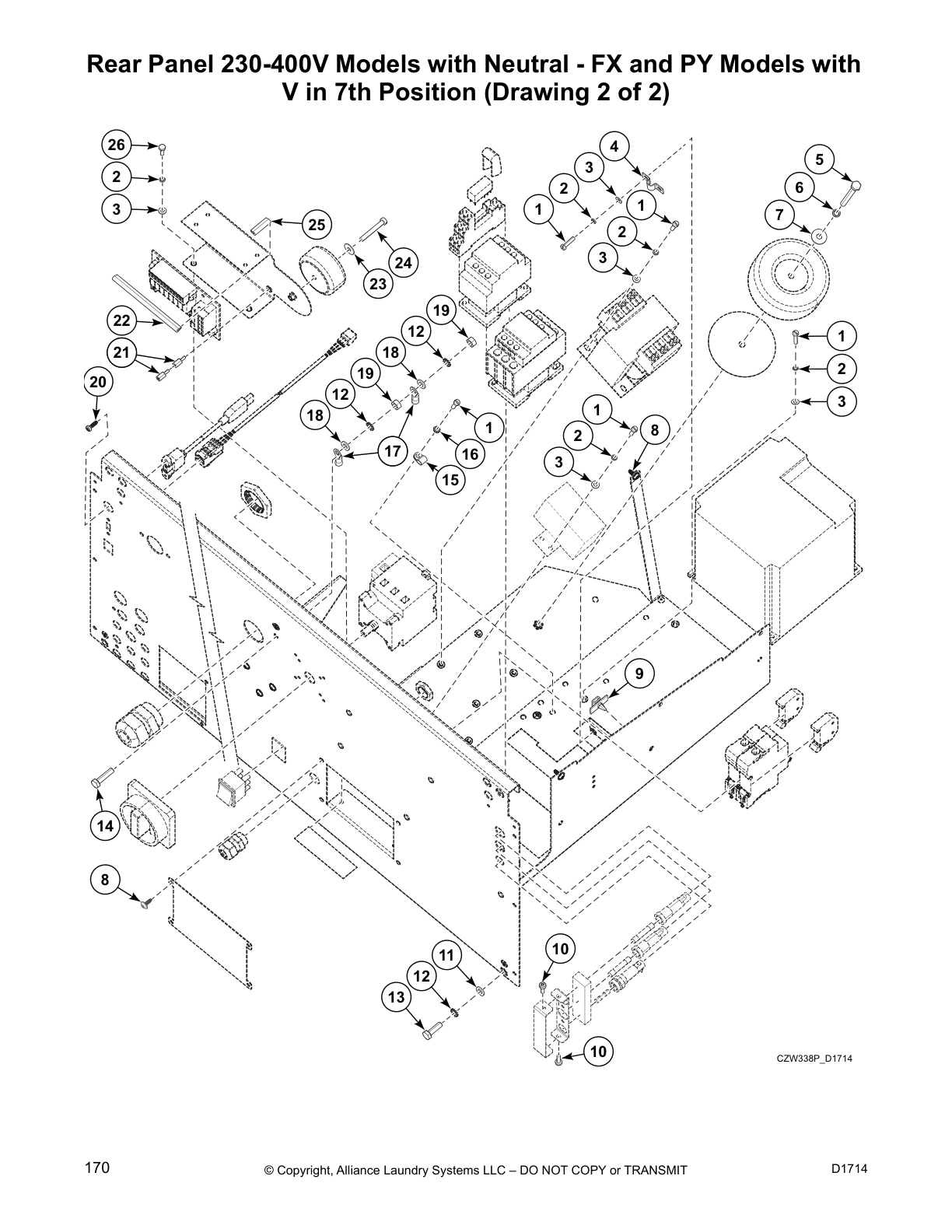

Rear Panel 230-400V Models with Neutral - FX and PY Models with V in 7th Position (Drawing 2 of 2)

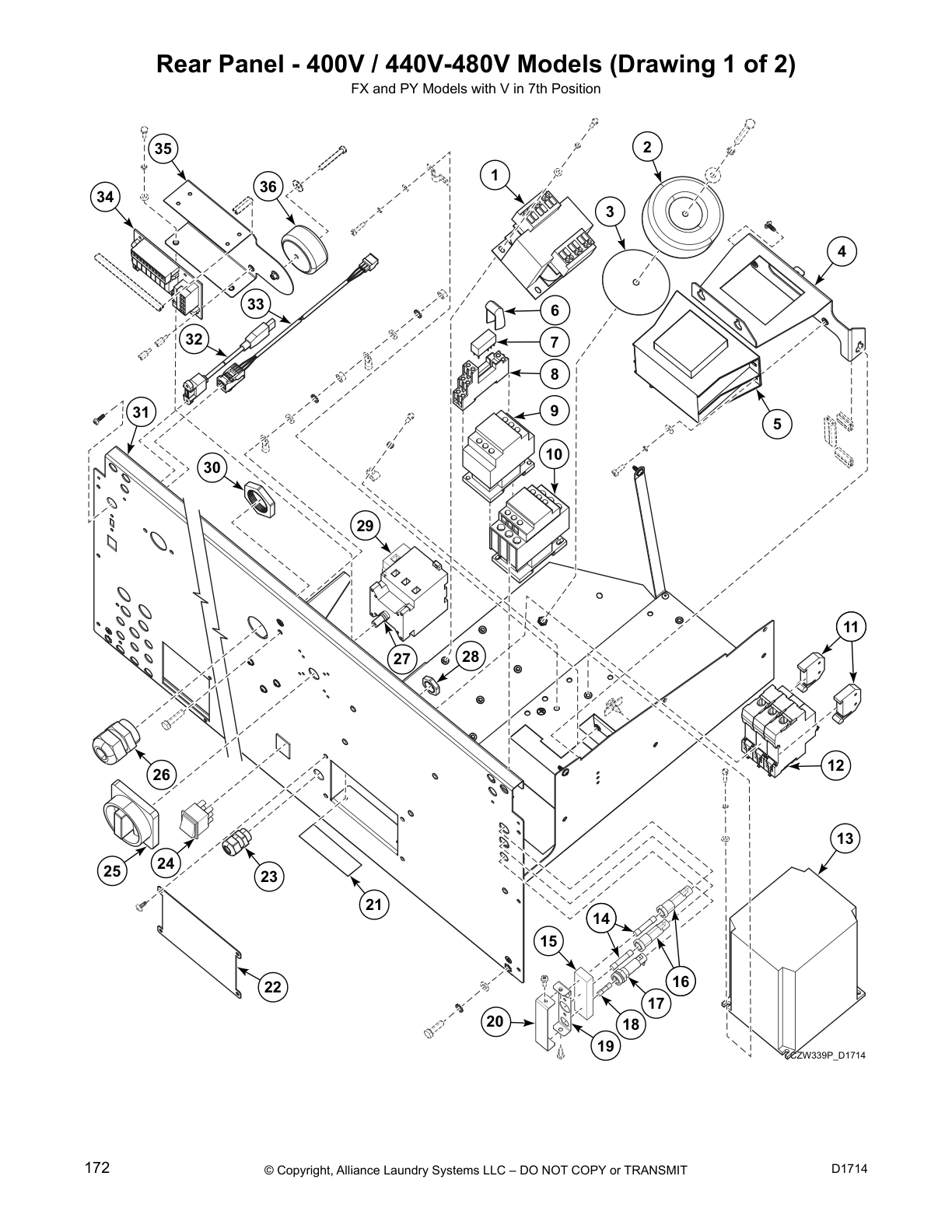

Rear Panel - 400V / 440V-480V Models (Drawing 1 of 2)

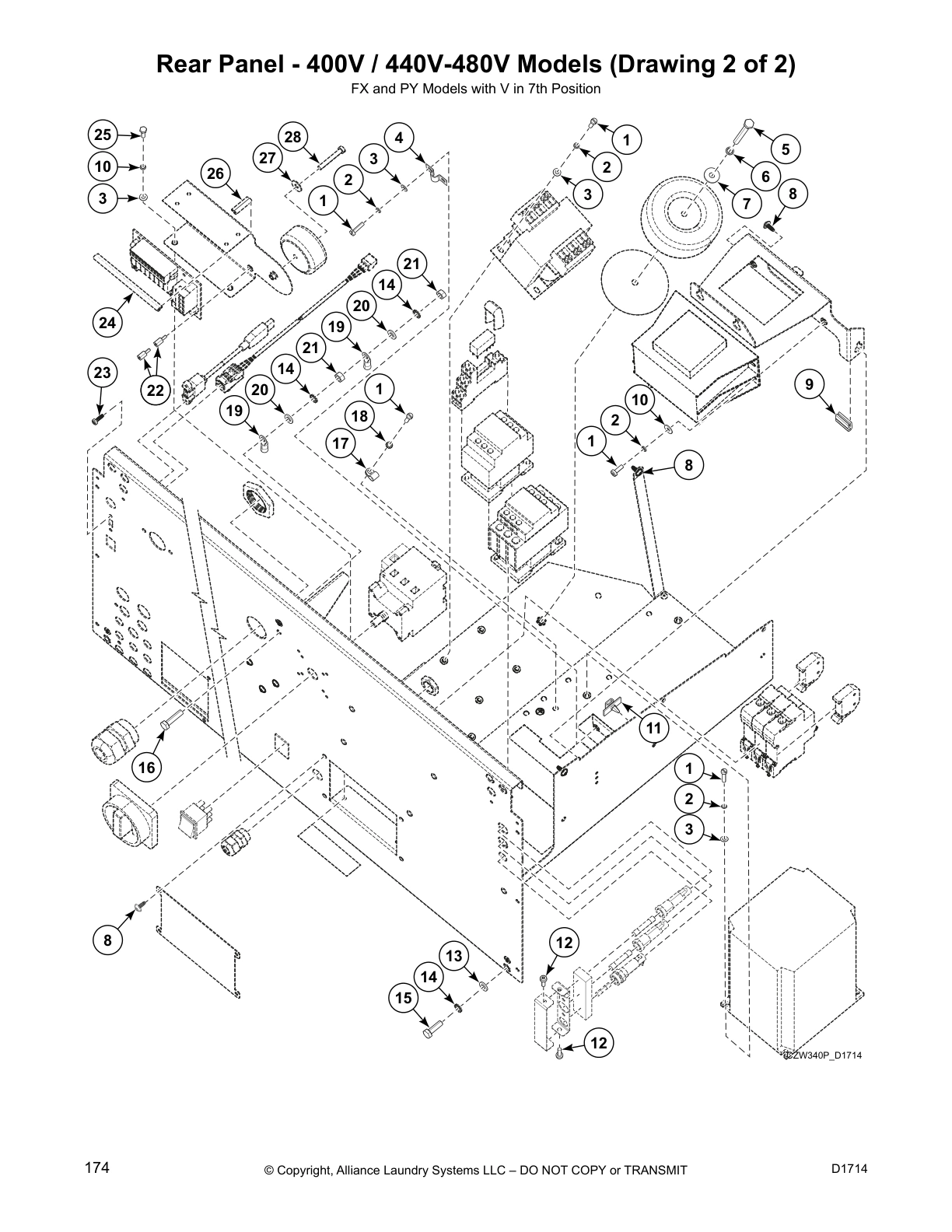

Rear Panel - 400V / 440V-480V Models (Drawing 2 of 2)

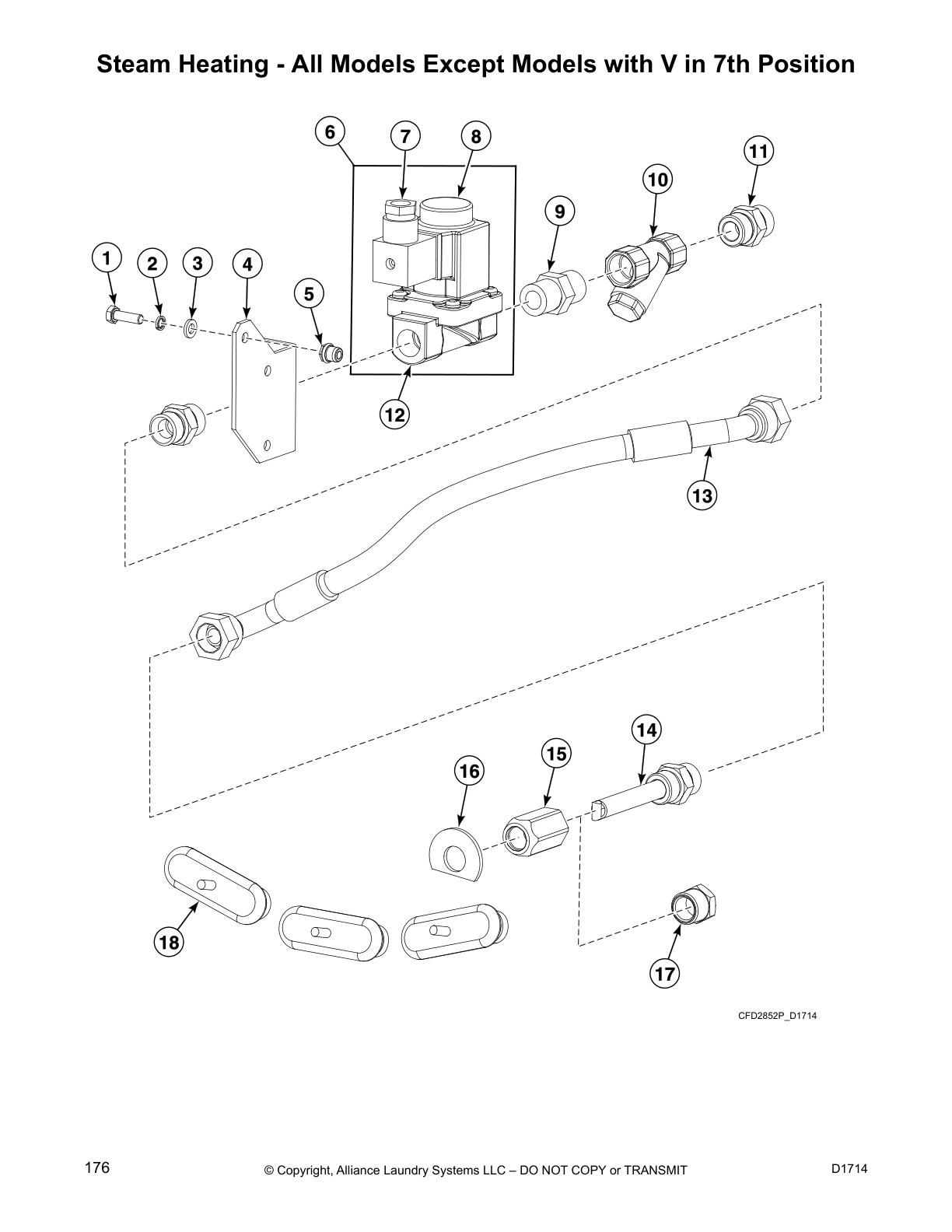

Steam Heating - All Models Except Models with V in 7th Position

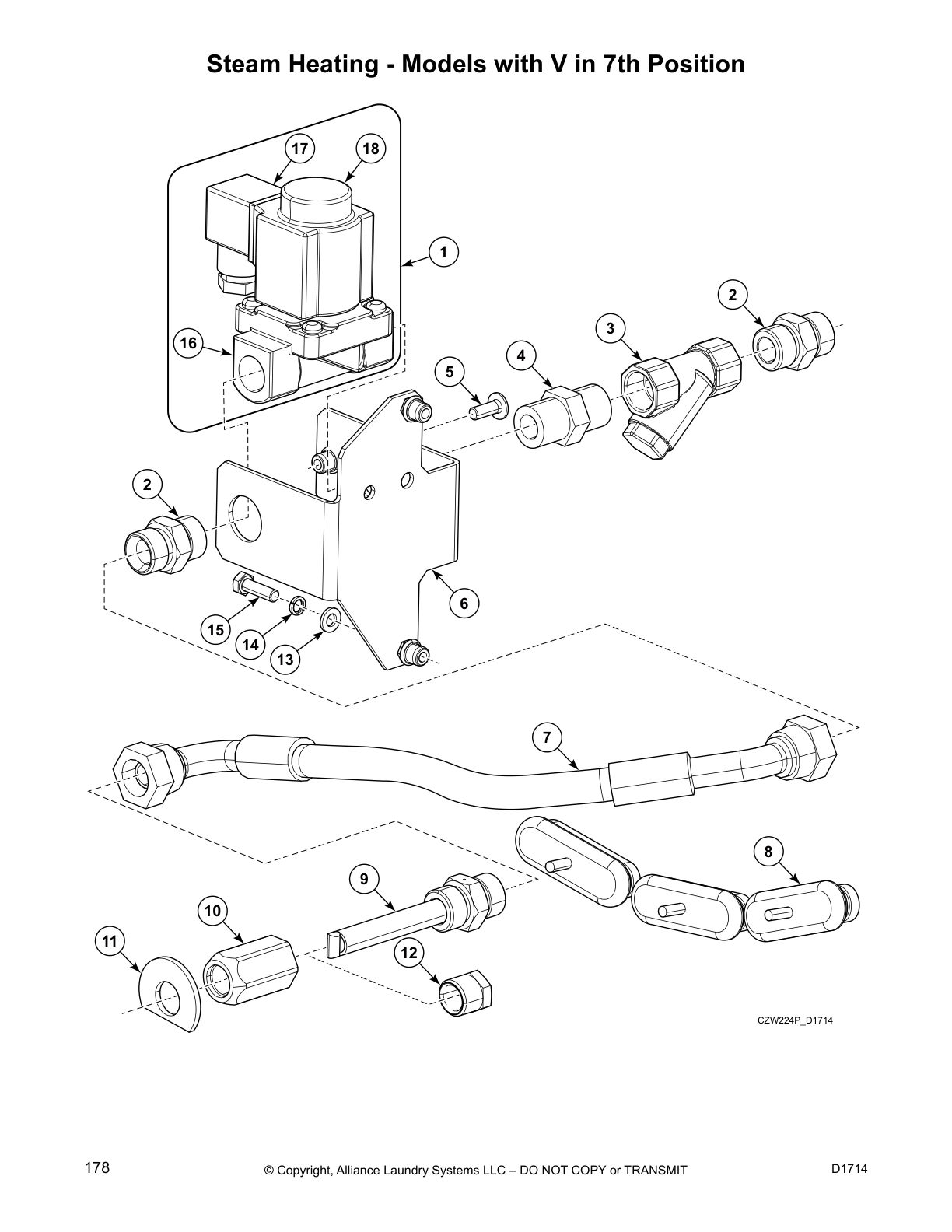

Steam Heating - Models with V in 7th Position

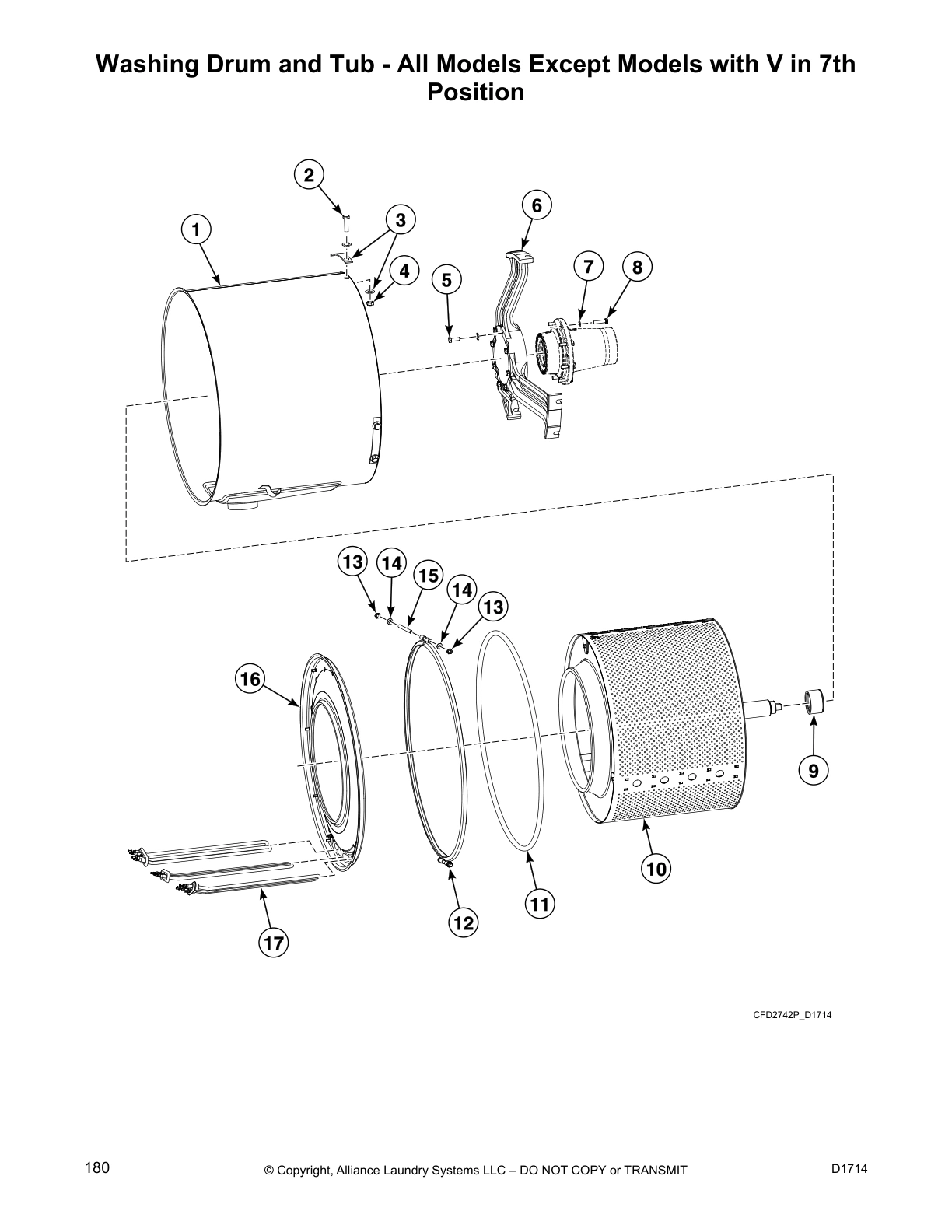

Washing Drum and Tub - All Models Except Models with V in 7th Position

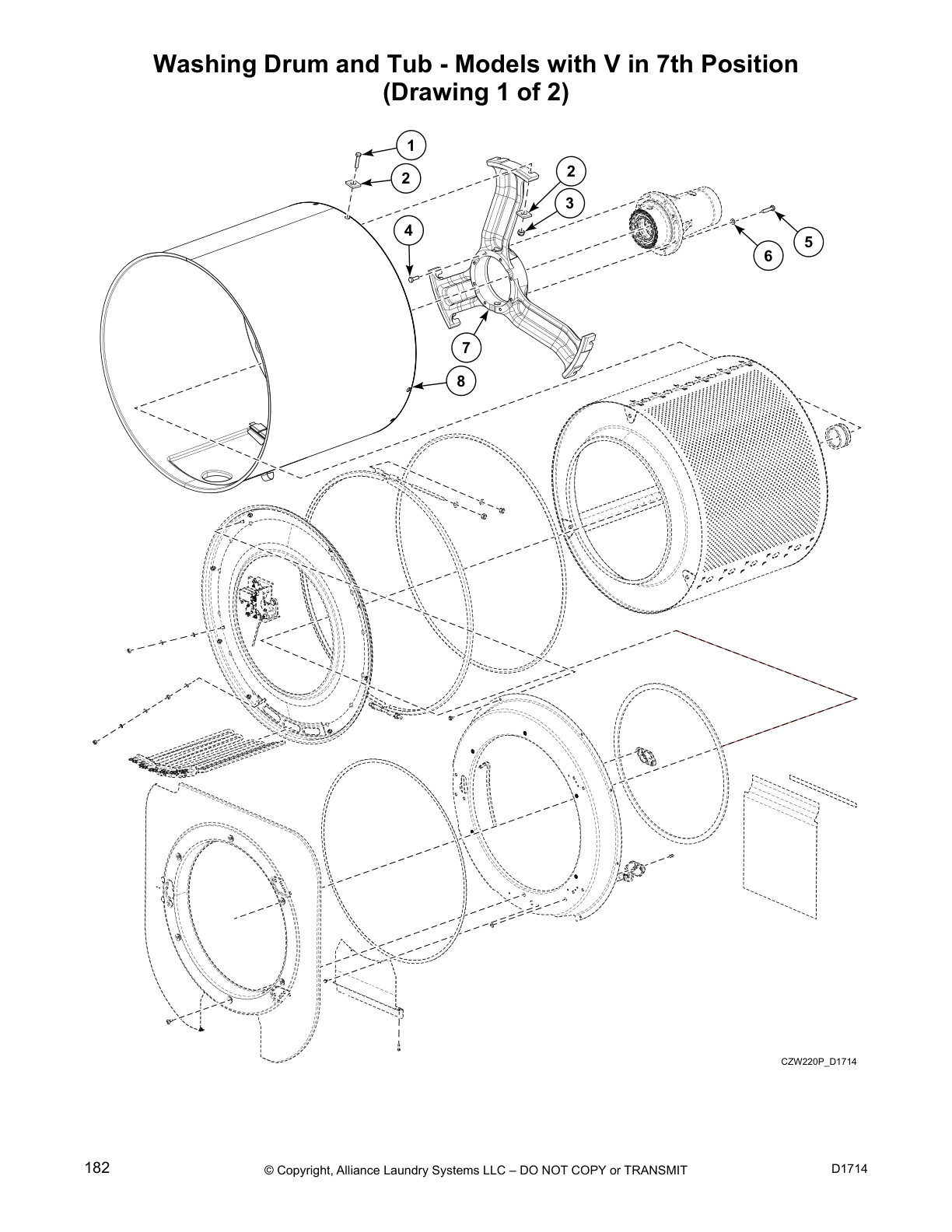

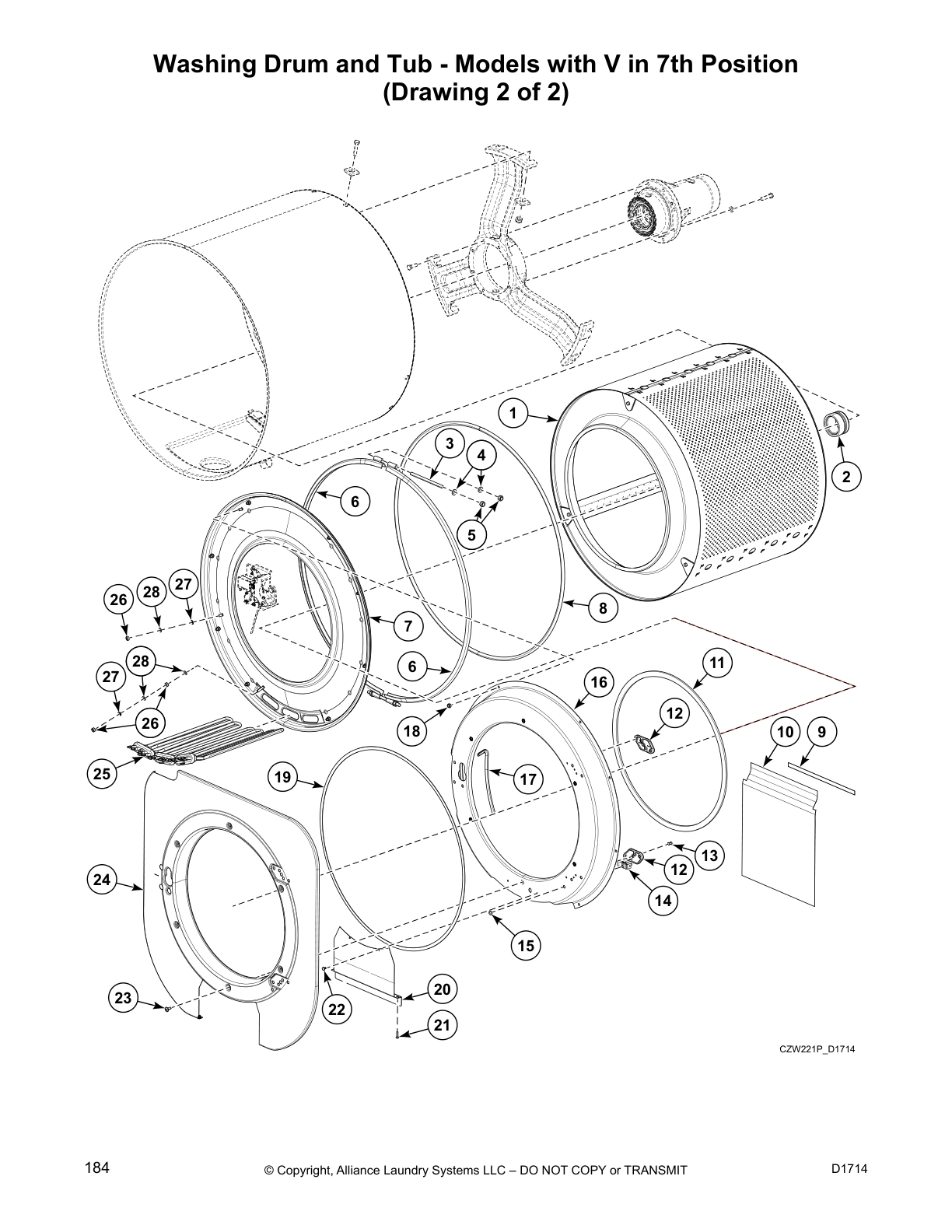

Washing Drum and Tub - Models with V in 7th Position (Drawing 1 of 2)

Washing Drum and Tub - Models with V in 7th Position (Drawing 2 of 2)

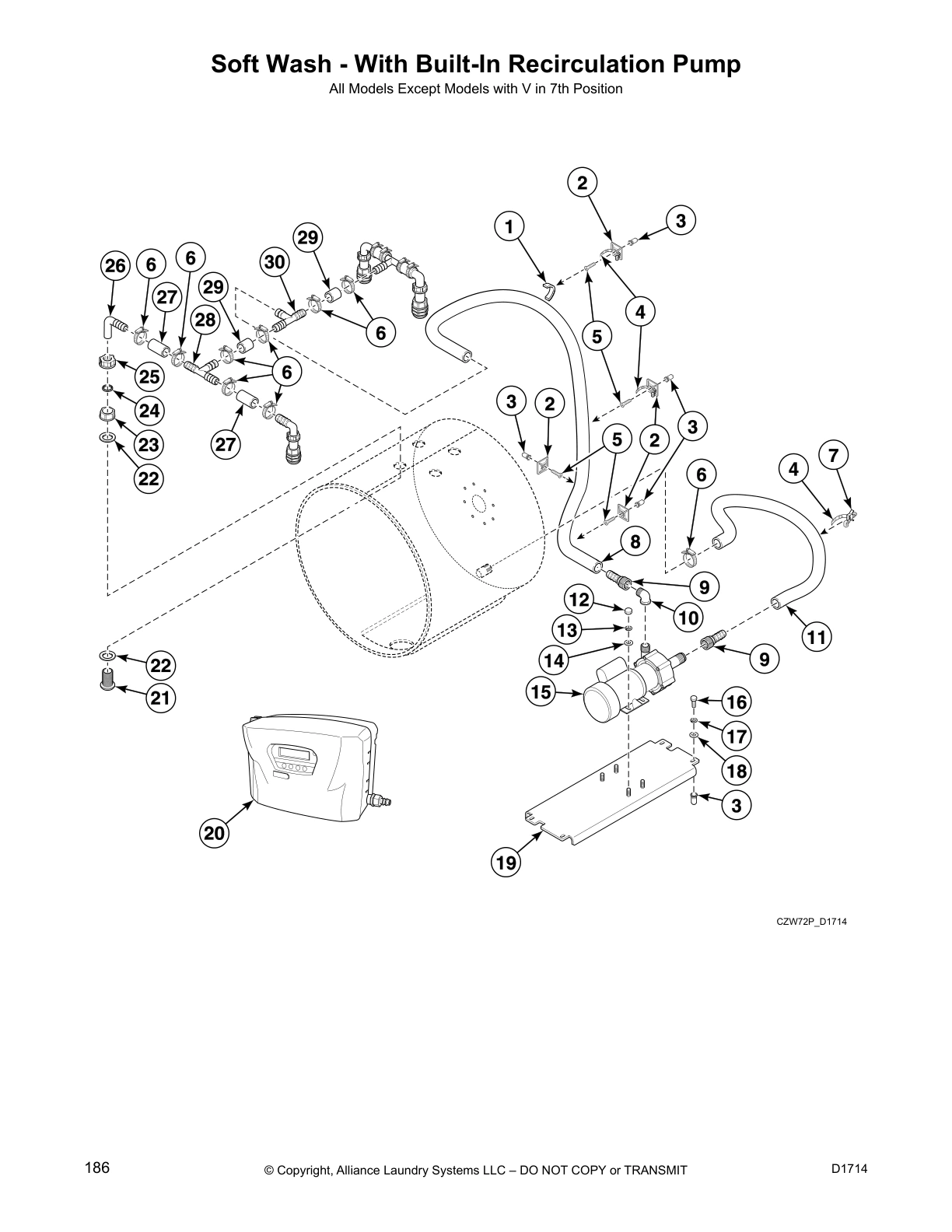

Soft Wash - With Built-In Recirculation Pump

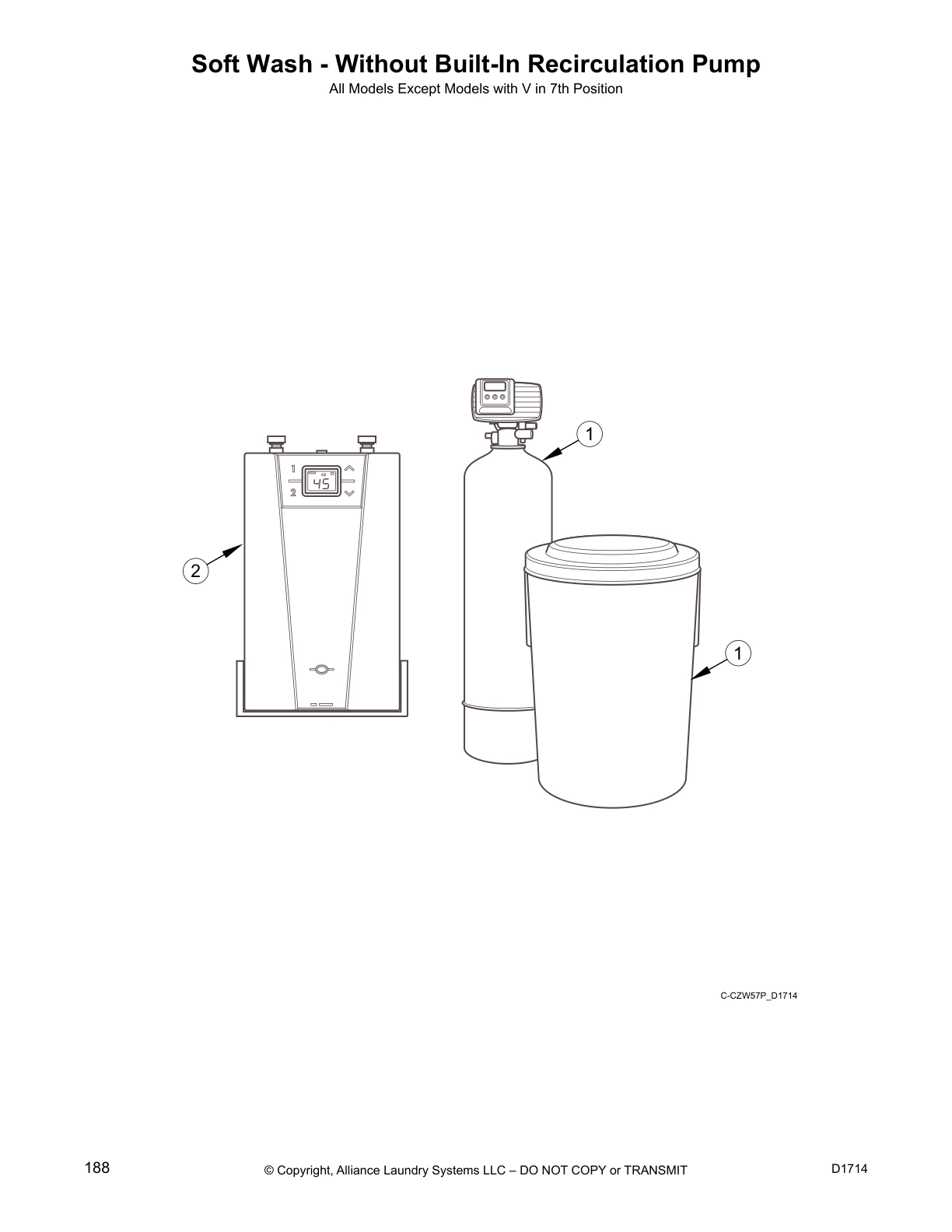

Soft Wash - Without Built-In Recirculation Pump

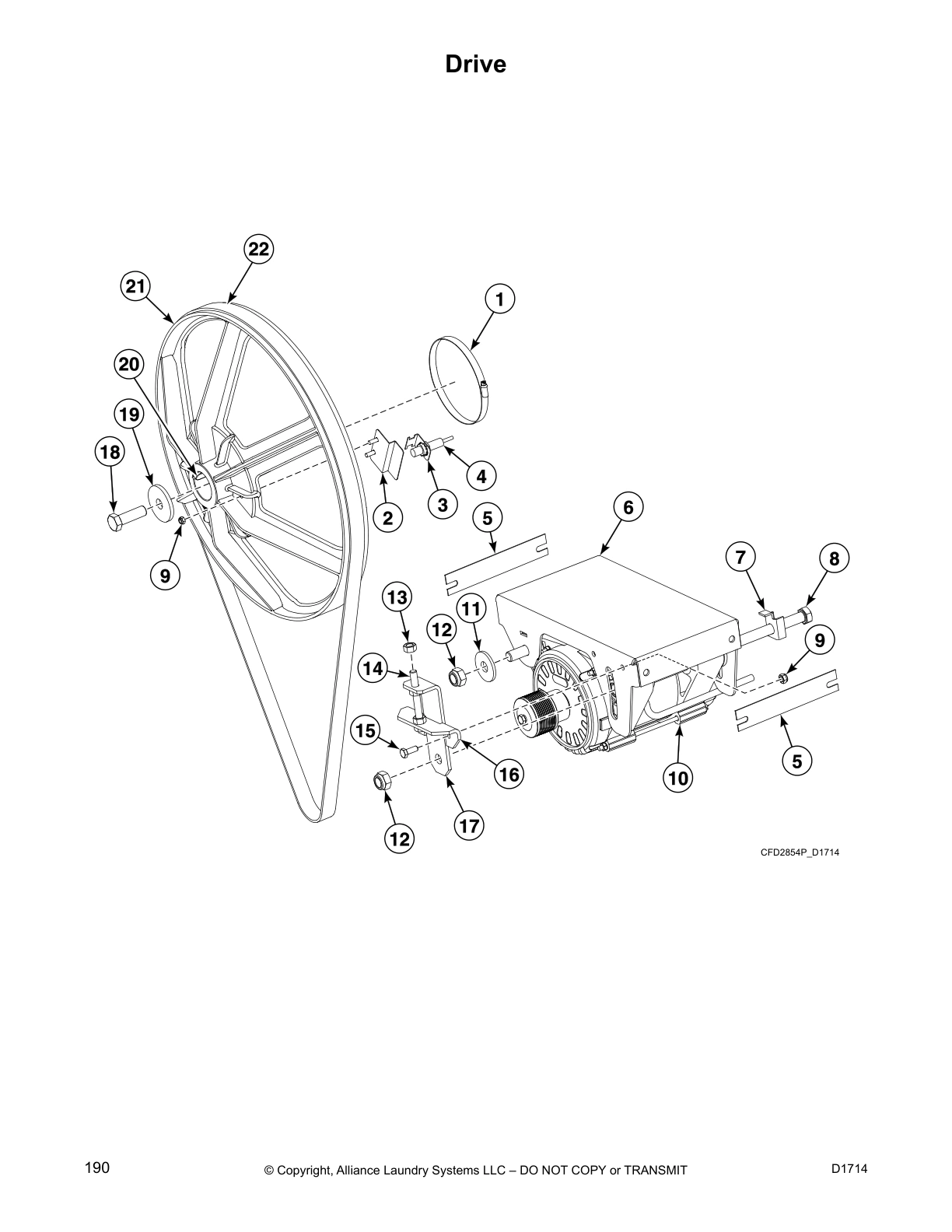

Drive

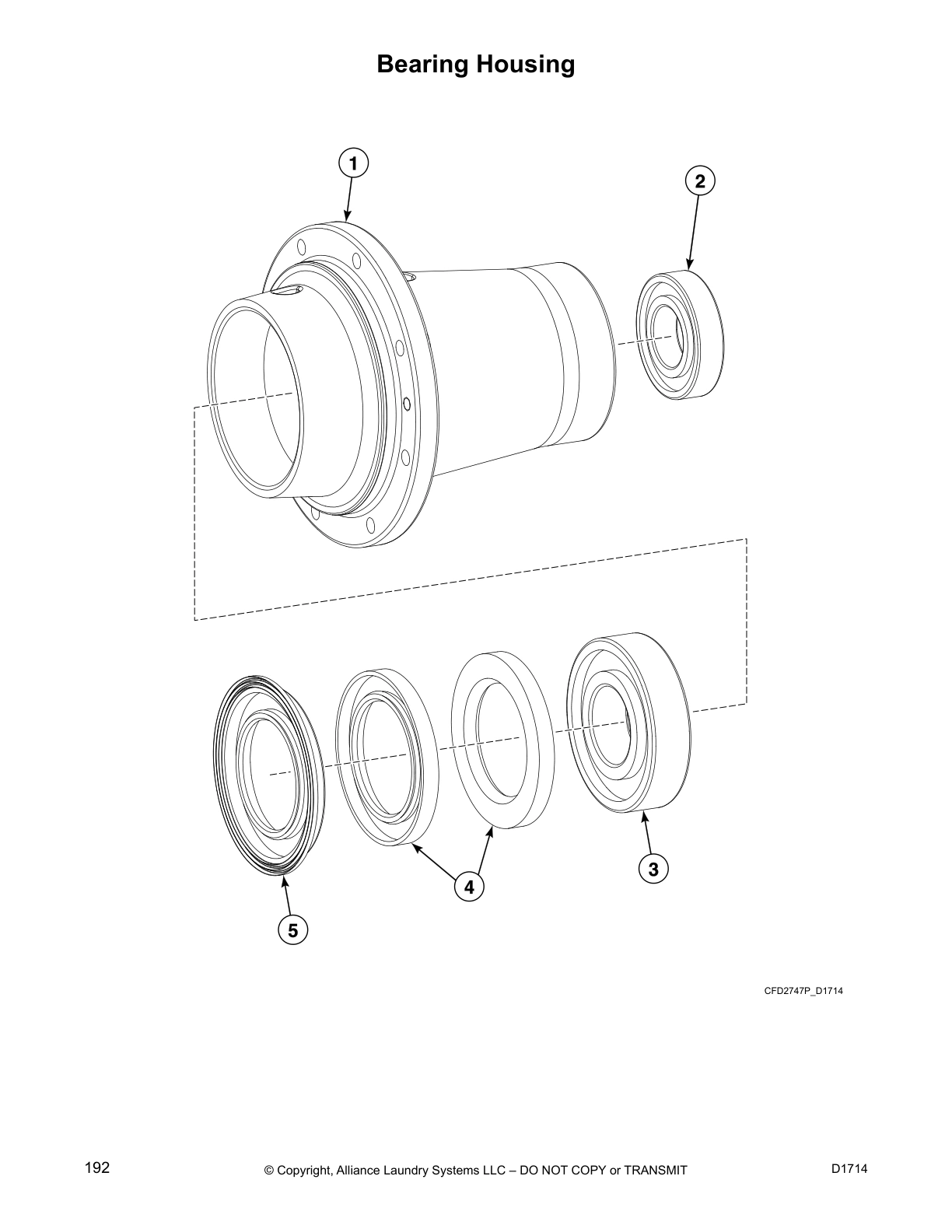

Bearing Housing

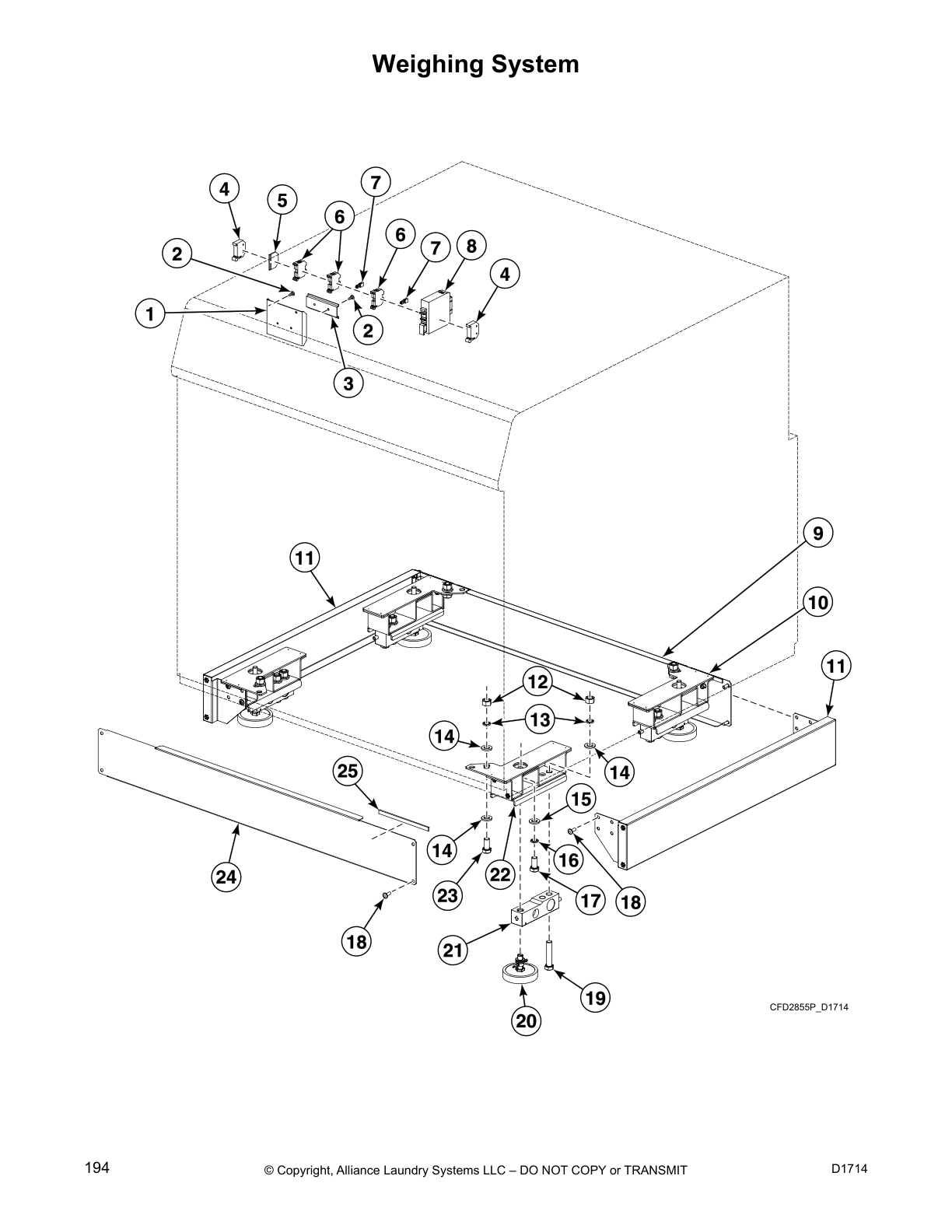

Weighing System

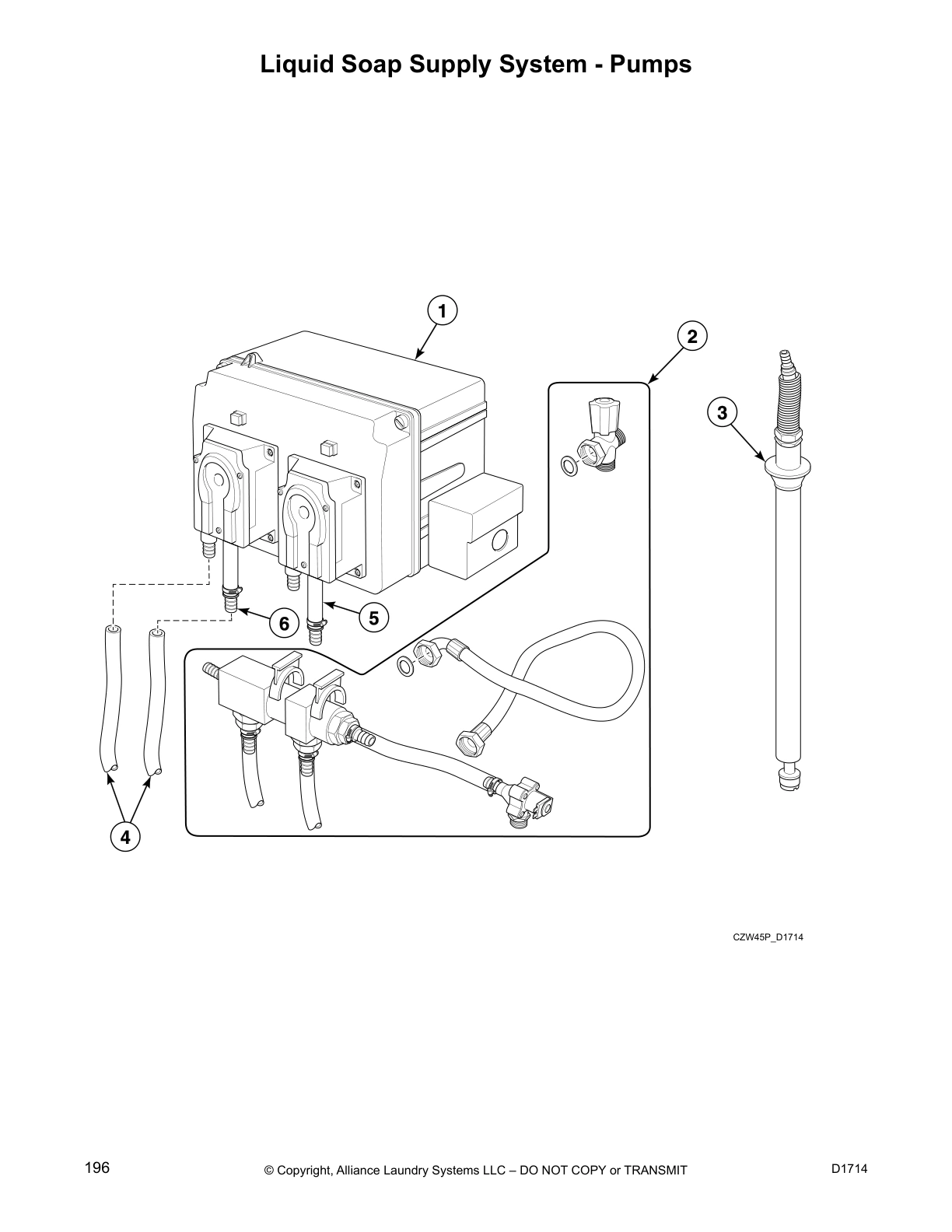

Liquid Soap Supply System - Pumps

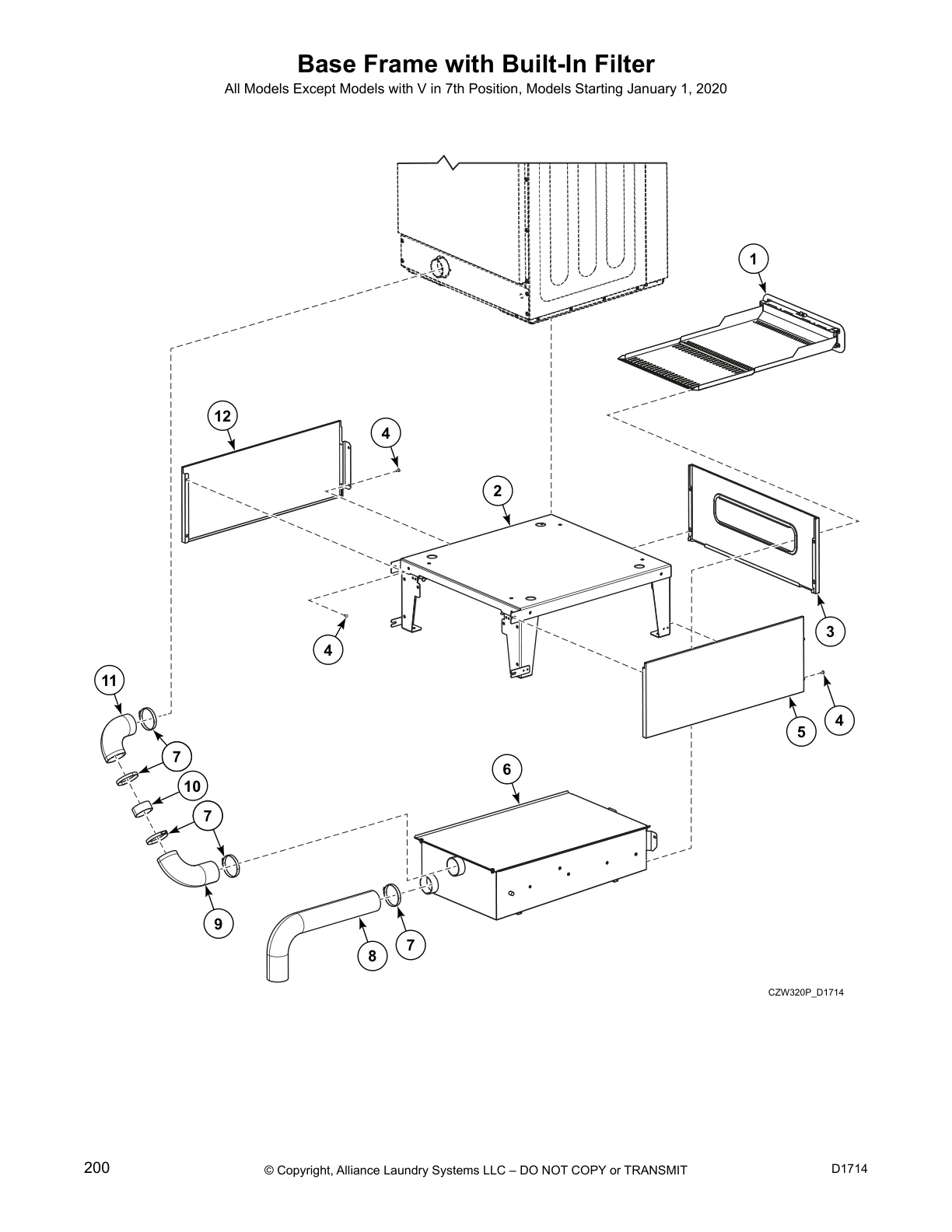

Base Frame with Built-In Filter

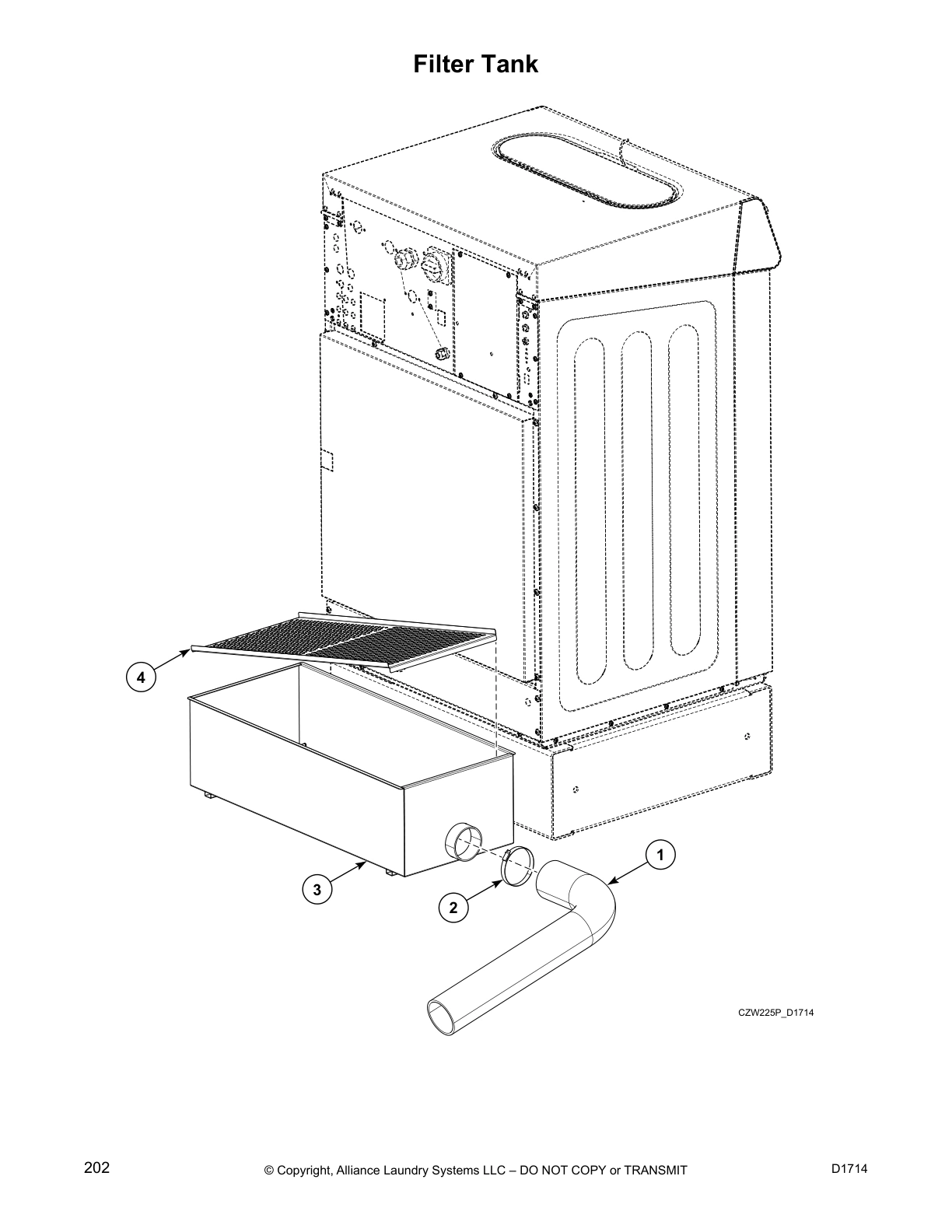

Filter Tank

Common parts from model Huebsch HYC180F Washer
