Model LG HU915QB – Common Parts & Diagrams

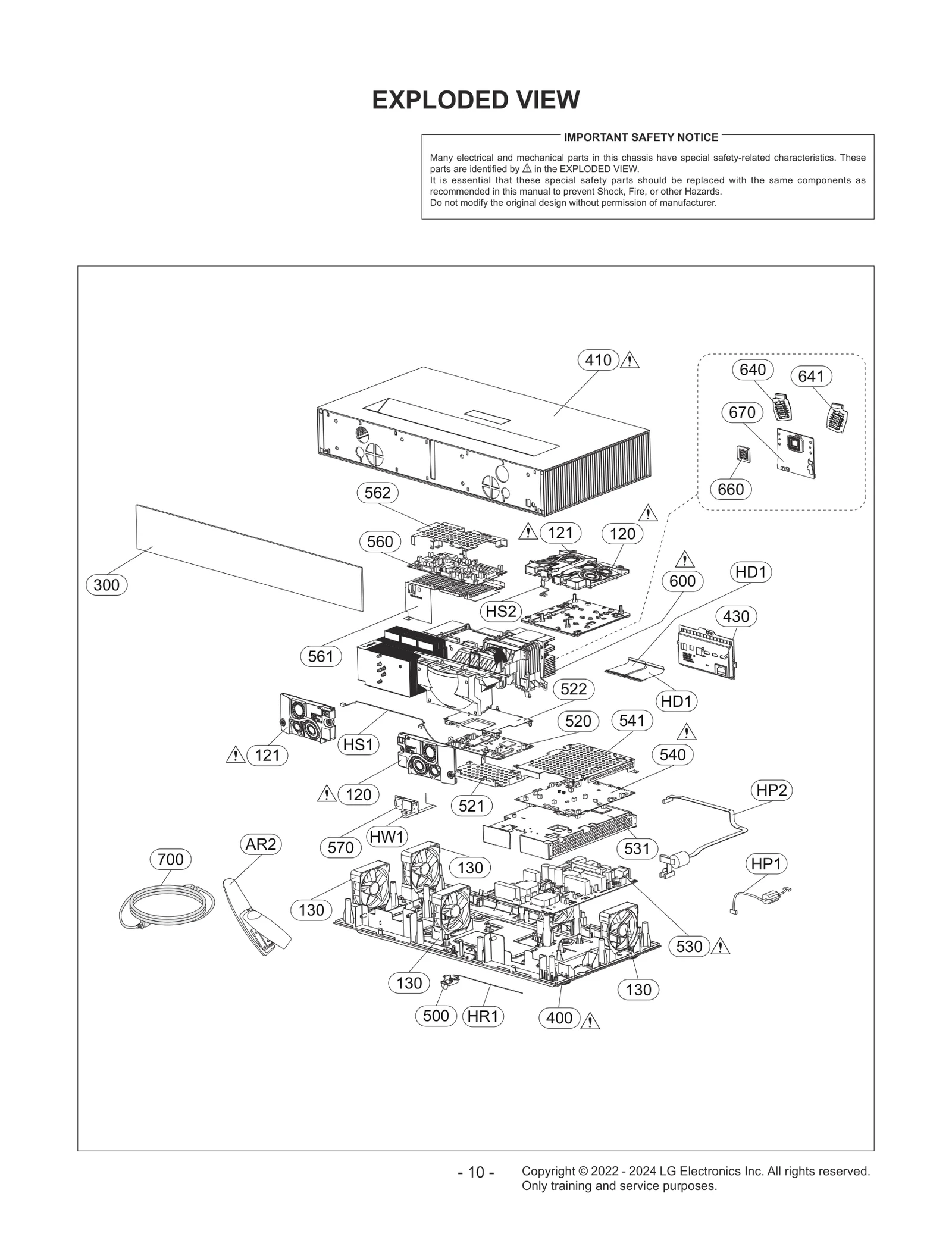

Diagram 0
Common parts from model LG HU915QB
121
Speaker Assembly LGE EAB65821502 Contact Us For Availability
300
Case Assembly LGE ABQ77201008 Contact Us For Availability
410
Case Assembly LGE ABQ77200806 Contact Us For Availability
430
Case LGE MBN66523004 Contact Us For Availability
500
PCB Assembly,IR Key LGE EBR31871803 Contact Us For Availability
520
Chassis Assembly LGE EBT66013708 Contact Us For Availability
521
Plate,Shield LGE MGJ66703202 Contact Us For Availability
522
Plate,Shield LGE MGJ66744502 Contact Us For Availability
530
Power Supply Assembly LGE EAY65428602 Contact Us For Availability
540
Chassis Assembly LGE EBT66963504 Contact Us For Availability
540
Chassis Assembly LGE EBT66963502 Contact Us For Availability
541
Plate,Shield LGE MGJ67406602 Contact Us For Availability
560
Chassis Assembly LGE EBT66448804 Contact Us For Availability
561
Plate,Shield LGE MGJ66744304 Contact Us For Availability
562
Plate,Shield LGE MGJ66703004 Contact Us For Availability
600
Chassis Assembly LGE EBT67483201 Contact Us For Availability
640
Chassis Assembly LGE EBT66111703 Contact Us For Availability
660
IC,ASIC LGE EAN65826401 Contact Us For Availability
660
IC,ASIC LGE EAN65826402 Contact Us For Availability
HP1
Harness,Single LGE EAD63206602 Contact Us For Availability
HP2
Harness,Single LGE EAD65958001 Contact Us For Availability
HR1
Harness,Single LGE EAD65851004 Contact Us For Availability
HS1
Harness,Multi LGE EAD65705223 Contact Us For Availability
HS2
Harness,Multi LGE EAD65705224 Contact Us For Availability
× ![]()
