Model LG HU85LA – Common Parts & Diagrams

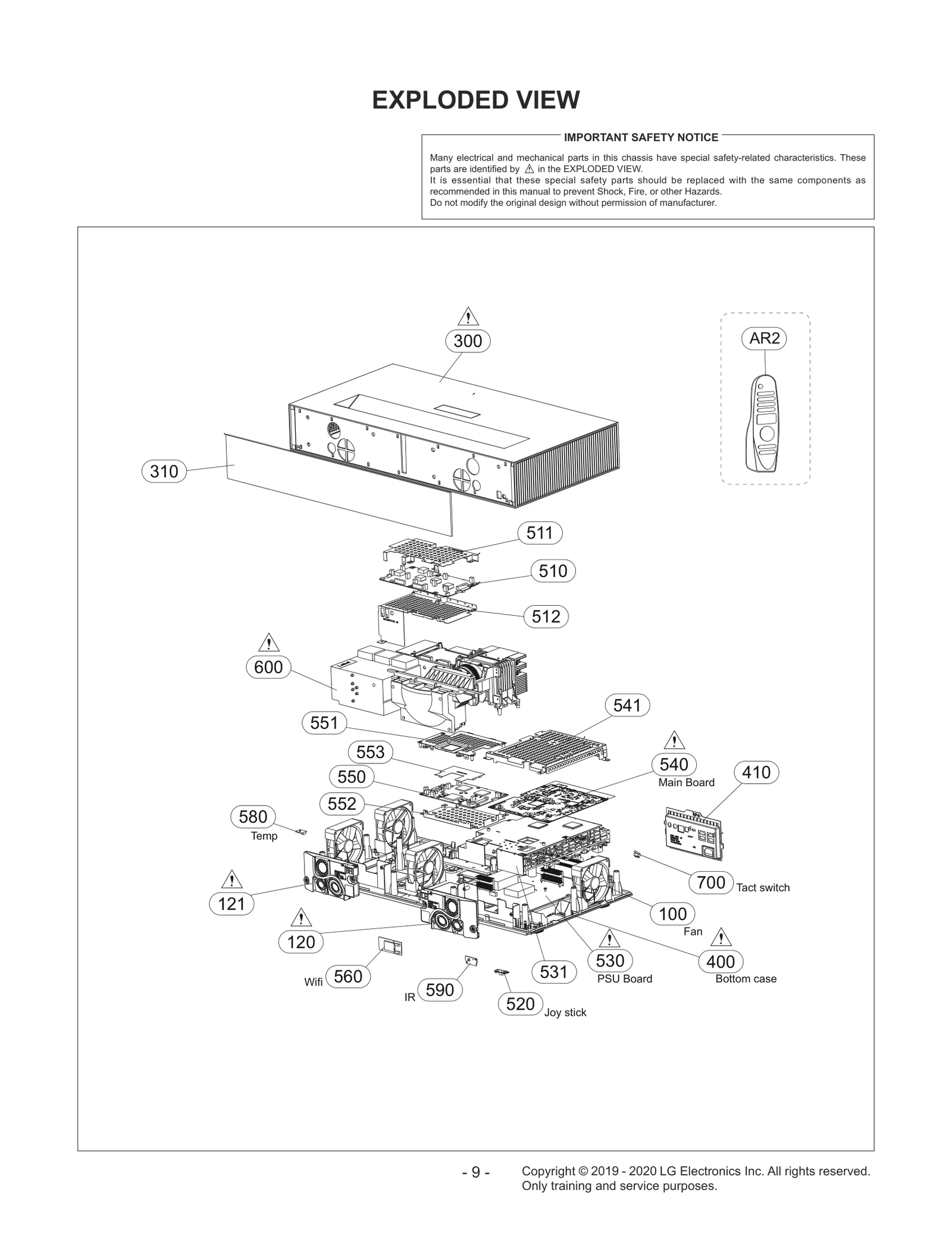

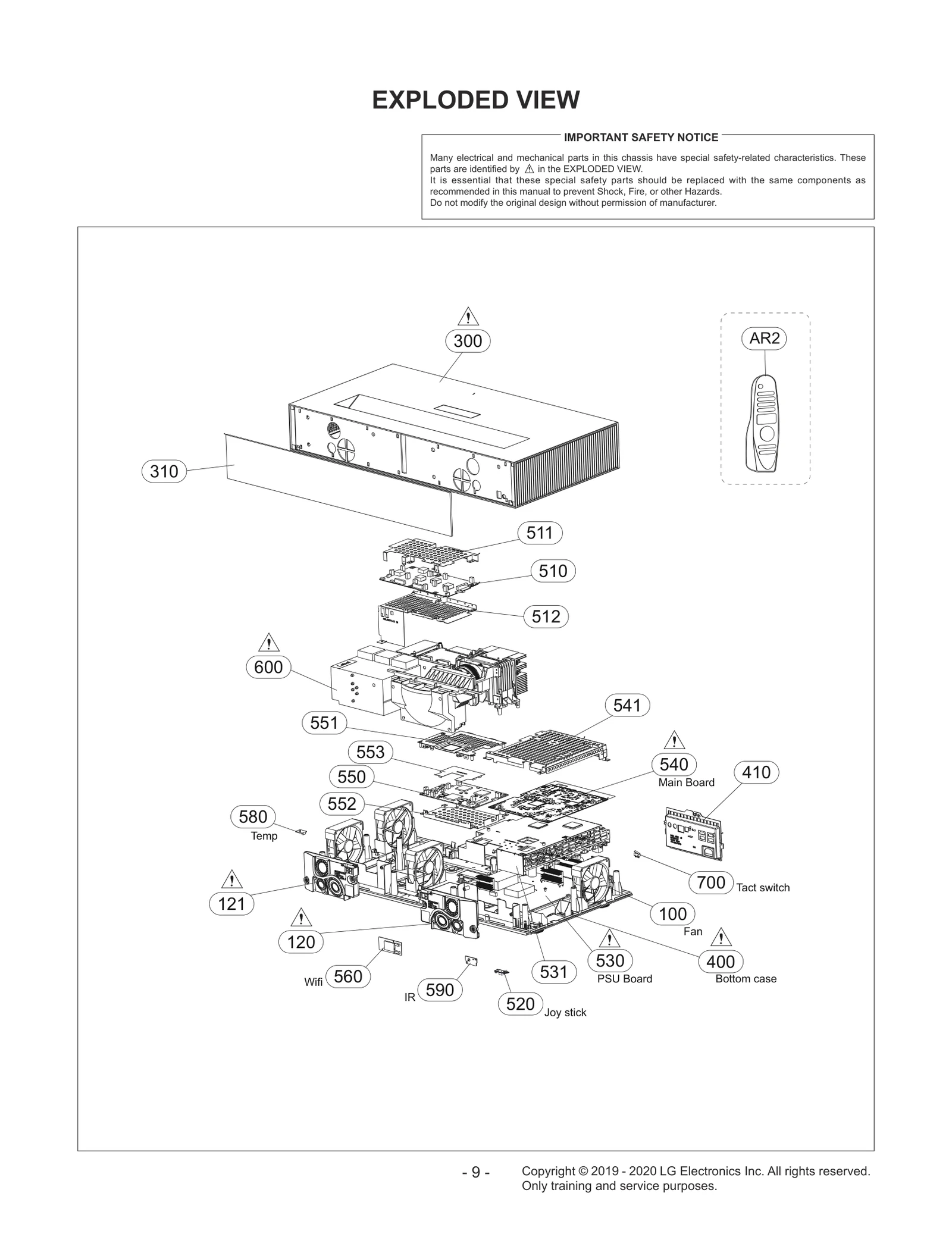

Diagram 0
Diagram 1
Common parts from model LG HU85LA
100
Bracket Assembly LGE ABA73268504 Contact Us For Availability
121
Speaker Assembly LGE EAB64488802 Contact Us For Availability
300
Case Assembly LGE ABQ77200801 Contact Us For Availability
400
Case Assembly LGE ABQ77180501 Contact Us For Availability
410
Case LGE MBN66003702 Contact Us For Availability
510
Sub PCBA,BPR Total Assembly LGE EBU64982401 Contact Us For Availability
511
Plate,Shield LGE MGJ66703001 Contact Us For Availability
520
Chassis Assembly LGE EBT64773902 Contact Us For Availability
530
Power Supply Assembly LGE EAY65428601 Contact Us For Availability
531
Plate,Shield LGE MGJ66681701 Contact Us For Availability
540
BPR Total Assembly LGE EBU65804201 Contact Us For Availability
541
Plate,Shield LGE MGJ66744401 Contact Us For Availability
550
Chassis Assembly LGE EBT66013701 Contact Us For Availability
550
BPR Total Assembly LGE EBU64962601 Contact Us For Availability
552
Plate,Shield LGE MGJ66703201 Contact Us For Availability
600
Lens Assembly LGE AFD74370602 Contact Us For Availability
600
LGE MEZ38075828 LGE MEZ38075828 Contact Us For Availability
600
Lens Assembly LGE AFD74370604 Contact Us For Availability
640
Chassis Assembly LGE EBT66111703 Contact Us For Availability
660
IC,ASIC LGE EAN65826402 Contact Us For Availability
700
Switch,Micro LGE EBF61954501 Contact Us For Availability
A3
Power Cord,Detach LGE EAD64005902 Contact Us For Availability
AR2
Remote Controller Assembly LGE AKB75735303 Contact Us For Availability
S1
Harness,Multi LGE EAD63727329 Contact Us For Availability
S2
Harness,Single LGE EAD65305503 Contact Us For Availability
S3
Harness,Single LGE EAD64126109 Contact Us For Availability
S4
Harness,Single LGE EAD60732912 Contact Us For Availability
S5
Cable,FFC LGE EAD61670724 Contact Us For Availability
S7
Harness,Single LGE EAD63206602 Contact Us For Availability
× ![]()
