Model LG HU710PW – Common Parts & Diagrams

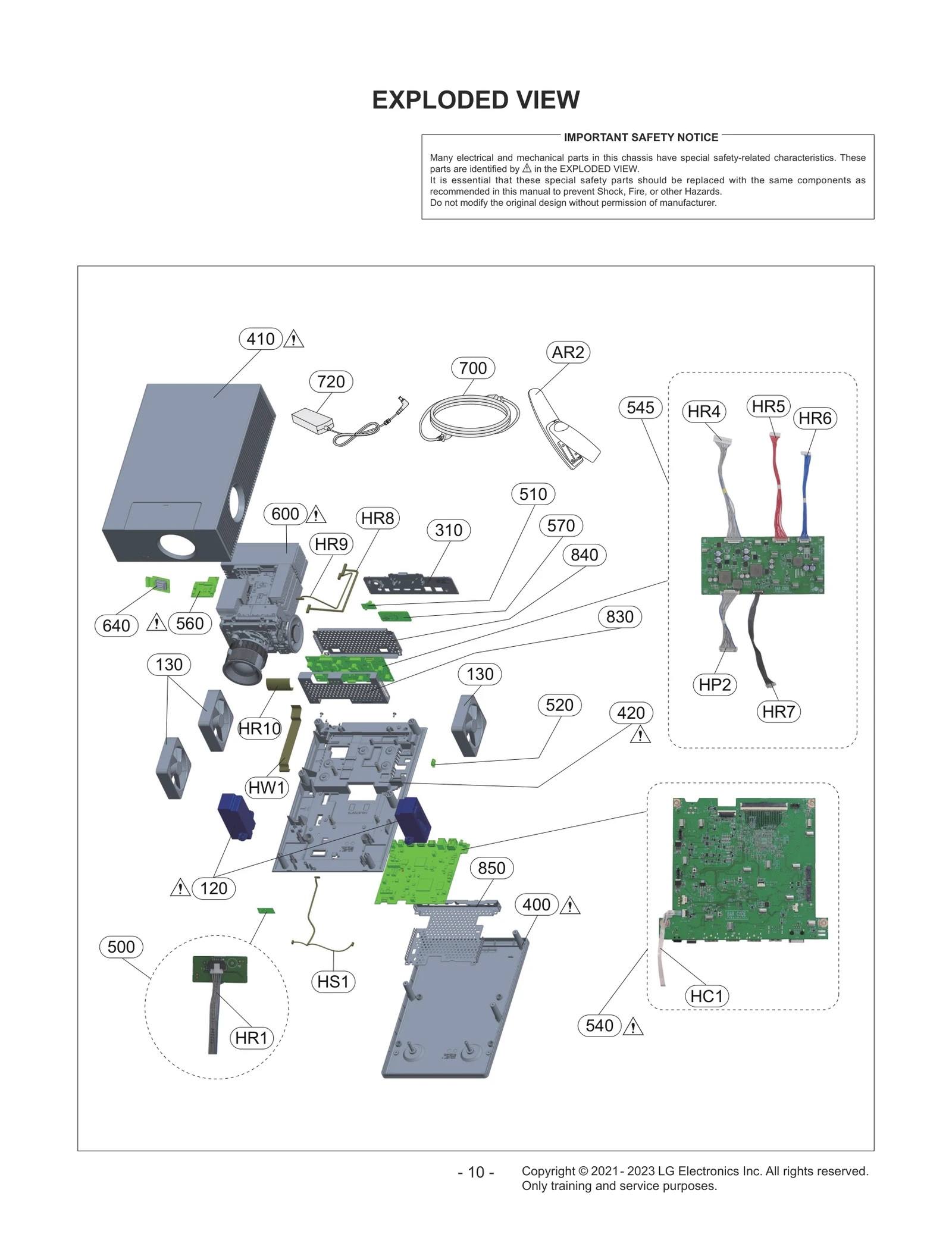

Diagram 0
Common parts from model LG HU710PW
120
Speaker Assembly LGE EAB65825801 Contact Us For Availability
130
Bracket Assembly LGE ABA73268505 Contact Us For Availability
310
Case Assembly,Top LGE ABQ30115202 Contact Us For Availability
400
Case Assembly,Top LGE ABQ30115102 Contact Us For Availability
500
Chassis Assembly LGE EBT66831701 Contact Us For Availability
510
Chassis Assembly LGE EBT66786701 Contact Us For Availability
520
Switch,Micro LGE EBF61954501 Contact Us For Availability
545
Chassis Assembly LGE EBT66786002 Contact Us For Availability
560
Chassis Assembly LGE EBT66786201 Contact Us For Availability
600
Chassis Assembly LGE EBT66786902 Contact Us For Availability
640
Chassis Assembly LGE EBT66910702 Contact Us For Availability
700
Power Cord,Detach LGE EAD63785902 Contact Us For Availability
720
Adapters LGE EAY65068601 Contact Us For Availability
830
Plate,Shield LGE MGJ67297702 Contact Us For Availability
HC1
Cable,FFC LGE EAD61670729 Contact Us For Availability
HP2
Harness,Single LGE EAD64666703 Contact Us For Availability
HR1
Harness,Single LGE EAD63970903 Contact Us For Availability
HR4
Harness,Single LGE EAD64666704 Contact Us For Availability
HR5
Harness,Single LGE EAD65932801 Contact Us For Availability
HR6
Harness,Single LGE EAD65932701 Contact Us For Availability
HR7
Harness,Single LGE EAD64808703 Contact Us For Availability
HR8
Harness,Single LGE EAD64126102 Contact Us For Availability
HR9
Harness,Single LGE EAD64030001 Contact Us For Availability
HR10
PCB,Flexible LGE EAX69598401 Contact Us For Availability
HW1
Cable,FFC LGE EAD65825846 Contact Us For Availability
× ![]()
