Model LG HU710PB – Common Parts & Diagrams

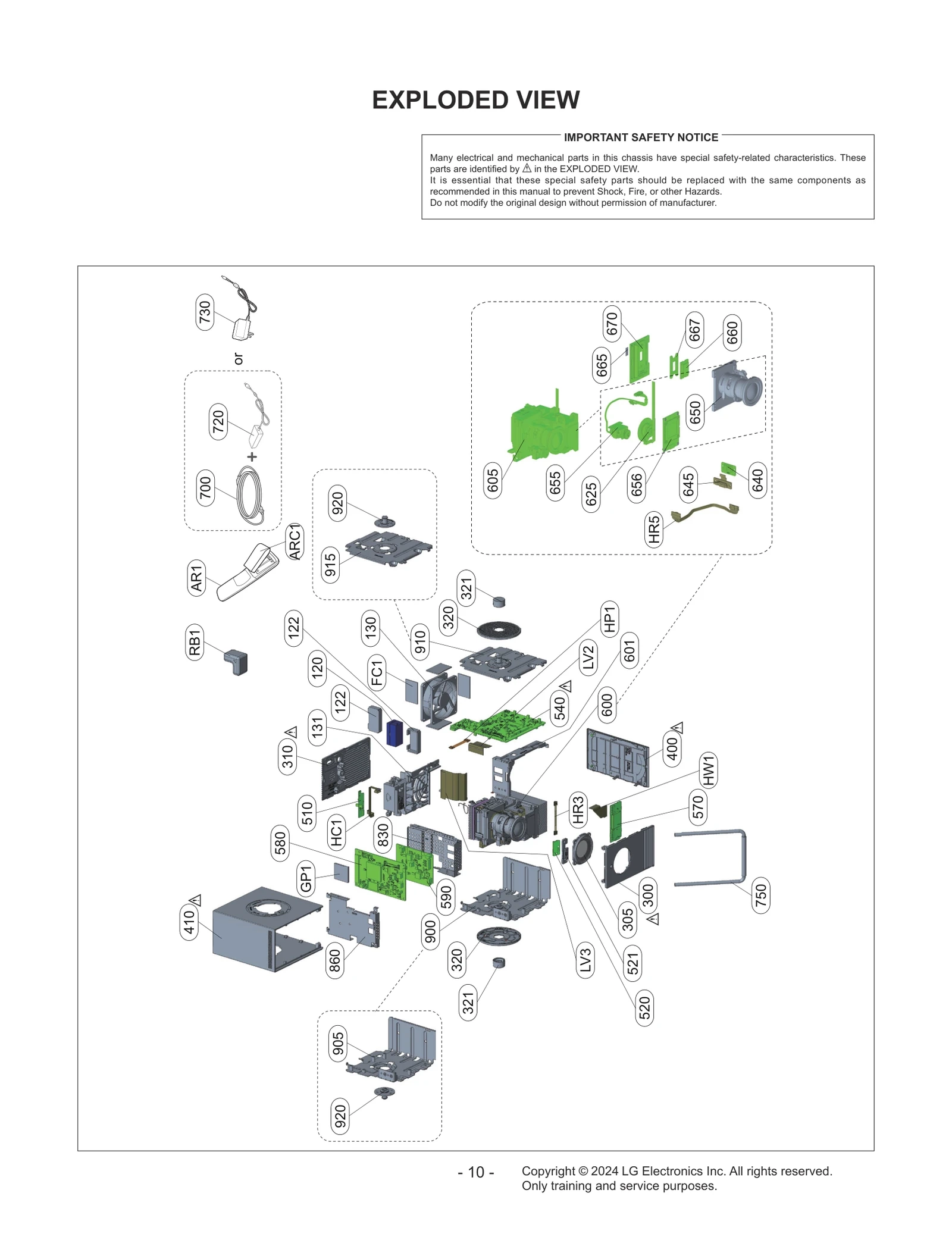

Diagram 0
Common parts from model LG HU710PB
122
Gasket LGE MDS62005761 Contact Us For Availability
130
Fan Module LGE EAL44320706 Contact Us For Availability
131
Case LGE MBN66587601 Contact Us For Availability
300
Case Assembly LGE ABQ30279101 Contact Us For Availability
310
Case Assembly LGE ABQ30279201 Contact Us For Availability
310
Case Assembly LGE ABQ30279204 Contact Us For Availability
320
Cover Assembly LGE ACQ30670001 Contact Us For Availability
321
Cover LGE MCK71857901 Contact Us For Availability
400
Case Assembly LGE ABQ30279304 Contact Us For Availability
410
Case LGE MBN66587503 Contact Us For Availability
410
Case LGE MBN66587501 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR42271102 Contact Us For Availability
520
PCB Assembly,Sub LGE EBR42270002 Contact Us For Availability
521
Case Assembly LGE ABQ30279401 Contact Us For Availability
540
BPR Total Assembly LGE EBU67489502 Contact Us For Availability
580
BPR Total Assembly LGE EBU67489602 Contact Us For Availability
590
BPR Total Assembly LGE EBU67489702 Contact Us For Availability
640
LED Assembly LGE EAV63652430 Contact Us For Availability
655
Motor Assembly,DC,Stepping LGE EAU65099001 Contact Us For Availability
656
Filter LGE MDJ66350201 Contact Us For Availability
660
IC,ASIC LGE EAN66385301 Contact Us For Availability
665
Damper LGE MCQ70861802 Contact Us For Availability
667
Socket,IC LGE EAG65671501 Contact Us For Availability
670
Chassis Assembly LGE EBT67843001 Contact Us For Availability
700
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
750
Handle LGE MEB65437101 Contact Us For Availability
830
Plate,Shield LGE MGJ67560901 Contact Us For Availability
860
Plate,Shield LGE MGJ67561101 Contact Us For Availability
905
Plate,Shield LGE MGJ67560701 Contact Us For Availability
910
Plate Assembly LGE AGU30100601 Contact Us For Availability
915
Plate,Shield LGE MGJ67561201 Contact Us For Availability
920
Plate Assembly LGE AGU30098201 Contact Us For Availability
ARC1
Cover LGE MCK67552801 Contact Us For Availability
FC1
Gasket LGE MDS64155551 Contact Us For Availability
GP1
Damper LGE MCQ67366260 Contact Us For Availability
HC1
Cable,FFC LGE EAD61670734 Contact Us For Availability
HR5
Harness,Single LGE EAD64491603 Contact Us For Availability
HW1
Cable,FFC LGE EAD65825886 Contact Us For Availability
LV2
Cable,FFC LGE EAD63925103 Contact Us For Availability
LV3
Cable,FFC LGE EAD65959207 Contact Us For Availability
× ![]()
