Model LG HT762PZ – Common Parts & Diagrams
Diagram 0
Diagram 1

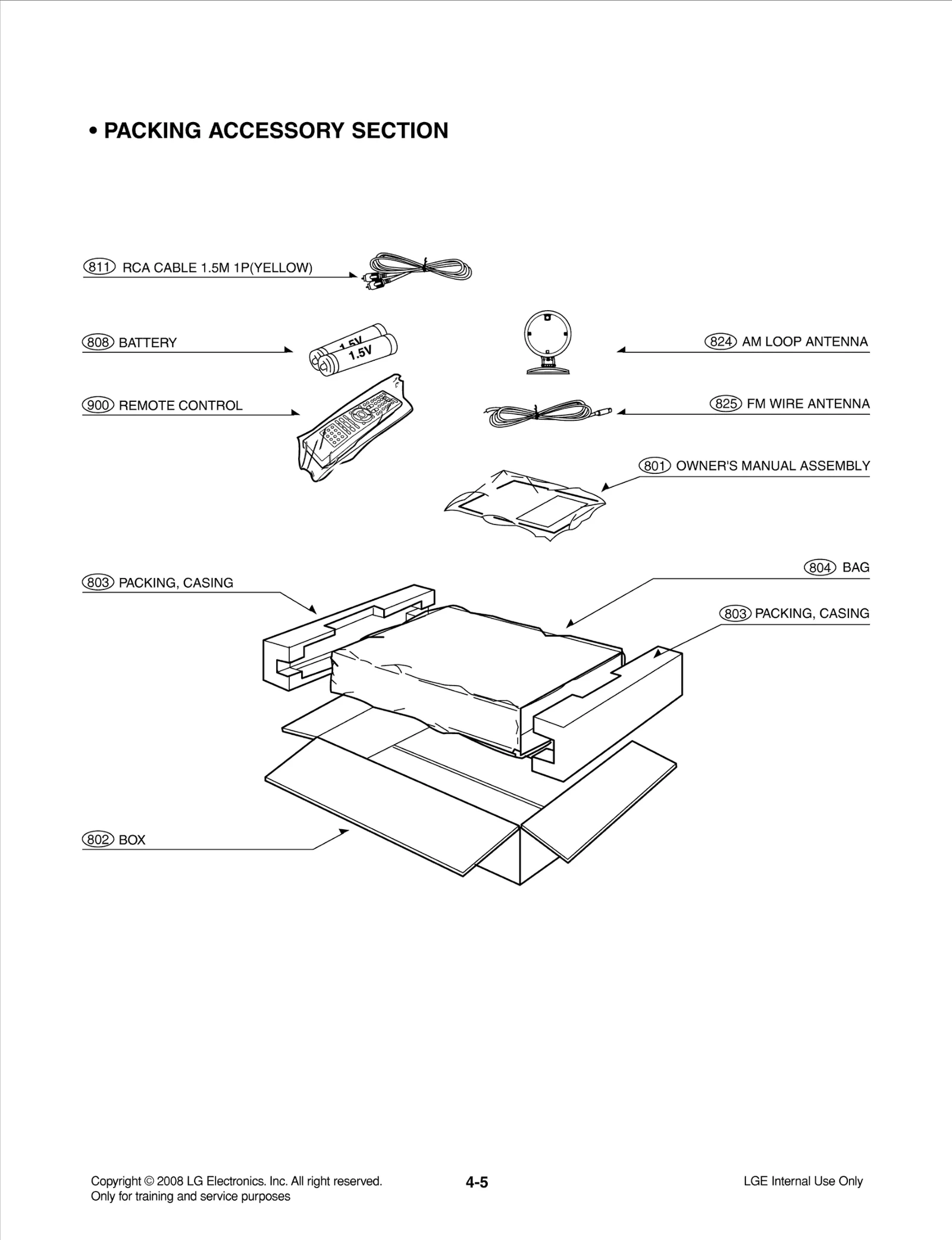

Diagram 2

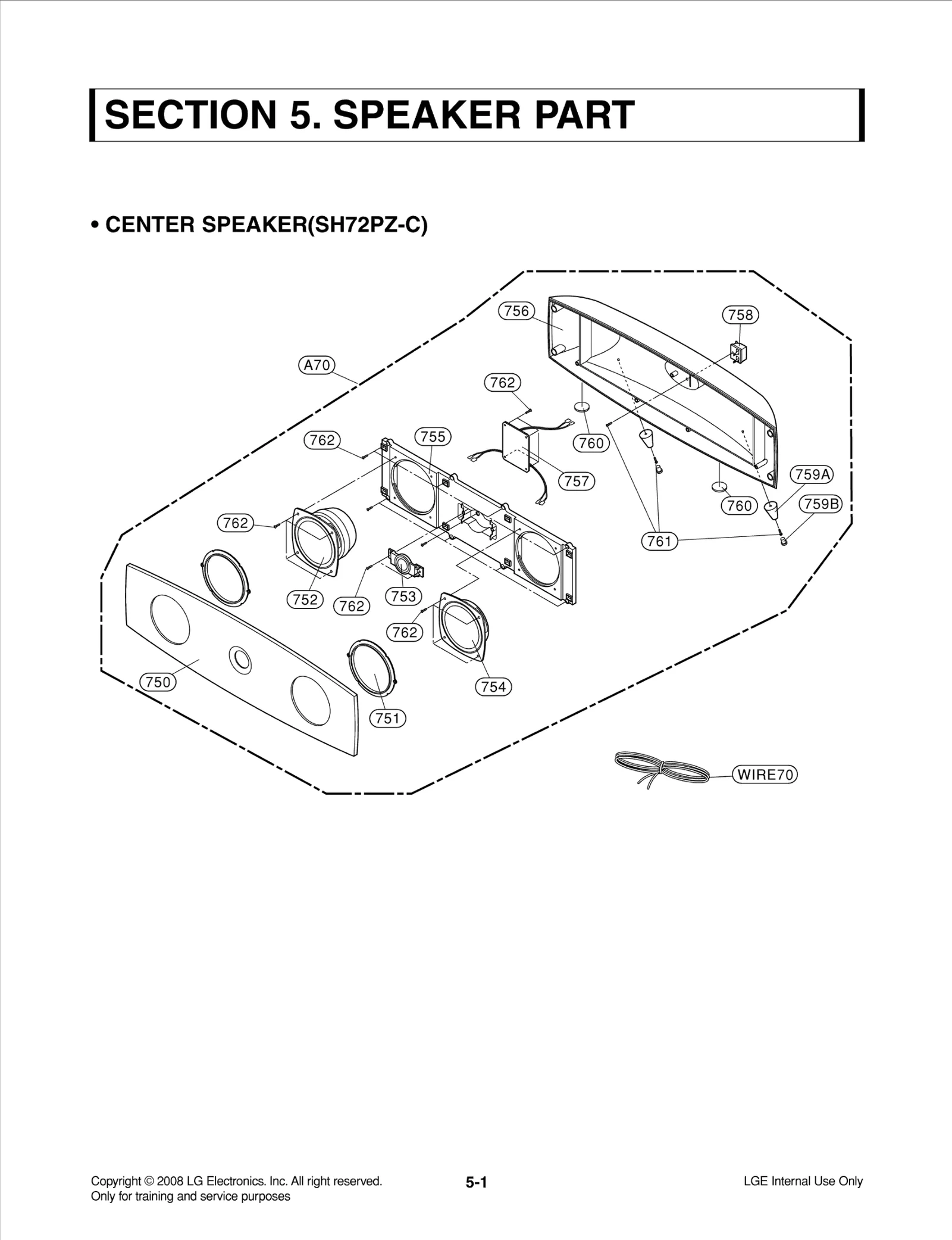

Diagram 3

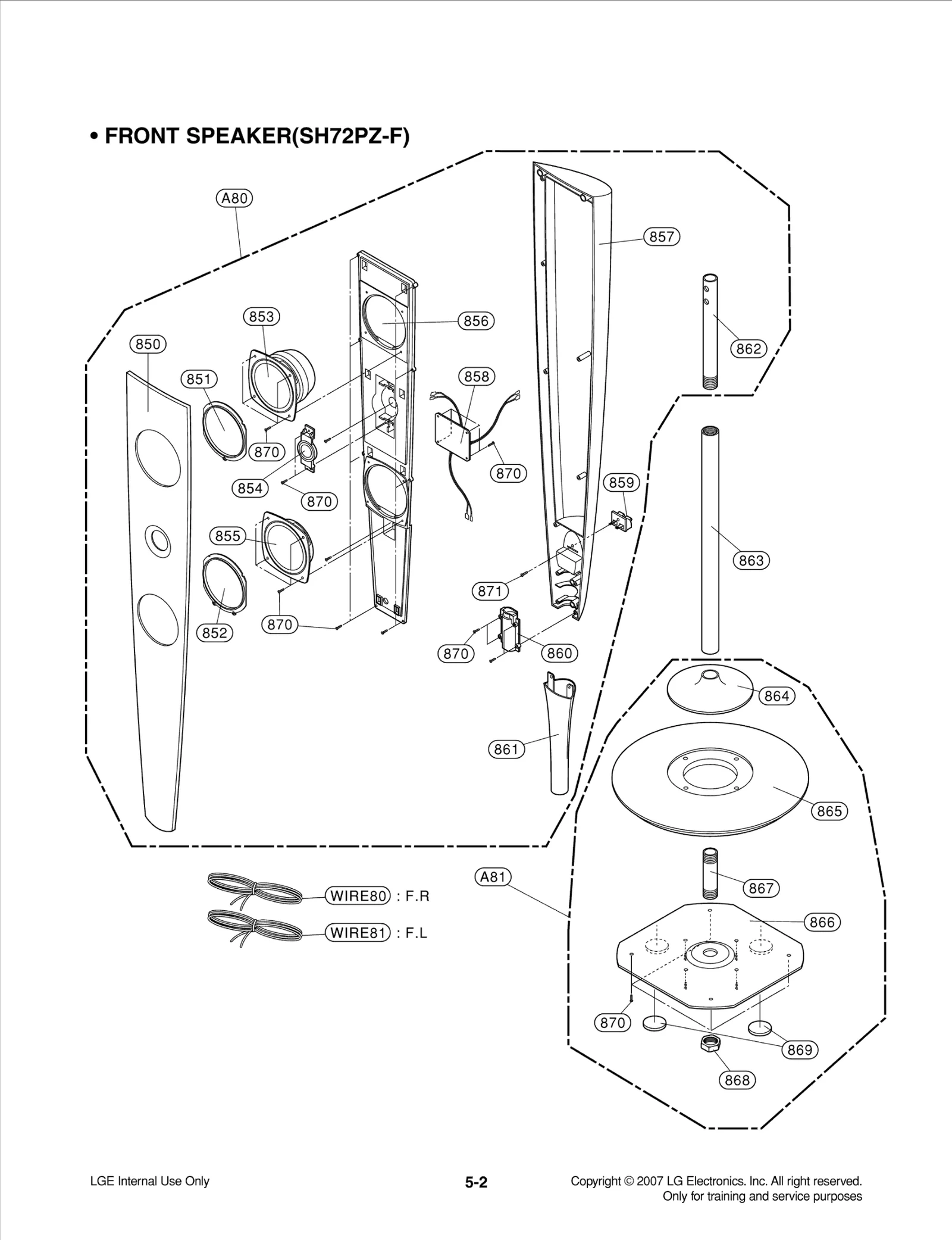

Diagram 4

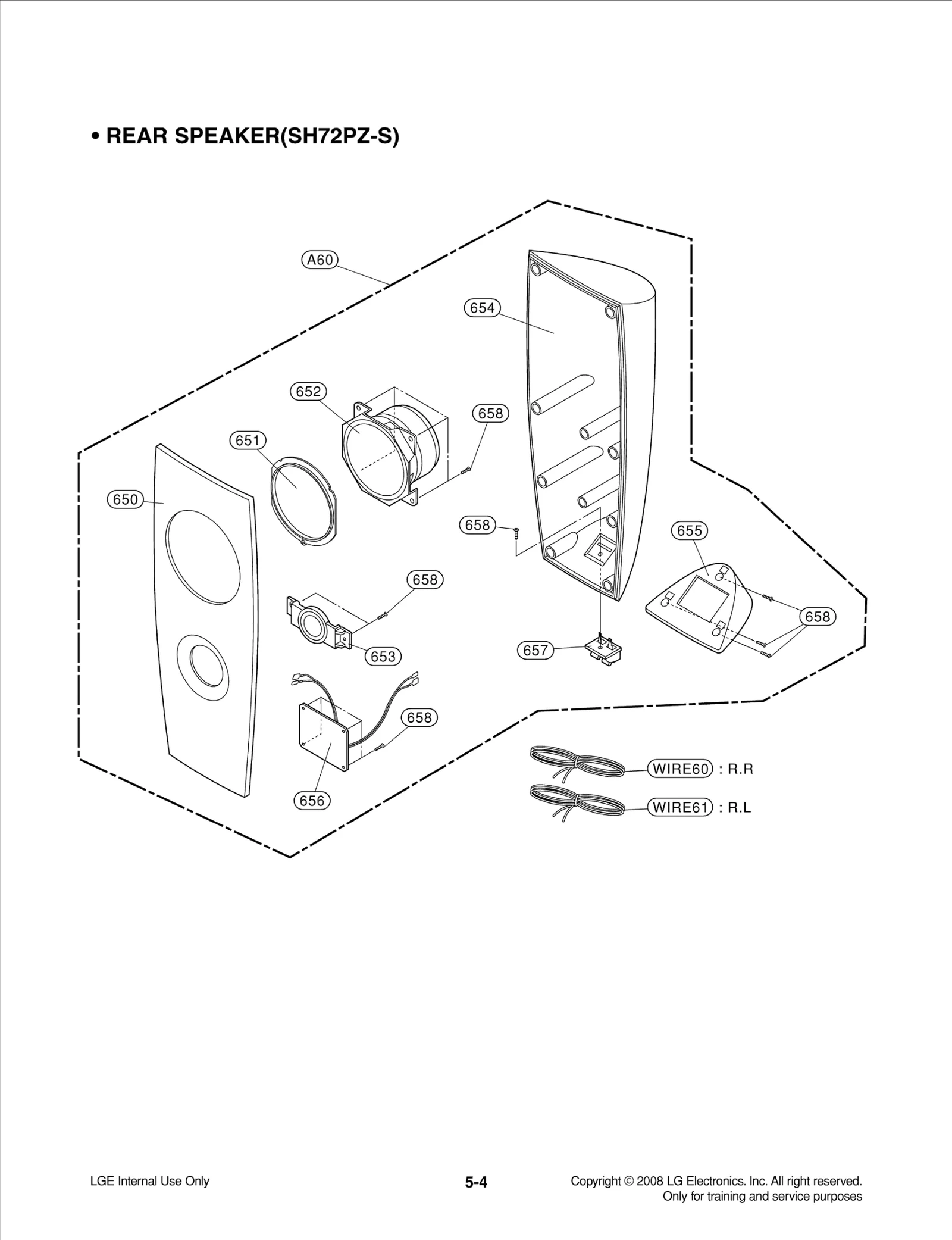

Diagram 5

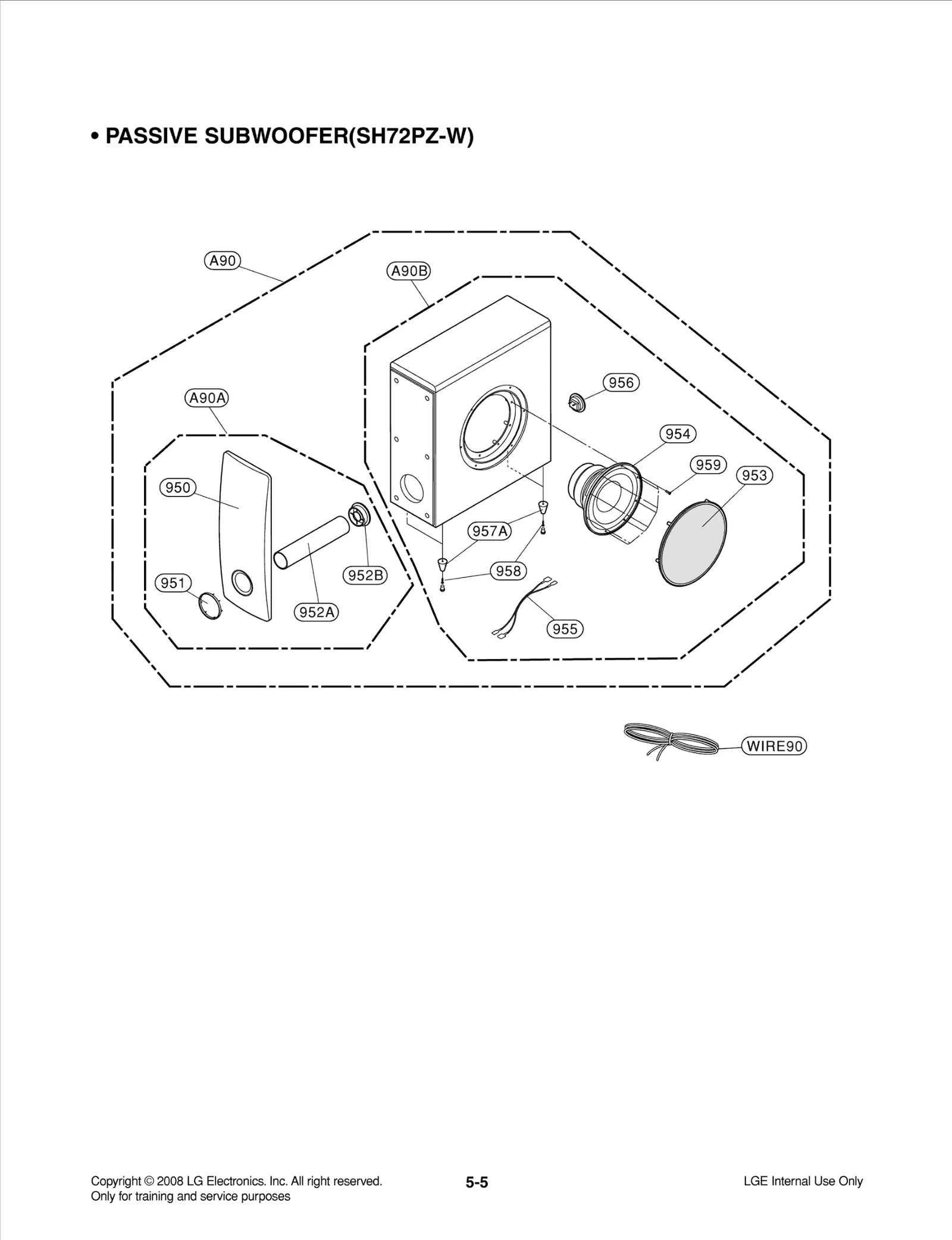

Diagram 6
Diagram 7
Common parts from model LG HT762PZ
001
Plate LGE MGJ38556601 Contact Us For Availability
002
Magnet,Ferrite LGE RAB30611501 Contact Us For Availability
003
Clamp LGE MBU38556801 Contact Us For Availability
010
CABLE,FLAT LGE 6850R-JW14B Contact Us For Availability
012
Damper LGE MCQ41263801 Contact Us For Availability
012A
Damper LGE MCQ38556901 Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0154A Contact Us For Availability
015
Motor Assembly,DC LGE 4681R-A015D Contact Us For Availability
015A
Motor,DC LGE EAU43506801 Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
016
PCB Assembly LGE 6871R-9297L Contact Us For Availability
017
GEAR LGE 4470R-0176A Contact Us For Availability
018
GUIDE LGE 4974R-0067A Contact Us For Availability
019
Frame LGE MDQ39573201 Contact Us For Availability
020
Base LGE MAM39572801 Contact Us For Availability
026
TRAY LGE 3390R-0032A Contact Us For Availability
037
Pick Up Assembly LGE EAZ38802501 Contact Us For Availability
250
Case LGE MBN32696901 Contact Us For Availability
260
Chassis LGE MBS32696701 Contact Us For Availability
261
RUBBER LGE 5040R-5040D Contact Us For Availability
265
Fan Module LGE 5900R-D004G Contact Us For Availability
273
PLATE LGE 3300R-V127A Contact Us For Availability
274
Sheet LGE MHK34309301 Contact Us For Availability
275
PLATE LGE 3300RCH001B Contact Us For Availability
276
Holder LGE MEG39688601 Contact Us For Availability
279
Knob LGE MEY39687101 Contact Us For Availability
280
Panel Assembly,Front LGE AGL34515132 Contact Us For Availability
280A
Door Assembly LGE ADC34516201 Contact Us For Availability
283
Door LGE MCV39687701 Contact Us For Availability
300
Power Cord Assembly LGE 6410RAHK06B Contact Us For Availability
320
Panel,Rear LGE MGC32697148 Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
439
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
440
SCREW, LGE 1SZZH-1007B Contact Us For Availability
442
Screw,Taptite LGE FAB30124101 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
466
Screw,Customized LGE 1SZZR-0098V Contact Us For Availability
469
Screw,Customzied LGE 353-022S Contact Us For Availability
650
Panel,Front LGE MGC40345401 Contact Us For Availability
651
Decor LGE MCR40357701 Contact Us For Availability
652
Speaker,Woofer LGE EAB40195602 Contact Us For Availability
653
Speaker,Tweeter LGE EAB40093401 Contact Us For Availability
654
Case LGE MBN40348401 Contact Us For Availability
655
Base LGE MAM40348601 Contact Us For Availability
656
PCB Assembly,Sub LGE EBR41792201 Contact Us For Availability
657
PCB Assembly,Jack LGE 6871RJ0001B Contact Us For Availability
658
SCREW,DRAWING LGE 353M025C Contact Us For Availability
750
Decor LGE MCR39204801 Contact Us For Availability
751
Decor LGE MCR39205901 Contact Us For Availability
755
Panel,Front LGE MGC39204601 Contact Us For Availability
756
Case LGE MBN39201101 Contact Us For Availability
757
PCB Assembly,Sub LGE EBR40253301 Contact Us For Availability
759A
Foot LGE MDP39206801 Contact Us For Availability
759B
Foot LGE MDP40752901 Contact Us For Availability
760
Foot LGE MDP40752902 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN65656338 Contact Us For Availability
802
Box,Master LGE MAY42941596 Contact Us For Availability
803
Packing LGE MFZ34189169 Contact Us For Availability
804
Bag LGE MAF37454601 Contact Us For Availability
808
Battery,Manganese LGE EAC35678601 Contact Us For Availability
811
Cable,Assembly LGE 6850R-PAA5M Contact Us For Availability
824
Antenna,Loop LGE 5010R-L004C Contact Us For Availability
825
Antenna,T LGE 5010R-T001D Contact Us For Availability
850
Decor LGE MCR39204701 Contact Us For Availability
851
Decor LGE MCR39205401 Contact Us For Availability
852
Decor LGE MCR39205402 Contact Us For Availability
853
Speaker,Woofer LGE EAB40195601 Contact Us For Availability
855
Decor LGE MCR40774901 Contact Us For Availability
856
Panel,Front LGE MGC39370401 Contact Us For Availability
857
Case LGE MBN39199101 Contact Us For Availability
858
PCB Assembly,Sub LGE EBR40253302 Contact Us For Availability
859
PCB Assembly,Jack LGE 6871RJ0001L Contact Us For Availability
860
Holder LGE MEG39206701 Contact Us For Availability
861
Decor LGE MCR39205701 Contact Us For Availability
862
Frame LGE MDQ40336201 Contact Us For Availability
863
Frame LGE MDQ40336001 Contact Us For Availability
864
Decor LGE MCR39205801 Contact Us For Availability
865
Base LGE MAM39204901 Contact Us For Availability
866
Base LGE MAM39205201 Contact Us For Availability
867
Frame LGE MDQ40336301 Contact Us For Availability
868
Nut,Common LGE FAD30146601 Contact Us For Availability
869
Foot LGE MDP40752903 Contact Us For Availability
870
SCREW,DRAWING LGE 353M025K Contact Us For Availability
900
Remote Controller Assembly LGE AKB54088001 Contact Us For Availability
950
Panel,Front LGE MGC39201301 Contact Us For Availability
951
Decor LGE MCR39206301 Contact Us For Availability
952A
Duct LGE MCZ40773201 Contact Us For Availability
952B
Duct LGE MCZ39326301 Contact Us For Availability
953
Frame Assembly LGE ADV35070501 Contact Us For Availability
954
Speaker,Tweeter LGE 6400WBHM04A Contact Us For Availability
955
PCB Assembly,Sub LGE 6871RU0079A Contact Us For Availability
956
PCB Assembly,Sub LGE 6871RJ0001C Contact Us For Availability
957A
Foot LGE MDP39206901 Contact Us For Availability
958
Screw,Customized LGE 353M075R Contact Us For Availability
959
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
A01
Clamp Assembly LGE ACA34280801 Contact Us For Availability
A02
Base Assembly LGE 3041R-T010N Contact Us For Availability
A03
Base Assembly LGE 3041R-T011H Contact Us For Availability
A41
PCB Assembly LGE EBR39887504 Contact Us For Availability
A43
Board Assembly LGE AAX34515036 Contact Us For Availability
A44
Frame Assembly LGE ADV34515248 Contact Us For Availability
A45
Option Code Assembly LGE EBR39919309 Contact Us For Availability
A46
Option Code Assembly LGE EBR39919279 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR34172352 Contact Us For Availability
A50
PCB Assembly LGE EBR39895201 Contact Us For Availability
A60
Speaker Assembly LGE EAB41791401 Contact Us For Availability
A70
Speaker Assembly LGE EAB40297601 Contact Us For Availability
A80
Speaker Assembly LGE EAB40297301 Contact Us For Availability
A81
Speaker Assembly LGE EAB40297501 Contact Us For Availability
A90
Speaker Assembly LGE EAB40297701 Contact Us For Availability
A90A
Panel Assembly LGE AGL35070401 Contact Us For Availability
A90B
Cover Assembly LGE ACQ34983701 Contact Us For Availability
BD901
Diode,Bridge LGE EAH30307602 Contact Us For Availability
C2D4
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C2G3
Capacitor,Ceramic,Axial LGE 0CN6820F669 Contact Us For Availability
C2G9
Capacitor,Ceramic,Axial LGE 0CX5600K409 Contact Us For Availability
C3A2
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C4D4
Capacitor,AL,Radial LGE 0CE3376F638 Contact Us For Availability
C4E4
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C4E8
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C4F8
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C4G1
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C4G4
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C4H1
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C7B7
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C7B9
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C7C2
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C7D5
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C7E4
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C7F9
Capacitor,AL,Radial LGE 0CE1063K638 Contact Us For Availability
C7G4
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C7H2
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C103
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C111
Capacitor,AL,Radial LGE 0CE4743K638 Contact Us For Availability
C114
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C117
Capacitor,Ceramic,Chip LGE 0CH1472K512 Contact Us For Availability
C202
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C211
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C219
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C223
Capacitor,Ceramic,Chip LGE 0CH1471K562 Contact Us For Availability
C250
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C313
CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability
C409
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C419
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C431
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C445
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C501
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C502
Capacitor,Ceramic,Chip LGE 0CH1154K946 Contact Us For Availability
C512
Capacitor,Ceramic,Chip LGE 0CH4120K412 Contact Us For Availability
C513
Capacitor,Ceramic,Chip LGE 0CH4200K412 Contact Us For Availability
C514
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CH4080K112 Contact Us For Availability
C562
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C578
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C580
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C585
Capacitor,Ceramic,Chip LGE 0CH4820K412 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C597
Capacitor,Ceramic,Chip LGE 0CH1681K562 Contact Us For Availability
C620
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
C741
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C785
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE4763H638 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CZZR00011H Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CE476CV611 Contact Us For Availability
C906
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C907
CAPACITOR LGE 624-087B Contact Us For Availability
C912
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C913
Capacitor,Film,DIP LGE 0CQ4721N409 Contact Us For Availability
C915
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C917
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C918
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C919
Capacitor,Film,DIP LGE 0CQ1021N409 Contact Us For Availability
C921
Capacitor,Film,DIP LGE 0CQ3911N449 Contact Us For Availability
C932
Capacitor,AL,Radial LGE 0CE337CH618 Contact Us For Availability
C933
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C934
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C935
Capacitor,AL,Radial LGE 0CE1076H618 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C937
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C938
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C939
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C944
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C952
CAPACITOR LGE 624-087D Contact Us For Availability
C954
Capacitor,AL,Radial LGE 0CE228ZK610 Contact Us For Availability
C955
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD42219402 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD35632101 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD35201502 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD35201302 Contact Us For Availability
CF4D4
Filter,Line Noise LGE 6200J000039 Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CN301
Harness,Multi LGE EAD35219301 Contact Us For Availability
CN602
CONNECTOR (CIRC),WAF LGE 561-715N Contact Us For Availability
CN901
Harness,Single LGE EAD35219501 Contact Us For Availability
CN902
Harness,Single LGE EAD35214501 Contact Us For Availability
D101
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D103
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D402
Diode,Switching LGE 0DS202009CA Contact Us For Availability
D501
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
D905
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D912
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D914
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D934
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D936
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D942
Diode,Switching LGE EAH32120501 Contact Us For Availability
D951
Diode,Rectifier LGE 0DRNH00121A Contact Us For Availability
DIS301
VFD LGE EAJ35072601 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS1202B57B Contact Us For Availability
FR931
Resistor,Fusible LGE 0RF0200F709 Contact Us For Availability
IC4D1
IC,Tx/Rx LGE EAN40306502 Contact Us For Availability
IC4D4
IC,POWER MANAGEMENT LGE 0IPMGUC006A Contact Us For Availability
IC4D7
IC,POWER MANAGEMENT LGE 0IPMGKE022B Contact Us For Availability
IC101A
S/W,System Program LGE SAA31043201 Contact Us For Availability
IC102
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC103
IC,EEPROM LGE EAN35369601 Contact Us For Availability
IC202
IC,ROHM LGE 0IRH405200C Contact Us For Availability
IC203
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC204
IC,A/D Converter LGE EAN30955301 Contact Us For Availability
IC301
IC,PERIPHERALS LGE 0IPRPPY002A Contact Us For Availability
IC401
IC,Motor Driver LGE 0ILNR00061B Contact Us For Availability
IC501
IC,Video Processors LGE 0ILNR00173B Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMREB008C Contact Us For Availability
IC503A
S/W,System Program LGE SAA31043101 Contact Us For Availability
IC506
IC,SAMSUNG ELECTRONICS LGE 0ISS240210A Contact Us For Availability
IC591
IC,PERIPHERALS LGE 0IPRP00714A Contact Us For Availability
IC601
IC,PWM Controller LGE 0IPMG00022D Contact Us For Availability
IC602
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
IC704
IC,PERIPHERALS LGE 0IPRP00029A Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMG00042A Contact Us For Availability
IC911
IC,POWER MANAGEMENT LGE 0IPMG00045A Contact Us For Availability
IC912
TRANSISTOR,FETS LGE 0TFFN10008A Contact Us For Availability
IC931
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC932
IC,LDO Voltage Regul LGE 0IPMG78358A Contact Us For Availability
IC933
IC,POWER MANAGEMENT LGE 0IPMGKE053B Contact Us For Availability
IC934
IC,LDO Voltage Regul LGE 0IPMG78445A Contact Us For Availability
IC942
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
JK2D3
Connector,USB LGE 6630S70048C Contact Us For Availability
JK2D4
Jack,Phone LGE 6612F00086A Contact Us For Availability
JK201
Jack,RCA LGE 6612JH002XG Contact Us For Availability
JK701
Conector,Terminal Bl LGE 6640000070A Contact Us For Availability
JK703
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
L2D6
Filter,Bead LGE 636-004C Contact Us For Availability
L2E1
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
L2F1
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L4D3
Filter,Bead LGE 0LCCE00017C Contact Us For Availability
L405
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L505
Inductor,Wire Wound, LGE 0LR0220M025 Contact Us For Availability
L509
Inductor,Wire Wound,Radial LGE 0LR0221K035 Contact Us For Availability
L510
Inductor,Wire Wound, LGE 0LR0470M025 Contact Us For Availability
L703
Coil,RF LGE 6140RCC008A Contact Us For Availability
L708
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
L719
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L931
COIL,CHOKE LGE 633-088G Contact Us For Availability
L951
TRANSFORMER,SMPS[COI LGE 6170RNGW18S Contact Us For Availability
LD303
LED LGE 0DLLT0359AA Contact Us For Availability
LD304
LED,DIP LGE 0DLBE0175AC Contact Us For Availability
LF902
Filter,Line Noise LGE 6200JB8014E Contact Us For Availability
P4401
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
P4402
CONNECTOR (CIRC),FFC LGE 6630XE00109 Contact Us For Availability
P4403
CONNECTOR(CIRC),DRAW LGE 6630R-SY08W Contact Us For Availability
PC912
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PN103
Connector,FFC/FPC/PIC LGE 6630XE00118 Contact Us For Availability
PN202
CONNECTOR (CIRC),FFC LGE 6630R-FB05K Contact Us For Availability
PN204
Connector,FFC/FPC/PIC LGE 6630XE00111 Contact Us For Availability
PN206
Connector,Wafer LGE 561-711O Contact Us For Availability
PN301
Connector,FFC/FPC/PIC LGE 6630R-FB05R Contact Us For Availability
PN302
Connector,Wafer LGE 561-711C Contact Us For Availability
PN601
CONNECTOR (CIRC),FFC LGE 6630XE01224 Contact Us For Availability
PN602
Connector,FFC/FPC/PIC LGE 6630XE00120 Contact Us For Availability
PN603
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q5V1
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q106
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q303
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q304
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q401
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q406
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q408
TRANSISTOR LGE 0TR128109AA Contact Us For Availability
Q704
TRANSISTOR LGE 0TR126709AB Contact Us For Availability
Q705
KRC103M-TP(KRC1203) KEC*NSP LGE 0TR103009AE Contact Us For Availability
Q901
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q931
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q932
TR,Bipolar LGE 0TR102009AF Contact Us For Availability
Q933
TR,Bipolar LGE 0TR102009AE Contact Us For Availability
R2D2
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R2D3
Resistor,Carbon Film LGE 0RD1502F609 Contact Us For Availability
R4D2
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R4D8
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R4D9
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R4F2
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R4G3
Resistor,Chip LGE 0RH0000E622 Contact Us For Availability
R5F0
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R5V2
RESISTOR,METAL GLAZED(CHIP) LGE 0RH3900D422 Contact Us For Availability
R5V3
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R5V4
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R5V6
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R5V8
Resistor,Chip LGE 0RH6802C622 Contact Us For Availability
R5W1
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R5W2
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R5Y2
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R7A4
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R103
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R107
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R108
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R110
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R117
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R159
Resistor,Chip LGE 0RH1302C622 Contact Us For Availability
R160
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R187
Resistor,Chip LGE 0RH3900C622 Contact Us For Availability
R188
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R191
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R229
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R245
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R254
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R259
Resistor,Chip LGE 0RH0912C622 Contact Us For Availability
R285
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R293
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R326
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R330
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R333
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R345
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R349
Resistor,Chip LGE 0RH1801D622 Contact Us For Availability
R350
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R351
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R373
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R402
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R408
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
R412
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R414
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R419
RESISTOR,FIXED METAL LGE 0RS0271K619 Contact Us For Availability
R422
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R431
Resistor,Chip LGE 0RH5101C622 Contact Us For Availability
R434
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R438
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R439
RESISTOR,METAL GLAZE LGE 0RH9101C422 Contact Us For Availability
R556
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R558
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R566
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R594
Resistor,Array LGE 0RRZVTA001F Contact Us For Availability
R713
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R727
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R763
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R779
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R787
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R795
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R903
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R904
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R905
Resistor,Carbon Film LGE 0RD0182F609 Contact Us For Availability
R906
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R907
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R909
Resistor,Carbon Film LGE 0RD0822F609 Contact Us For Availability
R912
Resistor,Carbon Film LGE 0RD0472F609 Contact Us For Availability
R914
RESISTOR,FIXED POWER LGE 0RW0150N630 Contact Us For Availability
R917
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R919
Resistor,Carbon Film LGE 0RD1102F609 Contact Us For Availability
R920
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R932
Resistor,Carbon Film LGE 0RD3902F609 Contact Us For Availability
R933
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R935
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R936
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R938
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R943
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R945
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R946
RESISTOR FIX METAL FILM 3.30K LGE 0RN3301F409 Contact Us For Availability
R947
Resistor,Carbon Film LGE 0RD4700F609 Contact Us For Availability
R952
Resistor,Metal Oxide Film LGE 0RS0222K619 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2402F409 Contact Us For Availability
R956
Resistor,Metal Film LGE 0RN1801F409 Contact Us For Availability
R957
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R973
Resistor,Carbon Film LGE 0RD2402F609 Contact Us For Availability
RC2
Receiver Module LGE EAV51497201 Contact Us For Availability
S202
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
S501
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
SW306
SWITCH,TACT LGE 556-219B Contact Us For Availability
T901
Transformer,Switchin LGE 6170RNGW25E Contact Us For Availability
T902
Transformer,Switchin LGE EBJ34969101 Contact Us For Availability
TH902
Thermistor,NTC LGE 6322RC0001A Contact Us For Availability
TU101
Tuner,Analog LGE EBL34811201 Contact Us For Availability
VOL301
Switch,Encoder LGE 6110E00018C Contact Us For Availability
VR901
VARISTOR LGE 656-004C Contact Us For Availability
WIRE60
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271D Contact Us For Availability
WIRE61
WIRE R,L LGE 6871RU9271E Contact Us For Availability
WIRE70
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271N Contact Us For Availability
WIRE80
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271L Contact Us For Availability
WIRE81
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271M Contact Us For Availability
WIRE90
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271P Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2983G Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2270H Contact Us For Availability
X601
Crystal LGE EAW32919901 Contact Us For Availability
ZD501
DIODE,ZENERS LGE 0DZRM00338A Contact Us For Availability
ZD901
DIODE,ZENERS LGE 0DZSE00134B Contact Us For Availability
ZD906
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD941
Diode,Zener LGE 0DZSE00054A Contact Us For Availability
ZD942
Diode,Zener LGE 0DZ270009BC Contact Us For Availability
× ![]()
Login and Registration Form
