Model Huebsch HT030N Dryer – Common Parts & Diagrams

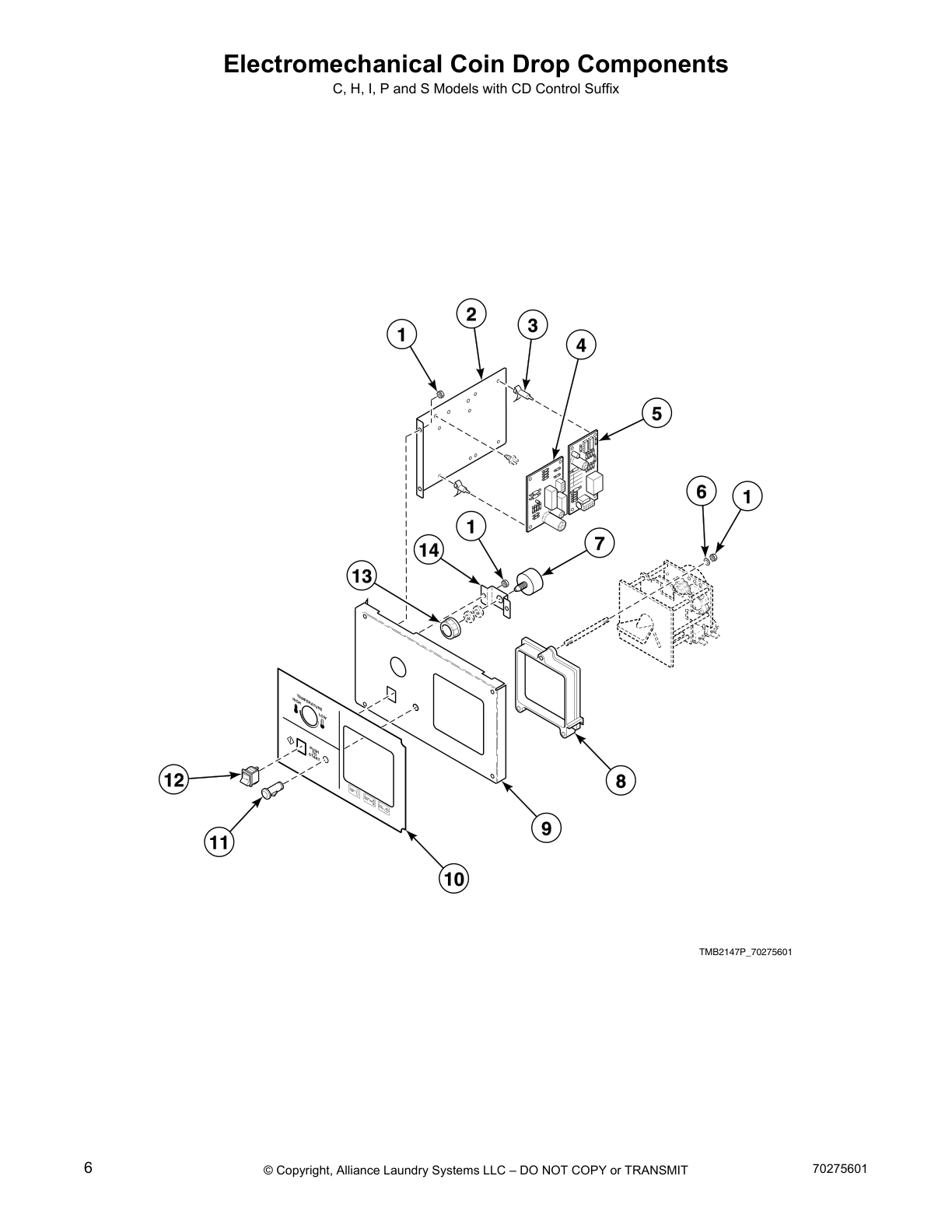

Electromechanical Coin Drop Components

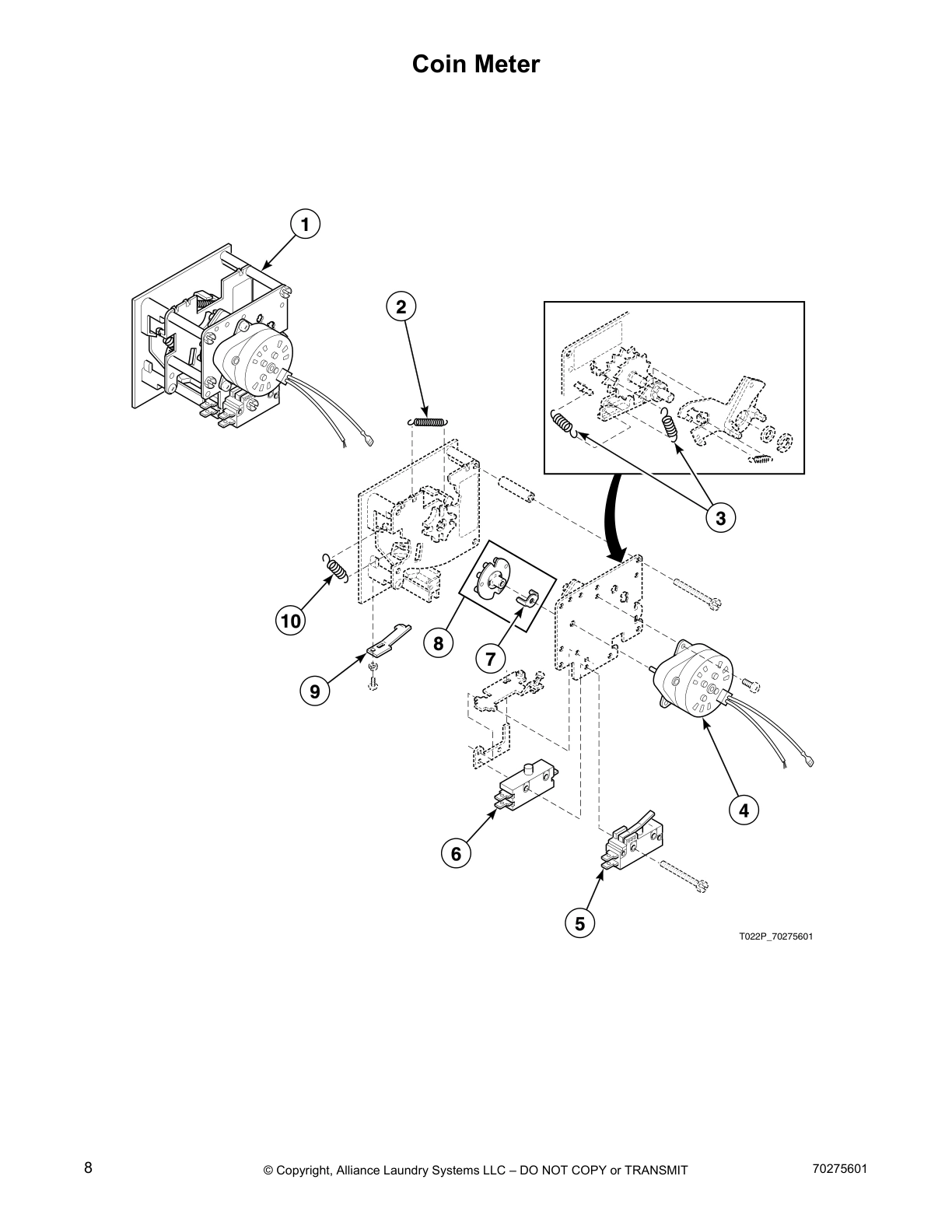

Coin Meter

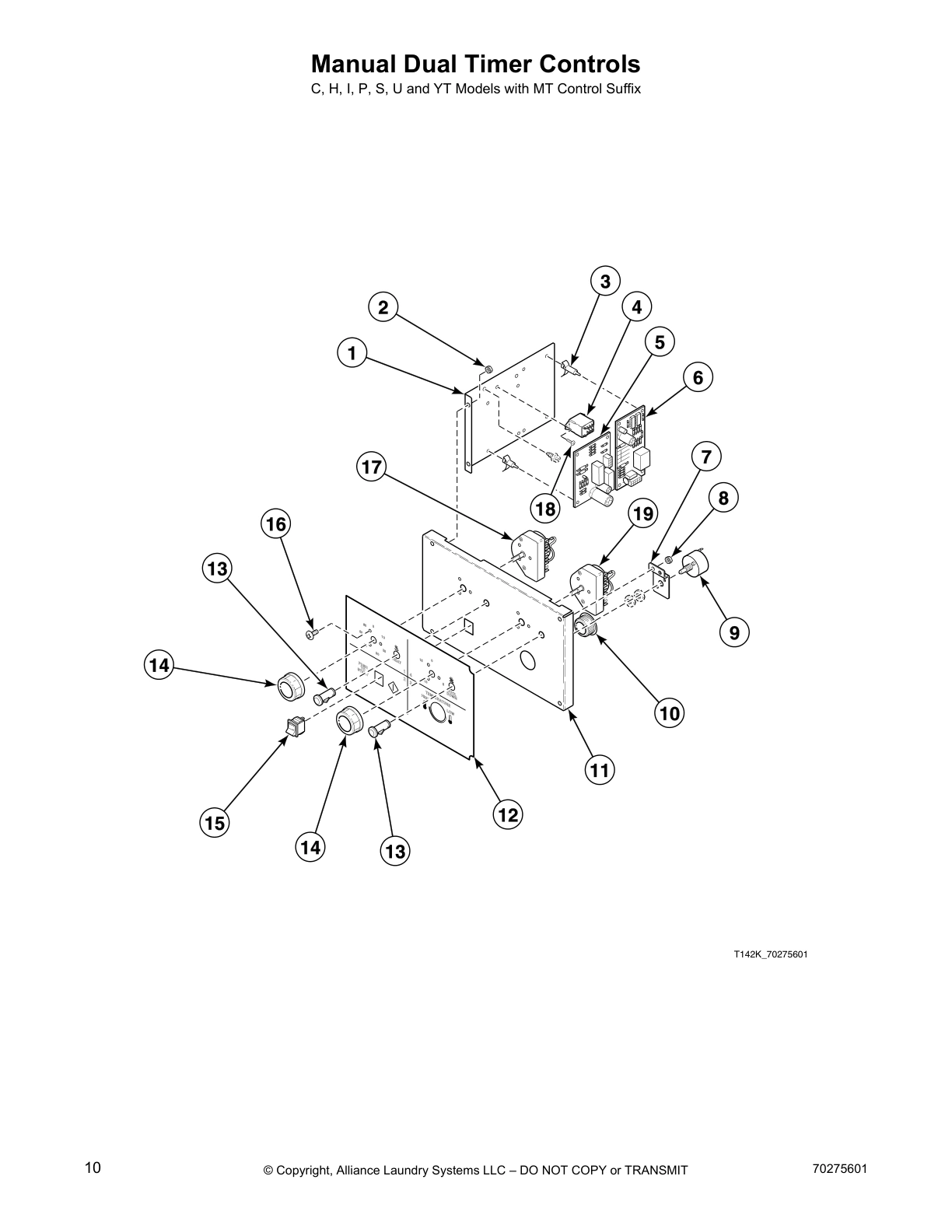

Manual Dual Timer Controls

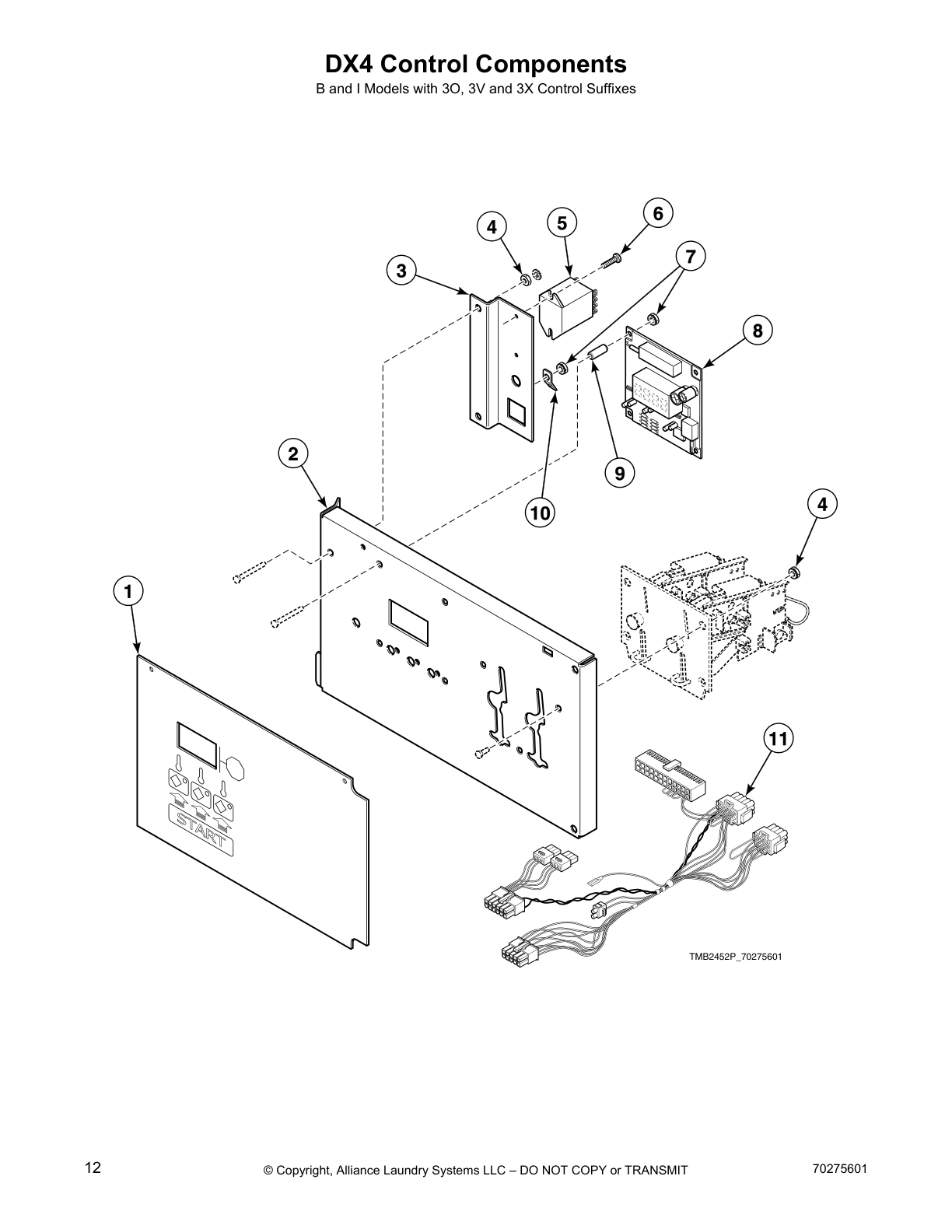

DX4 Control Components

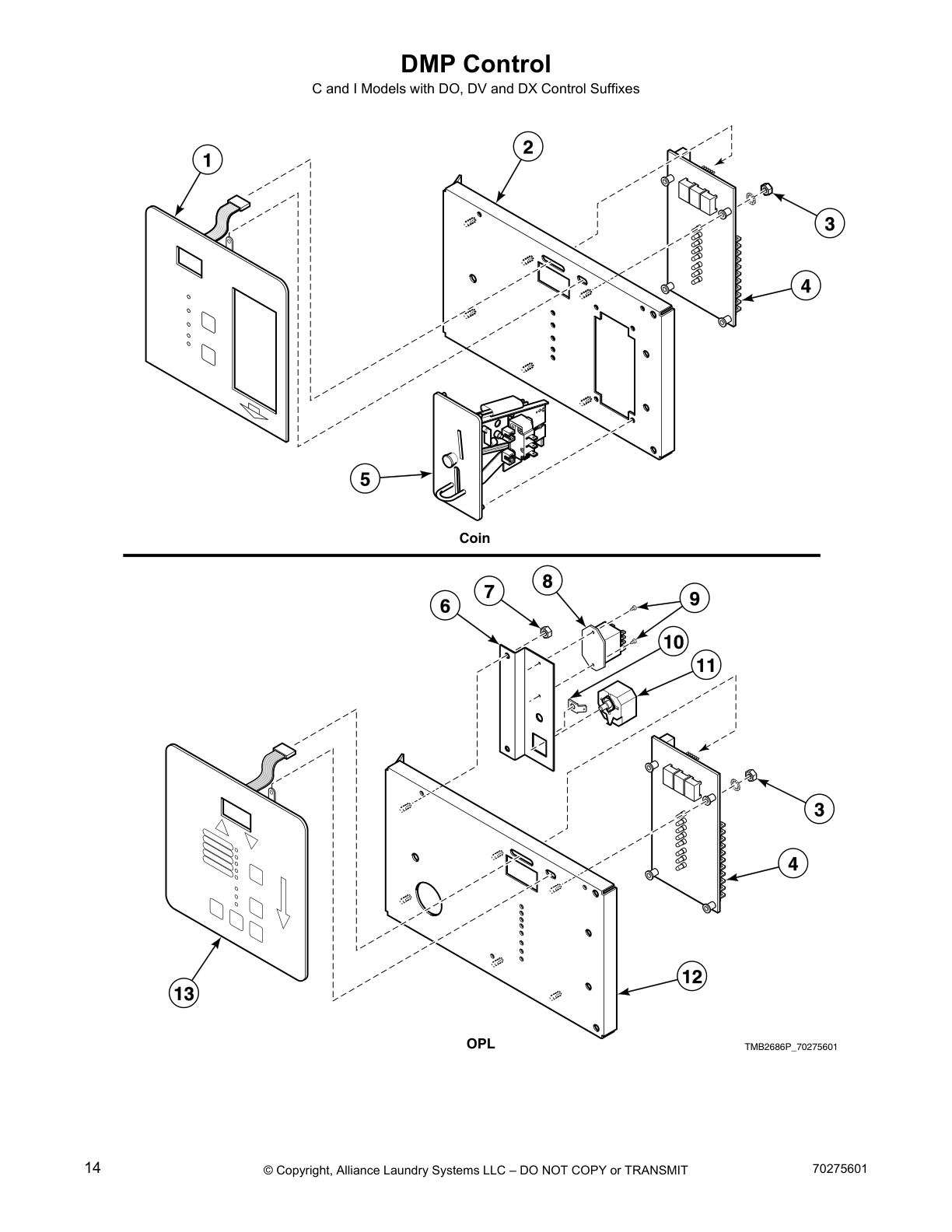

DMP Control

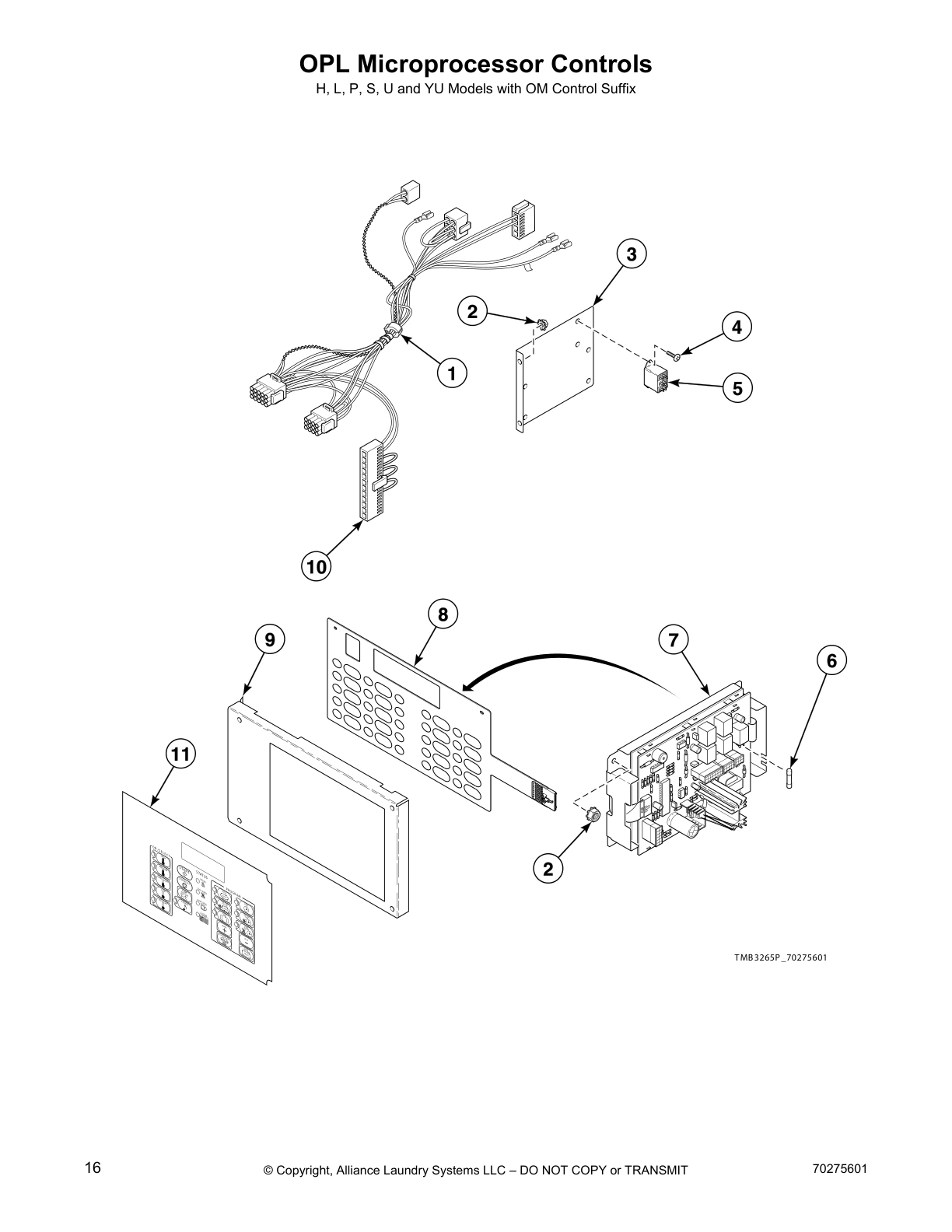

OPL Microprocessor Controls

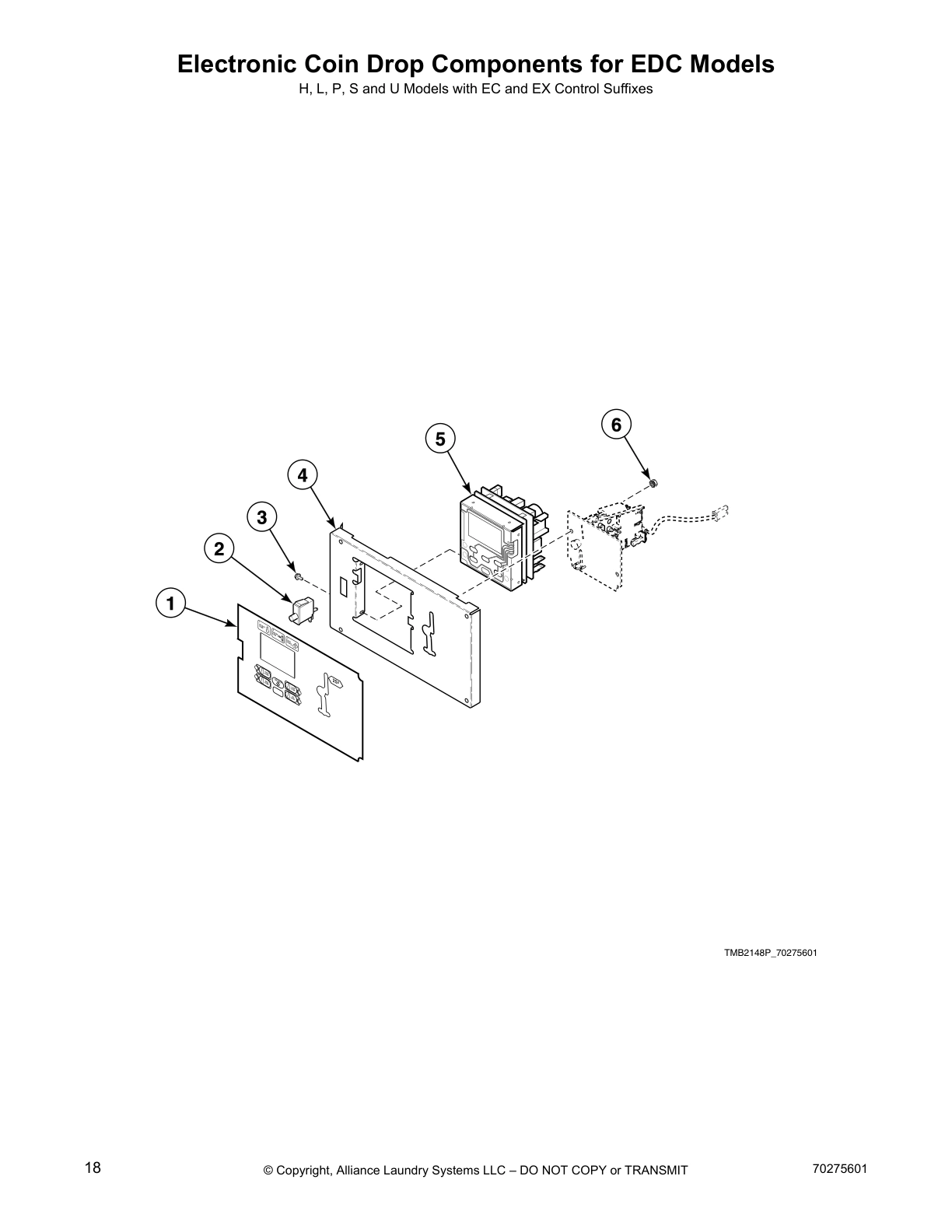

Electronic Coin Drop Components for EDC Models

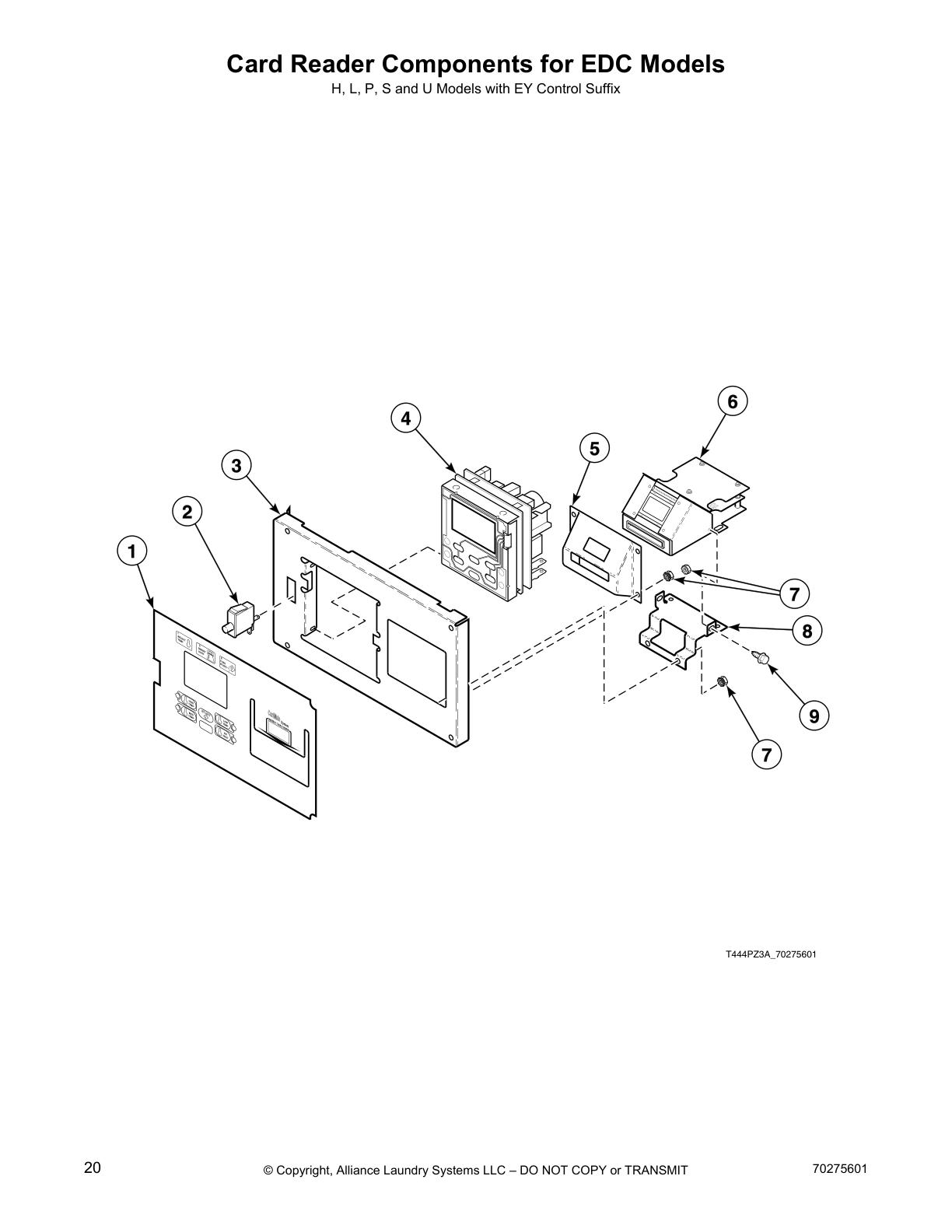

Card Reader Components for EDC Models

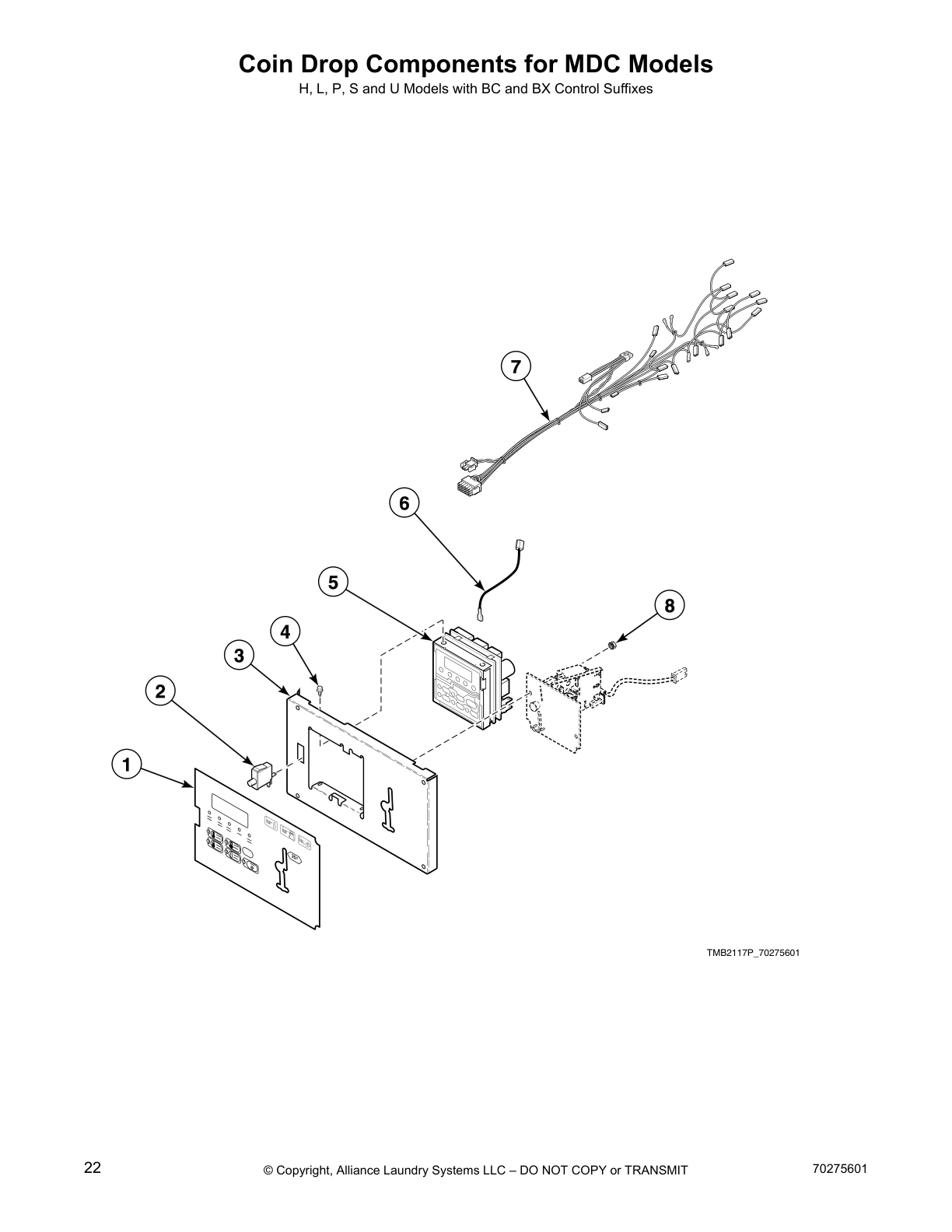

Coin Drop Components for MDC Models

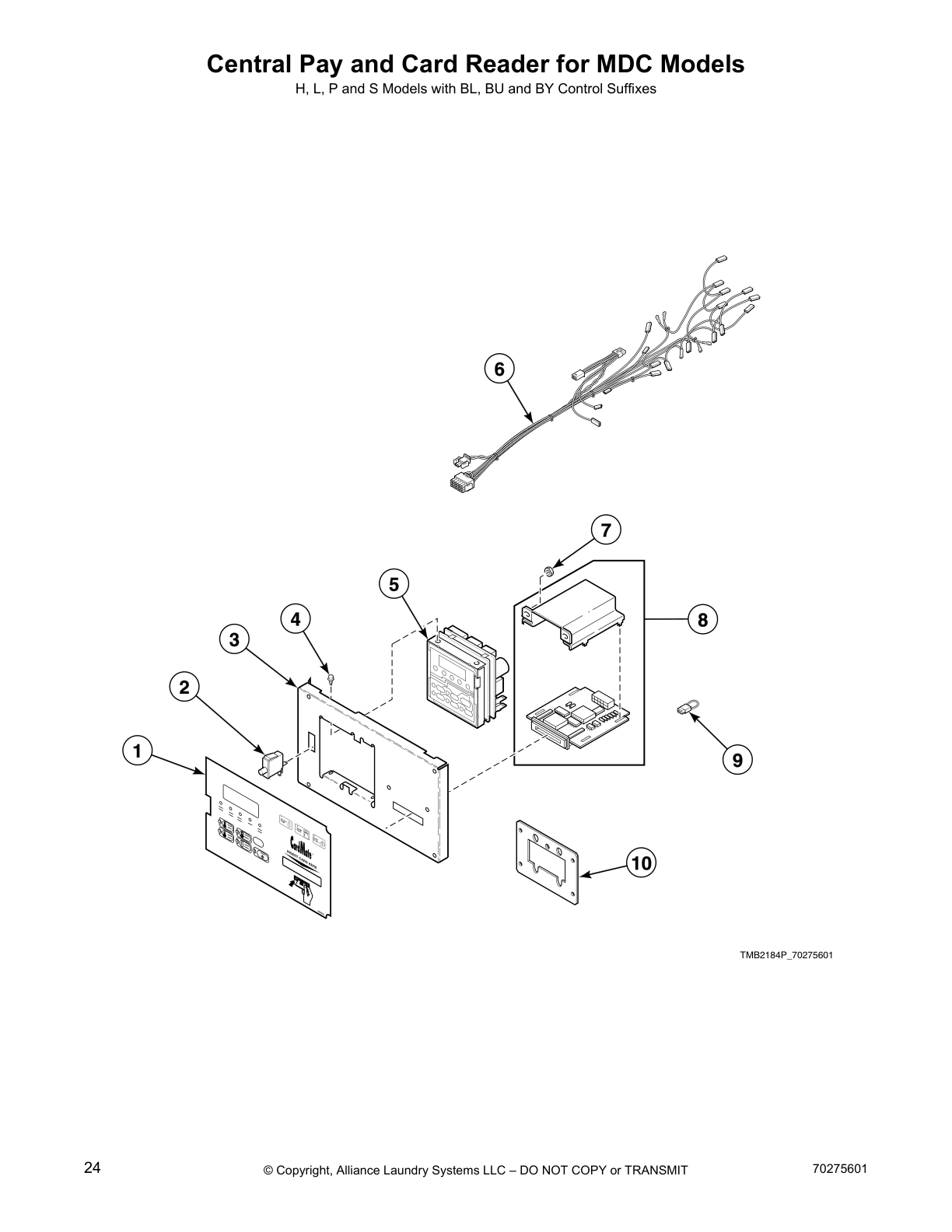

Central Pay and Card Reader for MDC Models

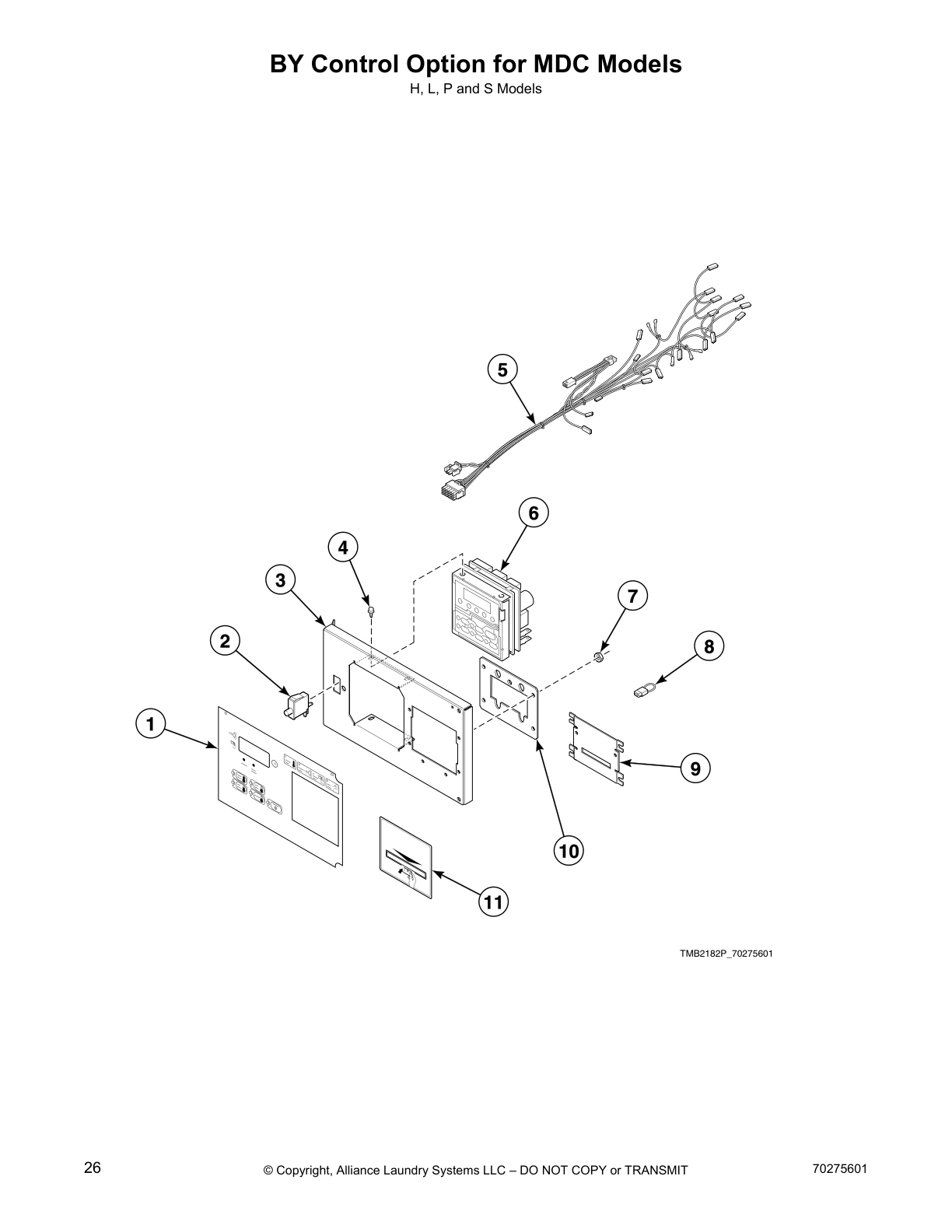

BY Control Option for MDC Models

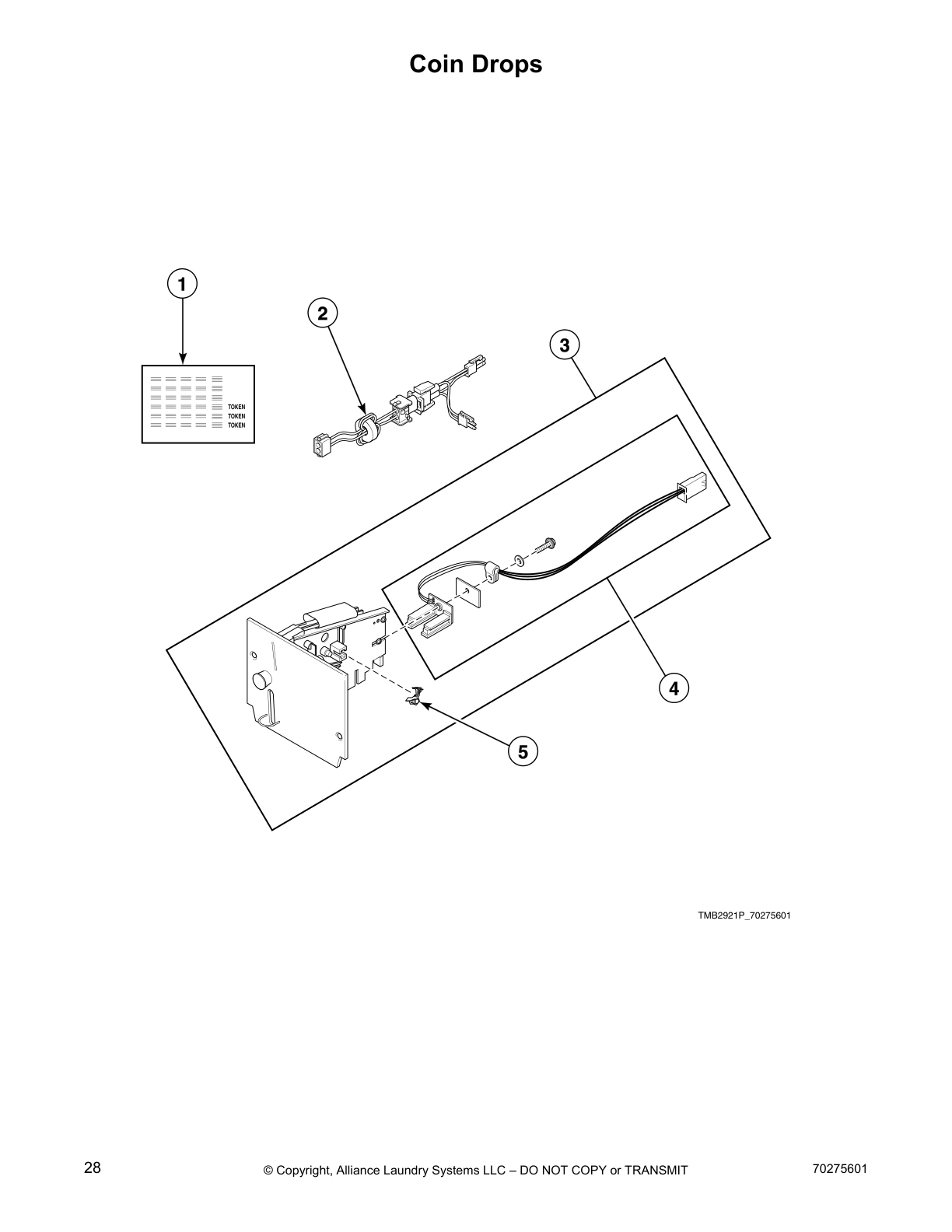

Coin Drops

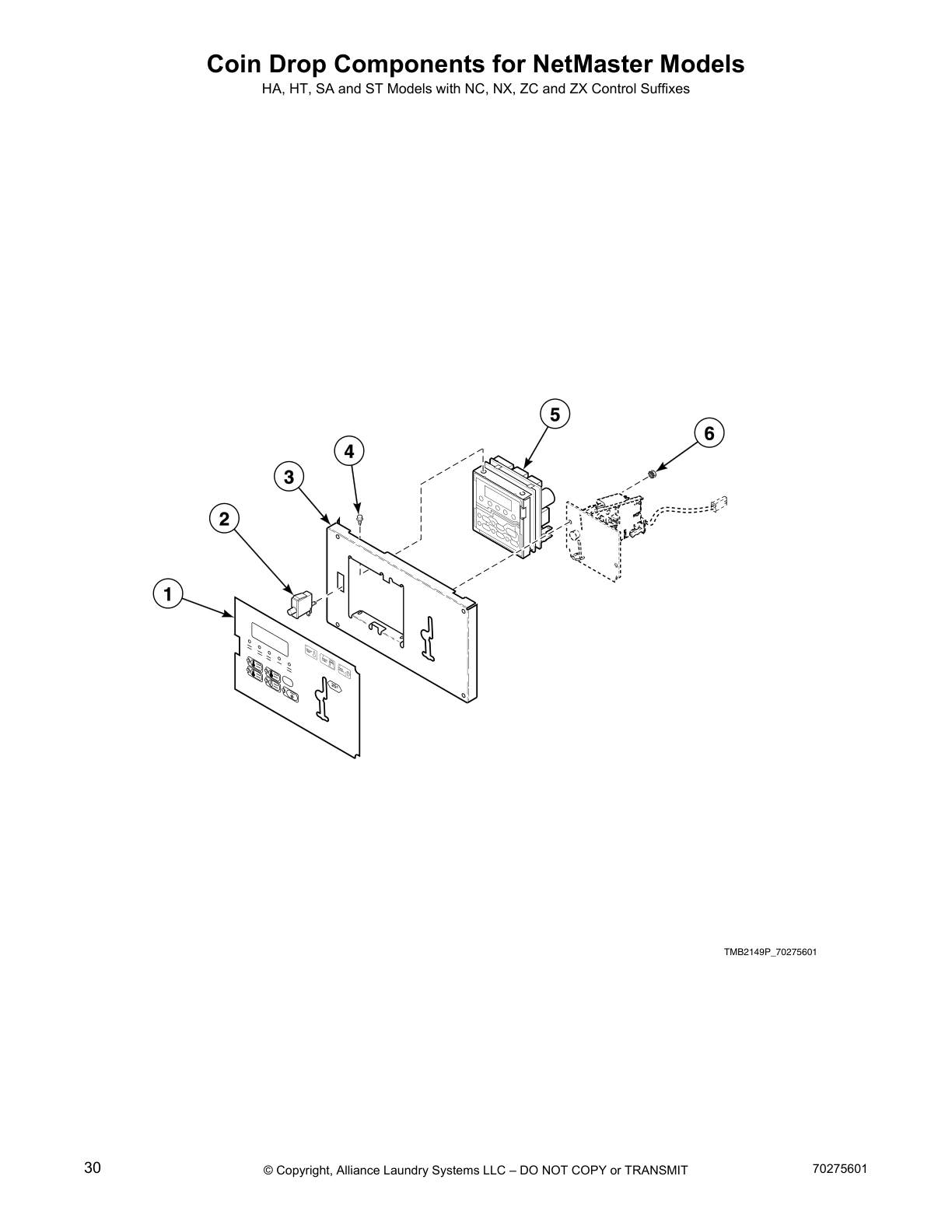

Coin Drop Components for NetMaster Models

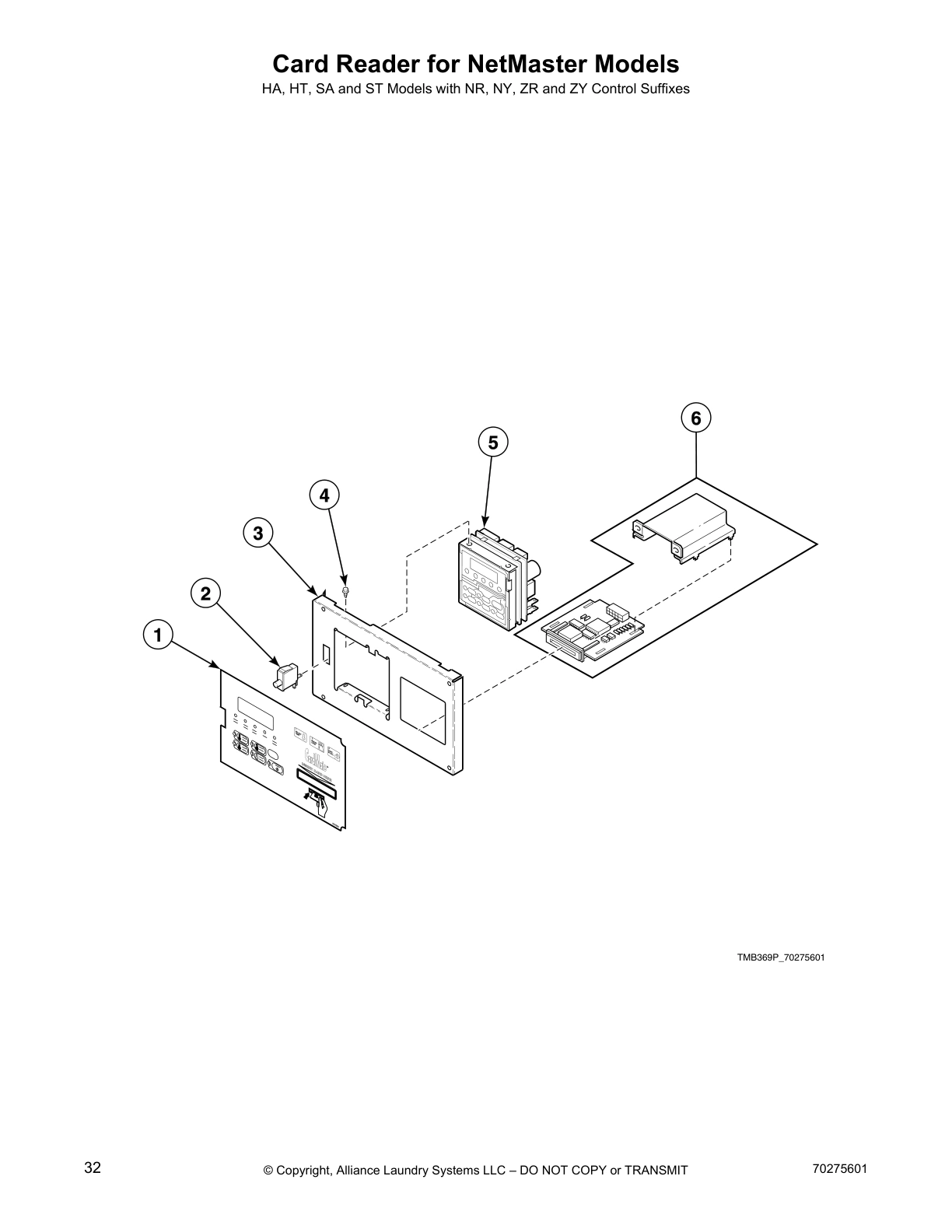

Card Reader for NetMaster Models

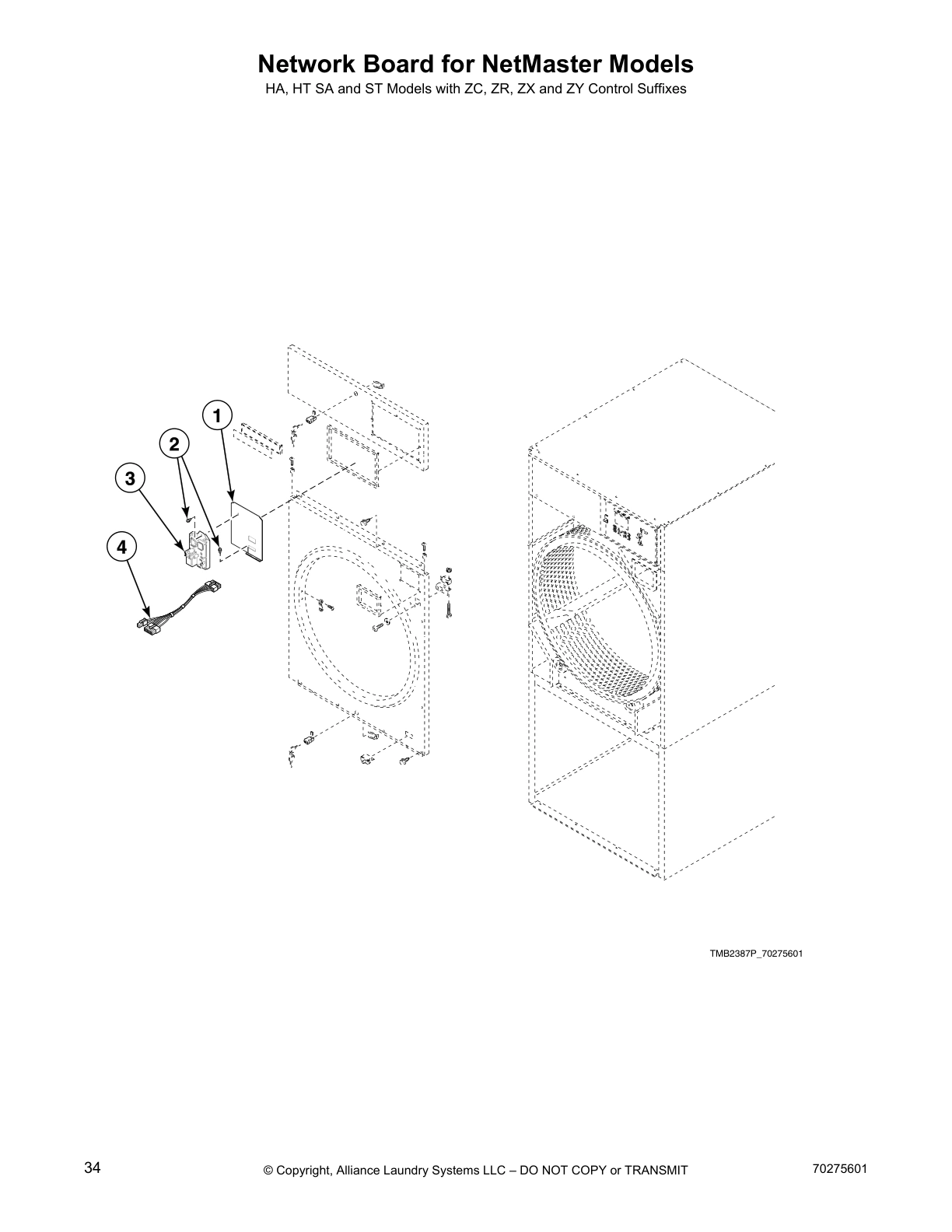

Network Board for NetMaster Models

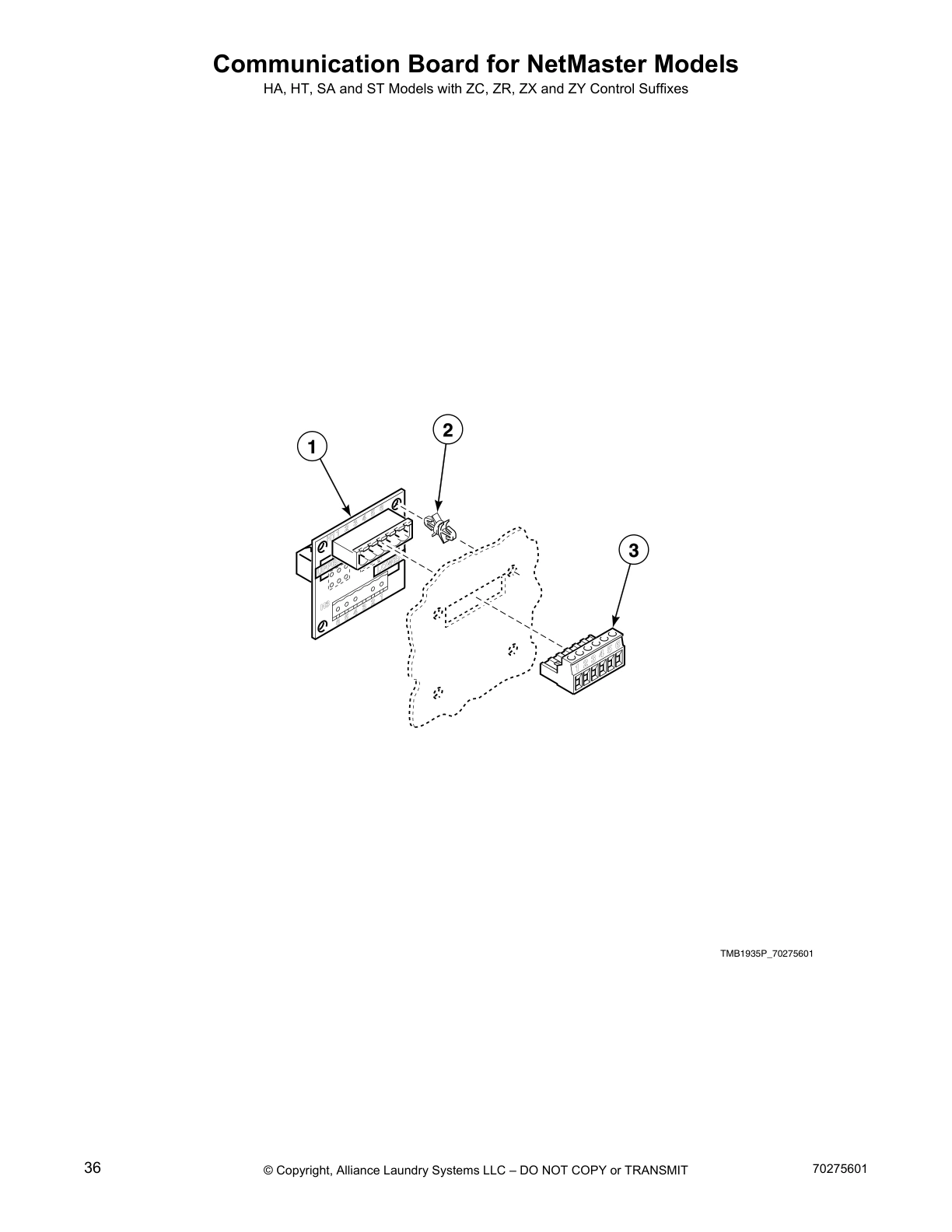

Communication Board for NetMaster Models

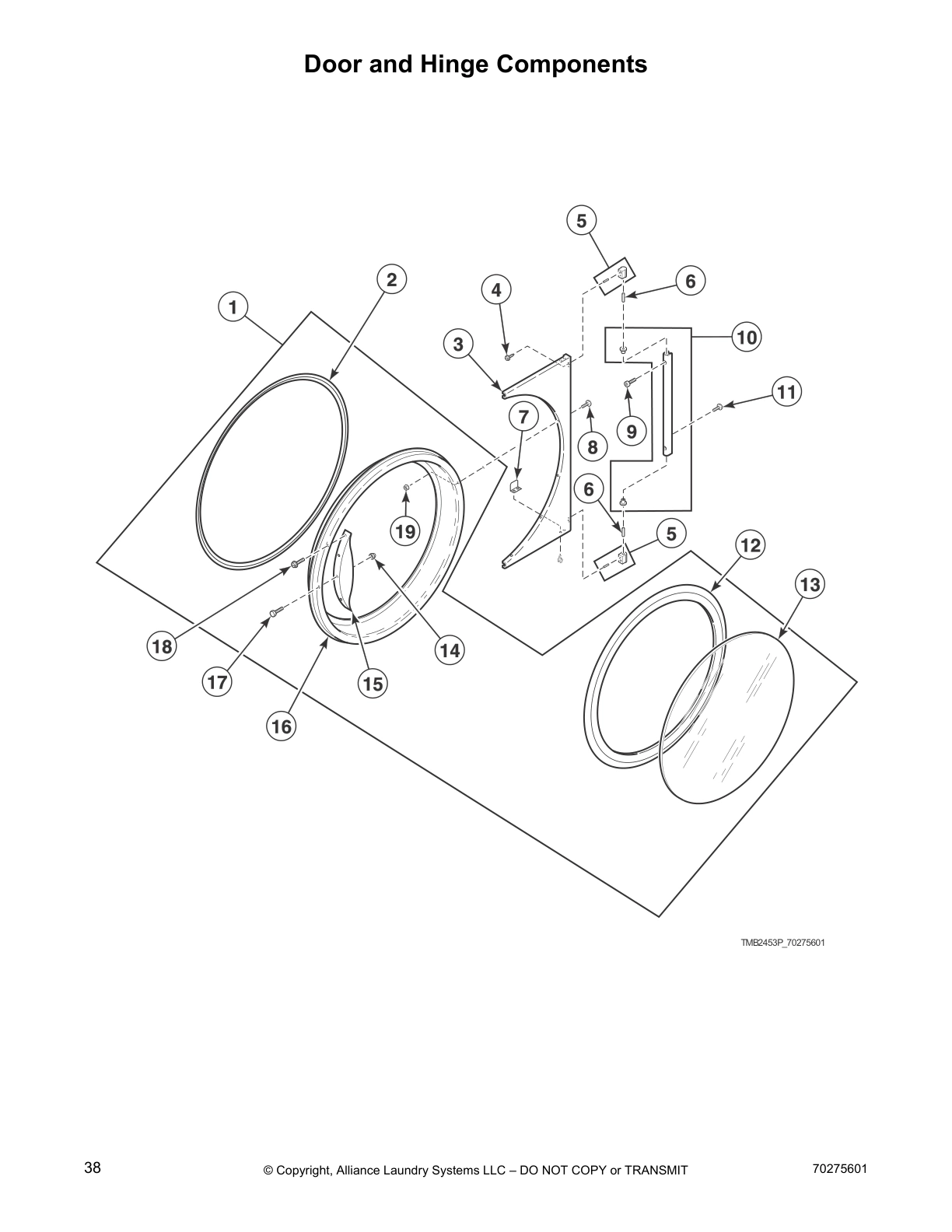

Door and Hinge Components

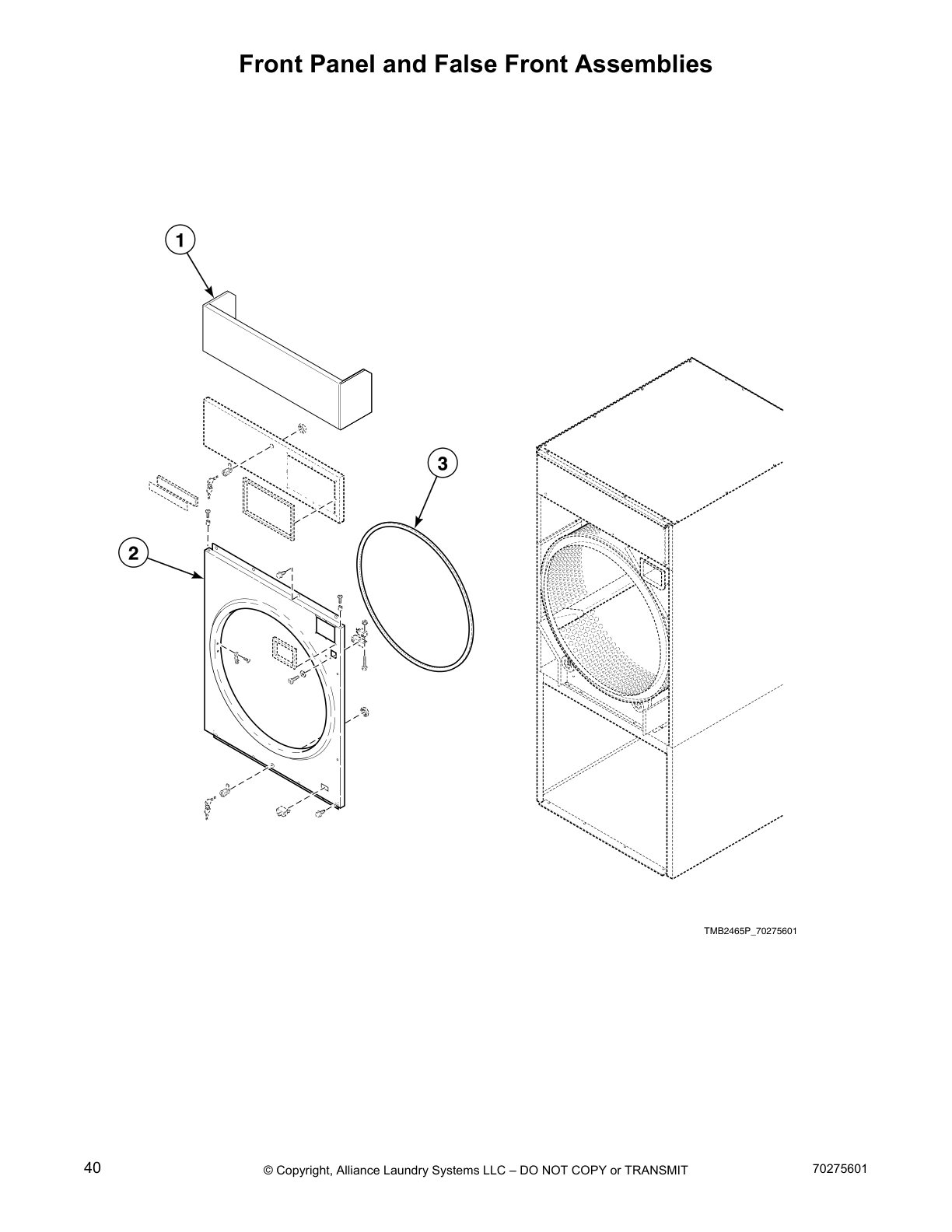

Front Panel and False Front Assemblies

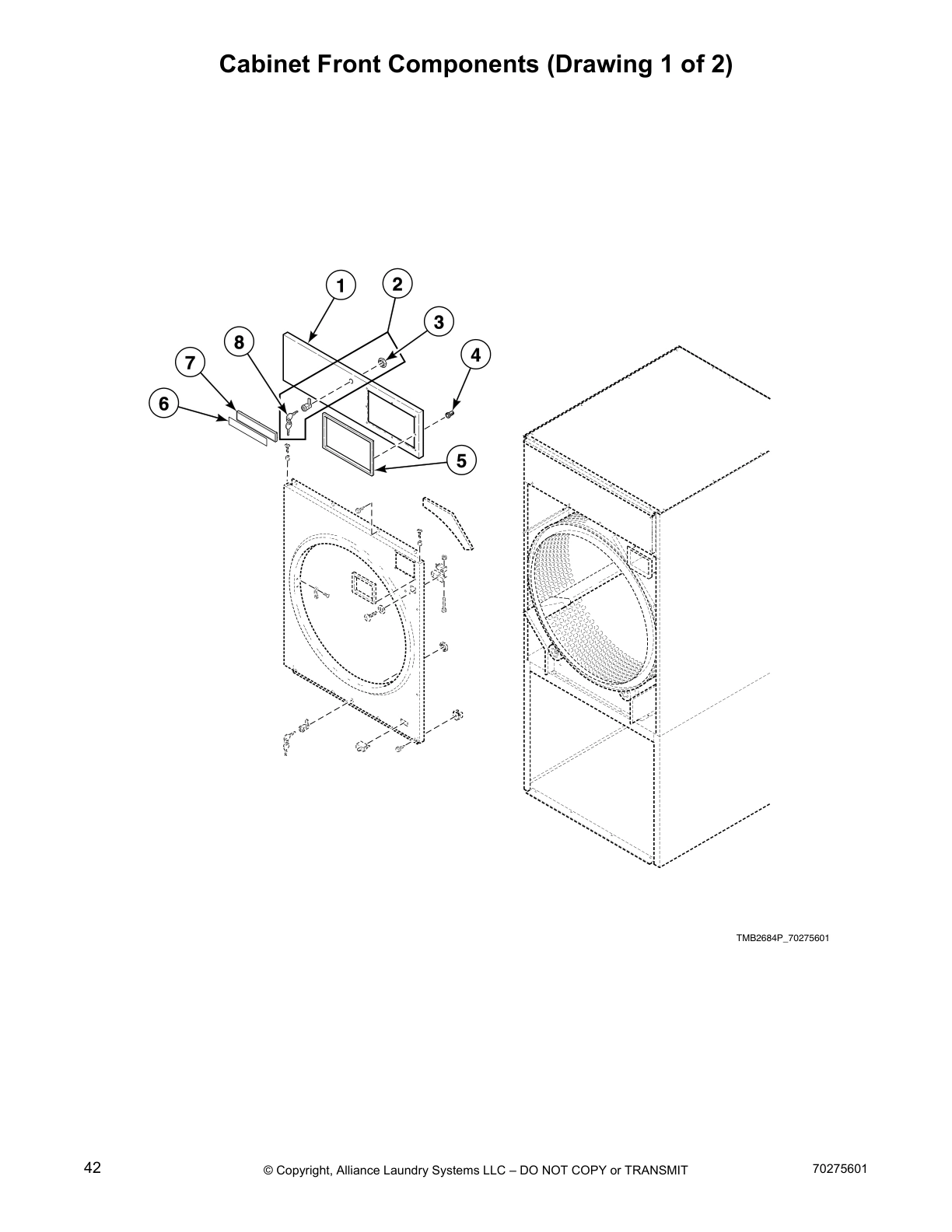

Cabinet Front Components (Drawing 1 of 2)

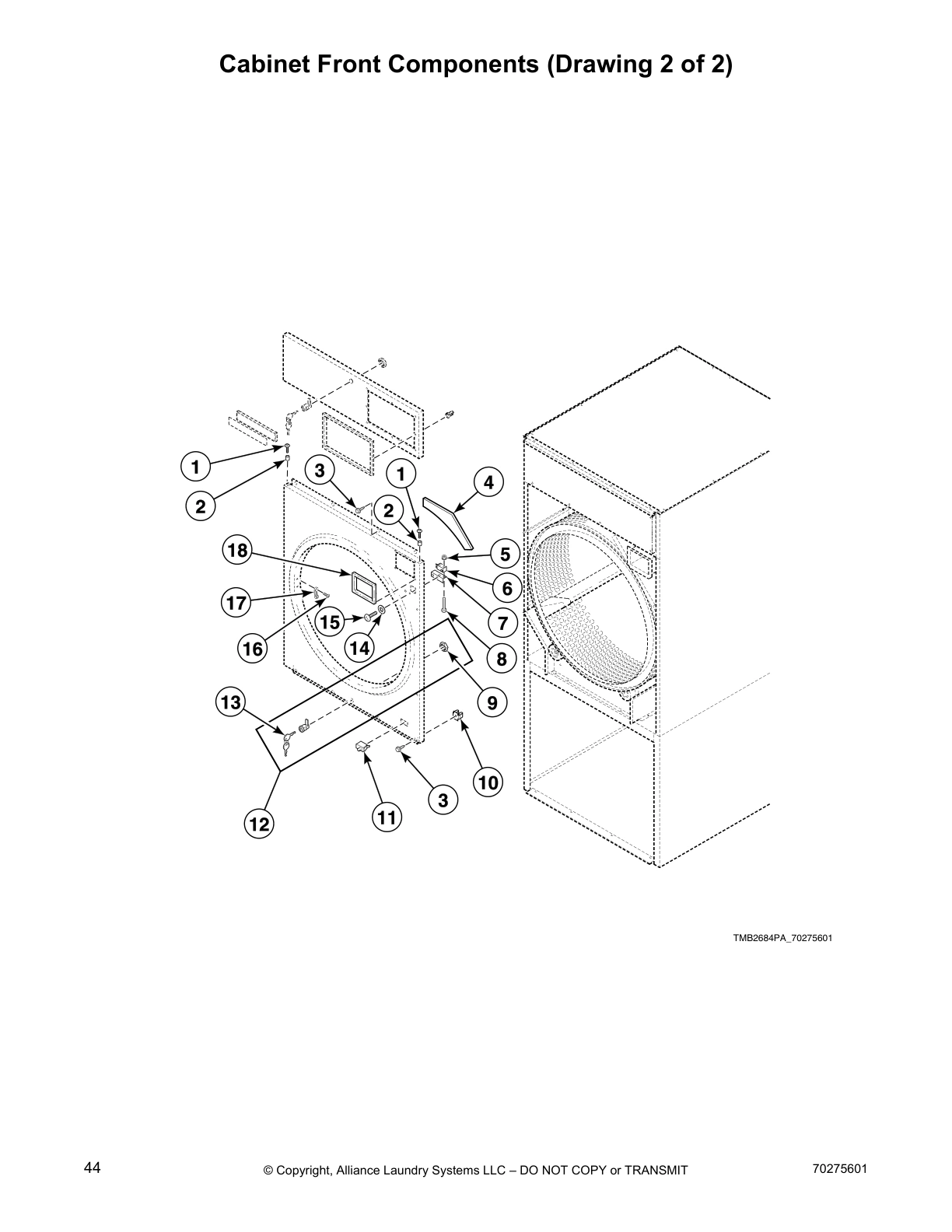

Cabinet Front Components (Drawing 2 of 2)

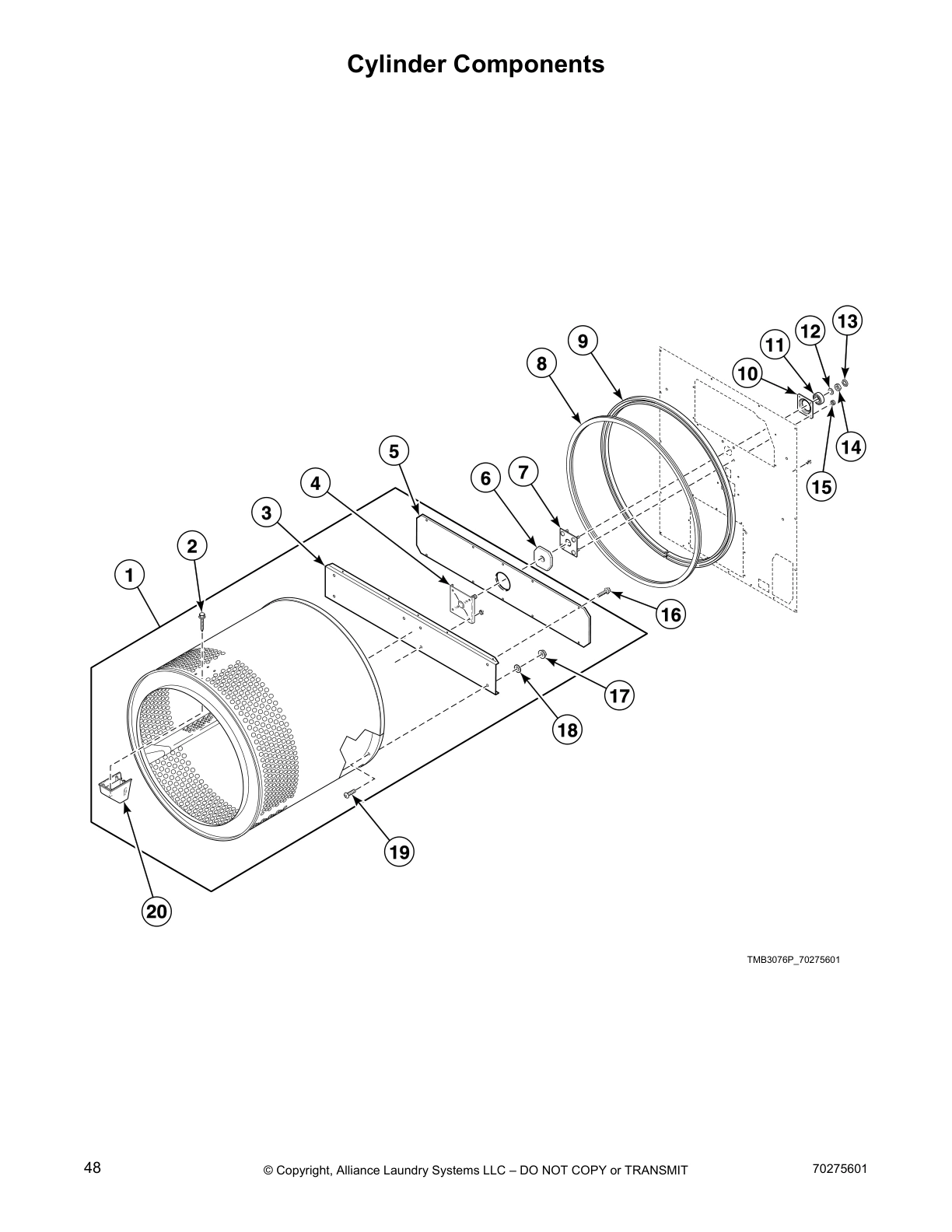

Cylinder Components

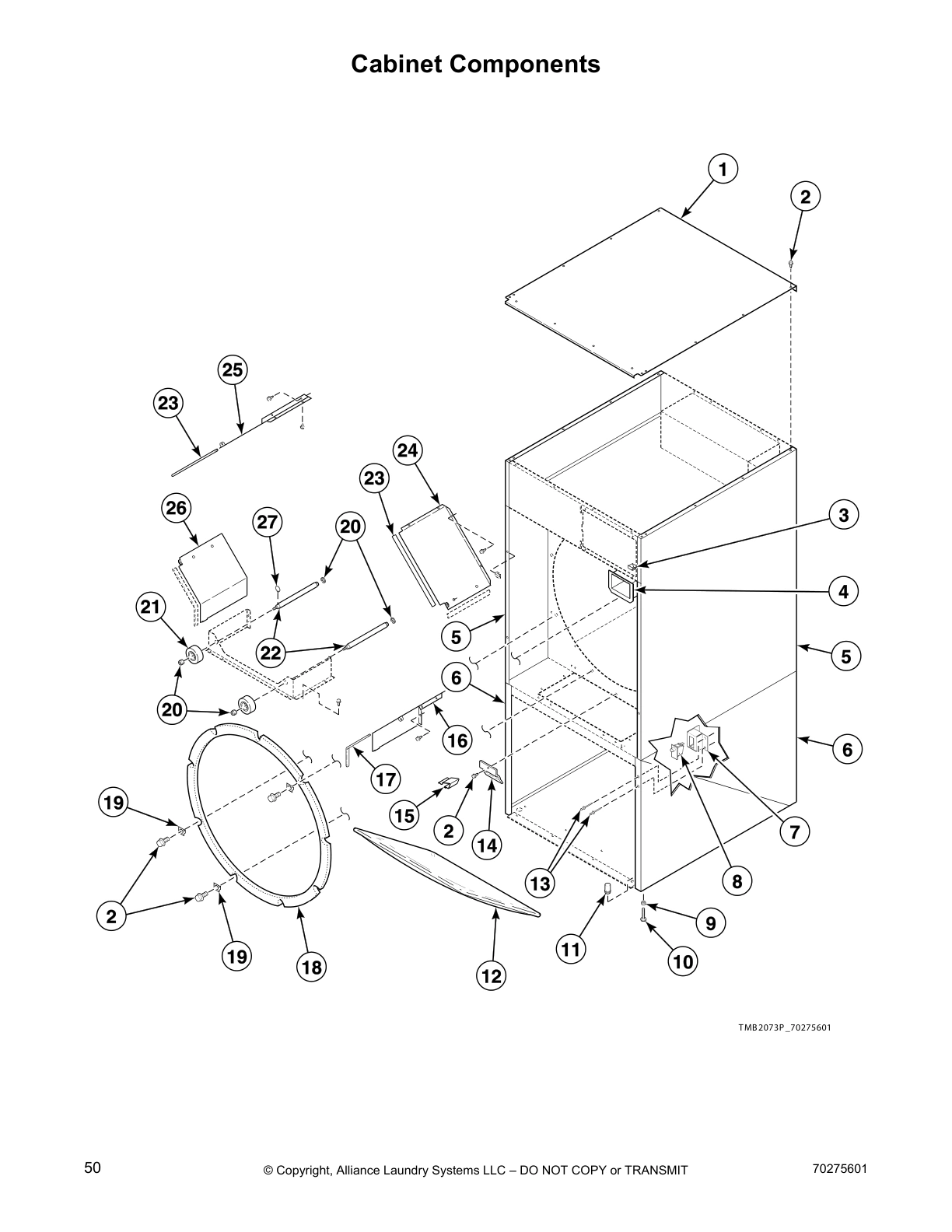

Cabinet Components

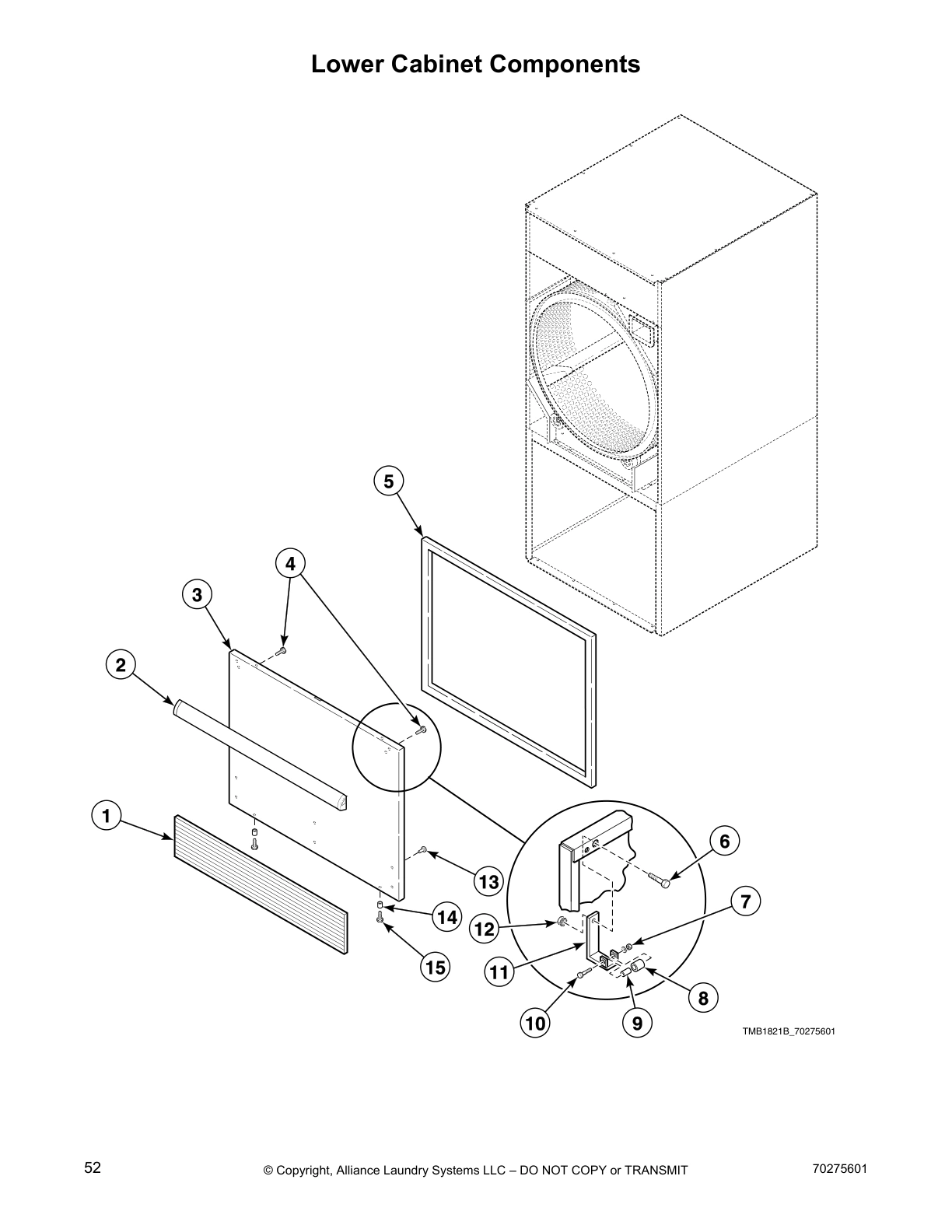

Lower Cabinet Components

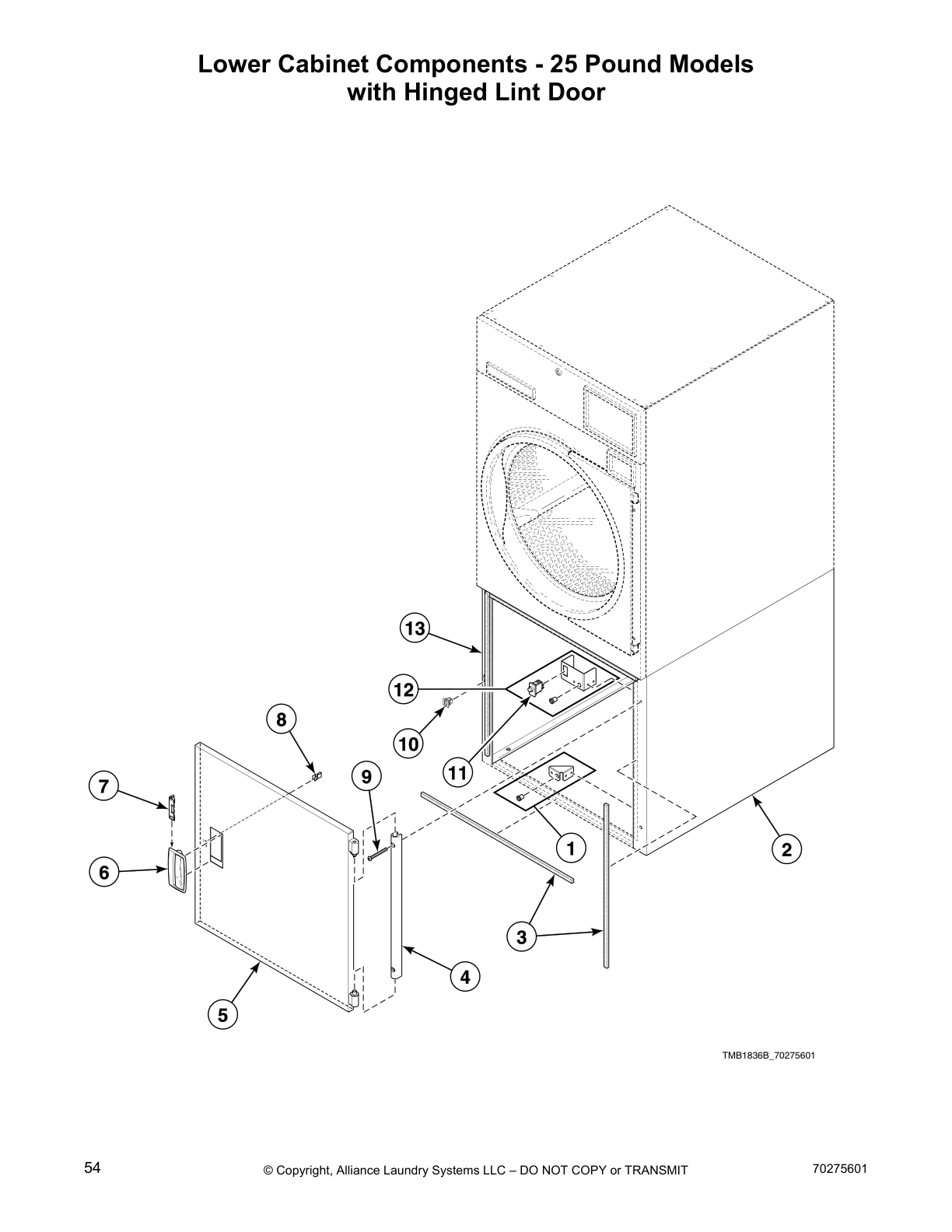

Lower Cabinet Components - 25 Pound Models
with Hinged Lint Door

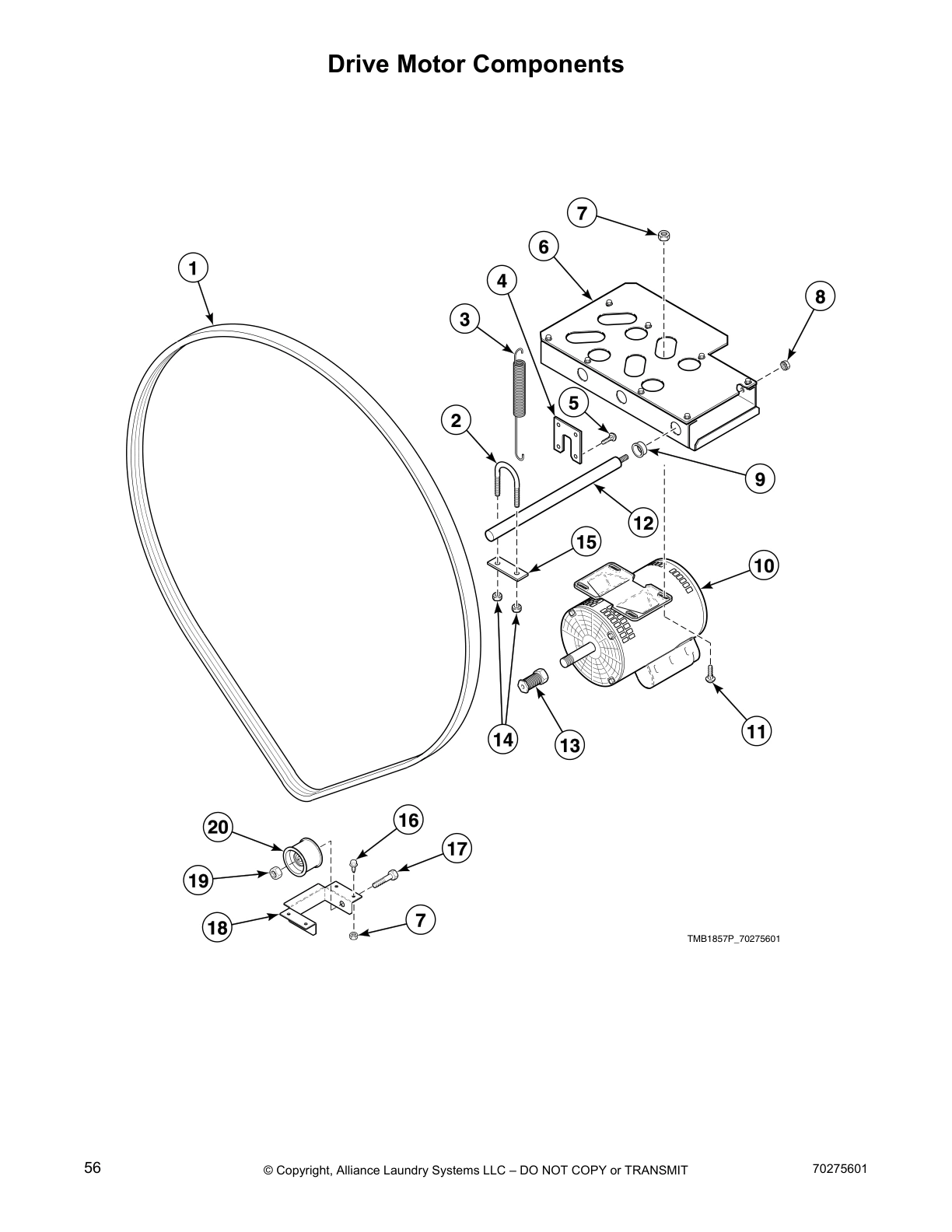

Drive Motor Components

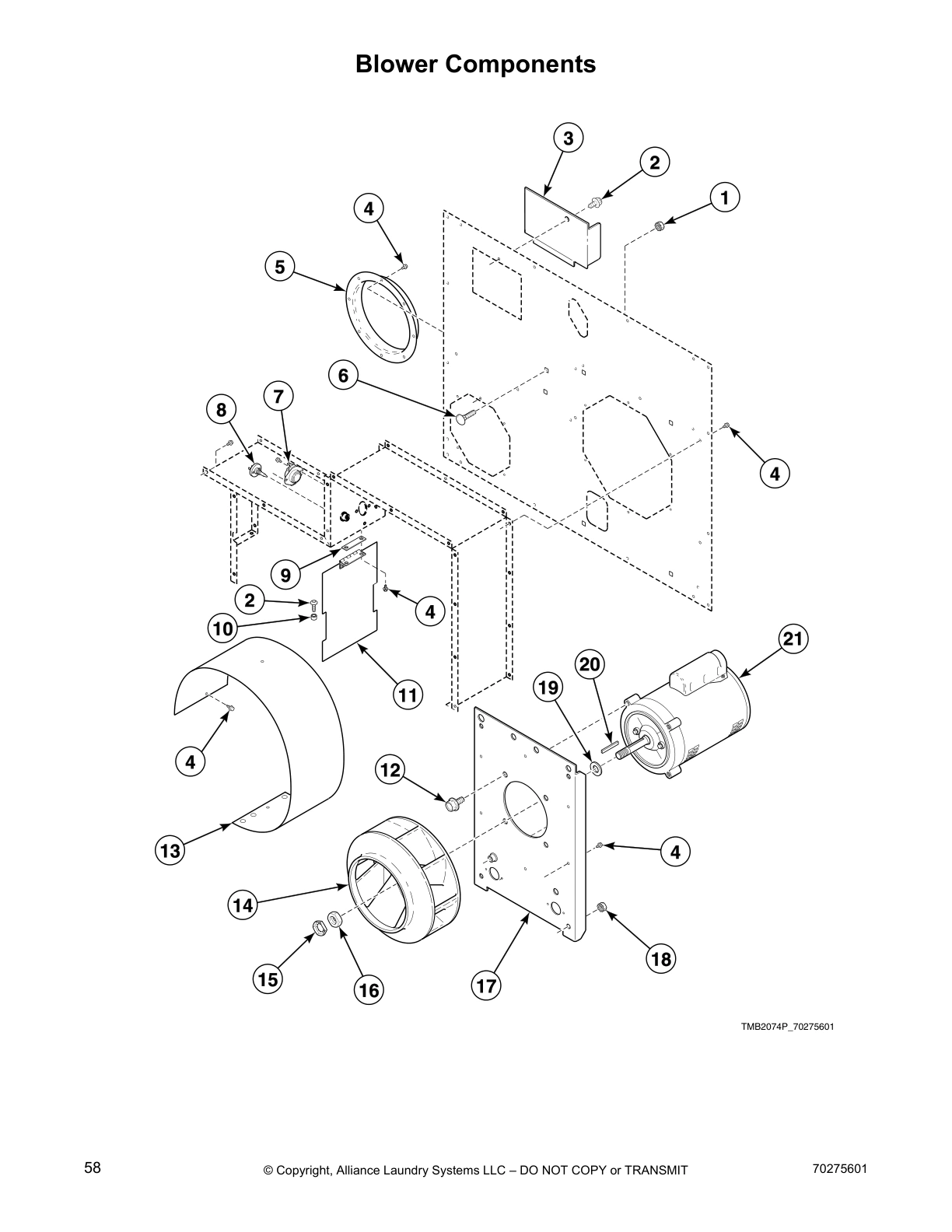

Blower Components

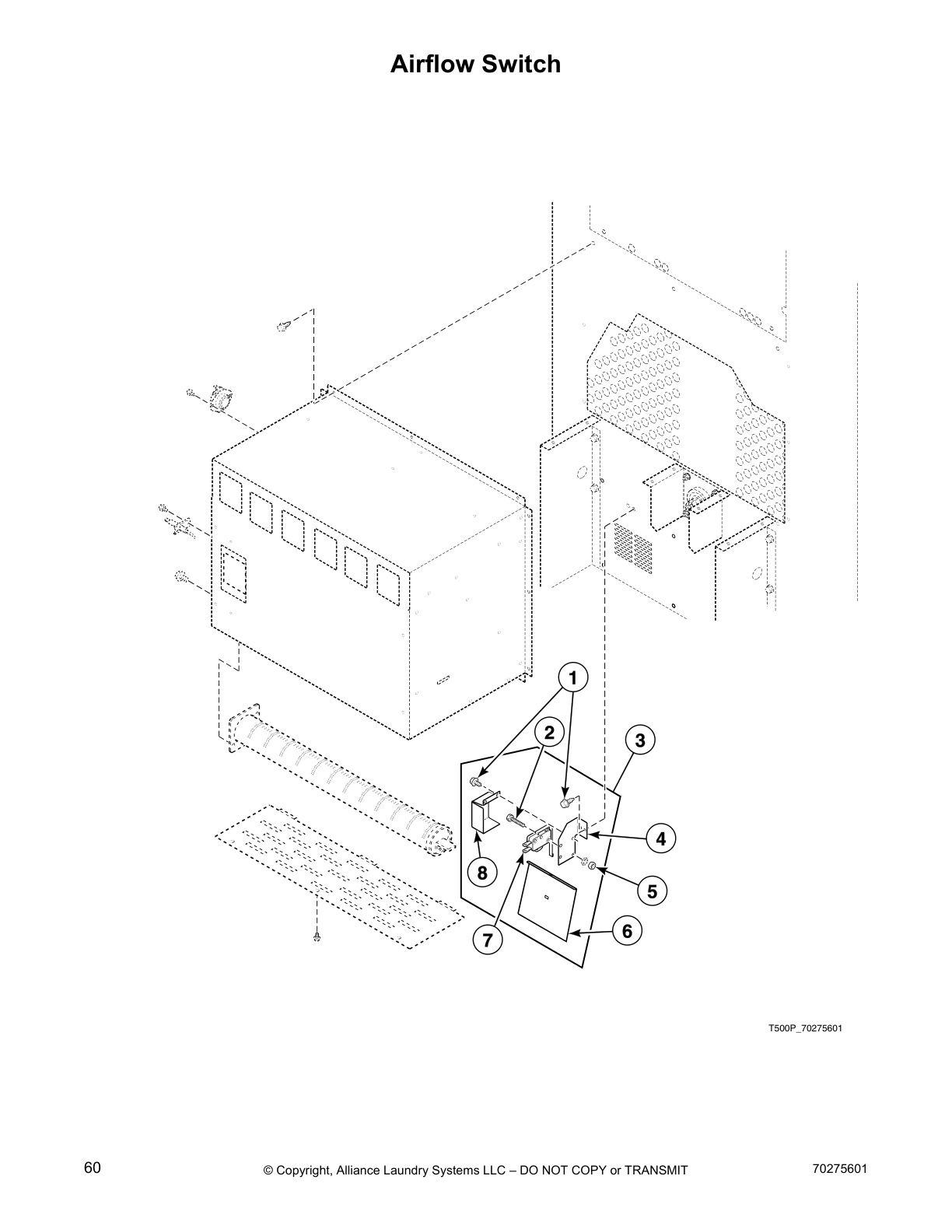

Airflow Switch

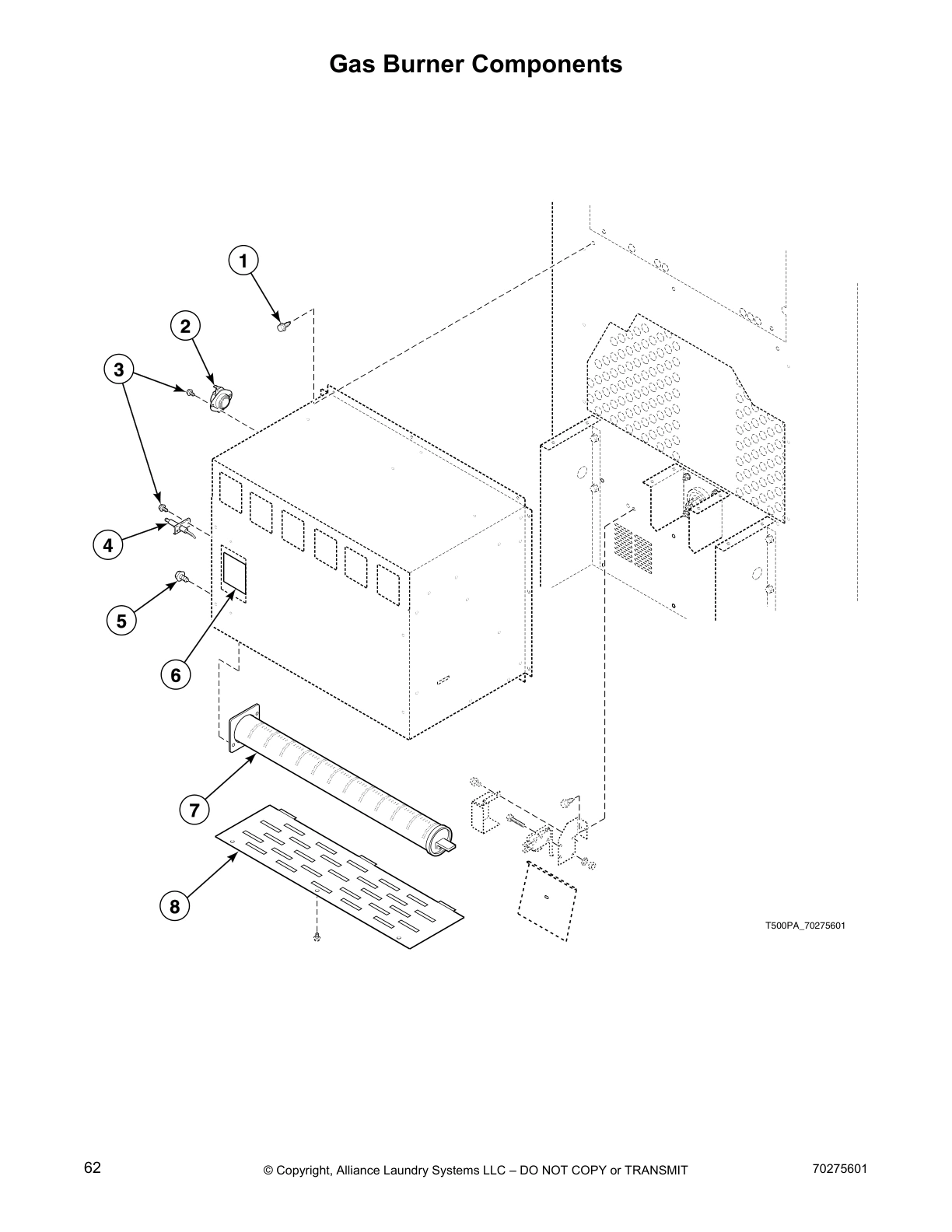

Gas Burner Components

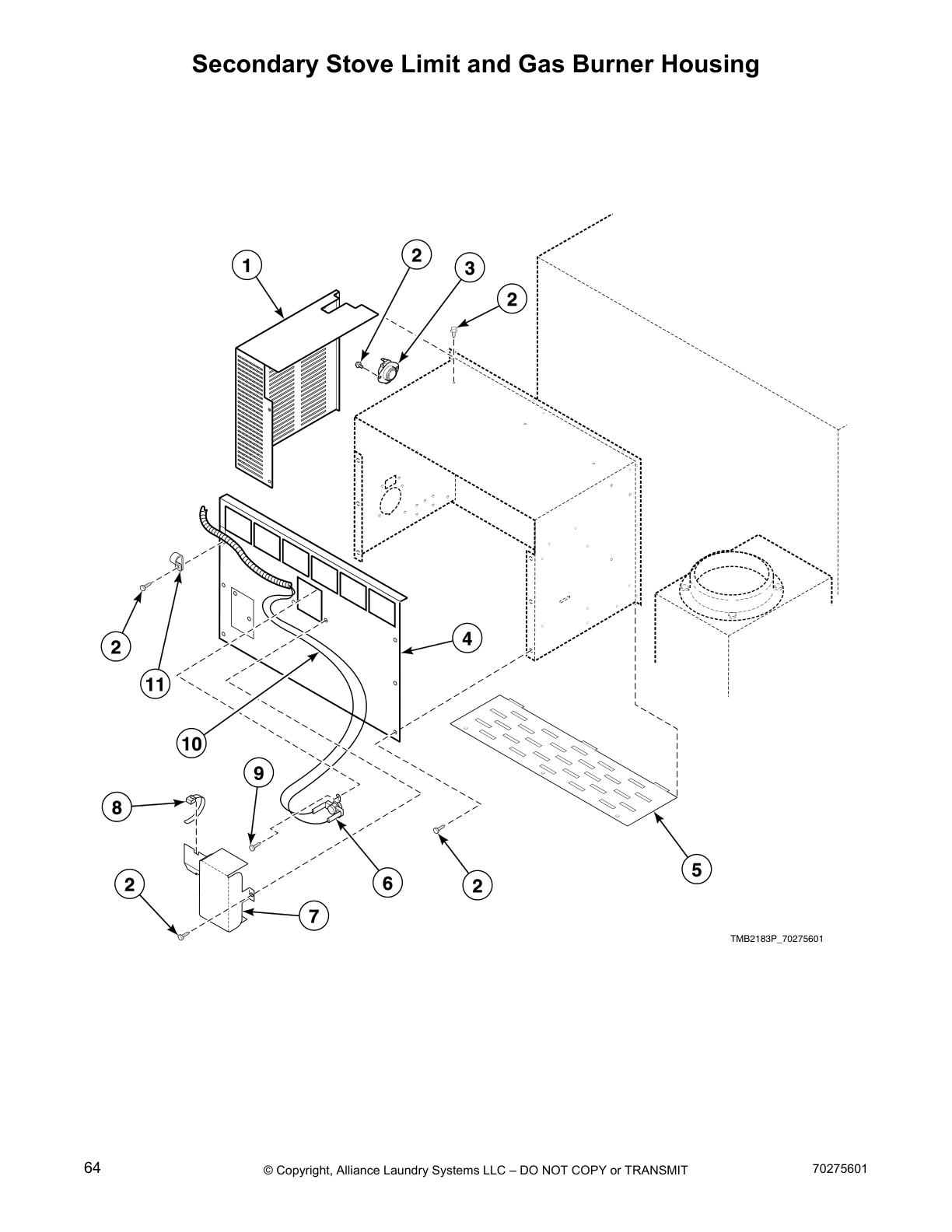

Secondary Stove Limit and Gas Burner Housing

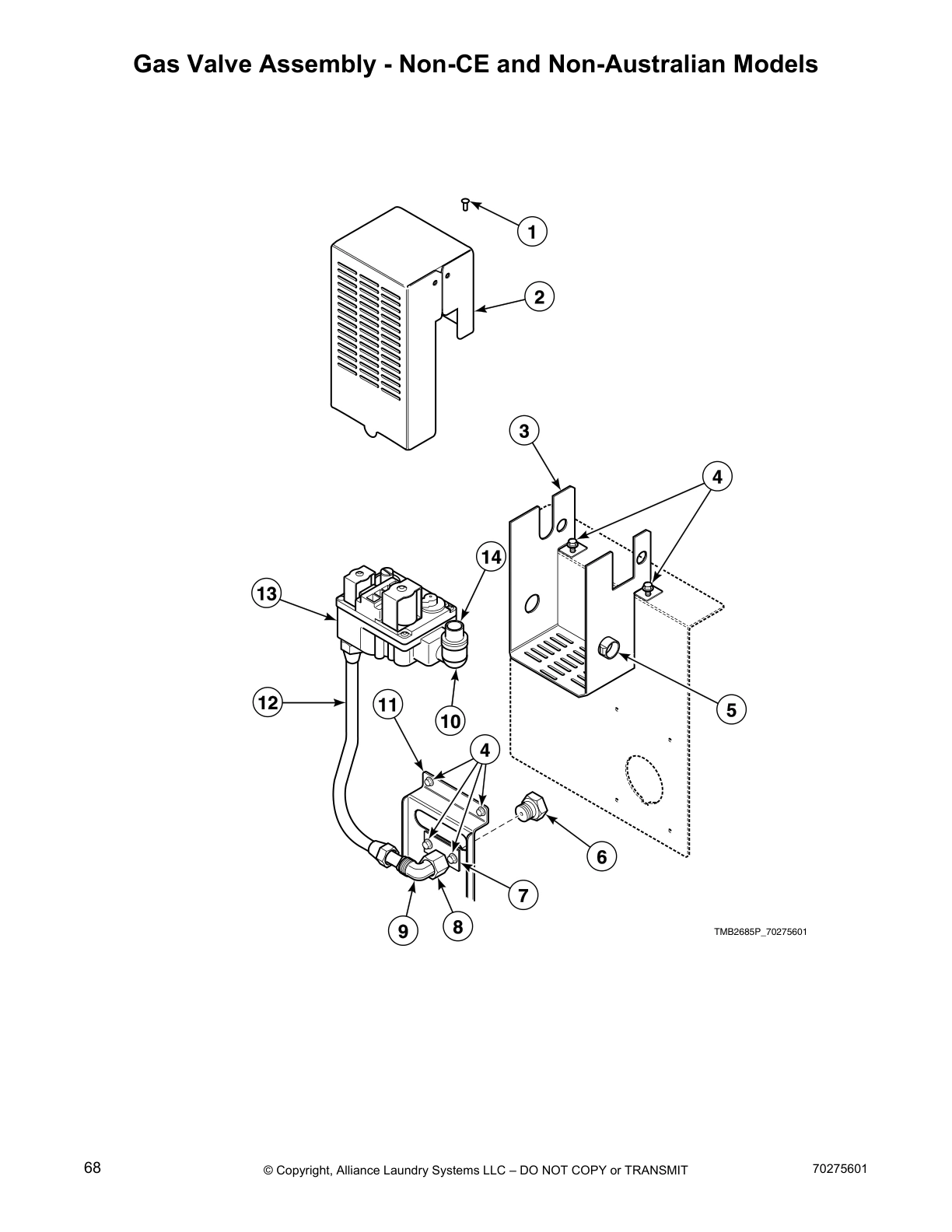

Gas Valve Assembly - Non-CE and Non-Australian Models

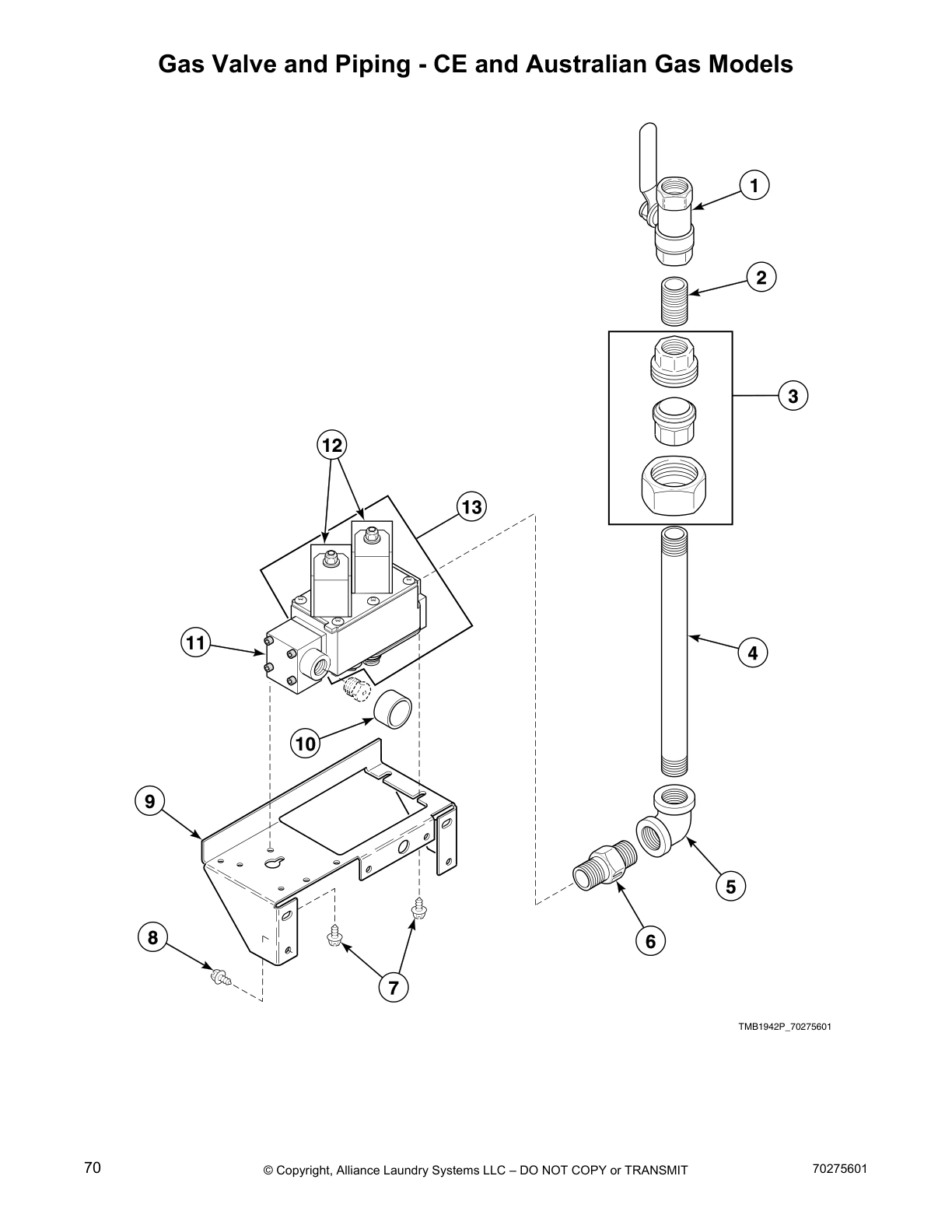

Gas Valve and Piping - CE and Australian Gas Models

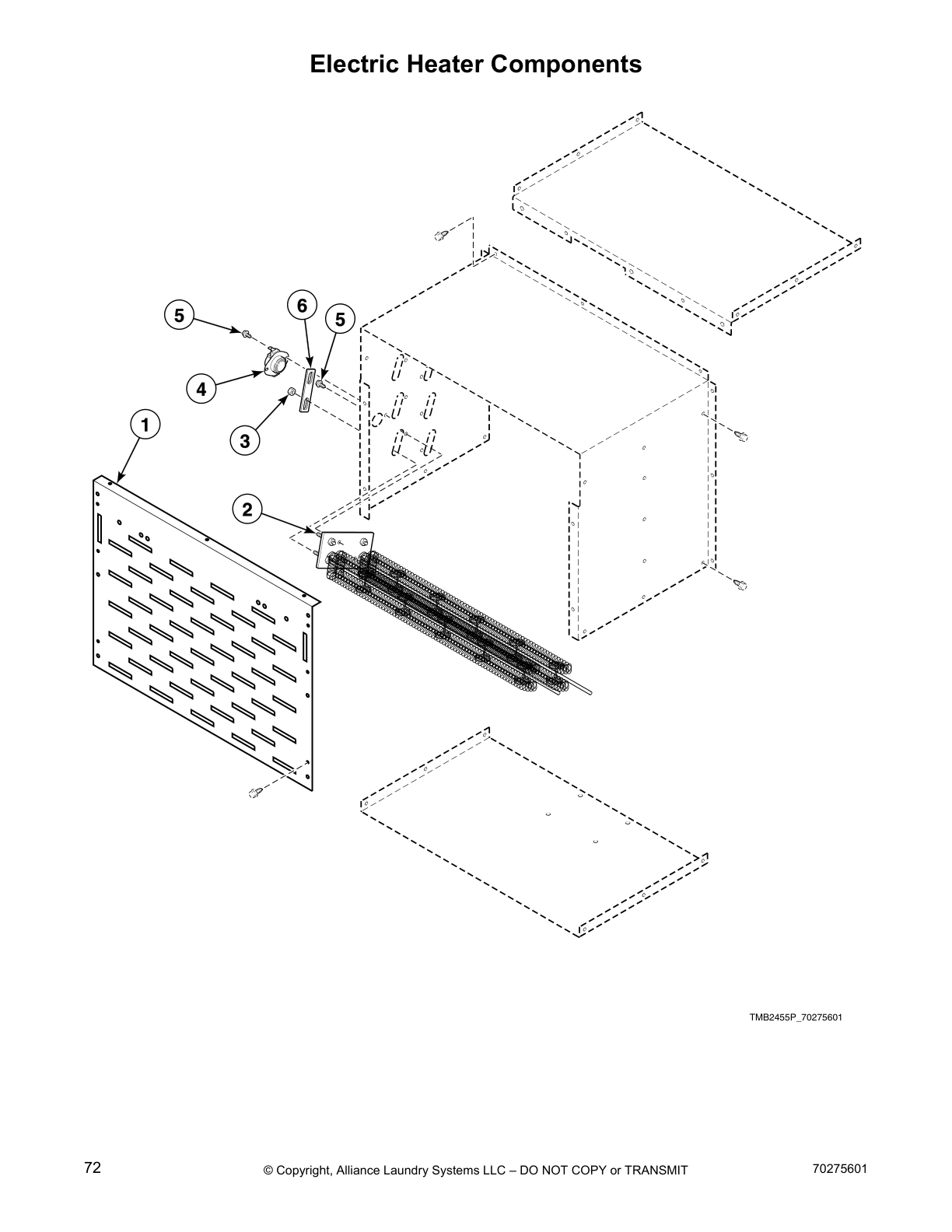

Electric Heater Components

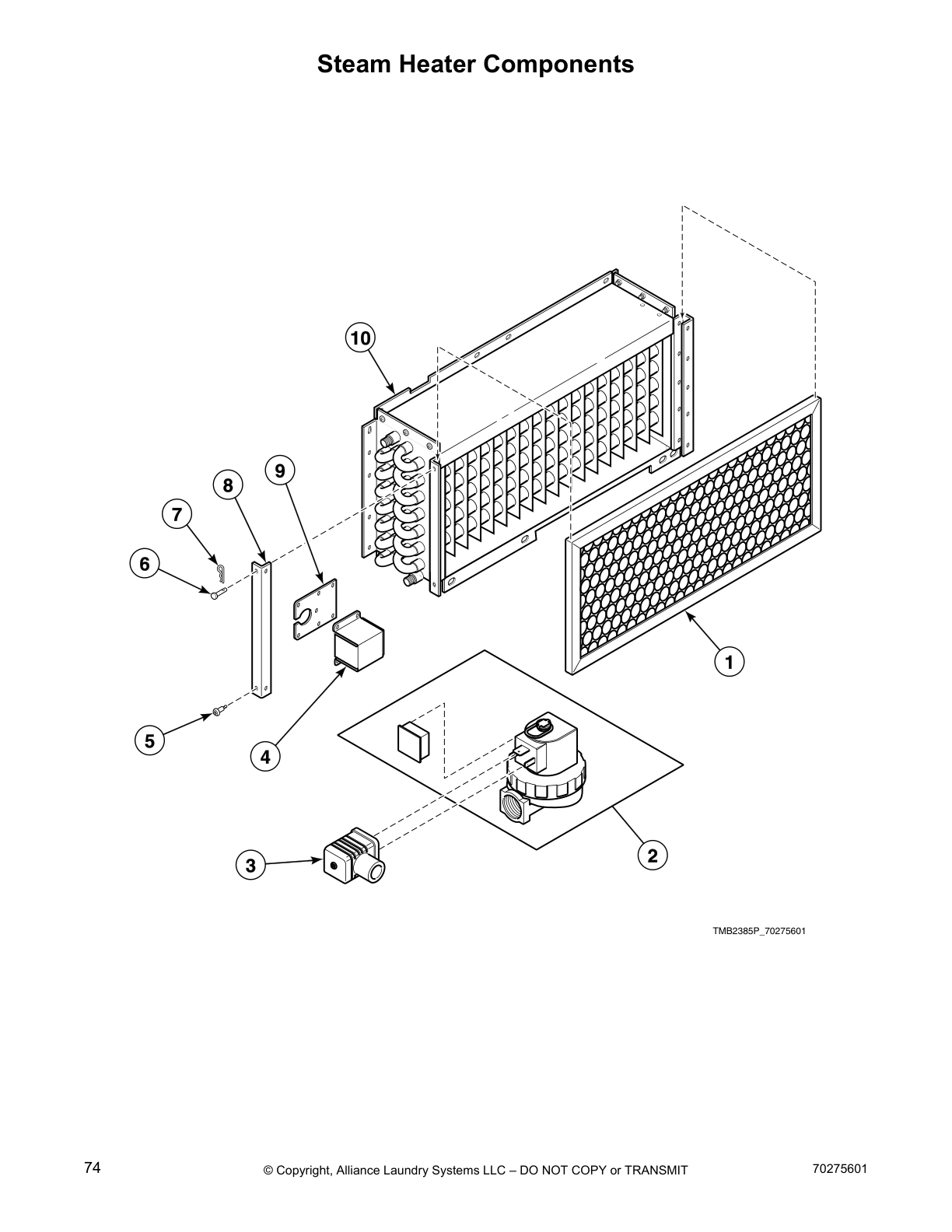

Steam Heater Components

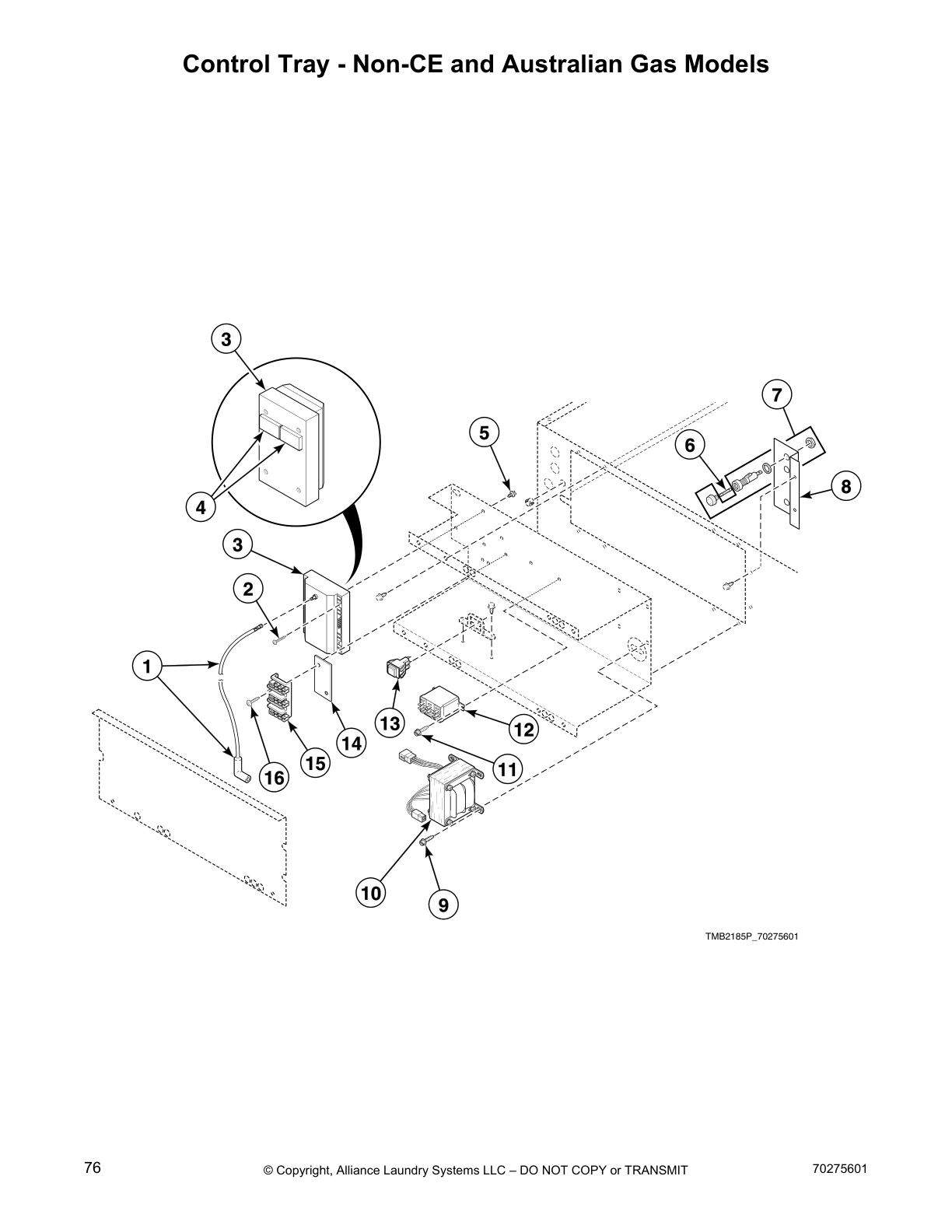

Control Tray - Non-CE and Australian Gas Models

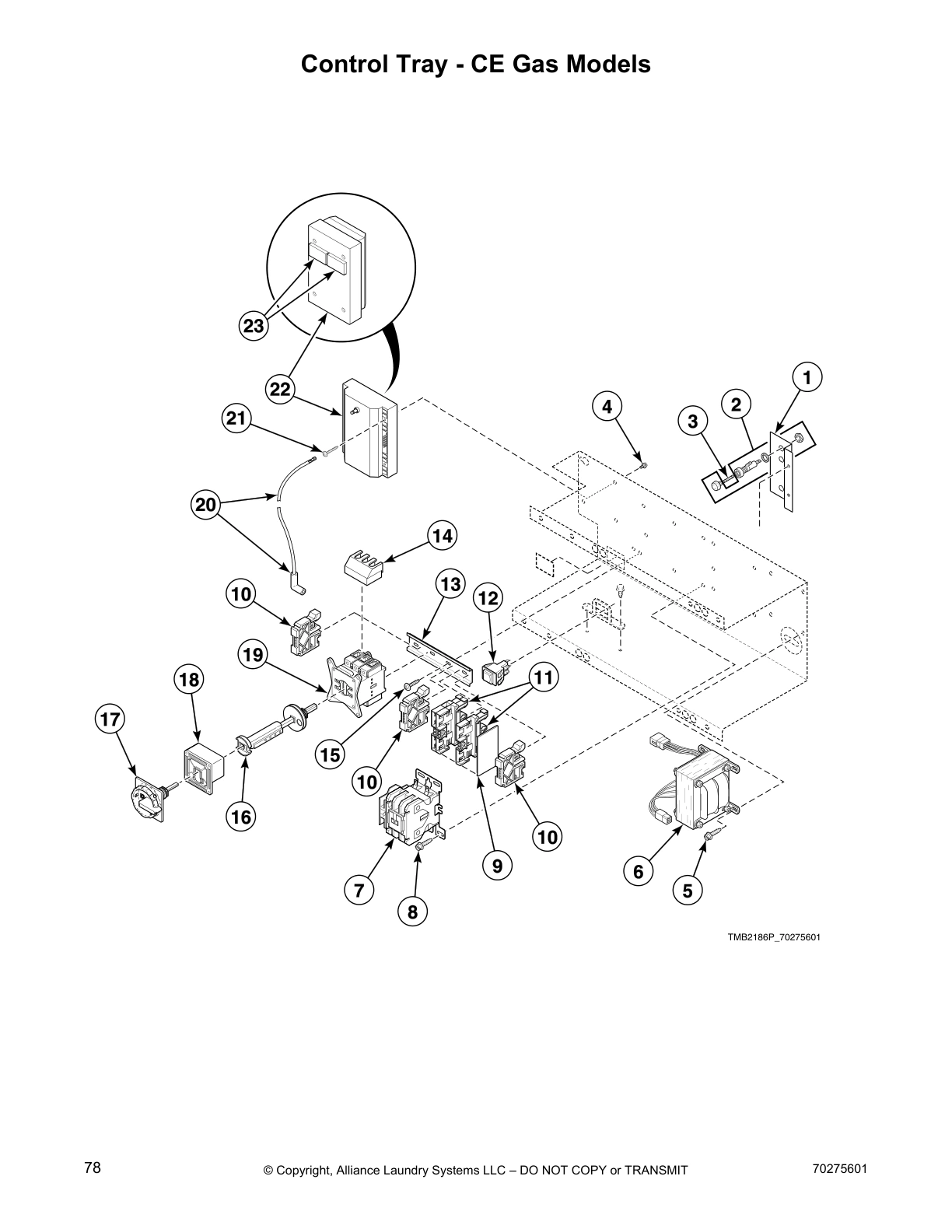

Control Tray - CE Gas Models

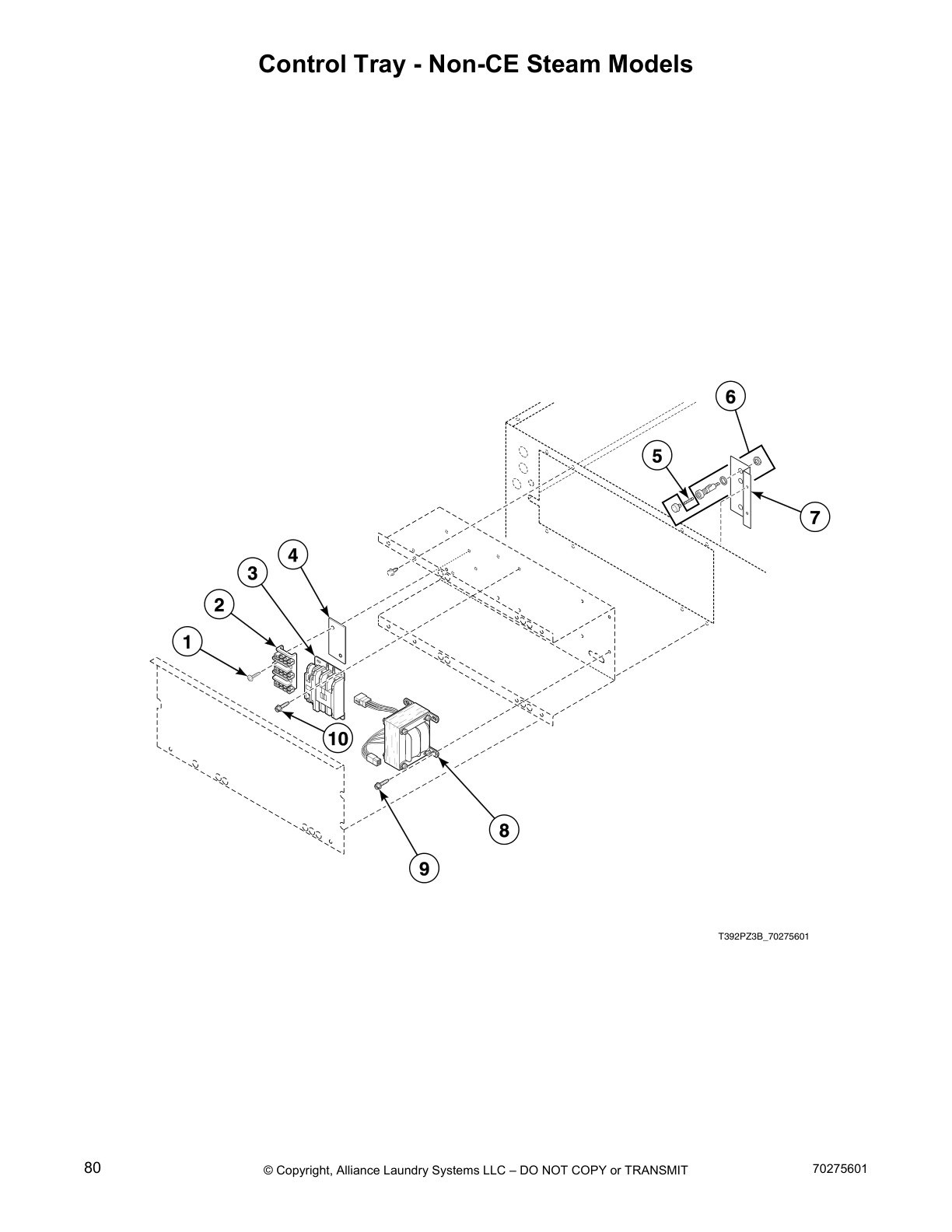

Control Tray - Non-CE Steam Models

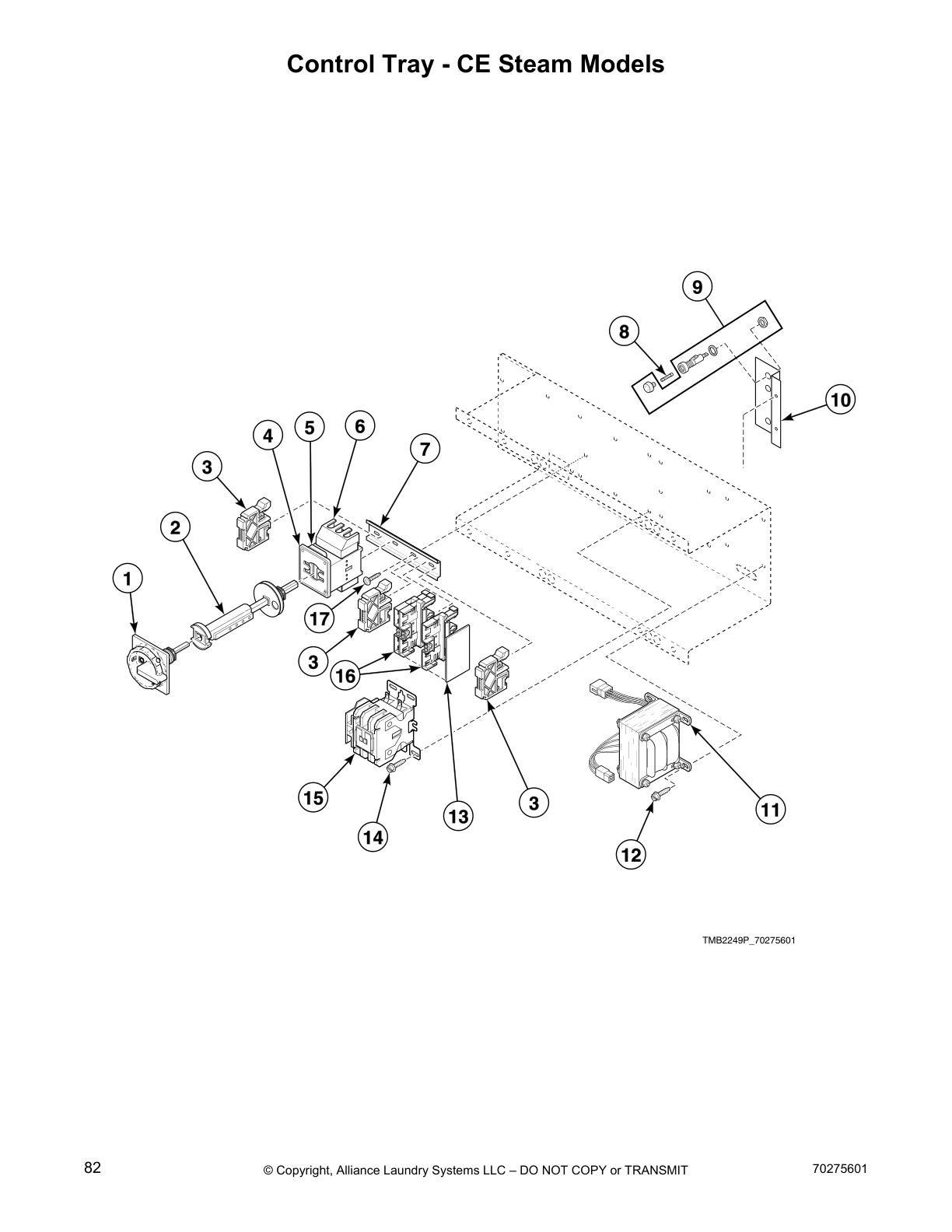

Control Tray - CE Steam Models

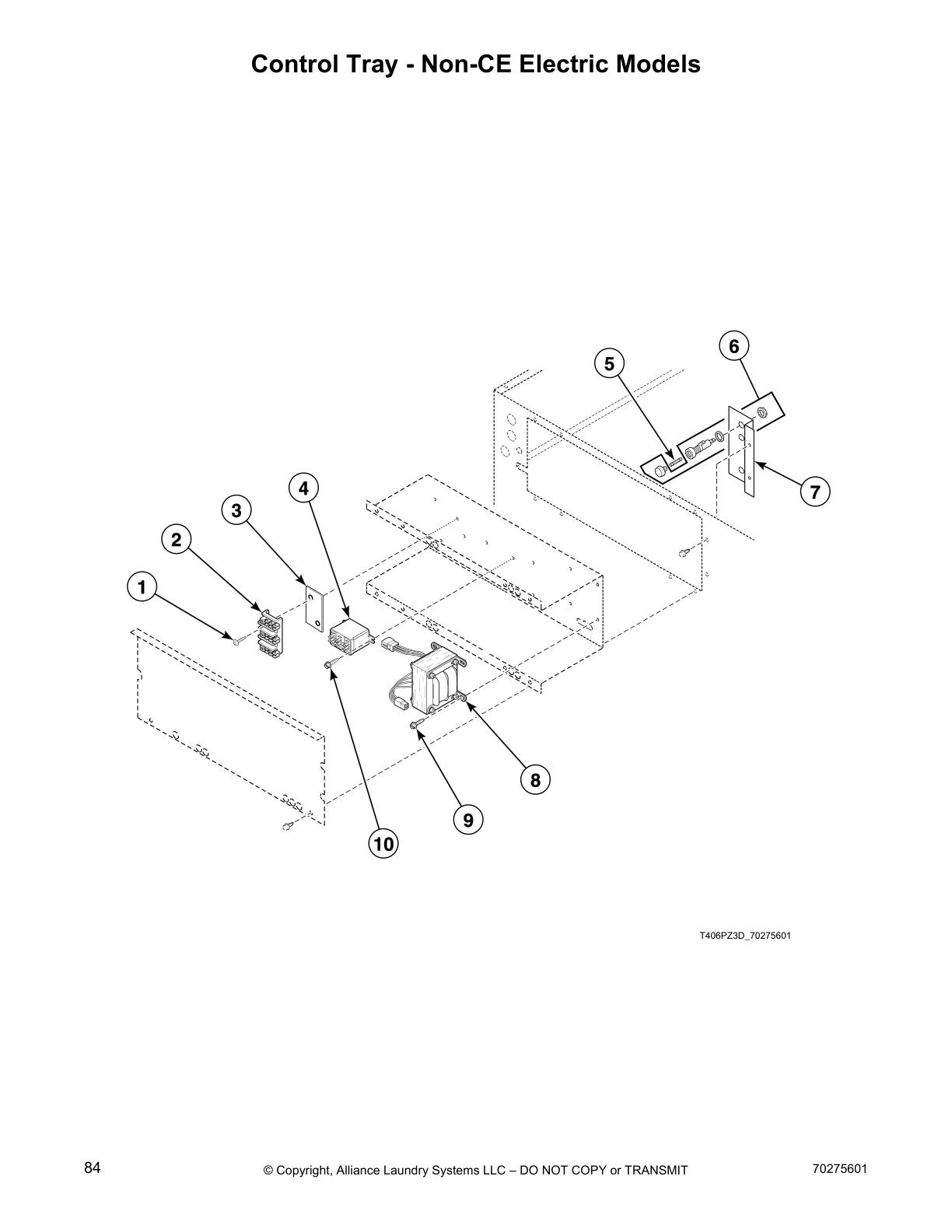

Control Tray - Non-CE Electric Models

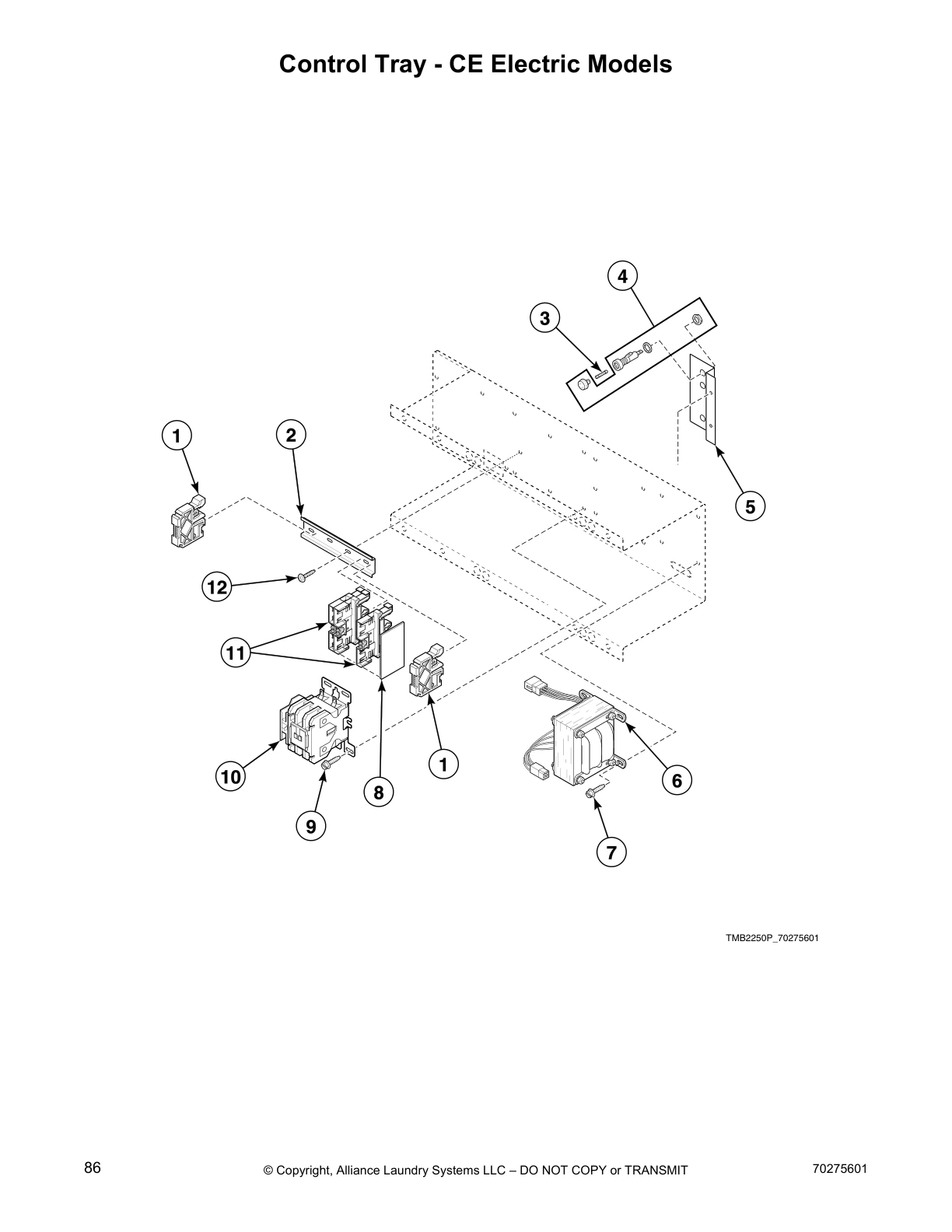

Control Tray - CE Electric Models

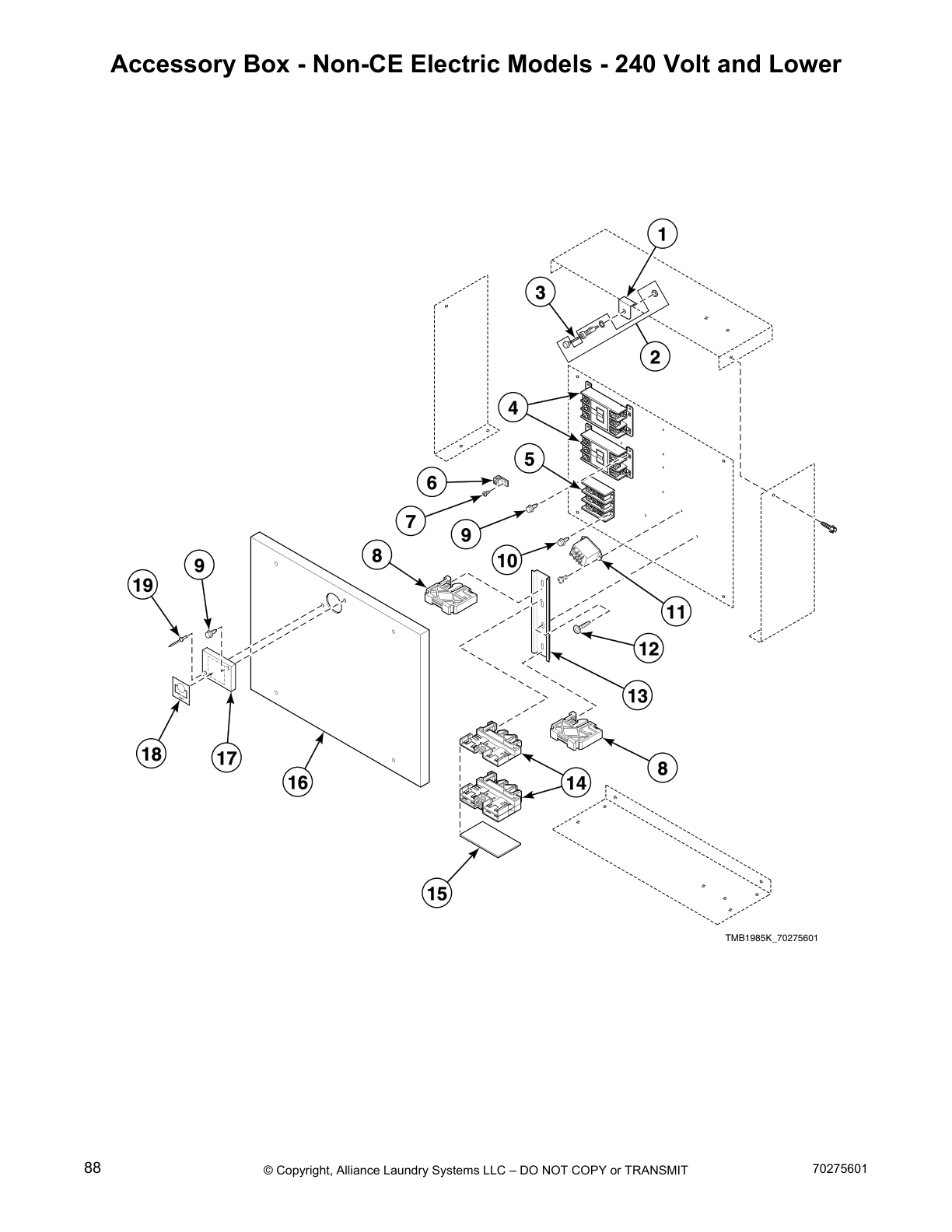

Accessory Box - Non-CE Electric Models - 240 Volt and Lower

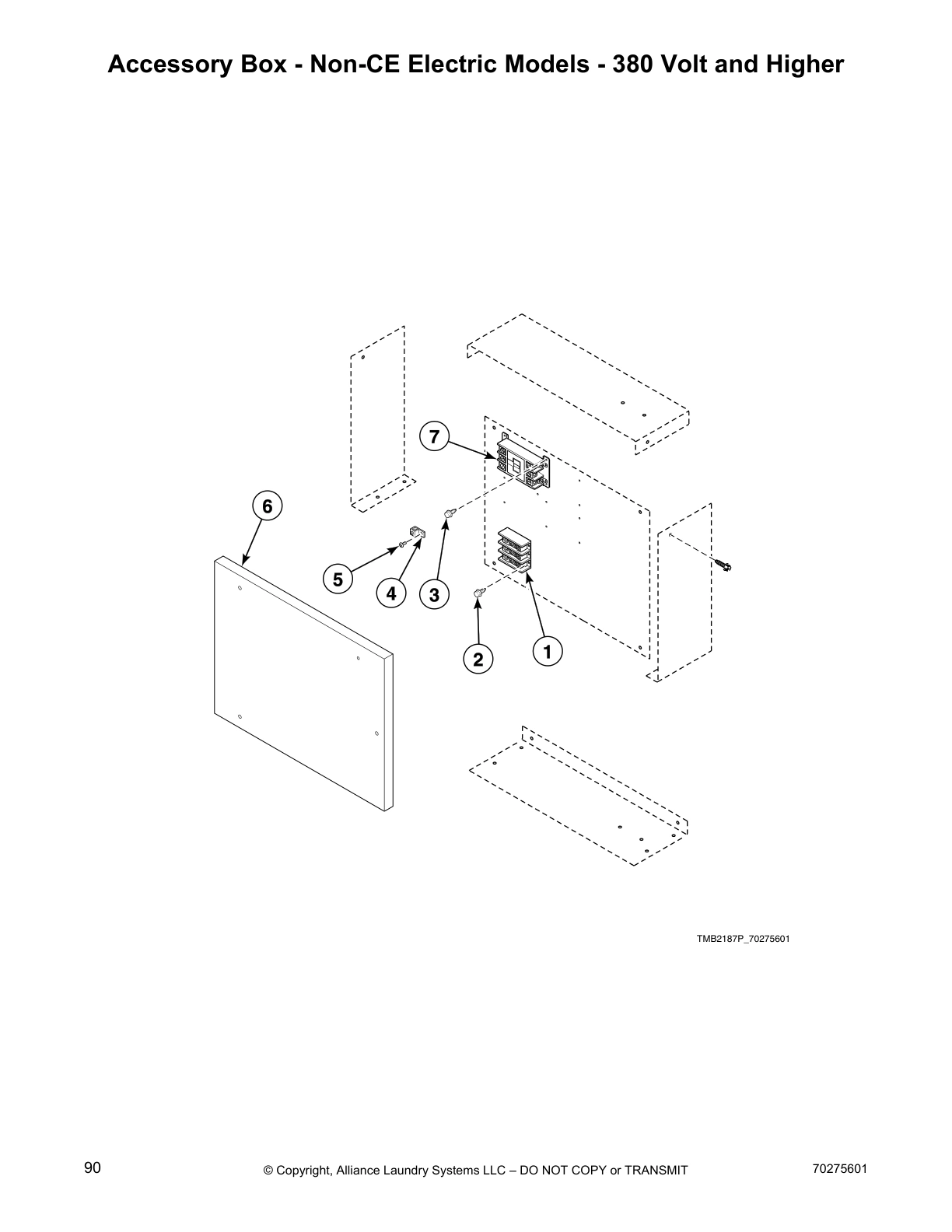

Accessory Box - Non-CE Electric Models - 380 Volt and Higher

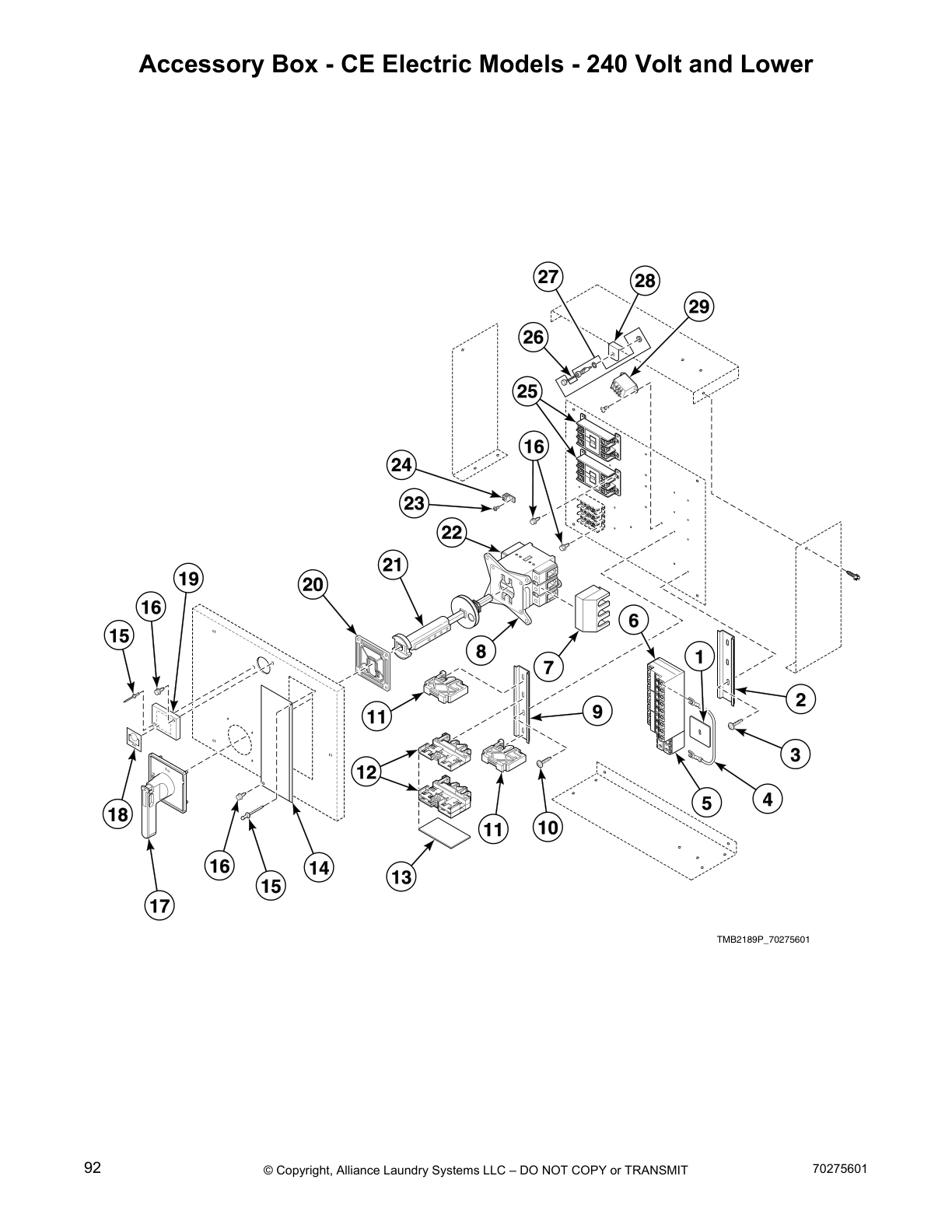

Accessory Box - CE Electric Models - 240 Volt and Lower

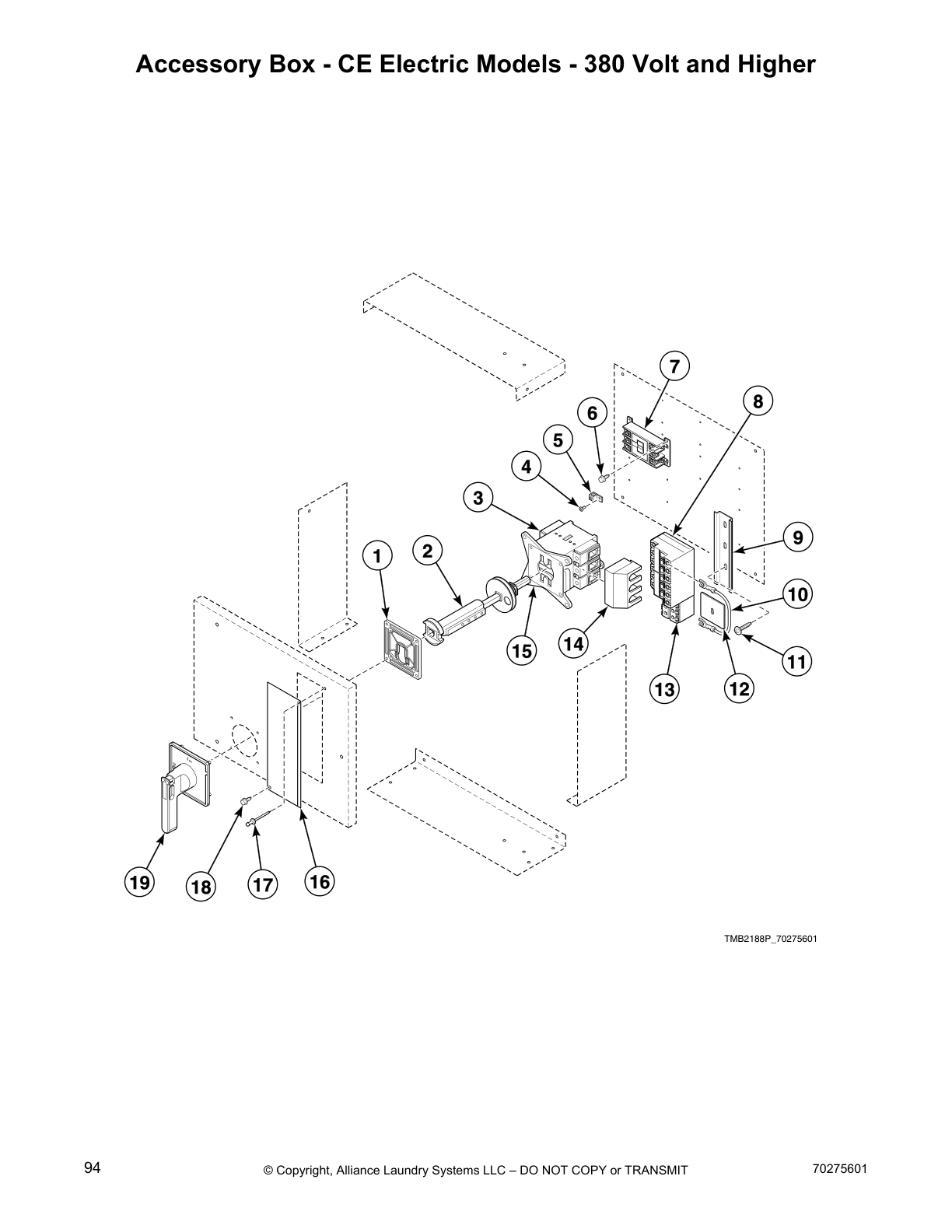

Accessory Box - CE Electric Models - 380 Volt and Higher
Common parts from model Huebsch HT030N Dryer
SPQ 70246301 SPQ 70246301 Contact Us For Availability
Jumper Calibration Assembly SPQ 70211701 Contact Us For Availability
Overlay SPQ 70275401 Contact Us For Availability
SPQ 70084001 SPQ 70084001 Contact Us For Availability
Opto Coupler SPQ 70283102 Contact Us For Availability
Electronic Coin Drop Kit SPQ 39748 Contact Us For Availability
SPQ 38475 SPQ 38475 Contact Us For Availability
SPQ 38464P SPQ 38464P Contact Us For Availability
SPQ 210195 SPQ 210195 Contact Us For Availability
SPQ 38521 SPQ 38521 Contact Us For Availability
SPQ CK109 SPQ CK109 Contact Us For Availability
SPQ CK101 SPQ CK101 Contact Us For Availability
SPQ CK099 SPQ CK099 Contact Us For Availability
SPQ CK117 SPQ CK117 Contact Us For Availability
SPQ CK502 SPQ CK502 Contact Us For Availability
Card Reader Network Harness Assembly SPQ 70206601 Contact Us For Availability
SPQ 70176202P SPQ 70176202P Contact Us For Availability
SPQ 70030201 SPQ 70030201 Contact Us For Availability
SPQ 70027701 SPQ 70027701 Contact Us For Availability
SPQ 70083701 SPQ 70083701 Contact Us For Availability
SPQ 70083401 SPQ 70083401 Contact Us For Availability
Orifice Adapter SPQ 70684110 Contact Us For Availability
SPQ 70249001 SPQ 70249001 Contact Us For Availability
Power Harness Assembly SPQ M413863 Contact Us For Availability
SPQ 70083201 SPQ 70083201 Contact Us For Availability
Jumper Configuration Assembly SPQ 70123801 Contact Us For Availability
SPQ M413510 SPQ M413510 Contact Us For Availability
Control Tray Harness Assembly SPQ M413508 Contact Us For Availability
SPQ M413506 SPQ M413506 Contact Us For Availability
SPQ 70055901P SPQ 70055901P Contact Us For Availability
1
High Voltage Lead SPQ 70006201 Contact Us For Availability
1
Overlay SPQ 70130801 Contact Us For Availability
1
Overlay SPQ 70261201 Contact Us For Availability
1
Overlay SPQ 70258003 Contact Us For Availability
1
Overlay SPQ 70239602 Contact Us For Availability
1
Communication Board SPQ 210095P Contact Us For Availability
1
Door Assembly SPQ 44058001P Contact Us For Availability
1
False Front SPQ 70024202P Contact Us For Availability
1
Cylinder, Trunnion and Seal Kit SPQ 70222002P Contact Us For Availability
1
Flat Top SPQ 70000301 Contact Us For Availability
1
Kickplate SPQ 70117602 Contact Us For Availability
1
Belt SPQ 70276205P Contact Us For Availability
1
Pop Rivet SPQ M405750 Contact Us For Availability
2
Terminal Block SPQ 70210901P Contact Us For Availability
2
Limit Thermostat SPQ M410542 Contact Us For Availability
2
Screw SPQ 70066004 Contact Us For Availability
2
Pushbutton Switch SPQ 70114101 Contact Us For Availability
2
Overlay SPQ 70258002 Contact Us For Availability
2
Pushbutton Switch SPQ 70334201 Contact Us For Availability
2
Electronic Coin Drop Harness SPQ 44065801 Contact Us For Availability
2
Pushbutton Switch SPQ 70239601 Contact Us For Availability
2
Front Panel Assembly SPQ 70000502 Contact Us For Availability
2
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
2
Airflow Switch Bracket SPQ M401938 Contact Us For Availability
2
Idler Wheel Assembly SPQ 430648 Contact Us For Availability
2
Pipe Nipple SPQ 431486 Contact Us For Availability
2
Fuse Receptacle SPQ 91024P Contact Us For Availability
2
Din Rail SPQ M412693 Contact Us For Availability
3
Spark Electrode SPQ M409219 Contact Us For Availability
3
Control Plate Assembly SPQ 70175802 Contact Us For Availability
3
Pushbutton Switch SPQ 70258001 Contact Us For Availability
3
Control Plate Assembly SPQ 70497201 Contact Us For Availability
3
Coin Drop Kit SPQ CK077 Contact Us For Availability
3
Network Plug Support SPQ 70201401 Contact Us For Availability
3
3 Circuit Data Connector SPQ 210155 Contact Us For Availability
3
Front Panel Seal SPQ 70176204P Contact Us For Availability
3
Rear Cylinder Seal Support SPQ 70257301 Contact Us For Availability
3
Lint Panel Switch Bracket SPQ 70023601 Contact Us For Availability
3
Lint Panel Assembly SPQ 70154402 Contact Us For Availability
3
Limit Thermostat SPQ 70337701P Contact Us For Availability
3
Fuse SPQ M414240 Contact Us For Availability
4
Pin SPQ M4772P3 Contact Us For Availability
4
Control Plate Assembly SPQ 70261202 Contact Us For Availability
4
Screw SPQ 70175807 Contact Us For Availability
4
Control Plate Kit SPQ 70291001P Contact Us For Availability
4
Drywall Screw Magnet Kit SPQ 70564801 Contact Us For Availability
4
Pushbutton Switch SPQ 70296401 Contact Us For Availability
4
Gasket SPQ 70176608 Contact Us For Availability
4
Thermistor SPQ 70144601 Contact Us For Availability
4
Nut SPQ 70266301 Contact Us For Availability
4
Stove Back SPQ 70297401 Contact Us For Availability
4
Screw SPQ 70429801 Contact Us For Availability
4
SPQ M402917 SPQ M402917 Contact Us For Availability
4
Fan Contactor SPQ M413862 Contact Us For Availability
4
Fuse Holder SPQ M413544P Contact Us For Availability
5
Center Cylinder Seal SPQ 70564803 Contact Us For Availability
5
Control Kit SPQ 70175801 Contact Us For Availability
5
Electronic Coin Drop Assembly SPQ 70294110 Contact Us For Availability
5
Door Switch Actuator Kit SPQ 70071401 Contact Us For Availability
5
Control Trim SPQ 70529402 Contact Us For Availability
5
Roller Catch Wheel SPQ 70176606 Contact Us For Availability
5
Belt Tension Tool Kit SPQ 70186101 Contact Us For Availability
5
Gas Burner SPQ 70032801P Contact Us For Availability
5
Burner Grill SPQ 70188801 Contact Us For Availability
6
Temperature Kit SPQ 431347P Contact Us For Availability
6
Airflow Switch Cover SPQ 70266201 Contact Us For Availability
6
Fuse Holder SPQ 430642 Contact Us For Availability
6
Door Glass Installation Tool SPQ 70215001P Contact Us For Availability
6
Roller Catch Spacer SPQ 70176604 Contact Us For Availability
6
Fan Motor Harness Assembly SPQ 70017801 Contact Us For Availability
6
Burner Grill SPQ 05161 Contact Us For Availability
6
Thermistor Cover SPQ 70299001 Contact Us For Availability
6
L.P. Conversion Kit SPQ M400770 Contact Us For Availability
6
Transformer SPQ M414229P Contact Us For Availability
7
Replacement Door Handle Kit SPQ D501524 Contact Us For Availability
7
Pop Rivet SPQ 70257401 Contact Us For Availability
7
Main Interlock Harness SPQ 70180101 Contact Us For Availability
7
Cylinder Motor Harness Assemb SPQ 70050401P Contact Us For Availability
7
Fan Motor Harness Assembly SPQ 70062401 Contact Us For Availability
7
SPQ 70159601 SPQ 70159601 Contact Us For Availability
7
Harness Strap SPQ 70112801 Contact Us For Availability
7
Harness Assembly SPQ M4703P3 Contact Us For Availability
7
Screw SPQ 23222 Contact Us For Availability
7
Fuse Receptacle SPQ M414232 Contact Us For Availability
7
Ferrite Core Assembly SPQ M414228P Contact Us For Availability
8
Key SPQ 70155601 Contact Us For Availability
8
Drive Motor Harness SPQ 70051401 Contact Us For Availability
8
SPQ 70033502 SPQ 70033502 Contact Us For Availability
8
SPQ 70155401 SPQ 70155401 Contact Us For Availability
8
Jumper Bypass Assembly SPQ 70277301 Contact Us For Availability
8
SPQ 70289101P SPQ 70289101P Contact Us For Availability
8
Secondary Stove Limit Kit SPQ M411307 Contact Us For Availability
8
SPQ 70281801 SPQ 70281801 Contact Us For Availability
8
SPQ 70229801P SPQ 70229801P Contact Us For Availability
8
Burner Orifice SPQ M412997 Contact Us For Availability
8
Fuse Bracket SPQ M413118 Contact Us For Availability
9
Coin Vault Harness Assembly SPQ 70413301 Contact Us For Availability
9
Network Capacitor Assembly SPQ 70406501 Contact Us For Availability
9
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
9
SPQ 70132301 SPQ 70132301 Contact Us For Availability
9
Cylinder Guide Tool SPQ 70013702 Contact Us For Availability
9
Burner Orifice SPQ 70684136 Contact Us For Availability
9
Network Capacitor Assembly SPQ 70118801 Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Transformer SPQ M414312P Contact Us For Availability
10
Rear Cylinder Bearing Housing SPQ 70222001P Contact Us For Availability
10
Screw SPQ 70072801 Contact Us For Availability
10
Rear Limit Harness SPQ 70297001 Contact Us For Availability
10
Street Elbow SPQ H86070034 Contact Us For Availability
10
Primary Air Adjustment Sleeve SPQ 70239801 Contact Us For Availability
10
Fan Contactor SPQ M413614P Contact Us For Availability
10
Terminal Block SPQ 51778 Contact Us For Availability
11
Support Bearing SPQ 70013901 Contact Us For Availability
11
Card Reader Overlay SPQ 70334301 Contact Us For Availability
11
Hole Plug SPQ 70063201 Contact Us For Availability
11
Roller Catch Arm SPQ 70030301 Contact Us For Availability
11
Switch Assembly SPQ 70413401 Contact Us For Availability
11
Drive Motor Kit SPQ 70338101P Contact Us For Availability
11
Damper and Hinge Exhaust Assembly SPQ 70209501 Contact Us For Availability
11
Pipe Clip SPQ 70203701 Contact Us For Availability
11
Orifice Holder Bracket SPQ 70248901 Contact Us For Availability
12
Washer SPQ 70448701 Contact Us For Availability
12
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
12
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
12
Lint Screen SPQ 70290401 Contact Us For Availability
12
Bolt SPQ 70338001P Contact Us For Availability
12
Screw SPQ 70126101 Contact Us For Availability
12
Gas Line Assembly SPQ 70271201 Contact Us For Availability
13
Key SPQ 70155602 Contact Us For Availability
13
Nut SPQ M400991 Contact Us For Availability
13
Door Glass SPQ 70133601P Contact Us For Availability
13
Pop Rivet SPQ 70126401 Contact Us For Availability
13
Blower Housing Scroll SPQ 70016301 Contact Us For Availability
13
Replacement Gas Valve Kit SPQ M4971P3 Contact Us For Availability
14
Mounting Bracket SPQ 70108501 Contact Us For Availability
14
Screw SPQ M400034 Contact Us For Availability
14
Nut SPQ M414215 Contact Us For Availability
14
Panel Locator SPQ 70126301 Contact Us For Availability
14
Motor Pulley SPQ 70187801 Contact Us For Availability
14
Pipe Nipple SPQ M4969P3 Contact Us For Availability
15
Door Handle SPQ 44057701 Contact Us For Availability
15
Nut SPQ 70284204 Contact Us For Availability
16
Door Latch SPQ M400003 Contact Us For Availability
16
Washer SPQ M400022 Contact Us For Availability
16
Baffle SPQ 70022301 Contact Us For Availability
16
U-Bolt Plate SPQ 70284202 Contact Us For Availability
17
Screw SPQ M400661 Contact Us For Availability
17
Coin Vault Trim SPQ M401223 Contact Us For Availability
17
Baffle Gasket SPQ 70015702 Contact Us For Availability
17
Key SPQ 70012001 Contact Us For Availability
18
Panel Locator SPQ 70117502 Contact Us For Availability
18
Center Cylinder Seal SPQ 70015701 Contact Us For Availability
18
Idler Pivot Bracket SPQ 70186601 Contact Us For Availability
19
Door Ring Gasket SPQ 70296801 Contact Us For Availability
19
Rear Cylinder Channel Plate SPQ 70392801 Contact Us For Availability
19
Clip SPQ 70015703 Contact Us For Availability
19
U-Bolt SPQ 70566401 Contact Us For Availability
20
Exhaust Thimble SPQ 70144101 Contact Us For Availability
20
Rear Cylinder Seal SPQ 70070101 Contact Us For Availability
20
Nut SPQ 70226701 Contact Us For Availability
20
Motor Bracket Spring SPQ 70200901 Contact Us For Availability
21
Bolt SPQ 70342601P Contact Us For Availability
23
Partition Baffle SPQ 70616701 Contact Us For Availability
24
Retaining Ring SPQ 70017701 Contact Us For Availability
25
Coin Chute Assembly SPQ 70022001 Contact Us For Availability
27
Coin Vault Assembly SPQ 70022101 Contact Us For Availability
29
SPQ M412534 SPQ M412534 Contact Us For Availability
NI
SPQ 70173401P SPQ 70173401P Contact Us For Availability
NI
Electronic OPL Control Kit SPQ 70084303 Contact Us For Availability
NI
SPQ M4689P3 SPQ M4689P3 Contact Us For Availability
NI
Control Harness Assembly SPQ 70055801P Contact Us For Availability
NI
Jumper Calibration Assembly SPQ 70084201 Contact Us For Availability
NI
SPQ 431611 SPQ 431611 Contact Us For Availability
NI
Card Reader Harness Assembly SPQ 431613 Contact Us For Availability
NI
Nut SPQ M412645 Contact Us For Availability
NI
Control Panel Harness Assembly SPQ 70206301P Contact Us For Availability
NI
Mounting Plate SPQ 70208801 Contact Us For Availability
NI
Jumper Calibration Assembly SPQ 70266801 Contact Us For Availability
NI
Fuse SPQ 44089501 Contact Us For Availability
NI
Coin Drop SPQ 70294107 Contact Us For Availability
NI
Coin Drop SPQ 70294104 Contact Us For Availability
NI
Wire Guard SPQ 70256402P Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ 39157 Contact Us For Availability
NI
SPQ 38519 SPQ 38519 Contact Us For Availability
NI
SPQ 38467 SPQ 38467 Contact Us For Availability
NI
SPQ 210196 SPQ 210196 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
SPQ 70294103P SPQ 70294103P Contact Us For Availability
NI
SPQ 38472 SPQ 38472 Contact Us For Availability
NI
SPQ CK108 SPQ CK108 Contact Us For Availability
NI
SPQ CK100 SPQ CK100 Contact Us For Availability
NI
SPQ CK118 SPQ CK118 Contact Us For Availability
NI
SPQ CK116 SPQ CK116 Contact Us For Availability
NI
SPQ CK103 SPQ CK103 Contact Us For Availability
NI
Card Reader Harness Assembly SPQ 70211801 Contact Us For Availability
NI
SPQ 70133501P SPQ 70133501P Contact Us For Availability
NI
SPQ 70176205LP SPQ 70176205LP Contact Us For Availability
NI
SPQ 44088801 SPQ 44088801 Contact Us For Availability
NI
Control Panel Kit SPQ 70121602P Contact Us For Availability
NI
SPQ 70506401 SPQ 70506401 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 70277801 SPQ 70277801 Contact Us For Availability
NI
SPQ 70083801 SPQ 70083801 Contact Us For Availability
NI
SPQ 70297601 SPQ 70297601 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 70142 SPQ 70142 Contact Us For Availability
NI
SPQ M4853P3 SPQ M4853P3 Contact Us For Availability
NI
SPQ 70053601P SPQ 70053601P Contact Us For Availability
NI
Jumper Harness Assembly SPQ M411072 Contact Us For Availability
NI
SPQ 70220901 SPQ 70220901 Contact Us For Availability
NI
SPQ 70083501 SPQ 70083501 Contact Us For Availability
NI
SPQ 70299101 SPQ 70299101 Contact Us For Availability
NI
Orifice Keeper Bracket SPQ 70684142 Contact Us For Availability
NI
Elbow SPQ 70684116 Contact Us For Availability
NI
SPQ M4706P3 SPQ M4706P3 Contact Us For Availability
NI
SPQ 70379301 SPQ 70379301 Contact Us For Availability
NI
SPQ 70208701 SPQ 70208701 Contact Us For Availability
NI
Power Wire Harness Assembly SPQ M413509 Contact Us For Availability
NI
SPQ M413505 SPQ M413505 Contact Us For Availability
NI
Power Wire Harness Assembly SPQ M405824 Contact Us For Availability
NI
Control Tray Harness Assembly SPQ M414230P Contact Us For Availability
NI
SPQ M413930P SPQ M413930P Contact Us For Availability
NI
SPQ M413504 SPQ M413504 Contact Us For Availability
NI
SPQ 70120201P SPQ 70120201P Contact Us For Availability
NI
SPQ 70083001P SPQ 70083001P Contact Us For Availability
× ![]()
