Model LG HS200G – Common Parts & Diagrams

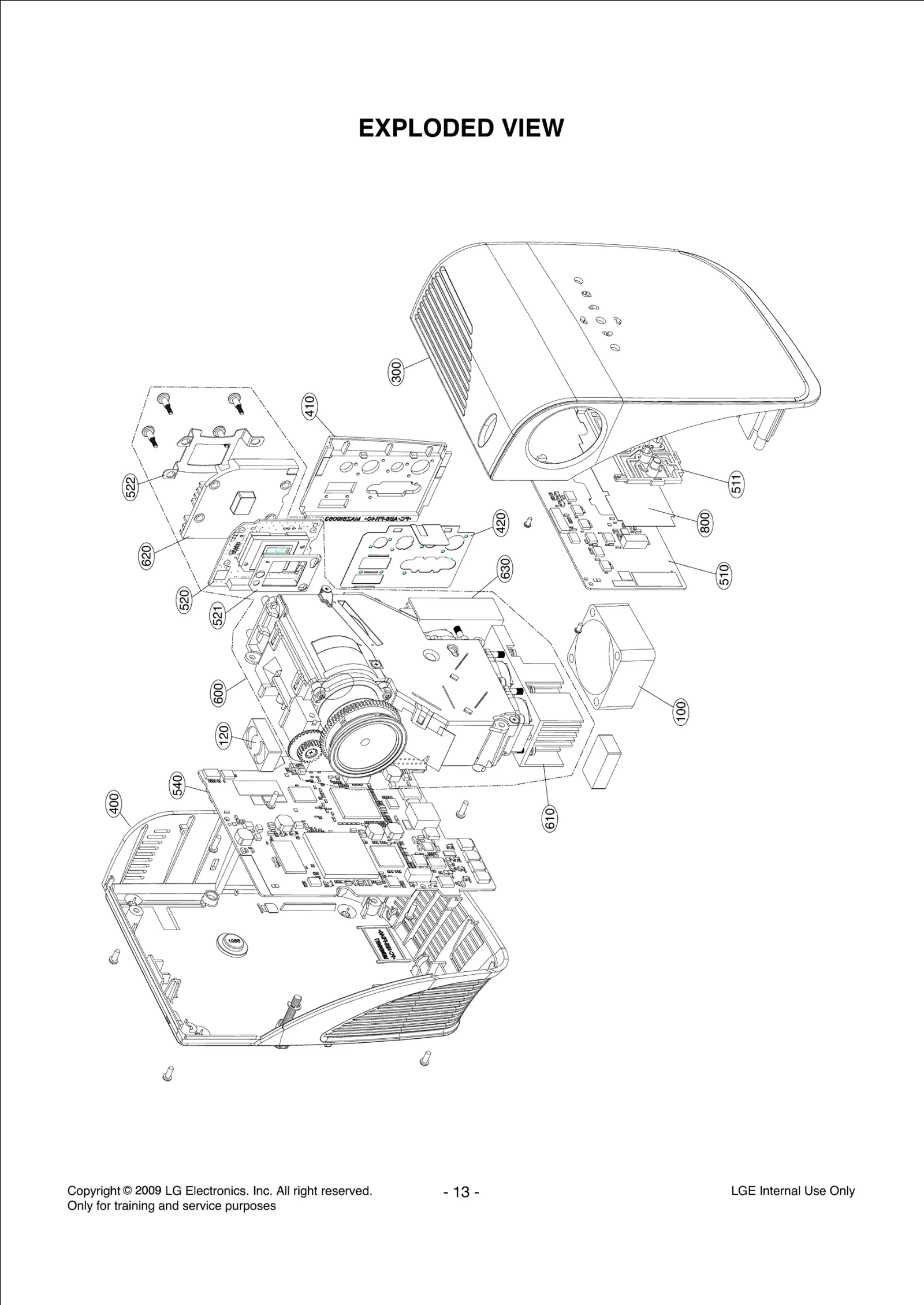

Diagram 0
Diagram 1
Common parts from model LG HS200G
100
Bracket Assembly LGE ABA33145204 Contact Us For Availability
120
Speaker,Full Range LGE EAB39078902 Contact Us For Availability
300
Case Assembly LGE ABQ72936901 Contact Us For Availability
400
Case Assembly LGE ABQ72936801 Contact Us For Availability
410
Bracket LGE MAZ61906301 Contact Us For Availability
510
Chassis Assembly LGE EBT60693202 Contact Us For Availability
520
Chassis Assembly LGE EBT60693101 Contact Us For Availability
521
Damper LGE MCQ62123501 Contact Us For Availability
522
Supporter LGE MJH61859201 Contact Us For Availability
540
Hand Insert PCB Assembly,Main LGE EBR65415201 Contact Us For Availability
610
Heat Sink Assembly LGE AEF72924501 Contact Us For Availability
620
Heat Sink LGE MED61845701 Contact Us For Availability
630
Heat Sink LGE MED61870901 Contact Us For Availability
800
Insulator LGE MEV62113301 Contact Us For Availability
A1
Manual,Owners LGE MFL62345717 Contact Us For Availability
A2
Remote Controller LGE MKJ50025104 Contact Us For Availability
A3
POWER CORD LGE 6410VUH007A Contact Us For Availability
A4
Cap LGE MBL62064901 Contact Us For Availability
A6
Holder LGE MEG61895301 Contact Us For Availability
A7
Adapters LGE EAY37272601 Contact Us For Availability
A8
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
A9
Cable,Assembly LGE 6850F00005A Contact Us For Availability
AR107
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR112
Resistor,Array LGE 0RR0472T621 Contact Us For Availability
C6
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C8
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C17
CAPACITOR,FIXED CERA LGE 0CK476FD67A Contact Us For Availability
C57
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C110
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C128
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C129
Capacitor,Ceramic,Ch LGE EAE32479401 Contact Us For Availability
C131
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C146
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C160
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C261
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C465
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C467
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C515
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C738
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C773
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C778
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C779
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C785
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C797
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C801
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C837
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C910
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C913
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C922
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C936
Capacitor,AL,Chip LGE EAE30840301 Contact Us For Availability
D7
Diode,TVS LGE EAH33946001 Contact Us For Availability
D52
Diode,TVS LGE EAH39491701 Contact Us For Availability
D101
DIODE,SWITCHING LGE 0DD226239AA Contact Us For Availability
D503
Diode,Schottky LGE 0DRGS00328A Contact Us For Availability
D702
Diode,Schottky LGE 0DRDI00028B Contact Us For Availability
IC1
IC,DC,DC Converter LGE EAN50480501 Contact Us For Availability
IC52
IC,Transmitter LGE EAN60767901 Contact Us For Availability
IC101
IC,Analog Switch LGE EAN43439401 Contact Us For Availability
IC102
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC104
Display SOC,Digital TV LGE EAN60351501 Contact Us For Availability
IC106
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC108
IC,Analog Switch LGE EAN30093201 Contact Us For Availability
IC109
IC,EEPROM LGE EAN35989901 Contact Us For Availability
IC110
IC,CMOS LGE EAN32058901 Contact Us For Availability
IC111
IC,PERIPHERALS LGE 0IPRPTI063A Contact Us For Availability
IC201
Socket,IC LGE EAG50515401 Contact Us For Availability
IC201
Socket,IC LGE EAG52857001 Contact Us For Availability
IC213
IC,Microprocessors LGE EAN30092202 Contact Us For Availability
IC402
IC,RDRAM LGE EAN41984801 Contact Us For Availability
IC403
IC,Clock Generator LGE EAN41982301 Contact Us For Availability
IC405
IC,Clock Generator LGE EAN41983801 Contact Us For Availability
IC406
IC,NOR Flash Memory LGE 0IMMRAL053B Contact Us For Availability
IC407
IC,SDRAM LGE 0IMMR00230A Contact Us For Availability
IC501
IC,Power Driver LGE 0IMCR02219A Contact Us For Availability
IC502
IC,EEPROM LGE 0IMMR00023A Contact Us For Availability
IC508
IC,MICRO CONTROLLER LGE 0IMCRFA003A Contact Us For Availability
IC509
IC,MICRO CONTROLLER LGE 0IMCRSG007A Contact Us For Availability
IC701
IC,Voltage Regulator LGE EAN35245001 Contact Us For Availability
IC702
IC,DC,DC Converter LGE EAN33143501 Contact Us For Availability
IC704
IC,DC,DC Converter LGE EAN35520901 Contact Us For Availability
IC705
IC,DC,DC Converter LGE EAN60660801 Contact Us For Availability
IC707
IC,LINEAR LGE 0ILNR00038A Contact Us For Availability
IC711
IC,LDO Voltage Regulator LGE EAN38066801 Contact Us For Availability
IC903
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
IC904
IC,OP Amplifier LGE 0IPRPKE009A Contact Us For Availability
IC906
IC,OP Amplifier LGE 0IMO324000C Contact Us For Availability
IC908
IC,Voltage Regulator LGE EAN36841801 Contact Us For Availability
IC910
Photo,Coupler LGE 0ILNRHP001B Contact Us For Availability
IC913
IC,LED Driver LGE EAN52203901 Contact Us For Availability
IC914
IC,STANDARD LOGIC LGE 0ISTLON023B Contact Us For Availability
IC915
IC,Gate LGE 0ILNRON009B Contact Us For Availability
IC918
IC,Bridge Driver LGE EAN52292301 Contact Us For Availability
JK1
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK5
Jack,RCA LGE EAG35542203 Contact Us For Availability
JK6
JACK,PHONE LGE 6612F00099A Contact Us For Availability
L54
Inductor,Multilayer,Chip LGE EAP39314711 Contact Us For Availability
L502
COIL,ENERGY RECOVERY LGE 6140VR0007A Contact Us For Availability
L717
Inductor,Wire Wound, LGE EAP32842805 Contact Us For Availability
L722
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L730
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L902
Inductor,Wire Wound,Chip LGE EAP60925001 Contact Us For Availability
LD57
LED,Chip LGE EAV59915401 Contact Us For Availability
P2
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P4
CONNECTOR (CIRC),WAFER LGE 366-173J Contact Us For Availability
P51
Connector,FFC/FPC/PI LGE 6630X60128A Contact Us For Availability
P201
Connector,FFC/FPC/PIC LGE EAG60669301 Contact Us For Availability
P504
Connector,FFC/FPC/PIC LGE EAG60669201 Contact Us For Availability
P701
Connector,Wafer LGE 6602V12001B Contact Us For Availability
P903
Connector,Wafer LGE 6630V90141C Contact Us For Availability
Q705
TRANSISTOR,FETS LGE 0TFON80004C Contact Us For Availability
Q901
TR,Bipolar LGE 0TRKE80038A Contact Us For Availability
Q902
TR,Bipolar LGE EBK42831501 Contact Us For Availability
Q903
FET LGE 0TFRH80001A Contact Us For Availability
Q909
FET LGE EBK52732001 Contact Us For Availability
Q915
FET LGE EBK38029201 Contact Us For Availability
R2
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R3
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R7
Resistor,Chip LGE 0RJ0562D477 Contact Us For Availability
R29
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R51
Resistor,Chip LGE EBC32176501 Contact Us For Availability
R53
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R54
RESISTOR,METAL GLAZE LGE 0RJ1302D677 Contact Us For Availability
R56
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R135
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R145
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R149
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R177
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R185
Resistor,Chip LGE EBC32271301 Contact Us For Availability
R192
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R197
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R407
RESISTOR,METAL GLAZE LGE 0RJ0662D477 Contact Us For Availability
R410
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R411
RESISTOR,METAL GLAZE LGE 0RJ1500D477 Contact Us For Availability
R414
Resistor,Chip LGE 0RJ0392C478 Contact Us For Availability
R427
RESISTOR,METAL GLAZE LGE 0RJ1820D477 Contact Us For Availability
R429
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R436
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R459
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R464
Resistor,Chip LGE EBC32174201 Contact Us For Availability
R465
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R479
Resistor,Chip LGE EBC33834501 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
R544
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R561
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R566
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R574
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R611
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R724
RESISTOR,METAL GLAZE LGE 0RJ1072D477 Contact Us For Availability
R726
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R767
RESISTOR,METAL GLAZE LGE 0RJ9311D477 Contact Us For Availability
R768
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R772
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R901
Resistor,Chip LGE EBC32476501 Contact Us For Availability
R902
Resistor,Chip LGE 0RJ0561C678 Contact Us For Availability
R907
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R912
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R914
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R916
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R920
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R925
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R930
RESISTOR,METAL GLAZE LGE 0RJ3601E472 Contact Us For Availability
R937
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R955
Resistor,Chip LGE 0RJ0221D677 Contact Us For Availability
R958
Resistor,Chip LGE EBC37118602 Contact Us For Availability
R960
Resistor,Chip LGE EBC37118601 Contact Us For Availability
R969
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
S1
Cable,FFC LGE 6631900038B Contact Us For Availability
S1
Harness,Single LGE EAD60854102 Contact Us For Availability
S2
Harness,Single LGE EAD60854101 Contact Us For Availability
S3
Cable,FFC LGE EAD60701102 Contact Us For Availability
SW53
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X401
Crystal LGE 6212AB2018B Contact Us For Availability
ZD200
Diode,Zener LGE 0DZVH00348A Contact Us For Availability
ZD901
DIODE,ZENERS LGE 0DZRM00218A Contact Us For Availability
× ![]()
Login and Registration Form
