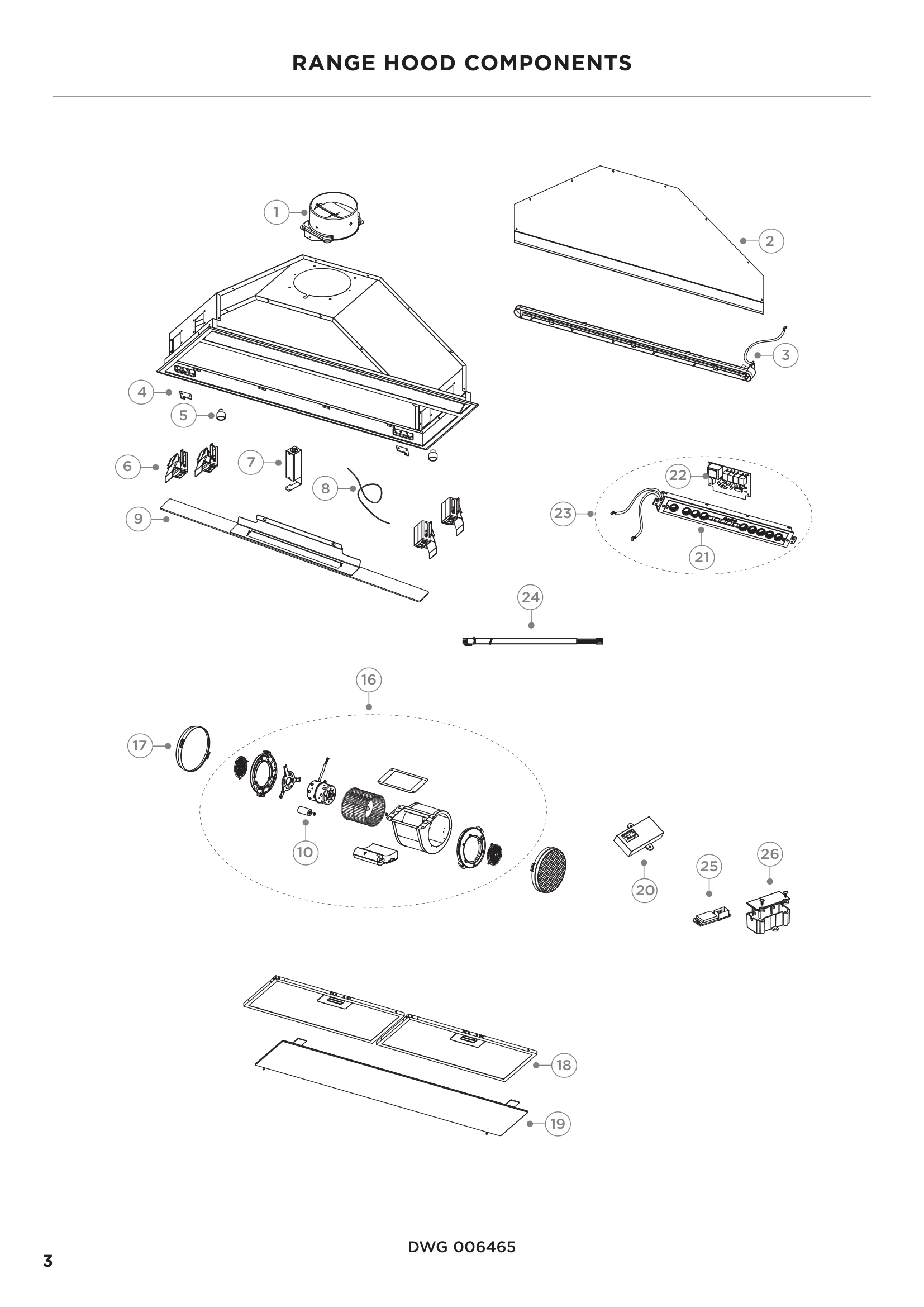

Model Fisher & Paykel HP36IDCHX4-50207-A Range Hood – Common Parts & Diagrams

1
OUTLET DUCT METAL 6” UL
OUTLET DUCT METAL 6” UL FPA 793717 Contact Us For Availability
View on Model
2
SERVICE DOOR HOOD GTCL 90
SERVICE DOOR HOOD GTCL 90 FPA 792971 Contact Us For Availability
View on Model
3
LED STRIP 735 9W BICOLOUR
LED STRIP 735 9W BICOLOUR FPA 793709 Contact Us For Availability
View on Model
4
HINGE GLASS HOOD GTCL
HINGE GLASS HOOD GTCL FPA 792972 Contact Us For Availability
View on Model
5
MAGNET GTCL
MAGNET GTCL FPA 792940 Contact Us For Availability
View on Model
6
CLAMP ASSY GTCL
CLAMP ASSY GTCL FPA 792941 Contact Us For Availability
View on Model
7
HARD WIRING CONNECTION BOX
HARD WIRING CONNECTION BOX FPA 793712 Contact Us For Availability
View on Model
8
POWER CABLE NO PLUG UL RANGEHOOD
POWER CABLE NO PLUG UL RANGEHOOD FPA 793711 Contact Us For Availability
View on Model
9
NOT AVAILABLE IN THIS MODEL
NOT AVAILABLE IN THIS MODEL FPA NM Contact Us For Availability
View on Model
10
CAPACITOR 32 F UL APPROVED
CAPACITOR 32 F UL APPROVED FPA 793704 Contact Us For Availability
View on Model
18
FILTER AL METAL HANDLE HP36
FILTER AL METAL HANDLE HP36 FPA 793719 Contact Us For Availability
View on Model
19
GLASS UPPER ASSY GTCL 90
GLASS UPPER ASSY GTCL 90 FPA 792945 Contact Us For Availability
View on Model
20
KIT MOD COMBI WIFIBT GEA US SP - FOR PRODUCT
KIT MOD COMBI WIFIBT GEA US SP - FOR PRODUCT FPA 566390 Contact Us For Availability
View on Model
21
UI PCB TCFP WITH ENCLOSURE
UI PCB TCFP WITH ENCLOSURE FPA 793705 Contact Us For Availability
View on Model
22
PCB MOTOR POWER 4 SPEEDS
PCB MOTOR POWER 4 SPEEDS FPA 793706 Contact Us For Availability
View on Model
23
PCB GROUP TCFP UI & MOTOR
PCB GROUP TCFP UI & MOTOR FPA 793710 Contact Us For Availability
View on Model
24
CABLE LED 3 CORE WIRE STRIP
CABLE LED 3 CORE WIRE STRIP FPA 793846 Contact Us For Availability
View on Model
25
PCBA COMBI WIFIBT GEA US SP
PCBA COMBI WIFIBT GEA US SP FPA 869467P Contact Us For Availability
View on Model
26
COVER WIFI MODULE
COVER WIFI MODULE FPA 793856 Contact Us For Availability
View on Model
NI
REDUCER 150MM TO 120MM RH
REDUCER 150MM TO 120MM RH FPA 791919 Contact Us For Availability
View on Model
NI
SAFETY GUIDE RHD US CA_A
SAFETY GUIDE RHD US CA_A FPA 106051 Contact Us For Availability
View on Model
