Bosch HMB30155UC Parts List

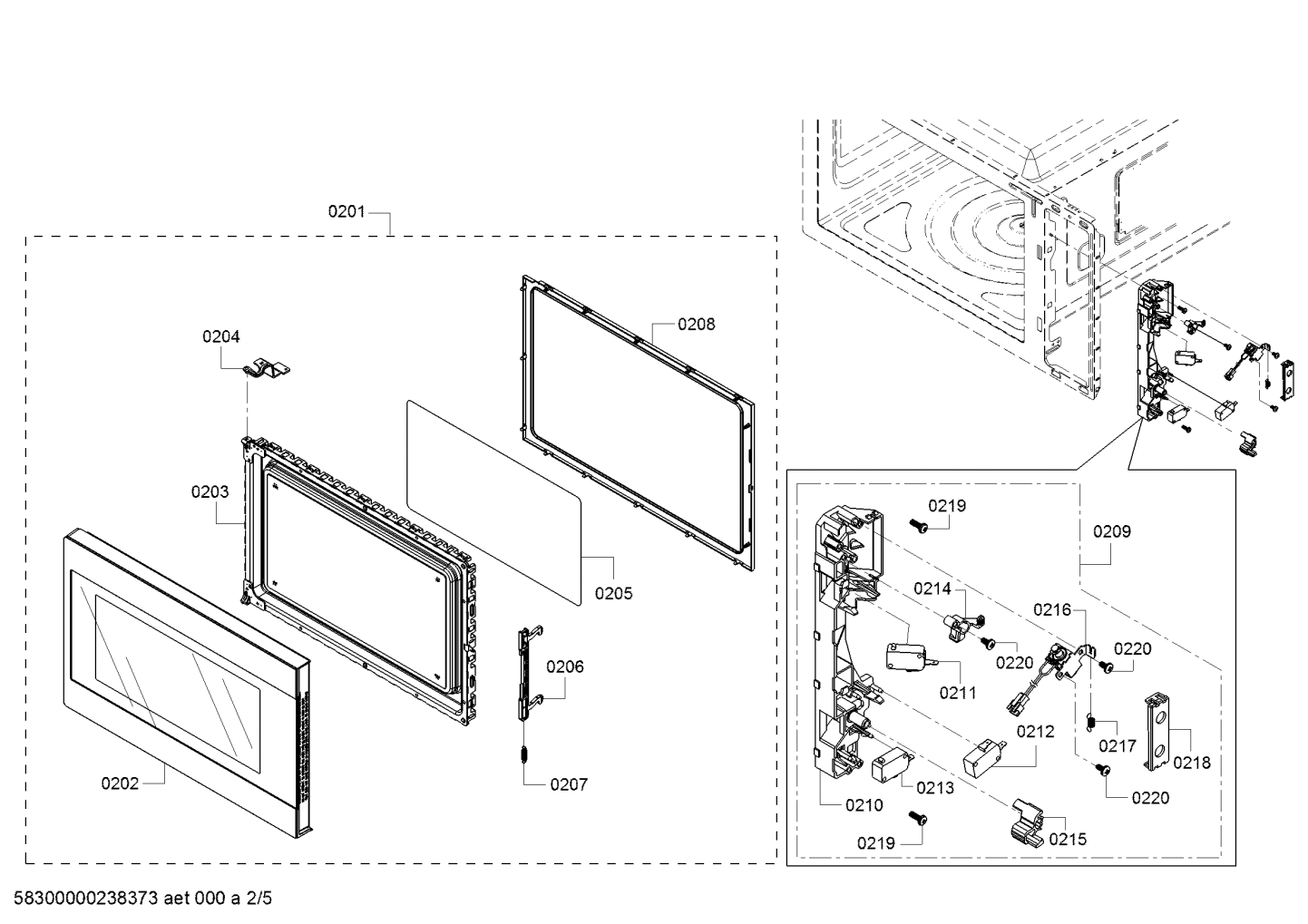

0201

Door BOS 11060705 Contact Us For Availability

View on Model

0202

Glass front panel BOS 11060707 Contact Us For Availability

View on Model

0203

Frame BOS 11060700 Contact Us For Availability

View on Model

0204

Bracket BOS 10033018 Contact Us For Availability

View on Model

0205

Steam protection foil BOS 11060701 Contact Us For Availability

View on Model

0206

Latch BOS 12049183 Contact Us For Availability

View on Model

0207

Spring BOS 10003354 Contact Us For Availability

View on Model

0208

Frame BOS 11060702 Contact Us For Availability

View on Model

0209

Door latch BOS 12049179 Contact Us For Availability

View on Model

0210

Support BOS 12049185 Contact Us For Availability

View on Model

0211

Microswitch BOS 10033023 Contact Us For Availability

View on Model

0212

Microswitch BOS 10020075 Contact Us For Availability

View on Model

0213

Microswitch BOS 10019859 Contact Us For Availability

View on Model

0214

Lever BOS 10033024 Contact Us For Availability

View on Model

0215

Lever BOS 10033022 Contact Us For Availability

View on Model

0216

Actuator BOS 10033021 Contact Us For Availability

View on Model

0217

Spring BOS 10033020 Contact Us For Availability

View on Model

0218

Cover BOS 10033019 Contact Us For Availability

View on Model

0302

COVER Backorder BOS 00606320 $9.17

View on Model

0303

Turntable BOS 11060708 Contact Us For Availability

View on Model

0304

Ring-turntable BOS 12049177 Contact Us For Availability

View on Model

0305

Drive coupling BOS 00612947 Contact Us For Availability

View on Model

0306

Motor BOS 10033031 Contact Us For Availability

View on Model

0307

Limiter-temperature BOS 10033025 Contact Us For Availability

View on Model

0308

Cover BOS 11060703 Contact Us For Availability

View on Model

0309

12014096 Bosch Microwave Sensor Backorder BOS 12014096 $121.26

View on Model

0310

Case-upper part BOS 11060722 Contact Us For Availability

View on Model

0311

Cable harness BOS 12049181 Contact Us For Availability

View on Model

0312

Power cord BOS 12049186 Contact Us For Availability

View on Model

0401

12049180 Bosch Fan Motor Backorder BOS 12049180 $19.30

View on Model

0402

Fan blade BOS 12047446 Contact Us For Availability

View on Model

0403

Support BOS 12037767 Contact Us For Availability

View on Model

0404

00617236 Bosch Microwave Blower Motor Backorder BOS 00617236 $28.95

View on Model

0405

Fuse BOS 10007554 Contact Us For Availability

View on Model

0406

00636703 Bosch Microwave Filter Module Backorder BOS 00636703 $31.85

View on Model

0407

Hot-air guide plate BOS 12033286 Contact Us For Availability

View on Model

0408

Regulator-temperature BOS 10007668 Contact Us For Availability

View on Model

0409

00617231 Bosch Microwave Bracket Backorder BOS 00617231 $3.86

View on Model

0410

00755534 Bosch Microwave Magnetron Backorder BOS 00755534 $127.84

View on Model

0411

Cover BOS 12049178 Contact Us For Availability

View on Model

0412

12032167 Bosch Microwave Lamp Backorder BOS 12032167 $14.96

View on Model

0413

Case-bottom BOS 20006210 Contact Us For Availability

View on Model

0414

Rubber foot BOS 00635861 Contact Us For Availability

View on Model

0415

Holder BOS 10033026 Contact Us For Availability

View on Model

0416

00631397 Bosch Microwave Capacitor Assembly In Stock BOS 00631397 $27.99

View on Model

0417

00631390 Bosch Microwave Bracket Backorder BOS 00631390 $3.86

View on Model

0418

10031544 Bosch Fuse Backorder BOS 10031544 $6.27

View on Model

0419

00625682 Bosch Microwave Diode In Stock BOS 00625682 $8.69

View on Model

0420

00755535 Bosch Microwave High Voltage Transfo In Stock BOS 00755535 $155.57

View on Model

0501

Installation kit BOS 20007329 Contact Us For Availability

View on Model

0501

Installation kit BOS 20007330 Contact Us For Availability

View on Model
