Model LG HG9522PR.AS1ESGN – Common Parts & Diagrams

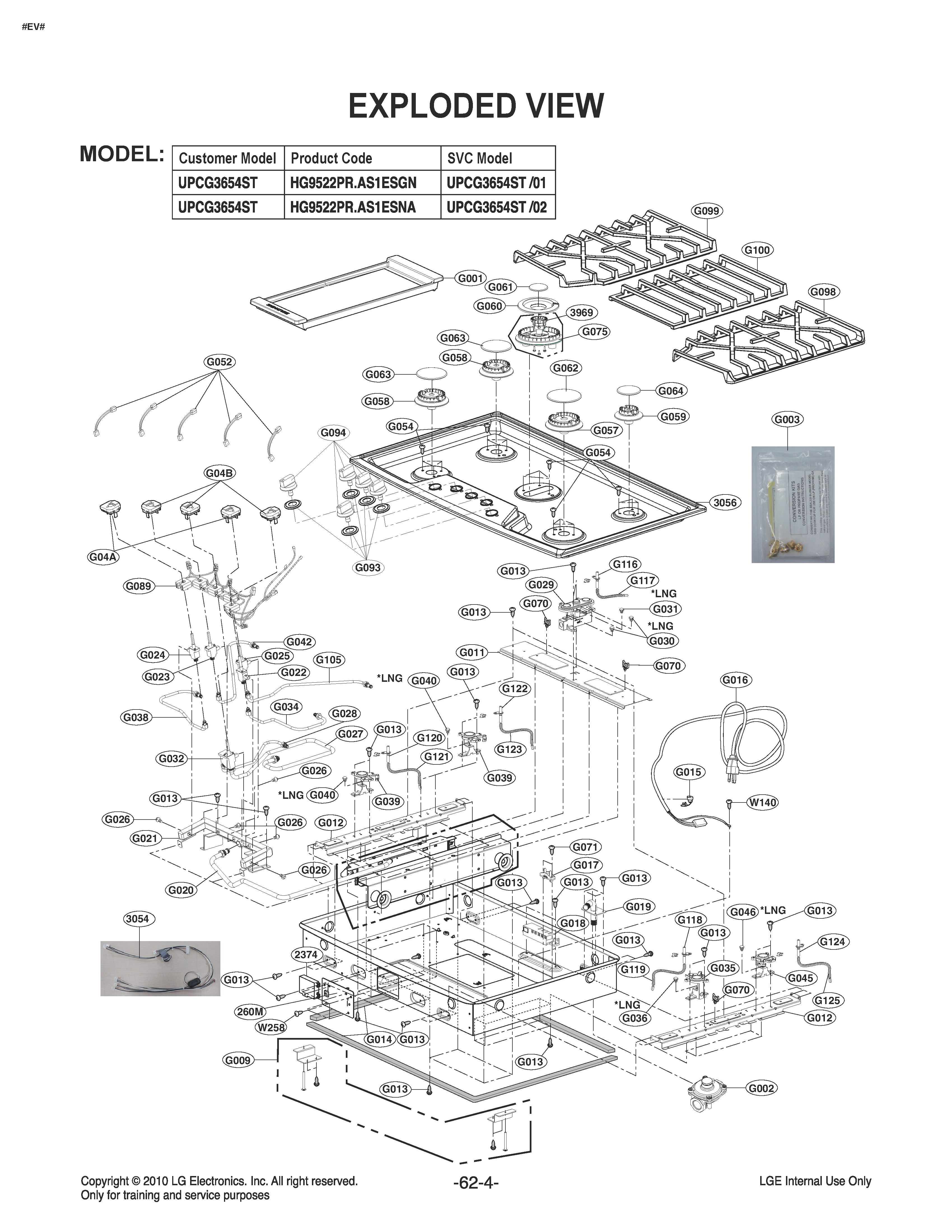

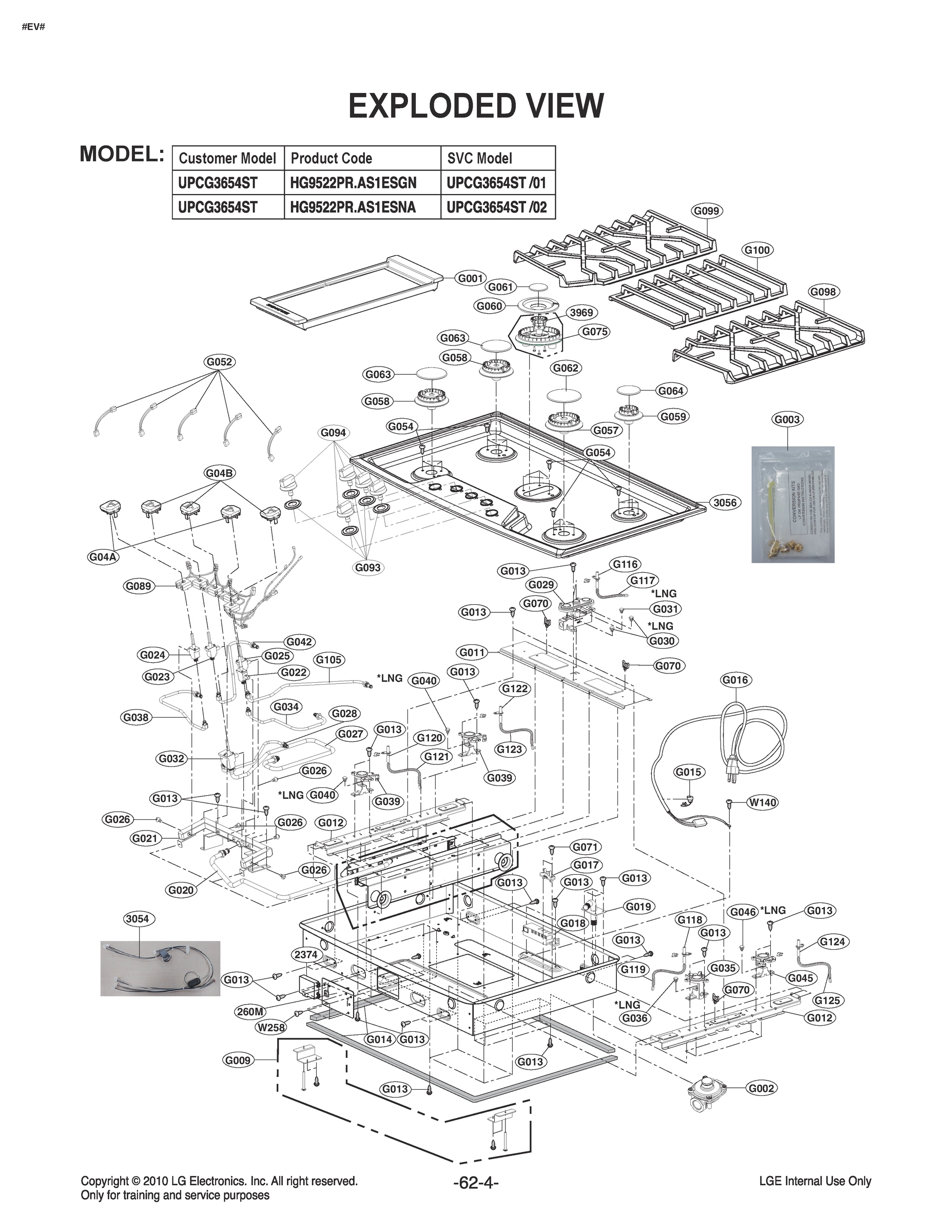

DIAGRAM 1
Common parts from model LG HG9522PR.AS1ESGN
G002
Governor LGE MDW61841101 Contact Us For Availability
G003
Accessory Assembly,Nozzle LGE AAA76578104 Contact Us For Availability
G013
Screw,Tapping LGE 1TTL0402618 Contact Us For Availability
G022
Valve LGE MJX61842212 Contact Us For Availability
G023
Valve Assembly,Gas LGE AJU74852813 Contact Us For Availability
G024
Valve Assembly,Gas LGE AJU74852808 Contact Us For Availability
G024
Valve LGE MJX61842214 Contact Us For Availability
G025
Valve Assembly,Gas LGE AJU74852801 Contact Us For Availability
G025
Valve LGE MJX61842215 Contact Us For Availability
G026
Screw,Customized LGE FAB30424503 Contact Us For Availability
G027
Pipe LGE MGE61844001 Contact Us For Availability
G028
Pipe LGE MGE61844101 Contact Us For Availability
G029
Burner LGE MBE61841701 Contact Us For Availability
G029
Burner LGE MBE61841702 Contact Us For Availability
G030
Nozzle LGE MFV61841502 Contact Us For Availability
G031
Nozzle LGE MFV61841501 Contact Us For Availability
G034
Pipe LGE MGE61843701 Contact Us For Availability
G035
Burner LGE MBE61841501 Contact Us For Availability
G035
Burner LGE MBE61841505 Contact Us For Availability
G036
Nozzle LGE MFV61841542 Contact Us For Availability
G038
Pipe LGE MGE61843901 Contact Us For Availability
G039
Burner LGE MBE61841301 Contact Us For Availability
G039
Burner LGE MBE61841305 Contact Us For Availability
G040
Nozzle LGE MFV61841504 Contact Us For Availability
G042
Pipe LGE MGE61843801 Contact Us For Availability
G045
Burner LGE MBE61841404 Contact Us For Availability
G045
Burner LGE MBE61841401 Contact Us For Availability
G046
Nozzle LGE MFV61841543 Contact Us For Availability
G052
Harness,Single LGE EAD63427301 Contact Us For Availability
G054
Screw,Customized LGE 1SZZW1E002E Contact Us For Availability
G057
Burner LGE MBE62123201 Contact Us For Availability
G058
Burner LGE MBE62123001 Contact Us For Availability
G059
Burner LGE MBE62122901 Contact Us For Availability
G060
Cap,Burner LGE MBL61908904 Contact Us For Availability
G061
Cap,Burner LGE MBL62329304 Contact Us For Availability
G062
Cap,Burner LGE MBL61908604 Contact Us For Availability
G062
Cap,Burner LGE MBL61908606 Contact Us For Availability
G063
Cap,Burner LGE MBL61908504 Contact Us For Availability
G063
Cap,Burner LGE MBL61908506 Contact Us For Availability
G064
Cap,Burner LGE MBL61908704 Contact Us For Availability
G064
Cap,Burner LGE MBL61908706 Contact Us For Availability
G070
Holder,Wire LGE 4B72944B Contact Us For Availability
G071
Screw,Tapping LGE 1TPL0403118 Contact Us For Availability
G075
Burner LGE MBE62123401 Contact Us For Availability
G089
Switch Assembly LGE EBF61515105 Contact Us For Availability
G094
Knob Assembly LGE AEZ74293303 Contact Us For Availability
G098
Grille Assembly LGE AEB74564502 Contact Us For Availability
G098
Grille Assembly LGE AEB74564503 Contact Us For Availability
G099
Grille Assembly LGE AEB74564602 Contact Us For Availability
G099
Grille Assembly LGE AEB74564603 Contact Us For Availability
G100
Grille Assembly LGE AEB74564802 Contact Us For Availability
G100
Grille Assembly LGE AEB74564803 Contact Us For Availability
G105
Pipe LGE MGE61844201 Contact Us For Availability
G116
Sparking Plug,Part LGE EBZ60711501 Contact Us For Availability
G117
Tube,Part LGE EBZ61619301 Contact Us For Availability
G118
Sparking Plug,Part LGE EBZ60711502 Contact Us For Availability
G119
Tube,Part LGE EBZ61619302 Contact Us For Availability
G120
Sparking Plug,Part LGE EBZ60711503 Contact Us For Availability
G121
Tube,Part LGE EBZ61619303 Contact Us For Availability
G122
Sparking Plug,Part LGE EBZ60711504 Contact Us For Availability
G123
Tube,Part LGE EBZ61619304 Contact Us For Availability
G124
Sparking Plug,Part LGE EBZ60711505 Contact Us For Availability
G125
Tube,Part LGE EBZ61619305 Contact Us For Availability
W140
Screw,Customized LGE 4000W4A003A Contact Us For Availability
W258
Screw,Tapping LGE FAB30103101 Contact Us For Availability
× ![]()
