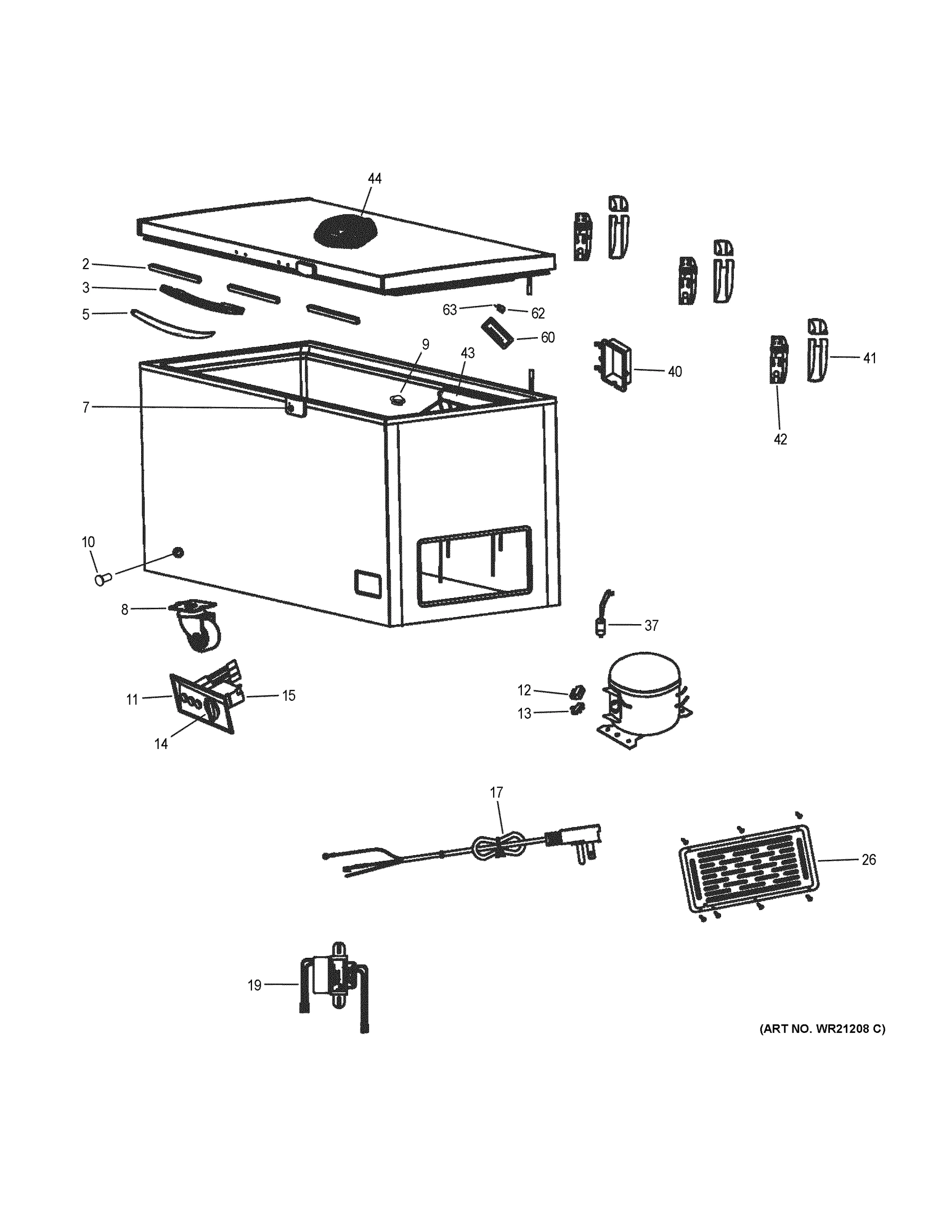

Model GE HFC1504ACW – Common Parts & Diagrams

3
DOOR HANDLE
DOOR HANDLE GEN WR12X29638 Contact Us For Availability
View on Model
5
DOOR HANDLE COVER
DOOR HANDLE COVER GEN WR13X29639 Contact Us For Availability
View on Model
7
LOCK SET
LOCK SET GEN WR01X29628 Contact Us For Availability
View on Model
8
CASTOR
CASTOR GEN WR01X29635 Contact Us For Availability
View on Model
9
DRAIN PLUG
DRAIN PLUG GEN WR01X29625 Contact Us For Availability
View on Model
10
DRAIN HOLE STOPPER
DRAIN HOLE STOPPER GEN WR01X29624 Contact Us For Availability
View on Model
11
CONTOL PANEL
CONTOL PANEL GEN WR09X29636 Contact Us For Availability
View on Model
12
PTC STARTER
PTC STARTER GEN WR87X29646 Contact Us For Availability
View on Model
13
OLP PROTECTOR
OLP PROTECTOR GEN WR87X29644 Contact Us For Availability
View on Model
15
THERMOSTAT
THERMOSTAT GEN WR09X29630 Contact Us For Availability
View on Model
17
POWER CORD
POWER CORD GEN WR55X29645 Contact Us For Availability
View on Model
19
TRANSFORMER
TRANSFORMER GEN WR55X29631 Contact Us For Availability
View on Model
26
ACCESS COVER
ACCESS COVER GEN WR14X29632 Contact Us For Availability
View on Model
37
CAPACITOR
CAPACITOR GEN WR55X29634 Contact Us For Availability
View on Model
40
WIRE CONNECTOR
WIRE CONNECTOR GEN WR14X29647 Contact Us For Availability
View on Model
41
DOOR HINGE COVER
DOOR HINGE COVER GEN WR13X29641 Contact Us For Availability
View on Model
42
DOOR HINGE
DOOR HINGE GEN WR13X29640 Contact Us For Availability
View on Model
43
BASKET
BASKET GEN WR71X29633 Contact Us For Availability
View on Model
44
DOOR GASKET
DOOR GASKET GEN WR14X29637 Contact Us For Availability
View on Model
62
LED SOCKET
LED SOCKET GEN WR01X29643 Contact Us For Availability
View on Model
63
LED LAMP
LED LAMP GEN WR55X29627 Contact Us For Availability
View on Model
