Model LG HF36V306 – Common Parts & Diagrams
Diagram 0
Diagram 1

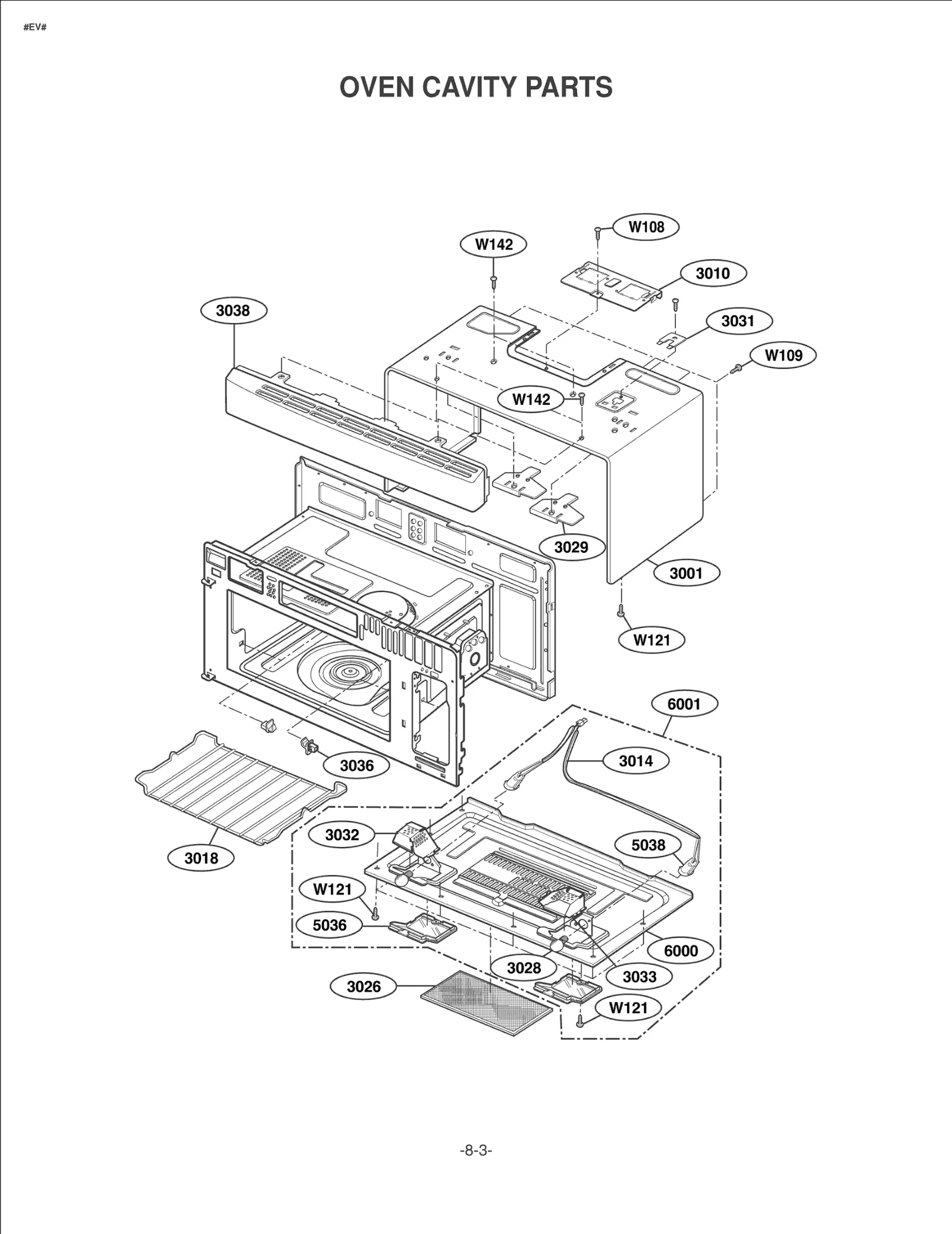

Diagram 2

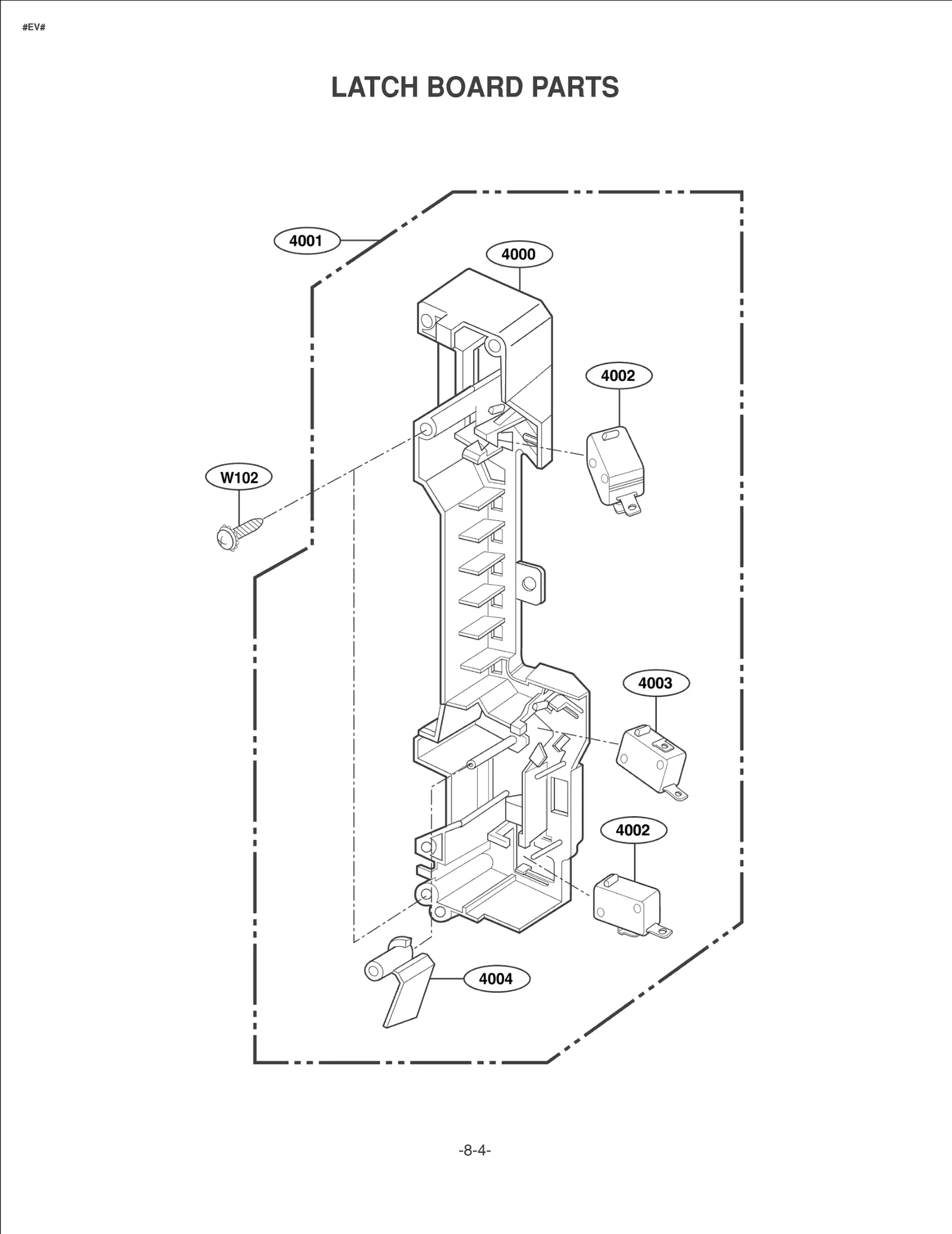

Diagram 3

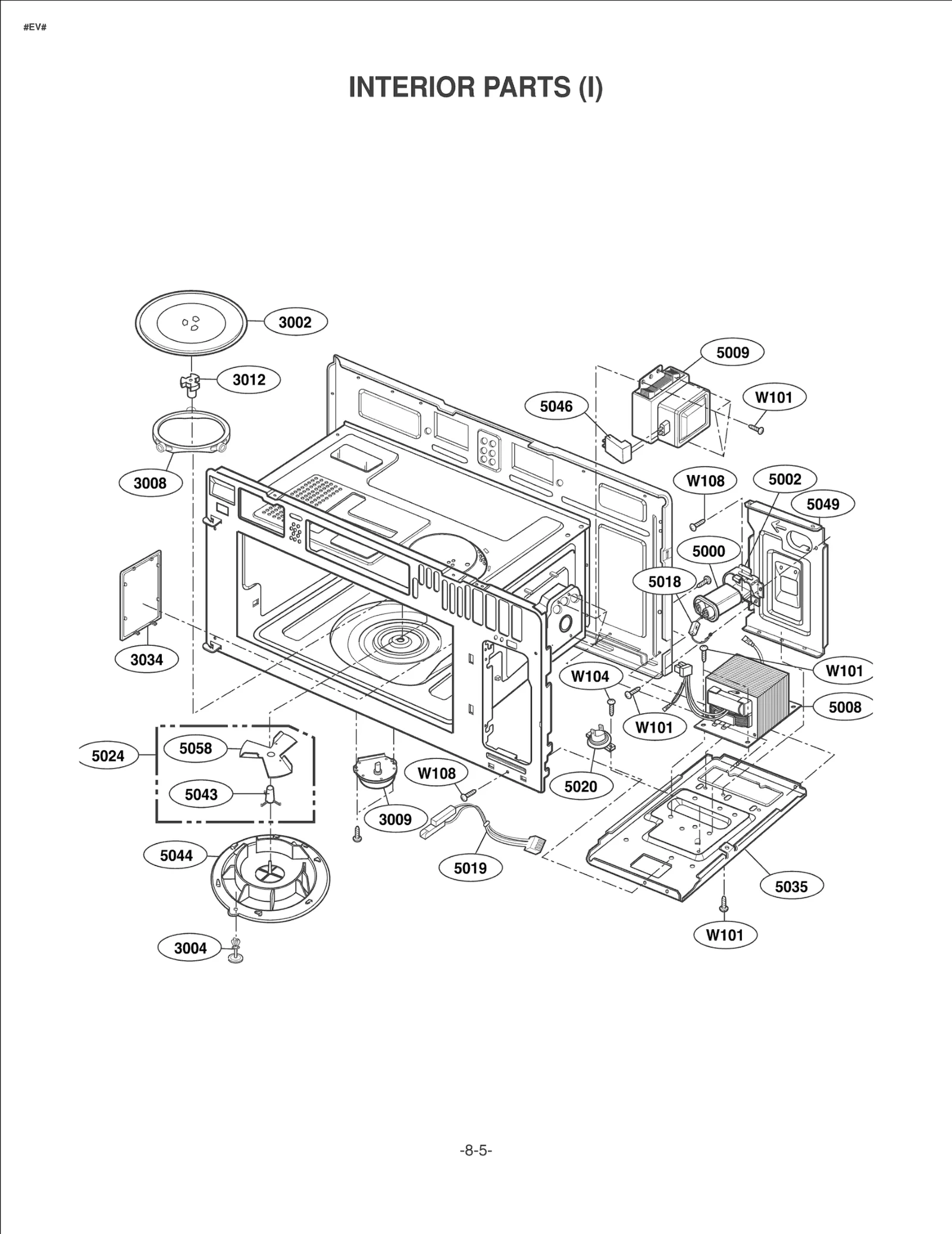

Diagram 4

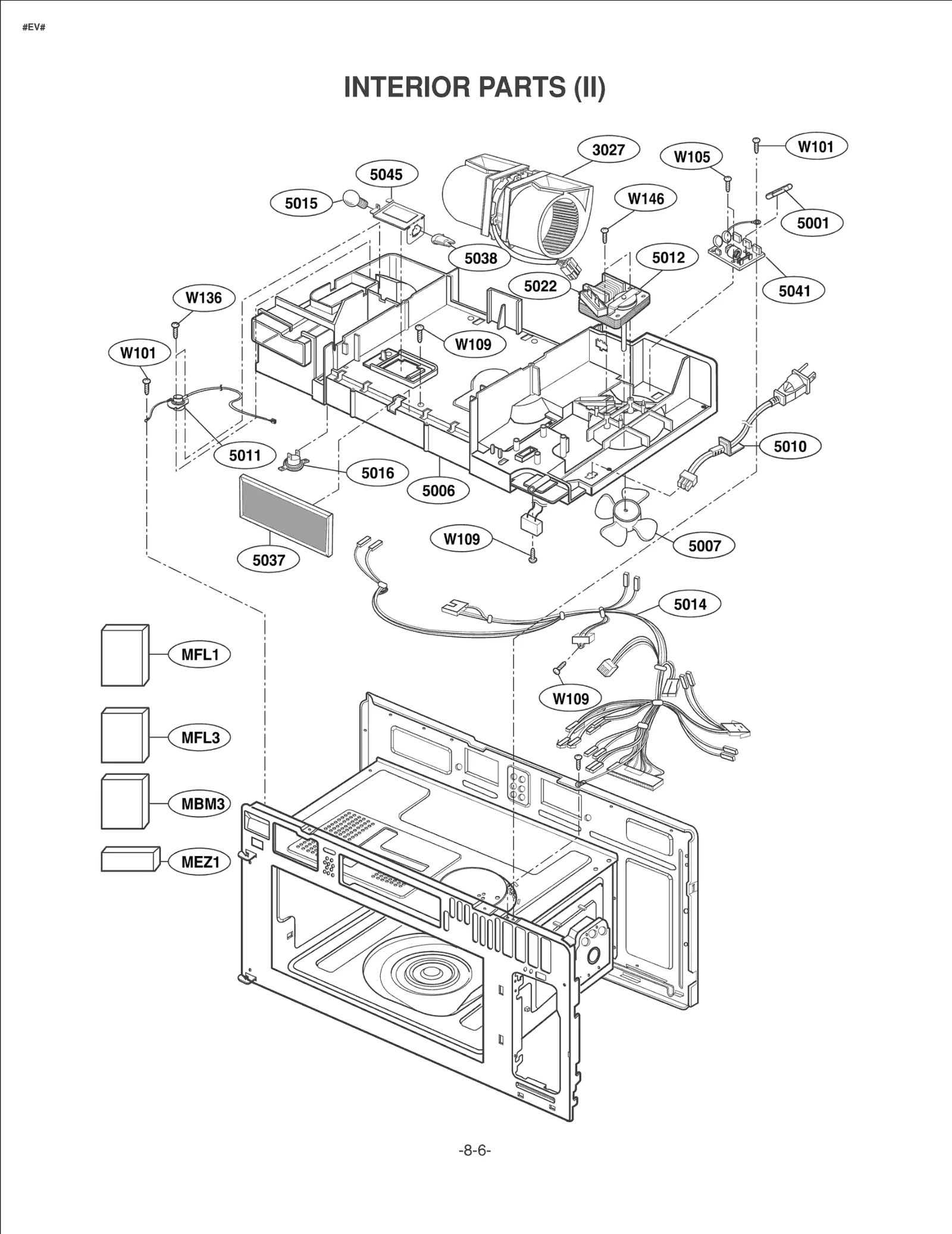

Diagram 5

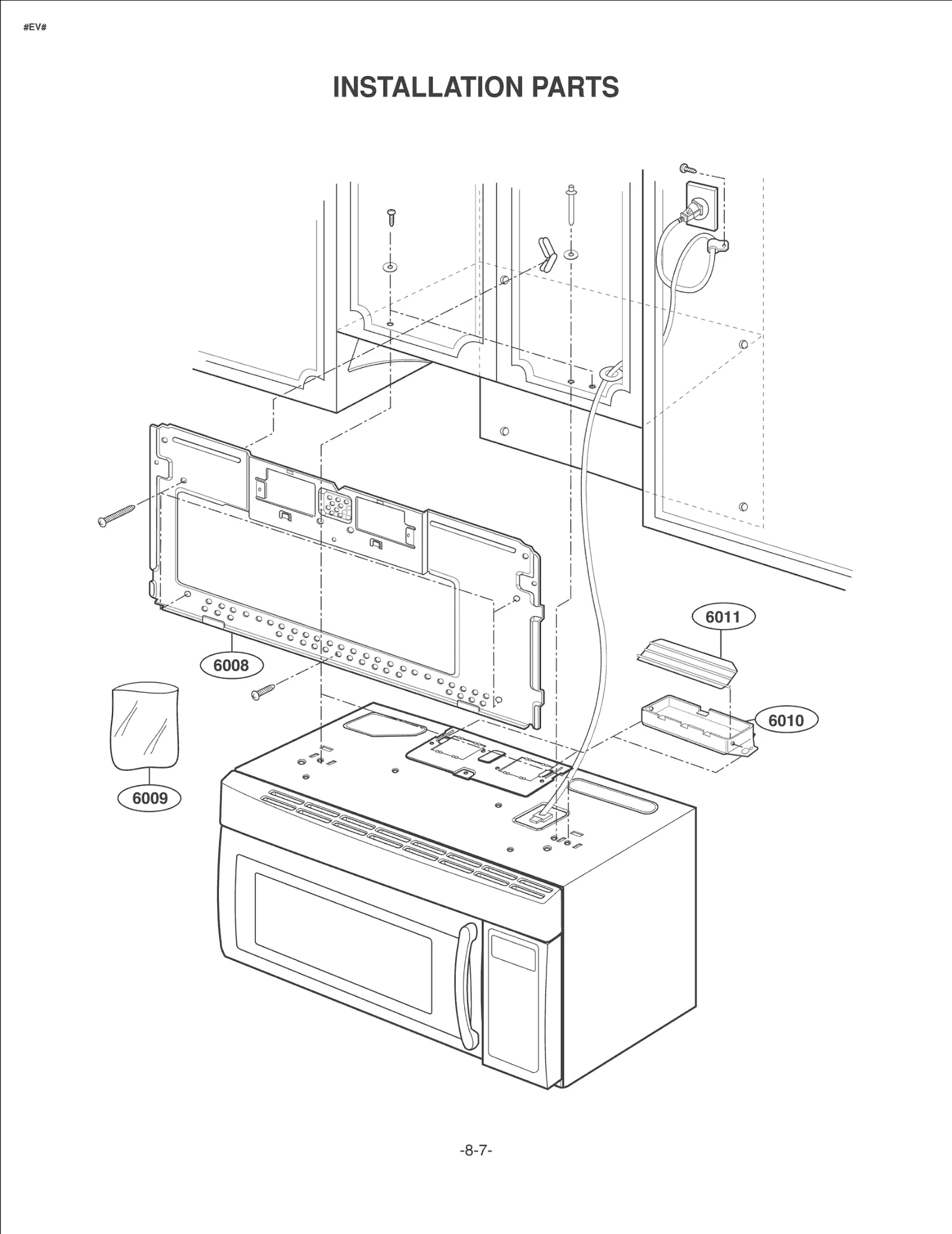

Diagram 6
Diagram 7
Common parts from model LG HF36V306
*01
Manual,Owners LGE 3828W5A4654 Contact Us For Availability
*02
LGE 3828W5S3742 LGE 3828W5S3742 Contact Us For Availability
*04
Manual,Installation LGE 3828W5U0507 Contact Us For Availability
*05
Label,Cooking Guide LGE 3850W1D119B Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W1D119A Contact Us For Availability
*06
TEMPLATE LGE 4922W5A069A Contact Us For Availability
*07
CARD,[TECHNICAL] LGE 3840W3T001K Contact Us For Availability
*10
LGE 3890W3Y842A LGE 3890W3Y842A Contact Us For Availability
1002
SEAL TAPE LGE 3536WRA001T Contact Us For Availability
1004
CHOKE COVER LGE 3552W0A001B Contact Us For Availability
3002
TRAY,[GLASS] LGE 3390W1G014A Contact Us For Availability
3009
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S011D Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
3037
PROTECTOR (MECH) LGE 3740W1A025A Contact Us For Availability
5002
BRACKET,[CAPACITOR] LGE 4810W3C006A Contact Us For Availability
5007
PROPELLER LGE 2B72125A Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D052D Contact Us For Availability
5009
MAGNETRON LGE 6324W1A001A Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A014N Contact Us For Availability
5011
SENSOR ASSY LGE 6501W1A006C Contact Us For Availability
5014
LEAD WIRE ASSY LGE 6877W1A364A Contact Us For Availability
5015
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
5019
LEAD WIRE ASSY LGE 6877W2S002E Contact Us For Availability
5022
FUSE ASSY THERMAL T109 MOLDI LGE 3B72974C Contact Us For Availability
5024
Fan Assembly LGE 5893W3A002A Contact Us For Availability
5035
PLATE,[BOTTOM PLATE] LGE 3300W1B001A Contact Us For Availability
5036
COVER,[LAMP COVER] LGE 3550W2L001A Contact Us For Availability
5038
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
5041
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
5044
COVER,[STIRRER FAN COVER] LGE 3550W1S001A Contact Us For Availability
5045
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
5046
FILTER ASSEMBLY(CIRC) LGE 6201W2A019G Contact Us For Availability
5049
GUIDE,[AIR GUIDE] LGE 5238W1A003A Contact Us For Availability
5058
STIRRER FAN LGE 5892W3A006A Contact Us For Availability
6008
PLATE,[MOUNTING PLATE] LGE 3300W0M003A Contact Us For Availability
6009
KIT ASSEMBLY LGE 2B72771H Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
AR1
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4776H618 Contact Us For Availability
C04
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C12
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C65
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C92
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
D02
DIODE,RECTIFIERS LGE 0DRSB00093A Contact Us For Availability
D30
DIODE 1N4004TA(06220071)MV-100 LGE 0DD400409AA Contact Us For Availability
D32
DIODE,SWITCHING LGE 0DSSB00023A Contact Us For Availability
D81
DIODE,SWITCHING LGE 0DSSB00083A Contact Us For Availability
DP1
LGE 6302W5A002D LGE 6302W5A002D Contact Us For Availability
Q02
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q20
TANSISTOR KRC 106M KEC (MA-693 LGE 0TR106009AF Contact Us For Availability
Q30
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q50
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
R03
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R05
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R06
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
R08
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R10
LGE 0RD0202F608 LGE 0RD0202F608 Contact Us For Availability
R25
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R26
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R35
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
R60
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R61
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R62
LGE 0RN2003F408 LGE 0RN2003F408 Contact Us For Availability
R68
LGE 0RN1002F408 LGE 0RN1002F408 Contact Us For Availability
R69
RESISTOR,FIXED CARBON FILM LGE 0RD6600H602 Contact Us For Availability
R74
LGE 0RD2004G608 LGE 0RD2004G608 Contact Us For Availability
R75
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R76
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R77
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R78
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R85
Resistor,Carbon Film LGE 0RD1202F608 Contact Us For Availability
R95
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
RY11
LGE 6920WRD019A LGE 6920WRD019A Contact Us For Availability
RY15
RELAY LGE 6920WRD013C Contact Us For Availability
U01
IC,DRAWING LGE 0IZZW5A314A Contact Us For Availability
U03
LGE 0ITO200400A LGE 0ITO200400A Contact Us For Availability
U04
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
U05
IC,SAMSUNG ELECTRONICS LGE 0ISS791500A Contact Us For Availability
ZD1
LGE 0DZ510009AB LGE 0DZ510009AB Contact Us For Availability
ZD2
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
