Model Maytag HED4300TQ0 ELECTRIC DRYER – Common Parts & Diagrams

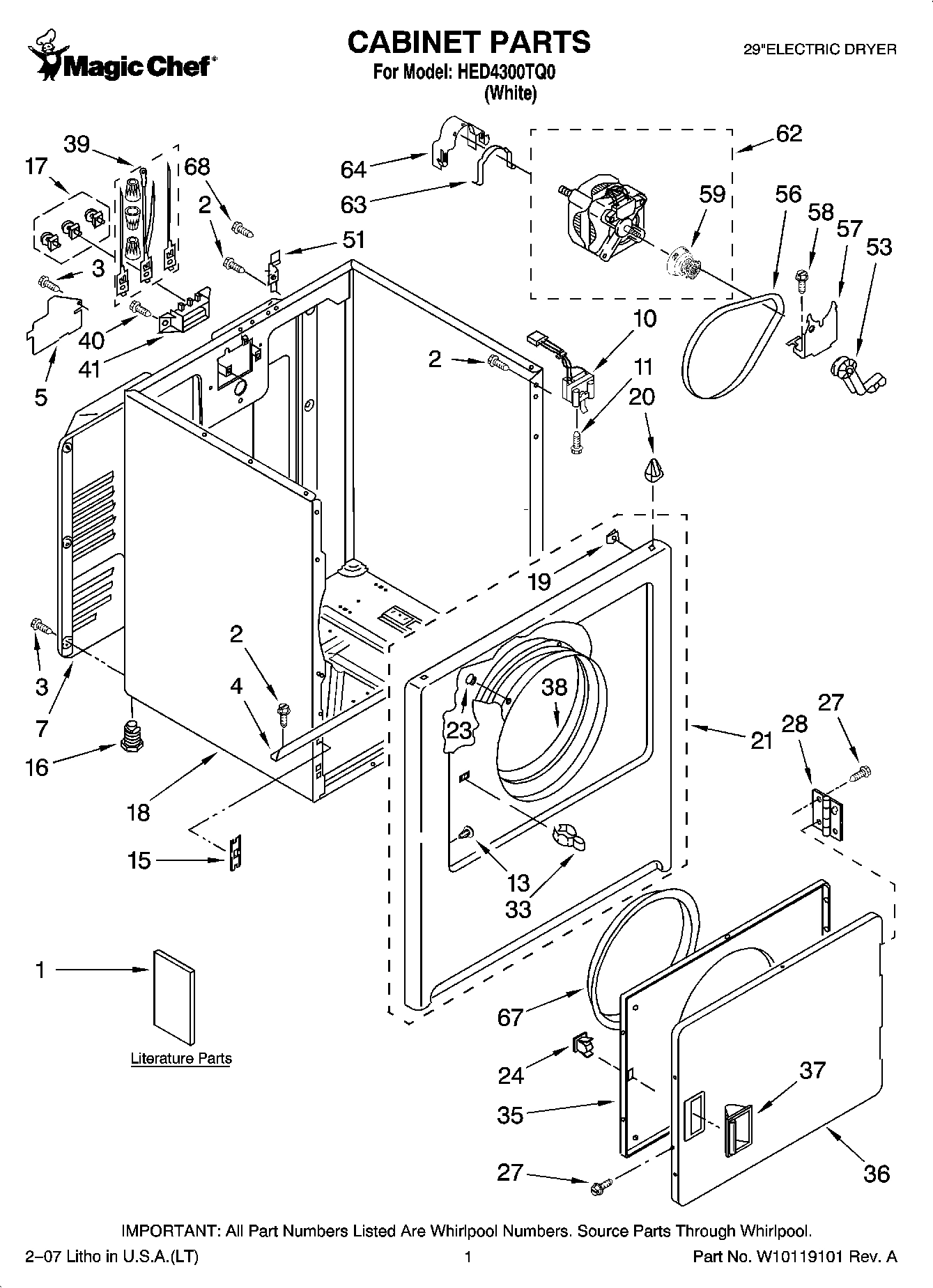

01 - CABINET PARTS

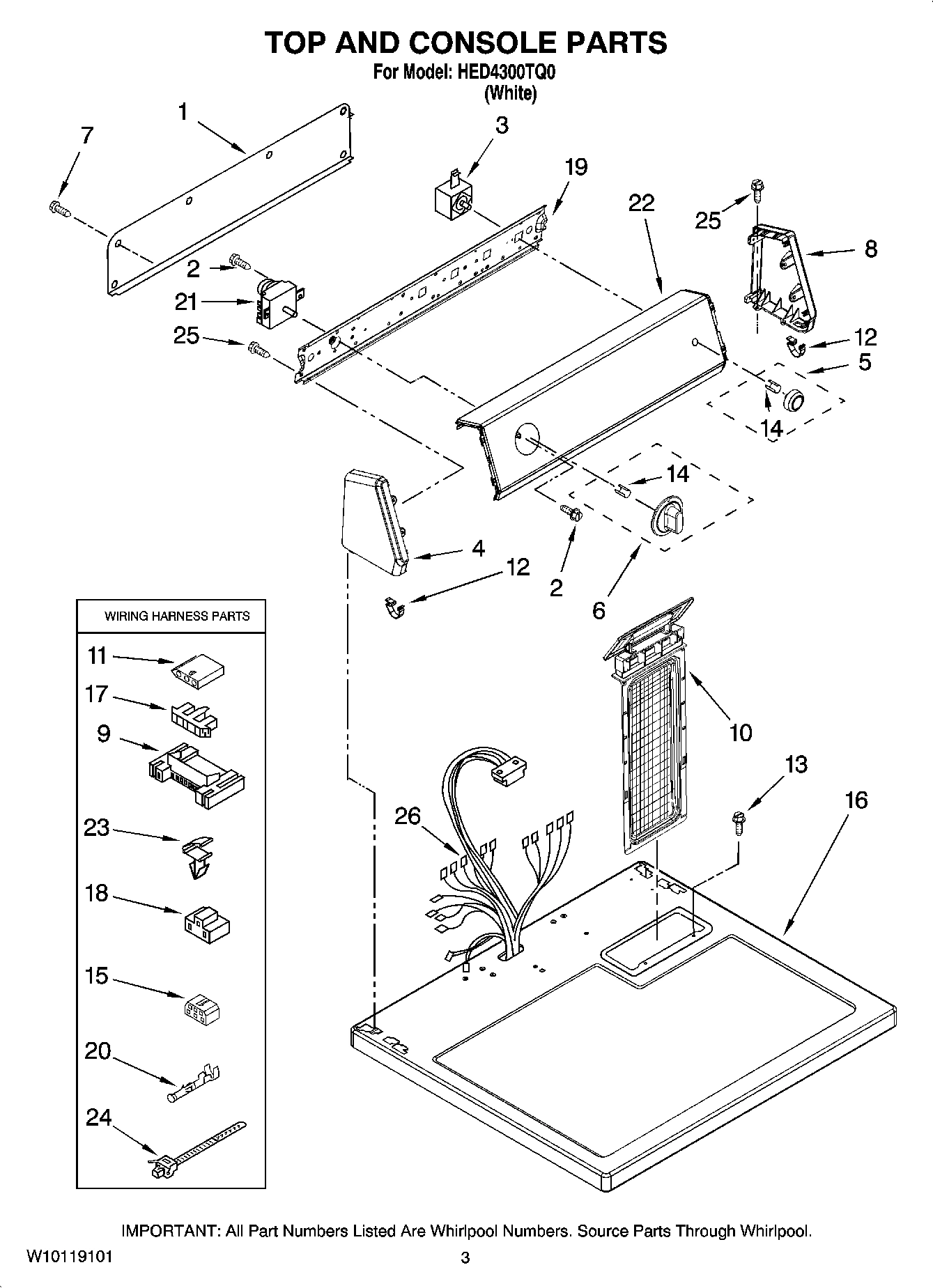

02 - TOP AND CONSOLE PARTS

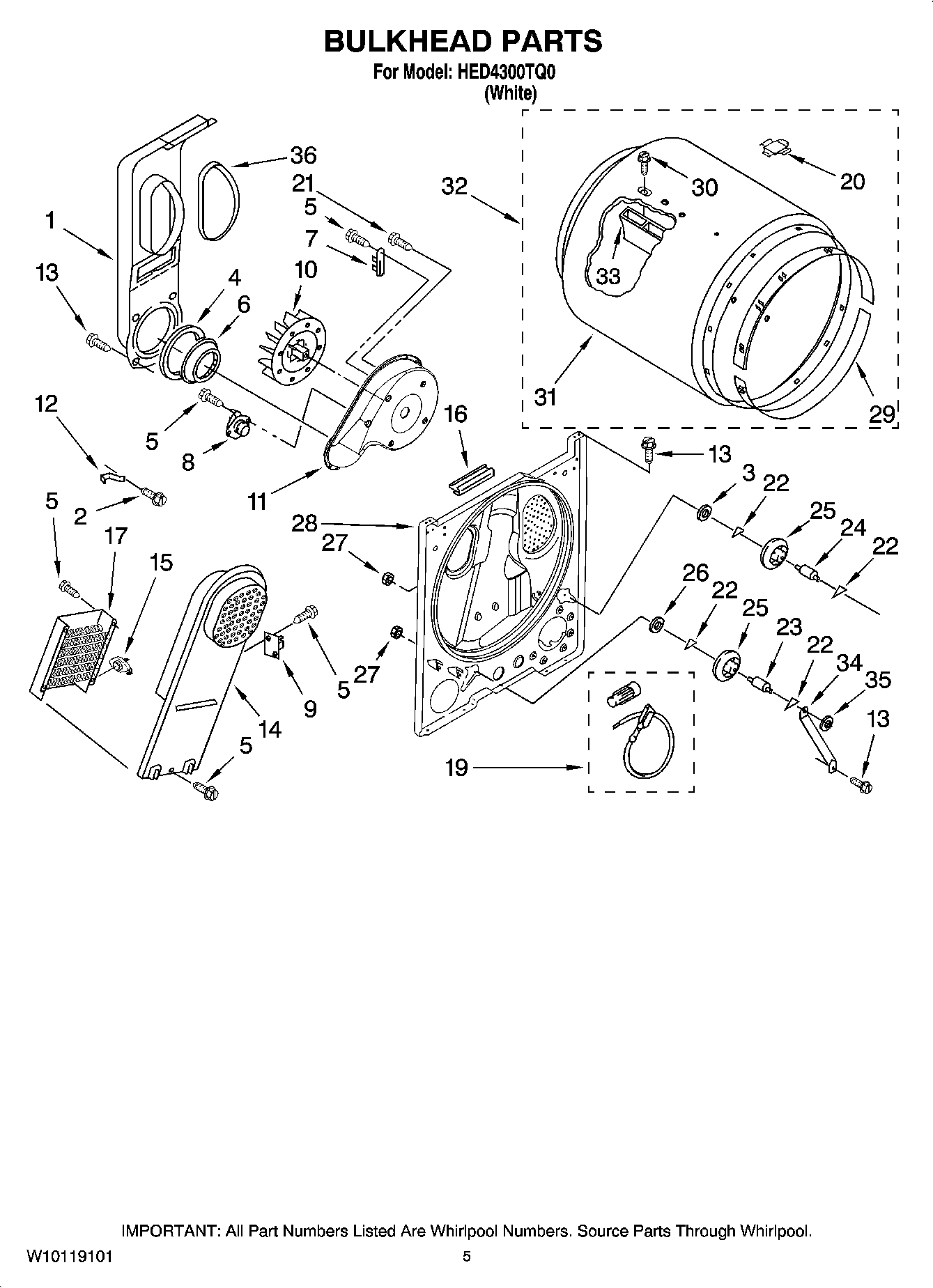

03 - BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag HED4300TQ0 ELECTRIC DRYER
MAY 279948 MAY 279948 Contact Us For Availability
Dry Rack MAY 3406839 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
MAY 8522199 MAY 8522199 Contact Us For Availability
1
MAY 8576793 MAY 8576793 Contact Us For Availability
1
MAY W10088773 MAY W10088773 Contact Us For Availability
1
MAY W10088970 MAY W10088970 Contact Us For Availability
1
MAY W10089176 MAY W10089176 Contact Us For Availability
1
MAY 8274261 MAY 8274261 Contact Us For Availability
1
MAY 694283 MAY 694283 Contact Us For Availability
2
MAY 8533951 MAY 8533951 Contact Us For Availability
2
MAY 489463 MAY 489463 Contact Us For Availability
3
MAY 3977456 MAY 3977456 Contact Us For Availability
3
WASHER-SUPPORT MAY 3388703 Contact Us For Availability
4
MAY 8541400 MAY 8541400 Contact Us For Availability
4
Cap, End (L.H.) MAY 8579674 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
5
MAY 3396795 MAY 3396795 Contact Us For Availability
5
MAY W10110065 MAY W10110065 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
6
Timer Knob Assembly MAY W10110064 Contact Us For Availability
6
MAY 696302 MAY 696302 Contact Us For Availability
7
MAY 693995 MAY 693995 Contact Us For Availability
7
MAY 3396807 MAY 3396807 Contact Us For Availability
7
Thermal Fuse MAY 3392519 Contact Us For Availability
8
Cap, End (R.H.) MAY 8579673 Contact Us For Availability
8
MAY 3387134 MAY 3387134 Contact Us For Availability
9
MAY 3395683 MAY 3395683 Contact Us For Availability
9
Thermal Cut-Off (Includes Illus. 15) MAY 3977393 Contact Us For Availability
10
Door Switch Assembly MAY 3406104 Contact Us For Availability
10
MAY 8558467 MAY 8558467 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
11
MAY 697773 MAY 697773 Contact Us For Availability
11
MAY 3936144 MAY 3936144 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
12
MAY 8312709 MAY 8312709 Contact Us For Availability
12
Clip MAY 3398161 Contact Us For Availability
13
MAY 343641 MAY 343641 Contact Us For Availability
13
Plug, Hinge MAY 3404413 Contact Us For Availability
13
MAY 688983 MAY 688983 Contact Us For Availability
14
CLIP, SPRING MAY 8536939 Contact Us For Availability
14
MAY 8541818 MAY 8541818 Contact Us For Availability
15
Clip, Front Panel (2) MAY 3394083 Contact Us For Availability
15
Connector 6-Circuit MAY 3347243 Contact Us For Availability
15
MAY 3977767 MAY 3977767 Contact Us For Availability
16
MAY 279810 MAY 279810 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
TOP MAY 8559800 Contact Us For Availability
16
MAY 3392247 MAY 3392247 Contact Us For Availability
17
Terminal, Tinned & Brass (3) (Includes Illus. MAY 279318 Contact Us For Availability
17
Connector-Timer MAY 3397269 Contact Us For Availability
17
MAY 3403585 MAY 3403585 Contact Us For Availability
18
MAY 8530603 MAY 8530603 Contact Us For Availability
18
Connector (PTS) Relay MAY 3401144 Contact Us For Availability
19
Clip, Ground MAY 98234 Contact Us For Availability
19
MAY 8579678 MAY 8579678 Contact Us For Availability
19
Wire Kit, Terminal (For Heater Element Wiring MAY 279457 Contact Us For Availability
20
MAY 690363 MAY 690363 Contact Us For Availability
20
Terminal MAY 94614 Contact Us For Availability
20
MAY 8066086 MAY 8066086 Contact Us For Availability
21
TIMER MAY 8299781 Contact Us For Availability
21
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
22
MAY W10086683 MAY W10086683 Contact Us For Availability
22
MAY 690997 MAY 690997 Contact Us For Availability
23
MAY 685203 MAY 685203 Contact Us For Availability
23
CLIP, HARNESS MAY 3394427 Contact Us For Availability
23
MAY 3399506 MAY 3399506 Contact Us For Availability
24
MAY 690081 MAY 690081 Contact Us For Availability
24
Tie, Cable MAY 3391249 Contact Us For Availability
24
MAY 3399507 MAY 3399507 Contact Us For Availability
25
MAY 8533971 MAY 8533971 Contact Us For Availability
25
MAY 3397590 MAY 3397590 Contact Us For Availability
26
MAY 8576500 MAY 8576500 Contact Us For Availability
26
MAY 348197 MAY 348197 Contact Us For Availability
27
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
27
Nut, 3/8-16 MAY 3359452 Contact Us For Availability
28
Hinge, Door (2) MAY 3405514 Contact Us For Availability
28
MAY 8529955 MAY 8529955 Contact Us For Availability
29
MAY 3394509 MAY 3394509 Contact Us For Availability
30
MAY W10109200 MAY W10109200 Contact Us For Availability
31
MAY 8066085 MAY 8066085 Contact Us For Availability
32
MAY 3396777 MAY 3396777 Contact Us For Availability
33
MAY 696144 MAY 696144 Contact Us For Availability
33
Baffle, Drum (1) MAY 342847 Contact Us For Availability
34
Bracket, Support MAY 3976435 Contact Us For Availability
35
MAY 3403371 MAY 3403371 Contact Us For Availability
35
MAY 90296 MAY 90296 Contact Us For Availability
36
MAY 3403361 MAY 3403361 Contact Us For Availability
36
MAY 339956 MAY 339956 Contact Us For Availability
37
MAY 3405184 MAY 3405184 Contact Us For Availability
38
MAY 8066124 MAY 8066124 Contact Us For Availability
39
TERMINAL BLOCK KIT FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
40
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
41
MAY 3397659 MAY 3397659 Contact Us For Availability
51
MAY 8066217 MAY 8066217 Contact Us For Availability
53
MAY 691366 MAY 691366 Contact Us For Availability
56
MAY 8066065 MAY 8066065 Contact Us For Availability
57
MAY 348780 MAY 348780 Contact Us For Availability
58
MAY 3400500 MAY 3400500 Contact Us For Availability
59
PULLEY, 60 HZ. MAY 8066184 Contact Us For Availability
62
Motor Assembly MAY 8066206 Contact Us For Availability
63
MAY 660658 MAY 660658 Contact Us For Availability
64
MAY 3404162 MAY 3404162 Contact Us For Availability
67
MAY 3405245 MAY 3405245 Contact Us For Availability
68
MAY 697776 MAY 697776 Contact Us For Availability
× ![]()
