Model Whirlpool HE2966TCSA ELECTRIC WATER HEATER – Common Parts & Diagrams

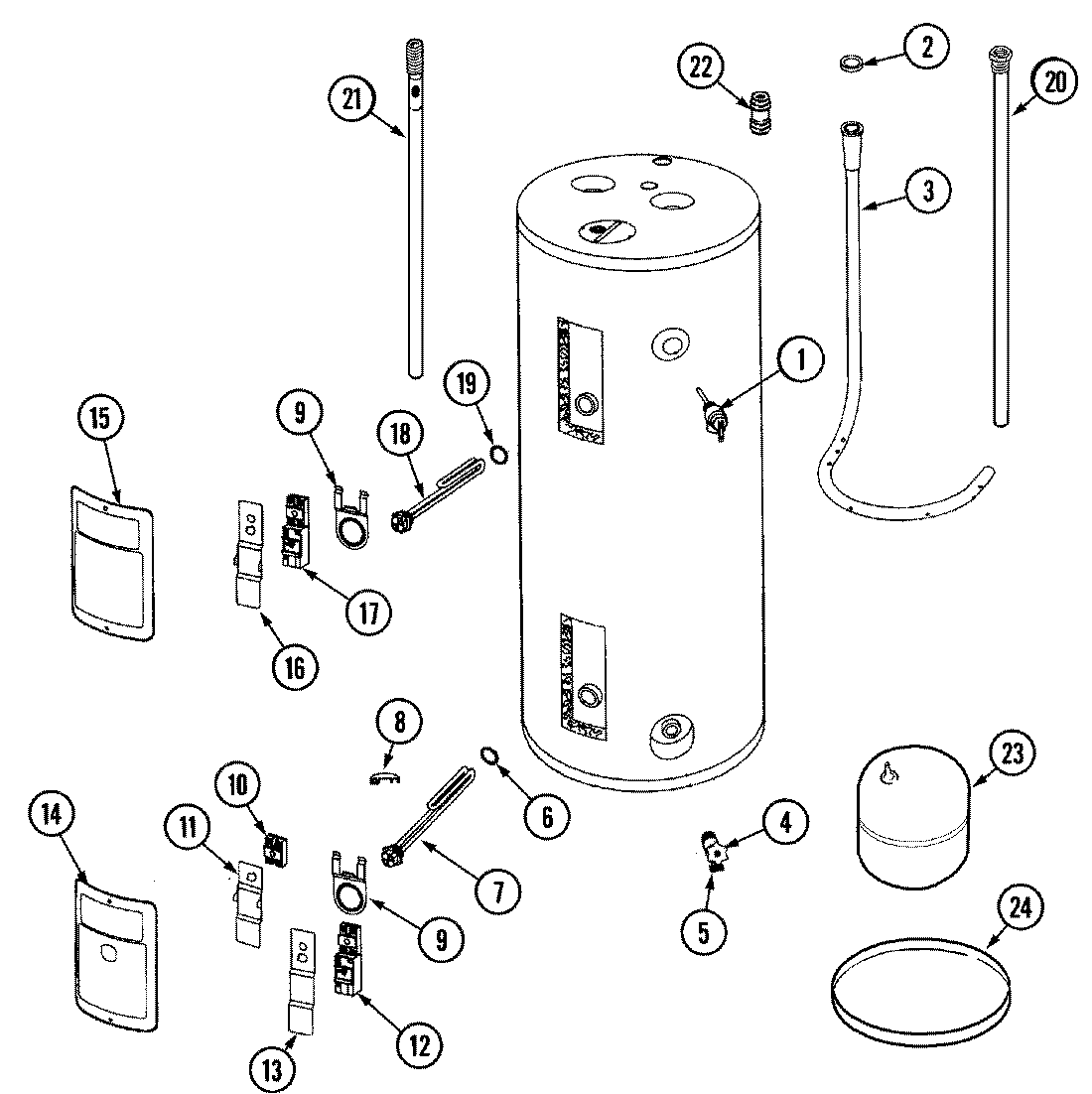

01 - BODY
Common parts from model Whirlpool HE2966TCSA ELECTRIC WATER HEATER
1
VALVE, TEMP/PRESSURE RELIEF WPL 66001010 Contact Us For Availability
2
GASKET, DIP TUBE WPL 9002277 Contact Us For Availability
3
TUBE, DIP WPL 66001067 Contact Us For Availability
4
VALVE, DRAIN (2`` LONG) WPL 66001015 Contact Us For Availability
5
WASHER, DRAIN VALVE WPL 66001021 Contact Us For Availability
7
ELEM HTG 5500W 1`` NPS SIF WPL 66001107 Contact Us For Availability
8
BUSS BAR KIT WPL 9001591 Contact Us For Availability
9
BRACKET, THERMOSTAT WPL 9000309 Contact Us For Availability
10
THERMOSTAT, LOWER (2 POLE) WPL 66001007 Contact Us For Availability
11
COVER, TERMINAL (LOWER) WPL 9002276 Contact Us For Availability
14
PANEL, ACCESS (LOWER) WPL 9001565 Contact Us For Availability
15
PANEL, ACCESS WPL 9000452 Contact Us For Availability
16
COVER, TERMINAL (LWR THR WIRE) WPL 66001064 Contact Us For Availability
17
THERMOSTAT, UPPER (W/HI LIMIT) WPL 66001009 Contact Us For Availability
18
ELEM HTG 3800W 1`` NPS SIF WPL 66001106 Contact Us For Availability
19
GASKET, ELEMENT WPL 66001053 Contact Us For Availability
20
ANODE, PRIMATRY WPL 66001111 Contact Us For Availability
21
ROD, ANODE (SECONDARY) WPL 9000947 Contact Us For Availability
22
NIPPLE WPL 66001112 Contact Us For Availability
23
TANK, EXPANSION (5 GAL.) WPL 66001014 Contact Us For Availability
24
PAN, DRAIN (24``) WPL 66001105 Contact Us For Availability
25
MANUAL, USE & CARE (ENG/FRCH) WPL 66001096 Contact Us For Availability
× ![]()
