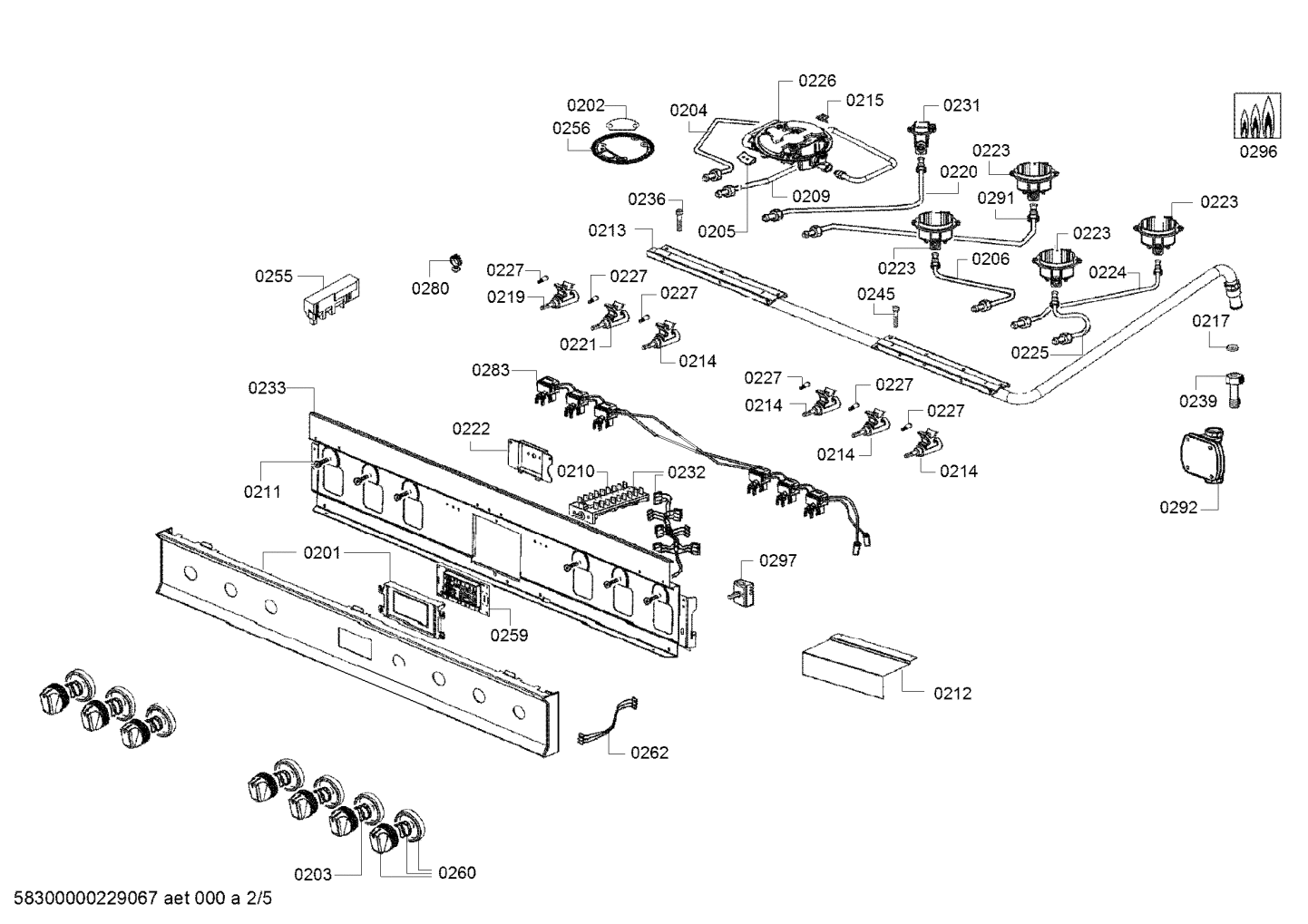

Model Bosch HDS8645U – Common Parts &amp; Diagrams

0114

12033411 Bosch Oven Burner Tip Backorder BOS 12033411 $135.36

0116

12033412 Bosch Oven Burner Ring Backorder BOS 12033412 $62.08

0117

10014191 Bosch Oven Burner Tip Backorder BOS 10014191 $27.50

0127

00631661 Bosch Oven Ignition Head In Stock BOS 00631661 $27.99

Screw-set BOS 00632859 Contact Us For Availability

Screw BOS 10003079 Contact Us For Availability

Screw BOS 10014243 Contact Us For Availability

Screw BOS 10031453 Contact Us For Availability

Screw BOS 10034862 Contact Us For Availability

0199

10020042 Bosch Oven Repair Set Backorder BOS 10020042 $98.37

0199

10026828 Bosch Cable Clamp In Stock BOS 10026828 $14.48

0199

Washer BOS 10023066 Contact Us For Availability

0201

20001898 Bosch Oven Facia Panel Backorder BOS 20001898 $340.85

0202

Plate BOS 10014198 Contact Us For Availability

0203

00627352 Bosch Oven Spring Backorder BOS 00627352 $8.20

0204

Burner pipe BOS 12033401 Contact Us For Availability

0205

10014199 Bosch Oven Sealing Backorder BOS 10014199 $19.78

0206

Burner pipe BOS 12033426 Contact Us For Availability

0209

Burner pipe BOS 12033430 Contact Us For Availability

0210

10014179 Bosch Oven Selector Switch Backorder BOS 10014179 $104.57

0211

Screw BOS 00627382 Contact Us For Availability

0212

Holder BOS 12033395 Contact Us For Availability

0213

Collector BOS 20001913 Contact Us For Availability

0214

10014200 Bosch Oven Gas Tap Backorder BOS 10014200 $125.49

0215

Spring BOS 10014201 Contact Us For Availability

0217

00034308 Bosch Range Seal Backorder BOS 00034308 $9.17

0219

10025031 Bosch Gas Tap In Stock BOS 10025031 $304.11

0220

Burner pipe BOS 12033431 Contact Us For Availability

0221

10014236 Bosch Oven Gas Tap In Stock BOS 10014236 $90.25

0222

Holder BOS 10014178 Contact Us For Availability

0223

Burner housing BOS 10014202 Contact Us For Availability

0224

Burner pipe BOS 12033433 Contact Us For Availability

0225

Burner pipe BOS 12033435 Contact Us For Availability

0226

12033437 Bosch Oven Burner Housing Backorder BOS 12033437 $158.86

0227

Electro magnet BOS 00419045 Contact Us For Availability

0231

10014204 Bosch Oven Burner Housing Backorder BOS 10014204 $12.06

0232

Switches group BOS 12033438 Contact Us For Availability

0232

Cable harness BOS 12043845 Contact Us For Availability

0233

20001918 Bosch Oven Support Backorder BOS 20001918 $83.56

0236

Screw BOS 10014205 Contact Us For Availability

0240

Ring BOS 10015123 Contact Us For Availability

0245

Screw BOS 00174797 Contact Us For Availability

0255

10014207 Bosch Oven Ignition Transformer Backorder BOS 10014207 $99.80

0256

Sealing BOS 12033444 Contact Us For Availability

0259

TIME SELECTOR In Stock BOS 12056498 $490.58

0260

10030011 Bosch Cooking Area Black Knob Backorder BOS 10030011 $106.96

0262

10026829 Bosch Oven Flat Cable Backorder BOS 10026829 $190.65

0280

Clamp BOS 10003205 Contact Us For Availability

0283

12037734 Bosch Oven Switch Group Backorder BOS 12037734 $131.60

0291

Burner pipe BOS 12033449 Contact Us For Availability

0292

10014206 Bosch Oven Regulator In Stock BOS 10014206 $237.15

10015684 Bosch Oven Liquid Gas Nozzle Set Backorder BOS 10015684 $75.45

10015685 Bosch Oven Liquid Gas Nozzle Set Backorder BOS 10015685 $63.51

10015686 Bosch Oven Natural Gas Nozzle Set Backorder BOS 10015686 $112.80

10015687 Bosch Oven Natural Gas Nozzle Set Backorder BOS 10015687 $100.28

10016149 Bosch Oven Liquid Gas Nozzle Set Backorder BOS 10016149 $93.59

10016151 Bosch Oven Natural Gas Nozzle Set Backorder BOS 10016151 $56.45

0297

00635278 Bosch Oven Potentiometer Backorder BOS 00635278 $52.11

0301

20001887 Bosch Oven Rear Case Backorder BOS 20001887 $193.44

0302

12033476 Bosch Oven Power Supply Unit In Stock BOS 12033476 $548.52

0303

Thermocouple BOS 12033465 Contact Us For Availability

0305

Spacer BOS 10000385 Contact Us For Availability

0308

Insulating part BOS 11014222 Contact Us For Availability

0309

12033467 Bosch Support Backorder BOS 12033467 $19.78

0310

12029918 Bosch Oven Telescopic Extension Rail Backorder BOS 12029918 $176.72

0311

Case-rear part BOS 00774248 Contact Us For Availability

0312

Cable connector BOS 10014215 Contact Us For Availability

0313

12033469 Bosch Oven Power Module In Stock BOS 12033469 $183.05

0314

10013352 Bosch Oven Lamp Backorder BOS 10013352 $42.94

0316

Flat cable BOS 10014216 Contact Us For Availability

0317

Foot BOS 10014238 Contact Us For Availability

0319

12012230 Bosch Oven Support Backorder BOS 12012230 $28.95

0320

Weight BOS 11037488 Contact Us For Availability

0321

20001923 Bosch Side Panel Backorder BOS 20001923 $159.80

0322

12036206 Bosch Oven Shock Absorber Backorder BOS 12036206 $261.80

0322

12036207 Bosch Oven Shock Absorber Backorder BOS 12036207 $263.66

0323

Support BOS 10014210 Contact Us For Availability

0324

Ventilation duct BOS 00774251 Contact Us For Availability

0325

Support BOS 10023872 Contact Us For Availability

0326

10037559 Bosch Terminal Backorder BOS 10037559 $21.23

0326

12033454 Bosch Oven Cable Harness Backorder BOS 12033454 $289.23

0326

Nut BOS 10041125 Contact Us For Availability

0327

Support BOS 12033470 Contact Us For Availability

0328

Filtering jug BOS 00632621 Contact Us For Availability

0329

Strip BOS 11020531 Contact Us For Availability

0332

10014214 Bosch Cable In Stock BOS 10014214 $199.49

0334

20004142 Bosch Oven Bottom Case Backorder BOS 20004142 $413.85

0335

12033453 Bosch Oven Foot Backorder BOS 12033453 $39.57

0336

00775346 Bosch Oven Sealing Backorder BOS 00775346 $92.64

0337

10014182 Bosch Oven Temperature Limiter In Stock BOS 10014182 $71.63

0341

10013353 Bosch Oven Lamp Backorder BOS 10013353 $24.61

0344

12041487 Bosch Oven Fan Motor Backorder BOS 12041487 $362.24

0345

10014220 Bosch Oven Temperature Regulator Backorder BOS 10014220 $113.65

0346

Box BOS 10014221 Contact Us For Availability

0347

Bracket BOS 10014222 Contact Us For Availability

0352

00627298 Bosch Guide Frame Fixture Bushing Backorder BOS 00627298 $5.79

0356

Grid BOS 12033460 Contact Us For Availability

0356

Grid BOS 12033461 Contact Us For Availability

0357

Panel side BOS 12033396 Contact Us For Availability

0357

Panel side BOS 12033480 Contact Us For Availability

0358

10034861 Bosch Nut Backorder BOS 10034861 $26.54

0359

00659849 Bosch Oven Fan Wheel Backorder BOS 00659849 $15.92

0362

12033473 Bosch Oven Fan Motor Backorder BOS 12033473 $179.07

0364

Plate BOS 11014265 Contact Us For Availability

0365

Plate BOS 11014269 Contact Us For Availability

0366

11014270 Bosch Oven Bottom Heater Backorder BOS 11014270 $85.00

0367

Deflector BOS 11037447 Contact Us For Availability

0368

11050215 Bosch Heater Top Backorder BOS 11050215 $192.98

0373

Insulating part BOS 11037448 Contact Us For Availability

0374

Heater-ring BOS 12033398 Contact Us For Availability

0375

10014181 Bosch Oven Switch Backorder BOS 10014181 $68.28

0376

20001927 Bosch Oven Side Panel Backorder BOS 20001927 $159.80

0381

12042797 Bosch Mounting Set Backorder BOS 12042797 $74.97

0384

Duct BOS 11037487 Contact Us For Availability

0385

Holder BOS 11020536 Contact Us For Availability

0388

Switch BOS 00627303 Contact Us For Availability

0389

10003343 Bosch Lever Backorder BOS 10003343 $6.76

0390

12033397 Bosch Oven Temperature Sensor Backorder BOS 12033397 $157.92

0394

Strip BOS 00774257 Contact Us For Availability

0395

Strip BOS 00774258 Contact Us For Availability

0396

10014223 Bosch Cover Backorder BOS 10014223 $21.23

0397

Support BOS 12033463 Contact Us For Availability

0398

Cap BOS 10014224 Contact Us For Availability

0401

11037481 Bosch Oven Door Handle Backorder BOS 11037481 $136.30

0403

20001929 Bosch Oven Glass Front Panel Backorder BOS 20001929 $233.90

0404

10014186 Bosch Oven Base Backorder BOS 10014186 $14.48

0405

12033474 Bosch Oven Door Hinge Backorder BOS 12033474 $125.49

0406

10014231 Bosch Oven Screw Backorder BOS 10014231 $8.69

0408

00626989 Bosch Washer Backorder BOS 00626989 $5.79

0409

20001936 Bosch Oven Inner Door Backorder BOS 20001936 $136.30

0410

10014232 Bosch Oven Spacer Backorder BOS 10014232 $6.76

0411

Insulating part BOS 10004168 Contact Us For Availability

0412

Panel-base BOS 20001890 Contact Us For Availability

0418

00634525 Bosch Oven Hook Backorder BOS 00634525 $14.48

0419

20001939 Bosch Oven Glass Panel Backorder BOS 20001939 $136.77

0422

10007173 Bosch Oven Distance Holder Backorder BOS 10007173 $11.58

0423

20001941 Bosch Oven Inner Door Backorder BOS 20001941 $203.67

0424

Hook BOS 10000413 Contact Us For Availability

0425

00627261 Bosch Oven Plug In Stock BOS 00627261 $10.62

0426

00627266 Bosch Oven Spacer Backorder BOS 00627266 $11.10

0438

10014233 Bosch Oven Bracket Backorder BOS 10014233 $8.69

0502

11034062 Bosch Wire Rack Backorder BOS 11034062 $155.10
