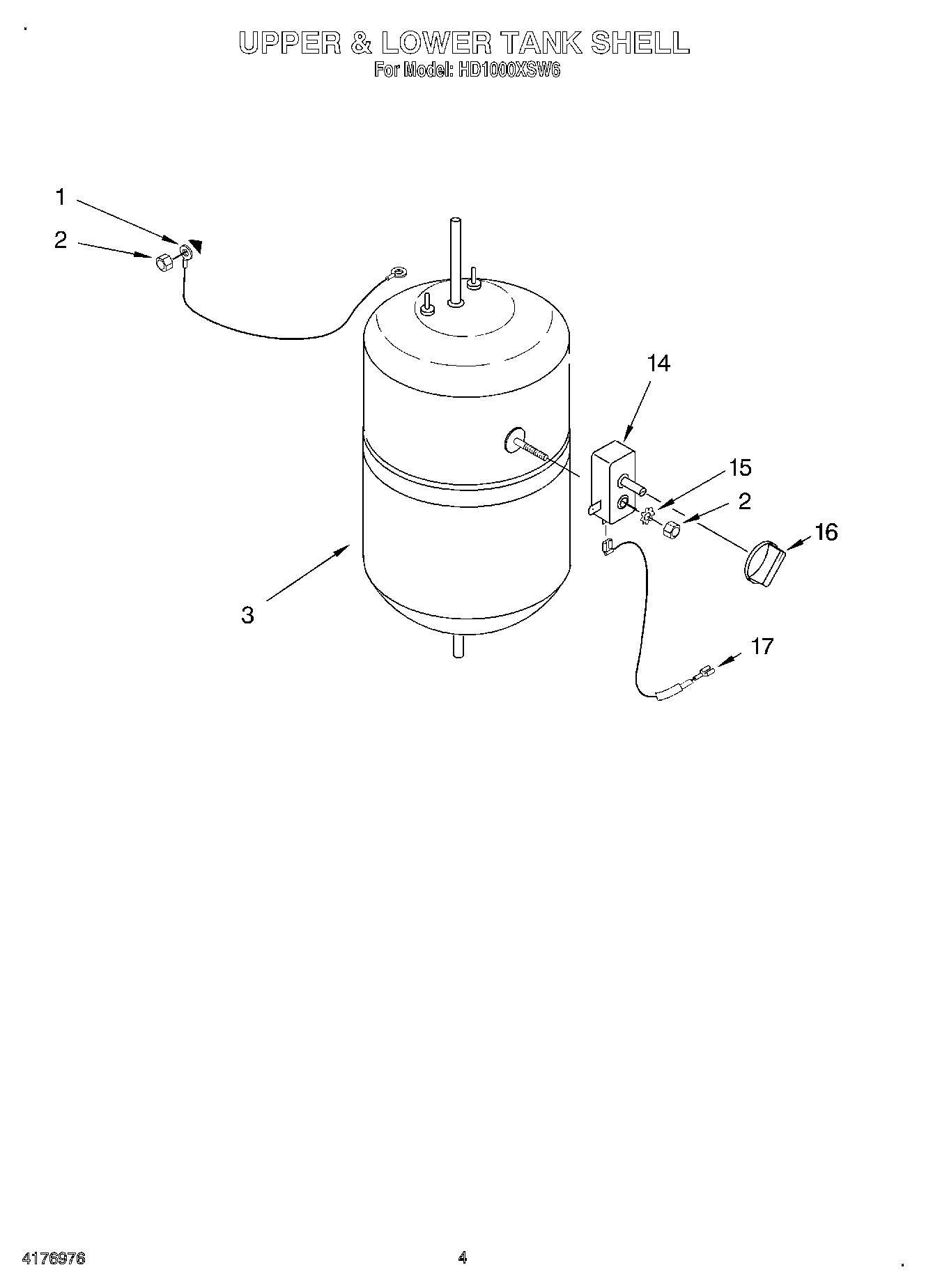

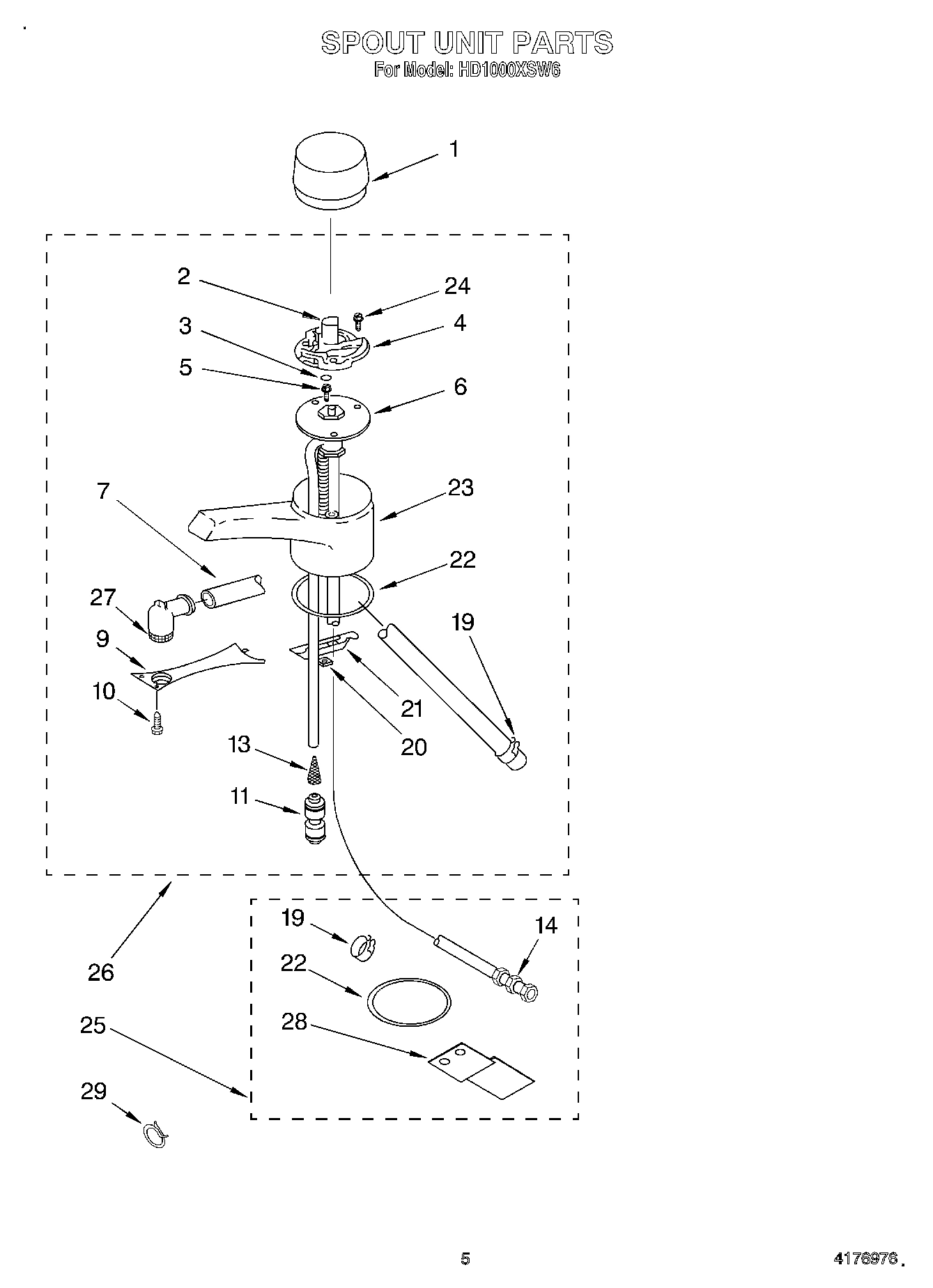

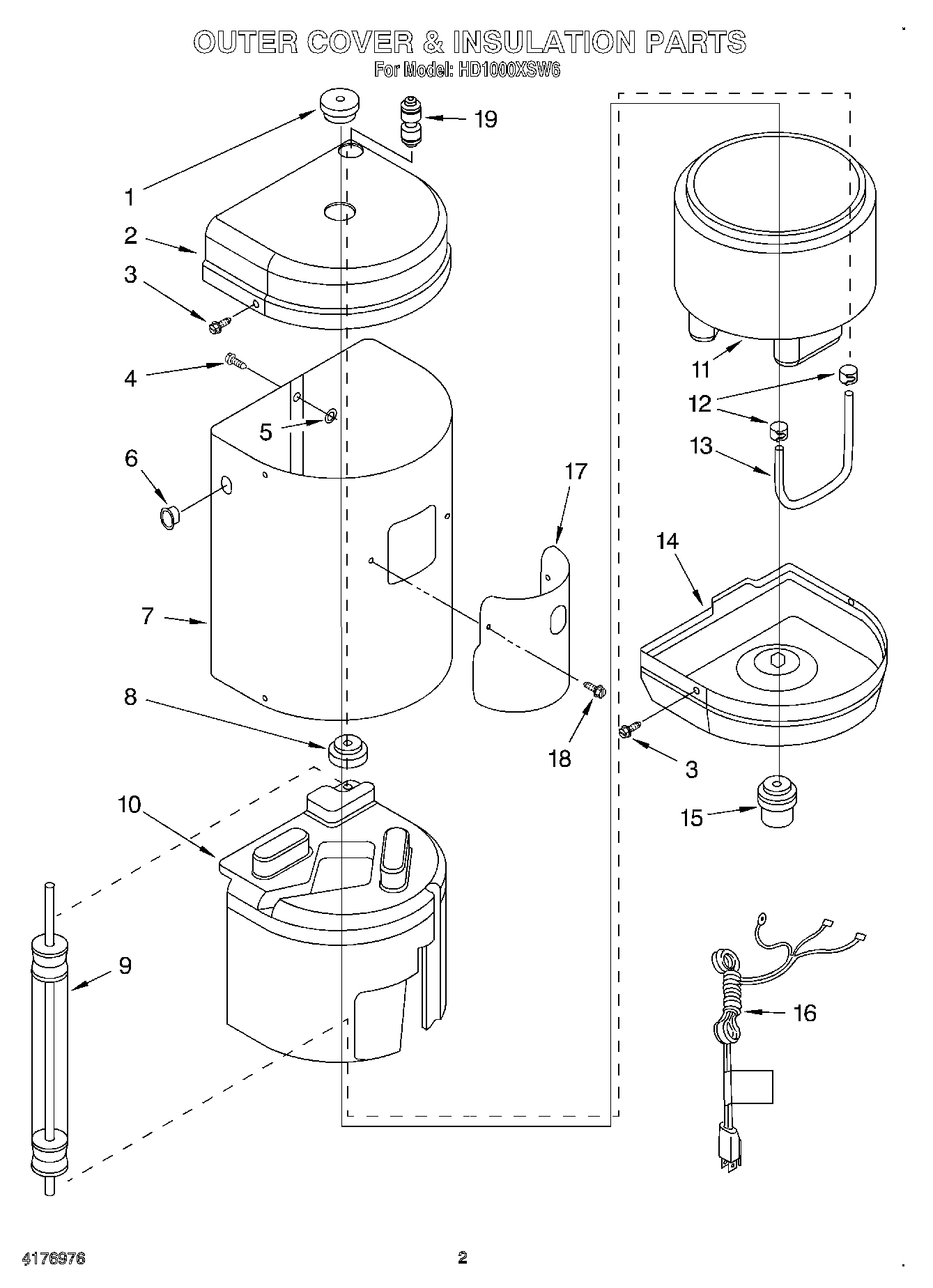

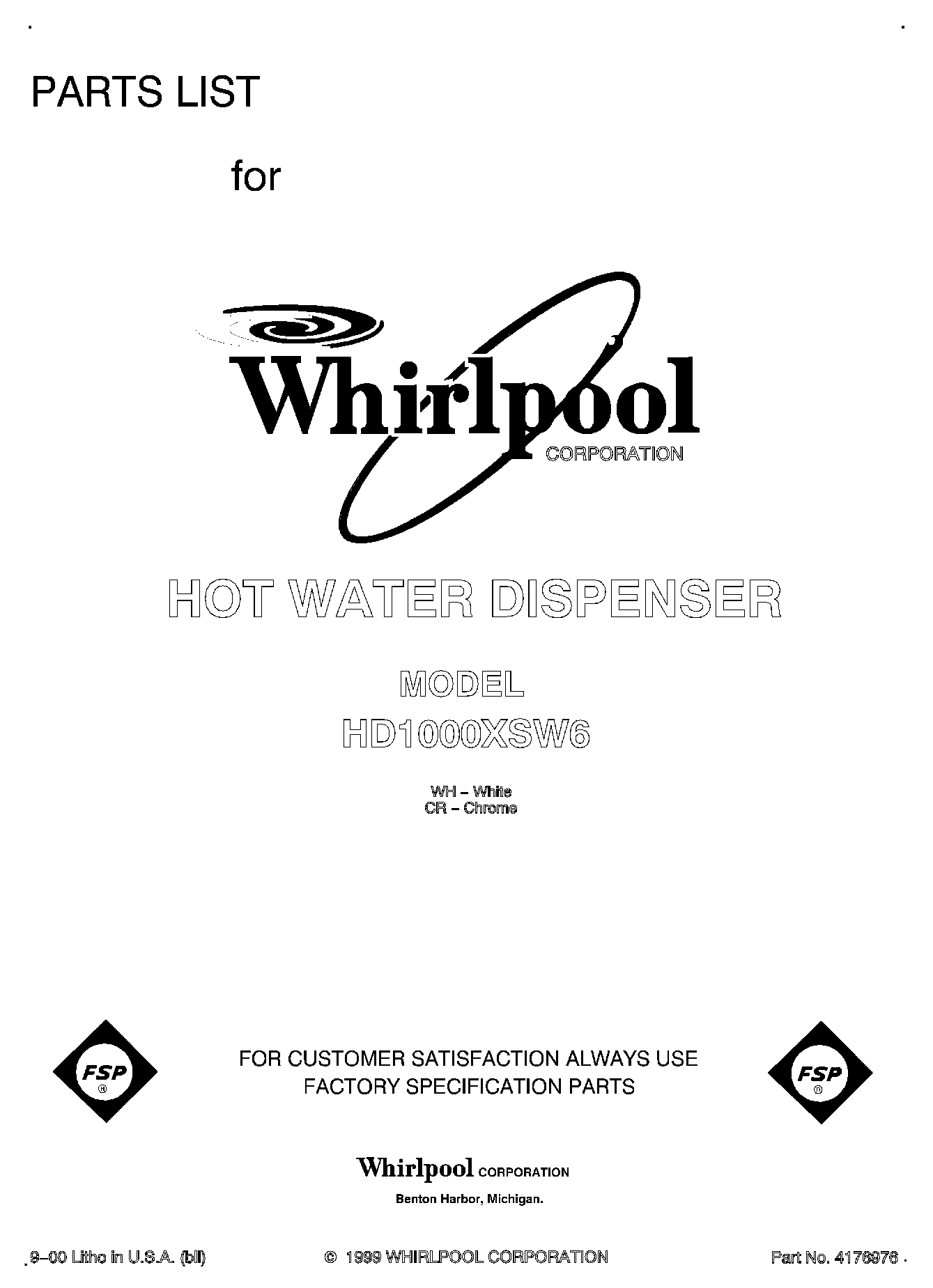

Model Whirlpool HD1000XSW6 HOT WATER DISPENSER – Common Parts & Diagrams

1
Bushing, Molded
Bushing, Molded WPL 4161909 Contact Us For Availability
View on Model
1
Ground Wire
Ground Wire WPL 3192080 Contact Us For Availability
View on Model
1
Cap (Black)
Cap (Black) WPL 3192358 Contact Us For Availability
View on Model
1
Cap (White)
Cap (White) WPL 3192359 Contact Us For Availability
View on Model
2
End Cap, Top
End Cap, Top WPL 3192426 Contact Us For Availability
View on Model
2
Nut
Nut WPL 4159072 Contact Us For Availability
View on Model
2
Hub, Valve Drive
Hub, Valve Drive WPL 4162650 Contact Us For Availability
View on Model
3
Tank, Complete
Tank, Complete WPL 3192286 Contact Us For Availability
View on Model
3
Spring, Compression
Spring, Compression WPL 4163277 Contact Us For Availability
View on Model
4
Hub, Cam
Hub, Cam WPL 4162649 Contact Us For Availability
View on Model
5
Cap Screw, 1/4-20 X 5`` Rd.
Cap Screw, 1/4-20 X 5`` Rd. WPL 4159314 Contact Us For Availability
View on Model
6
Strain Releif, Power Cord
Strain Releif, Power Cord WPL 3191431 Contact Us For Availability
View on Model
6
Mechanical Valve (Includes Illus. 13 & 14)
Mechanical Valve (Includes Illus. 13 & 14) WPL 3192899 Contact Us For Availability
View on Model
7
Shell
Shell WPL 3192428 Contact Us For Availability
View on Model
7
Tube (3/8`` I.D.)
Tube (3/8`` I.D.) WPL 4161917 Contact Us For Availability
View on Model
8
Molded Bushing
Molded Bushing WPL 4161910 Contact Us For Availability
View on Model
9
Displacer
Displacer WPL 3192964 Contact Us For Availability
View on Model
9
Plate, Spout
Plate, Spout WPL 4162837 Contact Us For Availability
View on Model
10
Insulation, Top
Insulation, Top WPL 3192296 Contact Us For Availability
View on Model
10
Screw, Self Tapping (No.4-20 X 5/16``) Phil.
Screw, Self Tapping (No.4-20 X 5/16``) Phil. WPL 4159425 Contact Us For Availability
View on Model
11
Insulation, Bottom
Insulation, Bottom WPL 3191429 Contact Us For Availability
View on Model
12
Clamp, Hose
Clamp, Hose WPL 4161148 Contact Us For Availability
View on Model
13
Screen, Inlet
Screen, Inlet WPL 4162185 Contact Us For Availability
View on Model
13
Hose, Clear
Hose, Clear WPL 3191437 Contact Us For Availability
View on Model
14
Cap, Bottom
Cap, Bottom WPL 3192427 Contact Us For Availability
View on Model
14
Thermostat
Thermostat WPL 3191423 Contact Us For Availability
View on Model
15
Stop, End
Stop, End WPL 3191629 Contact Us For Availability
View on Model
16
Cord, Power
Cord, Power WPL 3192352 Contact Us For Availability
View on Model
16
Knob, Thermostat
Knob, Thermostat WPL 3192538 Contact Us For Availability
View on Model
17
Front Cover
Front Cover WPL 4176041 Contact Us For Availability
View on Model
17
Fuse, Thermal
Fuse, Thermal WPL 3192351 Contact Us For Availability
View on Model
19
Clamp, Tube (3/8`` Tubing)
Clamp, Tube (3/8`` Tubing) WPL 4161147 Contact Us For Availability
View on Model
20
Machine Nut 1/4-20 Sq.
Machine Nut 1/4-20 Sq. WPL 4159067 Contact Us For Availability
View on Model
21
Bracket, Spout Mounting
Bracket, Spout Mounting WPL 4162384 Contact Us For Availability
View on Model
22
Seal, Sink
Seal, Sink WPL 4162831 Contact Us For Availability
View on Model
23
Spout Body (White)
Spout Body (White) WPL 3179883 Contact Us For Availability
View on Model
23
Spout Body (Chrome)
Spout Body (Chrome) WPL 4162382 Contact Us For Availability
View on Model
25
Hardware, Installation
Hardware, Installation WPL 3191594 Contact Us For Availability
View on Model
26
Faucet Assembly (Chrome)
Faucet Assembly (Chrome) WPL 3191591 Contact Us For Availability
View on Model
26
Faucet Assembly (White)
Faucet Assembly (White) WPL 3191592 Contact Us For Availability
View on Model
27
Flow Screen
Flow Screen WPL 4161255 Contact Us For Availability
View on Model
28
Bracket, Mounting
Bracket, Mounting WPL 4162589 Contact Us For Availability
View on Model
29
Clamp, Hose
Clamp, Hose WPL 3177799 Contact Us For Availability
View on Model
