Model Whirlpool HD1000JSW4 HOT WATER DISPENSER – Common Parts & Diagrams
03 - SPOUT UNIT PARTS
02 - UPPER & LOWER TANK SHELL

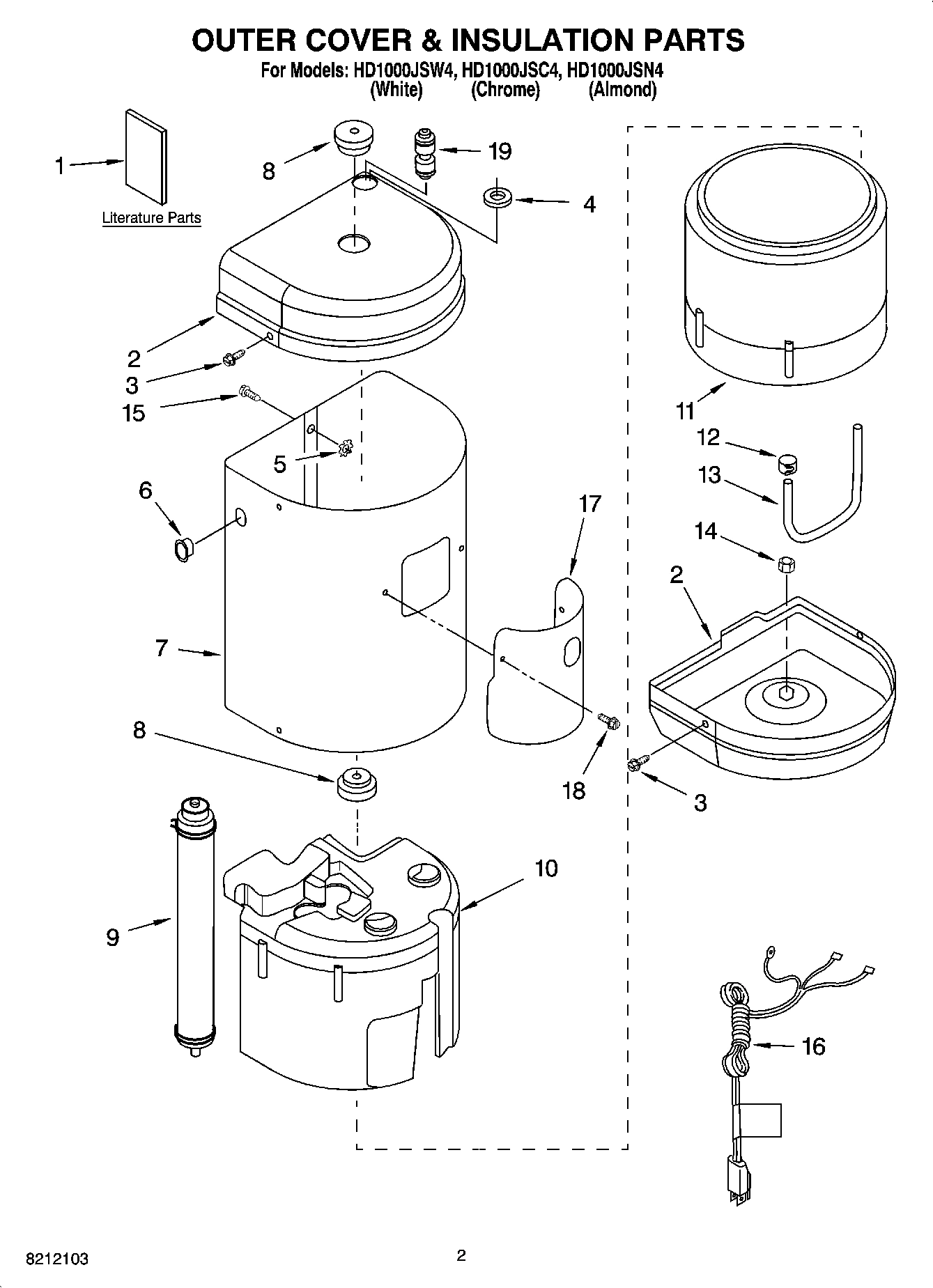

01 - OUTER COVER & INSULATION PARTS
Common parts from model Whirlpool HD1000JSW4 HOT WATER DISPENSER
1
Ground Wire WPL 3192080 Contact Us For Availability
1
Instructions, Installation & Use & Care guide WPL 8578393 Contact Us For Availability
2
End Cap WPL 3192031 Contact Us For Availability
3
Spring, Compression WPL 3192262 Contact Us For Availability
4
Grommet WPL 3192013 Contact Us For Availability
4
Cam WPL 3192137 Contact Us For Availability
6
Mechanical Valve (Includes Illus. 13 & 14) WPL 3192899 Contact Us For Availability
6
Strain Relief, Power Cord WPL 3191431 Contact Us For Availability
7
Tube (3/8`` I.D.) WPL 8541030 Contact Us For Availability
7
Shell, Tank Upper WPL 3193068 Contact Us For Availability
7
Shell WPL 3193265 Contact Us For Availability
8
O-Ring WPL 4159824 Contact Us For Availability
8
Bushing, Molded WPL 8534011 Contact Us For Availability
9
Plate, Spout WPL 4162837 Contact Us For Availability
9
Element, Heating (Includes Item 6) WPL 3191376 Contact Us For Availability
9
Displacer WPL 3192006 Contact Us For Availability
10
``O``, Ring WPL 4159825 Contact Us For Availability
10
Screw, Self Tapping (4-20 X 5/16``) Phil. Fla WPL 3400403 Contact Us For Availability
10
Insulation, Top WPL 3192011 Contact Us For Availability
11
Deflector WPL 4176126 Contact Us For Availability
11
Insulation, Bottom WPL 3192012 Contact Us For Availability
12
Cover, Collet WPL 3191385 Contact Us For Availability
12
Clamp, Hose WPL 3400975 Contact Us For Availability
13
Screen, Inlet WPL 3193133 Contact Us For Availability
13
Shell, Tank Lower WPL 8565547 Contact Us For Availability
13
Hose, Clear WPL 8541031 Contact Us For Availability
14
Nut WPL 4159072 Contact Us For Availability
14
THERMOSTAT WPL 3193512 Contact Us For Availability
15
Screw WPL 3192294 Contact Us For Availability
16
Knob, Thermostat WPL 3192538 Contact Us For Availability
16
Cord, Power WPL 3192352 Contact Us For Availability
17
Fuse, Thermal WPL 3193190 Contact Us For Availability
17
Front Cover WPL 4176041 Contact Us For Availability
20
Machine Nut 1/4-20 Sq. WPL 4159067 Contact Us For Availability
21
Bracket, Spout Mounting WPL 4162384 Contact Us For Availability
22
Seal, Sink WPL 4162831 Contact Us For Availability
23
Faucet Spout (Chrome) WPL 3193336 Contact Us For Availability
23
Faucet Spout (White) WPL 3193337 Contact Us For Availability
23
Faucet Spout (Almond) WPL 3193338 Contact Us For Availability
25
Hardware, Installation WPL 3191594 Contact Us For Availability
26
Faucet Assembly (Chrome) WPL 3193353 Contact Us For Availability
26
Faucet Assembly (White) WPL 3193354 Contact Us For Availability
26
Faucet Assembly (Almond) WPL 3193355 Contact Us For Availability
27
Flow Screen WPL 4161255 Contact Us For Availability
28
Bracket, Mounting WPL 4162589 Contact Us For Availability
29
Clamp, Hose WPL 3177799 Contact Us For Availability
× ![]()
