Model Haier HCR2250ADS Gas Range Or Dual Fuel – Common Parts & Diagrams

Common parts from model Haier HCR2250ADS Gas Range Or Dual Fuel

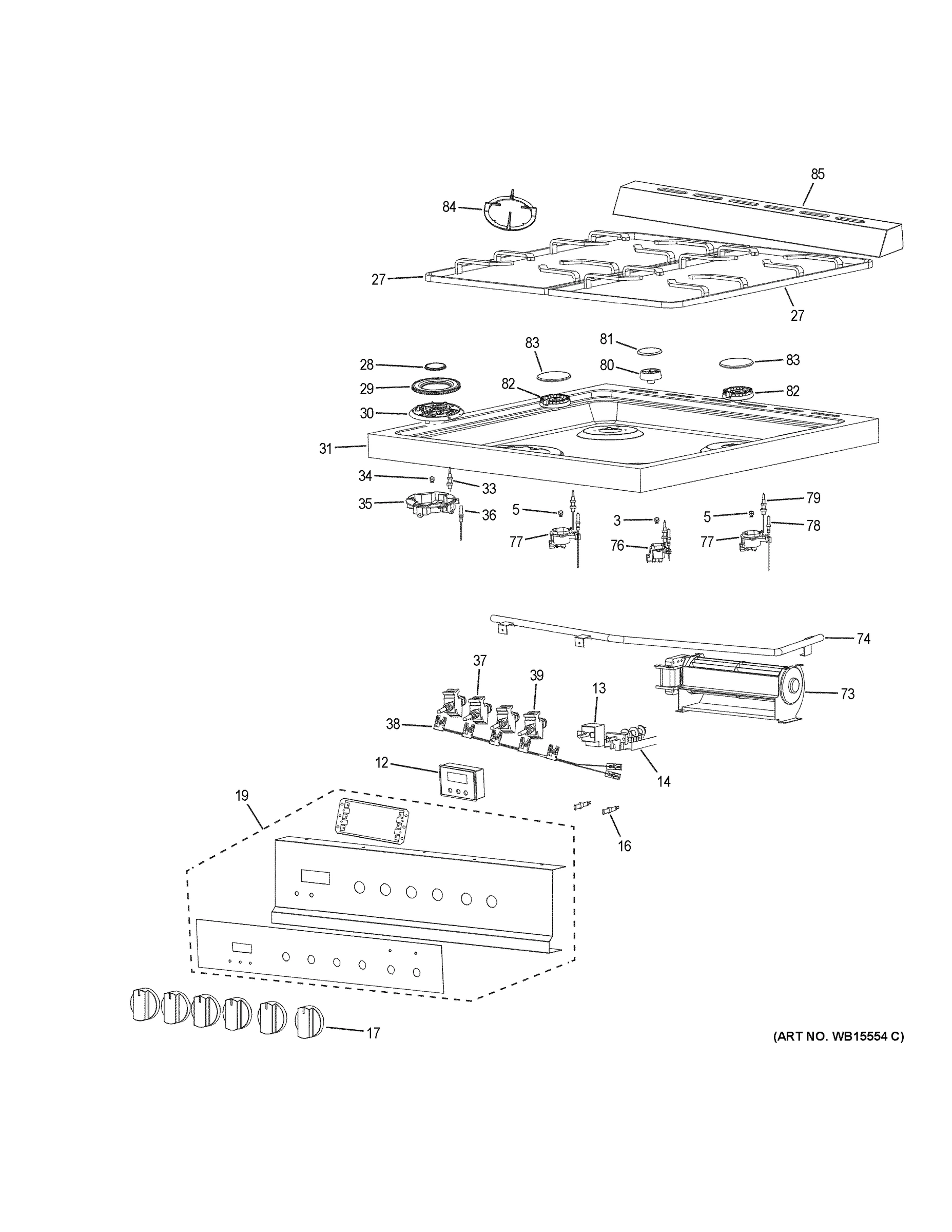

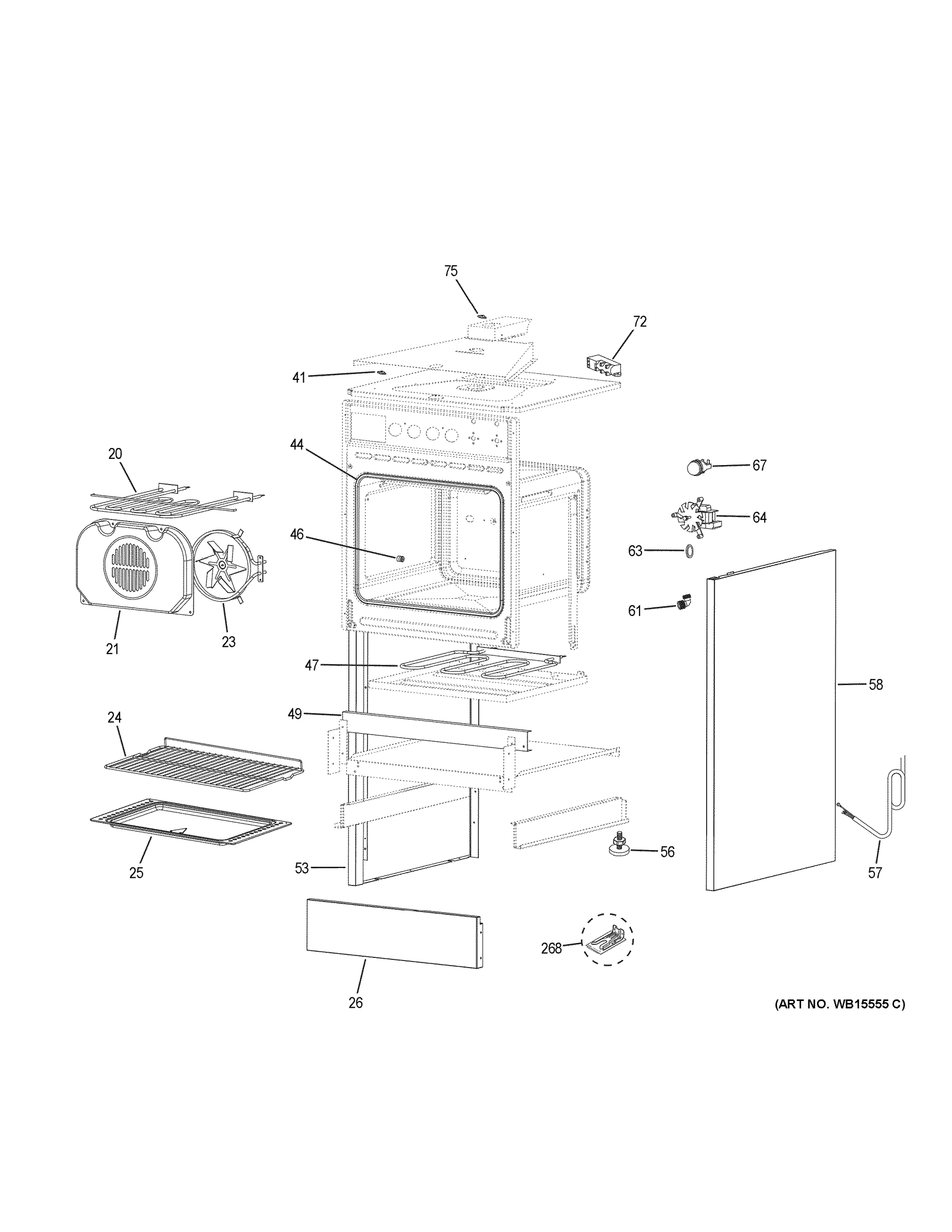

CONTROL PANEL & COOKTOP

Print

• This Diagram
• All Diagrams

1

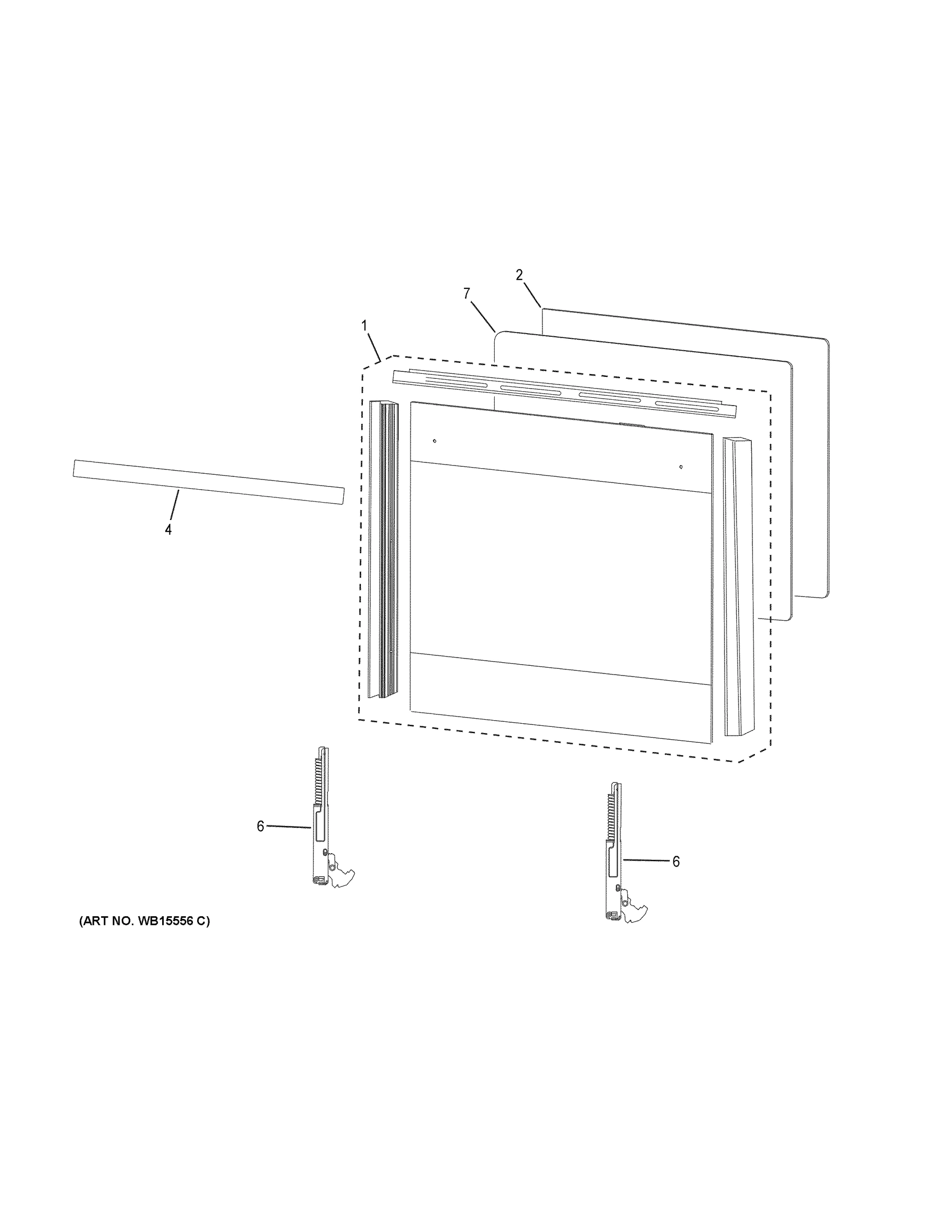

OUTER DOOR ASM GEN WB56X30681 Contact Us For Availability

View on Model

2

INNER DOOR GLASS GEN WB56X28305 Contact Us For Availability

View on Model

3

WB28X30653 GE Oven LP Orifice Backorder GEN WB28X30653 View Details $5.20

View on Model

4

DOOR HANDLE ASM GEN WB15X28287 Contact Us For Availability

View on Model

5

WB28X30652 GE Oven LP Orifice Backorder GEN WB28X30652 View Details $5.20

View on Model

6

DOOR HINGE ASM GEN WB10X28288 Contact Us For Availability

View on Model

7

DOOR GLASS GEN WB56X28286 Contact Us For Availability

View on Model

12

WB24X28323 GE Range Timer Backorder GEN WB24X28323 View Details $174.39

View on Model

17

WB03X28306 GE Oven Knob Backorder GEN WB03X28306 View Details $61.54

View on Model

21

CONVECTION FAN COVER GEN WB34X28278 Contact Us For Availability

View on Model

23

CONVECTION HEATING ELEMENT GEN WB44X28279 Contact Us For Availability

View on Model

24

OVEN RACK GEN WB48X28313 Contact Us For Availability

View on Model

25

GREASE COLLECTOR PAN GEN WB32X28296 Contact Us For Availability

View on Model

26

WB07X28291 GE Trim Front Bottom Backorder GEN WB07X28291 View Details $99.03

View on Model

27

WB31X28295 GE Oven Grate Backorder GEN WB31X28295 View Details $215.11

View on Model

28

WB29X28276 GE Range Burner Cap Backorder GEN WB29X28276 View Details $50.34

View on Model

29

WB29X28277 GE Range Burner Cap Backorder GEN WB29X28277 View Details $155.50

View on Model

33

WB13X28322 GE Range Thermocouple Backorder GEN WB13X28322 View Details $42.27

View on Model

34

WB28X30651 GE Oven LP Orifice Backorder GEN WB28X30651 View Details $5.20

View on Model

41

THERMAL CUTOUT GEN WB24X28320 Contact Us For Availability

View on Model

44

DOOR GASKET GEN WB35X28285 Contact Us For Availability

View on Model

46

GUIDE RAIL NUT GEN WB02X28297 Contact Us For Availability

View on Model

47

WB44X28298 GE Bake Element Hidden Backorder GEN WB44X28298 View Details $101.11

View on Model

49

DRAWER TRIM GEN WB07X28290 Contact Us For Availability

View on Model

53

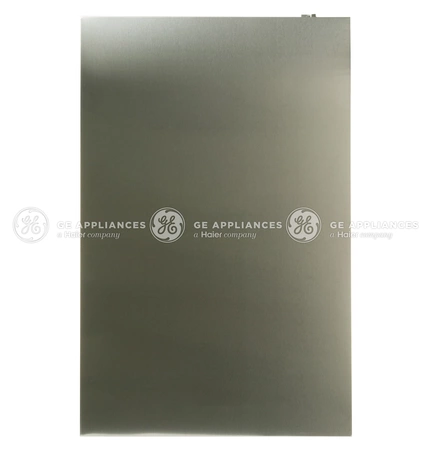

WB56X28317 GE Oven Left Side Panel Backorder GEN WB56X28317 View Details $73.49

View on Model

56

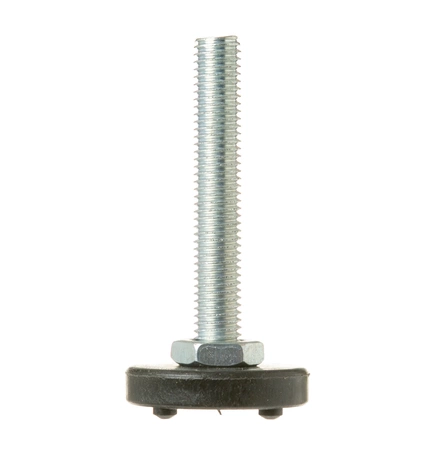

WB02X28308 GE Leveling Leg Backorder GEN WB02X28308 View Details $5.20

View on Model

57

POWER CORD GEN WB18X28315 Contact Us For Availability

View on Model

58

SIDE PANEL RT GEN WB56X28318 Contact Us For Availability

View on Model

61

WB28X28304 GE Gas Range Air Inlet Elbow Backorder GEN WB28X28304 View Details $11.53

View on Model

63

WB35X28292 GE Oven Gasket Backorder GEN WB35X28292 View Details $12.11

View on Model

64

CONVECTION MOTOR AND FAN ASM GEN WB26X28280 Contact Us For Availability

View on Model

67

WB18X28307 GE Oven Lens and Lamp Socket Assem Backorder GEN WB18X28307 View Details $68.62

View on Model

72

WB13X28324 GE Top Burner Spark Module Backorder GEN WB13X28324 View Details $52.85

View on Model

75

WB24X28282 GE Cooling Fan Thermostat Backorder GEN WB24X28282 View Details $4.94

View on Model

79

WB13X28321 GE Oven Thermocouple Backorder GEN WB13X28321 View Details $35.87

View on Model

80

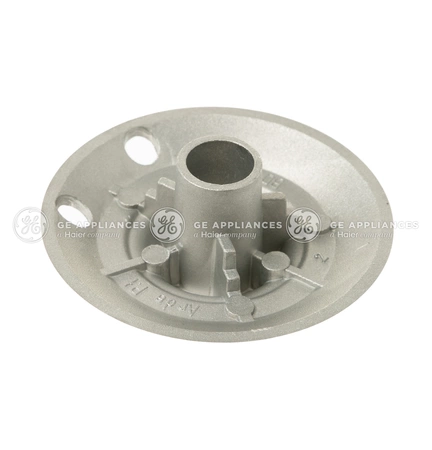

WB16X28271 GE Range Burner Assembly Backorder GEN WB16X28271 View Details $41.50

View on Model

81

WB29X28274 GE Range Burner Assembly Backorder GEN WB29X28274 View Details $52.85

View on Model

82

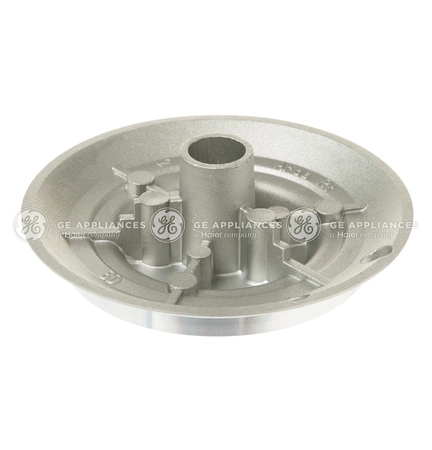

WB16X28272 GE Oven Burner Base Backorder GEN WB16X28272 View Details $46.70

View on Model

83

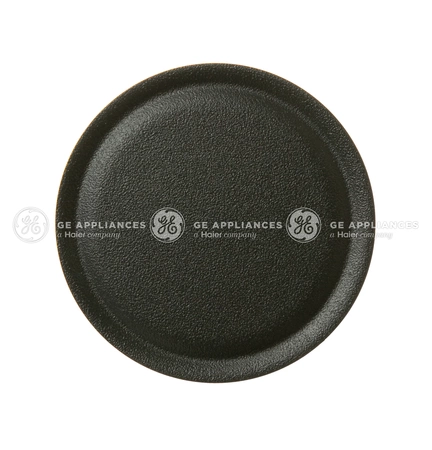

WB29X28275 GE Range Burner Assembly Backorder GEN WB29X28275 View Details $76.60

View on Model

85

WB34X28326 GE Oven Backsplash Backorder GEN WB34X28326 View Details $27.29

View on Model

268

WB02T10578 GE Oven Anti-Tip Bracket Assembly In Stock GEN WB02T10578 View Details $21.72
