Model GE HCH2100ACS – Common Parts & Diagrams

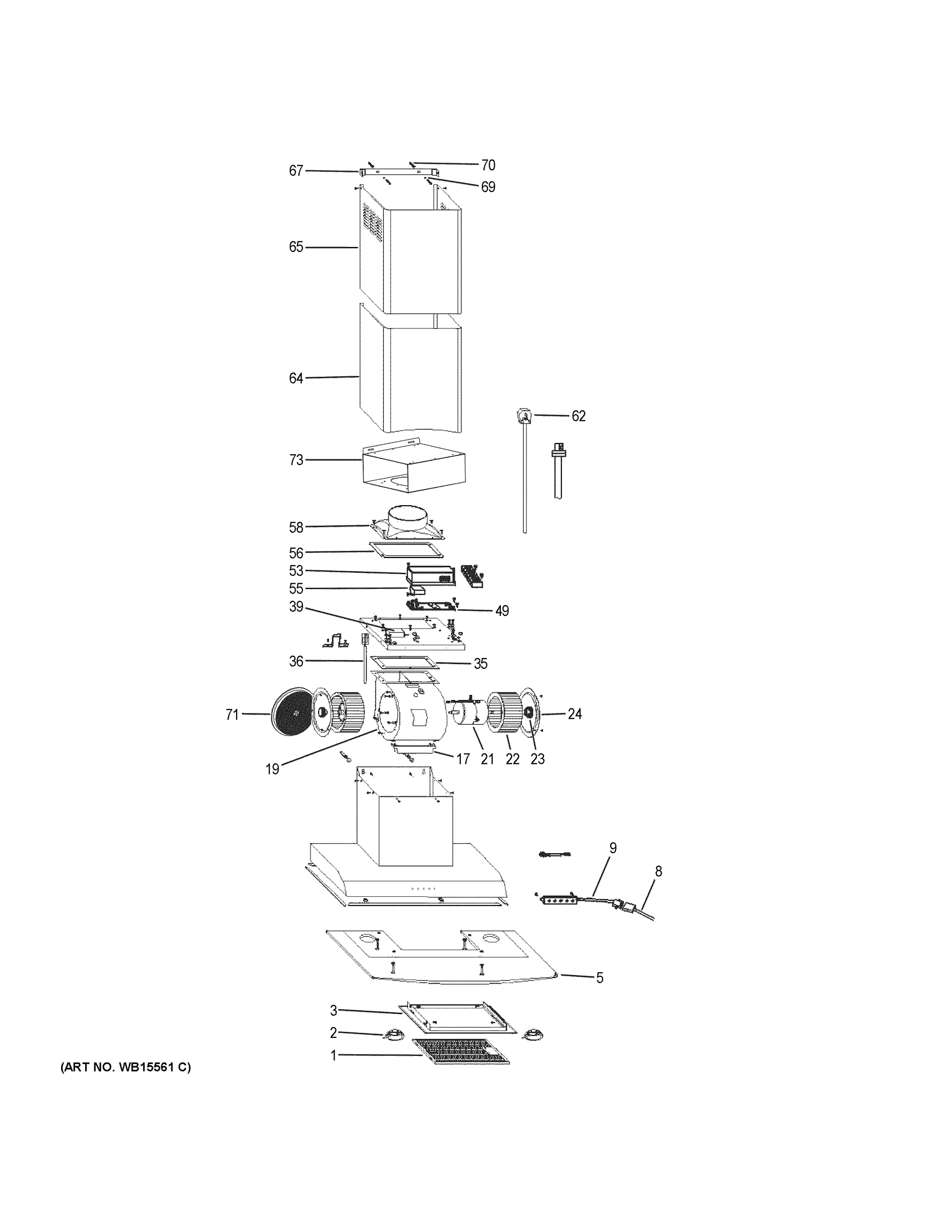

RANGE HOOD
Common parts from model GE HCH2100ACS
2
LIGHT ASM WITH CONNECTOR GEN WB25X29047 Contact Us For Availability
3
FILTER FRAME GEN WB07X29038 Contact Us For Availability
5
GLASS PLATE GEN WB07X29040 Contact Us For Availability
8
SWITCH HARNESS GEN WB18X29051 Contact Us For Availability
17
GREASE PAN GEN WB32X29042 Contact Us For Availability
19
BLOWER HOUSING GEN WB34X29036 Contact Us For Availability
21
BLOWER MOTOR GEN WB26X29037 Contact Us For Availability
22
RIGHT SIDE IMPELLER GEN WB02X29015 Contact Us For Availability
22
LEFT SIDE IMPELLER GEN WB02X29016 Contact Us For Availability
23
LEFT SIDE FASTENER GEN WB02X29046 Contact Us For Availability
23
RIGHT SIDE FASTENER GEN WB02X29049 Contact Us For Availability
24
BLOWER COVER GEN WB34X29035 Contact Us For Availability
35
BLOWER HOUSING GASKET GEN WB35X29006 Contact Us For Availability
36
HARNESS WIRE GEN WB18X29043 Contact Us For Availability
39
TRANSFORMER GEN WB26X29052 Contact Us For Availability
49
JUNCTION BOX BOTTOM GEN WB02X29019 Contact Us For Availability
53
JUNCTION BOX COVER GEN WB34X29020 Contact Us For Availability
55
CAPACITOR GEN WB26X29007 Contact Us For Availability
56
GASKET GEN WB35X29013 Contact Us For Availability
58
DAMPER GEN WB34X29009 Contact Us For Availability
62
POWER CORD GEN WB18X29026 Contact Us For Availability
64
INNER DUCT COVER GEN WB34X29044 Contact Us For Availability
67
INSTALLATION BRACKET GEN WB01X29045 Contact Us For Availability
69
GASKET GEN WB35X29039 Contact Us For Availability
70
WALL ANCHOR GEN WB01X29053 Contact Us For Availability
× ![]()
