Model GE HCC2230AGS – Common Parts & Diagrams

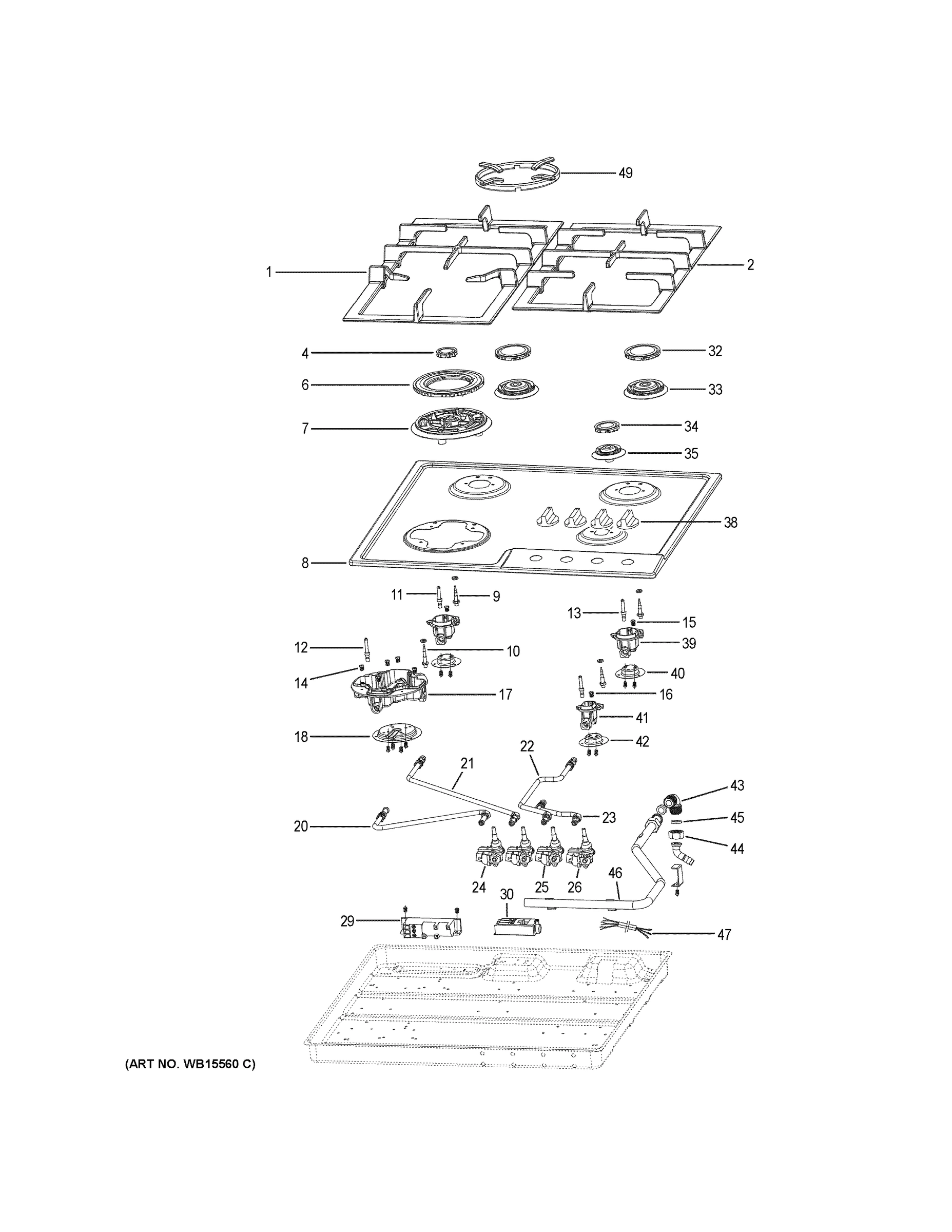

CONTROL PANEL & COOKTOP
Common parts from model GE HCC2230AGS
1
GRATE LH GEN WB31X28074 Contact Us For Availability
2
GRATE RH GEN WB31X28075 Contact Us For Availability
4
SIMMER CAP GEN WB29X28095 Contact Us For Availability
6

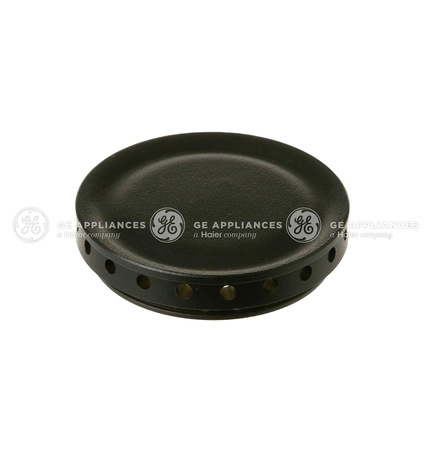

BURNER CAP GEN WB29X28064 Contact Us For Availability
7
BURNER BASE GEN WB16X28061 Contact Us For Availability
8
MAINTOP ASM SS GEN WB62X28088 Contact Us For Availability
9
THERMOCOUPLE GEN WB13X28099 Contact Us For Availability
10
THERMOCOUPLE GEN WB13X28098 Contact Us For Availability
11
IGNITOR WITH WIRE GEN WB13X28076 Contact Us For Availability
12
IGNITOR WITH WIRE GEN WB13X28078 Contact Us For Availability
14
ORIFICE GEN WB28X28092 Contact Us For Availability
15
ORIFICE GEN WB28X28093 Contact Us For Availability
16
ORIFICE GEN WB28X28091 Contact Us For Availability
18
INJET SUPPORT GEN WB02X28083 Contact Us For Availability
20
GAS TUBE ASM LF GEN WB28X28067 Contact Us For Availability
21
GAS TUBE ASM LR GEN WB28X28068 Contact Us For Availability
22
GAS TUBE ASM RR GEN WB28X28070 Contact Us For Availability
23
GAS TUBE ASM RF GEN WB28X28069 Contact Us For Availability
24
GAS VALVE GEN WB21X28072 Contact Us For Availability
26
GAS VALVE GEN WB21X28071 Contact Us For Availability
30
TERMINAL BLOCK GEN WB18X28097 Contact Us For Availability
38
KNOB GEN WB03X28087 Contact Us For Availability
40
INJET SUPPORT GEN WB02X28084 Contact Us For Availability
41

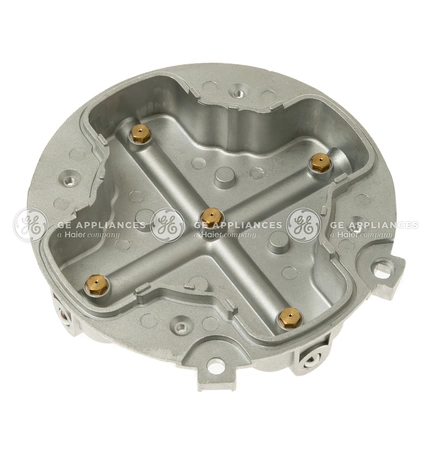

INJET GEN WB28X28079 Contact Us For Availability
42
INJET SUPPORT GEN WB02X28082 Contact Us For Availability
43
MANIFOLD INLET ELBOW GEN WB28X28090 Contact Us For Availability
44
INLET NUT GEN WB01X28086 Contact Us For Availability
45
INLET GASKET GEN WB35X28085 Contact Us For Availability
46
MANIFOLD GEN WB36X28089 Contact Us For Availability
47
POWER CORD GEN WB18X28094 Contact Us For Availability
49
WOK ADAPTER GEN WB31X28100 Contact Us For Availability
× ![]()
