Model Haier HCC2220BEB Electric Range – Common Parts & Diagrams

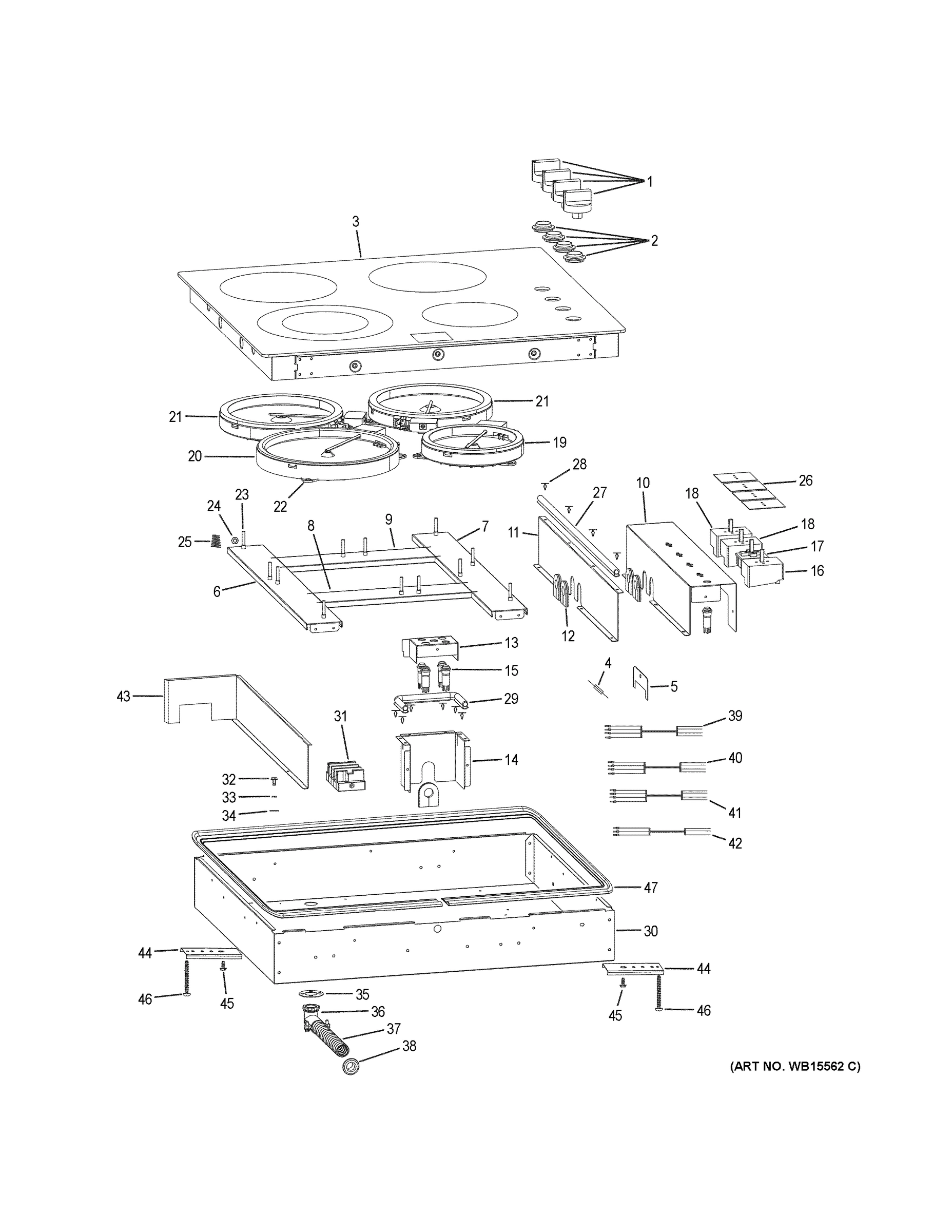

CONTROL PANEL & COOKTOP
Common parts from model Haier HCC2220BEB Electric Range
4
FUSE GEN WB24X30097 Contact Us For Availability
5
FUSE HOLDER GEN WB34X30096 Contact Us For Availability
6
LEFT BRACKET GEN WB34X30111 Contact Us For Availability
7
RIGHT BRACKET GEN WB34X30131 Contact Us For Availability
8
FRONT BRACKET GEN WB34X30098 Contact Us For Availability
9
REAR BRACKET GEN WB34X30132 Contact Us For Availability
10
INFINITE SWITCH BRACKET GEN WB34X30119 Contact Us For Availability
11
INSULATOR GEN WB35X30115 Contact Us For Availability
12
CLIP GEN WB02X30104 Contact Us For Availability
13
INDICATOR LIGHT BRACKET GEN WB34X30124 Contact Us For Availability
14
INSULATOR GEN WB35X30114 Contact Us For Availability
15
COOKTOP LIGHT INDICATOR GEN WB25X30102 Contact Us For Availability
18
INFINITE SWITCH 1800W GEN WB24X30120 Contact Us For Availability
19
RADIANT BURNER 1200W GEN WB30X30135 Contact Us For Availability
20
DOUBLE BURNER GEN WB30X30101 Contact Us For Availability
21
RADIANT BURNER 1800W GEN WB30X30134 Contact Us For Availability
22
RADIANT ELEMENT BRACKET GEN WB34X30133 Contact Us For Availability
23
BOLT GEN WB01X30106 Contact Us For Availability
24
HEX NUT GEN WB01X30091 Contact Us For Availability
25
SPRING GEN WB02X30126 Contact Us For Availability
26
INFINITE SWITCH GASKET GEN WB35X30117 Contact Us For Availability
27
INFINITE SWITCHES RUBBER GASKET GEN WB35X30118 Contact Us For Availability
28
RUBBER PIN GEN WB02X30129 Contact Us For Availability
29
INDICATOR LIGHT INSULATION TAPE GEN WB02X30123 Contact Us For Availability
30
BURNER BOX GEN WB63X30105 Contact Us For Availability
31
TERMINAL BLOCK GEN WB18X30125 Contact Us For Availability
32
GROUND SCREW GEN WB01X30094 Contact Us For Availability
33
GROUND SCREW PAD GEN WB02X30092 Contact Us For Availability
34
GROUND SCREW PAD GEN WB02X30093 Contact Us For Availability
35
GASKET GEN WB35X30095 Contact Us For Availability
36
POWER CORD ELBOW GEN WB02X30137 Contact Us For Availability
37
CONNECTOR GEN WB02X30103 Contact Us For Availability
39
MAINTOP HARNESS GEN WB18X30108 Contact Us For Availability
40
POWER CORD ASM GEN WB18X30107 Contact Us For Availability
41
INDICATOR LIGHT HARNESS GEN WB18X30122 Contact Us For Availability
42
POWER HARNESS GEN WB18X30136 Contact Us For Availability
43
LEFT FRONT INSULATOR GEN WB35X30110 Contact Us For Availability
44
INSTALLATION BRACKET GEN WB34X30116 Contact Us For Availability
45
SCREW ST4 2X8 GEN WB01X30128 Contact Us For Availability
46
SCREW ST5X75 GEN WB01X30127 Contact Us For Availability
47
FOAM TAPE GEN WB02X30099 Contact Us For Availability
× ![]()
