Model GE HA6001 General Electric Model HA6001 – Common Parts & Diagrams

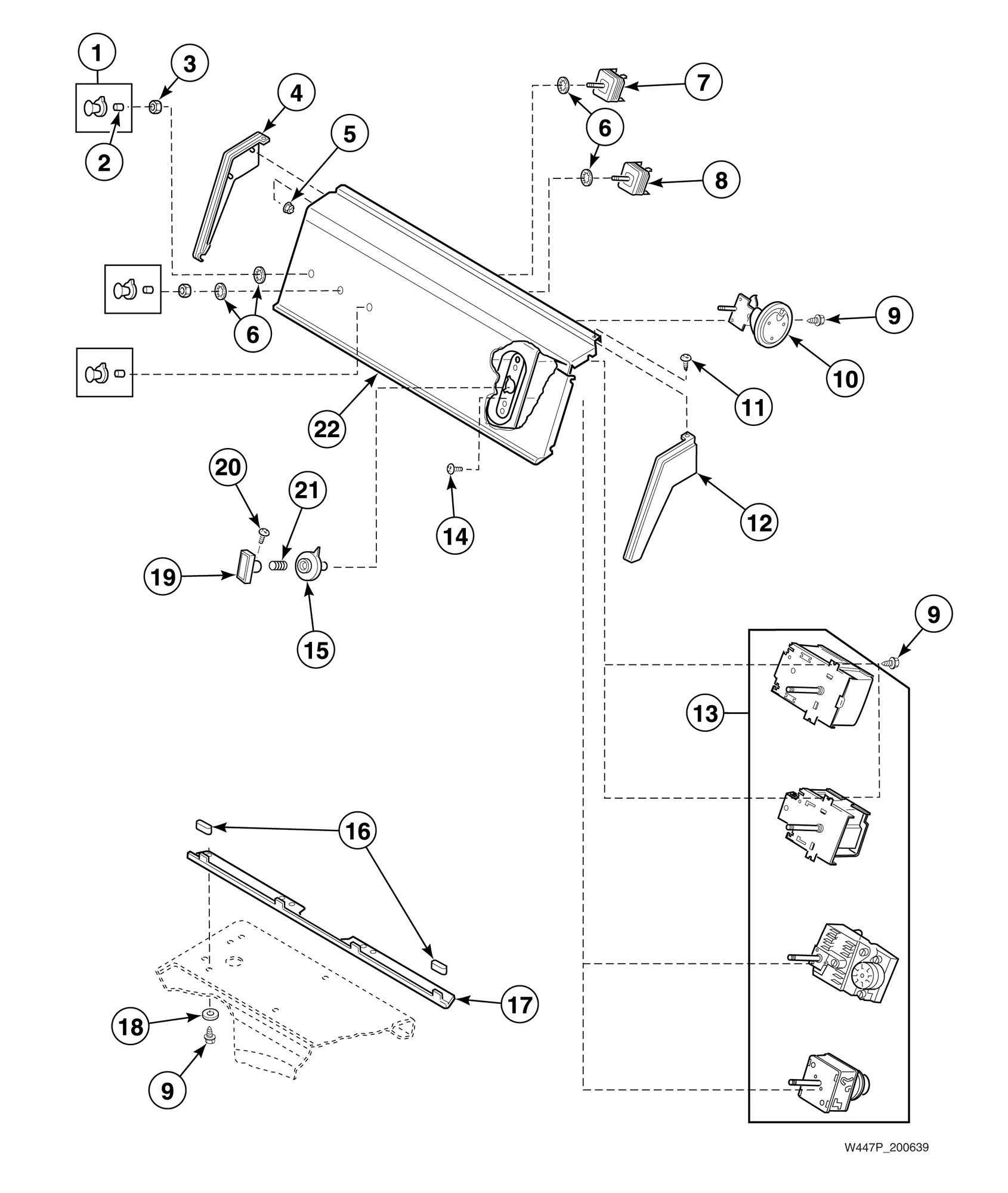

Control Panel and Controls (Drawing 1 of 2)

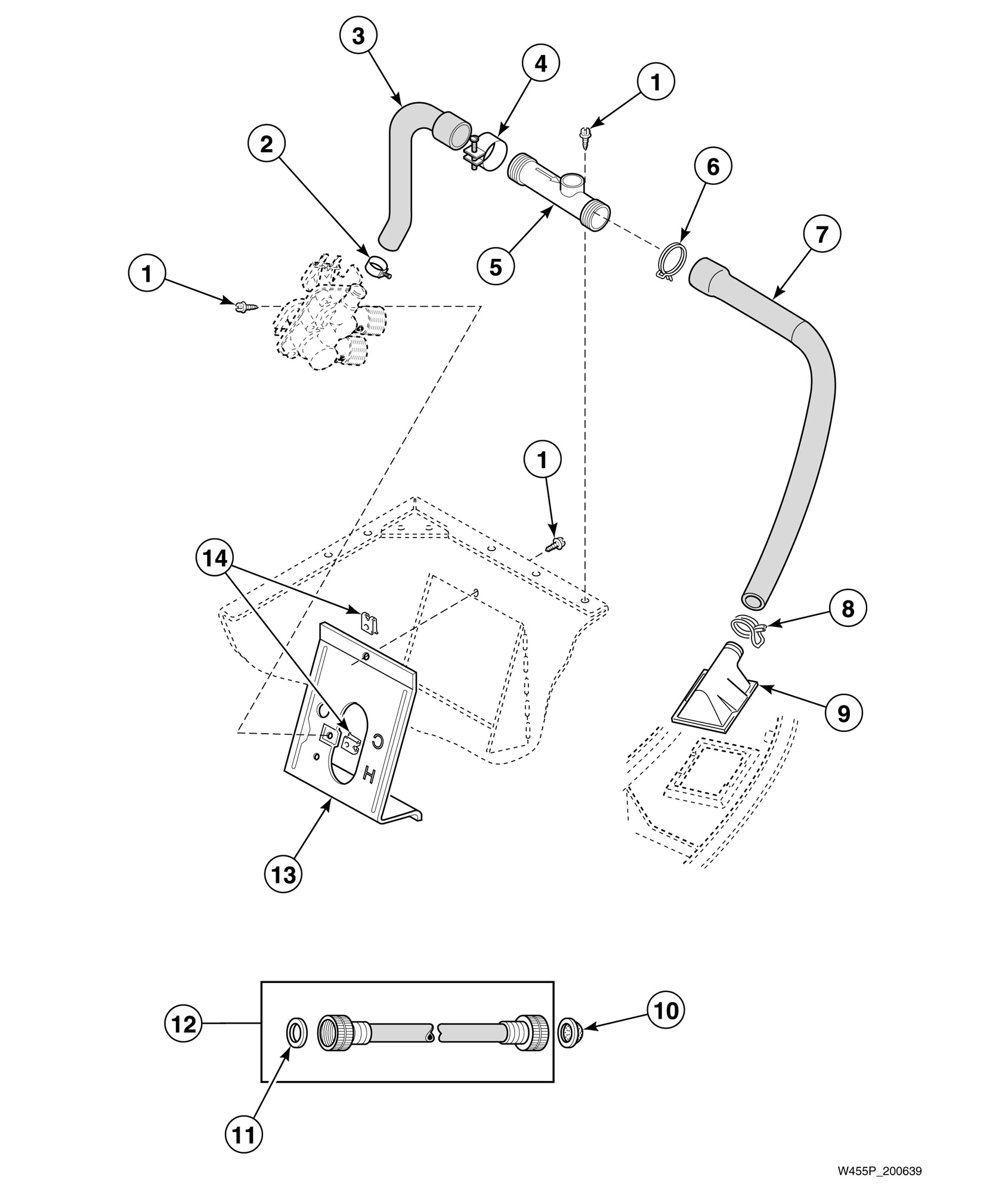

Fill Hose, Back Flow Preventer and Mixing Valve Mounting Bracket Models Starting Serial No. N3605085
Fill Hose, Back Flow Preventer and Mixing Valve Mounting Bracket Models Through Serial No. N3605084
Front Panel, Cabinet and Base
Lint Filter, Washtub and Hub
Mixing Valve Assembly
Motor and Mounting Bracket - Models Starting Serial No. C3486774
Motor and Mounting Bracket - Models Through Serial No. C3486773
Outer Tub, Cover and Pressure Hose (Drawing 1 of 2)
Outer Tub, Cover and Pressure Hose (Drawing 2 of 2)
Power Cord and Wire Terminals
Pump Assembly, Bracket, Hoses and Siphon Break Kit (Drawing 1 of 2)
Pump Assembly, Bracket, Hoses and Siphon Break Kit (Drawing 2 of 2)
Short Post Drive (Models with Suffix *A 9975)
Special Tools
Switch and Bracket Assembly
Transmission Assembly
Transmission Assembly and Balance Ring
Agitator and Post
Bearing Housing, Brake, Pulley and Pivot Dome
Belts and Idler Assembly - Models Starting Serial No. C3486774
Belts and Idler Assembly - Models Through Serial No. C3486773
Cabinet Top, Loading Door and Control Hood
Common parts from model GE HA6001 General Electric Model HA6001
1
Service Cabinet Kit (Comment: Almond) GEN 38612LP Contact Us For Availability
1
Service Cabinet Kit (Comment: White) GEN 38612WP Contact Us For Availability
1
Lint Filter Fastener GEN 29474 Contact Us For Availability
1
Mixing Valve (Comment: Singer components no l GEN 33930P Contact Us For Availability
1
Screw GEN D503661 Contact Us For Availability
1
Tubing (Comment: starting Serial No. L3627521 GEN 39125 Contact Us For Availability
1
Female Terminal (Comment: Used for 1 or 2 wir GEN 00188 Contact Us For Availability
1
Siphon Break Kit (Comment: Must be installed GEN 562P3 Contact Us For Availability
1
Agitator GEN 33514 Contact Us For Availability
1
Spring Hook Tool (Comment: Use to remove 5 ce GEN 321P4 Contact Us For Availability
1
Lid Switch Shield (Comment: Models starting S GEN 29042 Contact Us For Availability
1
Brake Pad Kit (Comment: Includes sleeves and GEN 548P3 Contact Us For Availability
1
Idler Spring GEN 37366 Contact Us For Availability
2
Hose Clamp GEN 36801 Contact Us For Availability
2
Bumper Pad GEN 56128 Contact Us For Availability
2
Lint Filter GEN 33521 Contact Us For Availability
2
Motor Shield GEN 27136 Contact Us For Availability
2
Plug GEN 29901 Contact Us For Availability
2
24 Position Housing GEN 32746 Contact Us For Availability
2
Hex Wrench Tool (Comment: Use to remove hex l GEN 306P4 Contact Us For Availability
2
Screw GEN Q6516 Contact Us For Availability
2
Coupling and Shaft Kit GEN 368P3 Contact Us For Availability
2
Bearing Housing Assembly (Comment: Upper) GEN 27182 Contact Us For Availability
2
Bearing Housing Assembly (Comment: Lower) GEN 35746 Contact Us For Availability
2
Idler Lever Helper Spring (Comment: Models st GEN 30620 Contact Us For Availability
2
Bumper GEN 21685 Contact Us For Availability
3
Nut GEN 57584 Contact Us For Availability
3
Mixing Valve Hose GEN 27183 Contact Us For Availability
3
Panel Locator GEN 56079 Contact Us For Availability
3
Male Pin Terminal GEN 00116 Contact Us For Availability
3
Drain Hose Elbow GEN 23553 Contact Us For Availability
3
Drain Hose GEN 39952 Contact Us For Availability
3
Switch GEN 27249 Contact Us For Availability
3
Transmission Case Assembly GEN 33223P Contact Us For Availability
3
Flinger GEN 27187 Contact Us For Availability
3
Washer GEN 27189 Contact Us For Availability
3
Upper and Lower Bearing GEN 28944RP Contact Us For Availability
3
Nut GEN 28803 Contact Us For Availability
3
Nut GEN 56156 Contact Us For Availability
4
Screw GEN 39733 Contact Us For Availability
4
Washer GEN 28094 Contact Us For Availability
4
Motor Kit (Comment: 2 speed, 120 Volt/60 Hert GEN 27179P Contact Us For Availability
4
6 Circuit Receptacle GEN 26708 Contact Us For Availability
4
Drain Tub-to-Pump Hose GEN 27160 Contact Us For Availability
4
Drive Bell and Seal Kit GEN 39508P Contact Us For Availability
4
Packaged Bearing GEN 36107P Contact Us For Availability
4
Nut GEN 27222 Contact Us For Availability
4
Spacer GEN 27176 Contact Us For Availability
4
Idler Lever GEN 31054 Contact Us For Availability
4
Lid Switch Catch GEN 27149 Contact Us For Availability
5
Backflow Preventer Assembly GEN 34280 Contact Us For Availability
5
Screw GEN 51780 Contact Us For Availability
5
Tub Assembly (Comment: Porcelain) GEN 39252P Contact Us For Availability
5
Tub Assembly (Comment: Stainless steel) GEN 39387P Contact Us For Availability
5
Female Pin Terminal GEN 00117 Contact Us For Availability
5
Spring Installer (Comment: Use to install bra GEN 242P4 Contact Us For Availability
5
Seal GEN 28114 Contact Us For Availability
5
Spring GEN 33435 Contact Us For Availability
5
Washer GEN 81392 Contact Us For Availability
5
Nut GEN 21752 Contact Us For Availability
6
Washer GEN 91176 Contact Us For Availability
6
Hose Clamp (Comment: Green) GEN 35370 Contact Us For Availability
6
Washtub Gasket GEN 39122 Contact Us For Availability
6
Nut GEN 29220 Contact Us For Availability
6
Outer Tub Cover (Comment: Includes item 2) GEN 31153 Contact Us For Availability
6
6 Circuit Plug GEN 23041 Contact Us For Availability
6
Drain Hose GEN 28293 Contact Us For Availability
6
Standpipe Strap GEN 33489 Contact Us For Availability
6
Reduction Gear GEN 29161 Contact Us For Availability
6
Screw GEN M400057 Contact Us For Availability
6
Washer GEN 27015 Contact Us For Availability
6
Hinge GEN 27626 Contact Us For Availability
7
Water Temperature Switch GEN 28118 Contact Us For Availability
7
Water Inlet Hose GEN 29182 Contact Us For Availability
7
Hold-Down Lug Hinge GEN 27103 Contact Us For Availability
7
Screw GEN 27196 Contact Us For Availability
7
Roll Pin GEN 10416 Contact Us For Availability
7
Tub Cover Gasket (Comment: Included with 356P GEN 27184 Contact Us For Availability
7
Lead-In Cord GEN 34458 Contact Us For Availability
7
Nut GEN 03673 Contact Us For Availability
7
Hose Coupler (Comment: Use to splice hose if GEN 25863 Contact Us For Availability
7
Spline Insert GEN 29728 Contact Us For Availability
7
Screw GEN 28193 Contact Us For Availability
7
Washer GEN 29260 Contact Us For Availability
7
Transmission Assembly GEN 30946P Contact Us For Availability
7
Transmission Assembly (Comment: Models with s GEN 33227P Contact Us For Availability
7
Washer (Comment: Stainless steel) GEN 04704 Contact Us For Availability
7
Spring Clip GEN 28849 Contact Us For Availability
8
Hose Clamp (Comment: Red) GEN 29210 Contact Us For Availability
8
Mixing Valve Mounting Bracket GEN 39407 Contact Us For Availability
8
Screw GEN 27202 Contact Us For Availability
8
Strainer GEN F270200 Contact Us For Availability
8
Nut GEN 52566 Contact Us For Availability
8
Washer GEN 03815 Contact Us For Availability
8
Spring Clip GEN 27017 Contact Us For Availability
8
Screw GEN 20267 Contact Us For Availability
8
Screw GEN 52909 Contact Us For Availability
8
Pump-to-Drain Elbow Hose GEN 27161 Contact Us For Availability
8
Washer GEN 20492 Contact Us For Availability
8
Hub and Seal Kit GEN 495P3 Contact Us For Availability
8
Screw GEN 29273 Contact Us For Availability
8
Support Leg GEN 27090 Contact Us For Availability
9
Fill Hose Kit (Comment: 4 feet, Hose is equip GEN 28330P Contact Us For Availability
9
Fill Hose Kit (Comment: 5 feet, Hose is equip GEN 38349P Contact Us For Availability
9
Seal Kit (Comment: Includes 27184 Cover Gaske GEN 356P3 Contact Us For Availability
9
Motor Mount Bracket GEN 28791 Contact Us For Availability
9
Screw GEN 35369 Contact Us For Availability
9
Out-of-Balance Switch Bracket GEN 27250 Contact Us For Availability
9
Transmission Oil (Comment: 1 fill) GEN 27243P Contact Us For Availability
9
Washer GEN 02431 Contact Us For Availability
9
Idler Shaft GEN 28802P Contact Us For Availability
10
Pressure Switch GEN 27778 Contact Us For Availability
10
Washer GEN 20290 Contact Us For Availability
10
Leveling Leg GEN 34319 Contact Us For Availability
10
Leg Spring GEN 27239 Contact Us For Availability
10
Gear and Stud Assembly GEN 26577 Contact Us For Availability
10
Washer (Comment: Use with 02710 Cap Screw onl GEN 04366 Contact Us For Availability
10
Balance Ring Assembly GEN 34731P Contact Us For Availability
10
Gasket (Comment: Use with 27130 Agitator Post GEN 27020 Contact Us For Availability
10
Washer GEN 29443 Contact Us For Availability
10
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
11
Screw GEN 25232 Contact Us For Availability
11
Filter Screen GEN F270300 Contact Us For Availability
11
Rubber Foot (Comment: Use with old leveling l GEN 21749 Contact Us For Availability
11
Rubber Foot (Comment: Use with 34319 Leveling GEN 34318 Contact Us For Availability
11
Nut GEN 23604 Contact Us For Availability
11
Female Terminal (Comment: 1 wire) GEN 00180 Contact Us For Availability
11
Nut GEN 29043 Contact Us For Availability
11
Retaining Ring GEN 27197 Contact Us For Availability
11
Screw GEN 201773 Contact Us For Availability
11
Pivot Dome GEN 27124 Contact Us For Availability
11
Washer (Comment: Nylatron) GEN 52549 Contact Us For Availability
11
Idler Pulley Kit (Comment: Includes agitate a GEN 364P3 Contact Us For Availability
11
Nut GEN 24522 Contact Us For Availability
12
Nut GEN 21899 Contact Us For Availability
12
Washer GEN 03888 Contact Us For Availability
12
Leg Plate (Comment: .063 inch thick) GEN 27926 Contact Us For Availability
12
Female Terminal (Comment: 2 wire) GEN 00183 Contact Us For Availability
12
Out-of-Balance Switch Lever GEN 27602 Contact Us For Availability
12
Washer GEN 21456 Contact Us For Availability
12
Screw GEN 27220 Contact Us For Availability
12
Screw GEN 27229 Contact Us For Availability
12
Retaining Ring GEN 23748 Contact Us For Availability
13
Timer (Comment: through Serial No. B3533857) GEN 28093 Contact Us For Availability
13
Timer (Comment: starting Serial No. B3533858) GEN 28917P Contact Us For Availability
13
Panel Locator GEN 28102 Contact Us For Availability
13
Accumulator and Tubing Assembly (Comment: Mod GEN 30930P Contact Us For Availability
13
Pump Assembly (Comment: Includes item 14) GEN 31968 Contact Us For Availability
13
Washer GEN 26509 Contact Us For Availability
13
Idler Pulley GEN 28800P Contact Us For Availability
14
Complete Base Assembly (Comment: Includes ite GEN 31653P Contact Us For Availability
14
Harness Strap GEN 55881 Contact Us For Availability
14
Input Pinion (Comment: Use with 28430 Transmi GEN 29156 Contact Us For Availability
14
Drive Pinion (Comment: Use with 30946P Transm GEN 36562 Contact Us For Availability
14
Helix GEN 27018 Contact Us For Availability
15
Front Panel (Comment: Almond) GEN 32708LP Contact Us For Availability
15
Front Panel (Comment: White) GEN 32708WP Contact Us For Availability
15
Grommet (Comment: Models starting Serial No. GEN 29175 Contact Us For Availability
15
Wire Clip GEN 51291 Contact Us For Availability
15
Input Shaft (Comment: Input) GEN 27081P Contact Us For Availability
15
Washer GEN 20057 Contact Us For Availability
15
Pulley and Washers Kit GEN 34232P Contact Us For Availability
15
Pump Belt GEN 27155 Contact Us For Availability
15
Belt (Comment: Agitate and spin) GEN 28808 Contact Us For Availability
15
Strain Relief GEN 38384 Contact Us For Availability
16
Speed Clip GEN 28835 Contact Us For Availability
16
Motor Pulley (Comment: Pump) GEN 27104 Contact Us For Availability
16
Grounding Clip GEN 00161 Contact Us For Availability
16
Pressure Bulb (Comment: Models starting Seria GEN 30907 Contact Us For Availability
16
Female Spade Terminal (Comment: Large spade) GEN 00223 Contact Us For Availability
16
Pump Mounting Bracket GEN 27105 Contact Us For Availability
16
Agitator Shaft Assembly GEN 28091 Contact Us For Availability
17
Screw GEN 23962 Contact Us For Availability
17
Hose Clamp (Comment: Models starting Serial N GEN 39282 Contact Us For Availability
17
Female Flag Terminal GEN 00120 Contact Us For Availability
17
Brake Kit GEN 38505P Contact Us For Availability
18
Terminal Adapter GEN 29673 Contact Us For Availability
18
Screw GEN 26547 Contact Us For Availability
19
Connector GEN 21091 Contact Us For Availability
19
Anti-Rotation Sleeve GEN 29993 Contact Us For Availability
20
Ring Terminal (Comment: 1/4 inch ring) GEN 00113 Contact Us For Availability
20
Hose Clamp GEN 20391 Contact Us For Availability
20
Screw GEN 20253 Contact Us For Availability
20
Support Barrel (Comment: Models starting Seri GEN 56534 Contact Us For Availability
21
Hose Clamp GEN 20211 Contact Us For Availability
21
Ring Terminal (Comment: Large shank) GEN 00111 Contact Us For Availability
21
Transmission Cover Assembly GEN 38287P Contact Us For Availability
21
Screw GEN 23008 Contact Us For Availability
22
Ring Terminal (Comment: Small shank) GEN 00110 Contact Us For Availability
22
Bearing GEN 27022 Contact Us For Availability
22
Nut GEN 36020 Contact Us For Availability
23
Insulator GEN 70210 Contact Us For Availability
23
Slide GEN 26493 Contact Us For Availability
23
Bleach Dispenser GEN 34776 Contact Us For Availability
24
Rack GEN 31526 Contact Us For Availability
24
Bushing GEN 27625 Contact Us For Availability
25
Grommet (Comment: Models through Serial No. 3 GEN N/A Contact Us For Availability
25
Agitator Pinion GEN 27003 Contact Us For Availability
NA
Silicone Grease (Comment: For pads in base) GEN 26594P Contact Us For Availability
NA
Capacitor Kit (Comment: For areas where low v GEN 258P3 Contact Us For Availability
NA
Motor Harness Assembly (Comment: Washers equi GEN 28131 Contact Us For Availability
NA
Drain Extension Kit GEN 451P3 Contact Us For Availability
NA
Tool Kit (Comment: Includes items 1 and 2) GEN 725P3 Contact Us For Availability
NA
Transmission Sealant (Comment: Use with item GEN 37577P Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to both t GEN 27604P Contact Us For Availability
× ![]()
