Model Whirlpool H8858^1 GAS RANGE – Common Parts & Diagrams

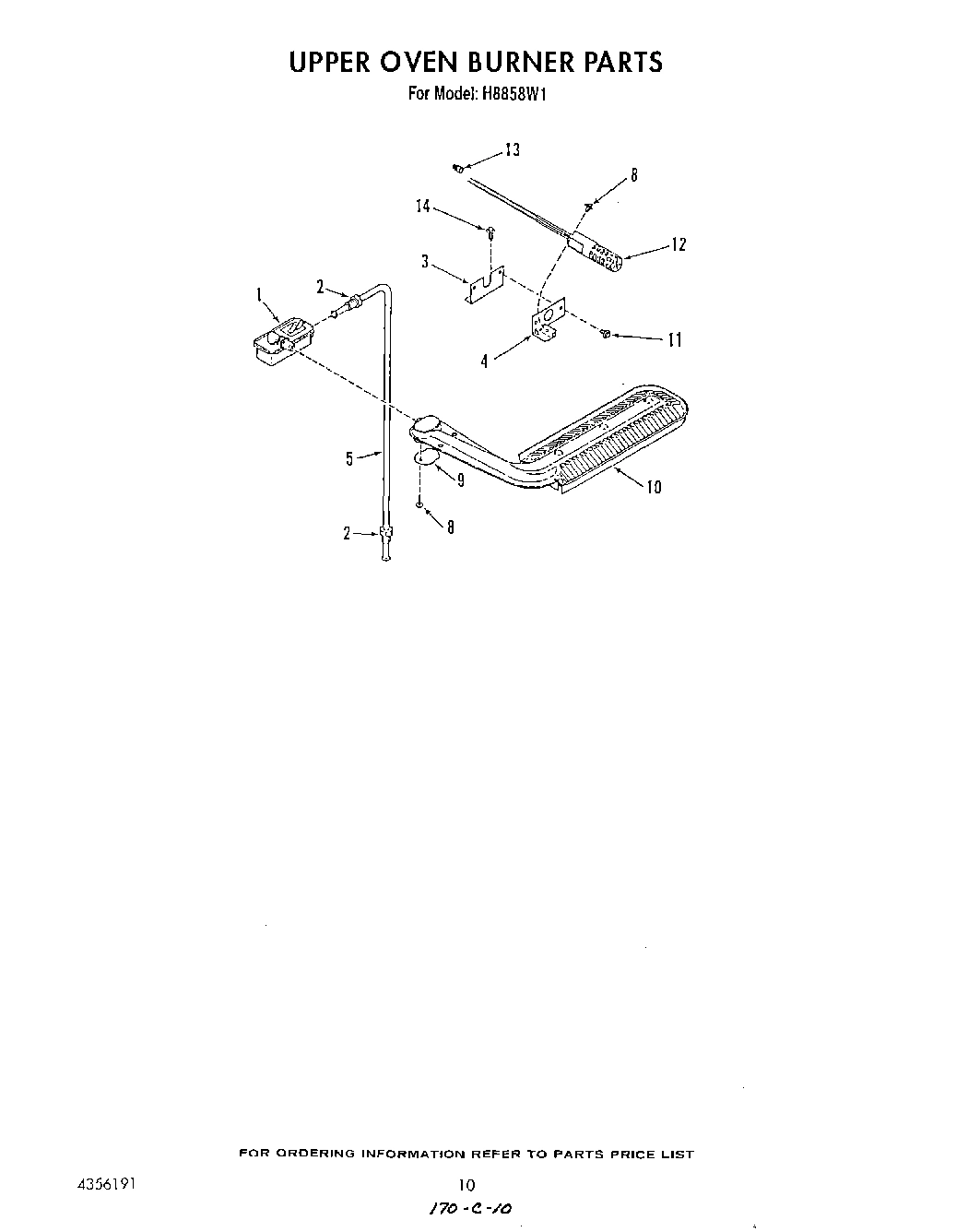

08 - UPPER OVEN BURNER

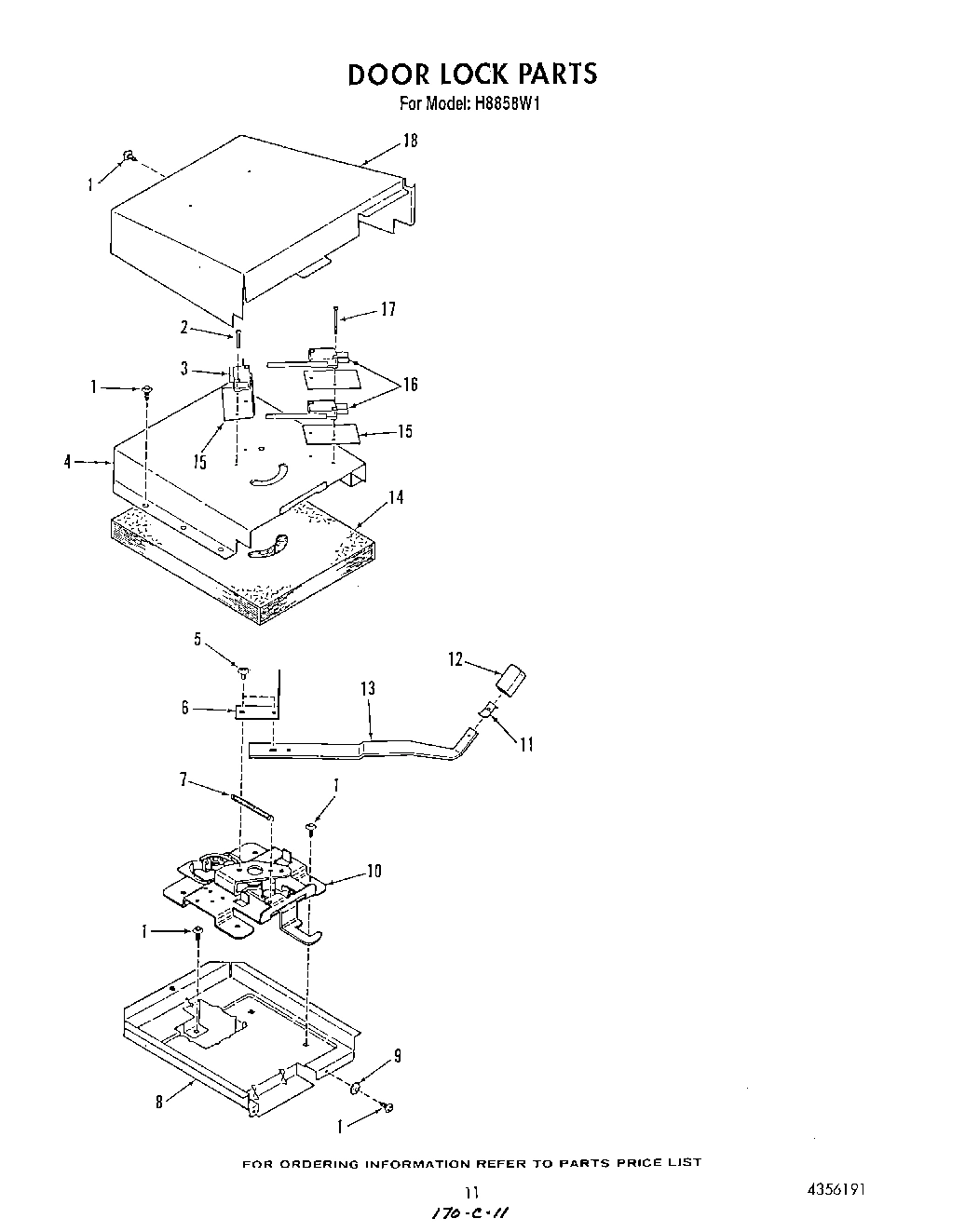

09 - DOOR LOCK
10 - BROILER AND OVEN BURNER
11 - WIRING DIAGRAM
05 - COOK TOP BURNER
02 - COOK TOP
03 - CONTROL PANEL
04 - LOWER OVEN
06 - LOWER OVEN DOOR
07 - UPPER OVEN
Common parts from model Whirlpool H8858^1 GAS RANGE
1
Grate, Burner (4) WPL 4336234 Contact Us For Availability
1
Thermostat-Upper WPL 4354508 Contact Us For Availability
1
Support WPL 4335147 Contact Us For Availability
1
Seal, Inner Glass WPL 4342634 Contact Us For Availability
1
Side-Upper Oven (White - Right) WPL 4334011 Contact Us For Availability
1
Side-Upper Oven (Almond - Right) WPL 4334015 Contact Us For Availability
1
Side-Upper Oven (White - Left) WPL 4334016 Contact Us For Availability
1
Side-Upper Oven (Almond - Left) WPL 4334020 Contact Us For Availability
2
Pan, Aeration WPL 4336770 Contact Us For Availability
2
Igniter, Broiler, Oven Burner WPL 4338008 Contact Us For Availability
2
Screw No.4-40x11/16 WPL 4335881 Contact Us For Availability
2
Bracket, Ignitor WPL 4331307 Contact Us For Availability
2
Thermostat-Lower WPL 4336144 Contact Us For Availability
2
Strap WPL 4335143 Contact Us For Availability
2
Glass-Inner WPL 4337767 Contact Us For Availability
2
Brace-Cabinet Side (Lt/Rt) WPL 4334537 Contact Us For Availability
3
Bracket, Igniter WPL 4334578 Contact Us For Availability
3
Switch, Micro WPL 4335972 Contact Us For Availability
3
Bracket, Broiler Burner Igniter WPL 4335389 Contact Us For Availability
3
Electrode (Right) WPL 4338583 Contact Us For Availability
3
Electrode (Left) WPL 4338584 Contact Us For Availability
3
Rivet WPL 4338425 Contact Us For Availability
3
Mounting Panel WPL 4342933 Contact Us For Availability
3
Shield, Deflector WPL 4335714 Contact Us For Availability
3
Lining, Door WPL 4336608 Contact Us For Availability
4
Cover, Lock Box WPL 4337019 Contact Us For Availability
4
Baffle-Broiler Burner WPL 4335391 Contact Us For Availability
4
Burner-Rear, Lt. or Rt. (Incl. No.8) WPL 4342874 Contact Us For Availability
4
Bracket, Mounting WPL 4337624 Contact Us For Availability
4
Clip WPL 4327282 Contact Us For Availability
4
Rivet, Pop WPL 4337328 Contact Us For Availability
5
Screw, No.10-24 x 1/4 WPL 4326551 Contact Us For Availability
5
Burner, Front-Lt. or Rt. (Incl. No.8) WPL 4342875 Contact Us For Availability
5
Hinge (Right) WPL 4333234 Contact Us For Availability
5
Hinge (Left) WPL 4333235 Contact Us For Availability
5
Wire Shield WPL 4336373 Contact Us For Availability
5
Retainer, Glass WPL 4331472 Contact Us For Availability
5
Retainer WPL 4326169 Contact Us For Availability
6
Extension, Handle WPL 4337626 Contact Us For Availability
6
Broiler Burner, (Inc`s 7,8,9,15) WPL 4336227 Contact Us For Availability
6
Bracket WPL 4336236 Contact Us For Availability
6
Insulation WPL 4334948 Contact Us For Availability
6
Glass, Intermediate WPL 4334821 Contact Us For Availability
7
Spring WPL 4331536 Contact Us For Availability
7
Baffle WPL 4335768 Contact Us For Availability
7
Support, Top Burner WPL 4337013 Contact Us For Availability
7
Rod, Support WPL 4338088 Contact Us For Availability
7
Bushing WPL 4334164 Contact Us For Availability
7
Glass, Outer WPL 4336721 Contact Us For Availability
7
Cover, Wire WPL 4334347 Contact Us For Availability
8
Screw No.10-32x1/4 WPL 4323953 Contact Us For Availability
8
Box, Lock WPL 4337018 Contact Us For Availability
8
Adjustment Screw-Air Shutter WPL 4331502 Contact Us For Availability
8
Screw WPL 4335339 Contact Us For Availability
8
Air Shutter WPL 4342896 Contact Us For Availability
8
Clock WPL 4336145 Contact Us For Availability
8
Shield, Wire WPL 4335392 Contact Us For Availability
8
Cushion WPL 4324217 Contact Us For Availability
8
Shield, Wire WPL 4333305 Contact Us For Availability
9
Air Shutter WPL 4333875 Contact Us For Availability
9
Shutter, Air WPL 4331501 Contact Us For Availability
9
Regulator WPL 4334271 Contact Us For Availability
9
Glass WPL 4338531 Contact Us For Availability
9
Insulation WPL 4354868 Contact Us For Availability
9
Frame, Door WPL 4338148 Contact Us For Availability
9
Bracket, Lamp, (Lt/Rt) WPL 4337894 Contact Us For Availability
10
Oven Burner WPL 4336670 Contact Us For Availability
10
Latch Assembly (Inc`s No.7) WPL 4335767 Contact Us For Availability
10
End Cap (Right) WPL 4336960 Contact Us For Availability
10
End Cap (Left) WPL 4336961 Contact Us For Availability
10
Knob, Clock WPL 4337111 Contact Us For Availability
10
Handle WPL 4336828 Contact Us For Availability
10
Holder, Lamp (Left) WPL 4338150 Contact Us For Availability
10
Holder, Lamp (Right) WPL 4338151 Contact Us For Availability
11
Screw, No.10 x 3/8 WPL 4323394 Contact Us For Availability
11
Clip, Knob WPL 4335705 Contact Us For Availability
11
Screw WPL 4331097 Contact Us For Availability
11
Bracket, Manifold (Right) WPL 4336962 Contact Us For Availability
11
Bracket, Manifold (Left) WPL 4336963 Contact Us For Availability
11
Knob, Upper Thermostat WPL 4338491 Contact Us For Availability
11
Deflector, Flue WPL 4336582 Contact Us For Availability
11
Spacer, Handle WPL 4323997 Contact Us For Availability
11
Lamp, Fluorescent (20 Watt - 24``) WPL 4323434 Contact Us For Availability
12
Knob, Lock WPL 4337568 Contact Us For Availability
12
Tubing 3/8``, Control Valve to Broiler Orific WPL 4338631 Contact Us For Availability
12
Tubing, 3/8`` WPL 4342895 Contact Us For Availability
12
Screw, No.8-32 x 3/8 WPL 4324647 Contact Us For Availability
12
Knob, Lower Thermostat WPL 4338393 Contact Us For Availability
12
Gasket WPL 4337789 Contact Us For Availability
12
Cover, Wire-Lamp WPL 4338121 Contact Us For Availability
13
Nut, Inverted 3/8 WPL 4324278 Contact Us For Availability
13
Handle, Latch WPL 4337038 Contact Us For Availability
13
Fitting, Broiler Orifice WPL 4336710 Contact Us For Availability
13
Back, Main WPL 4342679 Contact Us For Availability
13
Washer WPL 4336868 Contact Us For Availability
13
Glass, Lamp WPL 4338096 Contact Us For Availability
14
Harness, Wire (Igniter) WPL 4335970 Contact Us For Availability
14
Harness, Wire (Main - Lower) WPL 4338392 Contact Us For Availability
14
Harness, Wire (Main - Upper) WPL 4338394 Contact Us For Availability
14
Harness, Wire (Switches, Valve) WPL 4342892 Contact Us For Availability
14
Insulation WPL 4335703 Contact Us For Availability
14
Timer WPL 4335657 Contact Us For Availability
14
Valve, Shut Off WPL 4335080 Contact Us For Availability
14
Knob, Gas Valve (4) WPL 4337120 Contact Us For Availability
14
Insulation WPL 4354840 Contact Us For Availability
14
Screw, No.10-32 x 3/4 WPL 4342665 Contact Us For Availability
14
Retainer, Lamp WPL 4335340 Contact Us For Availability
15
Insulator, Switch (3 req.) WPL 4335973 Contact Us For Availability
15
Screw, No.6-20 x 3/8 WPL 4336048 Contact Us For Availability
15
Seal WPL 4331665 Contact Us For Availability
15
Frame, Control Panel WPL 4325813 Contact Us For Availability
15
Retainer, Insulation WPL 4338426 Contact Us For Availability
15
Mounting Plate WPL 4335753 Contact Us For Availability
16
Switch, Micro WPL 4335971 Contact Us For Availability
16
Cover, Bracket WPL 4338603 Contact Us For Availability
16
Manifold WPL 4336920 Contact Us For Availability
16
Screw No.6-32x7/8 WPL 4335220 Contact Us For Availability
16
Panel, Manifold WPL 4337486 Contact Us For Availability
16
Screw WPL 4338182 Contact Us For Availability
16
Glass, Center WPL 4338251 Contact Us For Availability
17
Screw, No.4-40 x 1 9/16 WPL 4336487 Contact Us For Availability
17
Bracket, Timer WPL 4337788 Contact Us For Availability
17
Tubing, 3/8`` WPL 4342897 Contact Us For Availability
17
Bottom, Burner Box WPL 4337005 Contact Us For Availability
17
Spacer WPL 4337485 Contact Us For Availability
17
Retainer, Insulation WPL 4338314 Contact Us For Availability
17
Spring-Trim End (Lt/Rt) WPL 4326279 Contact Us For Availability
18
Cover, Wire WPL 4337034 Contact Us For Availability
18
Gas Valve, Right Front (Inc`s No.11) WPL 4337484 Contact Us For Availability
18
Cooktop (White) WPL 4342890 Contact Us For Availability
18
Cooktop (Almond) WPL 4342891 Contact Us For Availability
18
Panel, Control WPL 4338395 Contact Us For Availability
18
Insulation WPL 4354947 Contact Us For Availability
18
Trim, End (Lt/Rt) WPL 4328064 Contact Us For Availability
19
Shield WPL 4336180 Contact Us For Availability
19
Gas Valve, Rt Rear Lt. Frt, Lt. Rear (Inc`s N WPL 4336715 Contact Us For Availability
19
Wire Cover WPL 4337162 Contact Us For Availability
19
Light, Indicator WPL 4336633 Contact Us For Availability
19
Support, Side (Right) WPL 4337183 Contact Us For Availability
19
Support, Side (Left) WPL 4337184 Contact Us For Availability
19
Gasket, Door WPL 4342564 Contact Us For Availability
19
Screw No.6-32x1/2 WPL 4328025 Contact Us For Availability
20
Baffle, Burner WPL 4337456 Contact Us For Availability
20
Cleat WPL 4337625 Contact Us For Availability
20
Barrier WPL 4336249 Contact Us For Availability
20
Bracket, Support (Left) WPL 4335141 Contact Us For Availability
20
Bracket, Support (Right) WPL 4335142 Contact Us For Availability
20
Plug, Door Lining WPL 4337448 Contact Us For Availability
20
Filler, Trim (White) WPL 4333992 Contact Us For Availability
20
Filler, Trim (Almond) WPL 4333996 Contact Us For Availability
21
Shield, Orifice Fitting WPL 4336678 Contact Us For Availability
21
Rt. Front Burner (Inc`s 22 & 23) WPL 4342927 Contact Us For Availability
21
Spacer, Tubing WPL 4337571 Contact Us For Availability
21
Strike WPL 4337082 Contact Us For Availability
21
Spacer, Glass WPL 4336869 Contact Us For Availability
21
Cover, Vent (White) WPL 4333422 Contact Us For Availability
21
Cover, Vent (Almond) WPL 4333426 Contact Us For Availability
22
Power Cord WPL 4331282 Contact Us For Availability
22
Screw, Adjustment WPL 4328513 Contact Us For Availability
22
Rivet WPL 4325611 Contact Us For Availability
22
Retainer WPL 4342666 Contact Us For Availability
22
Retainer, Upper (White) WPL 4333006 Contact Us For Availability
22
Retainer, Upper (Almond) WPL 4333010 Contact Us For Availability
23
Air Shutter WPL 4342928 Contact Us For Availability
23
Side, Cabinet (White) WPL 4337591 Contact Us For Availability
23
Side, Cabinet (Almond) WPL 4337593 Contact Us For Availability
23
Screw WPL 4336631 Contact Us For Availability
23
Washer, Felt WPL 4337618 Contact Us For Availability
24
Module, Spark Igniter WPL 4333260 Contact Us For Availability
24
Screw No.8x5/8 WPL 4331822 Contact Us For Availability
24
Pin, Hinge WPL 4325683 Contact Us For Availability
25
Mounting Bracket WPL 4342893 Contact Us For Availability
25
Clamp WPL 4342929 Contact Us For Availability
25
Spring, Oven Door WPL 4342931 Contact Us For Availability
25
Retainer WPL 4334791 Contact Us For Availability
25
Washer WPL 4334861 Contact Us For Availability
26
Disconnect Plug WPL 4324642 Contact Us For Availability
26
Hinge, Oven Door (Right) WPL 4354928 Contact Us For Availability
26
Hinge, Oven Door (Left) WPL 4354929 Contact Us For Availability
26
Hinge, Lower Door WPL 4334021 Contact Us For Availability
27
Clip WPL 4342894 Contact Us For Availability
27
Base W/Levelers WPL 4335140 Contact Us For Availability
27
Bracket, Orifice WPL 4324079 Contact Us For Availability
28
Eyelet WPL 4337565 Contact Us For Availability
28
Support-Upper Oven (Lt/Rt) WPL 4338547 Contact Us For Availability
29
Tubing, 3/8`` WPL 4342930 Contact Us For Availability
29
Burner, Oven WPL 4337043 Contact Us For Availability
29
Slide Block-Rear WPL 4325731 Contact Us For Availability
29
Baffle, Burner WPL 4328724 Contact Us For Availability
30
Bracket, Igniter WPL 4331163 Contact Us For Availability
30
Fitting WPL 4324930 Contact Us For Availability
30
Support, Drawer WPL 4331092 Contact Us For Availability
30
Plate, Access WPL 4328725 Contact Us For Availability
31
Bottom, Burner Box WPL 4335381 Contact Us For Availability
31
Slide Block-Front WPL 4325732 Contact Us For Availability
31
Side, Oven-Left WPL 4334060 Contact Us For Availability
32
Retainer, Orifice Insulation WPL 4336004 Contact Us For Availability
32
Screw, No.10-32 x 17/32 WPL 4327611 Contact Us For Availability
32
Top, Oven WPL 4327383 Contact Us For Availability
33
Plate, Orifice Mounting WPL 4335704 Contact Us For Availability
33
Handle WPL 4336754 Contact Us For Availability
33
Top, Cabinet (White) WPL 4338412 Contact Us For Availability
33
Top, Cabinet (Almond) WPL 4338413 Contact Us For Availability
34
Latch, Burner Box Bottom WPL 4335708 Contact Us For Availability
34
Frame WPL 4342576 Contact Us For Availability
34
Insulation, Sides-Top & Back (1 Pc.) WPL 4354658 Contact Us For Availability
35
Screw, Shoulder WPL 4335745 Contact Us For Availability
35
Panel, Front WPL 4342932 Contact Us For Availability
35
Side, Oven-Right WPL 4334059 Contact Us For Availability
36
Tubing 3/8``, with Orifice Fitting (Control V WPL 4336712 Contact Us For Availability
37
Control Valve WPL 4329526 Contact Us For Availability
37
Clip, Therm. (2) WPL 4333390 Contact Us For Availability
38
Drawer, Storage WPL 4338282 Contact Us For Availability
38
Back, Oven WPL 4329371 Contact Us For Availability
39
Washer WPL 4337031 Contact Us For Availability
39
Levelers, Leg WPL 4334834 Contact Us For Availability
39
Guide, Oven Rack (Lt/Rt) WPL 4329398 Contact Us For Availability
40
Screw, No.6-32 x 3/16 WPL 4324935 Contact Us For Availability
40
Retainer, Insulation WPL 4336507 Contact Us For Availability
41
Bracket, Control Valve WPL 4338625 Contact Us For Availability
41
Baffle, Vent WPL 4338277 Contact Us For Availability
41
Rack, Oven (1) WPL 4329399 Contact Us For Availability
42
Spacer, Expansion Nut WPL 4331381 Contact Us For Availability
42
Bottom, Oven, (Inc`s 43,44) WPL 4326607 Contact Us For Availability
43
Bottom, Oven WPL 4337461 Contact Us For Availability
43
Clip WPL 4334579 Contact Us For Availability
45
Retainer, Light Lens WPL 4324482 Contact Us For Availability
45
Hinge, Upper-Door WPL 4325688 Contact Us For Availability
46
Eyelet WPL 4323684 Contact Us For Availability
47
Lens, Oven Lamp WPL 4324415 Contact Us For Availability
48
Gasket, Lens WPL 4324481 Contact Us For Availability
48
Seal, Door-Side WPL 4327162 Contact Us For Availability
49
Se WPL 4327163 Contact Us For Availability
50
Frame, Oven Front WPL 4338086 Contact Us For Availability
50
WPL 4334008 WPL 4334008 Contact Us For Availability
51
Washer WPL 4323206 Contact Us For Availability
51
WPL 4334139 WPL 4334139 Contact Us For Availability
52
WPL 4338421 WPL 4338421 Contact Us For Availability
53
WPL 4325705 WPL 4325705 Contact Us For Availability
54
Plug, Button WPL 4338588 Contact Us For Availability
54
WPL 4342684 WPL 4342684 Contact Us For Availability
55
Oven Body WPL 4337958 Contact Us For Availability
56
Flue Box WPL 4335382 Contact Us For Availability
56
WPL 4327160 WPL 4327160 Contact Us For Availability
57
Insulation, Top And Sides WPL 4335963 Contact Us For Availability
57
WPL 4329272 WPL 4329272 Contact Us For Availability
58
Oven Rack WPL 4354754 Contact Us For Availability
58
WPL 4327204 WPL 4327204 Contact Us For Availability
60
WPL 4332885 WPL 4332885 Contact Us For Availability
61
Shield WPL 4337457 Contact Us For Availability
61
WPL 4327900 WPL 4327900 Contact Us For Availability
62
WPL 4328067 WPL 4328067 Contact Us For Availability
63
WPL 4336687 WPL 4336687 Contact Us For Availability
64
WPL 4323479 WPL 4323479 Contact Us For Availability
64
WPL 4323636 WPL 4323636 Contact Us For Availability
65
WPL 4323616 WPL 4323616 Contact Us For Availability
67
WPL 4324061 WPL 4324061 Contact Us For Availability
68
WPL 4327314 WPL 4327314 Contact Us For Availability
69
WPL 4334489 WPL 4334489 Contact Us For Availability
69
WPL 4334493 WPL 4334493 Contact Us For Availability
69
WPL 4334494 WPL 4334494 Contact Us For Availability
69
WPL 4334498 WPL 4334498 Contact Us For Availability
72
WPL 4337126 WPL 4337126 Contact Us For Availability
73
WPL 4337125 WPL 4337125 Contact Us For Availability
74
WPL 4327216 WPL 4327216 Contact Us For Availability
75
WPL 4337434 WPL 4337434 Contact Us For Availability
77
WPL 4329273 WPL 4329273 Contact Us For Availability
78
WPL 4328066 WPL 4328066 Contact Us For Availability
79
WPL 4323694 WPL 4323694 Contact Us For Availability
81
WPL 4337797 WPL 4337797 Contact Us For Availability
82
WPL 4323673 WPL 4323673 Contact Us For Availability
83
WPL 4323413 WPL 4323413 Contact Us For Availability
84
WPL 4327552 WPL 4327552 Contact Us For Availability
85
WPL 4342829 WPL 4342829 Contact Us For Availability
86
WPL 4332521 WPL 4332521 Contact Us For Availability
× ![]()
