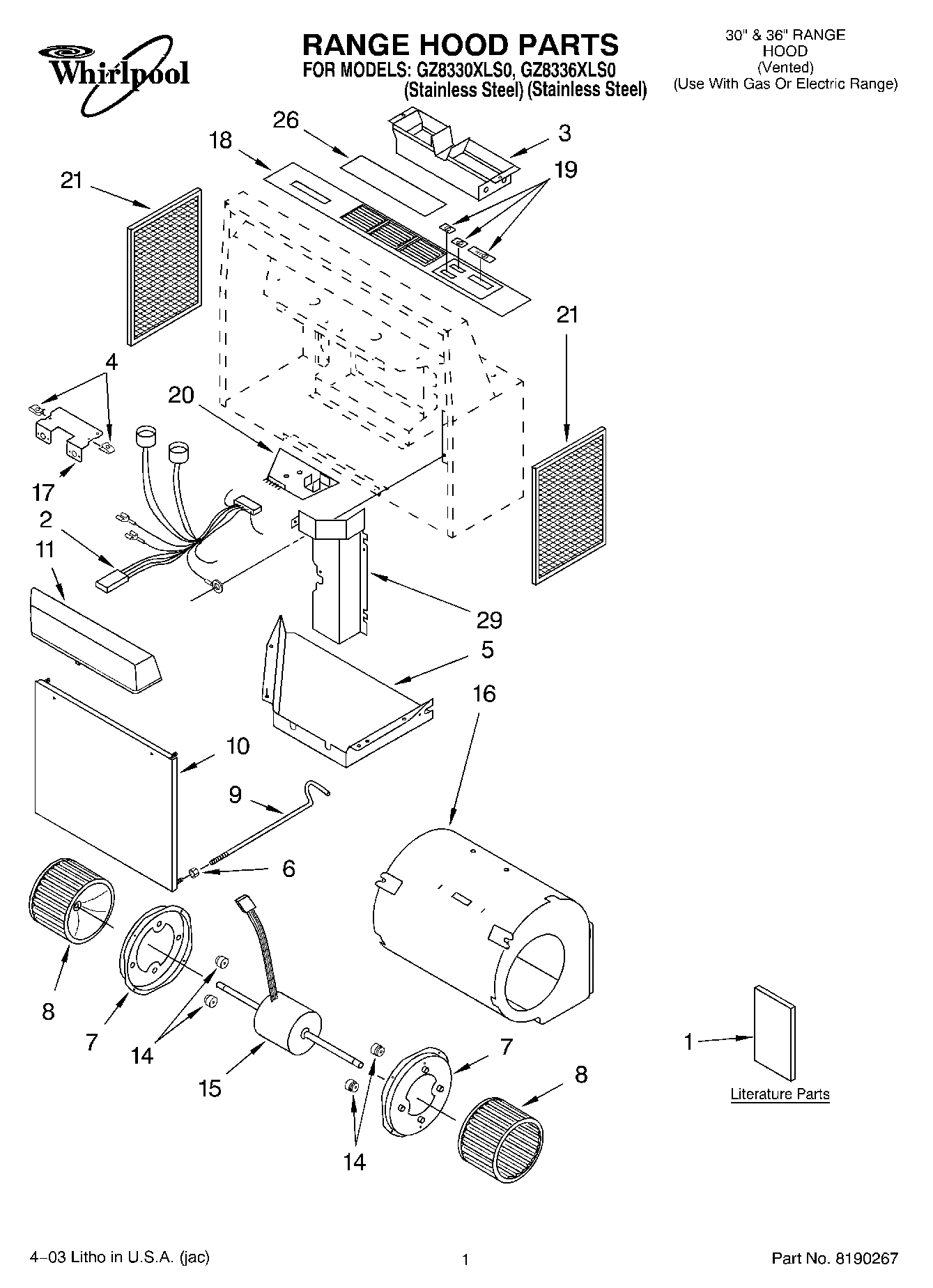

Model Whirlpool GZ8330XLS0 30`` & 36`` RANGE HOOD (Vented) (Use With Gas Or E – Common Parts & Diagrams

4
Nut - ``U`` Type (2)
Nut - ``U`` Type (2) WPL 8190262 Contact Us For Availability
View on Model
5
Cover, Bulb Holder
Cover, Bulb Holder WPL 8190258 Contact Us For Availability
View on Model
6
Nut, Ret. Rod (2)
Nut, Ret. Rod (2) WPL 8190251 Contact Us For Availability
View on Model
7
Motor Bracket (2)
Motor Bracket (2) WPL 8190246 Contact Us For Availability
View on Model
8
Blower, Wheel, Right
Blower, Wheel, Right WPL 8190244 Contact Us For Availability
View on Model
8
Blower, Wheel, Left
Blower, Wheel, Left WPL 8190245 Contact Us For Availability
View on Model
9
Rod, Retaining (2)
Rod, Retaining (2) WPL 8190250 Contact Us For Availability
View on Model
10
Cover, Blower
Cover, Blower WPL 8190240 Contact Us For Availability
View on Model
11
Lens, Light
Lens, Light WPL 8190241 Contact Us For Availability
View on Model
14
Mount, Motor (4)
Mount, Motor (4) WPL 8190247 Contact Us For Availability
View on Model
15
Motor, Blower
Motor, Blower WPL 8190248 Contact Us For Availability
View on Model
16
Housing, Blower
Housing, Blower WPL 8190249 Contact Us For Availability
View on Model
17
Thermostat Asy
Thermostat Asy WPL 8190242 Contact Us For Availability
View on Model
18
Panel, Control (30``)
Panel, Control (30``) WPL 8190252 Contact Us For Availability
View on Model
18
Panel, Control (36``)
Panel, Control (36``) WPL 8190253 Contact Us For Availability
View on Model
19
Knob, Control (Light Switch)
Knob, Control (Light Switch) WPL 8190256 Contact Us For Availability
View on Model
19
Knob, Control (Blower)
Knob, Control (Blower) WPL 8190254 Contact Us For Availability
View on Model
19
Knob, Control (Speed Control)
Knob, Control (Speed Control) WPL 8190255 Contact Us For Availability
View on Model
20
Control, Elctronic
Control, Elctronic WPL 8190243 Contact Us For Availability
View on Model
21
Filter, Grease (2 Pack)
Filter, Grease (2 Pack) WPL 4396389 Contact Us For Availability
View on Model
26
Baffle
Baffle WPL 8190261 Contact Us For Availability
View on Model
29
Cover, Wiring Box
Cover, Wiring Box WPL 8190239 Contact Us For Availability
View on Model
29
Blower Asy Includes Nos
Blower Asy Includes Nos WPL 8190263 Contact Us For Availability
View on Model
29
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI152390A Contact Us For Availability
View on Model
29
(Optional Parts Only)
(Optional Parts Only) WPL ARI152391A Contact Us For Availability
View on Model
29
6,7,8,14,15&16
6,7,8,14,15&16 WPL ARI152392A Contact Us For Availability
View on Model
