Model Whirlpool GZ7730XGS0 RANGE HOOD – Common Parts & Diagrams

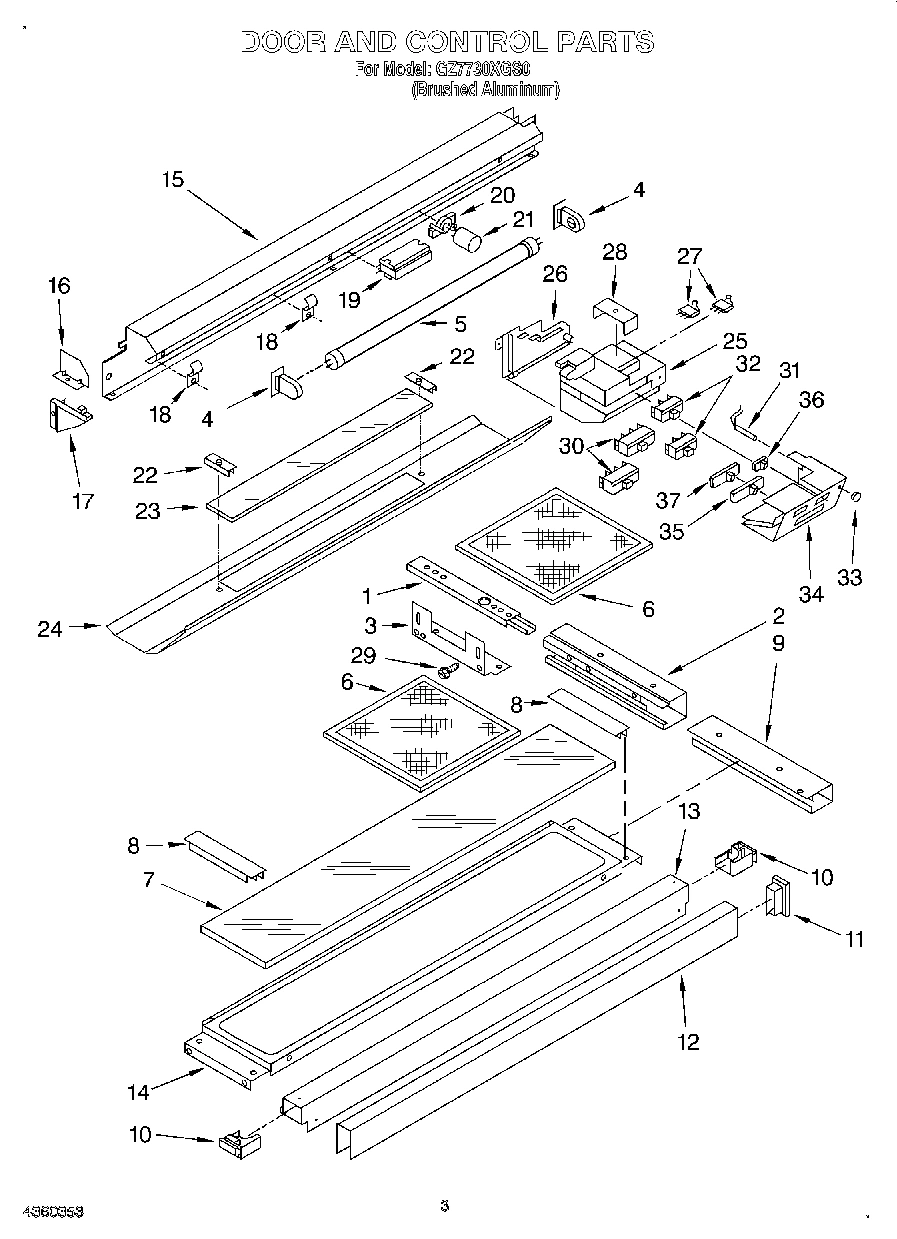

02 - DOOR AND CONTROL

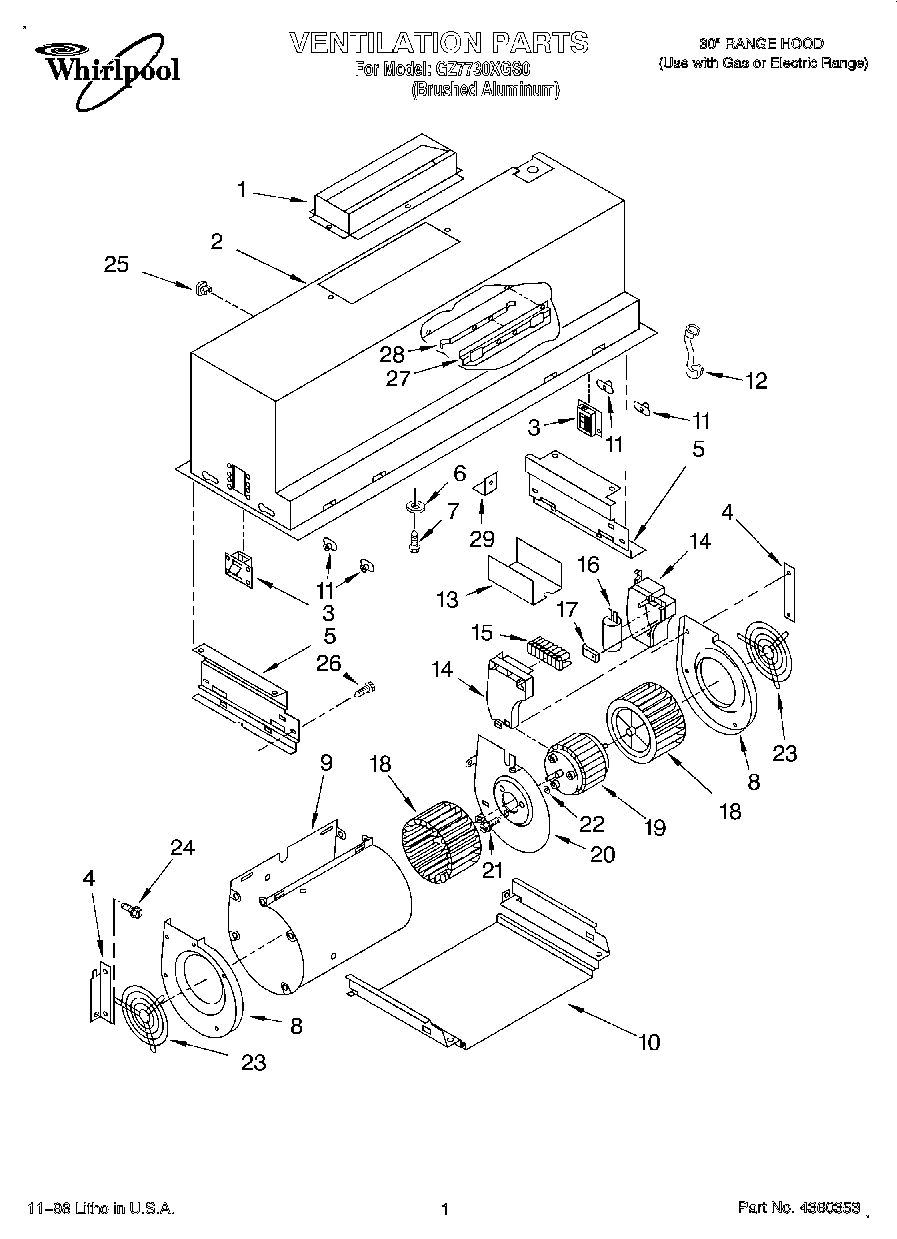

01 - VENTILATION
Common parts from model Whirlpool GZ7730XGS0 RANGE HOOD
1
Damper Canopy WPL 4360001 Contact Us For Availability
2
Hood, Canopy (Not a Serviceable Part) WPL ARI75097A8 Contact Us For Availability
3
Support, Canopy (2) WPL 4360002 Contact Us For Availability
4
Bracket, Blower (Right Side) WPL 4360054 Contact Us For Availability
4
Socket, Lamp (2) WPL 4360013 Contact Us For Availability
4
Bracket, Blower (Left Side) WPL 4360003 Contact Us For Availability
5
Lamp WPL 4360014 Contact Us For Availability
5
Support, Housing Housing (Left Side) WPL 4360004 Contact Us For Availability
5
Support, Housing Housing (Right Side) WPL 4360039 Contact Us For Availability
6
Washer WPL 4360005 Contact Us For Availability
7
Glass, Door WPL 4360076 Contact Us For Availability
7
Screw 5 x 1/2 (3) WPL 4360006 Contact Us For Availability
8
Brace, Glass (2) WPL 4360017 Contact Us For Availability
8
Endcap, Blower (Left) WPL 4360007 Contact Us For Availability
8
Endcap, Blower (Right) WPL 4360053 Contact Us For Availability
9
Frame, Door (Left Side) WPL 4360018 Contact Us For Availability
9
Frame, Door (Right Side) WPL 4360024 Contact Us For Availability
9
Housing, Blower WPL 4360008 Contact Us For Availability
10
End Cap, Door (Left Side) WPL 4360069 Contact Us For Availability
10
End Cap, Door (Right Side) WPL 4360070 Contact Us For Availability
10
Support, Housing WPL 4360075 Contact Us For Availability
11
End Cap, Handle (Left Side) WPL 4360020 Contact Us For Availability
11
End Cap, Handle (Right Side) WPL 4360022 Contact Us For Availability
11
Bushing (4) WPL 4360063 Contact Us For Availability
12
Handle WPL 4360358 Contact Us For Availability
12
Relief, Strain WPL 4360062 Contact Us For Availability
13
Bracket, Handle WPL 4360112 Contact Us For Availability
13
Plate, Mounting WPL 4360357 Contact Us For Availability
14
Baffle, Door WPL 4360077 Contact Us For Availability
14
Cover Terminal (Right Side) WPL 4360056 Contact Us For Availability
14
Cover Terminal (Left Side) WPL 4360060 Contact Us For Availability
15
Terminal WPL 4360057 Contact Us For Availability
15
Support, Light WPL 4360080 Contact Us For Availability
16
End Plate WPL 4360066 Contact Us For Availability
16
Capacitor WPL 4360058 Contact Us For Availability
17
Bracket, Light WPL 4360043 Contact Us For Availability
17
Bracket, Capacitor WPL 4360059 Contact Us For Availability
18
Clamp, Wiring WPL 4360044 Contact Us For Availability
18
Wheel, Blower (Left Side) WPL 4360049 Contact Us For Availability
18
Wheel, Blower (Right Side) WPL 4360055 Contact Us For Availability
19
Ballast Lamp WPL 4360045 Contact Us For Availability
19
Motor WPL 4360040 Contact Us For Availability
20
Receptacle WPL 4360047 Contact Us For Availability
20
Plate, Motor WPL 4360052 Contact Us For Availability
21
Starter WPL 4360046 Contact Us For Availability
22
Brace, Glass (2) WPL 4360041 Contact Us For Availability
22
Washer (3) WPL 4360051 Contact Us For Availability
23
Lens, Light WPL 4360042 Contact Us For Availability
23
Grille, Blower (2) WPL 4360064 Contact Us For Availability
24
Frame, Lens WPL 4360081 Contact Us For Availability
24
Screw 6 x 10 (2) WPL 4360067 Contact Us For Availability
25
Base, Switch WPL 4360033 Contact Us For Availability
25
Clip (2) WPL 4360074 Contact Us For Availability
26
Cover, Base WPL 4360034 Contact Us For Availability
26
Pin, Filter (2) WPL 4360048 Contact Us For Availability
27
Bracket, Filter WPL 4360071 Contact Us For Availability
28
Cover, Switch WPL 4360036 Contact Us For Availability
28
Spring, Filter (2) WPL 4360072 Contact Us For Availability
29
Screw WPL 4360073 Contact Us For Availability
29
Bracket (6) WPL 4360120 Contact Us For Availability
30
Switch, Light (2) WPL 4360025 Contact Us For Availability
31
Light, Indicator WPL 4360359 Contact Us For Availability
32
Switch, Fan (2) WPL 4360027 Contact Us For Availability
33
Lens, Ind. Light WPL 4360028 Contact Us For Availability
34
Cover, Switch WPL 4360029 Contact Us For Availability
35
Knob, Control WPL 4360030 Contact Us For Availability
36
Knob, Fan WPL 4360031 Contact Us For Availability
37
Knob, Light WPL 4360032 Contact Us For Availability
× ![]()
