Model Whirlpool GY397LXUT03 30`` SLIDE-IN ELECTRIC RANGE – Common Parts & Diagrams

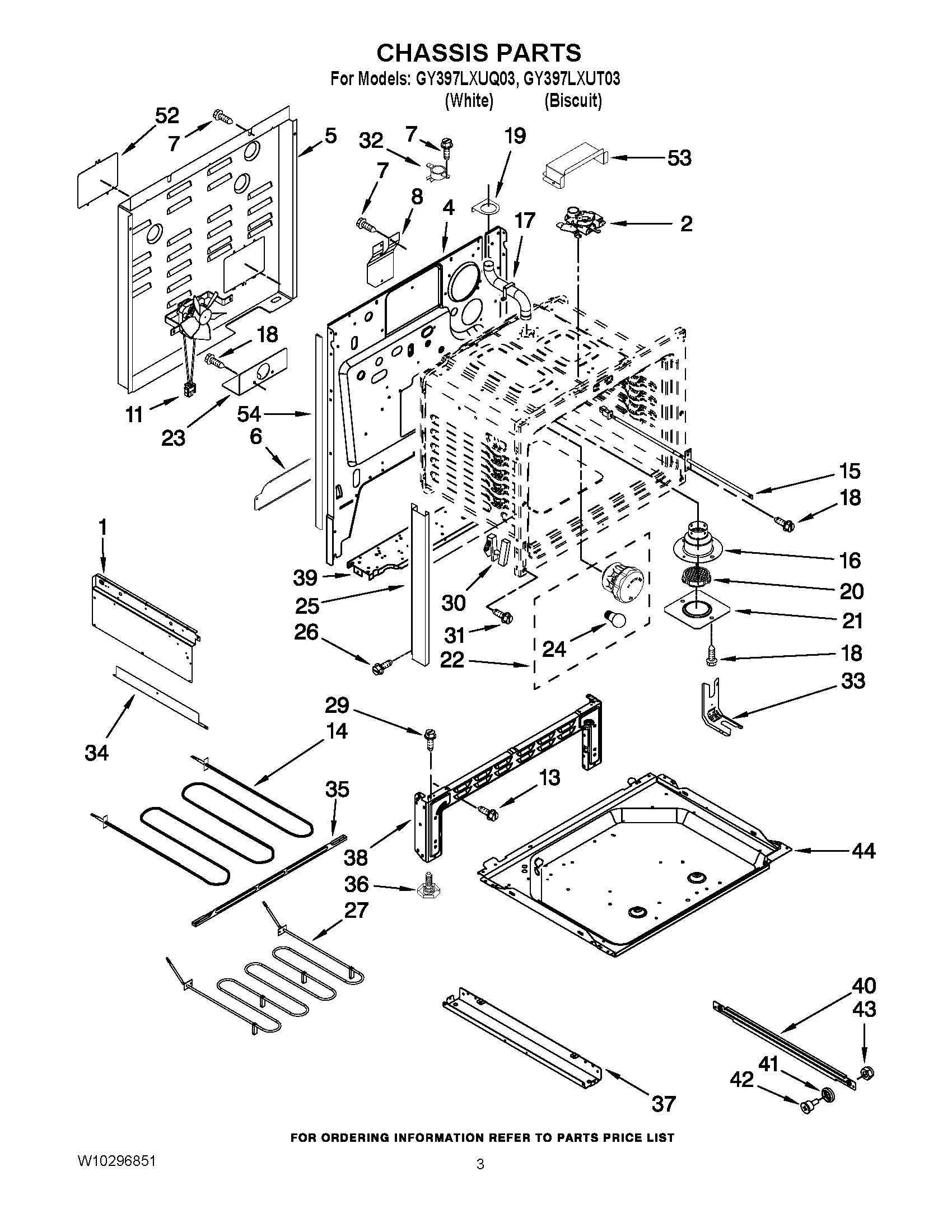

03 - CHASSIS PARTS

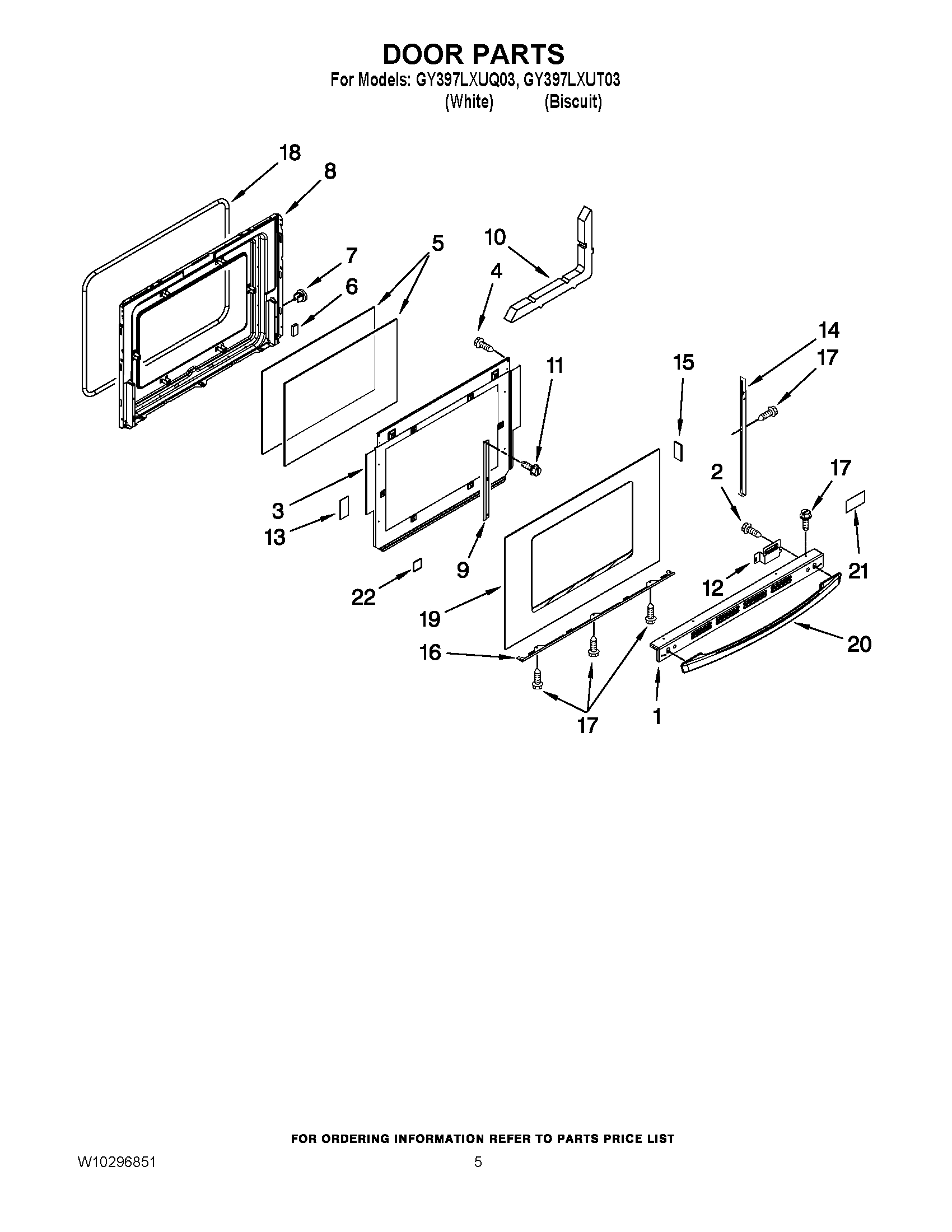

04 - DOOR PARTS

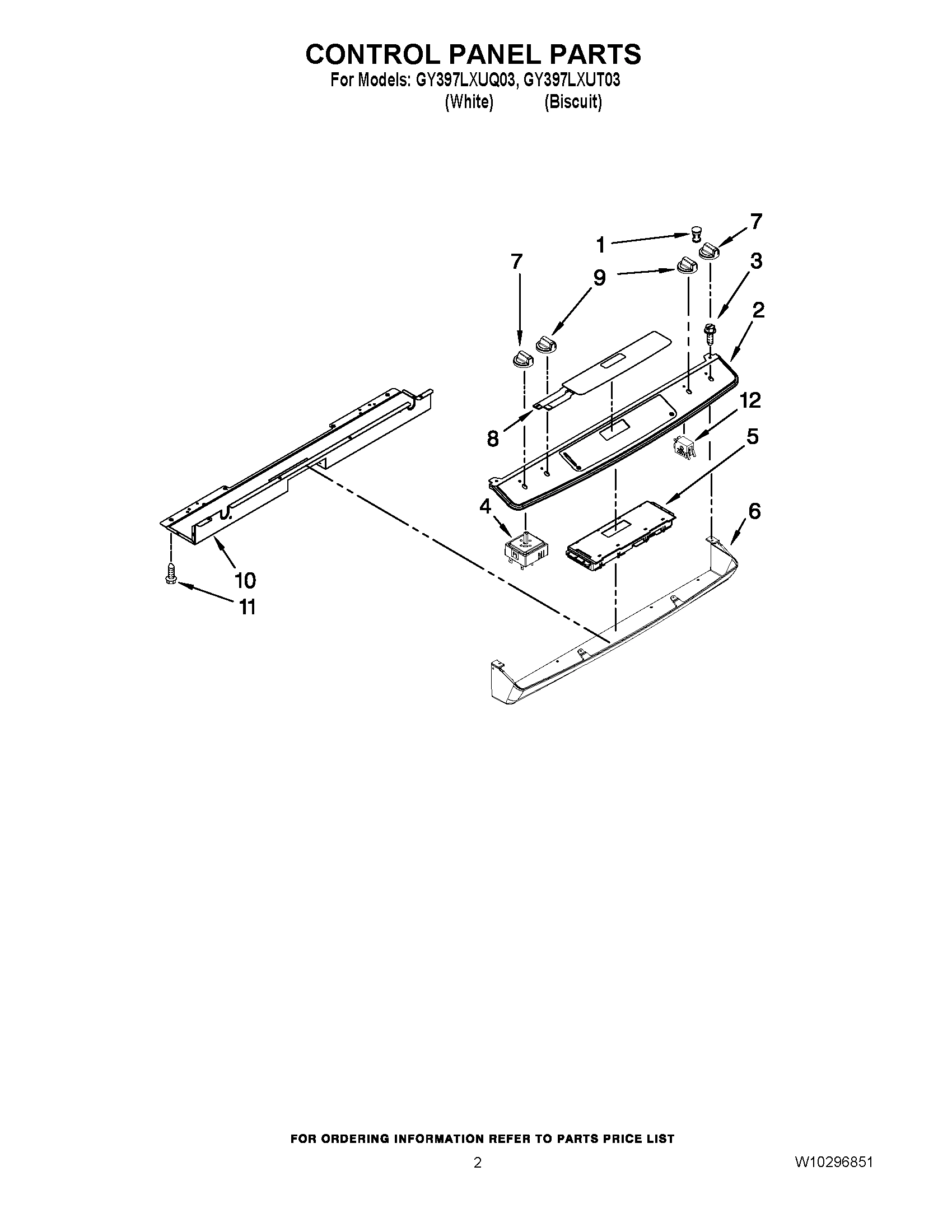

02 - CONTROL PANEL PARTS

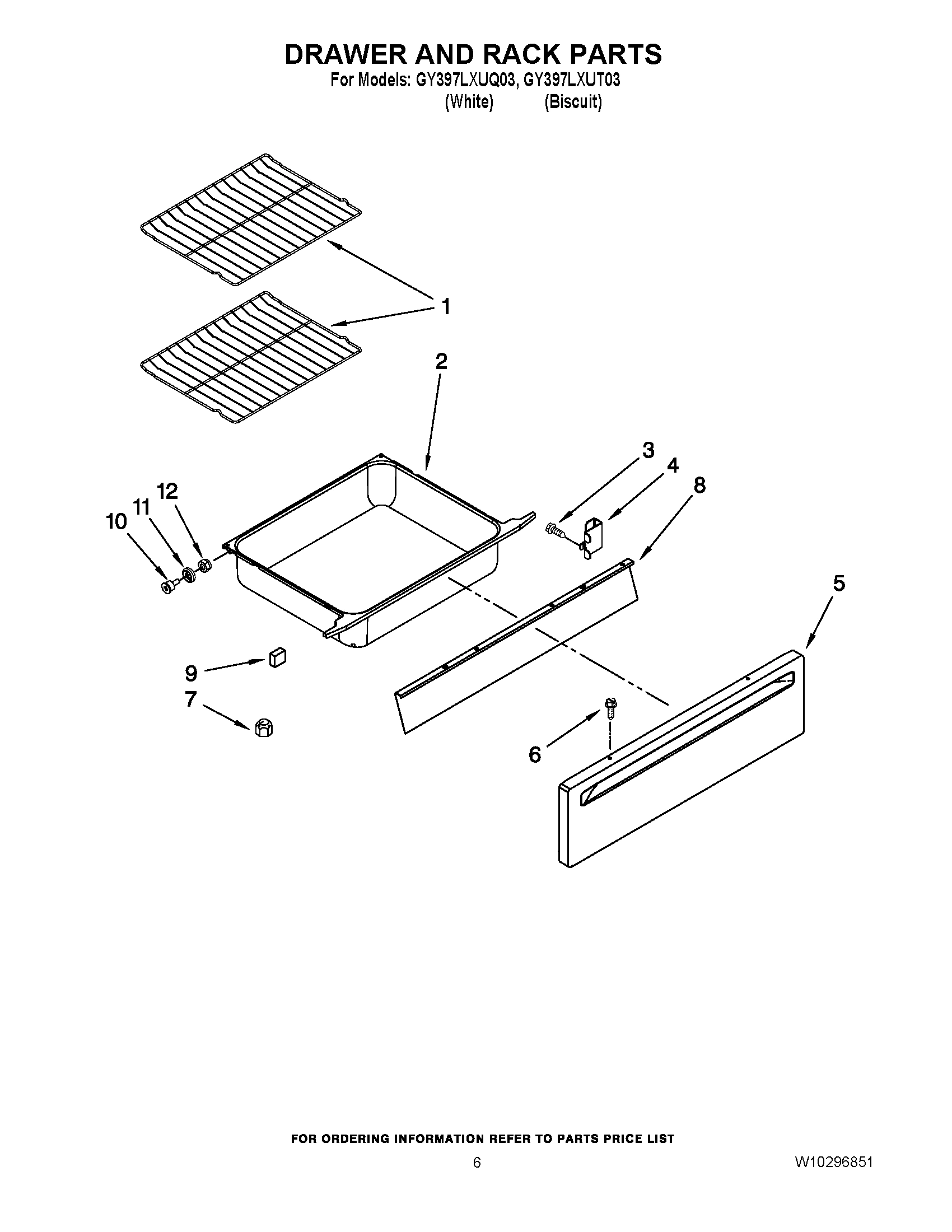

05 - DRAWER AND RACK PARTS

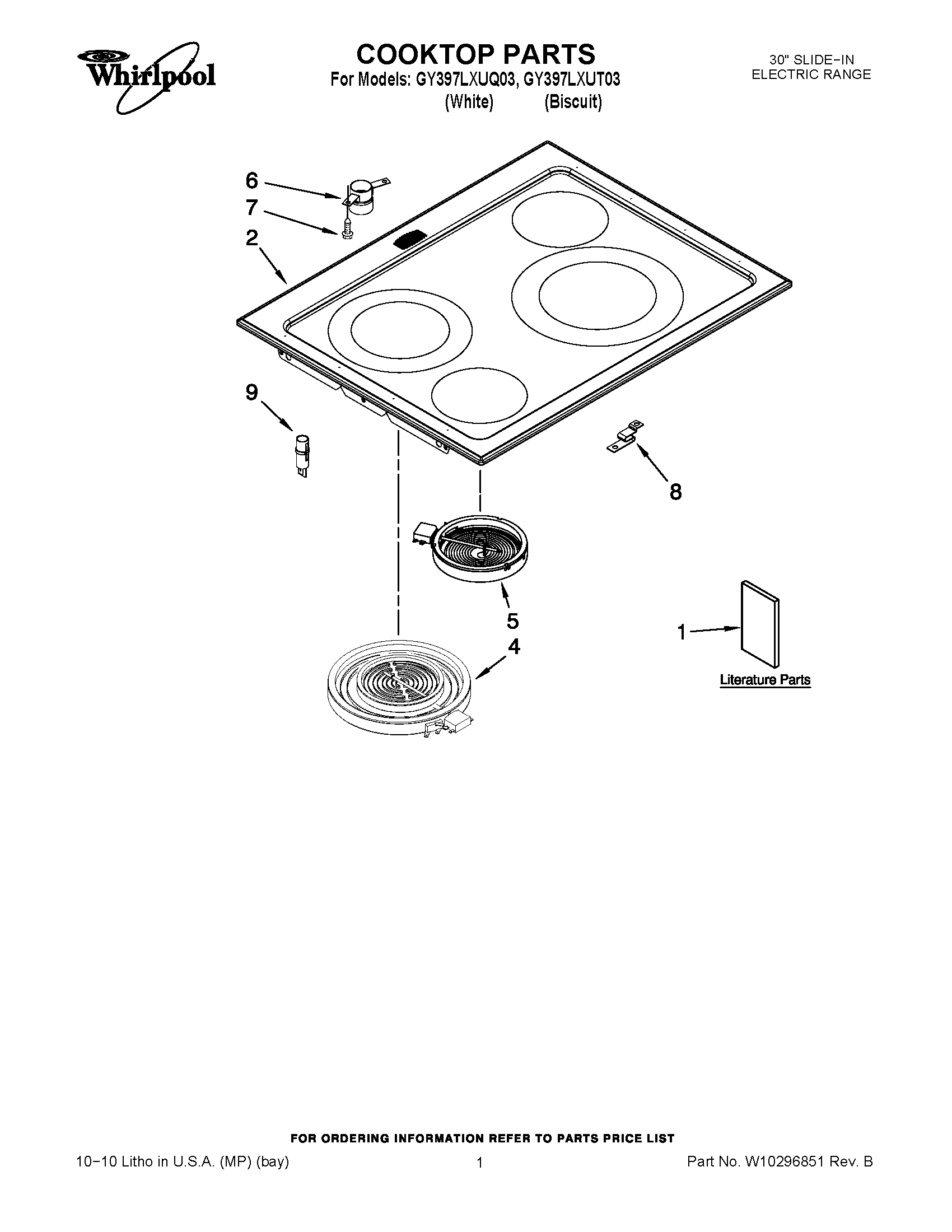

01 - COOKTOP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool GY397LXUT03 30`` SLIDE-IN ELECTRIC RANGE
1
TRIM, DOOR TOP (WHITE) WPL 3608F14171 Contact Us For Availability
1
Trim, Door Top (Biscuit) WPL 3608F14178 Contact Us For Availability
1
LENS WPL 7730P03160 Contact Us For Availability
1
Rack, Oven (2) WPL 7801P17360 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8101P75060 Contact Us For Availability
1
USE & CARE GUIDE WPL 8113P68060 Contact Us For Availability
2
Panel, Control (White) WPL 7720P53660 Contact Us For Availability
2
Panel, Control (Biscuit) WPL 7720P53760 Contact Us For Availability
2
Drawer, Storage WPL 3405F03380 Contact Us For Availability
2
COOKTOP-BISCUIT WPL W10170216 Contact Us For Availability
3
Baffel, Retainer WPL 3601F37351 Contact Us For Availability
3
Screw WPL 7101P07760 Contact Us For Availability
3
Screw, Panel WPL 7101P07260 Contact Us For Availability
4
Screw 8AB 1/2 WPL 7101P38860 Contact Us For Availability
4
SWITCH, INFINTE 6`` (LF,RR) WPL 7403P37360 Contact Us For Availability
4
SWITCH, INFINTE (8`` (RF,LR)) WPL 7450P01160 Contact Us For Availability
4
Bracket, Drawer WPL 3801F88751 Contact Us For Availability
4
ELEMENT (LR, RF) WPL 7406P40360 Contact Us For Availability
5
Glass, Inner (2) WPL 7902P43660 Contact Us For Availability
5
CONTROL WPL 8507P39060 Contact Us For Availability
5
Panel, Drawer (White) WPL 2416F05971 Contact Us For Availability
5
PANEL, DRAWER (BISCUIT) WPL 2416F05978 Contact Us For Availability
5
ELEMENT (LF,RR) WPL 7406P36560 Contact Us For Availability
6
PANEL,CONTROL(LWR) (WHITE) WPL W10185607 Contact Us For Availability
6
Screw, Panel (White) WPL 7101P63660 Contact Us For Availability
6
Screw, Panel (Biscuit) WPL 7101P63760 Contact Us For Availability
6
PANEL,CONTROL(LWR) (BISCUIT) WPL W10185609 Contact Us For Availability
6
Tube, Vent Upper WPL W10233479 Contact Us For Availability
7
Nut, Snap (4) WPL 7103P14160 Contact Us For Availability
7
SCREW WPL 7101P42660 Contact Us For Availability
7
KNOB (LF,RR) (WHITE) WPL 7737P41560 Contact Us For Availability
7
KNOB (LF,RR) (BISCUIT) WPL 7737P41660 Contact Us For Availability
7
Nut, Lock WPL 7103P13960 Contact Us For Availability
8
Lining, Door WPL 2402W31219 Contact Us For Availability
8
Lining, Drawer WPL 2404F03051 Contact Us For Availability
8
SUPPORT,ELEMENT WPL 8004P09360 Contact Us For Availability
9
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
9
Bracket, Glass (2) WPL 3801F88651 Contact Us For Availability
9
KNOB (RF,LR) (WHITE) WPL 7737P41860 Contact Us For Availability
9
KNOB (RF,LR) (BISCUIT) WPL 7737P41960 Contact Us For Availability
9
LIGHT, INDICATOR WPL 7407P19360 Contact Us For Availability
10
Roller Drawer (2) WPL 8014P02260 Contact Us For Availability
10
Insulation, Door WPL 7002P24660 Contact Us For Availability
10
SUPPORT, CONTROL PANEL WPL 3807F76951 Contact Us For Availability
11
Shaft, Roller (2) WPL 7118P03260 Contact Us For Availability
11
SCREW WPL W10179558 Contact Us For Availability
12
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
12
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
12
Light, Indicator WPL 7407P13660 Contact Us For Availability
12
Nut WPL 7103P08260 Contact Us For Availability
13
Tape, White WPL 8270P13960 Contact Us For Availability
14
Trim, Door Side (White, Right) WPL 3608F11671 Contact Us For Availability
14
Trim, Door Side (Biscuit, Right) WPL 3608F11678 Contact Us For Availability
14
Trim, Door Side (White, Left) WPL 3608F11771 Contact Us For Availability
14
Trim, Door Side (Biscuit, Left) WPL 3608F11778 Contact Us For Availability
15
Tape, Double Sided (White) WPL 8270P19460 Contact Us For Availability
16
TRIM, DOOR BOTTOM (WHITE) WPL 3807F70871 Contact Us For Availability
16
Trim, Door Bottom (Biscuit) WPL 3807F70878 Contact Us For Availability
19
PANEL, OUTER DOOR (WHITE) WPL 7902P81460 Contact Us For Availability
19
PANEL, OUTER DOOR (BISCUIT (ORDER ITEMS 13 & WPL 7902P81660 Contact Us For Availability
20
Handle, Door (Biscuit) WPL W10118432 Contact Us For Availability
21
NAMEPLATE, LOGO WPL W10175320 Contact Us For Availability
21
PLATE, SMOKE ELM. WPL 3605F34445 Contact Us For Availability
22
Light Assembly WPL 7407P18260 Contact Us For Availability
22
Spacer, Rubber WPL 8010P15260 Contact Us For Availability
24
BULB-OVEN WPL 7407P10360 Contact Us For Availability
25
Trim, Side (White) (2) WPL 3608F13871 Contact Us For Availability
25
TRIM, SIDE (BISCUIT(2)) WPL 3608F13878 Contact Us For Availability
27
Element, Bake WPL 7406P43960 Contact Us For Availability
29
Screw WPL 7101P43460 Contact Us For Availability
30
Hinge (2) WPL 7106P14160 Contact Us For Availability
31
SCREW, HINGE (4) WPL 7101P33660 Contact Us For Availability
32
Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability
33
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
34
Extention, Shield WPL 3826F06451 Contact Us For Availability
35
Support, Element WPL 3807F49445 Contact Us For Availability
36
Leg, Leveling WPL 7101P66060 Contact Us For Availability
37
Pedestal, Bottom WPL 4020W03580 Contact Us For Availability
38
PEDESTAL, FRONT WPL W10271711 Contact Us For Availability
39
Support WPL 3807F64051 Contact Us For Availability
40
Runner, Drawer (2) WPL W10182835 Contact Us For Availability
43
Nut, Lock (2) WPL 7103P19060 Contact Us For Availability
44
Retainer, Bottom WPL 3804F23151 Contact Us For Availability
52
COVER, TERMINAL WPL 4005F61251 Contact Us For Availability
53
COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability
54
GUARD, EDGE WPL W10183566 Contact Us For Availability
NI
Cleaner, Glass WPL W10355051 No Longer Available
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM WPL 7002P42660 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P47160 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
U3, HARNESS (RT) WPL 5171P55060 Contact Us For Availability
NI
COIL,HARNESS (LT) WPL 5171P55760 Contact Us For Availability
NI
Harness,Sensor WPL 5171P56060 Contact Us For Availability
NI
Harness, Top WPL 5171P97460 Contact Us For Availability
NI
Harness, Main WPL 5171P97660 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
× ![]()
