Model Whirlpool GY396LXGQ4 ELECTRIC RANGE – Common Parts & Diagrams
05 - OVEN
01 - COOKTOP, LITERATURE

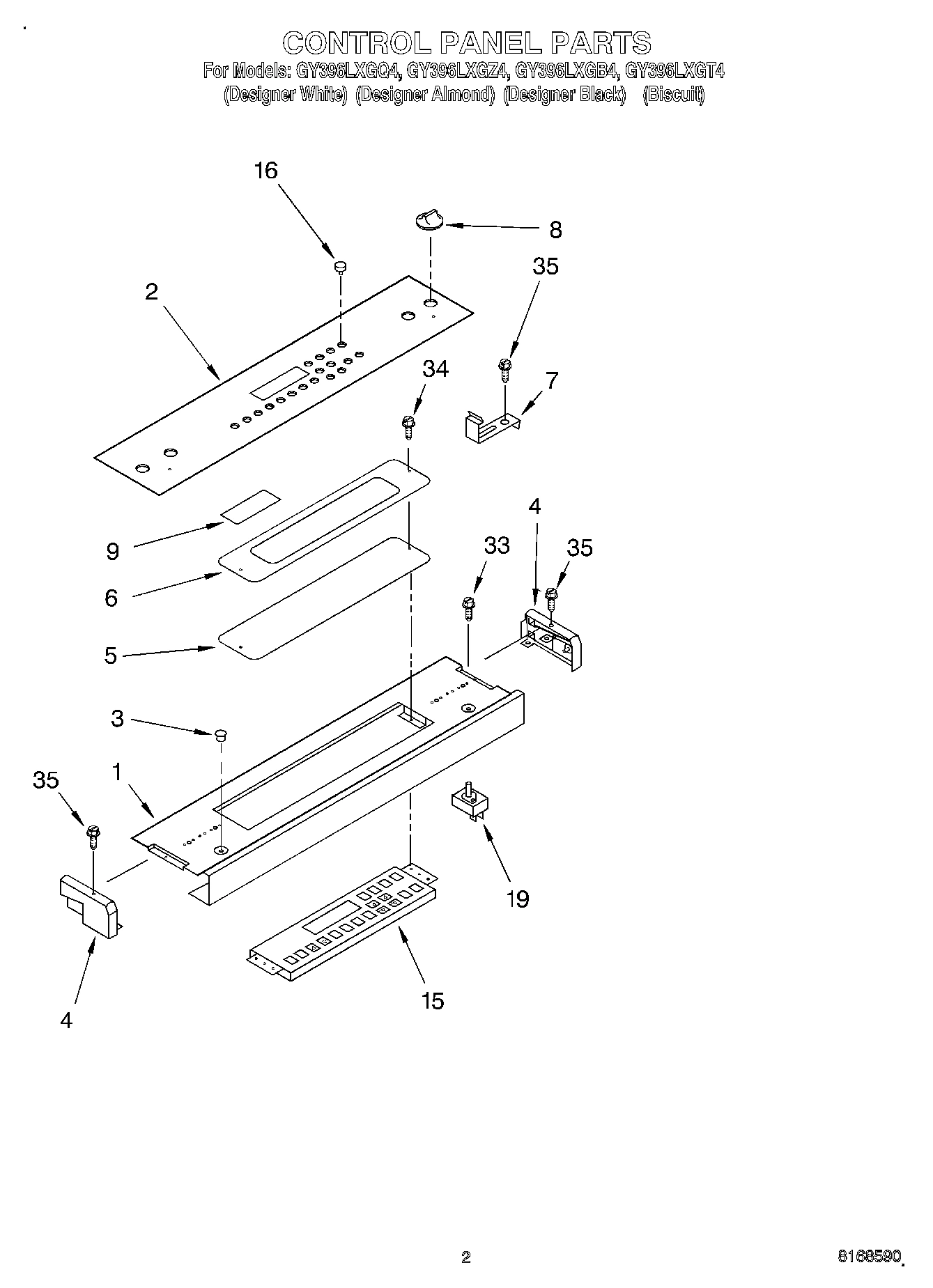

02 - CONTROL PANEL

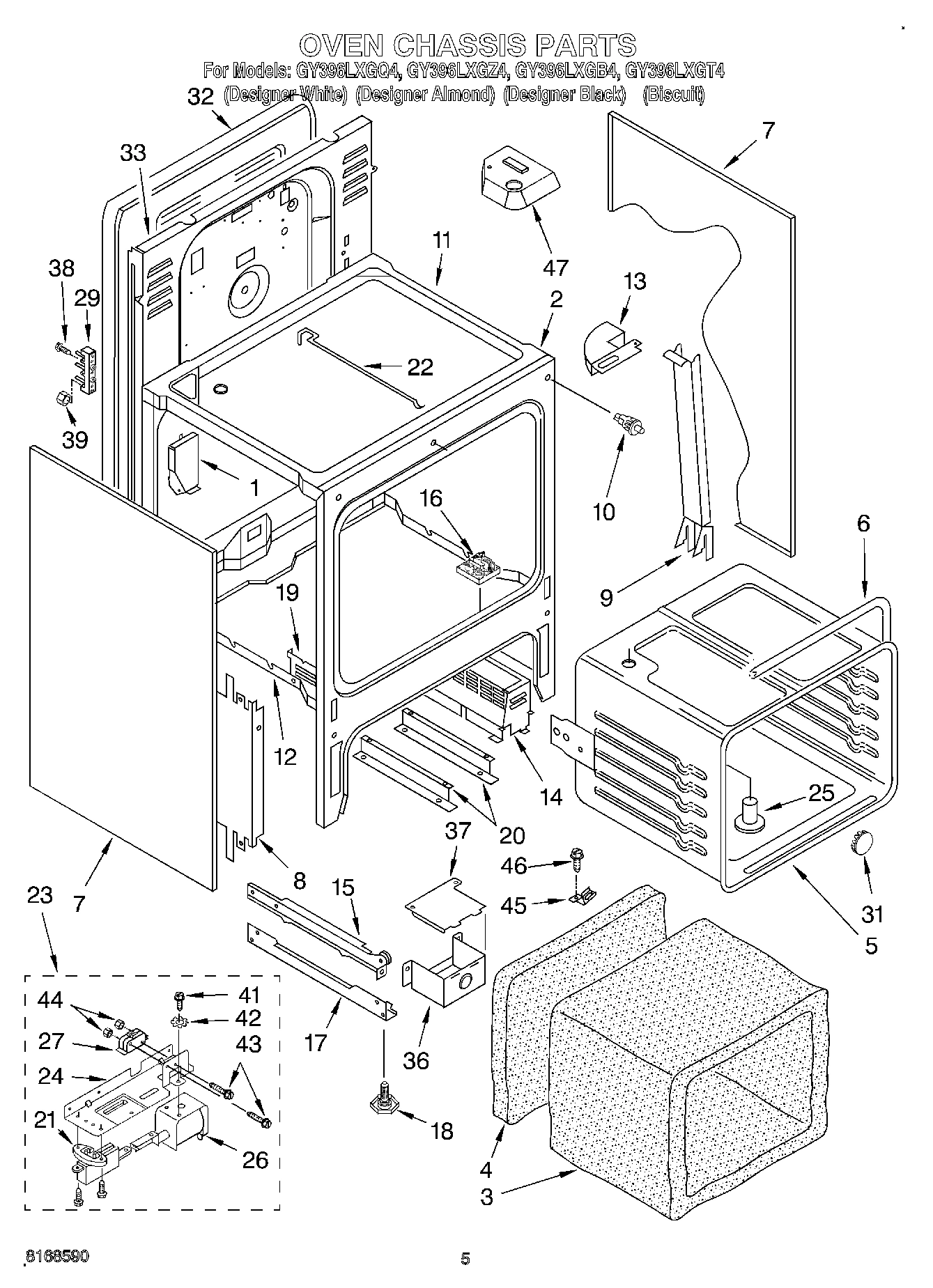

04 - OVEN CHASSIS

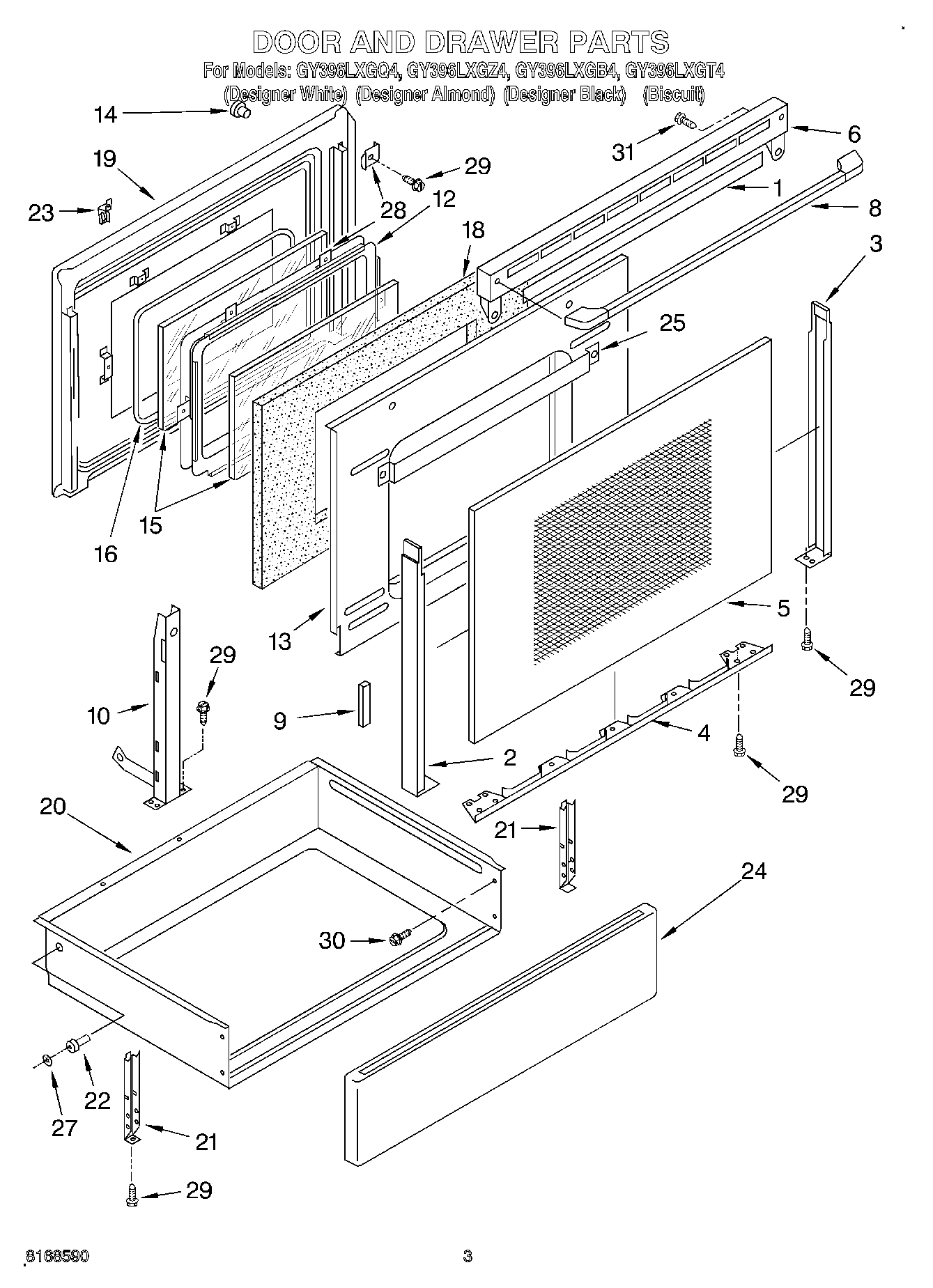

03 - DOOR AND DRAWER
Common parts from model Whirlpool GY396LXGQ4 ELECTRIC RANGE
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9752912 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9752913 Contact Us For Availability
1
Literature Parts (Back Cover Trim Instruction WPL LIT9753268 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9753426 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9753911 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9753914 Contact Us For Availability
1
Panel, Control (Black) WPL 9752897PB Contact Us For Availability
1
Panel, Control (Biscuit) WPL 9752897PC Contact Us For Availability
1
Panel, Control (Almond) WPL 9752897PT Contact Us For Availability
1
Panel, Control (White) WPL 9752897PW Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
1
Gasket, Door Vent WPL 9781659 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Trim, Side (2) WPL 9752890 Contact Us For Availability
2
Glass-Console (Black) WPL 9752899CB Contact Us For Availability
2
Glass-Console (Biscuit) WPL 9752899CC Contact Us For Availability
2
Glass-Console (Almond) WPL 9752899CT Contact Us For Availability
2
Glass-Console (White) WPL 9752899CW Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9782003PT Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
3
Trim, Back WPL 9752889 Contact Us For Availability
3
Lens, Indic. (2) WPL 9780799 Contact Us For Availability
3
Insulation, Wrap WPL 9754000 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9782004PT Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
4
(End Cap Right) (Black) WPL 9781888FB Contact Us For Availability
4
(End Cap Right) (Biscuit) WPL 9781888FC Contact Us For Availability
4
(End Cap Right) (Almond) WPL 9781888FT Contact Us For Availability
4
End Cap Left (Black) WPL 9781889FB Contact Us For Availability
4
End Cap Left (Biscuit) WPL 9781889FC Contact Us For Availability
4
End Cap Left (Almond) WPL 9781889FT Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
5
Gasket, Cover WPL 9753504 Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
5
Glass, Door Front (Black) WPL 9781694PB Contact Us For Availability
5
Glass, Door Front (Biscuit) WPL 9781694PC Contact Us For Availability
5
Glass, Door Front (Almond) WPL 9781694PT Contact Us For Availability
5
Glass, Door Front (White) WPL 9781694PW Contact Us For Availability
6
Sleeve, Vent WPL 9752869 Contact Us For Availability
6
Cover, Control WPL 9752955 Contact Us For Availability
6
Gasket, Oven WPL 3191649 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (Almond) WPL 9753498GT Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
7
Rack, Standard (2) WPL 9750498 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
7
Clip, Glass (2) WPL 9752906 Contact Us For Availability
7
Oven , Side Panel (Black, L or R) WPL 9781907PB Contact Us For Availability
7
Oven , Side Panel (Biscuit, L or R) WPL 9781907PC Contact Us For Availability
7
Oven , Side Panel (Almond, L or R) WPL 9781907PT Contact Us For Availability
7
Oven , Side Panel (White, L or R) WPL 9781907PW Contact Us For Availability
8
Sensor WPL 8053344 Contact Us For Availability
8
Knobs, Control (4) (Black) WPL 9752405FB Contact Us For Availability
8
Knobs, Control (4) (Biscuit) WPL 9752405FC Contact Us For Availability
8
Bracket, Pivot WPL 9751629 Contact Us For Availability
8
Washer, Privot WPL 9752003 Contact Us For Availability
8
Knobs, Control (4) (Almond) WPL 9752405FT Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Handle, Door (Black) WPL 9752701PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9752701PC Contact Us For Availability
8
Handle, Door (Almond) WPL 9752701PT Contact Us For Availability
8
Handle, Door (White) WPL 9752701PW Contact Us For Availability
9
Label-WPSI Control WPL 9753503 Contact Us For Availability
9
Duct, Side Fan WPL 9751789 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Door Switch (Oven Light) WPL 9781580 Contact Us For Availability
10
Hot Light WPL 9781936 Contact Us For Availability
11
Burner Box WPL 9752919 Contact Us For Availability
11
Screw WPL 9780275 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Frame, Glass WPL 9781602 Contact Us For Availability
13
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
13
WPL 9751745 WPL 9751745 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
15
Control, Range WPL 9753633 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Knob, Timer (18) (White) WPL 9781954FW Contact Us For Availability
16
Knob, Timer (18) (Black) WPL 9781954FB Contact Us For Availability
16
Knob, Timer (18) (Biscuit) WPL 9781954FC Contact Us For Availability
16
Cooktop, Ceran (Black) WPL 9752896CB Contact Us For Availability
16
Cooktop, Ceran (Biscuit) WPL 9752896CC Contact Us For Availability
16
Cooktop, Ceran (Almond) WPL 9752896CT Contact Us For Availability
16
Cooktop, Ceran (White) WPL 9752896CW Contact Us For Availability
16
Knob, Timer (18) (Almond) WPL 9781954FT Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
16
Screw WPL 9751808 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
18
Insulation, Door WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Infinite Switch (1700W) WPL 9750644 Contact Us For Availability
19
Receiver, Hinge (R or L) WPL 9750149 Contact Us For Availability
20
Support Rail, Pan (2) WPL 9781904 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Single Position Device (Not Serviced) WPL 9752462 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Rod, Lock WPL 9750523 Contact Us For Availability
23
Oven Lock Assembly WPL 9752404 Contact Us For Availability
23
Retainer, Door WPL 9750676 Contact Us For Availability
24
Bracket, Lock WPL 9750526 Contact Us For Availability
24
Front, Drawer (Black) WPL 9750168PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9750168PC Contact Us For Availability
24
Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
25
Channel, Heat WPL 9750693 Contact Us For Availability
26
Solenoid WPL 9752409 Contact Us For Availability
27
Switch, Interlock WPL 9750965 Contact Us For Availability
28
Spacer, Door WPL 9781502 Contact Us For Availability
30
Screw WPL 9780272 Contact Us For Availability
31
Plug, Button WPL 9780578 Contact Us For Availability
32
Cover, Rear WPL 9751353 Contact Us For Availability
33
Back, Chassis WPL 9751051 Contact Us For Availability
34
Screw WPL 423247 Contact Us For Availability
36
Box, Terminal WPL 9752344 Contact Us For Availability
37
Cover, Terminal Box WPL 9752345 Contact Us For Availability
38
Screw WPL 98884 Contact Us For Availability
41
Screw WPL 422222 Contact Us For Availability
42
Washer WPL 424238 Contact Us For Availability
43
Screw WPL 9750887 Contact Us For Availability
44
Nut WPL 9750888 Contact Us For Availability
45
Clip WPL 313660 Contact Us For Availability
45
Strap, Ground WPL 3169573 Contact Us For Availability
47
Block, Balance WPL 9753413 Contact Us For Availability
× ![]()
