Model Whirlpool GY395LXGQ1 ELECTRIC RANGE – Common Parts & Diagrams

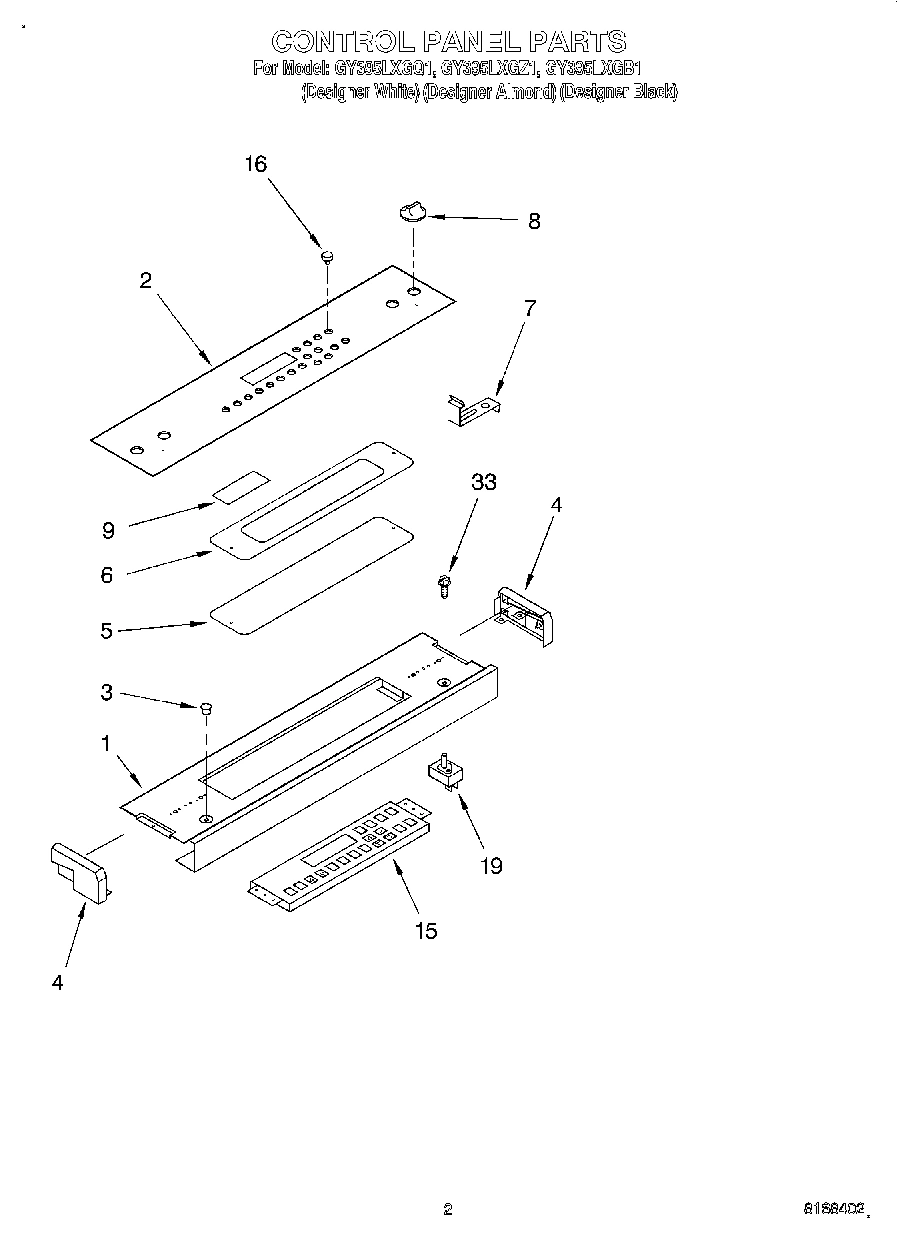

02 - CONTROL PANEL

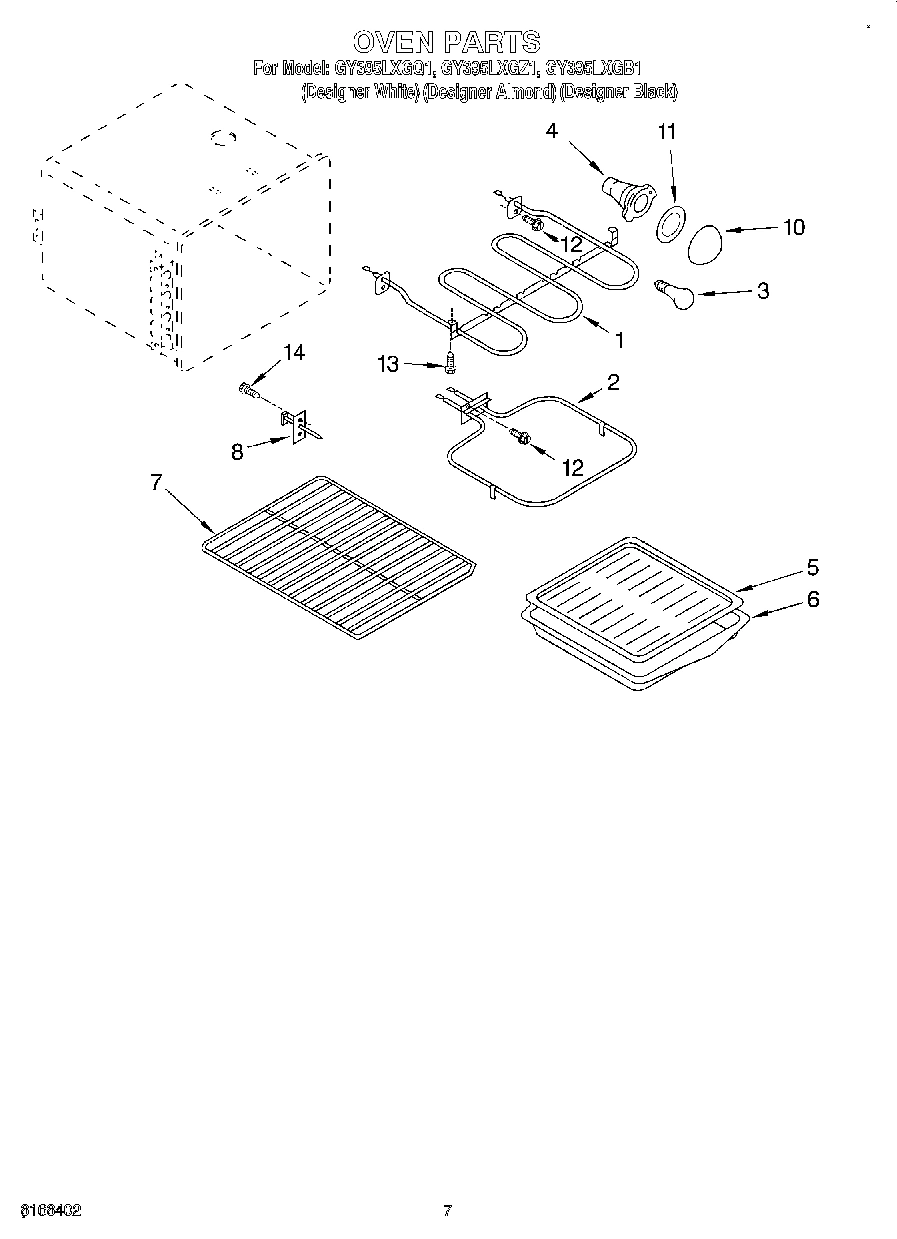

05 - OVEN, LIT/OPTIONAL

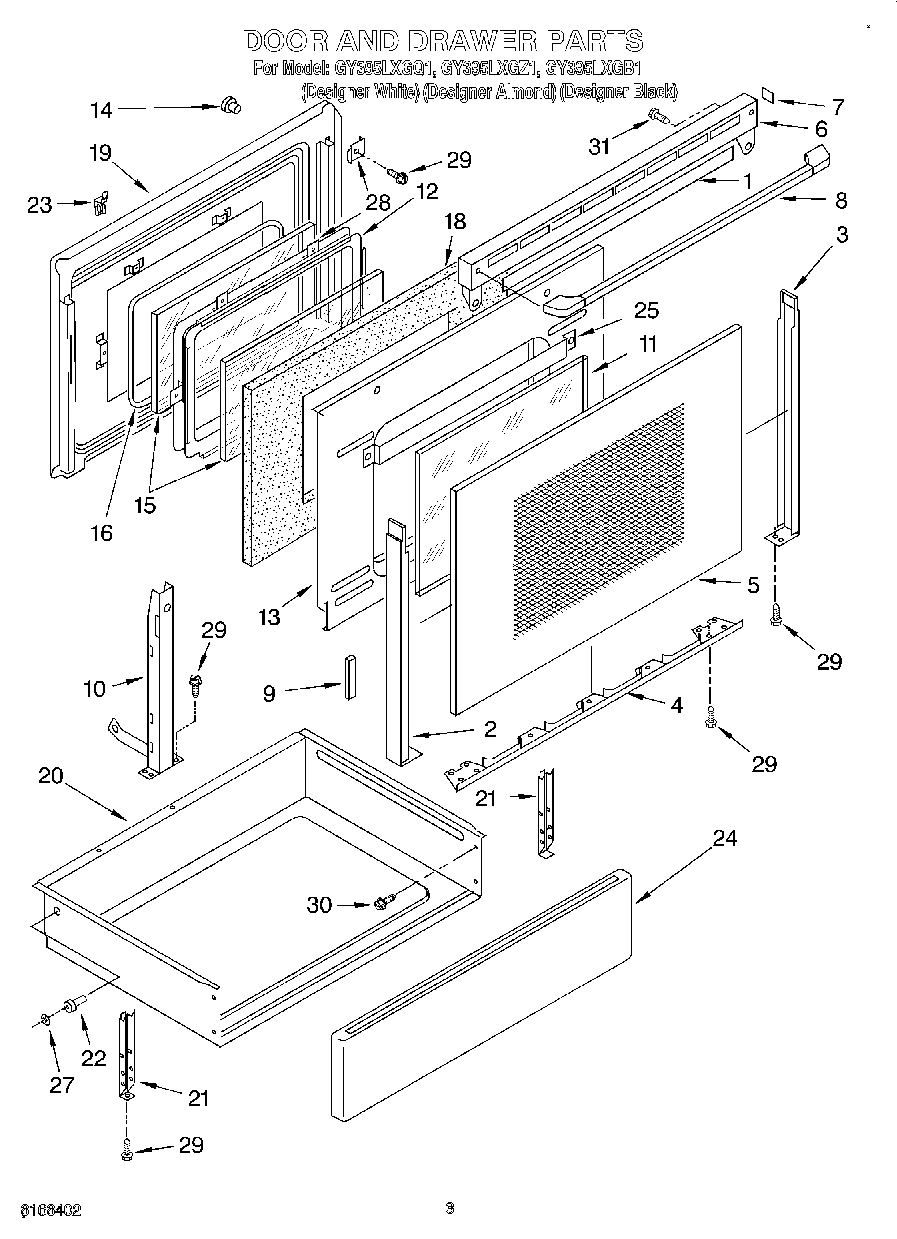

03 - DOOR AND DRAWER

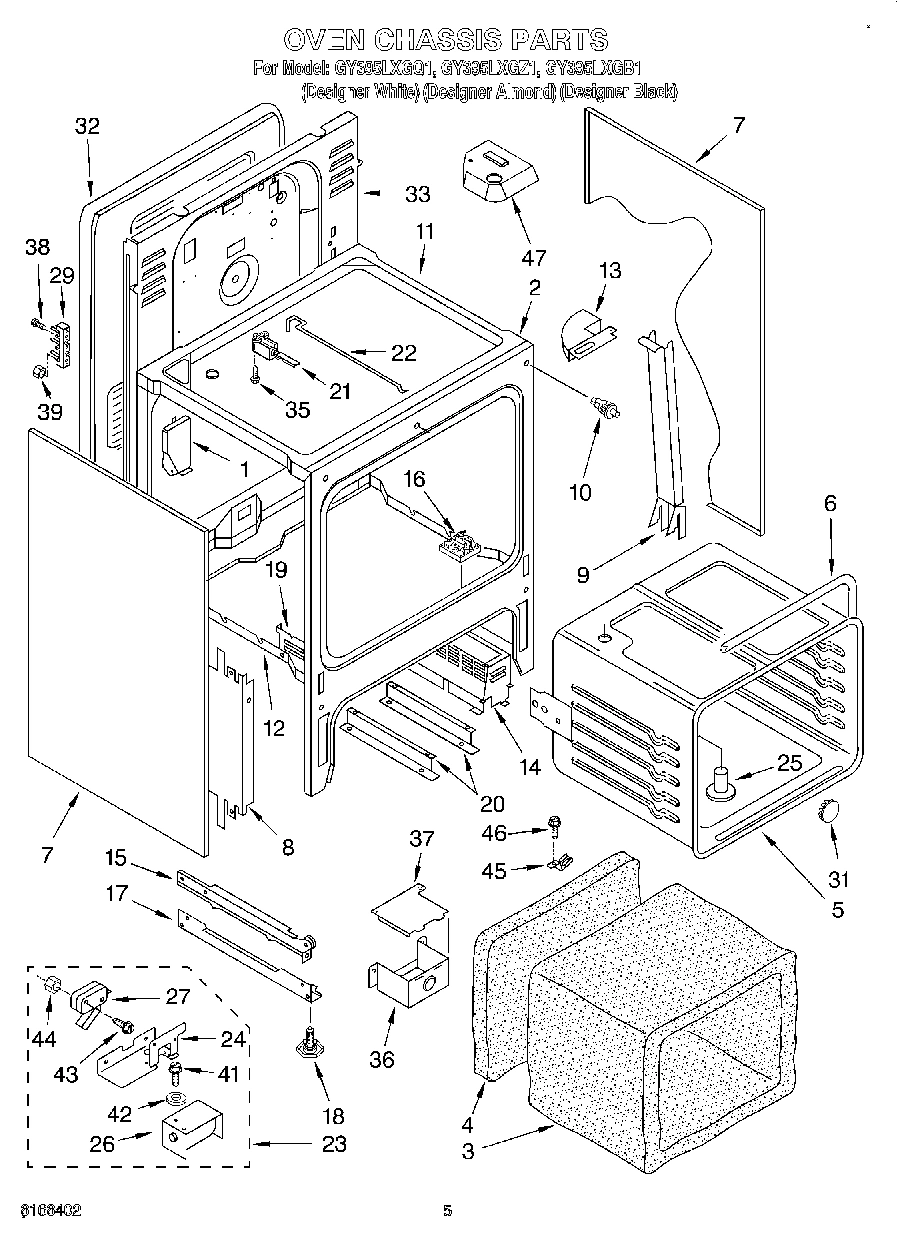

04 - OVEN CHASSIS

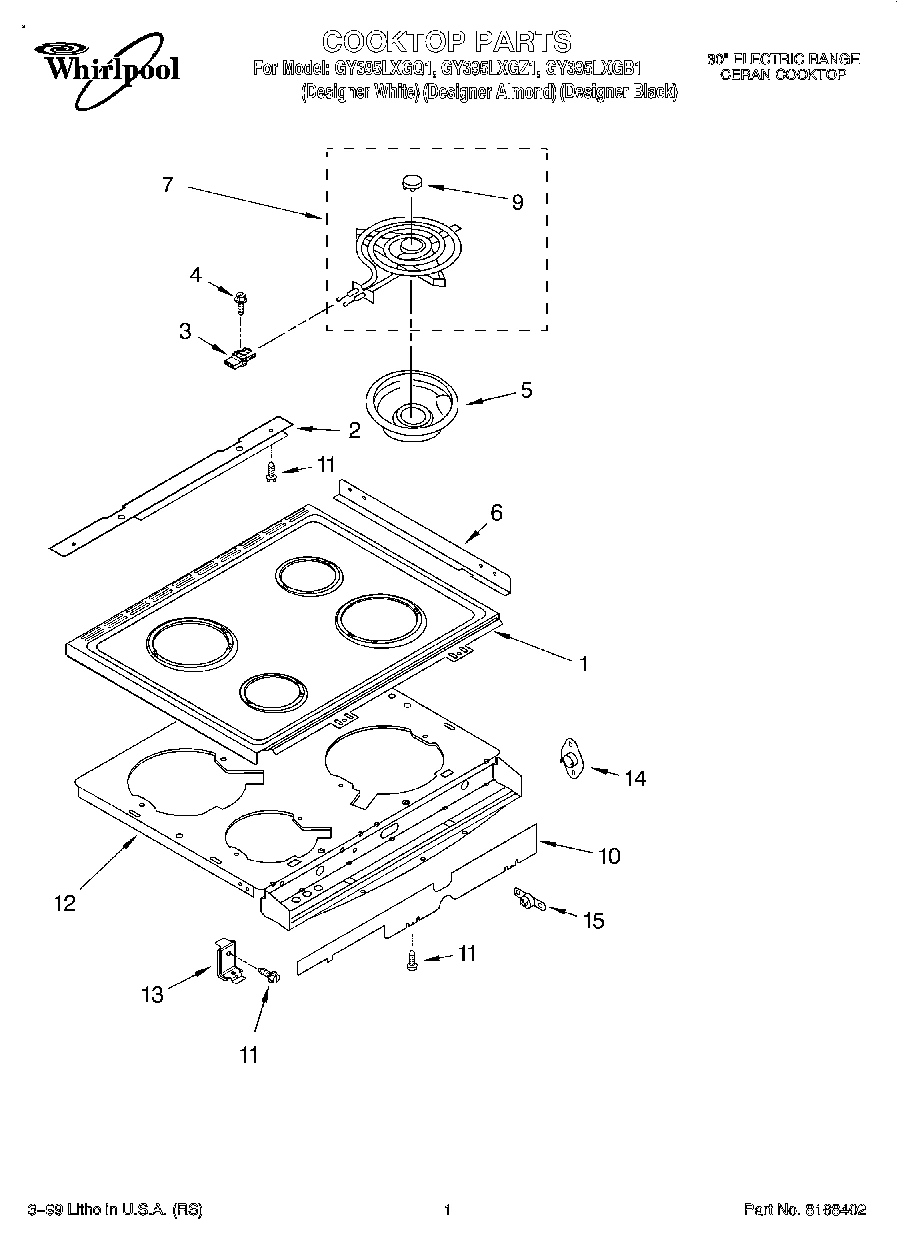

01 - COOKTOP
Common parts from model Whirlpool GY395LXGQ1 ELECTRIC RANGE
WPL 9751745 WPL 9751745 Contact Us For Availability
WPL 9781843 WPL 9781843 Contact Us For Availability
WPL 9781845 WPL 9781845 Contact Us For Availability
WPL LIT3191638 WPL LIT3191638 Contact Us For Availability
WPL LIT9752912 WPL LIT9752912 Contact Us For Availability
WPL LIT9752913 WPL LIT9752913 Contact Us For Availability
WPL LIT9753268 WPL LIT9753268 Contact Us For Availability
WPL LIT9753426 WPL LIT9753426 Contact Us For Availability
WPL LIT9753911 WPL LIT9753911 Contact Us For Availability
WPL LIT9753914 WPL LIT9753914 Contact Us For Availability
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Gasket, Door Vent WPL 9781659 Contact Us For Availability
1
Vent Box, Oven WPL 9752868 Contact Us For Availability
1
Cooktop, Coil (Black) WPL 9752882GB Contact Us For Availability
1
Cooktop, Coil (Almond) WPL 9752882GT Contact Us For Availability
1
Cooktop, Coil (White) WPL 9752882GW Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9750631PB Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability
2
Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Trim, Rear WPL 9752889 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9750632PB Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability
3
Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability
3
Insulation, Wrap WPL 9750222 Contact Us For Availability
3
Receptacle, Element WPL 9781324 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
5
Glass, Door Front (Black) WPL 9781694PB Contact Us For Availability
5
Glass, Door Front (Almond) WPL 9781694PT Contact Us For Availability
5
Glass, Door Front (White) WPL 9781694PW Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Almond) WPL 9753498GT Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Gasket, Oven WPL 3191649 Contact Us For Availability
6
Trim, Side (2) WPL 9752890 Contact Us For Availability
7
Rack, Standard (2) WPL 9750498 Contact Us For Availability
7
Seal, Door WPL 9781490 Contact Us For Availability
7
Oven , Side Panel (Black, L or R) WPL 9750148PB Contact Us For Availability
7
Oven, Side Panel (Almond, L or R) WPL 9750148PT Contact Us For Availability
7
Oven , Side Panel (White, L or R) WPL 9750148PW Contact Us For Availability
7
Element, Surface (Coil, 6`` RR (Accu Simmer)) WPL 9781327 Contact Us For Availability
8
Sensor WPL 8053344 Contact Us For Availability
8
Knobs, Control (4) (Black) WPL 9752405FB Contact Us For Availability
8
Handle, Door (Black) WPL 9752701PB Contact Us For Availability
8
Handle, Door (Almond) WPL 9752701PT Contact Us For Availability
8
Handle, Door (White) WPL 9752701PW Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Duct, Side Fan WPL 9751789 Contact Us For Availability
9
Medallion, (3) WPL 4211952 Contact Us For Availability
9
Medallion, (1) WPL 4211986 Contact Us For Availability
10
Door Switch (Oven Light) WPL 9781580 Contact Us For Availability
10
Shield, Cover WPL 9752884 Contact Us For Availability
11
Baffle, Glass WPL 9781592 Contact Us For Availability
11
Burner Box WPL 9752919 Contact Us For Availability
11
Screw WPL 9780275 Contact Us For Availability
12
Frame, Glass WPL 9781602 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Support, Cooktop WPL 9752883 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Bracket, Pivot WPL 9751629 Contact Us For Availability
14
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
14
WPL 9781509 WPL 9781509 Contact Us For Availability
14
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
14
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
14
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
14
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
14
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
14
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
14
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
14
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
14
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
14
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
14
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
14
Grease WPL 261582 Contact Us For Availability
14
Coffee WPL 261886 Contact Us For Availability
14
New Avocado WPL 261888 Contact Us For Availability
14
Harvest Gold WPL 261890 Contact Us For Availability
14
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
14
Toast WPL 285365 Contact Us For Availability
14
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
14
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
14
Platinum (Uncut) WPL 285368 Contact Us For Availability
14
WPL 72108 WPL 72108 Contact Us For Availability
14
WPL 72112 WPL 72112 Contact Us For Availability
14
WPL 799832 WPL 799832 Contact Us For Availability
14
WPL 978883 WPL 978883 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
15
Thermostat WPL 341196 Contact Us For Availability
15
Control, Range WPL 9753633 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
16
Screw WPL 9751808 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Insulation, Door WPL 9781626 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Screw WPL 9780272 Contact Us For Availability
19
Receiver, Hinge (R or L) WPL 9750149 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Support Rail, Pan (2) WPL 421771 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Single Position Device WPL 9752462 Contact Us For Availability
22
Rod, Lock WPL 9750523 Contact Us For Availability
23
Retainer, Door WPL 9750676 Contact Us For Availability
23
Oven Lock Assembly WPL 9752404 Contact Us For Availability
24
Front, Drawer (Black) WPL 9750168PB Contact Us For Availability
24
Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
24
Bracket, Lock WPL 9750526 Contact Us For Availability
25
Channel, Heat WPL 9750693 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
26
Solenoid WPL 9752409 Contact Us For Availability
27
Switch, Interlock WPL 9750965 Contact Us For Availability
28
Spacer, Door WPL 9781502 Contact Us For Availability
31
Plug, Button WPL 9780578 Contact Us For Availability
32
Cover, Back WPL 9751353 Contact Us For Availability
33
Back, Chassis WPL 9751051 Contact Us For Availability
36
Box, Terminal WPL 9752344 Contact Us For Availability
37
Cover, Terminal Box WPL 9752345 Contact Us For Availability
38
Screw WPL 98884 Contact Us For Availability
41
Screw WPL 422222 Contact Us For Availability
42
Washer WPL 424238 Contact Us For Availability
43
Screw WPL 9750887 Contact Us For Availability
44
Nut WPL 9750888 Contact Us For Availability
45
Clip WPL 313660 Contact Us For Availability
45
Strap, Ground WPL 3169573 Contact Us For Availability
47
Block, Balance WPL 9753413 Contact Us For Availability
× ![]()
