Model LG GWHD5000 – Common Parts & Diagrams

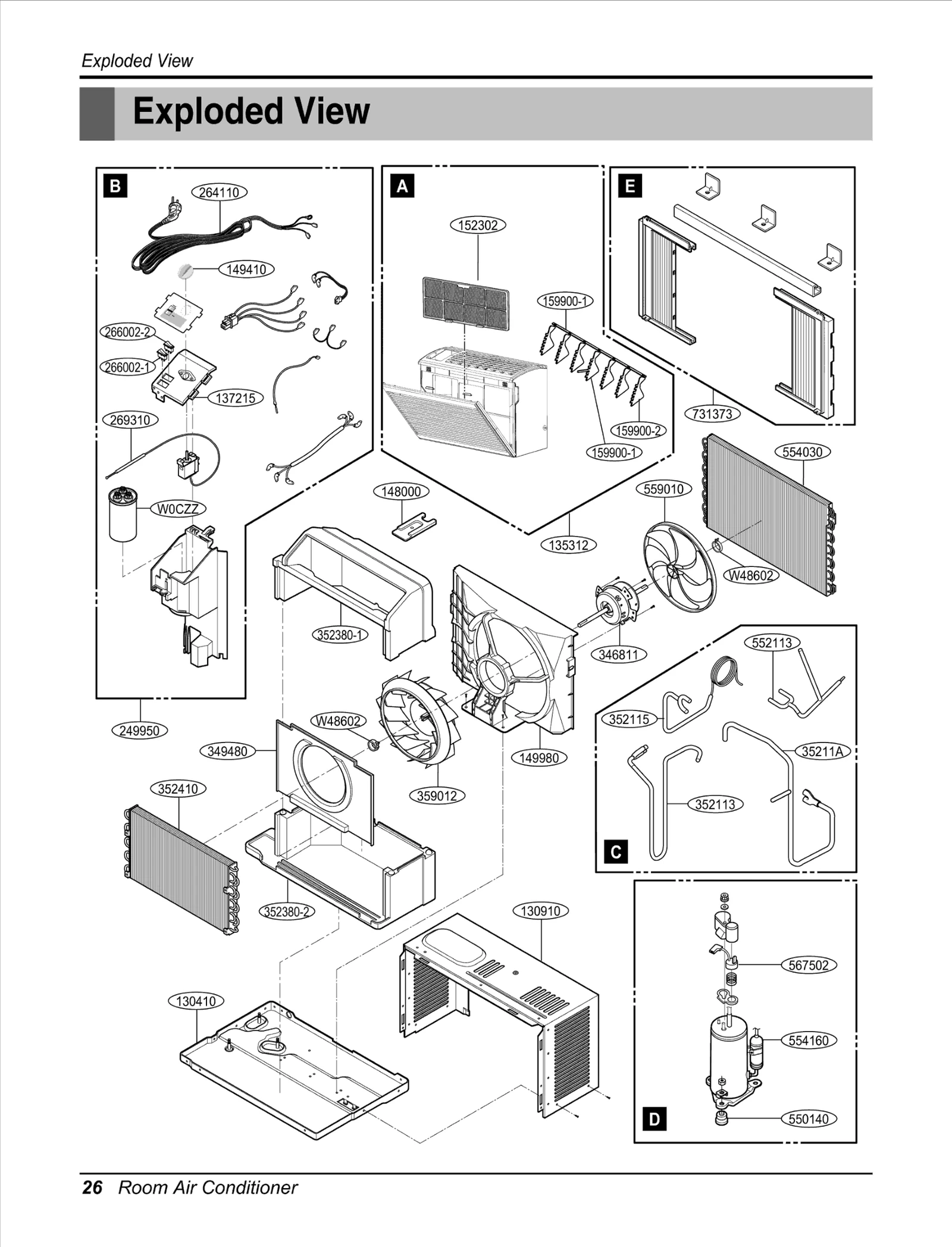

Diagram 0
Diagram 1
Common parts from model LG GWHD5000
130910
Cabinet Assembly,Single LGE 3091A10055B Contact Us For Availability
135312
Grille Assembly,Front LGE 3531A11008D Contact Us For Availability
137215
PANEL,CONTROL LGE 3720A30090A Contact Us For Availability
147582-1
LOUVER,VERTICAL LGE 4758A30041A Contact Us For Availability
149980
SHROUD LGE 4998A10028B Contact Us For Availability
238310
ESCUTCHEON LGE 3831A20085F Contact Us For Availability
249950
Case Assembly,Control LGE 4995A20343T Contact Us For Availability
269310
THERMOSTAT ASSEMBLY LGE 2H01109X Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20116C Contact Us For Availability
352113
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A21305A Contact Us For Availability
352115
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A25019B Contact Us For Availability
352380-1
AIR GUIDE LGE 5238A10026A Contact Us For Availability
352380-2
AIR GUIDE LGE 5238A10025A Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20176B Contact Us For Availability
552113
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A21145A Contact Us For Availability
554030
CONDENSER ASSEMBLY,FIRST LGE 5403A20174A Contact Us For Availability
554160
COMPRESSOR SET,CHINA LGE 2520UCAA011 Contact Us For Availability
567502
O.L.P LGE 6750U-L050A Contact Us For Availability
731273
INSTALL PART ASSEMBLY,SINGLE LGE 3127A20098A Contact Us For Availability
× ![]()
