Model Whirlpool GW399LXUS06 GAS RANGE – Common Parts & Diagrams

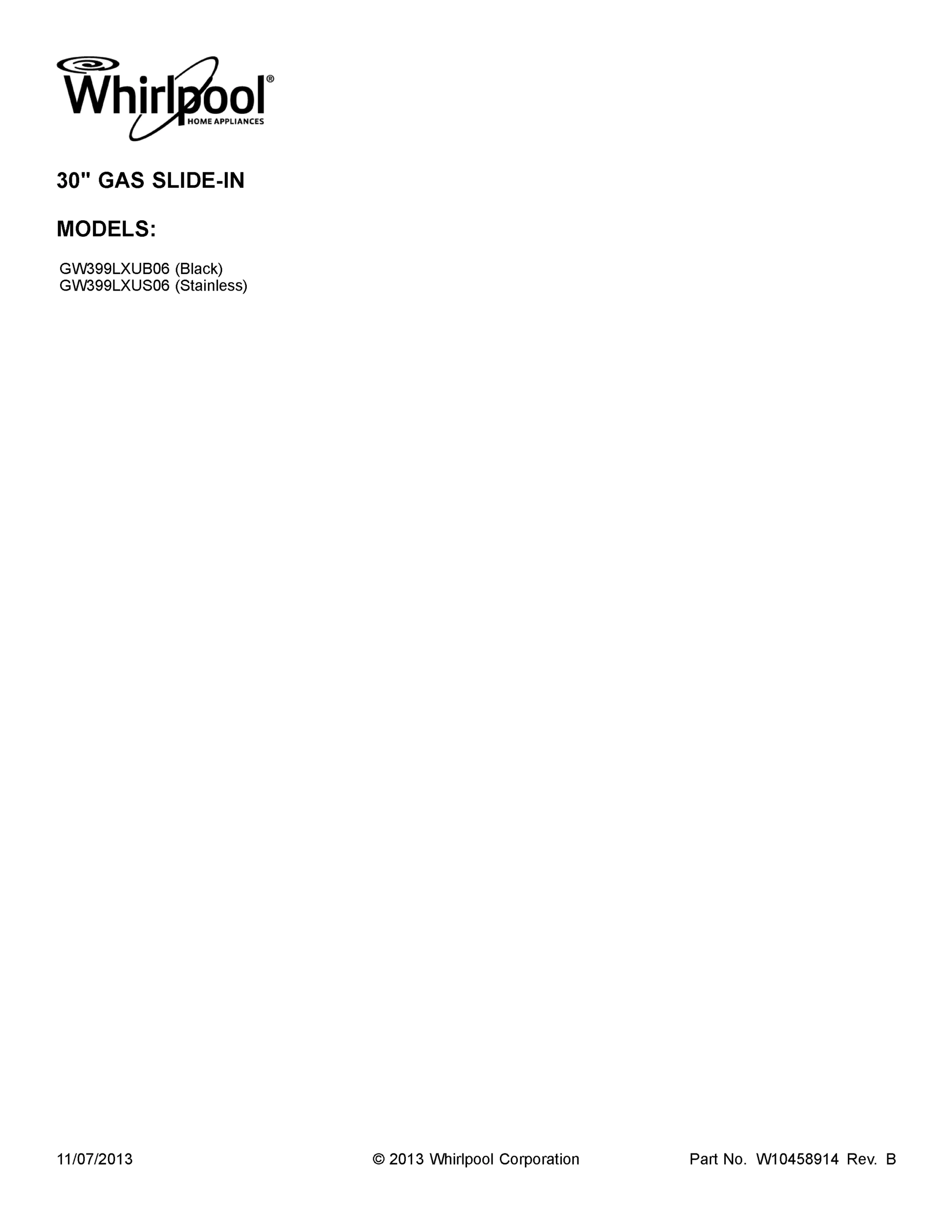

01 - COVER SHEET

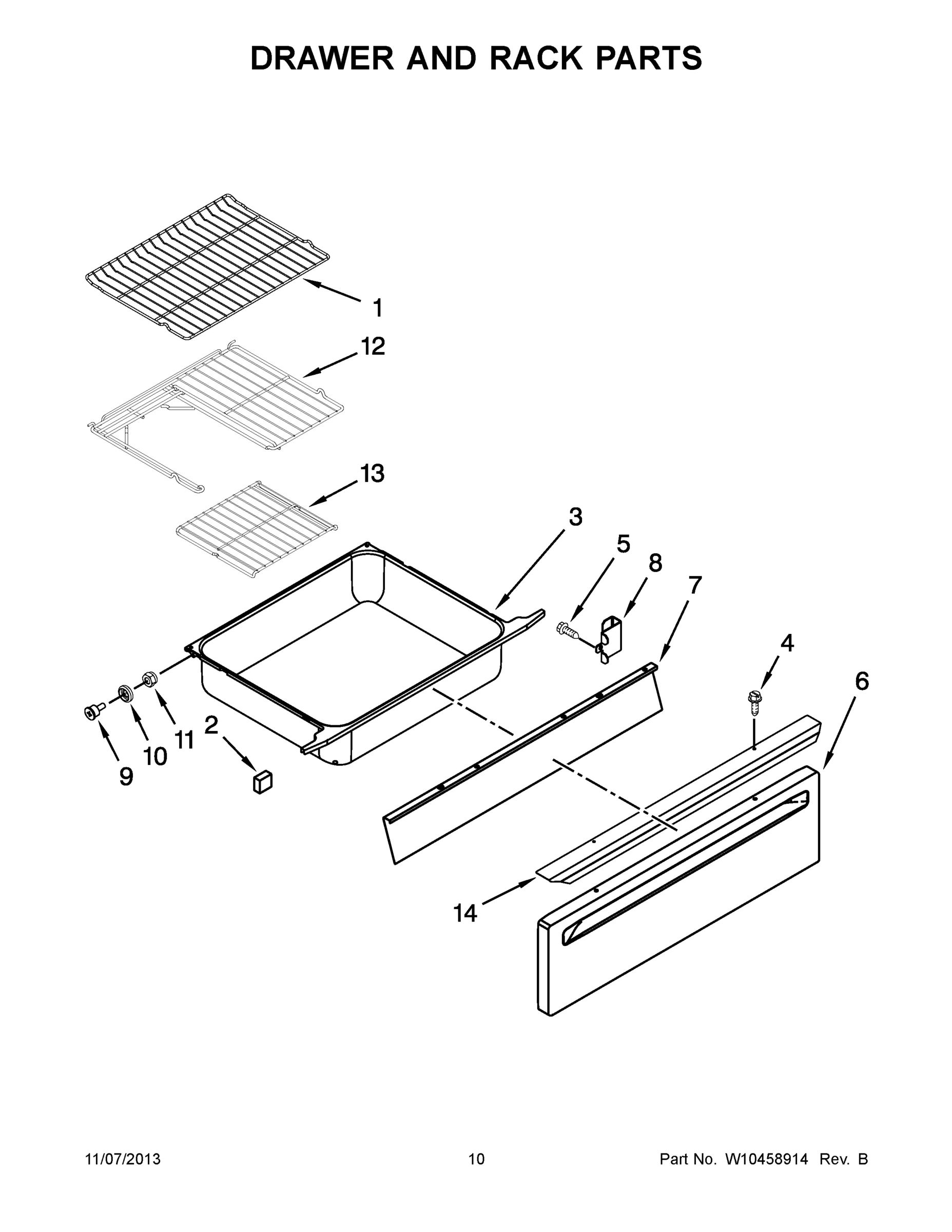

06 - DRAWER AND RACK PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)

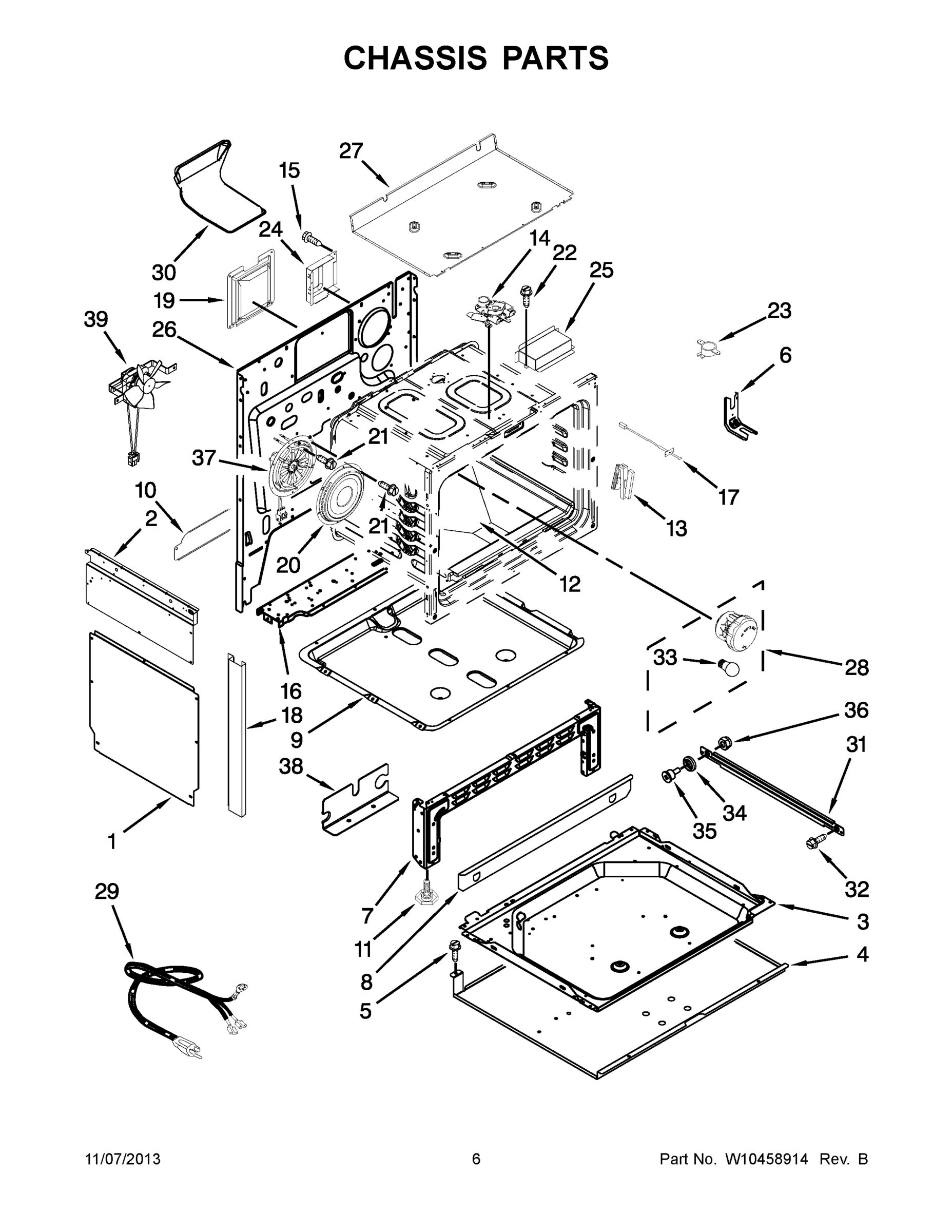

04 - CHASSIS PARTS

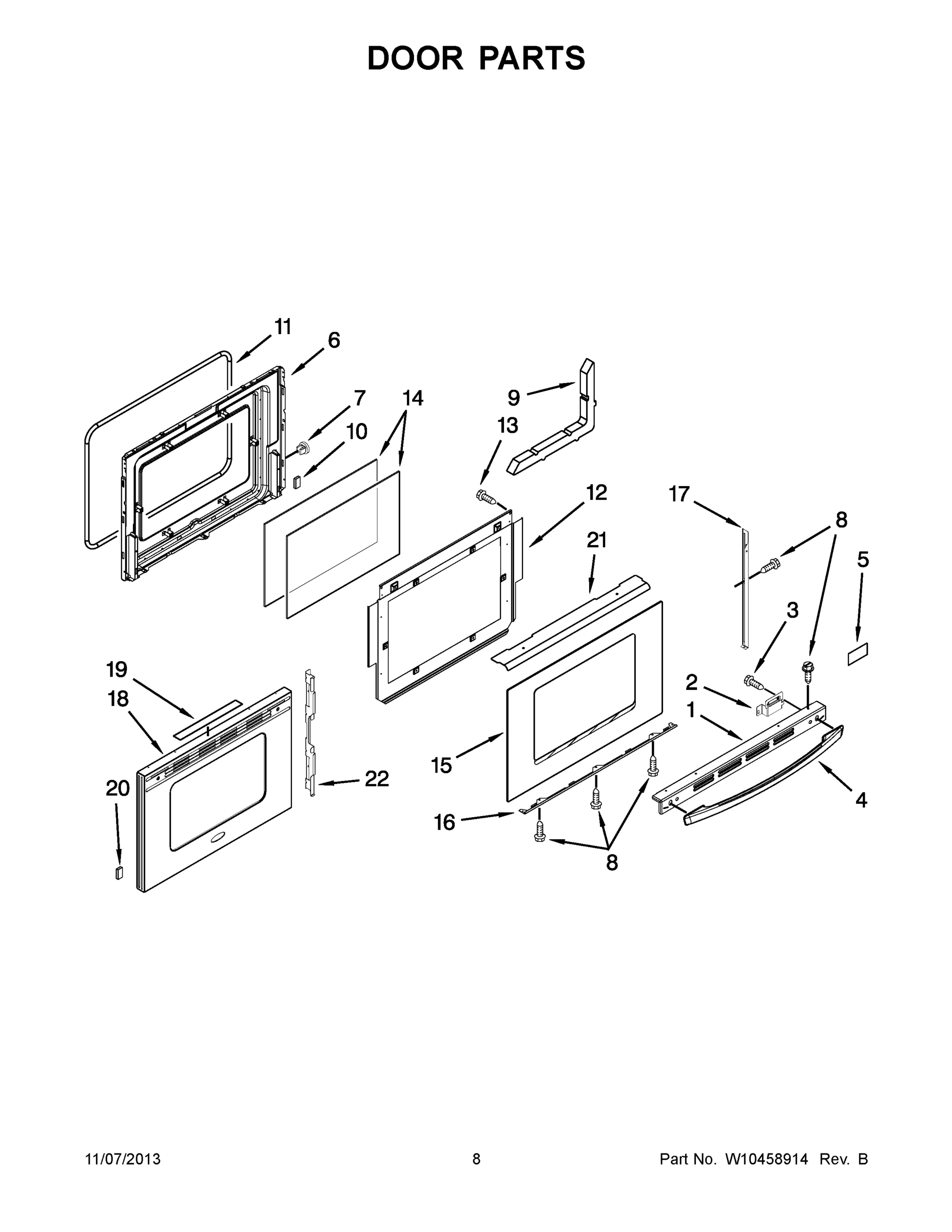

05 - DOOR PARTS

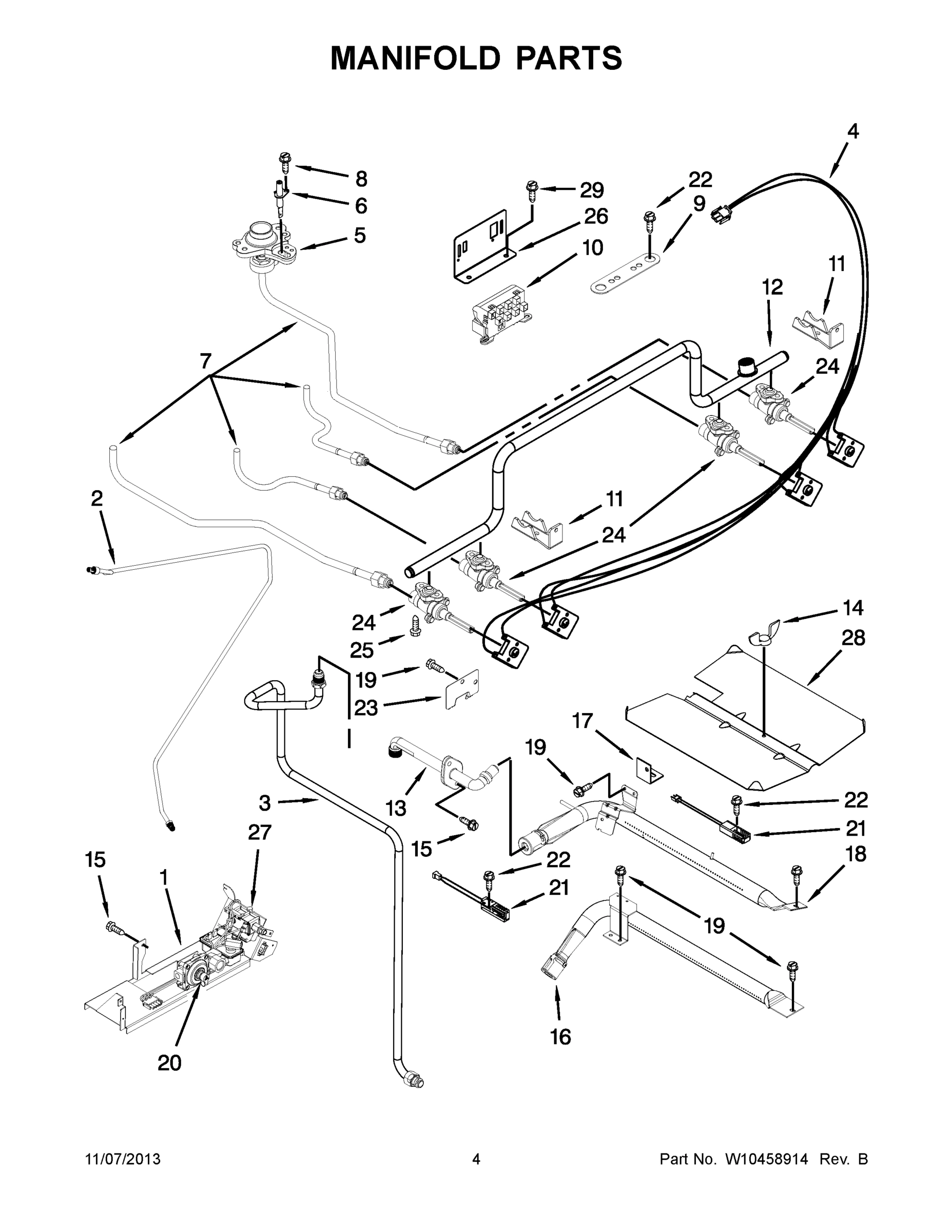

03 - MANIFOLD PARTS

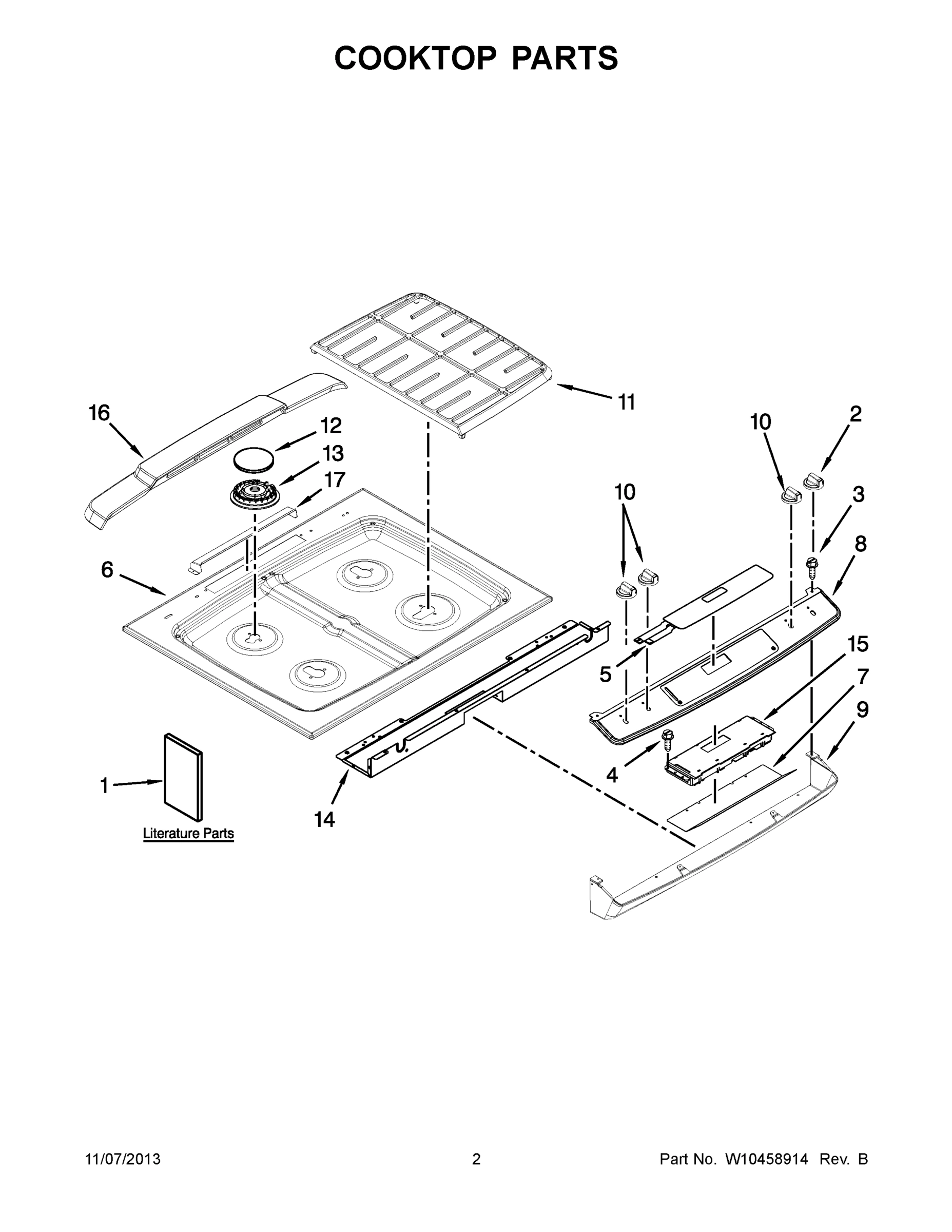

02 - COOKTOP PARTS
Common parts from model Whirlpool GW399LXUS06 GAS RANGE
1
TRIM, TOP (BLACK) WPL 3608F14170 Contact Us For Availability
1
COVER, BURNER VALVE WPL W10271712 Contact Us For Availability
1
GUIDE, USE & CARE WPL 8113P67960 Contact Us For Availability
1
Installation Instructions WPL 8113P68160 Contact Us For Availability
1
TIPS, SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
2
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
2
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
2
Tubing, Gas Supply WPL 7506P53560 Contact Us For Availability
2
KNOB (BLACK) WPL 7733P53260 Contact Us For Availability
3
Screw WPL 7101P37660 Contact Us For Availability
3
Tube, Broil WPL 7506P53660 Contact Us For Availability
3
Screw WPL 7101P50160 Contact Us For Availability
4
Harness, Valve Includes Switches WPL 7450P12860 Contact Us For Availability
4
Screw WPL 7101P07760 Contact Us For Availability
5
HOLDER, ORIFICE (16K) (RIGHT FRONT) WPL 7527P08160 Contact Us For Availability
5
HOLDER, ORIFICE (12K) (LEFT FRONT) WPL 7527P08260 Contact Us For Availability
5
HOLDER, ORIFICE (9.2K) (RIGHT REAR) WPL 7527P08360 Contact Us For Availability
5
HOLDER, ORIFICE (5K) (LEFT REAR) WPL 7527P08460 Contact Us For Availability
6
PANEL, DRAWER FRONT (STAINLESS) WPL W10253205 Contact Us For Availability
6
Lining, Door WPL 2402W31219 Contact Us For Availability
6
TOP (BLACK) WPL W10202563 Contact Us For Availability
7
NUT, SNAP (BLACK) WPL 7103P14160 Contact Us For Availability
7
TUBE, BURNER (RIGHT FRONT) WPL 7506P52160 Contact Us For Availability
7
TUBE, BURNER (LEFT FRONT) WPL 7506P52260 Contact Us For Availability
7
TUBE, BURNER (RIGHT REAR) WPL 7506P52360 Contact Us For Availability
7
TUBE, BURNER (LEFT REAR) WPL 7506P52460 Contact Us For Availability
7
Shield, Control WPL W10166279 Contact Us For Availability
8
PANEL, CONTROL (STAINLESS) WPL W10279069 Contact Us For Availability
8
SCREW WPL 7101P42660 Contact Us For Availability
8
SCREW (STAINLESS) WPL 7101P63860 Contact Us For Availability
8
PANEL, CONTROL (BLACK) WPL 7720P53160 Contact Us For Availability
9
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
9
PANEL, LOWER CONTROL (BLACK) WPL W10185606 Contact Us For Availability
9
INSULATION, OVEN DOOR WPL 7002P24660 Contact Us For Availability
9
RETAINER, BASE WPL W10160530 Contact Us For Availability
10
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
10
MODULE, SPARK WPL 7431P06460 Contact Us For Availability
10
KNOB (BLACK) WPL 7733P52660 Contact Us For Availability
11
BRACKET, MANIFOLD WPL W10160655 Contact Us For Availability
11
GRATE (BLACK) WPL 7518P48560 Contact Us For Availability
12
Bottom, Oven WPL 2205F05419 Contact Us For Availability
12
BAFFLE, OVEN DOOR WINDOW WPL 3601F37351 Contact Us For Availability
12
Pipe, Manifold WPL 7513P53660 Contact Us For Availability
13
HINGE, DOOR WPL 7106P14160 Contact Us For Availability
13
FITTING, BROILER WPL 7507P40760 Contact Us For Availability
14
HANDLE, DRAWER (STAINLESS) WPL W10180296 Contact Us For Availability
14
GLASS, INNER WPL 7902P43660 Contact Us For Availability
14
Nut, Wing WPL 7103P03060 Contact Us For Availability
14
SUPPORT, CONTROL PANEL WPL 3807F76951 Contact Us For Availability
15
SCREW WPL 7101P37560 Contact Us For Availability
15
GLASS, DOOR (BLACK) WPL 7902P81560 Contact Us For Availability
15
Control, (ERC) WPL 8507P39160 Contact Us For Availability
16
SUPPORT, REGULATOR VALVE WPL 3807F64051 Contact Us For Availability
16
SUPPORT, GLASS (BLACK) WPL 3807F70870 Contact Us For Availability
16
Burner, Bake WPL 7505P25460 Contact Us For Availability
16
Cover, Vent (Black) WPL 7724P20160 Contact Us For Availability
17
PROBE, SHORT WPL 7430P04160 Contact Us For Availability
17
TRIM, DOOR SIDE (BLACK (RIGHT HAND)) WPL 3608F11670 Contact Us For Availability
17
TRIM, DOOR SIDE (BLACK (LEFT HAND)) WPL 3608F11770 Contact Us For Availability
17
SUPPORT, BAKE BURNER WPL 3807F48045 Contact Us For Availability
17
Baffle, Vent Cover WPL 3601F22145 Contact Us For Availability
18
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
18
PANEL, OVEN DOOR (STAINLESS) WPL W10494091 Contact Us For Availability
18
BURNER, BROILER WPL 7505P29360 Contact Us For Availability
19
RETAINER, INSULATION WPL 3804F30051 Contact Us For Availability
19
Screw WPL 7101P43460 Contact Us For Availability
19
Insulation, Foil WPL 7002P46360 Contact Us For Availability
20
COVER, CONVECT WPL 3605F32319 Contact Us For Availability
20
CLIP, DOOR GLASS WPL 7112P03460 Contact Us For Availability
20
Valve/Regulator WPL 7510P07960 Contact Us For Availability
21
SHIELD WPL 3604F41851 Contact Us For Availability
21
Ignitor (Bake/Broil) WPL 7432P10660 Contact Us For Availability
22
Retainer, Glass WPL 3804F29345 Contact Us For Availability
22
Screw WPL 7101P28260 Contact Us For Availability
23
Switch, Limit WPL 7450P03060 Contact Us For Availability
23
COVER, IGNITOR WIRE WPL 4005F42145 Contact Us For Availability
24
COVER, BOTTOM WIRE WPL 4005F81051 Contact Us For Availability
25
Cover, Door Lock WPL 4005F75051 Contact Us For Availability
25
Screw WPL 7101P33860 Contact Us For Availability
26
BACK, MAIN WPL 3804F31351 Contact Us For Availability
26
SUPPORT, SPARK MODULE WPL 3807F75245 Contact Us For Availability
27
BOTTOM, BURNER BOX WPL 4011F52851 Contact Us For Availability
27
Valve, Safety WPL 7501P23260 Contact Us For Availability
28
ASSEMBLY, LIGHT WPL 7407P18260 Contact Us For Availability
28
BAFFLE, BAKE BURNER WPL 3601F23945 Contact Us For Availability
28
BAFFLE, BROIL BURNER WPL 3601F30745 Contact Us For Availability
29
Cord, Power WPL 7402P08660 Contact Us For Availability
29
SCREW (BLACK) WPL 7101P63360 Contact Us For Availability
30
VENT, GAS WPL 8026P09560 Contact Us For Availability
31
RUNNER, DRAWER WPL W10182835 Contact Us For Availability
32
SCREW WPL 7101P01760 Contact Us For Availability
33
BULB, LIGHT WPL 7407P10360 Contact Us For Availability
35
Shaft, Roller WPL 7118P03260 Contact Us For Availability
36
Nut, Lock WPL 7103P19060 Contact Us For Availability
37
FAN, CONVECTION WPL W10206590 Contact Us For Availability
38
BRACKET, POWER SUPPLY WPL 3801F95151 Contact Us For Availability
NI
Spuds, LP Gas (Kit of 4) WPL W10168551 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM WPL 7002P44360 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
INSULATION, OVEN WRAP WPL 7002P47160 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
× ![]()
