Model Whirlpool GW399LXUQ07 30`` GAS SLIDE-IN RANGE – Common Parts & Diagrams

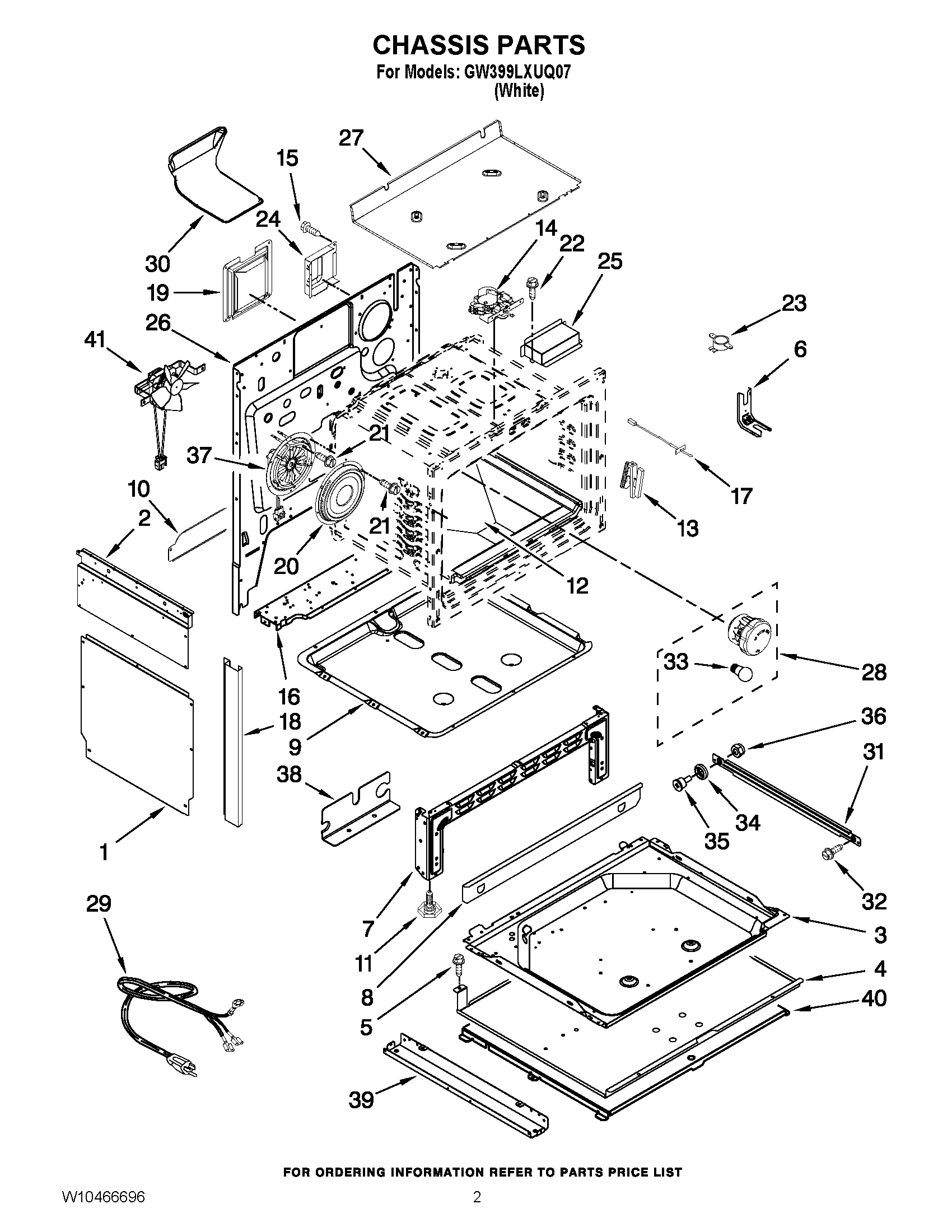

02 - CHASSIS PARTS

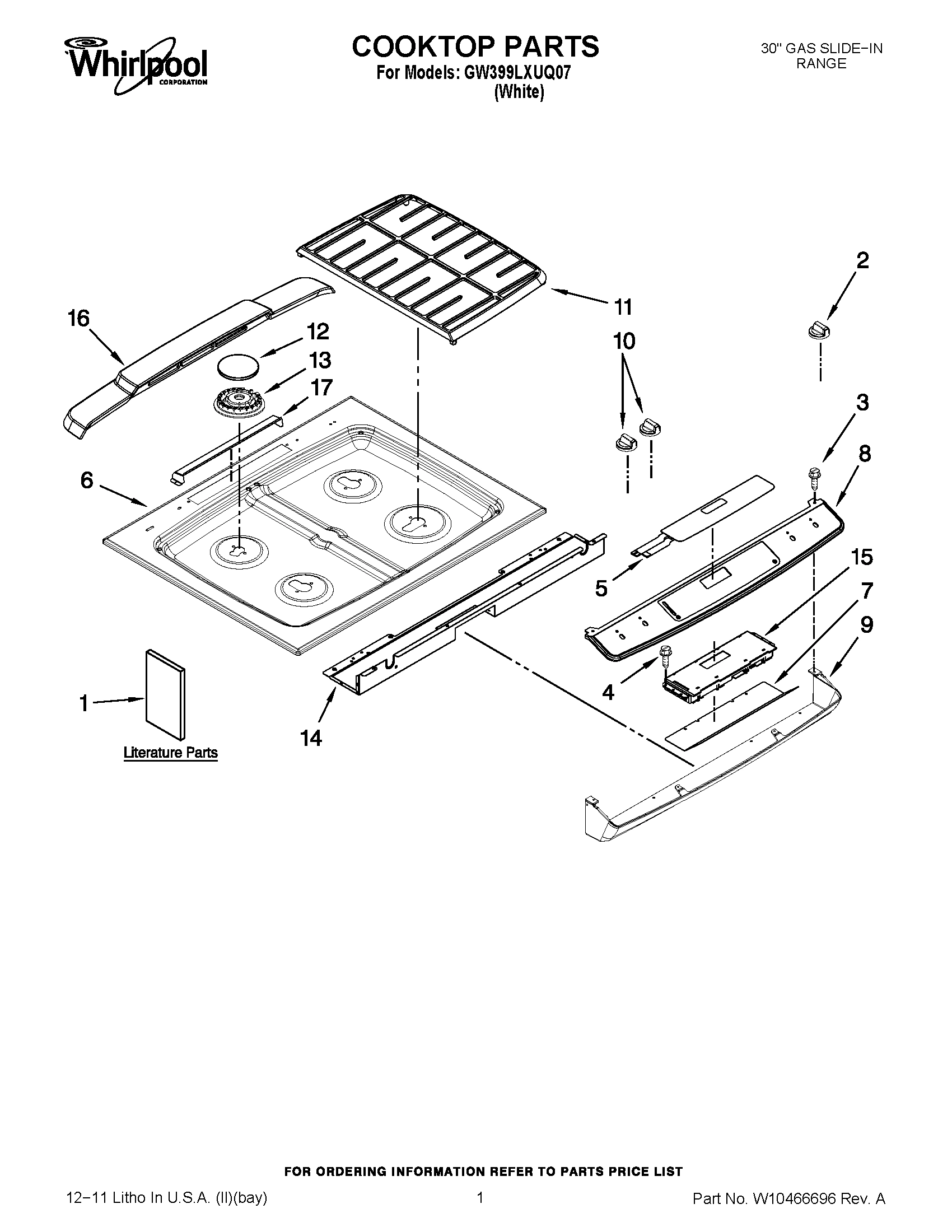

01 - COOKTOP PARTS
04 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
03 - MANIFOLD PARTS
05 - DRAWER AND RACK PARTS
Common parts from model Whirlpool GW399LXUQ07 30`` GAS SLIDE-IN RANGE
1
Owners Manual WPL 8113P67960 Contact Us For Availability
1
Installation Instructions WPL 8113P68160 Contact Us For Availability
1
TIPS, SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
DIAGRAM, WIRING (ENGLISH) WPL W10394682 Contact Us For Availability
1
DIAGRAM, WIRING (FRENCH) WPL W10441603 Contact Us For Availability
1
Trim, Door Top WPL 3608F14171 Contact Us For Availability
1
COVER, BNR VALVE WPL W10271712 Contact Us For Availability
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
2
KNOB, (ACCUSIMMER) WPL 7733P53360 Contact Us For Availability
2
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
2
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
2
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
2
Tubing, Gas Supply WPL 7506P53560 Contact Us For Availability
3
Screw WPL 7101P50160 Contact Us For Availability
3
Screw WPL 7101P37660 Contact Us For Availability
3
Tube, Broil WPL 7506P53660 Contact Us For Availability
3
Drawer, Service WPL 3405F03380 Contact Us For Availability
4
Screw WPL 7101P07760 Contact Us For Availability
4
Screw, Panel WPL 7101P63660 Contact Us For Availability
4
Harness, Valve Includes Switches WPL 7450P12860 Contact Us For Availability
5
NAMEPLATE WPL W10175320 Contact Us For Availability
5
Orifice, Holder (12K,LF) WPL 7527P08260 Contact Us For Availability
5
Screw WPL 7101P07260 Contact Us For Availability
6
COOKTOP WPL W10202564 Contact Us For Availability
6
Liner, Door WPL 2402W31219 Contact Us For Availability
6
Orifice (RF) WPL 7527P08160 Contact Us For Availability
6
Orifice (LF,RR) WPL 7527P08360 Contact Us For Availability
6
Orifice (LR) WPL 7527P08460 Contact Us For Availability
6
PANEL,DRAWER FRNT WPL 2416F05971 Contact Us For Availability
7
Shield, Control WPL W10166279 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
7
Lining, Drawer WPL 2404F03051 Contact Us For Availability
8
PANEL, CONTROL WPL 7720P53260 Contact Us For Availability
8
Bracket, Drawer WPL 3801F88751 Contact Us For Availability
9
PANEL,CONTROL(LWR) WPL W10185607 Contact Us For Availability
9
Insulation, Door WPL 7002P24660 Contact Us For Availability
9
RETAINER, BASE WPL W10160530 Contact Us For Availability
10
Shaft, Roller WPL 7118P03260 Contact Us For Availability
10
KNOB, VALVE WPL 7733P52760 Contact Us For Availability
11
GRATE, BURNER WPL 7518P48660 Contact Us For Availability
11
BRACKET, VALVE WPL W10160655 Contact Us For Availability
11
Nut, Lock WPL 7103P08260 Contact Us For Availability
12
Baffle, Retainer WPL 3601F37351 Contact Us For Availability
12
Pipe, Manifold WPL 7513P53660 Contact Us For Availability
13
Fitting, Broil WPL 7507P40760 Contact Us For Availability
13
INSERT, RACK WPL W10275560 Contact Us For Availability
14
Support, Cntl Pnl WPL 3807F76951 Contact Us For Availability
14
GLASS, INNER CLEAR WPL 7902P43660 Contact Us For Availability
14
Nut, Wing WPL 7103P03060 Contact Us For Availability
15
Control, (ERC) WPL 8507P39160 Contact Us For Availability
15
GLASS, INCLUDES GLASS, TAPE & LOGO WPL 7902P81460 Contact Us For Availability
15
SCREW WPL 7101P50260 Contact Us For Availability
16
Cover, Vent WPL 7724P20260 Contact Us For Availability
16
Trim, Door Bottom WPL 3807F70871 Contact Us For Availability
16
Burner, Bake WPL 7505P25460 Contact Us For Availability
17
Baffle, Vent Cover WPL 3601F22145 Contact Us For Availability
17
Trim, Door Side (Right) WPL 3608F11671 Contact Us For Availability
17
Trim, Door Side (Left) WPL 3608F11771 Contact Us For Availability
17
Support, Bake Bnr WPL 3807F48045 Contact Us For Availability
18
Bracket, Glass WPL 3801F88651 Contact Us For Availability
18
Burner, Broil WPL 7505P29360 Contact Us For Availability
19
SCREW WPL 7101P36060 Contact Us For Availability
20
Valve/Regulator WPL 7510P07960 Contact Us For Availability
21
Ignitor (Bake/Broil) WPL 7432P10660 Contact Us For Availability
22
Screw WPL 7101P28260 Contact Us For Availability
23
Switch, Limit WPL 7450P03060 Contact Us For Availability
23
COVER, IGNITOR WIRE WPL 4005F42145 Contact Us For Availability
24
Cover, Access WPL 4005F81051 Contact Us For Availability
24
VALVE, TOP BURNER (LF, RF, RR) WPL 7502P56660 Contact Us For Availability
25
Cover, Door Lock WPL 4005F75051 Contact Us For Availability
25
SUPPORT, SCREW WPL 7101P33860 Contact Us For Availability
26
Back, Main Gas WPL 3804F31351 Contact Us For Availability
26
Support, Spark Mod WPL 3807F75245 Contact Us For Availability
27
BOTTOM, BURNER BOX WPL 4011F52851 Contact Us For Availability
27
Valve, Safety WPL 7501P23260 Contact Us For Availability
28
Light Assembly WPL 7407P18260 Contact Us For Availability
28
Baffle, Bake (Bake) WPL 3601F23945 Contact Us For Availability
28
Baffle, Bake (Broil) WPL 3601F30745 Contact Us For Availability
29
Cord, Power WPL 7402P08660 Contact Us For Availability
29
SCREW WPL 7101P42660 Contact Us For Availability
30
Box, Assy Vent WPL 8026P09560 Contact Us For Availability
30
Spark Module WPL 7431P06460 Contact Us For Availability
31
RUNNER, DRAWER WPL W10182835 Contact Us For Availability
31
Tube, Burner (RF) WPL 7506P52160 Contact Us For Availability
31
Tube, Burner (LF) WPL 7506P52260 Contact Us For Availability
31
Tube, Burner (RR) WPL 7506P52360 Contact Us For Availability
31
Tube, Burner (LR) WPL 7506P52460 Contact Us For Availability
32
SCREW WPL 7101P01760 Contact Us For Availability
32
PLATE, BROILER FITTING WPL 3605F26945 Contact Us For Availability
33
BULB-OVEN WPL 7407P10360 Contact Us For Availability
34
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
36
Nut, Lock WPL 7103P19060 Contact Us For Availability
37
FAN, CONVECTION WPL W10206590 Contact Us For Availability
38
BRACKET,PWR SUPPLY WPL 3801F95151 Contact Us For Availability
39
Pedestal, Bottom WPL 4020W03580 Contact Us For Availability
40
SHIELD, HEAT POUCH WPL 3604F32751 Contact Us For Availability
NI
Spuds, LP Gas WPL W10168551 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
Insulation, Lower Sides WPL 7002P44360 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P47160 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
NI
HARNESS,SENSOR WPL W10394790 Contact Us For Availability
× ![]()
