Model Whirlpool GW399LXUB06 GAS RANGE – Common Parts & Diagrams
07 - OPTIONAL PARTS (NOT INCLUDED)

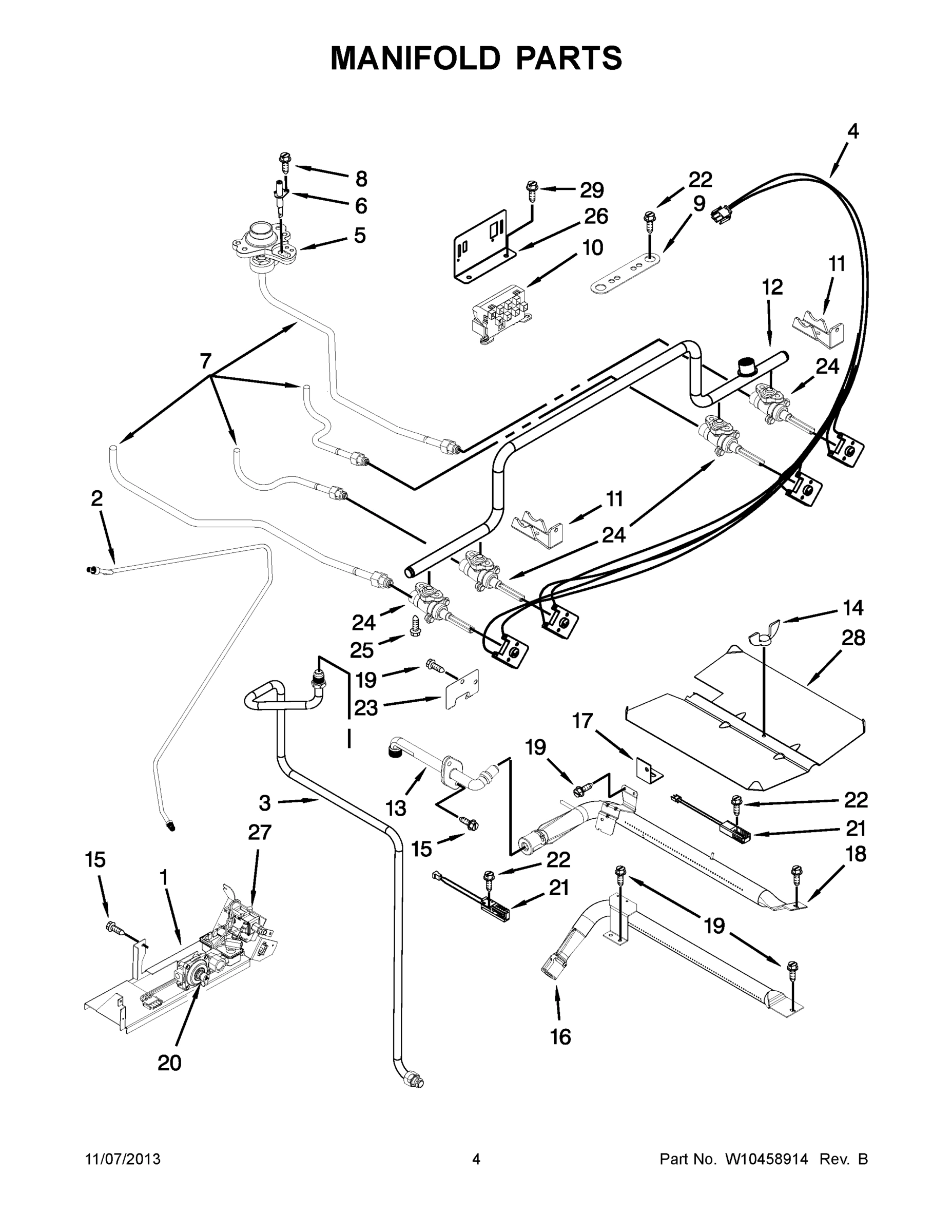

03 - MANIFOLD PARTS
04 - CHASSIS PARTS
02 - COOKTOP PARTS
05 - DOOR PARTS
06 - DRAWER AND RACK PARTS
01 - COVER SHEET
Common parts from model Whirlpool GW399LXUB06 GAS RANGE
1
SHIELD, LOWER WPL 3604F41651 Contact Us For Availability
1
GUIDE, USE & CARE WPL 8113P67960 Contact Us For Availability
1
Installation Instructions WPL 8113P68160 Contact Us For Availability
1
TIPS, SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
TRIM, TOP (BLACK) WPL 3608F14170 Contact Us For Availability
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
2
Panel, Shield (Left) WPL 2618F20151 Contact Us For Availability
2
Panel, Shield (Right) WPL 2618F20651 Contact Us For Availability
2
KNOB (BLACK) WPL 7733P53260 Contact Us For Availability
2
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
2
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
2
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
3
RETAINER, INSULATION WPL 3804F24551 Contact Us For Availability
3
Screw WPL 7101P37660 Contact Us For Availability
3
Screw WPL 7101P50160 Contact Us For Availability
3
Drawer, Storage WPL 3405F03380 Contact Us For Availability
4
SHIELD, WARMING DRAWER WPL 3604F32645 Contact Us For Availability
4
Screw WPL 7101P07760 Contact Us For Availability
4
Screw WPL 7101P63460 Contact Us For Availability
5
SCREW (BLACK) WPL 7101P63360 Contact Us For Availability
6
PANEL, DRAWER FRONT (STAINLESS) WPL W10253205 Contact Us For Availability
6
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
6
TOP (BLACK) WPL W10202563 Contact Us For Availability
6
Lining, Door WPL 2402W31219 Contact Us For Availability
6
Panel, Drawer Front (Black) WPL 2416F05970 Contact Us For Availability
7
PEDESTAL, BASE WPL W10271711 Contact Us For Availability
7
Shield, Control WPL W10166279 Contact Us For Availability
7
NUT, SNAP (BLACK) WPL 7103P14160 Contact Us For Availability
7
LINING, DOOR WPL 2404F03051 Contact Us For Availability
8
PANEL, CONTROL (STAINLESS) WPL W10279069 Contact Us For Availability
8
Baffle, Oven Front WPL 3601F25145 Contact Us For Availability
8
PANEL, CONTROL (BLACK) WPL 7720P53160 Contact Us For Availability
8
SCREW (STAINLESS) WPL 7101P63860 Contact Us For Availability
8
Bracket, Drawer WPL 3801F88751 Contact Us For Availability
9
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
9
PANEL, LOWER CONTROL (BLACK) WPL W10185606 Contact Us For Availability
9
Pan, Burner WPL 3401F04445 Contact Us For Availability
9
INSULATION, OVEN DOOR WPL 7002P24660 Contact Us For Availability
10
EXTENSION, MAIN BACK WPL 3826F06651 Contact Us For Availability
10
Shaft, Roller WPL 7118P03260 Contact Us For Availability
10
KNOB (BLACK) WPL 7733P52660 Contact Us For Availability
11
Leg, Leveling WPL 7101P66060 Contact Us For Availability
11
GRATE (BLACK) WPL 7518P48560 Contact Us For Availability
11
Nut, Lock WPL 7103P08260 Contact Us For Availability
12
Bottom, Oven WPL 2205F05419 Contact Us For Availability
12
BAFFLE, OVEN DOOR WINDOW WPL 3601F37351 Contact Us For Availability
12
RACK, OVEN (HALF) WPL W10273862 Contact Us For Availability
13
HINGE, DOOR WPL 7106P14160 Contact Us For Availability
13
SCREW WPL 7101P42660 Contact Us For Availability
13
INSERT, HALF RACK WPL W10275560 Contact Us For Availability
14
HANDLE, DRAWER (STAINLESS) WPL W10180296 Contact Us For Availability
14
SUPPORT, CONTROL PANEL WPL 3807F76951 Contact Us For Availability
14
GLASS, INNER WPL 7902P43660 Contact Us For Availability
15
SCREW WPL 7101P37560 Contact Us For Availability
15
Control, (ERC) WPL 8507P39160 Contact Us For Availability
15
GLASS, DOOR (BLACK) WPL 7902P81560 Contact Us For Availability
16
SUPPORT, REGULATOR VALVE WPL 3807F64051 Contact Us For Availability
16
Cover, Vent (Black) WPL 7724P20160 Contact Us For Availability
16
SUPPORT, GLASS (BLACK) WPL 3807F70870 Contact Us For Availability
17
PROBE, SHORT WPL 7430P04160 Contact Us For Availability
17
Baffle, Vent Cover WPL 3601F22145 Contact Us For Availability
17
TRIM, DOOR SIDE (BLACK (RIGHT HAND)) WPL 3608F11670 Contact Us For Availability
17
TRIM, DOOR SIDE (BLACK (LEFT HAND)) WPL 3608F11770 Contact Us For Availability
18
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
18
PANEL, OVEN DOOR (STAINLESS) WPL W10494091 Contact Us For Availability
19
RETAINER, INSULATION WPL 3804F30051 Contact Us For Availability
19
Insulation, Foil WPL 7002P46360 Contact Us For Availability
20
Valve/Regulator WPL 7510P07960 Contact Us For Availability
20
COVER, CONVECT WPL 3605F32319 Contact Us For Availability
20
CLIP, DOOR GLASS WPL 7112P03460 Contact Us For Availability
21
Ignitor (Bake/Broil) WPL 7432P10660 Contact Us For Availability
21
Screw WPL 7101P43460 Contact Us For Availability
21
SHIELD WPL 3604F41851 Contact Us For Availability
22
Screw WPL 7101P28260 Contact Us For Availability
22
Retainer, Glass WPL 3804F29345 Contact Us For Availability
23
COVER, IGNITOR WIRE WPL 4005F42145 Contact Us For Availability
23
Switch, Limit WPL 7450P03060 Contact Us For Availability
24
COVER, BOTTOM WIRE WPL 4005F81051 Contact Us For Availability
25
Screw WPL 7101P33860 Contact Us For Availability
25
Cover, Door Lock WPL 4005F75051 Contact Us For Availability
26
SUPPORT, SPARK MODULE WPL 3807F75245 Contact Us For Availability
26
BACK, MAIN WPL 3804F31351 Contact Us For Availability
27
Valve, Safety WPL 7501P23260 Contact Us For Availability
27
BOTTOM, BURNER BOX WPL 4011F52851 Contact Us For Availability
28
BAFFLE, BAKE BURNER WPL 3601F23945 Contact Us For Availability
28
BAFFLE, BROIL BURNER WPL 3601F30745 Contact Us For Availability
28
ASSEMBLY, LIGHT WPL 7407P18260 Contact Us For Availability
29
Cord, Power WPL 7402P08660 Contact Us For Availability
30
VENT, GAS WPL 8026P09560 Contact Us For Availability
31
RUNNER, DRAWER WPL W10182835 Contact Us For Availability
32
SCREW WPL 7101P01760 Contact Us For Availability
33
BULB, LIGHT WPL 7407P10360 Contact Us For Availability
36
Nut, Lock WPL 7103P19060 Contact Us For Availability
37
FAN, CONVECTION WPL W10206590 Contact Us For Availability
38
BRACKET, POWER SUPPLY WPL 3801F95151 Contact Us For Availability
NI
Spuds, LP Gas (Kit of 4) WPL W10168551 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
NI
INSULATION, OVEN BOTTOM WPL 7002P44360 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
INSULATION, OVEN WRAP WPL 7002P47160 Contact Us For Availability
× ![]()
